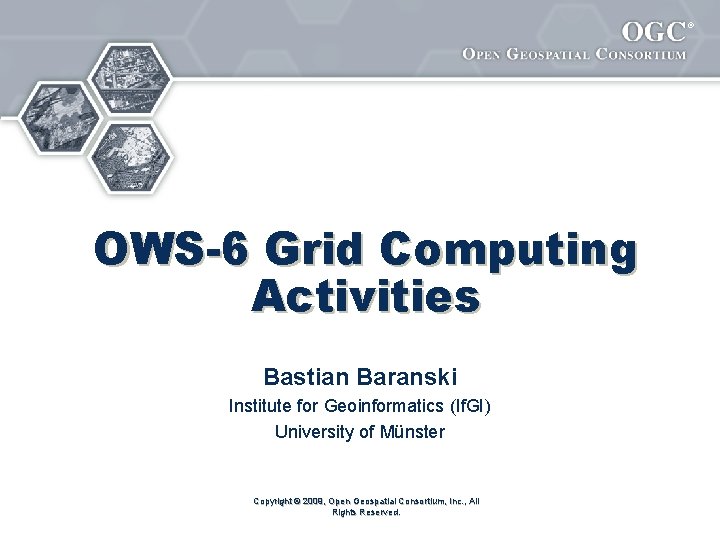

OWS6 Grid Computing Activities Bastian Baranski Institute for

Agenda • Introduction – Open Geospatial Consortium (OGC) – OGC Web Processing Service (WPS) – Memorandum of Understanding (Mo. U) • OWS-6 Grid Computing Activities – OGC Web Services, Phase 6 (OWS-6) – Geo Processing Workflow (GPW) – Airport Scenario – Debris Flow Scenario • Outlook OGC ®

Introduction OGC ®

Open Geospatial Consortium (OGC) • Open Geospatial Consortium (OGC) – Founded in 1994, OGC is a non-profit, international, voluntary consensus standards organization that is leading the development of standards for geospatial and location based services – “Helping the World to Communicate Geographically” • ~80% of all data collected or produced by humans is geospatially referenced – Consortium of 376 companies, government agencies and universities Africa (1) Middle East (4) Asia Pacific (43) North America (159) Europe (168) South America (1) – Works with other standards bodies including ISO, W 3 C, OASIS, IETF, etc. • A few current OGC standards – – Web Map Server (WMS) Web Feature Server (WFS) Catalog Service for Web (CSW) Web Processing Service (WPS) OGC ®

OGC Web Processing Service (WPS) Data OGC ® WPS Information

OGC Web Processing Service (WPS) • • • OGC Web Processing Service (WPS) Version 1. 0. 0 (2007) interface to publish and perform processes over the web synchronous and asynchronous execution wrapped XML payload and raw data payload referencing data (HTTP-GET & HTTP-POST) OGC ®

OGC Web Processing Service (WPS) OGC ®

OGC Web Processing Service (WPS) WPS Buffer Process 20 Process OGC ®

Memorandum of Understanding (Mo. U) OGC and OGF signed a formal Memorandum of Understanding that defines particular areas for collaboration (2007). • Potential joint projects – Integrate OGC WPS with a range of "back-end" processing environments to enable large-scale processing – Integration of WPS with workflow management tools – Integration of OGC Federated Catalogues with grid data movement tools – WPS is just a starting point for the collaboration • A few collaboration activities – – – The OGC-OGF Collaboration Workshop, OGF-22 (02 -2008) OGC-OGF Grid Ad Hoc, OGC Meeting (06 -2008) The OGC-OGF Collaboration Workshop, OGF-23 (06 -2008) OGC Web Services, Phase 6 (OWS-6) Interoperability Initiative OGC-OGF Collaboration Workshop Ad-hoc, OGC Meeting (12 -2008) Grid Computing & Geospatial Technologies, OGF-25 (03 -2009) OGC ®

OGC Web Services, Phase 6 (OWS-6) OGC ®

OGC Web Services, Phase 6 (OWS-6) • OGC Web Services, Phase 6 (OWS-6) – A global, hands-on and collaborative prototyping program designed to rapidly develop, test and deliver proven candidate specifications – Overall schedule of events and milestones • • • 07 -21 -2008, The Request for Quotation / Call for Participation was released 10 -14 -2008, OWS-6 Kickoff at George Mason University, Fairfax 12 -12 -2008, Interim Milestone: Draft Engineering Reports 01 -16 -2009, Draft component implementations 03 -13 -2009, Final component implementations 04 -17 -2009, Final drafts of all Engineering Reports and Change Requests – Organized around the following threads • • • Sensor Web Enablement (SWE) Geo Processing Workflow (GPW) Aeronautical Information Management (AIM) Decision Support Services (DSS) Compliance Testing (CITE) OGC ®

OWS-6, Geo Processing Workflow (GPW) • Main topics in the OWS-6 GPW thread – Web Services Security and Asynchronous Workflow – Operational Security Environments – Web Services Security Environments and Solutions – Asynchronous Workflows Within and Across Security Domains – Open Grid Forum (OGF) Enabled Web Processing Services (WPS) – Web Processing Service (WPS) Grid Processing Profiles – GML Application Schema Development – GML Shape. Change Enhancements – Data Accessibility for DCS-enabled WFS OGC ®

OWS-6, Geo Processing Workflow (GPW) • OGF Enabled WPS (Implementation) – WPS should be able to benefit from and integrate with distributed computing resources and technologies – Two potential ways to make use of OGF specifications, concepts and their implementations where identified • encapsulating other resources • integration alongside other services OGC ®

OWS-6, Geo Processing Workflow (GPW) OGC ®

OWS-6, Geo Processing Workflow (GPW) • WPS Grid Processing Profile(s) (Specification) – Investigate, define and implement a WPS Grid Processing Profile which is integrated with a grid computing infrastructure using • • • High Performance Computing (HPC) Basic Profile (HPC-BP) Simple API for Grid Applications (SAGA) Data Access and Integration set of specifications (WS-DAI-*) Web Services Resource Framework (WSRF) (…) OGC ®

OWS-6 GPW, Deliverables • Implementations – Airport Scenario • Trajectory Service (WPS JSDL Profile) – Science and Technology Facilities Council (STFC), UK • Plume Rendering Service (WPS JSDL Profile) – Institute for Geoinformatics (If. GI), University of Münster, Germany – Debris Flow Scenario • Rainfall Data Interpolation (WPS HPC Basic Profile) – Institute for Geoinformatics (If. GI), University of Münster, Germany – Geographic Information Systems (GIS) Research Center, Feng Chia University (FCU), Taiwan • Geophone Data Analysis (WPS HPC Basic Profile) – Institute for Geoinformatics (If. GI), University of Münster, Germany – Geographic Information Systems (GIS) Research Center, Feng Chia University (FCU), Taiwan • Engineering Report – Institute for Geoinformatics (If. GI), University of Münster, Germany OGC ®

OWS-6 GPW, Airport Scenario • WPS JSDL Profile – Science and Technology Facilities Council (STFC), UK – WPS as interface to Grid Computing resources – passed-through’ by WPS from user to Grid environment (“Full”) – generated by WPS on basis of resource/staging parameters (“Lite”) http: //foo. bar. 1/wps? version=1. 0. 0&request=Execute&service=WPS &Identifier=Weather. Generator &Data. Input=JSDL=http: //www. domain. com/jsdl. xml Full @Format=text/xml@Encoding=utf-8 @Schema=http: //www. domain. com/jsdl. xsd &store. Execute. Response=true&status=true http: //foo. bar. 1/wps? version=1. 0. 0&request=Execute&service=WPS &Identifier=Weather. Generator &Data. Input=other_inputs=xxx; JSDL=[Total. Disk. Space=5@uom=GB; Total. CPUCount=1; Data. Staging=target@url=ftp: //domain. com/file] &store. Execute. Repose=true&status=true OGC ® Lite

OWS-6 GPW, Airport Scenario • WPS JSDL Profile – Trajectory Service (WPS) • uses atmospheric model forecast to trace particle trajectories • provides advection of particles, but not dispersion – Deployment on UK National Grid Service – Use Grid. SAM as NGS JSDL interface – My. Proxy for authentication, no sophisticated authorisation • standardised username / password parameters to WPS – Configuration file for • mapping WPS ‘Process’ to NGS executable • (…) OGC ®

OWS-6 GPW, Debris Flow Scenario • Debris Flow Scenario – Participants • Geographic Information Systems (GIS) Research Center, Feng Chia University (FCU), Taiwan • Institute for Geoinformatics (If. GI), University of Münster, Germany • 52° North Initiative for Geospatial Open Source Software Gmb. H, Münster, Germany – Scenario • A Debris flow is a fast moving mass of unconsolidated, saturated debris that looks like flowing concrete • Based on existing Debris Flow monitoring system (proprietary and monolithic software infrastructure) in Taiwan (running since 2003) • Develop and implement open standards (OGC-) based service oriented architecture (SOA) for Debris Flow monitoring OGC ®

OWS-6 GPW, Debris Flow Scenario OGC ®

OWS-6 GPW, Debris Flow Scenario • Geophone Sensor (Example) – 500 Hz sampling rate = 500 records / sec / sensor – 1. 2 MB / min / sensor = 1. 7 GB / day / sensor – 3 sensors per station, 15 stations – 1. 7 GB * 3 * 15 = 76. 5 GB / day – Wavelet Transform Algorithm – ~2 hour calculation time OGC ®

OWS-6 GPW, Debris Flow Scenario OGC ®

Outlook OGC ®

Outlook • Some areas for future work include – Web Service Resource Framework (WSRF) – Service Level Agreements (SLA) – (…) • Any questions, suggestions or annotations? OGC ®

Thank you for your attention! Bastian Baranski <baranski@uni-muenster. de> OGC ®
