Overview q Important components of computer security o

  • Slides: 56
Download presentation
Overview q Important components of computer security: o User authentication – determine the identity

Overview q Important components of computer security: o User authentication – determine the identity of an individual accessing the system o Access control policies – stipulate what actions a given user is allowed to perform on the system o Access control mechanisms – enforce the system’s access control policy Chapter 7 Computer Security 1

The Reference Monitor q Computer systems are comprised of many diverse objects that can

The Reference Monitor q Computer systems are comprised of many diverse objects that can be employed by users to accomplish tasks o Examples: CPU, memory segments, files, printers, etc. q q It is the job of a reference monitor to control access to system objects The reference monitor must: o Operate correctly o Always be invoked o Be tamper-proof Decisions on whether or not to allow an action are based on the identity of the user performing the action Chapter 7 Computer Security 2 q

Authorization q q Authorization entails determining whether or not the protection policy permits a

Authorization q q Authorization entails determining whether or not the protection policy permits a given user to perform a given action Example: o Badges at a military installation q Many operating systems base authorization decisions on a user’s unique user identifier (or uid): o User is authenticated during log on and given an appropriate uid § Must enter valid username and password o The uid is used to determine which actions are authorized Chapter 7 Computer Security 3

User Authentication q Three basic approaches: o Knowledge-based – users prove their identity through

User Authentication q Three basic approaches: o Knowledge-based – users prove their identity through something that they know § Example: passwords o Token-based – users prove their identity through something they possess § Example: passport o Biometric – users prove their identity through a unique physiological characteristic § Example: fingerprint Chapter 7 Computer Security 4

Passwords are widely-used for user authentication q Advantages: q o Easy to use, understood

Passwords are widely-used for user authentication q Advantages: q o Easy to use, understood by most users o Require no special equipment o Offer an adequate degree of security in many environments q Disadvantages: o Users tend to choose passwords that are easy to guess o Many password-cracking tools are available Chapter 7 Computer Security 5

Using Passwords User enters username and password q The operating system consults its table

Using Passwords User enters username and password q The operating system consults its table of passwords: q Match = user is assigned the corresponding uid q Problem: the table of passwords must be protected q Chapter 7 Computer Security 6

Using Passwords and One-Way Functions User’s password is not stored in the table q

Using Passwords and One-Way Functions User’s password is not stored in the table q A one-way hash of the password, h(password), is stored in the table q o h(dumptruck) = JFNXPEMD o h(baseball) = WSAWFFVI Chapter 7 Computer Security 7

Using Passwords and One-Way Functions (cont) User enters username and password q The operating

Using Passwords and One-Way Functions (cont) User enters username and password q The operating system hashes the password q The operating system compares the result to the entry in the table q Match = user is assigned the corresponding uid q Advantage: password table does not have to be protected q Disadvantage: dictionary attack q Chapter 7 Computer Security 8

A Dictionary Attack q q An attacker can compile a dictionary of several thousand

A Dictionary Attack q q An attacker can compile a dictionary of several thousand common words and compute the hash for each one: Look for matches between the dictionary and the password table o Example: WSAWFFVI tells us Bob’s password is baseball Chapter 7 Computer Security 9

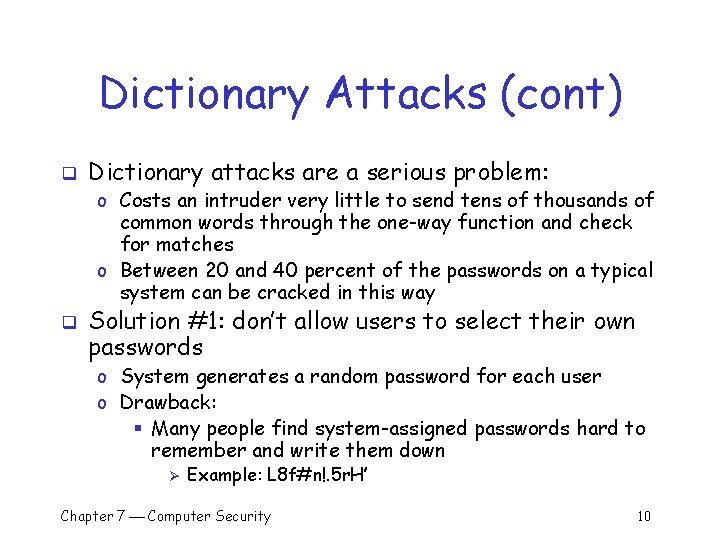

Dictionary Attacks (cont) q Dictionary attacks are a serious problem: o Costs an intruder

Dictionary Attacks (cont) q Dictionary attacks are a serious problem: o Costs an intruder very little to send tens of thousands of common words through the one-way function and check for matches o Between 20 and 40 percent of the passwords on a typical system can be cracked in this way q Solution #1: don’t allow users to select their own passwords o System generates a random password for each user o Drawback: § Many people find system-assigned passwords hard to remember and write them down Ø Example: L 8 f#n!. 5 r. H’ Chapter 7 Computer Security 10

Combating Dictionary Attacks q Solution #2: password checking o Allow users to choose their

Combating Dictionary Attacks q Solution #2: password checking o Allow users to choose their own passwords o Do not allow them to use passwords that are in a common dictionary q Solution #3: salt the password table o A salt is a random string that is concatenated with a password before sending it through the one-way hash function § Random salt value chosen by system Ø Example: plre § Password chosen by user Ø Example: baseball Chapter 7 Computer Security 11

Salting the Password Table q Password table contains: o Salt value = plre o

Salting the Password Table q Password table contains: o Salt value = plre o h(password+salt) = h(baseballplre) = FSXMXFNB Chapter 7 Computer Security 12

Salting the Password Table (cont) User enters username and password q The operating system

Salting the Password Table (cont) User enters username and password q The operating system combines the password and the salt and hashes the result q The operating system compares the result to the entry in the table q Match = user is assigned the corresponding uid q Advantages: q o Password table does not have to be protected o 7 Dictionary attacks are much harder Chapter Computer Security 13

A Dictionary Attack q Attacker must now expand the dictionary to contain every possible

A Dictionary Attack q Attacker must now expand the dictionary to contain every possible salt with each possible password: o baseballaaaa o baseballaaab o baseballaaac …. o baseballaaaz o baseballaaba o baseballaabb …. q 264 (about half a million) times more work to check each word in the dictionary (for 4 -letter salts) Chapter 7 Computer Security 14

Access Control Policies q Once a user has logged in the system must decide

Access Control Policies q Once a user has logged in the system must decide which actions he can and cannot perform o Examples: § Bob may be allowed to read files that Alice cannot § Alice may be permitted to use a printer that Bob cannot q In general, we view the system as a collection of: o Subjects (users) o Objects (resources) q An 7 access control Chapter Computer Security policy specifies how 15

The Access Control Matrix Suggested by Butler Lampson q Forms the basis of protection

The Access Control Matrix Suggested by Butler Lampson q Forms the basis of protection in many real operating systems q o Resources to be protected are called objects o Every object is within one or more protection domain o A domain specifies what operations are permitted on the objects it contains o Authorization to perform an operation on an object in a domain is called an access right Chapter 7 Computer Security 16

Protection Domains Example q Assume: o All students are in domain 1 o All

Protection Domains Example q Assume: o All students are in domain 1 o All faculty members are in domain 2 o All system administrators are in domain 3 Chapter 7 Computer Security 17

Protection Domains – Example (cont) q q q Students can execute O 2 and

Protection Domains – Example (cont) q q q Students can execute O 2 and read and write O 1 Faculty can write O 2 and print O 4 Sys admins can execute O 1, read O 3, and print O 4 Chapter 7 Computer Security 18

Protection Domains (cont) q A user can only be in one protection domain at

Protection Domains (cont) q A user can only be in one protection domain at any given time o Static: a user always operates in the same domain § Simple § Inflexible o Dynamic: a user can switch from one domain to another § Complex § More flexible The domain in which a user is operating determines what actions are and are not Chapter 7 Computer Security permitted q 19

Lampson’s Access Control Matrix q Represent the protection domains and access rights using a

Lampson’s Access Control Matrix q Represent the protection domains and access rights using a matrix: o Rows represent the domains o Columns correspond to the objects o Matrix entries specify the access rights to an object in the corresponding domain Chapter 7 Computer Security 20

Access Control Policy q The matrix specifies an access control policy for the system:

Access Control Policy q The matrix specifies an access control policy for the system: o Stipulates what actions a given user is allowed to perform on the system o Examples: § A student (domain 1) is allowed to read object 1 § A faculty member (domain 2) is not allowed to read object 1 § A faculty member (domain 2) is allowed to write to object 2 Chapter 7 Computer Security 21

Access Control Mechanisms q q A mechanism is required to enforce the access control

Access Control Mechanisms q q A mechanism is required to enforce the access control policy Mechanism #1: store the matrix in (protected) memory o The matrix is likely to be large and sparse so store only nonempty entries o One ordered triple that represents the domain, object, and access rights corresponding to each non-empty cell in the matrix: (Domain 1, Object 1, {read, write}) (Domain 1, Object 2, {execute}) (Domain 2, Object 2, {write}) (Domain 2, Object 4, {print}) (Domain 3, Object 1, {execute}) (Domain 3, Object 3, {read}) (Domain 3, Object 4, {print}) Chapter 7 Computer Security 22

Access Control Mechanisms (cont) q An attempt by a user in Domain i to

Access Control Mechanisms (cont) q An attempt by a user in Domain i to perform operation Object j o The operating system consults the list of triples § Allow: if there is a triple (i, j, R) where O R, the access rights § Deny: otherwise o Examples: § Allow: attempt to write to Object 2 by a user operating in Domain 2 § Deny: attempt by a user in Domain 1 to write to Object 2 (Domain 1, Object 1, {read, write}) (Domain 1, Object 2, {execute}) (Domain 2, Object 2, {write}) … Chapter 7 Computer Security 23

Access Control Mechanisms (cont) q q Mechanism #1: store the matrix in (protected) memory

Access Control Mechanisms (cont) q q Mechanism #1: store the matrix in (protected) memory Drawbacks: o The matrix must be protected against unauthorized modification o Searching may be slow (if there are many entries) o Cannot take advantage of special groupings of objects § Example: the system clock Ø Ø Can be read by all users Matrix requires an entry in every domain specifying that the clock is readable Chapter 7 Computer Security 24

Access Control Mechanisms (cont) q Mechanism #2: represent the matrix as an access list

Access Control Mechanisms (cont) q Mechanism #2: represent the matrix as an access list o An access list enumerates, for each object, a set of (domain, access rights) pairs o Matrix: o Access list: Object 1: (<Domain 1, {read, write}>, <Domain 3, {execute}>) Object 2: (<Domain 1, {execute}>, <Domain 2, {write}>) Object 3: (<Domain 3, {read}>) Object 4: (<Domain 2, {print}>, <Domain 3, {print}>) Chapter 7 Computer Security 25

Access Control Mechanisms (cont) q An attempt by a user in Domain i to

Access Control Mechanisms (cont) q An attempt by a user in Domain i to perform operation Object j o The operating system to consult the entry in the access list for Object j o Object j’s list is searched for Domain i’s entry § Allow: if there is an access right for O § Deny: Otherwise o Access list: Object 1: (<Domain 1, {read, write}>, <Domain 3, {execute}>) Object 2: (<Domain 1, {execute}>, <Domain 2, {write}>) Object 3: (<Domain 3, {read}>) Object 4: (<Domain 2, {print}>, <Domain 3, {print}>) o Examples: § Allow: attempt to write to Object 2 by a user operating in Domain 2 § Deny: attempt by a user in Domain 1 to write to Object 2 Chapter 7 Computer Security 26

Access Control Mechanisms (cont) q q Access lists also allow a default set of

Access Control Mechanisms (cont) q q Access lists also allow a default set of rights to be specified for each object Example: make Object 2 readable in every domain: Object 2: (<Default, {read}>, <Domain 1, {execute}>, <Domain 2, {write}>) q Advantages: o Can specify rights available in every domain in a single entry § Reduces the total amount of storage space required § Increases efficiency (for default rights) q Disadvantages: o Must be stored in memory, protected, and searched Chapter 7 Computer Security 27

Access Control Mechanisms (cont) q Mechanism #3: represent the matrix as capabilities o A

Access Control Mechanisms (cont) q Mechanism #3: represent the matrix as capabilities o A capability list represents the matrix as a list of (object, rights) pairs for each domain o Matrix: o Capability list: Domain 1: (<Object 1, {read, write}>, <Object 2, {execute}>) Domain 2: (<Object 2, {write}>, <Object 4, {print}>) Domain 3: (<Object 1, {execute}>, <Object 3, {read}>, <Object 4, {print}>) Chapter 7 Computer Security 28

Access Control Mechanisms (cont) q q Capability lists are not stored in memory by

Access Control Mechanisms (cont) q q Capability lists are not stored in memory by the operating system Users are given a copy of the capability list for the domain in which they are operating Each (object, rights) pair for a given domain is called a capability Example: o A user in Domain 2 would be given copies of the following two capabilities: § <Object 2, {write}> § <Object 4, {print}> Chapter 7 Computer Security 29

Access Control Mechanisms (cont) q An attempt to perform some operation, O, on Object

Access Control Mechanisms (cont) q An attempt to perform some operation, O, on Object j o The capability for j is passed as one of the parameters of O q Example: a user (in Domain 2) might request to write to Object 2 o Pass her copy of the <Object 2, {write}> capability o The operating system verifies: § The capability is for Object 2 § Writing is one of the access rights in the capability o Allow: if the capability is valid o Deny: otherwise Chapter 7 Computer Security 30

Access Control Mechanisms (cont) q The operating system must ensure that users cannot: o

Access Control Mechanisms (cont) q The operating system must ensure that users cannot: o Create their own capabilities o Alter the capabilities they are given q q Solution: operating system encrypt capabilities with a secret key before giving them to the users Capabilities also allow users to share their access rights with others: o If Alice has the right to read a file but Bob does not o Alice can give Bob a copy of her capability that will allow him to read the file Chapter 7 Computer Security 31

Access Control Mechanisms (cont) q q Mechanism #3: represent the matrix as capabilities Advantages:

Access Control Mechanisms (cont) q q Mechanism #3: represent the matrix as capabilities Advantages: o OS need not store all the access-control information § Capabilities are given to users and stored by them o Access control decisions require no searching of a list § Capabilities need to be checked o Allow users to share their capabilities with others q Disadvantages: o Capabilities must be protected (encrypted) o Sharing and revoking capabilities is complex Chapter 7 Computer Security 32

Other Access Control Policies q The HRU model o Named for its inventors, Harrison,

Other Access Control Policies q The HRU model o Named for its inventors, Harrison, Ruzzo, Ullman o Describes a protection system using an access matrix § Rows: the subjects in the system (S 1, S 2, and S 3) § Columns: the objects in the system (S 1, S 2, S 3, O 1, O 2, and O 3) § Note: the subjects are considered objects in the system o A subject is allowed to perform an operation on an object only if it has an access right Chapter 7 Computer Security 33

The HRU Model q q The access matrix: Examples: o S 1 should be

The HRU Model q q The access matrix: Examples: o S 1 should be allowed to read O 2 o S 3 should not be allowed to write O 1 Chapter 7 Computer Security 34

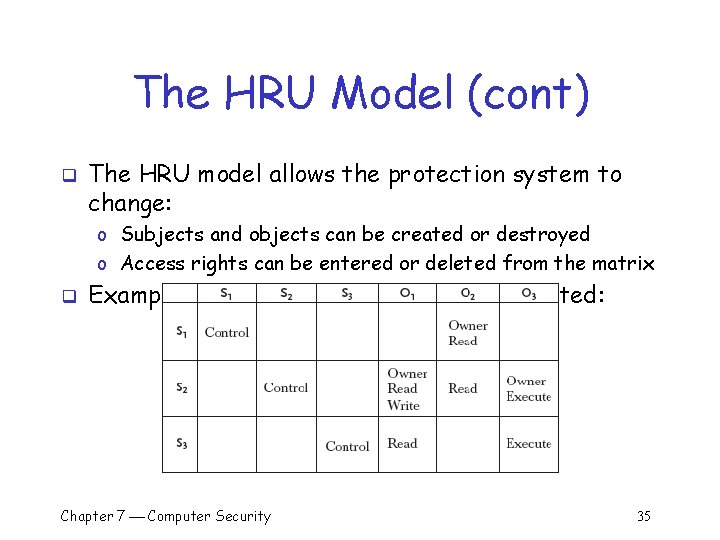

The HRU Model (cont) q The HRU model allows the protection system to change:

The HRU Model (cont) q The HRU model allows the protection system to change: o Subjects and objects can be created or destroyed o Access rights can be entered or deleted from the matrix q Example: S 3’s right to read O 2 can be deleted: Chapter 7 Computer Security 35

The HRU Model (cont) q The matrix can be changed by a well-defined set

The HRU Model (cont) q The matrix can be changed by a well-defined set of commands that consist of: o A list of conditions that must be satisfied o A list of primitive operations that modify the matrix § Add/delete a subject to the matrix § Add/delete an object to the matrix § Add/delete a right to the matrix q Example: the command used to delete S 3’s right to read O 2 o If a subject is the owner of an object o The subject can perform the delete operation on a right in the matrix Chapter 7 Computer Security 36

The HRU Model (cont) q A right, r, is said to leak if: o

The HRU Model (cont) q A right, r, is said to leak if: o The execution of some set of commands causes r to be entered into a cell that did not previously contain r A state where r has leaked is called unsafe q If, starting from an initial state unsafe states are unreachable: q o The matrix is said to be safe for r, since r cannot be leaked Chapter 7 Computer Security 37

The HRU Model (cont) The HRU model was designed to be general enough to

The HRU Model (cont) The HRU model was designed to be general enough to represent most real protection systems q Main result: Harrison, Ruzzo, Ullman proved that: q o Determining whether or not unsafe states are reachable from a given initial state is not possible for an arbitrary set of commands o Safety is decidable in some restricted cases: § No command contains an operation that add subjects or objects § Mono-operational systems: every command performs Chapter 7 Computer Securityprimitive operation 38 only a single

The HRU Model (cont) q The HRU model demonstrates that for most useful access

The HRU Model (cont) q The HRU model demonstrates that for most useful access control policies: o Substantial restrictions must be placed on the policy to facilitate analysis o Even with restrictions analysis is likely to be difficult o If the policy is proven safe, we still need to show that the system properly implements the policy Chapter 7 Computer Security 39

Other Access Control Policies (cont) q The take-grant model: o More restricted than the

Other Access Control Policies (cont) q The take-grant model: o More restricted than the HRU model § Not powerful enough to represent an arbitrary protection policy o Designed to be both useful and efficiently analyzable o An unlimited number of subjects and objects can be created o Four primitive operations: § Take § Grant § Create § Computer Revoke. Security Chapter 7 40

The Take-Grant Model q q A policy is not represented as a matrix A

The Take-Grant Model q q A policy is not represented as a matrix A policy is represented as a directed graph o Nodes represent subjects and objects § Unlike the HRU model, subjects are not themselves objects o Edges represent access rights q Safety question: o Can a subject gain a given access right to a given object? Chapter 7 Computer Security 41

The Take-Grant Model (cont) Chapter 7 Computer Security 42

The Take-Grant Model (cont) Chapter 7 Computer Security 42

The Take-Grant Model (cont) q The create operation o Allows a subject to add

The Take-Grant Model (cont) q The create operation o Allows a subject to add a new object node to which the subject then has a certain set of access rights o Example: S executes create(O, {read, write}): q The revoke operation o Allows a subject to delete one or more of its access rights to an object o Example: S executes revoke(O, {write}): Chapter 7 Computer Security 43

The Take-Grant Model (cont) q The take operation o Allows a subject to acquire

The Take-Grant Model (cont) q The take operation o Allows a subject to acquire one or more of the access rights possessed by another subject or object o Example: S 1 takes S 2’s read right: q The grant operation o Allows a subject to confer one or more of its access rights to another subject or object o Example: S 1 grants S 2 a read right: Chapter 7 Computer Security 44

The Take-Grant Model (cont) q More restricted than the HRU model o Not powerful

The Take-Grant Model (cont) q More restricted than the HRU model o Not powerful enough to represent an arbitrary protection policy q Designed to be both useful and efficiently analyzable o There is an efficient algorithm for determining whether or not a particular subject can acquire a specific right to an object q Work has been done to define useful protection systems based on the takegrant model Chapter 7 Computer Security 45

Discretionary Vs. Mandatory Access Control q All the access control policies and mechanisms discussed

Discretionary Vs. Mandatory Access Control q All the access control policies and mechanisms discussed so far have been discretionary o The owner of an object fully controls what users have what access rights q Mandatory access control policies and mechanisms o Control over what users have what access rights resides with the system and not the object’s owner q Examples: Bob creates a file o Discretionary: Bob can give Alice read access to the file if he wishes o Mandatory: The system may deny Alice read access to Bob’s file regardless of Bob’s wishes Chapter 7 Computer Security 46

Information Flow Policies q An important class of mandatory access control policies are information

Information Flow Policies q An important class of mandatory access control policies are information flow policies o Control both direct and indirect paths through which information can flow q Example: o Alice does not have permission to read a file but Bob does o Alice convince Bob to read the file and transmit its contents to her q Result: Alice has gained unauthorized access to the file’s contents o Discretionary access-control policies cannot prevent this breach o 7 Information flow policies can prevent this breach Chapter Computer Security 47

The Bell-La. Padula Model q q An information flow security policy Distinguishes between different

The Bell-La. Padula Model q q An information flow security policy Distinguishes between different levels of sensitivity for information and users o Information: Public records are not sensitive o Users: Everybody should have access to public records o Information: The tax returns of individuals are somewhat sensitive o Users: Only employees of the Internal Revenue Service should have access to tax returns o Information: Nuclear secrets are extremely sensitive o Users: Only the most trusted nuclear scientists should have access to nuclear secrets Chapter 7 Computer Security 48

The Bell-La. Padula Model (cont) q q Every user and every piece of information

The Bell-La. Padula Model (cont) q q Every user and every piece of information can be assigned a level from a partially ordered set Example: levels used by the U. S. military o The set has four elements: § L = {unclassified, secret, top secret} o The < relational operator is used to specify a partial ordering on the set: § unclassified < secret < top secret o This is a partial ordering since the < relation is: § Reflexive (L 1 < L 1) § Antisymmetric (if L 1 < L 2 and L 2 < L 1, then L 1 = L 2) § Transitive (if L 1 < L 2 and L 2 < L 3, then L 1 < L 3) Chapter 7 Computer Security 49

The Bell-La. Padula Model (cont) Every subject and object in the system is assigned

The Bell-La. Padula Model (cont) Every subject and object in the system is assigned a security level from L q Example: q o o o Alice might be assigned the level secret Bob might be unclassified Carol might be classified The file memo 1 might be classified The file memo 2 might be top secret Chapter 7 Computer Security 50

The Bell-La. Padula Model (cont) q The information flow security policy: o The simple

The Bell-La. Padula Model (cont) q The information flow security policy: o The simple security property: a subject should not be able to read an object at a higher level § A subject, S, may read an object, O, only if O < S o The star property (written “ -property”): a subject should not be able to write to an object at a lower level § A subject, S, may write to an object, O, only if S < O Chapter 7 Computer Security 51

The Bell-La. Padula Model (cont) q Example: o Alice’s level is secret, Bob’s level

The Bell-La. Padula Model (cont) q Example: o Alice’s level is secret, Bob’s level is unclassified, Carol’s level is classified o Memo 1 is classified, and memo 2 is top secret q The simple security property specifies that: o Memo 2 should not be read by Alice, Bob, or Carol § Memo 2’s level (top secret) is higher than theirs (secret, unclassified, and classified, respectively) o Bob is not allowed to read memo 1 (classified), but both Alice and Carol are allowed to read it Chapter 7 Computer Security 52

The Bell-La. Padula Model (cont) q Example: o Alice’s level is secret, Bob’s level

The Bell-La. Padula Model (cont) q Example: o Alice’s level is secret, Bob’s level is unclassified, Carol’s level is classified o Memo 1 is classified, and memo 2 is top secret q The *-property specifies that: o Bob and Carol can write to memo 1, since its level (classified) is not lower than theirs o Alice’s level is secret, so she is not permitted to write to memo 1 o Alice, Bob, and Carol are all at a lower level than memo 2 and can therefore write to it Chapter 7 Computer Security 53

The Bell-La. Padula Model (cont) q q This information flow policy controls both direct

The Bell-La. Padula Model (cont) q q This information flow policy controls both direct and indirect paths through which information can flow Example: Bob cannot learn the contents of memo 1 o Bob (unclassified) is not allowed to read memo 1 (classified) himself o Alice (secret) is allowed to read memo 1 (classified) § Alice is not allowed to write anything but secret or top secret documents which Bob cannot read § Bob cannot read anything that Alice writes so Alice cannot tell Bob the contents of memo 1 § Problem: Alice may be able to communicate with Bob without writing any files Chapter 7 Computer Security 54

The Bell-La. Padula Model (cont) q q q Suppose that Bob can observe some

The Bell-La. Padula Model (cont) q q q Suppose that Bob can observe some aspect of the system that Alice can control Example: Bob can determine whether or not Alice is logged in to the system Bob and Alice agree that: o Every minute Alice spends logged in will represent a 1 o Every minute Alice spends logged out will represent a 0 q Alice could read memo 1 and then begin transmitting it, one bit every minute, to Bob using their covert channel o There are many other covert channels available on most time-sharing systems o Eliminating all possible covert channels can be challenging Chapter 7 Computer Security 55

Summary q Important components of computer security: o User authentication – determine the identity

Summary q Important components of computer security: o User authentication – determine the identity of an individual accessing the system § Knowledge-based, token-based, and biometrics o Access control policies – stipulate what actions a given user is allowed to perform on the system § Discretionary: access control matrix § Mandatory: the Bell-La. Padula model o Access control mechanisms – enforce the system’s policy § Discretionary: access lists, capabilities Chapter 7 Computer Security 56
