Overview of Time and Frequency Metrology Michael Lombardi

Overview of Time and Frequency Metrology Michael Lombardi lombardi@nist. gov

NIST Boulder Laboratories

Types of Time and Frequency Information n Date and Time-of-Day u n Time Interval u n records when an event happened duration between two events Frequency u rate of a repetitive event

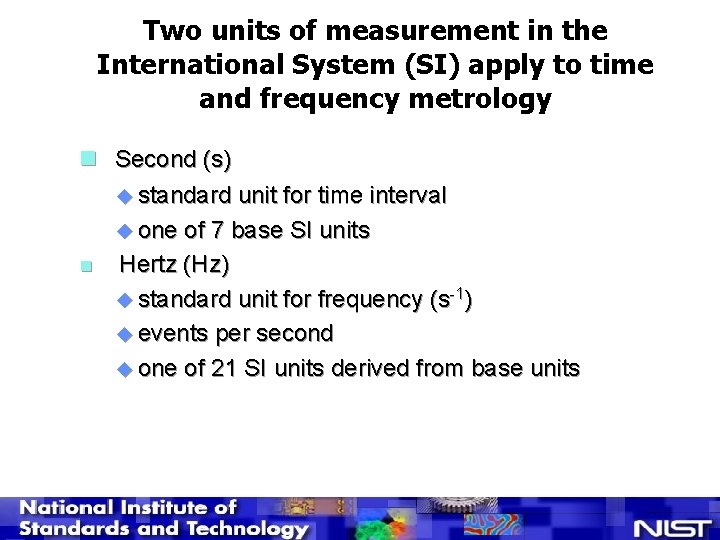

Two units of measurement in the International System (SI) apply to time and frequency metrology n Second (s) u standard unit for time interval u one of 7 base SI units n Hertz (Hz) u standard unit for frequency (s-1) u events per second u one of 21 SI units derived from base units

The relationship between frequency and time We can measure frequency to get time interval, and vice versa, because the relationship between frequency and time interval is known. Frequency is the reciprocal of time interval: Where T is the period of the signal in seconds, and f is the frequency in hertz. We can also express this as f = s-1 (the notation used to define the hertz in the SI).

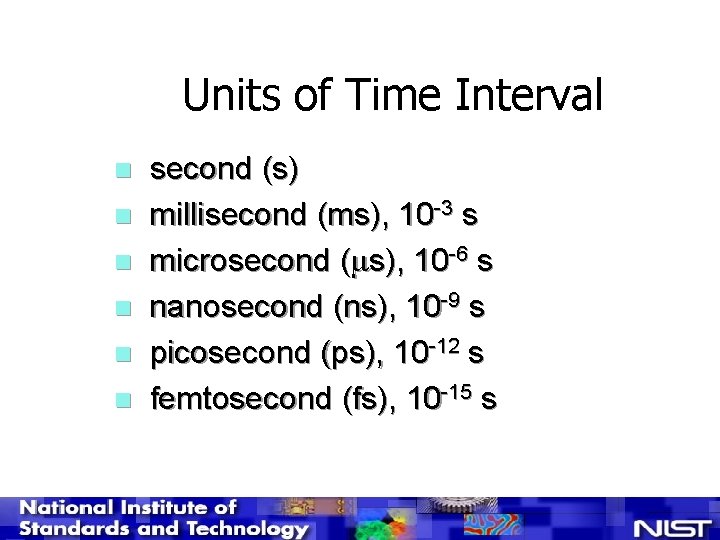

Units of Time Interval n n n second (s) millisecond (ms), 10 -3 s microsecond ( s), 10 -6 s nanosecond (ns), 10 -9 s picosecond (ps), 10 -12 s femtosecond (fs), 10 -15 s

Units of Frequency n n hertz (Hz), 1 event per second kilohertz (k. Hz), 103 Hz megahertz (MHz), 106 Hz gigahertz (GHz), 109 Hz

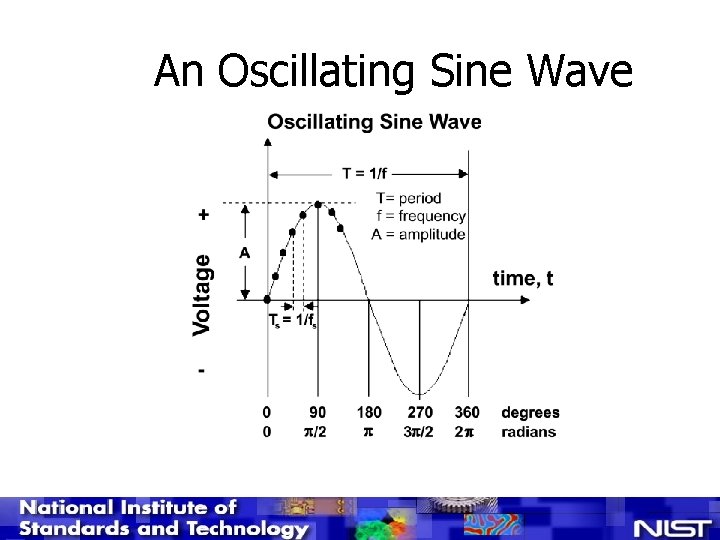

An Oscillating Sine Wave

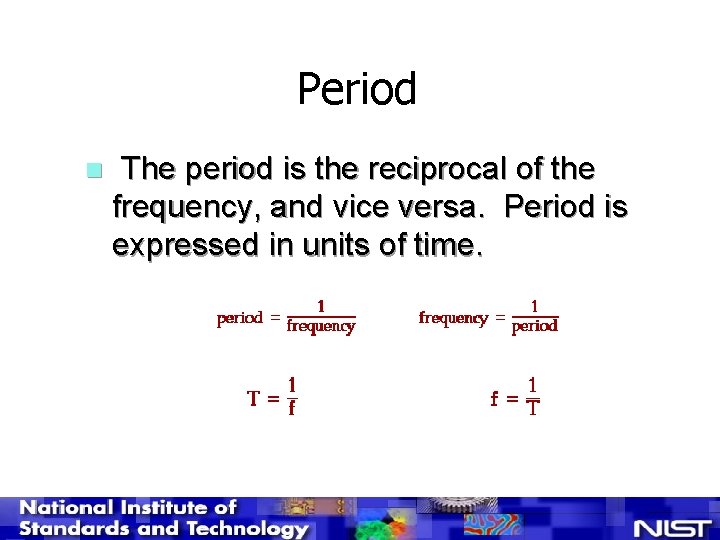

Period n The period is the reciprocal of the frequency, and vice versa. Period is expressed in units of time.

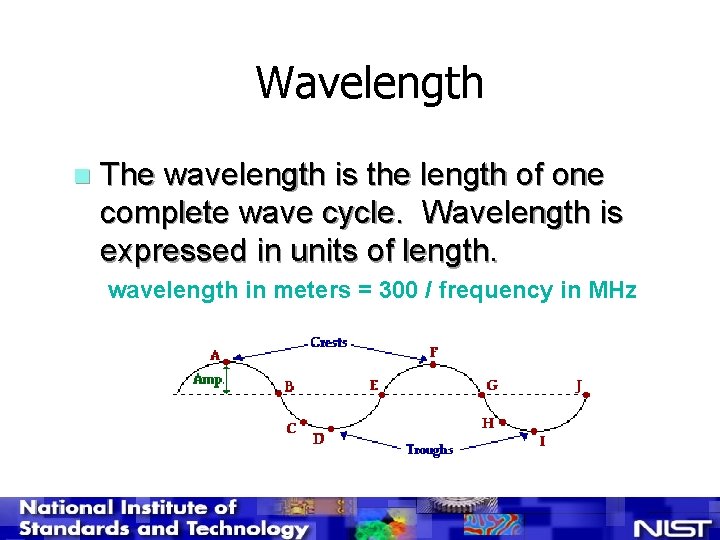

Wavelength n The wavelength is the length of one complete wave cycle. Wavelength is expressed in units of length. wavelength in meters = 300 / frequency in MHz

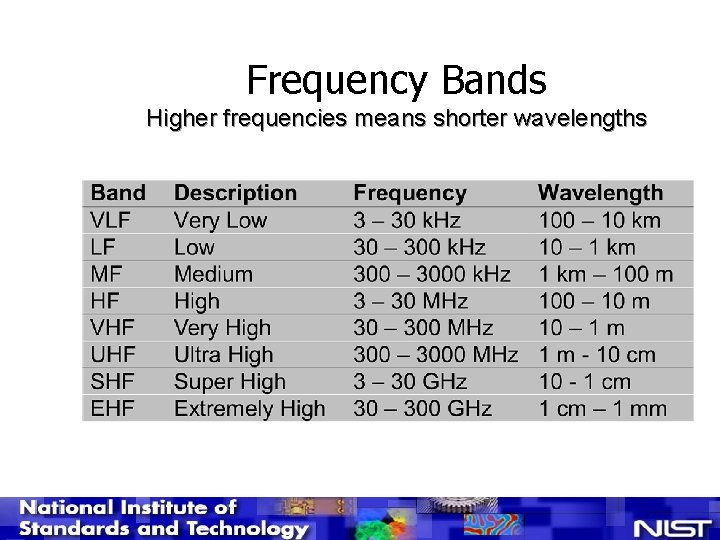

Frequency Bands Higher frequencies means shorter wavelengths

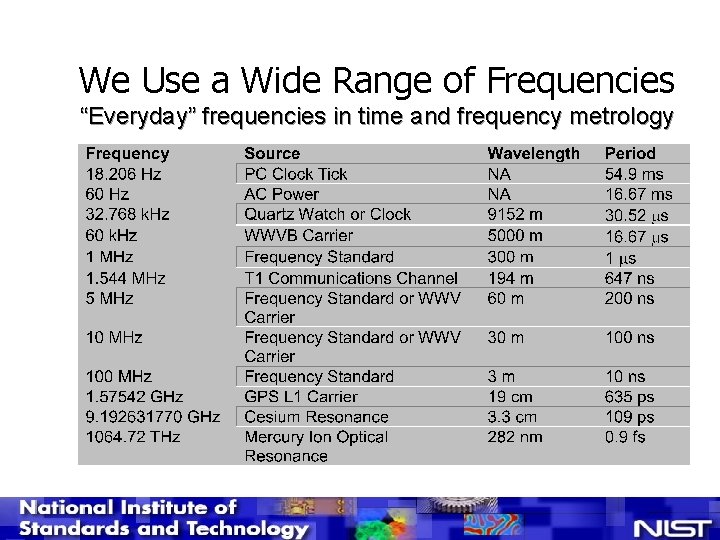

We Use a Wide Range of Frequencies “Everyday” frequencies in time and frequency metrology

Clocks and Oscillators

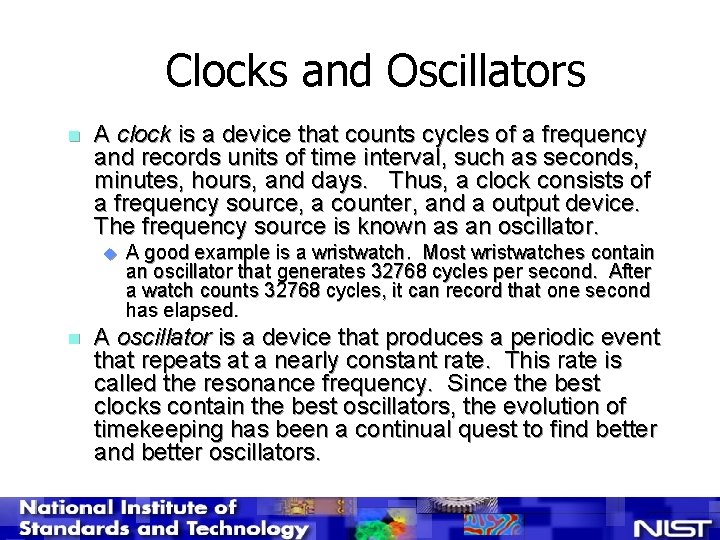

Clocks and Oscillators n A clock is a device that counts cycles of a frequency and records units of time interval, such as seconds, minutes, hours, and days. Thus, a clock consists of a frequency source, a counter, and a output device. The frequency source is known as an oscillator. u n A good example is a wristwatch. Most wristwatches contain an oscillator that generates 32768 cycles per second. After a watch counts 32768 cycles, it can record that one second has elapsed. A oscillator is a device that produces a periodic event that repeats at a nearly constant rate. This rate is called the resonance frequency. Since the best clocks contain the best oscillators, the evolution of timekeeping has been a continual quest to find better and better oscillators.

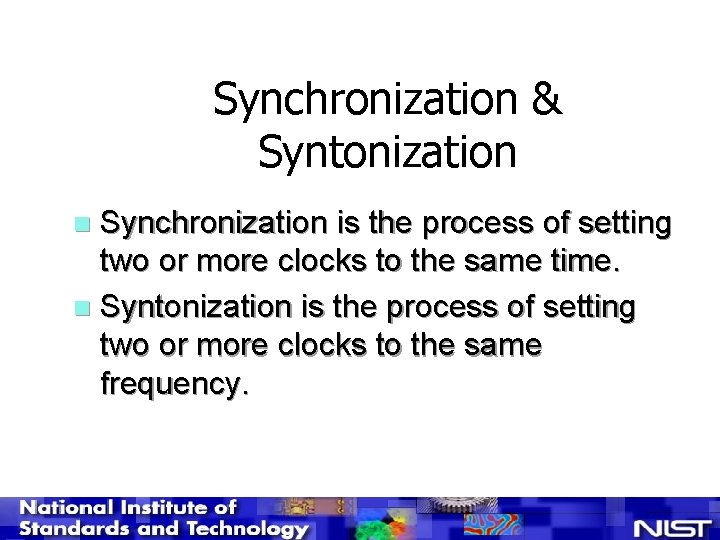

Synchronization & Syntonization Synchronization is the process of setting two or more clocks to the same time. n Syntonization is the process of setting two or more clocks to the same frequency. n

Relationship of Frequency Accuracy to Time Accuracy

The Evolution of Time and Frequency Standards - Part I

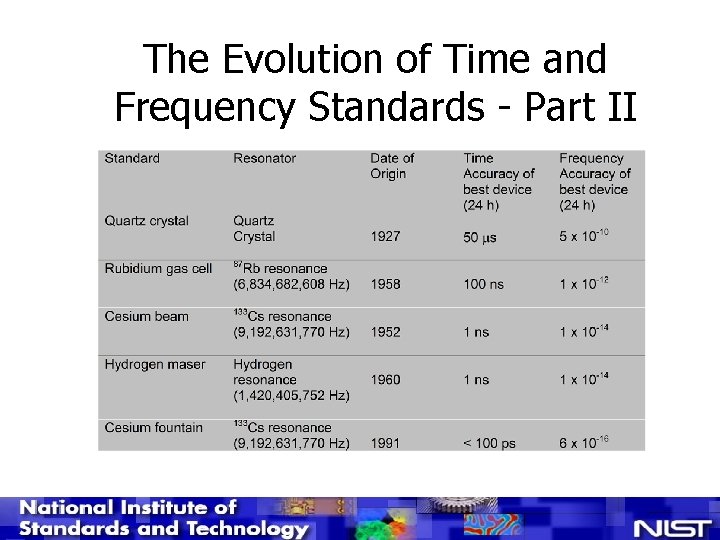

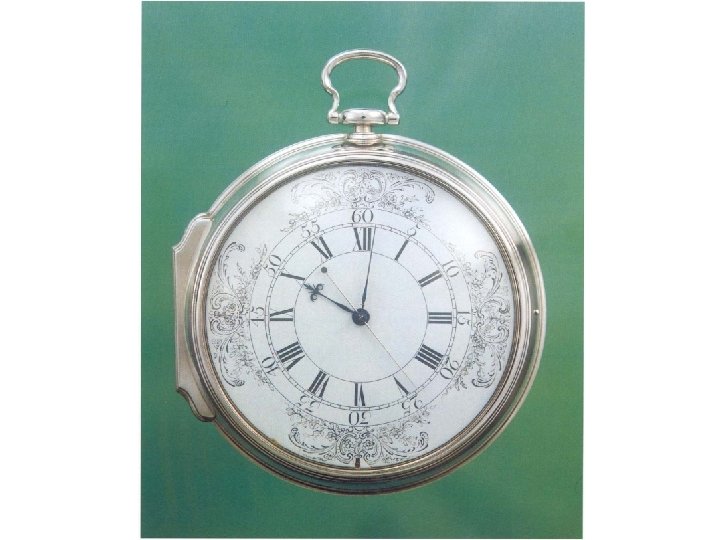

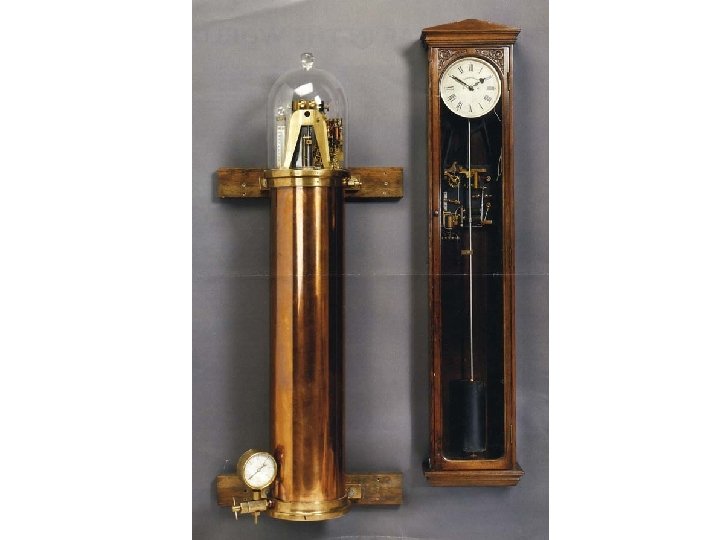

The Evolution of Time and Frequency Standards - Part II

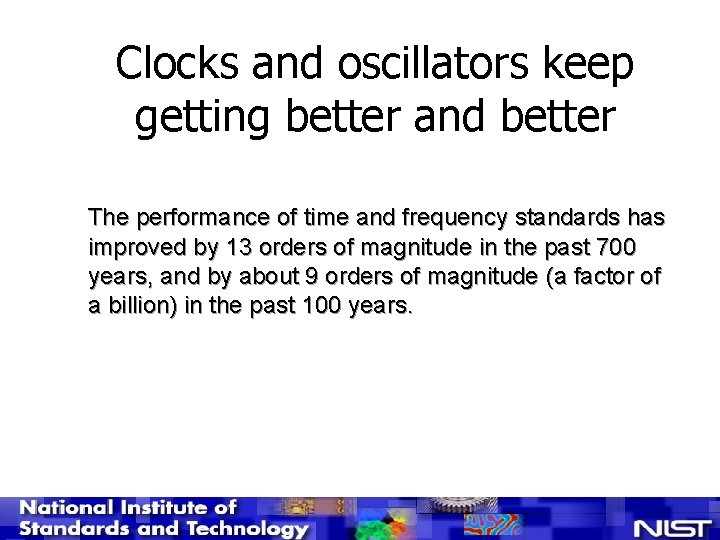

Clocks and oscillators keep getting better and better The performance of time and frequency standards has improved by 13 orders of magnitude in the past 700 years, and by about 9 orders of magnitude (a factor of a billion) in the past 100 years.

Coordinated Universal Time (UTC)

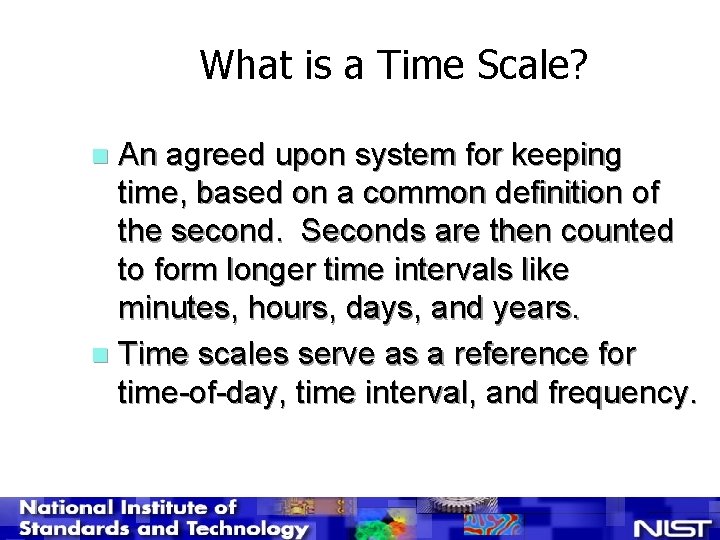

What is a Time Scale? An agreed upon system for keeping time, based on a common definition of the second. Seconds are then counted to form longer time intervals like minutes, hours, days, and years. n Time scales serve as a reference for time-of-day, time interval, and frequency. n

Coordinated Universal Time (UTC) n n UTC is an internationally recognized atomic time scale based on the SI definition of the second. The average value of UTC is computed by the International Bureau of Weights and Measures (BIPM) in France. They collect data from over 250 atomic oscillators located at about 60 national metrology institutes. UTC is a paper time scale, computed by the BIPM after the data is collected. The national metrology institutes maintain their own time scales that operate continously in real-time. For example, CENAMEP maintains UTC(CNMP) and NIST maintains UTC(NIST). The BIPM publishes a monthly document called the Circular T that shows the recent difference between UTC and UTC(k), or the UTC maintained by each national metrology institute. The Circular-T allows each laboratory to see their time offset with respect to UTC, and with respect to every laboratory that contributes to UTC. This means that all contributing labs around the world are continously compared to each other.

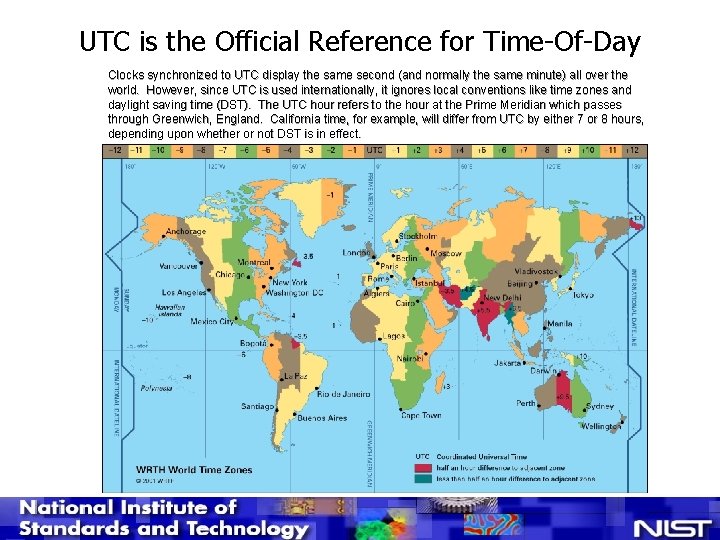

UTC is the Official Reference for Time-Of-Day Clocks synchronized to UTC display the same second (and normally the same minute) all over the world. However, since UTC is used internationally, it ignores local conventions like time zones and daylight saving time (DST). The UTC hour refers to the hour at the Prime Meridian which passes through Greenwich, England. California time, for example, will differ from UTC by either 7 or 8 hours, depending upon whether or not DST is in effect.

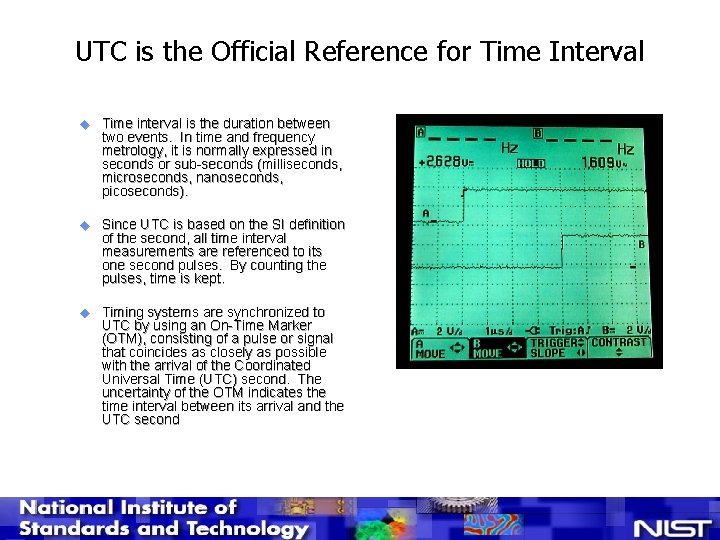

UTC is the Official Reference for Time Interval u Time interval is the duration between two events. In time and frequency metrology, it is normally expressed in seconds or sub-seconds (milliseconds, microseconds, nanoseconds, picoseconds). u Since UTC is based on the SI definition of the second, all time interval measurements are referenced to its one second pulses. By counting the pulses, time is kept. u Timing systems are synchronized to UTC by using an On-Time Marker (OTM), consisting of a pulse or signal that coincides as closely as possible with the arrival of the Coordinated Universal Time (UTC) second. The uncertainty of the OTM indicates the time interval between its arrival and the UTC second

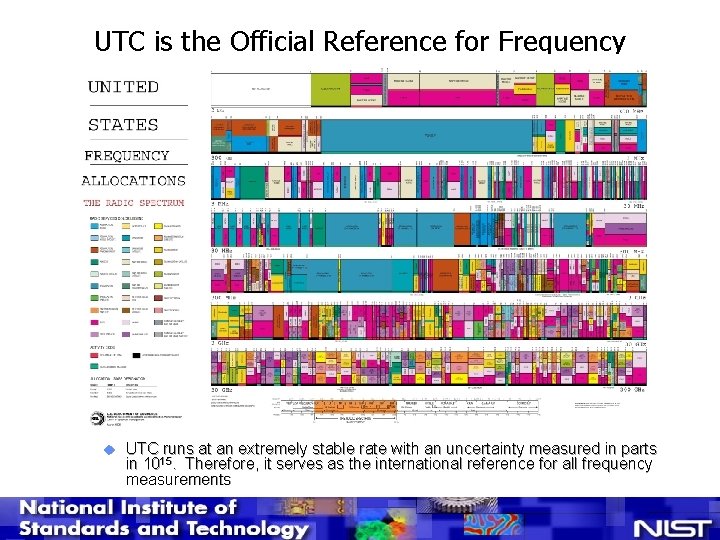

UTC is the Official Reference for Frequency u UTC runs at an extremely stable rate with an uncertainty measured in parts in 1015. Therefore, it serves as the international reference for all frequency measurements

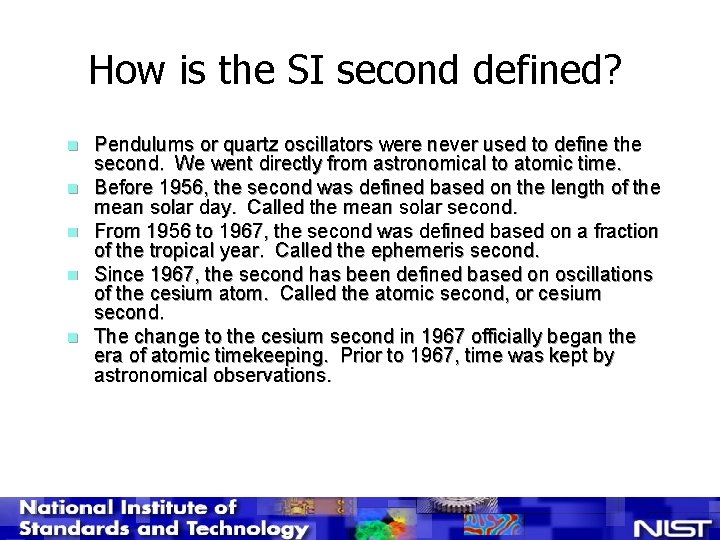

How is the SI second defined? n n n Pendulums or quartz oscillators were never used to define the second. We went directly from astronomical to atomic time. Before 1956, the second was defined based on the length of the mean solar day. Called the mean solar second. From 1956 to 1967, the second was defined based on a fraction of the tropical year. Called the ephemeris second. Since 1967, the second has been defined based on oscillations of the cesium atom. Called the atomic second, or cesium second. The change to the cesium second in 1967 officially began the era of atomic timekeeping. Prior to 1967, time was kept by astronomical observations.

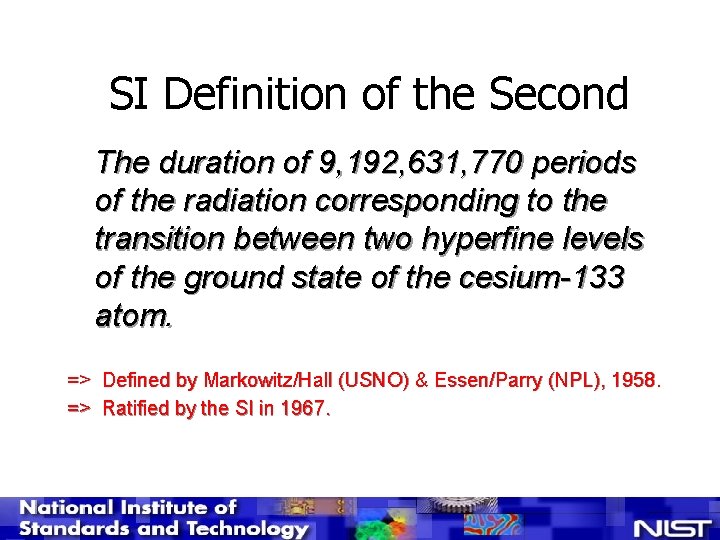

SI Definition of the Second The duration of 9, 192, 631, 770 periods of the radiation corresponding to the transition between two hyperfine levels of the ground state of the cesium-133 atom. => Defined by Markowitz/Hall (USNO) & Essen/Parry (NPL), 1958. => Ratified by the SI in 1967.

Atomic Time Scales n n All atomic time scales are currently based on the cesium definition of the second. International Atomic Time (TAI) u n TAI runs at the same frequency as UTC (this frequency is determined by the BIPM), but is not corrected for leap seconds. TAI is seldom used by the general public. It is an “internal” time scale used by the BIPM and national laboratories like NIST. Coordinated Universal Time (UTC) u UTC is TAI corrected for leap seconds so that it stays within 0. 9 seconds of UT 1.

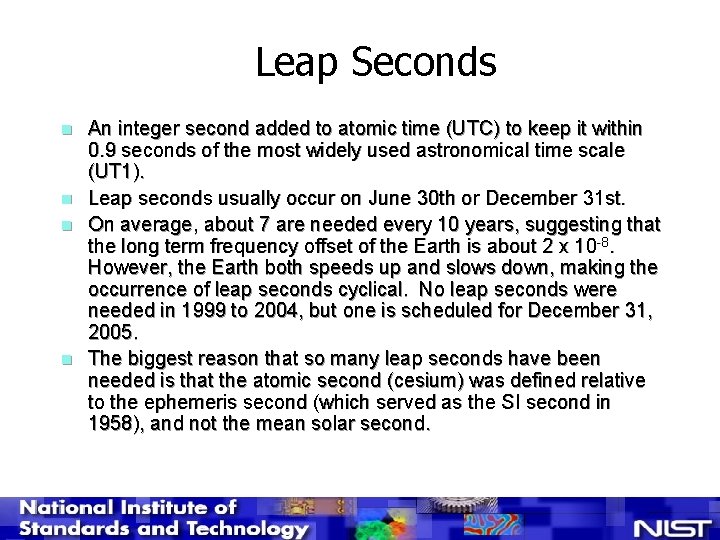

Leap Seconds n n An integer second added to atomic time (UTC) to keep it within 0. 9 seconds of the most widely used astronomical time scale (UT 1). Leap seconds usually occur on June 30 th or December 31 st. On average, about 7 are needed every 10 years, suggesting that the long term frequency offset of the Earth is about 2 x 10 -8. However, the Earth both speeds up and slows down, making the occurrence of leap seconds cyclical. No leap seconds were needed in 1999 to 2004, but one is scheduled for December 31, 2005. The biggest reason that so many leap seconds have been needed is that the atomic second (cesium) was defined relative to the ephemeris second (which served as the SI second in 1958), and not the mean solar second.

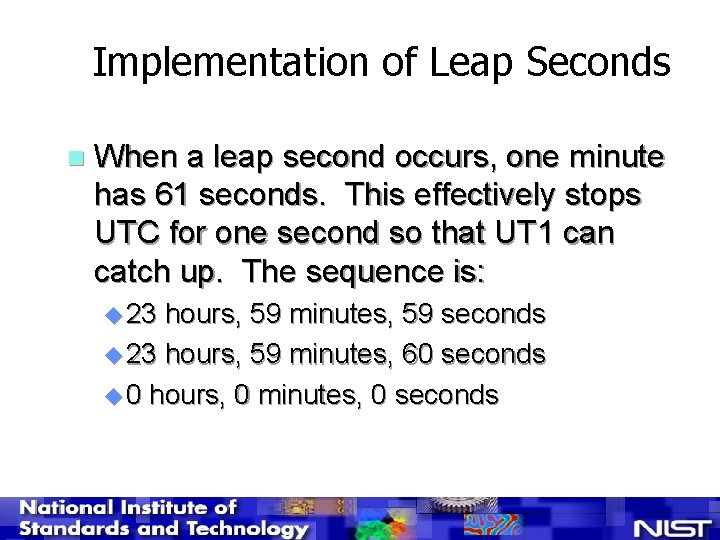

Implementation of Leap Seconds n When a leap second occurs, one minute has 61 seconds. This effectively stops UTC for one second so that UT 1 can catch up. The sequence is: u 23 hours, 59 minutes, 59 seconds u 23 hours, 59 minutes, 60 seconds u 0 hours, 0 minutes, 0 seconds

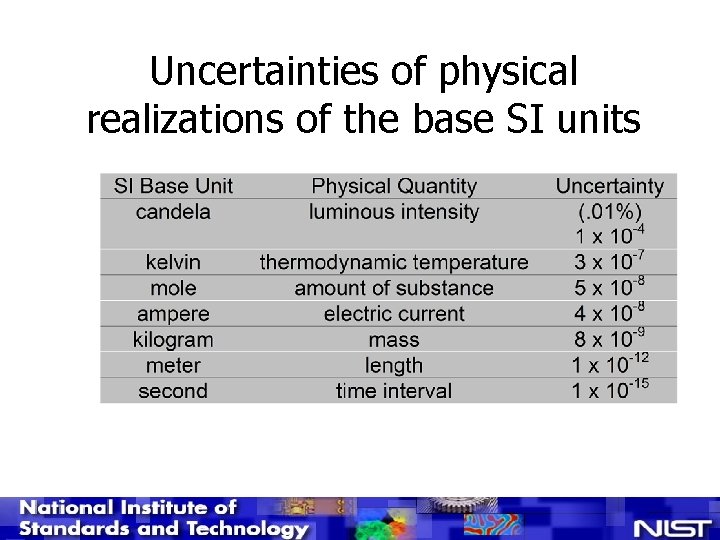

Uncertainties of physical realizations of the base SI units

Time and Frequency Measurement Basics

Four Parts of a Calibration n Device Under Test (DUT) u Can be a tuning fork or a stopwatch or timer u Can be a quartz, rubidium, or cesium oscillator n Traceable References u (transfer standards like WWV, WWVB, LORAN, GPS, or any reference that provides a link back to the SI) n Calibration Method u (measurement system and procedure used to collect data) n Uncertainty Analysis u (statistics and data reduction)

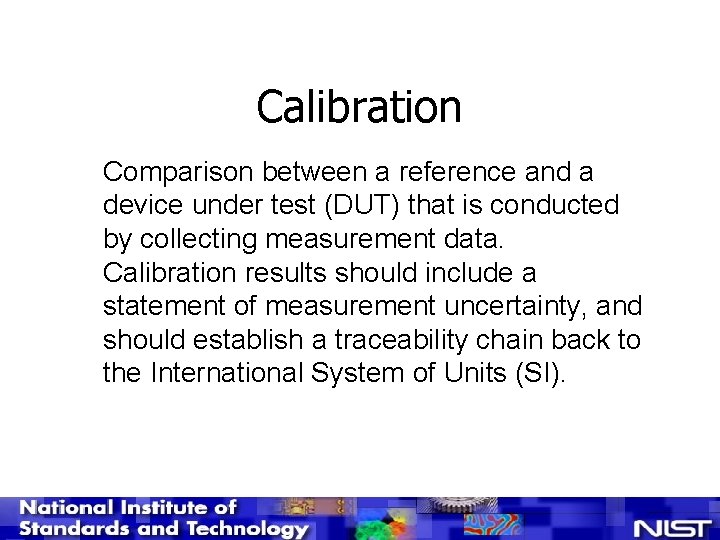

Calibration Comparison between a reference and a device under test (DUT) that is conducted by collecting measurement data. Calibration results should include a statement of measurement uncertainty, and should establish a traceability chain back to the International System of Units (SI).

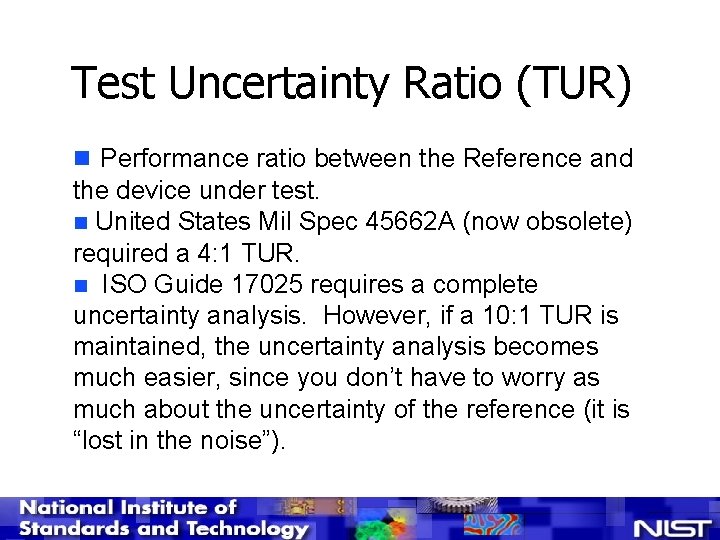

Test Uncertainty Ratio (TUR) n Performance ratio between the Reference and the device under test. n United States Mil Spec 45662 A (now obsolete) required a 4: 1 TUR. n ISO Guide 17025 requires a complete uncertainty analysis. However, if a 10: 1 TUR is maintained, the uncertainty analysis becomes much easier, since you don’t have to worry as much about the uncertainty of the reference (it is “lost in the noise”).

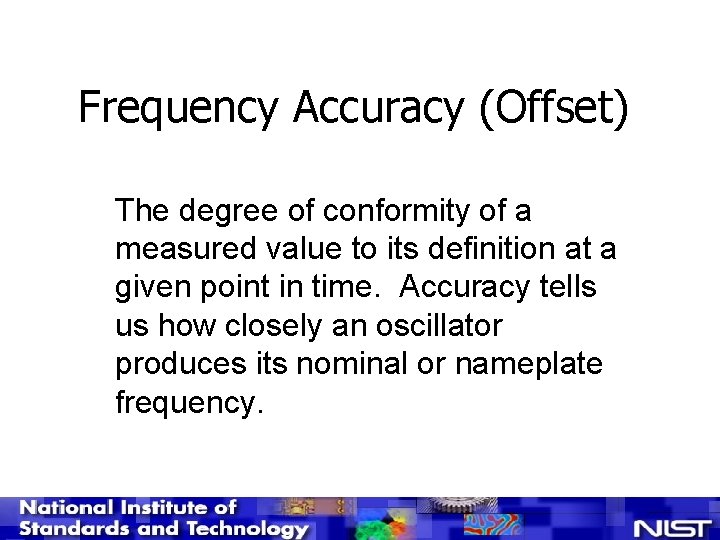

Frequency Accuracy (Offset) The degree of conformity of a measured value to its definition at a given point in time. Accuracy tells us how closely an oscillator produces its nominal or nameplate frequency.

What else do they call it? Frequency Offset n Frequency Error n Frequency Bias n Frequency Difference n Relative Frequency n Fractional Frequency n Accuracy n

Resolution The smallest unit that a measurement can determine. For example, if a 10 -digit frequency counter is used to measure a 1 MHz signal, the resolution is. 001 Hz, or 1 m. Hz. 10 000. 001 == 10 -digit counter The “single shot” resolution is determined by the quality of the measurement system, but more resolution can usually be obtained by averaging.

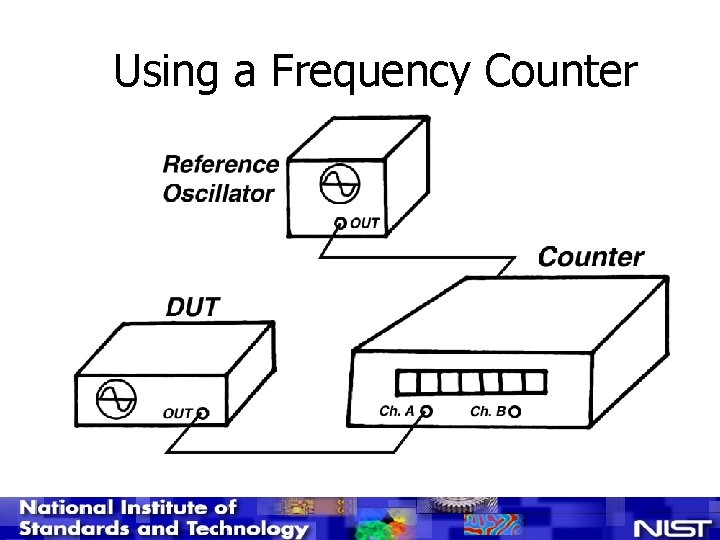

Using a Frequency Counter

Estimating Frequency Offset (accuracy) in the Frequency Domain (a measurement made with respect to frequency) n fmeasured is the reading from an instrument, such as a frequency counter n fnominal is the frequency labeled on the oscillator’s output

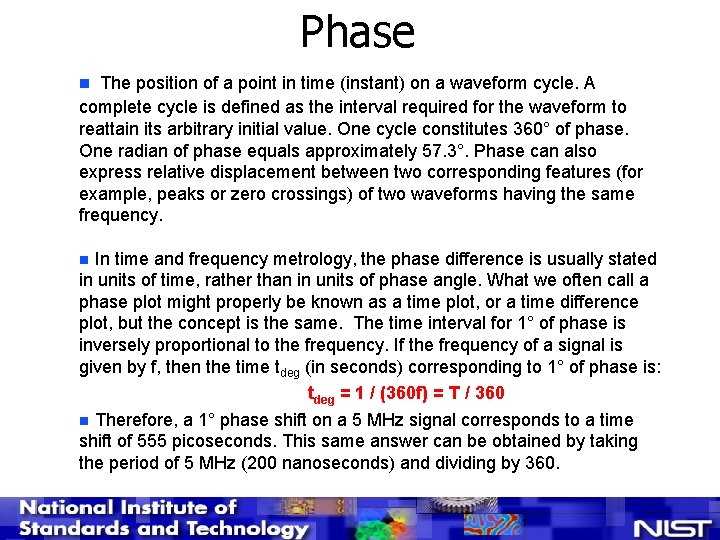

Phase n The position of a point in time (instant) on a waveform cycle. A complete cycle is defined as the interval required for the waveform to reattain its arbitrary initial value. One cycle constitutes 360° of phase. One radian of phase equals approximately 57. 3°. Phase can also express relative displacement between two corresponding features (for example, peaks or zero crossings) of two waveforms having the same frequency. In time and frequency metrology, the phase difference is usually stated in units of time, rather than in units of phase angle. What we often call a phase plot might properly be known as a time plot, or a time difference plot, but the concept is the same. The time interval for 1° of phase is inversely proportional to the frequency. If the frequency of a signal is given by f, then the time tdeg (in seconds) corresponding to 1° of phase is: tdeg = 1 / (360 f) = T / 360 n Therefore, a 1° phase shift on a 5 MHz signal corresponds to a time shift of 555 picoseconds. This same answer can be obtained by taking the period of 5 MHz (200 nanoseconds) and dividing by 360. n

An Oscillating Sine Wave

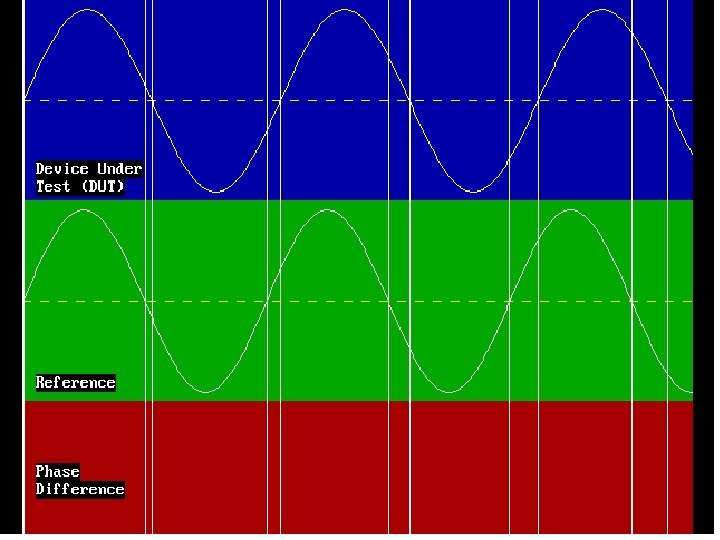

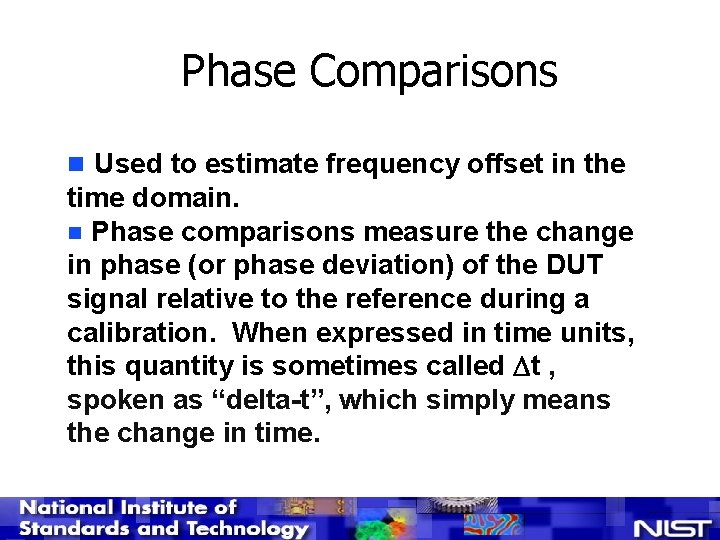

Phase Comparisons n Used to estimate frequency offset in the time domain. n Phase comparisons measure the change in phase (or phase deviation) of the DUT signal relative to the reference during a calibration. When expressed in time units, this quantity is sometimes called t , spoken as “delta-t”, which simply means the change in time.

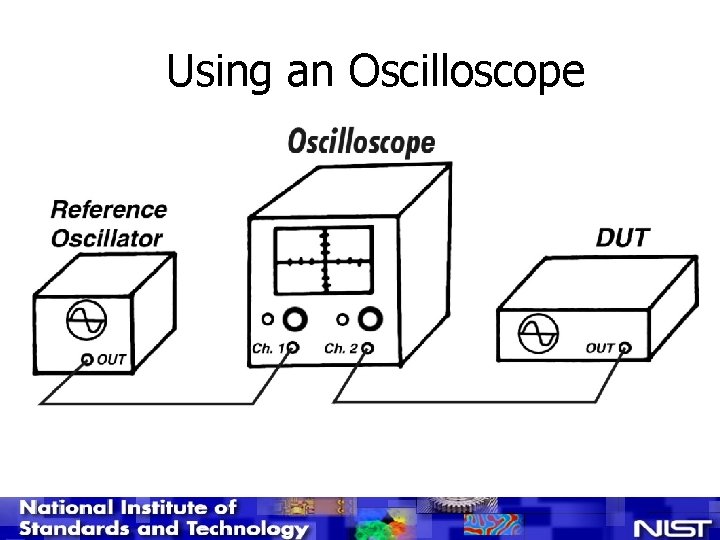

Using an Oscilloscope

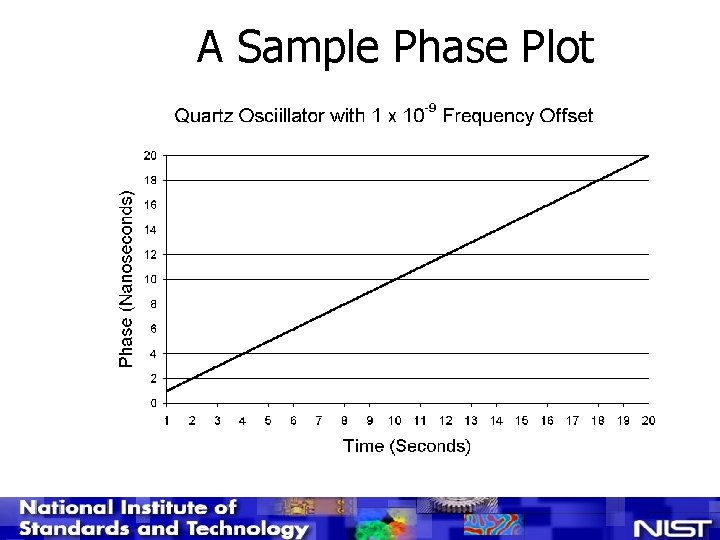

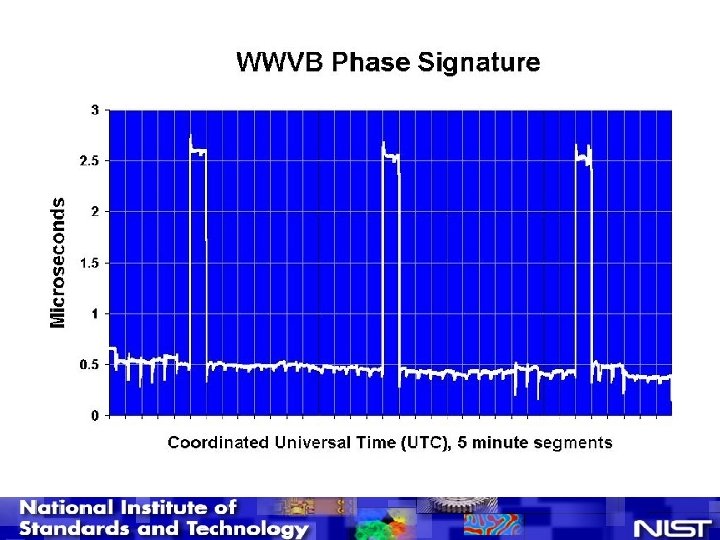

A Sample Phase Plot

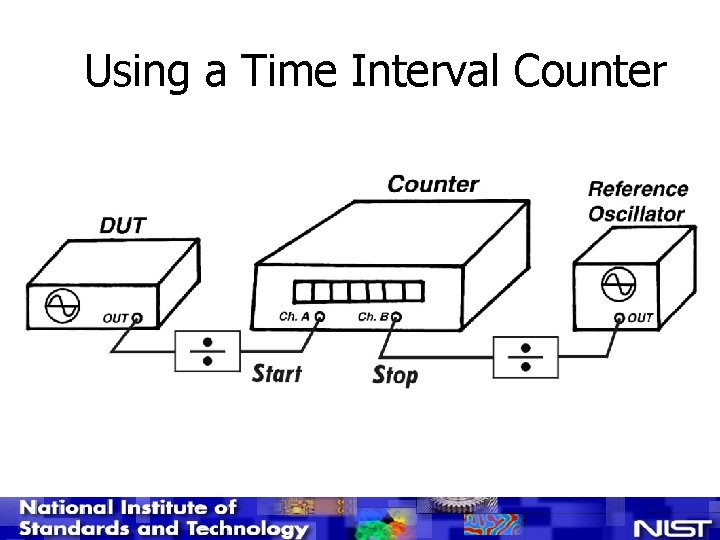

Using a Time Interval Counter

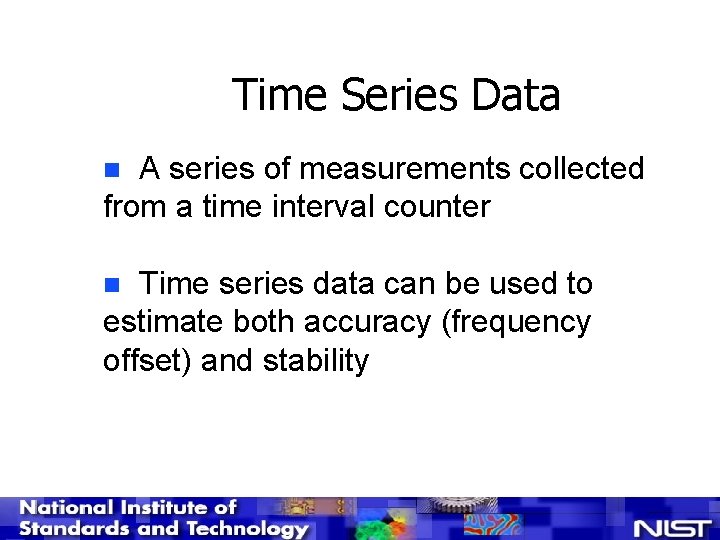

Time Series Data A series of measurements collected from a time interval counter n Time series data can be used to estimate both accuracy (frequency offset) and stability n

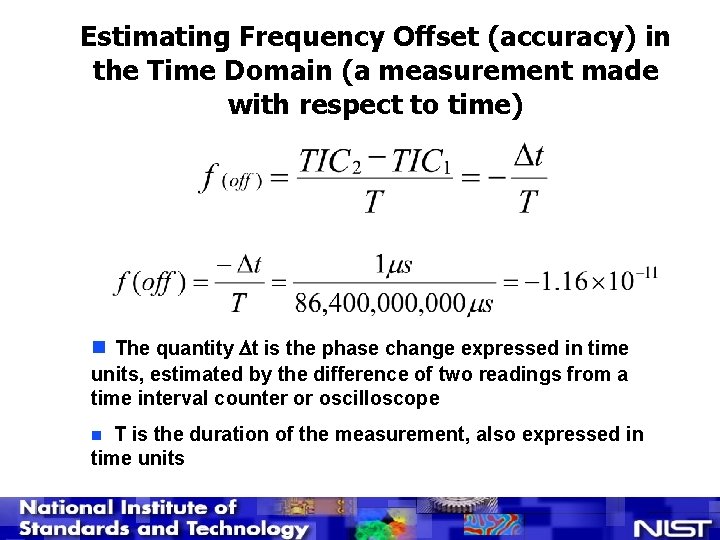

Estimating Frequency Offset (accuracy) in the Time Domain (a measurement made with respect to time) n The quantity t is the phase change expressed in time units, estimated by the difference of two readings from a time interval counter or oscilloscope T is the duration of the measurement, also expressed in time units n

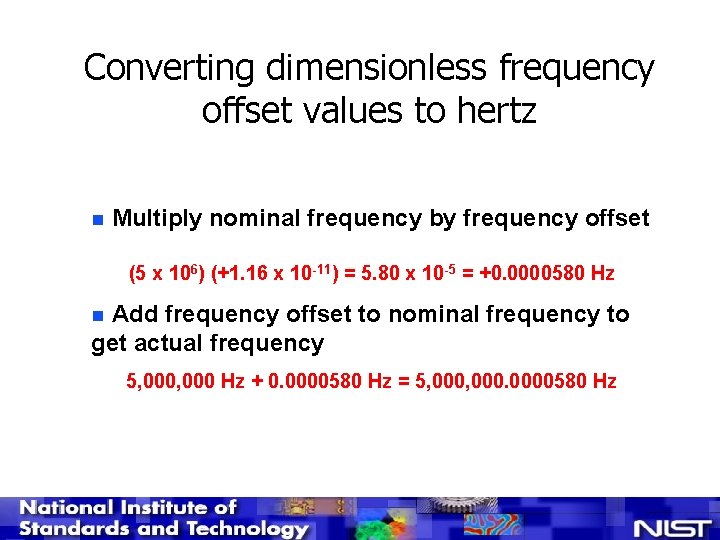

Converting dimensionless frequency offset values to hertz n Multiply nominal frequency by frequency offset (5 x 106) (+1. 16 x 10 -11) = 5. 80 x 10 -5 = +0. 0000580 Hz Add frequency offset to nominal frequency to get actual frequency n 5, 000 Hz + 0. 0000580 Hz = 5, 0000580 Hz

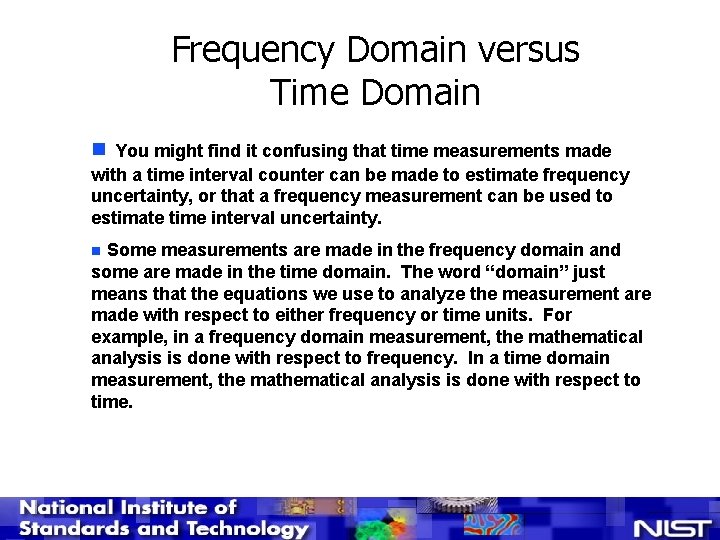

Frequency Domain versus Time Domain n You might find it confusing that time measurements made with a time interval counter can be made to estimate frequency uncertainty, or that a frequency measurement can be used to estimate time interval uncertainty. Some measurements are made in the frequency domain and some are made in the time domain. The word “domain” just means that the equations we use to analyze the measurement are made with respect to either frequency or time units. For example, in a frequency domain measurement, the mathematical analysis is done with respect to frequency. In a time domain measurement, the mathematical analysis is done with respect to time. n

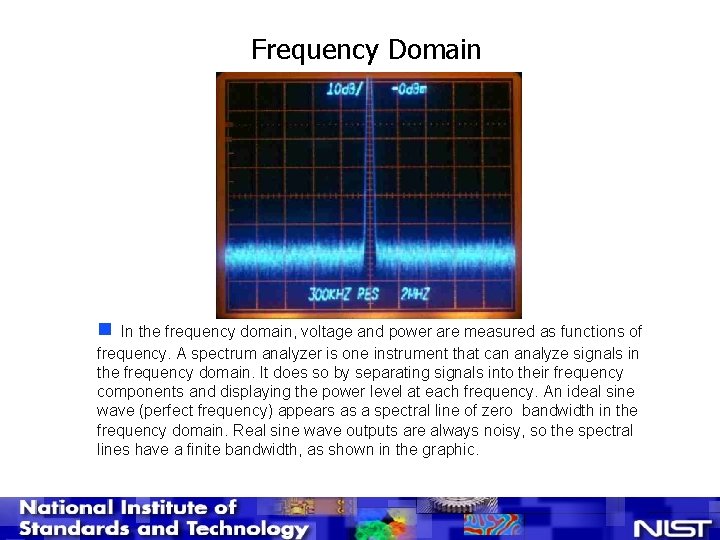

Frequency Domain n In the frequency domain, voltage and power are measured as functions of frequency. A spectrum analyzer is one instrument that can analyze signals in the frequency domain. It does so by separating signals into their frequency components and displaying the power level at each frequency. An ideal sine wave (perfect frequency) appears as a spectral line of zero bandwidth in the frequency domain. Real sine wave outputs are always noisy, so the spectral lines have a finite bandwidth, as shown in the graphic.

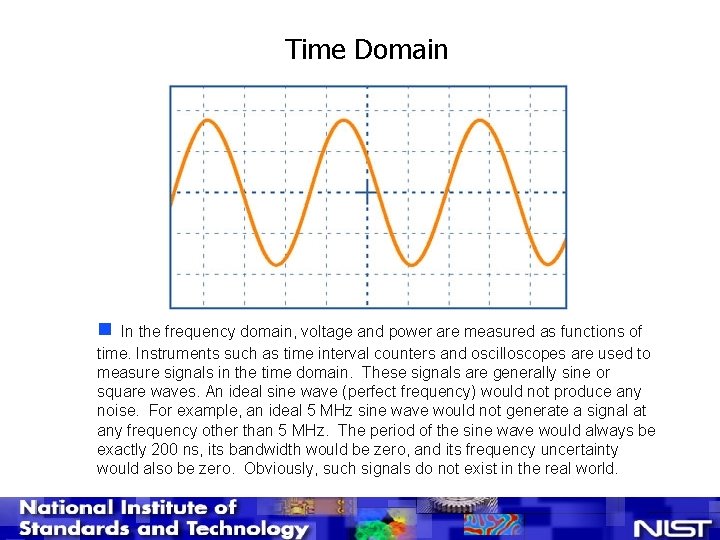

Time Domain n In the frequency domain, voltage and power are measured as functions of time. Instruments such as time interval counters and oscilloscopes are used to measure signals in the time domain. These signals are generally sine or square waves. An ideal sine wave (perfect frequency) would not produce any noise. For example, an ideal 5 MHz sine wave would not generate a signal at any frequency other than 5 MHz. The period of the sine wave would always be exactly 200 ns, its bandwidth would be zero, and its frequency uncertainty would also be zero. Obviously, such signals do not exist in the real world.

Frequency Domain versus Time Domain We can measure frequency to get time interval, and vice versa, because the relationship between frequency and time interval is known. Frequency is the reciprocal of time interval: Where T is the period of the signal in seconds, and f is the frequency in hertz. We can also express this as (the notation used to define the hertz in the SI):

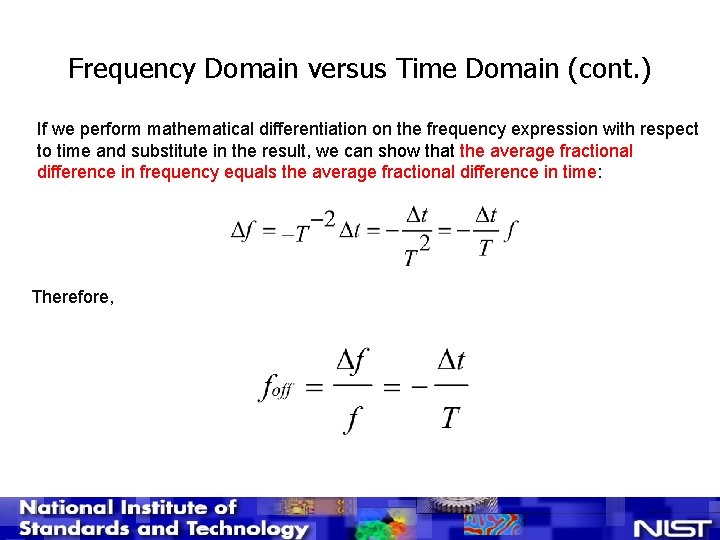

Frequency Domain versus Time Domain (cont. ) If we perform mathematical differentiation on the frequency expression with respect to time and substitute in the result, we can show that the average fractional difference in frequency equals the average fractional difference in time: Therefore,

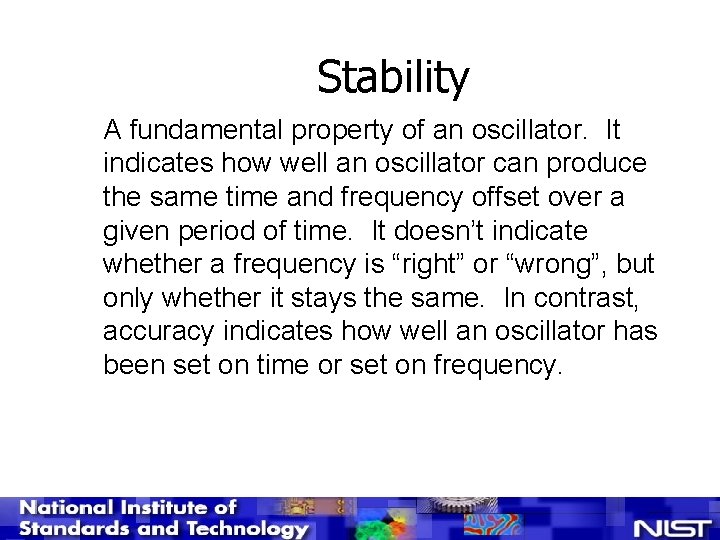

Stability A fundamental property of an oscillator. It indicates how well an oscillator can produce the same time and frequency offset over a given period of time. It doesn’t indicate whether a frequency is “right” or “wrong”, but only whether it stays the same. In contrast, accuracy indicates how well an oscillator has been set on time or set on frequency.

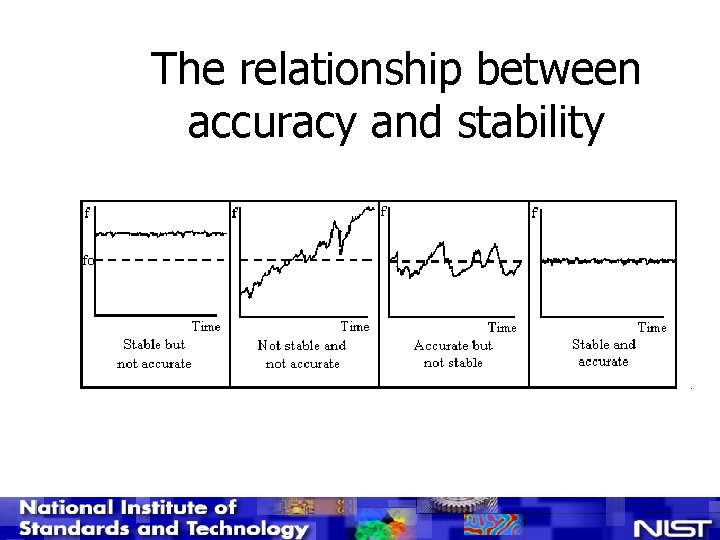

The relationship between accuracy and stability

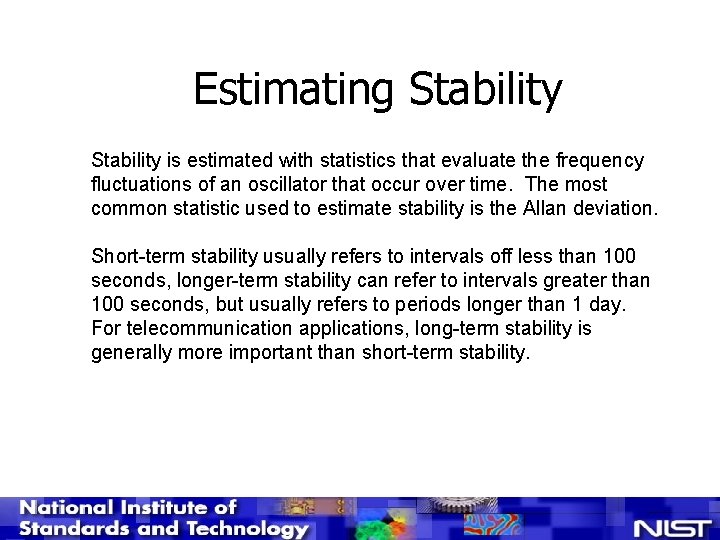

Estimating Stability is estimated with statistics that evaluate the frequency fluctuations of an oscillator that occur over time. The most common statistic used to estimate stability is the Allan deviation. Short-term stability usually refers to intervals off less than 100 seconds, longer-term stability can refer to intervals greater than 100 seconds, but usually refers to periods longer than 1 day. For telecommunication applications, long-term stability is generally more important than short-term stability.

Using the Allan deviation with time series data xi is a set of equally spaced phase measurements in time units, such as data from a time interval counter n n N is the number of values in the xi series n (tau) is the averaging period per value if the noise is white (spread evenly across the frequency band), the Allan deviation produces the same answer as taking the standard deviation of the frequency offset estimates n

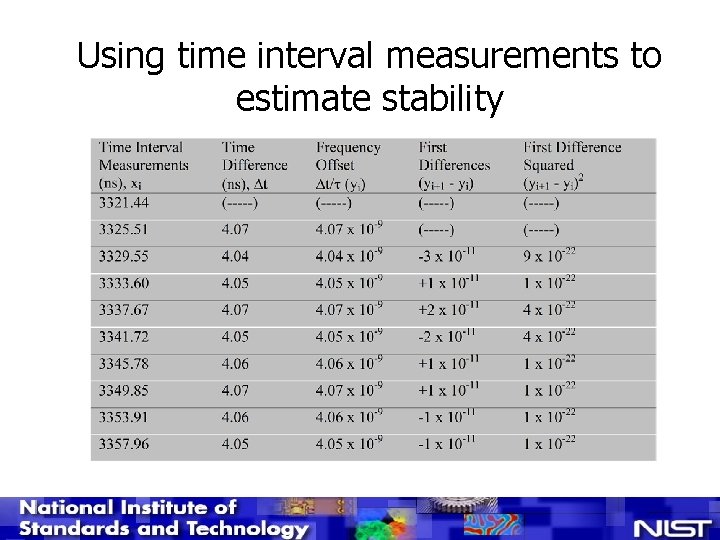

Using time interval measurements to estimate stability

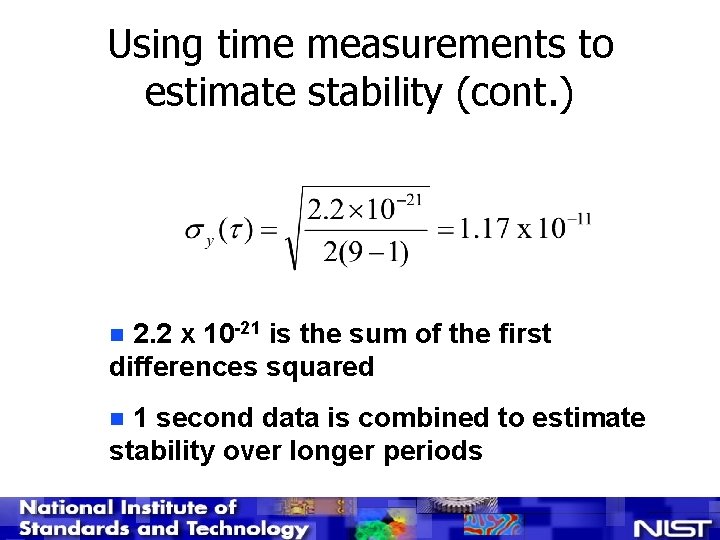

Using time measurements to estimate stability (cont. ) 2. 2 x 10 -21 is the sum of the first differences squared n 1 second data is combined to estimate stability over longer periods n

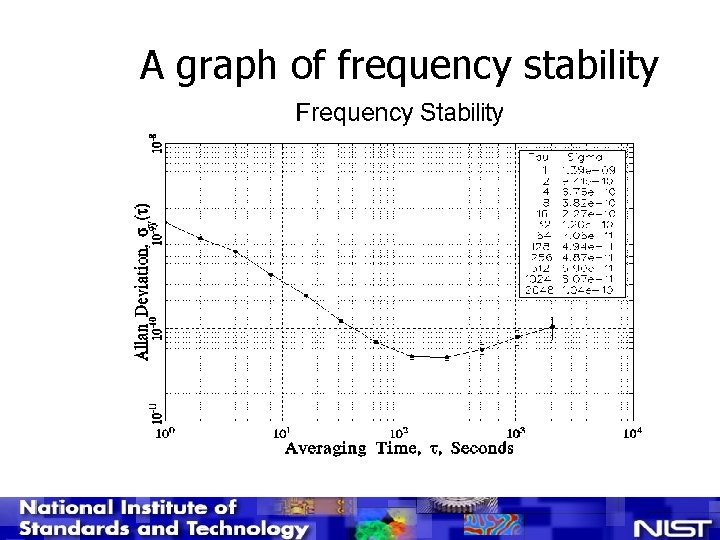

A graph of frequency stability

Noise Floor Allan deviation graphs show stability estimates at different averaging times. These estimates improve (the stability gets better and better), until the devices reaches its noise floor. The noise floor is the point where more averaging doesn’t help; you’ll get the same answer or a worse answer if you continue to average. When the noise floor is reached, the remaining noise is non-white, and cannot be removed by averaging. Specification sheets for frequency sources usually only provide stability estimates out to the point where the noise floor is reached. For example, if an oscillator’s specification sheet only shows stability estimates out to an average time of 10 seconds, you’ll know that the stability at longer intervals (like 1 hour or 1 day) is worse than the stability at 10 seconds.

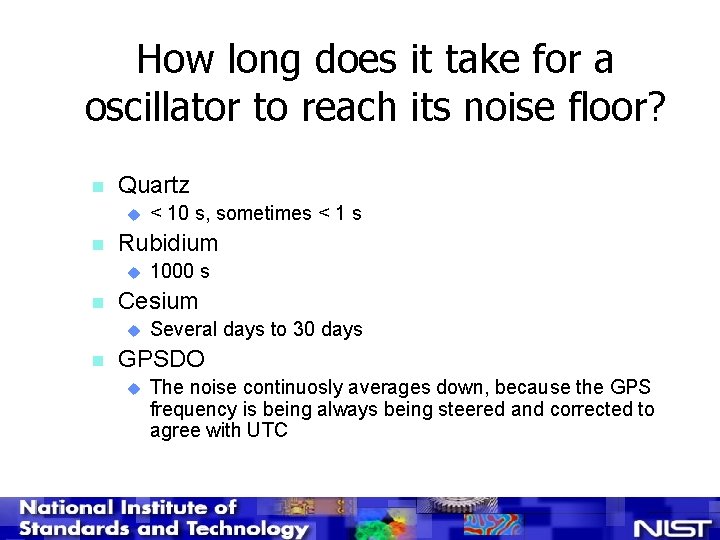

How long does it take for a oscillator to reach its noise floor? n Quartz u n Rubidium u n 1000 s Cesium u n < 10 s, sometimes < 1 s Several days to 30 days GPSDO u The noise continuosly averages down, because the GPS frequency is being always being steered and corrected to agree with UTC

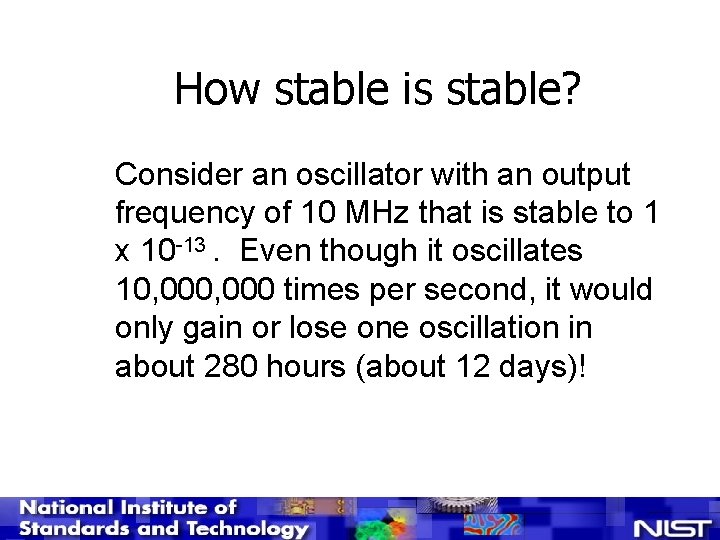

How stable is stable? Consider an oscillator with an output frequency of 10 MHz that is stable to 1 x 10 -13. Even though it oscillates 10, 000 times per second, it would only gain or lose one oscillation in about 280 hours (about 12 days)!

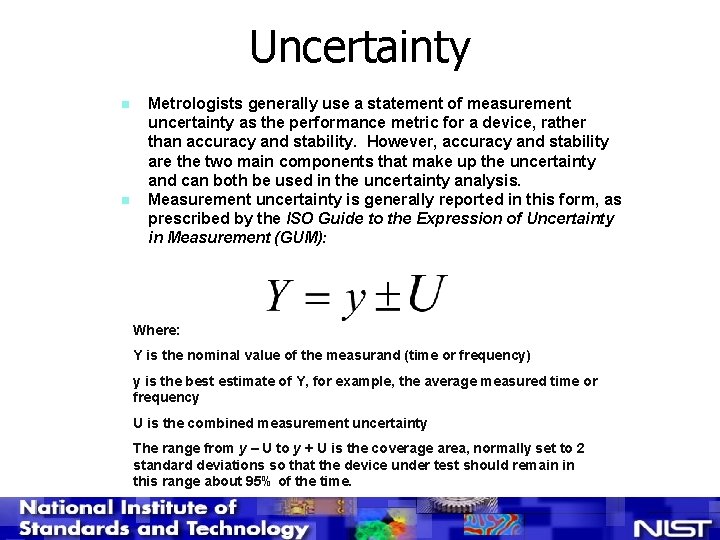

Uncertainty n n Metrologists generally use a statement of measurement uncertainty as the performance metric for a device, rather than accuracy and stability. However, accuracy and stability are the two main components that make up the uncertainty and can both be used in the uncertainty analysis. Measurement uncertainty is generally reported in this form, as prescribed by the ISO Guide to the Expression of Uncertainty in Measurement (GUM): Where: Y is the nominal value of the measurand (time or frequency) y is the best estimate of Y, for example, the average measured time or frequency U is the combined measurement uncertainty The range from y – U to y + U is the coverage area, normally set to 2 standard deviations so that the device under test should remain in this range about 95% of the time.

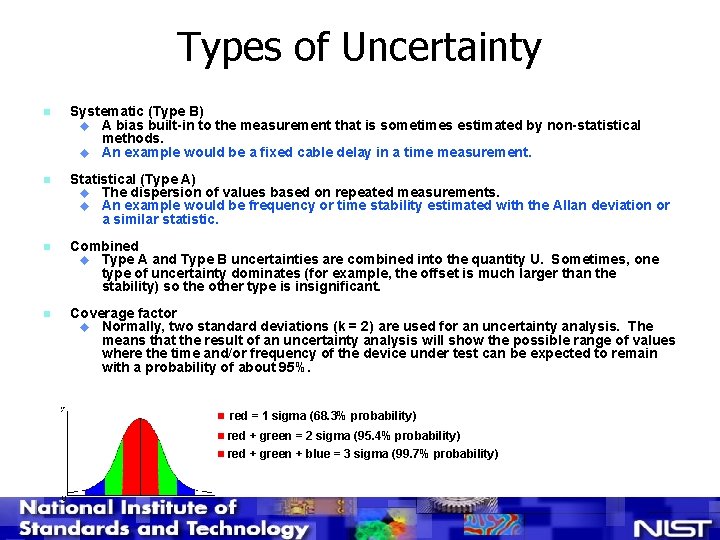

Types of Uncertainty n Systematic (Type B) u A bias built-in to the measurement that is sometimes estimated by non-statistical methods. u An example would be a fixed cable delay in a time measurement. n Statistical (Type A) u The dispersion of values based on repeated measurements. u An example would be frequency or time stability estimated with the Allan deviation or a similar statistic. n Combined u Type A and Type B uncertainties are combined into the quantity U. Sometimes, one type of uncertainty dominates (for example, the offset is much larger than the stability) so the other type is insignificant. n Coverage factor u Normally, two standard deviations (k = 2) are used for an uncertainty analysis. The means that the result of an uncertainty analysis will show the possible range of values where the time and/or frequency of the device under test can be expected to remain with a probability of about 95%. n red = 1 sigma (68. 3% probability) red + green = 2 sigma (95. 4% probability) n red + green + blue = 3 sigma (99. 7% probability) n

Short Summary of Oscillator Types

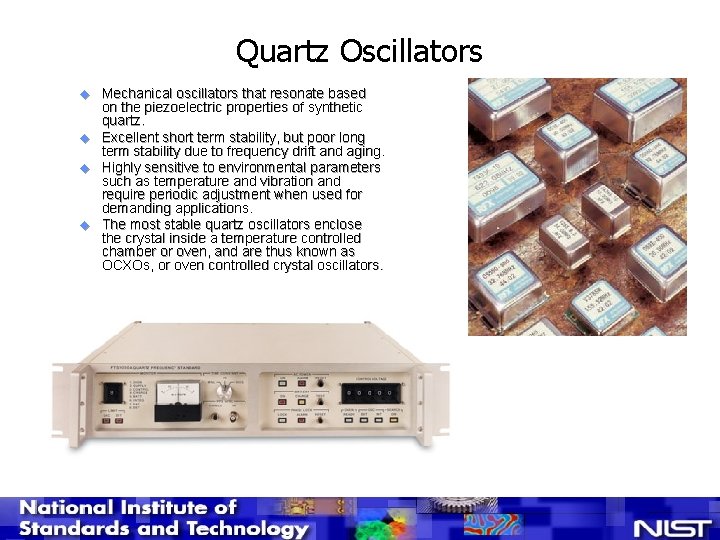

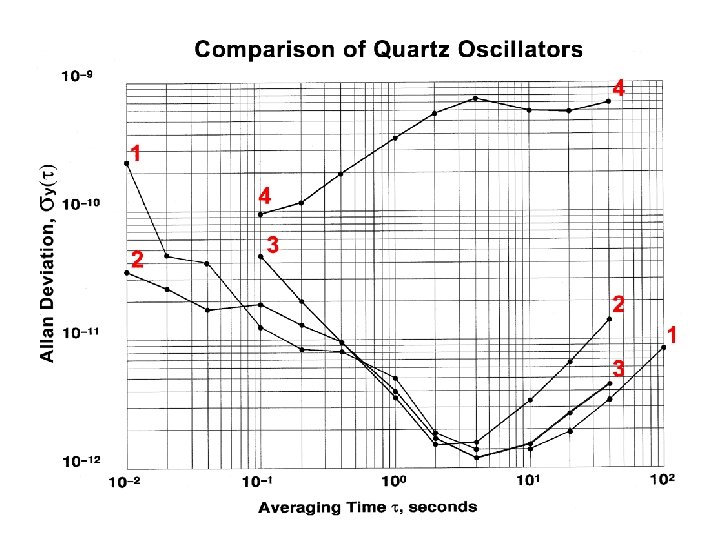

Quartz Oscillators u u Mechanical oscillators that resonate based on the piezoelectric properties of synthetic quartz. Excellent short term stability, but poor long term stability due to frequency drift and aging. Highly sensitive to environmental parameters such as temperature and vibration and require periodic adjustment when used for demanding applications. The most stable quartz oscillators enclose the crystal inside a temperature controlled chamber or oven, and are thus known as OCXOs, or oven controlled crystal oscillators.

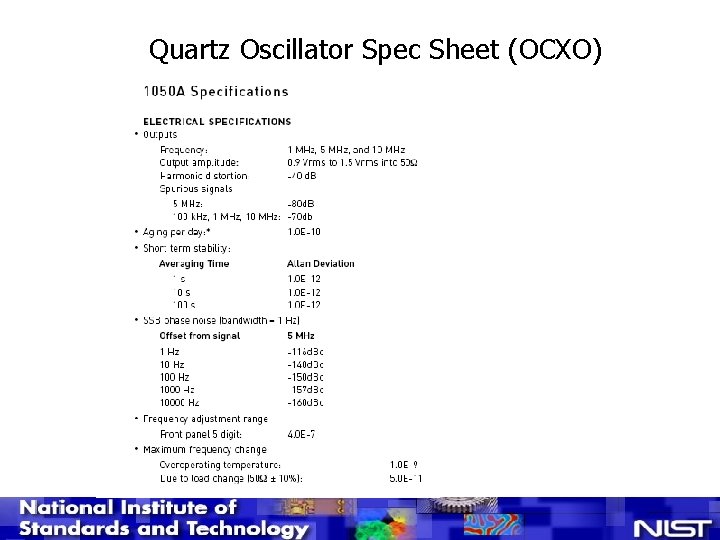

Quartz Oscillator Spec Sheet (OCXO)

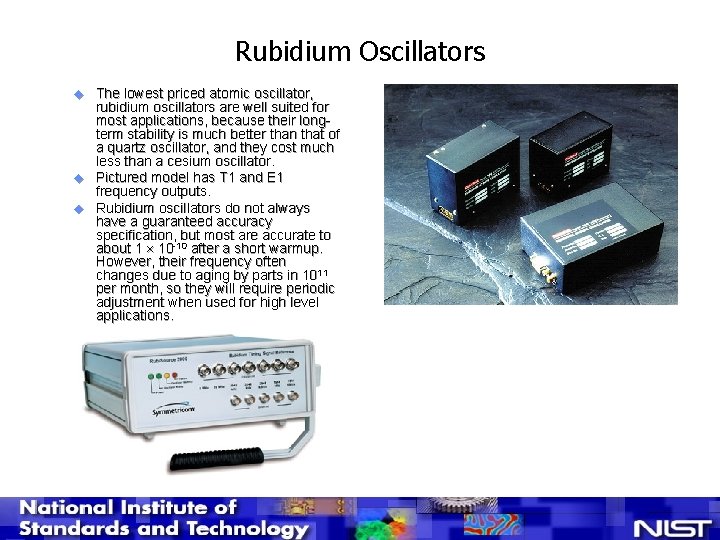

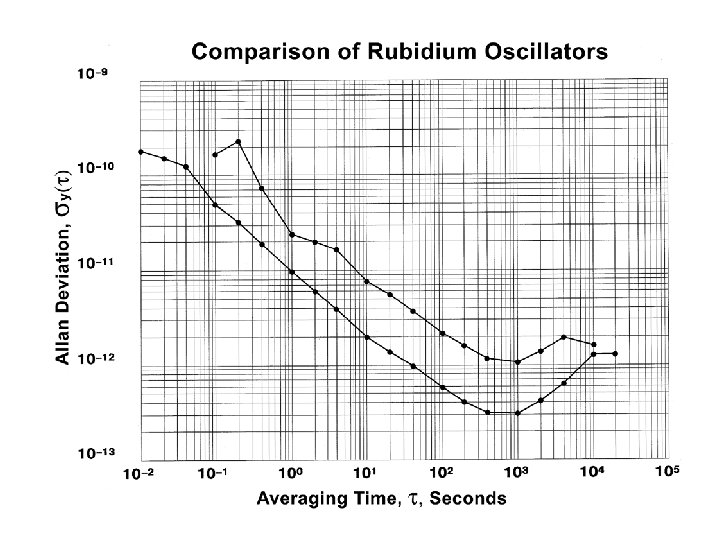

Rubidium Oscillators u u u The lowest priced atomic oscillator, rubidium oscillators are well suited for most applications, because their longterm stability is much better than that of a quartz oscillator, and they cost much less than a cesium oscillator. Pictured model has T 1 and E 1 frequency outputs. Rubidium oscillators do not always have a guaranteed accuracy specification, but most are accurate to about 1 10 -10 after a short warmup. However, their frequency often changes due to aging by parts in 1011 per month, so they will require periodic adjustment when used for high level applications.

Rubidium Oscillator Spec Sheet

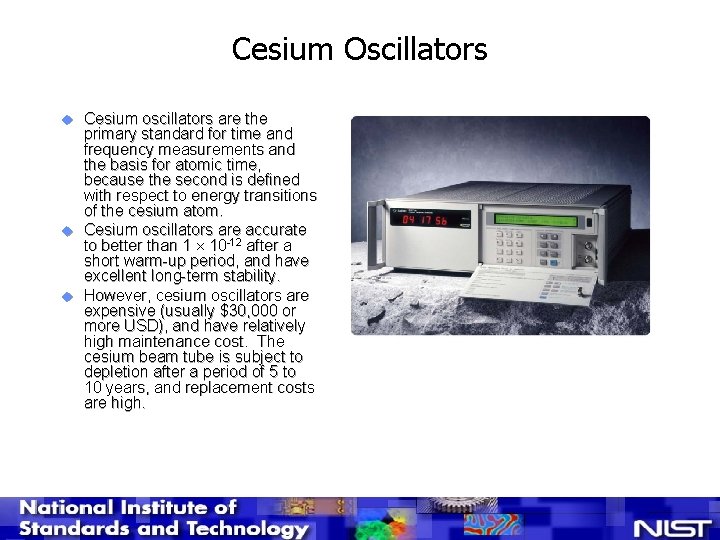

Cesium Oscillators u u u Cesium oscillators are the primary standard for time and frequency measurements and the basis for atomic time, because the second is defined with respect to energy transitions of the cesium atom. Cesium oscillators are accurate to better than 1 10 -12 after a short warm-up period, and have excellent long-term stability. However, cesium oscillators are expensive (usually $30, 000 or more USD), and have relatively high maintenance cost. The cesium beam tube is subject to depletion after a period of 5 to 10 years, and replacement costs are high.

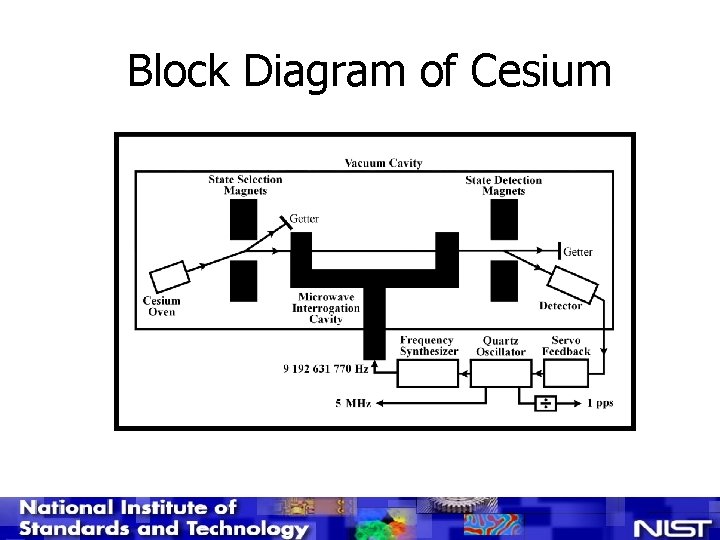

Block Diagram of Cesium

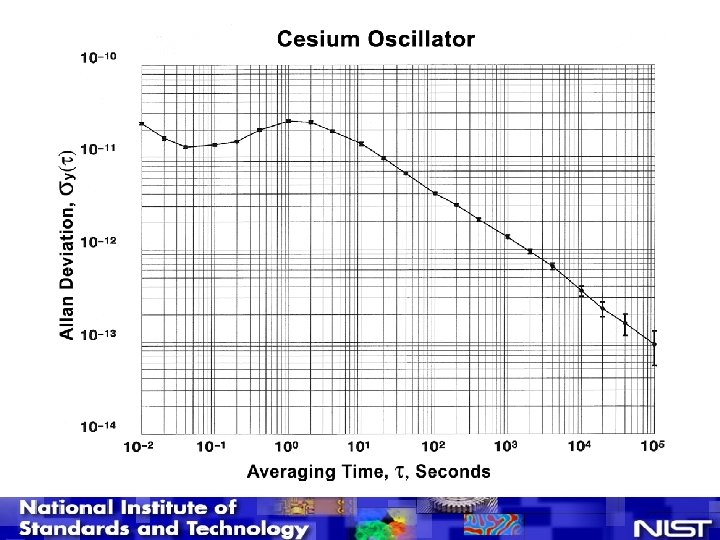

Cesium Oscillator Spec Sheet

Oscillator Comparison (typical performance) Parameter /Device Quartz OCXO Frequency accuracy after 30 minute warm-up No guaranteed accuracy, must be set on frequency 5 10 -10 1 10 -12 Stability at 1 s 1 10 -12 1 10 -11 Parts in 1010 Stability at 1 day 1 10 -10 2 10 -12 1 10 -13 2 10 -13 Stability at 1 month Parts in 109 5 10 -11 Parts in 1014 Parts in 1015 1 10 -10 / day 5 10 -11/month None, by definition None, frequency is corrected by satellites $25000 to $50000 $2000 to $15000 Aging Cost (USD) $200 to $2000 Rubidium $1000 to $8000 Cesium GPSDO
