Overview of Distributed Denial of Service (DDo. S) Wei Zhou

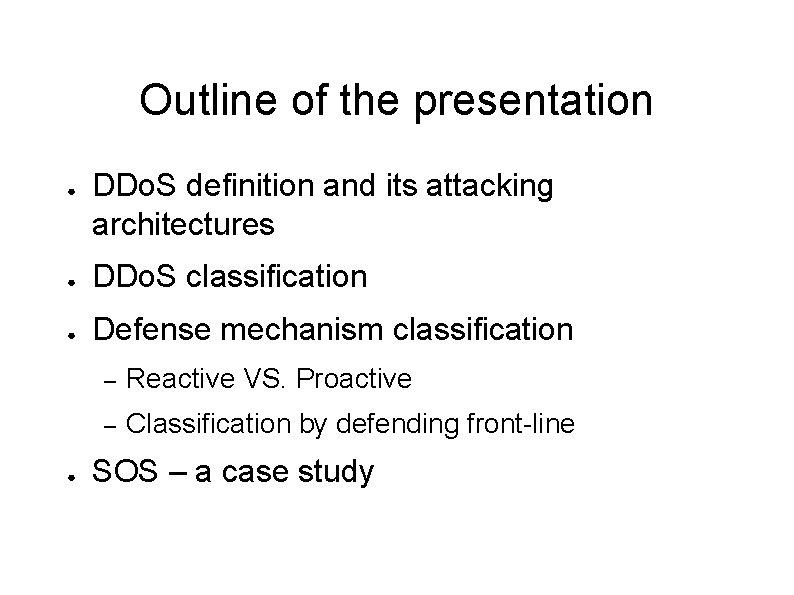

Outline of the presentation ● DDo. S definition and its attacking architectures ● DDo. S classification ● Defense mechanism classification ● – Reactive VS. Proactive – Classification by defending front-line SOS – a case study

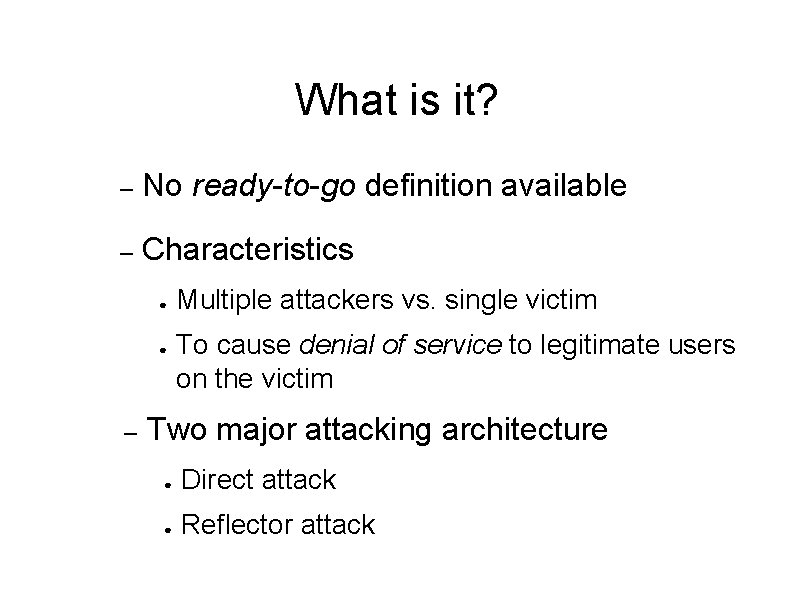

What is it? – No ready-to-go definition available – Characteristics ● ● – Multiple attackers vs. single victim To cause denial of service to legitimate users on the victim Two major attacking architecture ● Direct attack ● Reflector attack

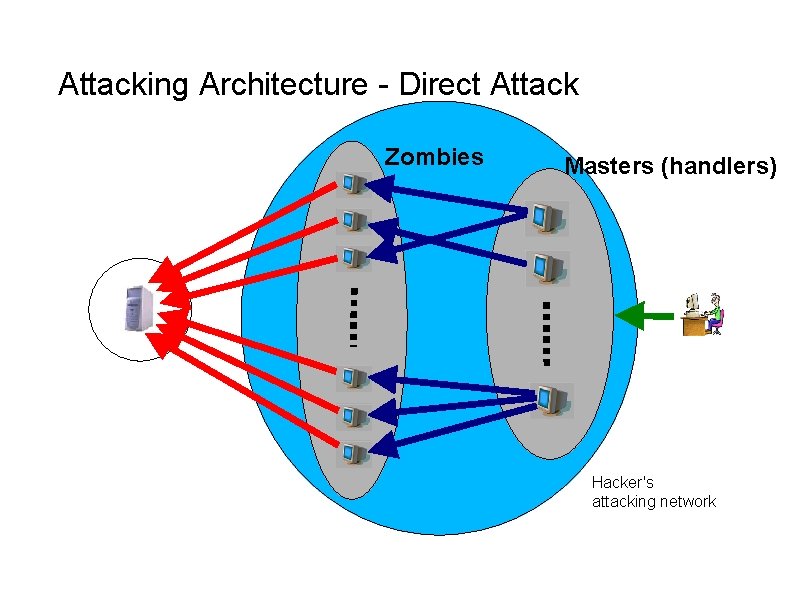

Attacking Architecture - Direct Attack Zombies Masters (handlers) Hacker's attacking network

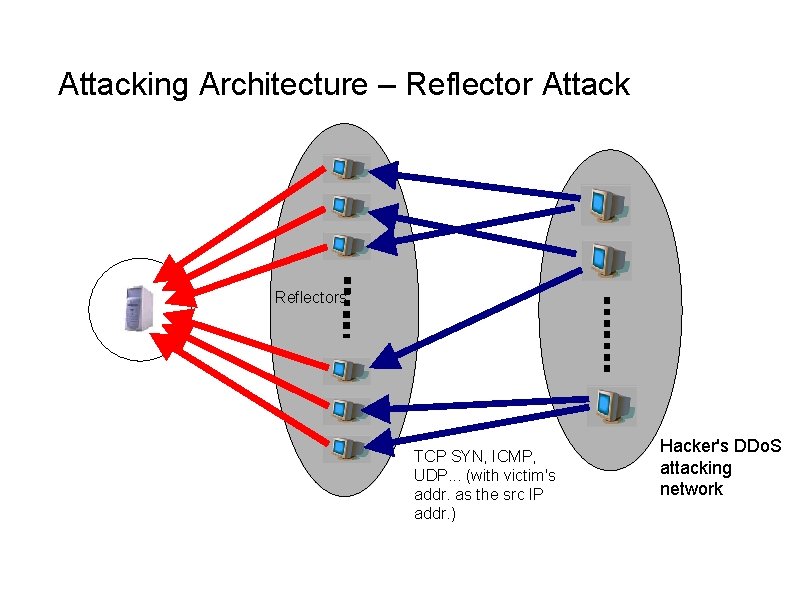

Attacking Architecture – Reflector Attack Reflectors TCP SYN, ICMP, UDP. . . (with victim's addr. as the src IP addr. ) Hacker's DDo. S attacking network

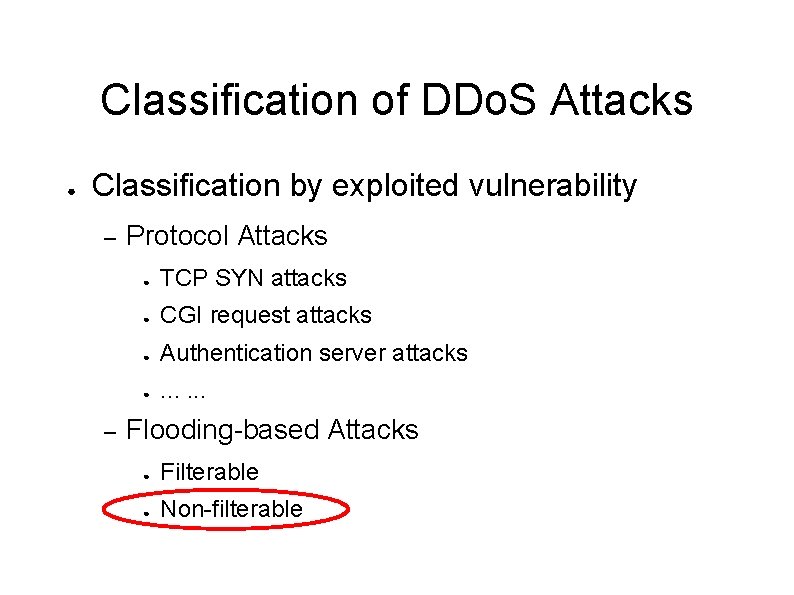

Classification of DDo. S Attacks ● Classification by exploited vulnerability – – Protocol Attacks ● TCP SYN attacks ● CGI request attacks ● Authentication server attacks ● . . . Flooding-based Attacks ● Filterable ● Non-filterable

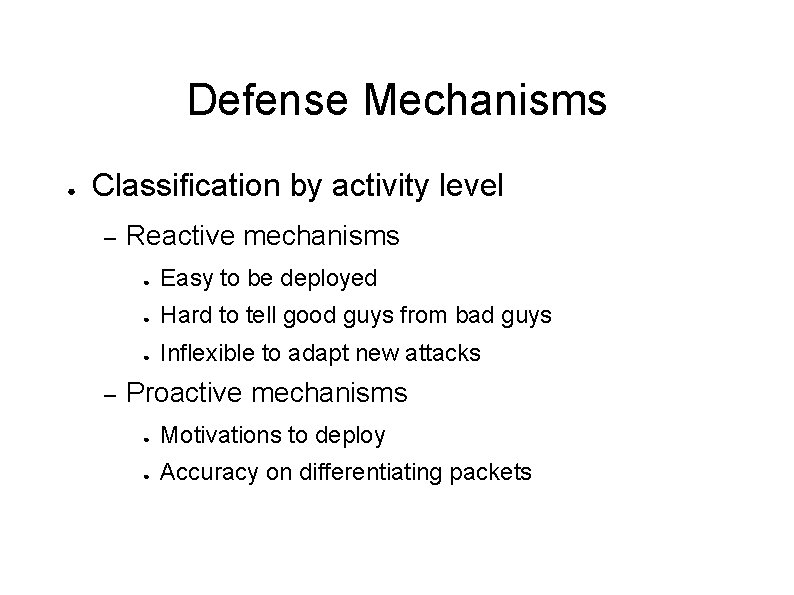

Defense Mechanisms ● Classification by activity level – – Reactive mechanisms ● Easy to be deployed ● Hard to tell good guys from bad guys ● Inflexible to adapt new attacks Proactive mechanisms ● Motivations to deploy ● Accuracy on differentiating packets

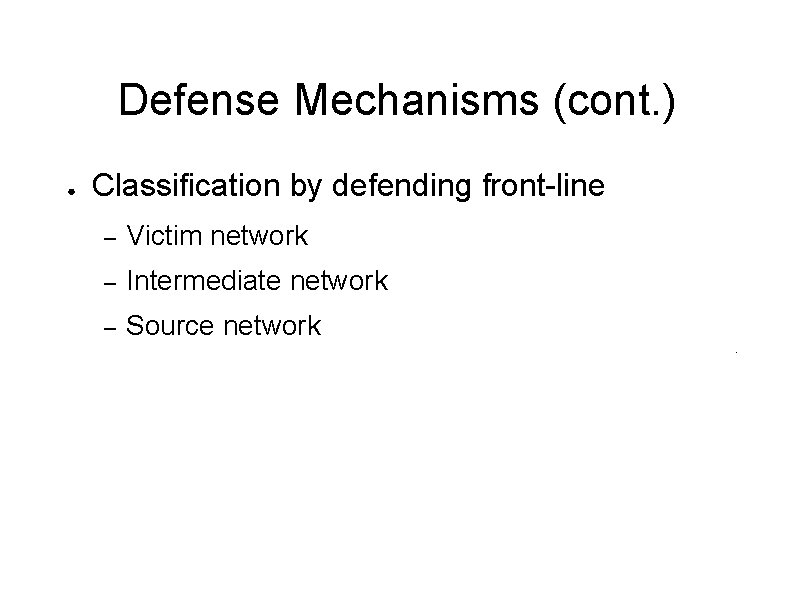

Defense Mechanisms (cont. ) ● Classification by defending front-line – Victim network – Intermediate network – Source network

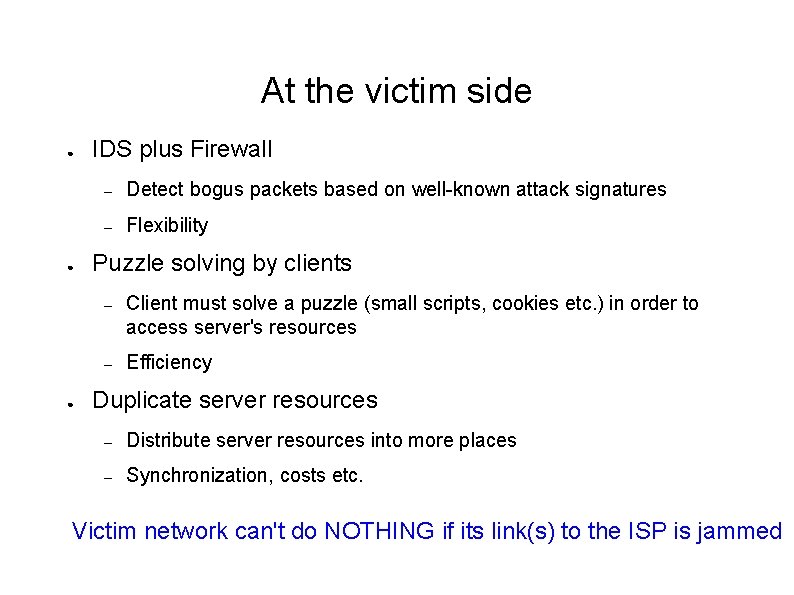

At the victim side ● ● ● IDS plus Firewall – Detect bogus packets based on well-known attack signatures – Flexibility Puzzle solving by clients – Client must solve a puzzle (small scripts, cookies etc. ) in order to access server's resources – Efficiency Duplicate server resources – Distribute server resources into more places – Synchronization, costs etc. Victim network can't do NOTHING if its link(s) to the ISP is jammed

In the intermediate network ● IP traceback – Can be used to collect forensic evidence – (Need further exploration on this topic) ● Push-back mechanism ● Route-Based packet filtering ● Overlay network

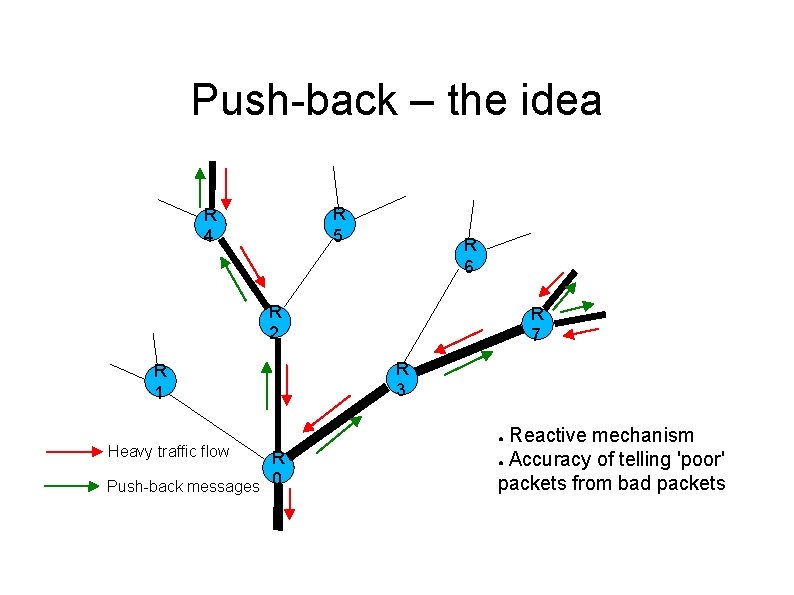

Push-back – the idea R 5 R 4 R 6 R 2 R 1 Heavy traffic flow R Push-back messages 0 R 7 R 3 Reactive mechanism ● Accuracy of telling 'poor' packets from bad packets ●

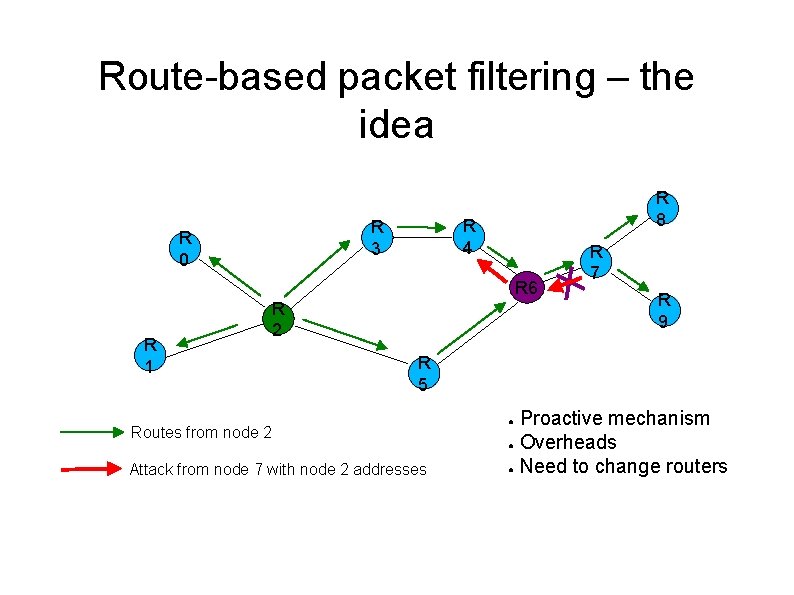

Route-based packet filtering – the idea R 4 R 3 R 0 R 8 R 6 R 1 R 2 R 7 R 9 R 5 Routes from node 2 Attack from node 7 with node 2 addresses Proactive mechanism ● Overheads ● Need to change routers ●

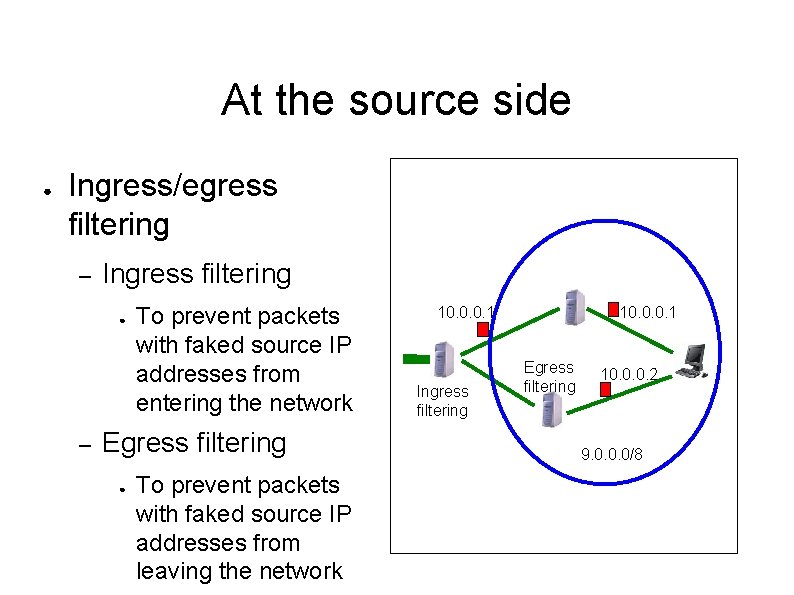

At the source side ● Ingress/egress filtering – Ingress filtering ● – To prevent packets with faked source IP addresses from entering the network Egress filtering ● To prevent packets with faked source IP addresses from leaving the network 10. 0. 0. 1 Ingress filtering Egress filtering 10. 0. 0. 2 9. 0. 0. 0/8

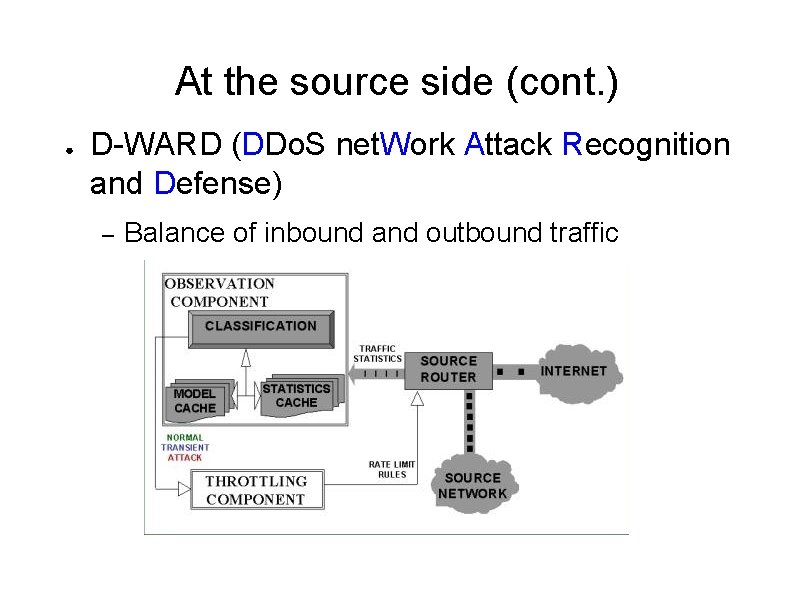

At the source side (cont. ) ● D-WARD (DDo. S net. Work Attack Recognition and Defense) – Balance of inbound and outbound traffic

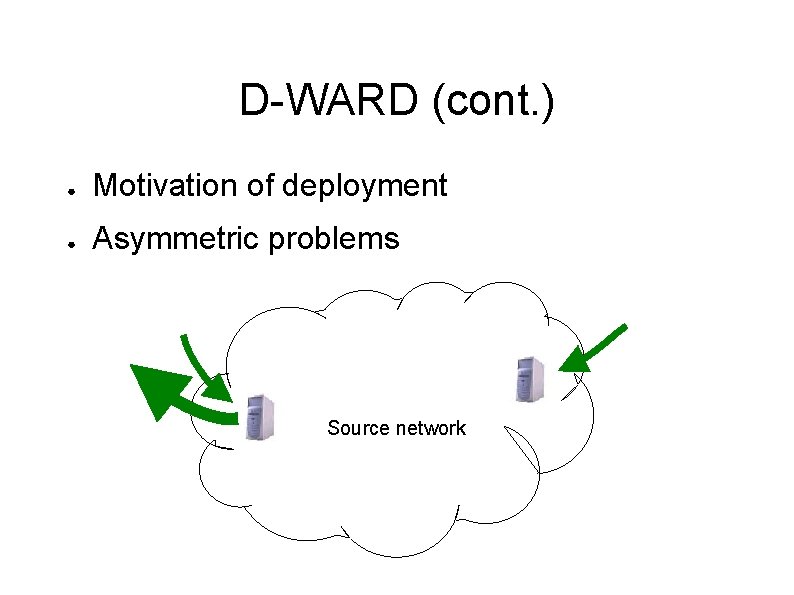

D-WARD (cont. ) ● Motivation of deployment ● Asymmetric problems Source network

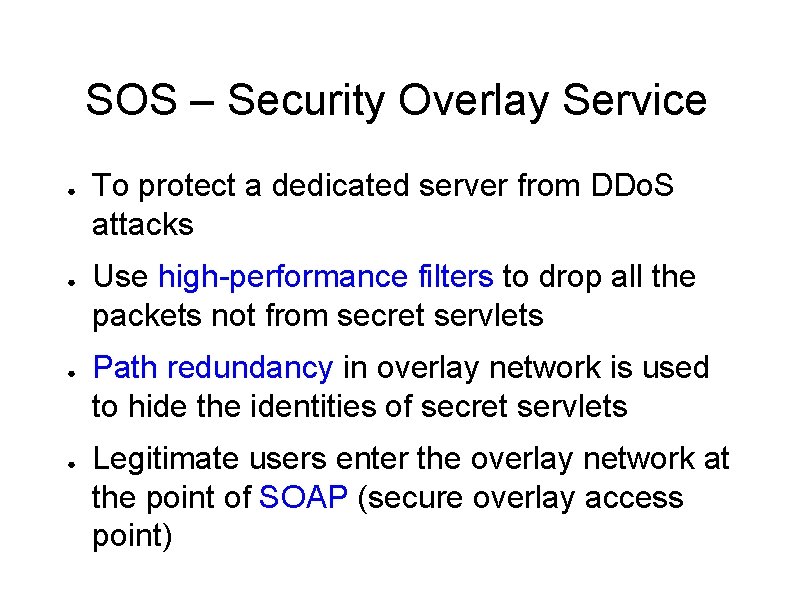

SOS – Security Overlay Service ● ● To protect a dedicated server from DDo. S attacks Use high-performance filters to drop all the packets not from secret servlets Path redundancy in overlay network is used to hide the identities of secret servlets Legitimate users enter the overlay network at the point of SOAP (secure overlay access point)

SOS (cont. ) Filter SOAP(s) Server Secret servlet(s) Overlay network Big time delay

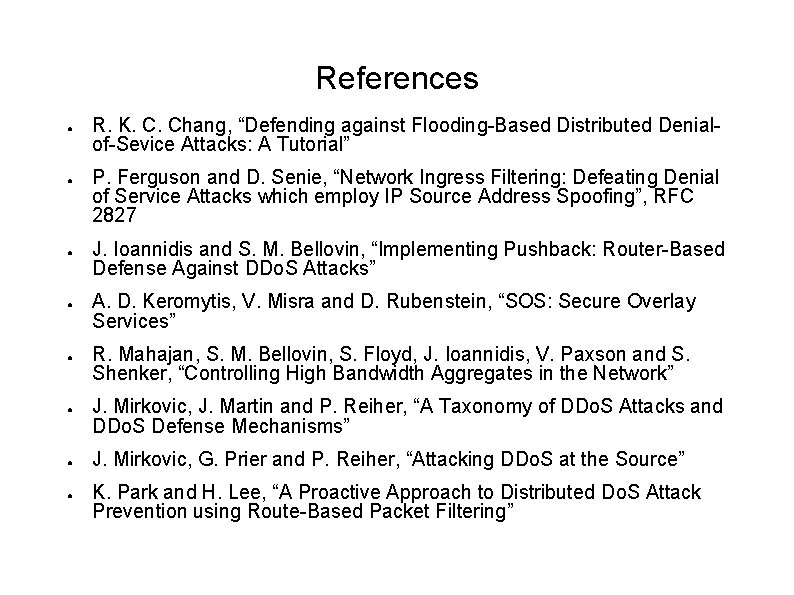

References ● ● ● ● R. K. C. Chang, “Defending against Flooding-Based Distributed Denialof-Sevice Attacks: A Tutorial” P. Ferguson and D. Senie, “Network Ingress Filtering: Defeating Denial of Service Attacks which employ IP Source Address Spoofing”, RFC 2827 J. Ioannidis and S. M. Bellovin, “Implementing Pushback: Router-Based Defense Against DDo. S Attacks” A. D. Keromytis, V. Misra and D. Rubenstein, “SOS: Secure Overlay Services” R. Mahajan, S. M. Bellovin, S. Floyd, J. Ioannidis, V. Paxson and S. Shenker, “Controlling High Bandwidth Aggregates in the Network” J. Mirkovic, J. Martin and P. Reiher, “A Taxonomy of DDo. S Attacks and DDo. S Defense Mechanisms” J. Mirkovic, G. Prier and P. Reiher, “Attacking DDo. S at the Source” K. Park and H. Lee, “A Proactive Approach to Distributed Do. S Attack Prevention using Route-Based Packet Filtering”
