OVERVIEW Delivering Technology that Innovates dti delaware gov

OVERVIEW Delivering Technology that Innovates dti. delaware. gov

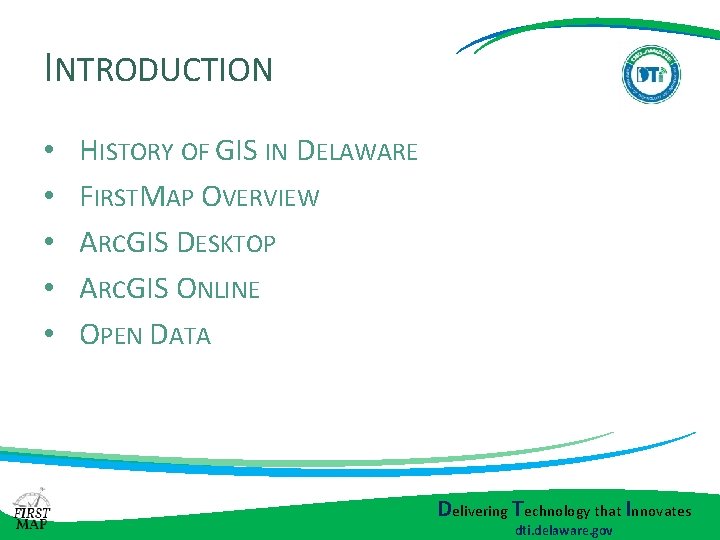

INTRODUCTION • • • HISTORY OF GIS IN DELAWARE FIRSTMAP OVERVIEW ARCGIS DESKTOP ARCGIS ONLINE OPEN DATA Delivering Technology that Innovates dti. delaware. gov

TEAM INTRODUCTION Darin Dell Kim Cloud Mike del Tufo Debbie Sullivan Mike Townshend Dan Cook Delivering Technology that Innovates dti. delaware. gov

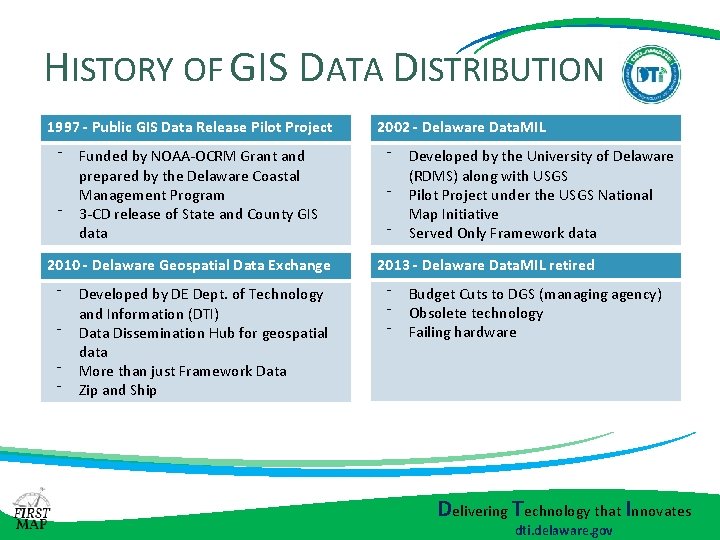

HISTORY OF GIS DATA DISTRIBUTION 1997 - Public GIS Data Release Pilot Project ⁻ ⁻ Funded by NOAA-OCRM Grant and prepared by the Delaware Coastal Management Program 3 -CD release of State and County GIS data 2010 - Delaware Geospatial Data Exchange ⁻ ⁻ Developed by DE Dept. of Technology and Information (DTI) Data Dissemination Hub for geospatial data More than just Framework Data Zip and Ship 2002 - Delaware Data. MIL ⁻ ⁻ ⁻ Developed by the University of Delaware (RDMS) along with USGS Pilot Project under the USGS National Map Initiative Served Only Framework data 2013 - Delaware Data. MIL retired ⁻ ⁻ ⁻ Budget Cuts to DGS (managing agency) Obsolete technology Failing hardware Delivering Technology that Innovates dti. delaware. gov

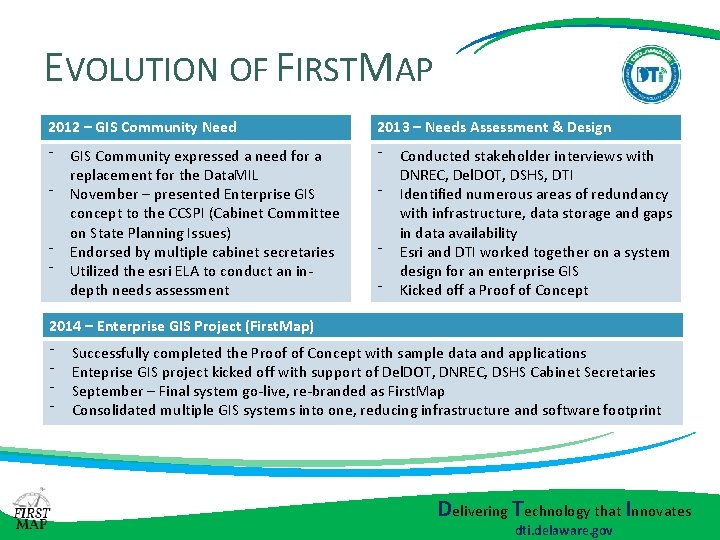

EVOLUTION OF FIRSTMAP 2012 – GIS Community Need 2013 – Needs Assessment & Design ⁻ ⁻ ⁻ GIS Community expressed a need for a replacement for the Data. MIL November – presented Enterprise GIS concept to the CCSPI (Cabinet Committee on State Planning Issues) Endorsed by multiple cabinet secretaries Utilized the esri ELA to conduct an indepth needs assessment ⁻ ⁻ ⁻ Conducted stakeholder interviews with DNREC, Del. DOT, DSHS, DTI Identified numerous areas of redundancy with infrastructure, data storage and gaps in data availability Esri and DTI worked together on a system design for an enterprise GIS Kicked off a Proof of Concept 2014 – Enterprise GIS Project (First. Map) ⁻ ⁻ Successfully completed the Proof of Concept with sample data and applications Enteprise GIS project kicked off with support of Del. DOT, DNREC, DSHS Cabinet Secretaries September – Final system go-live, re-branded as First. Map Consolidated multiple GIS systems into one, reducing infrastructure and software footprint Delivering Technology that Innovates dti. delaware. gov

FIRSTMAP OVERVIEW • STATE OF DELAWARE’S ENTERPRISE GIS SYSTEM THAT CONSISTS OF : – Infrastructure for storing data and providing web services. – Web Mapping Portal (Arc. GIS Online) • https: //delaware. maps. arcgis. com – Data Download Site (Open Data) • http: //opendata. firstmap. delaware. gov – Collection of web maps and applications – Static content Website • https: //firstmap. delaware. gov Delivering Technology that Innovates dti. delaware. gov

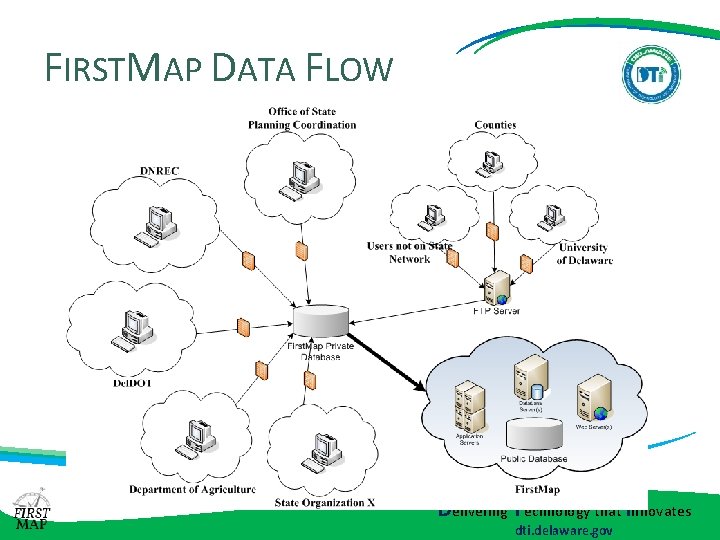

FIRSTMAP DATA FLOW Delivering Technology that Innovates dti. delaware. gov

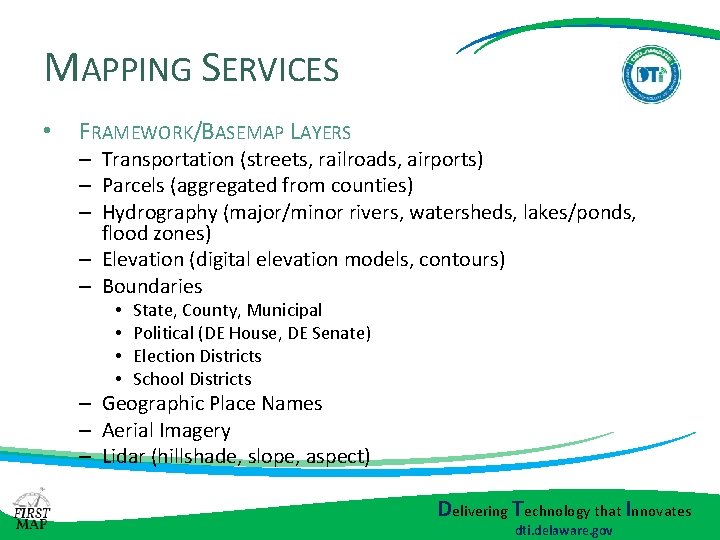

MAPPING SERVICES • FRAMEWORK/BASEMAP LAYERS – Transportation (streets, railroads, airports) – Parcels (aggregated from counties) – Hydrography (major/minor rivers, watersheds, lakes/ponds, flood zones) – Elevation (digital elevation models, contours) – Boundaries • • State, County, Municipal Political (DE House, DE Senate) Election Districts School Districts – Geographic Place Names – Aerial Imagery – Lidar (hillshade, slope, aspect) Delivering Technology that Innovates dti. delaware. gov

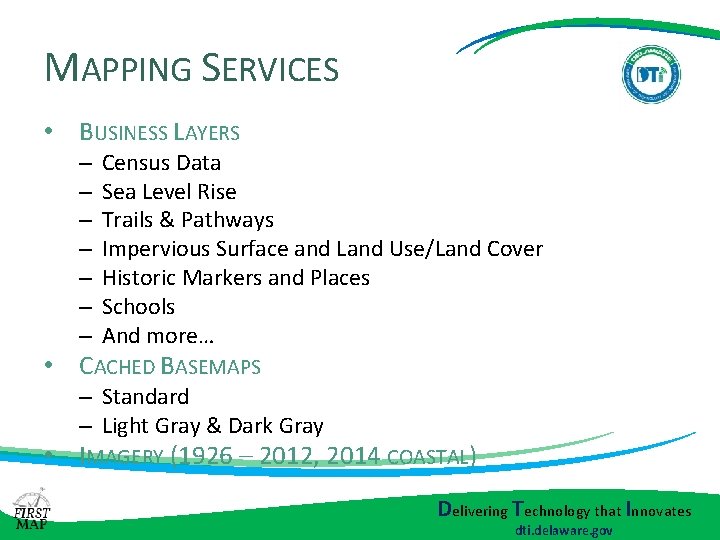

MAPPING SERVICES • BUSINESS LAYERS – – – – Census Data Sea Level Rise Trails & Pathways Impervious Surface and Land Use/Land Cover Historic Markers and Places Schools And more… • CACHED BASEMAPS – Standard – Light Gray & Dark Gray • IMAGERY (1926 – 2012, 2014 COASTAL) Delivering Technology that Innovates dti. delaware. gov

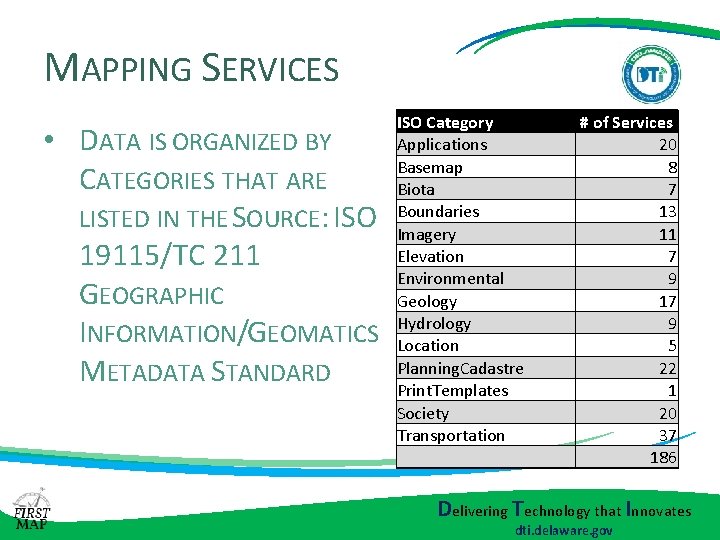

MAPPING SERVICES • DATA IS ORGANIZED BY CATEGORIES THAT ARE LISTED IN THE SOURCE: ISO 19115/TC 211 GEOGRAPHIC INFORMATION/GEOMATICS METADATA STANDARD ISO Category Applications Basemap Biota Boundaries Imagery Elevation Environmental Geology Hydrology Location Planning. Cadastre Print. Templates Society Transportation # of Services 20 8 7 13 11 7 9 17 9 5 22 1 20 37 186 Delivering Technology that Innovates dti. delaware. gov

ARCGIS DESKTOP Delivering Technology that Innovates dti. delaware. gov

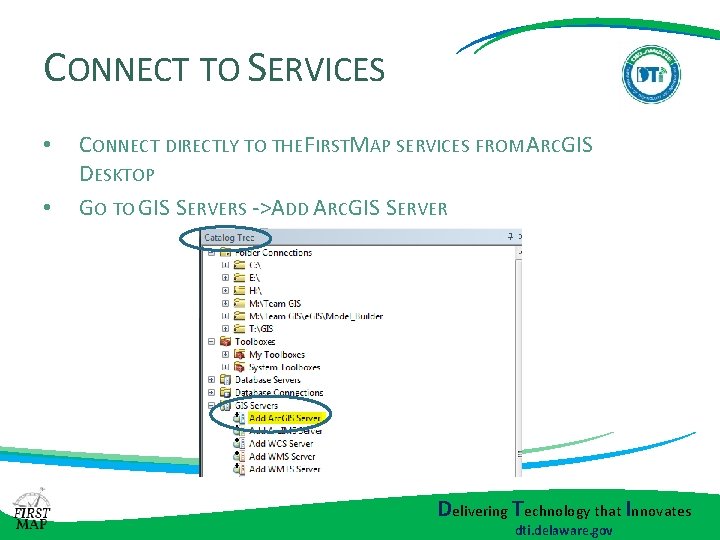

CONNECT TO SERVICES • • CONNECT DIRECTLY TO THE FIRSTMAP SERVICES FROM ARCGIS DESKTOP GO TO GIS SERVERS ->ADD ARCGIS SERVER Delivering Technology that Innovates dti. delaware. gov

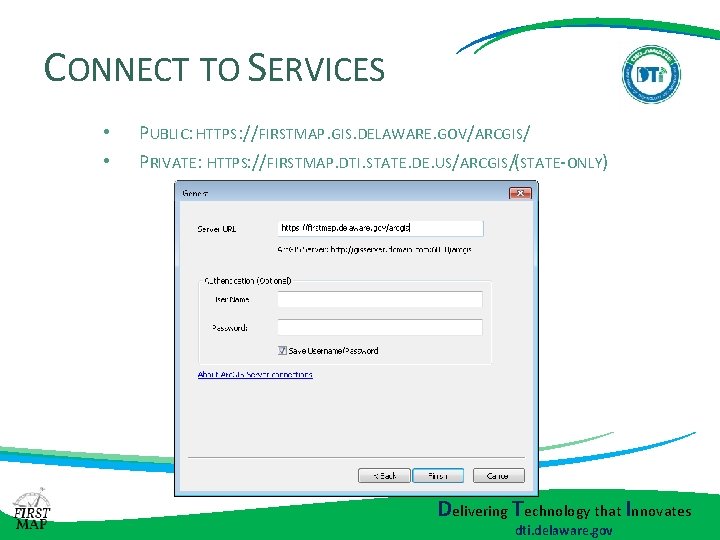

CONNECT TO SERVICES • • PUBLIC: HTTPS: //FIRSTMAP. GIS. DELAWARE. GOV/ARCGIS/ PRIVATE: HTTPS: //FIRSTMAP. DTI. STATE. DE. US/ARCGIS/(STATE-ONLY) Delivering Technology that Innovates dti. delaware. gov

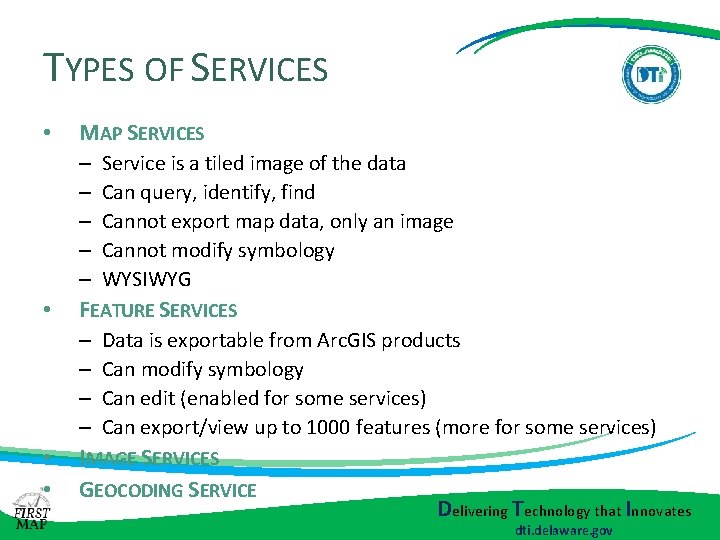

TYPES OF SERVICES • MAP SERVICES – – – • FEATURE SERVICES – – • • Service is a tiled image of the data Can query, identify, find Cannot export map data, only an image Cannot modify symbology WYSIWYG Data is exportable from Arc. GIS products Can modify symbology Can edit (enabled for some services) Can export/view up to 1000 features (more for some services) IMAGE SERVICES GEOCODING SERVICE Delivering Technology that Innovates dti. delaware. gov

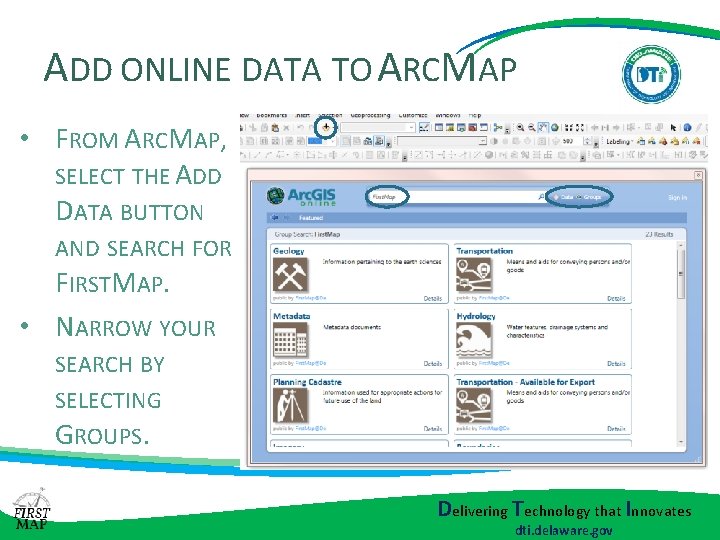

ADD ONLINE DATA TO ARCMAP • FROM ARCMAP, SELECT THE ADD DATA BUTTON AND SEARCH FOR FIRSTMAP. • NARROW YOUR SEARCH BY SELECTING GROUPS. Delivering Technology that Innovates dti. delaware. gov

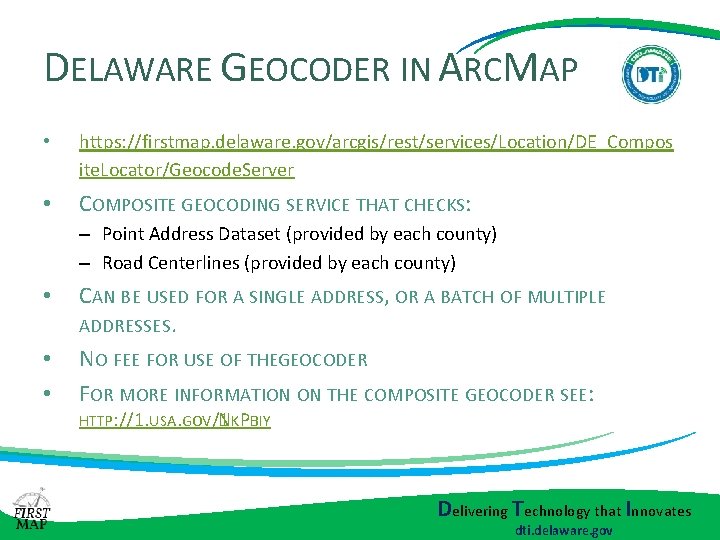

DELAWARE GEOCODER IN ARCMAP • https: //firstmap. delaware. gov/arcgis/rest/services/Location/DE_Compos ite. Locator/Geocode. Server • COMPOSITE GEOCODING SERVICE THAT CHECKS: – Point Address Dataset (provided by each county) – Road Centerlines (provided by each county) • • • CAN BE USED FOR A SINGLE ADDRESS, OR A BATCH OF MULTIPLE ADDRESSES. NO FEE FOR USE OF THEGEOCODER FOR MORE INFORMATION ON THE COMPOSITE GEOCODER SEE: HTTP: //1. USA. GOV/1 NKPBIY Delivering Technology that Innovates dti. delaware. gov

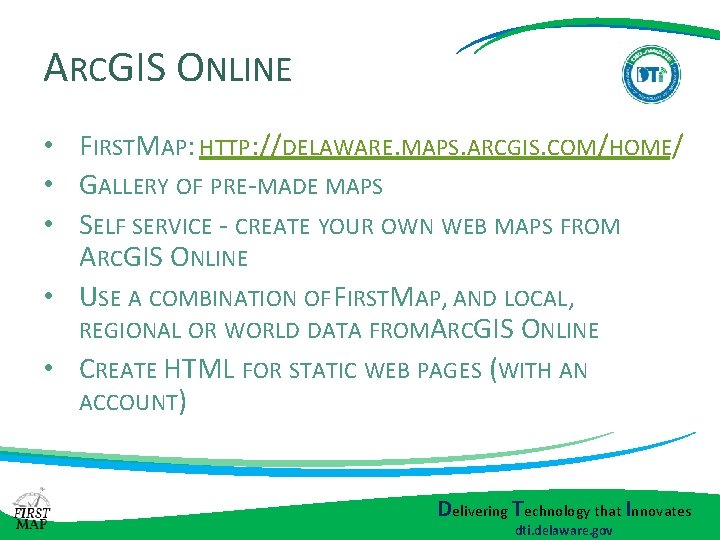

ARCGIS ONLINE • FIRSTMAP: HTTP: //DELAWARE. MAPS. ARCGIS. COM/HOME/ • GALLERY OF PRE-MADE MAPS • SELF SERVICE - CREATE YOUR OWN WEB MAPS FROM ARCGIS ONLINE • USE A COMBINATION OF FIRSTMAP, AND LOCAL, REGIONAL OR WORLD DATA FROMARCGIS ONLINE • CREATE HTML FOR STATIC WEB PAGES (WITH AN ACCOUNT) Delivering Technology that Innovates dti. delaware. gov

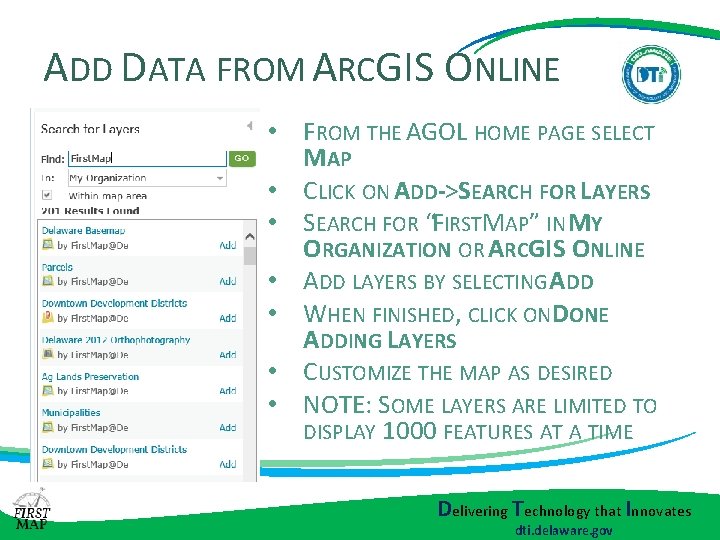

ADD DATA FROM ARCGIS ONLINE • FROM THE AGOL HOME PAGE SELECT MAP • CLICK ON ADD->SEARCH FOR LAYERS • SEARCH FOR “FIRSTMAP” IN MY ORGANIZATION OR ARCGIS ONLINE • ADD LAYERS BY SELECTING ADD • WHEN FINISHED, CLICK ONDONE ADDING LAYERS • CUSTOMIZE THE MAP AS DESIRED • NOTE: SOME LAYERS ARE LIMITED TO DISPLAY 1000 FEATURES AT A TIME Delivering Technology that Innovates dti. delaware. gov

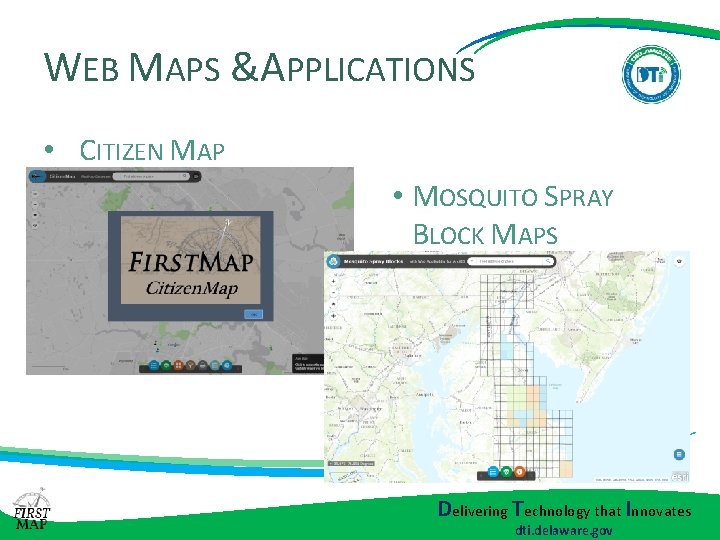

WEB MAPS &APPLICATIONS • CITIZEN MAP • MOSQUITO SPRAY BLOCK MAPS Delivering Technology that Innovates dti. delaware. gov

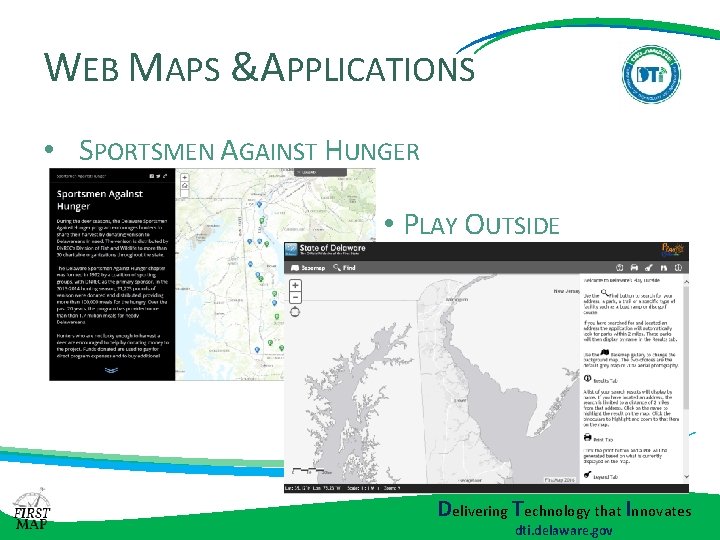

WEB MAPS &APPLICATIONS • SPORTSMEN AGAINST HUNGER • PLAY OUTSIDE Delivering Technology that Innovates dti. delaware. gov

FIRSTMAP OPEN DATA Delivering Technology that Innovates dti. delaware. gov

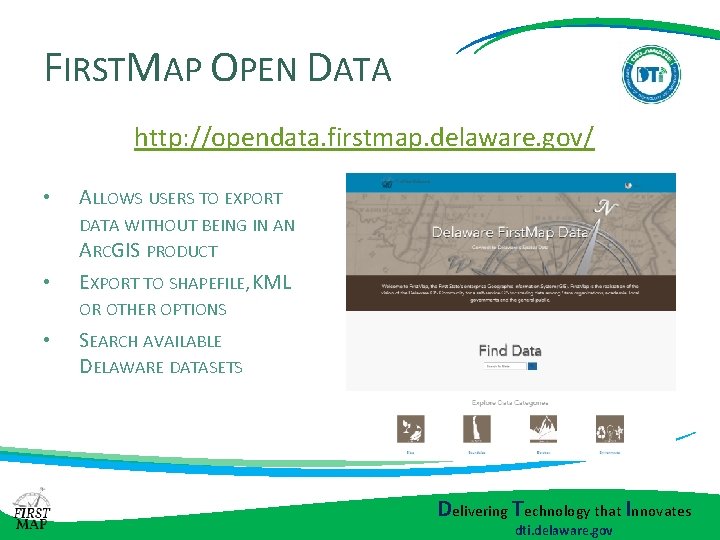

FIRSTMAP OPEN DATA http: //opendata. firstmap. delaware. gov/ • ALLOWS USERS TO EXPORT DATA WITHOUT BEING IN AN ARCGIS PRODUCT • EXPORT TO SHAPEFILE, KML OR OTHER OPTIONS • SEARCH AVAILABLE DELAWARE DATASETS Delivering Technology that Innovates dti. delaware. gov

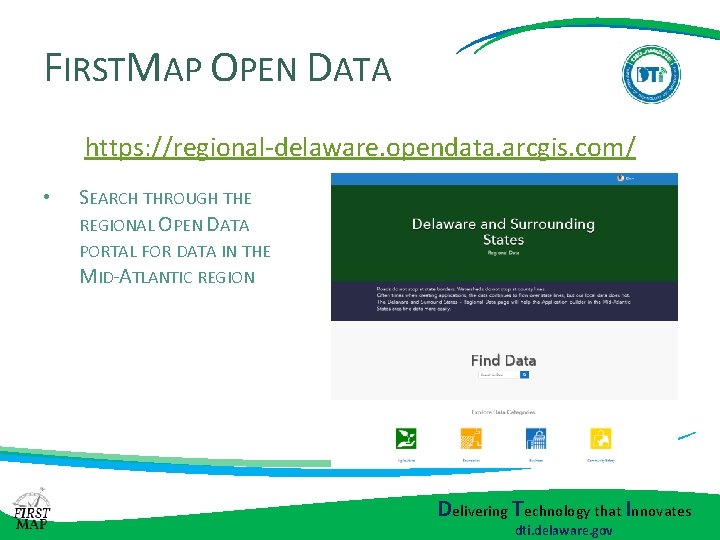

FIRSTMAP OPEN DATA https: //regional-delaware. opendata. arcgis. com/ • SEARCH THROUGH THE REGIONAL OPEN DATA PORTAL FOR DATA IN THE MID-ATLANTIC REGION Delivering Technology that Innovates dti. delaware. gov

WRAP-UP • • • QUESTIONS E-MAIL US: FIRSTMAP@STATE. DE. US TWITTER: @FIRSTMAP FACEBOOK: WWW. FACEBOOK. COM/FIRSTMAP NOTIFICATIONS: HTTPS: //DENOTIFICATIONSERVICES. BBCPORTAL. COM/ Delivering Technology that Innovates dti. delaware. gov
