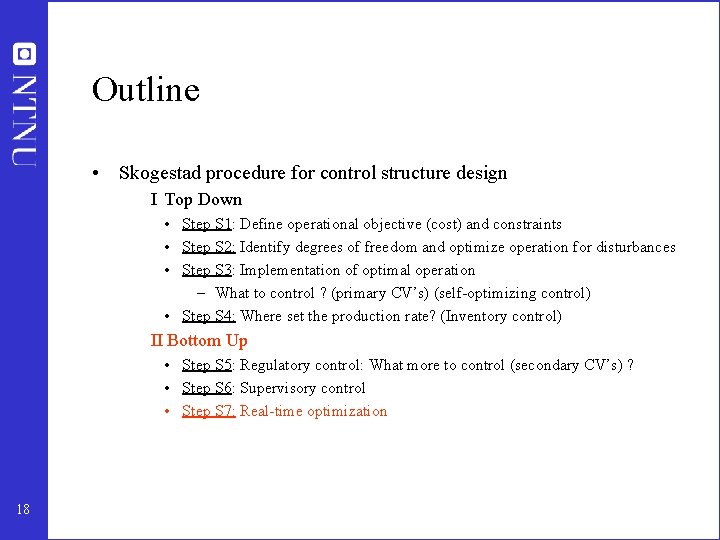

Outline • Skogestad procedure for control structure design I Top Down • Step S 1: Define operational objective (cost) and constraints • Step S 2: Identify degrees of freedom and optimize operation for disturbances • Step S 3: Implementation of optimal operation – What to control ? (primary CV’s) (self-optimizing control) • Step S 4: Where set the production rate? (Inventory control) II Bottom Up • Step S 5: Regulatory control: What more to control (secondary CV’s) ? – Distillation example • Step S 6: Supervisory control • Step S 7: Real-time optimization 1

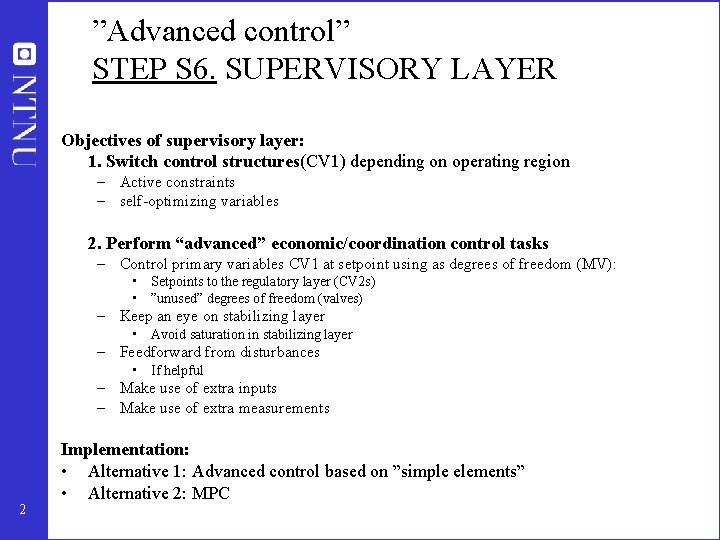

”Advanced control” STEP S 6. SUPERVISORY LAYER Objectives of supervisory layer: 1. Switch control structures(CV 1) depending on operating region – Active constraints – self-optimizing variables 2. Perform “advanced” economic/coordination control tasks. – Control primary variables CV 1 at setpoint using as degrees of freedom (MV): • Setpoints to the regulatory layer (CV 2 s) • ”unused” degrees of freedom (valves) – Keep an eye on stabilizing layer • Avoid saturation in stabilizing layer – Feedforward from disturbances • If helpful – Make use of extra inputs – Make use of extra measurements 2 Implementation: • Alternative 1: Advanced control based on ”simple elements” • Alternative 2: MPC

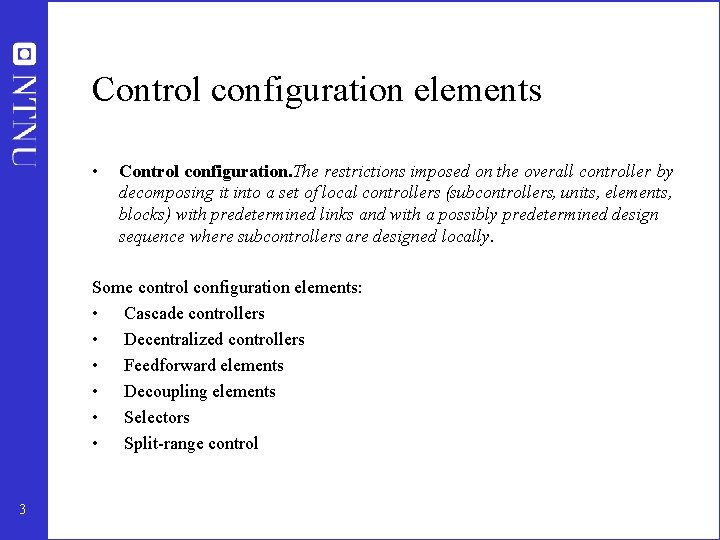

Control configuration elements • Control configuration. The restrictions imposed on the overall controller by decomposing it into a set of local controllers (subcontrollers, units, elements, blocks) with predetermined links and with a possibly predetermined design sequence where subcontrollers are designed locally. Some control configuration elements: • Cascade controllers • Decentralized controllers • Feedforward elements • Decoupling elements • Selectors • Split-range control 3

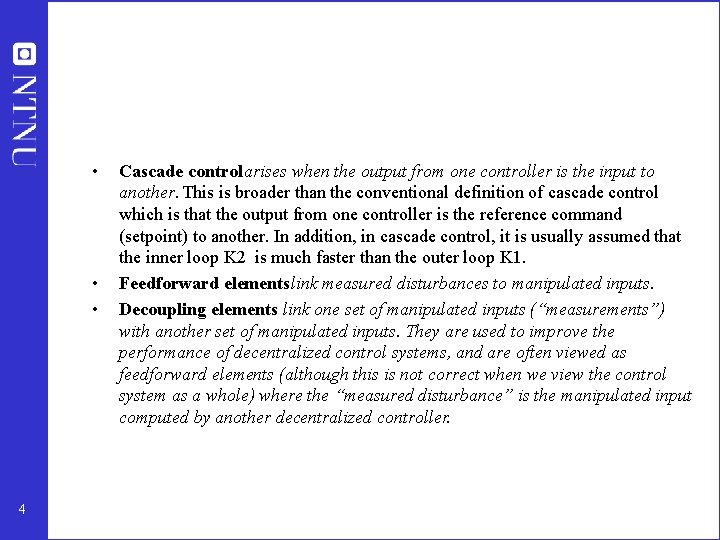

• • • 4 Cascade control arises when the output from one controller is the input to another. This is broader than the conventional definition of cascade control which is that the output from one controller is the reference command (setpoint) to another. In addition, in cascade control, it is usually assumed that the inner loop K 2 is much faster than the outer loop K 1. Feedforward elementslink measured disturbances to manipulated inputs. Decoupling elements link one set of manipulated inputs (“measurements”) with another set of manipulated inputs. They are used to improve the performance of decentralized control systems, and are often viewed as feedforward elements (although this is not correct when we view the control system as a whole) where the “measured disturbance” is the manipulated input computed by another decentralized controller.

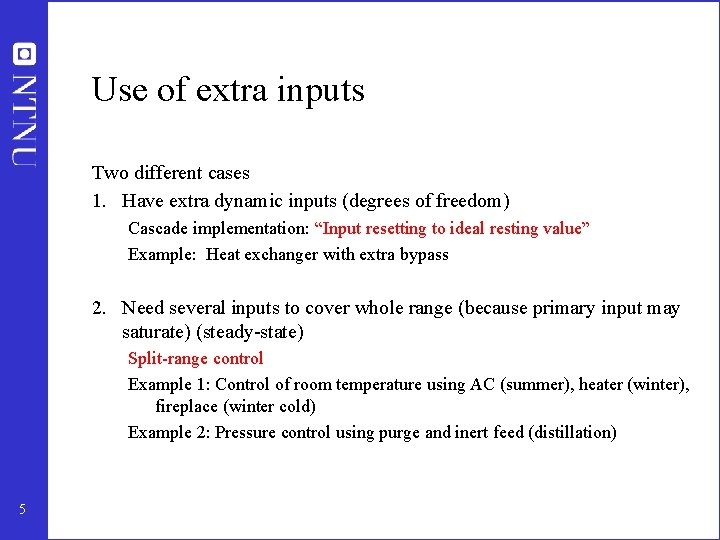

Use of extra inputs Two different cases 1. Have extra dynamic inputs (degrees of freedom) Cascade implementation: “Input resetting to ideal resting value” Example: Heat exchanger with extra bypass 2. Need several inputs to cover whole range (because primary input may saturate) (steady-state) Split-range control Example 1: Control of room temperature using AC (summer), heater (winter), fireplace (winter cold) Example 2: Pressure control using purge and inert feed (distillation) 5

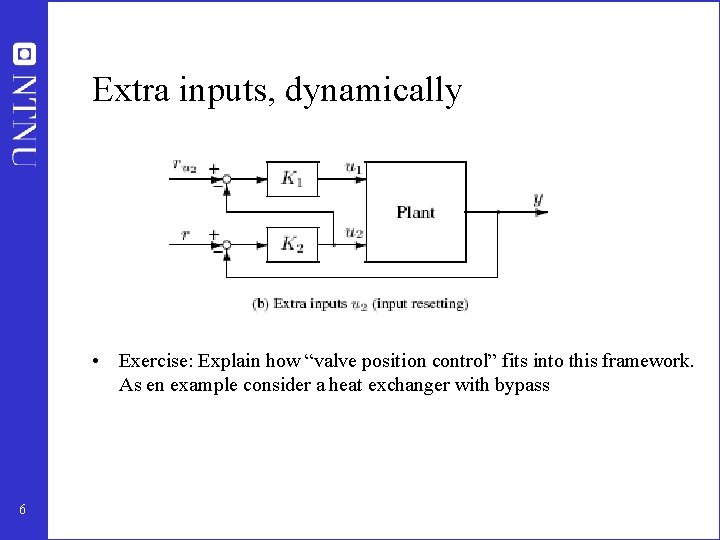

Extra inputs, dynamically • Exercise: Explain how “valve position control” fits into this framework. As en example consider a heat exchanger with bypass 6

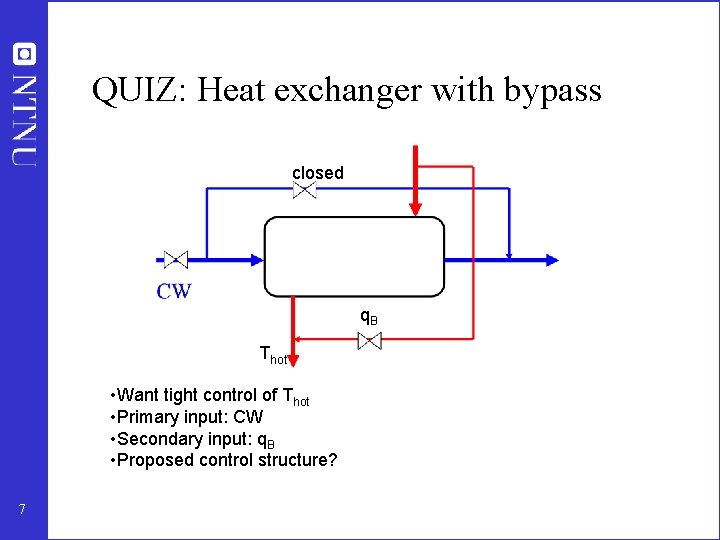

QUIZ: Heat exchanger with bypass closed q. B Thot • Want tight control of Thot • Primary input: CW • Secondary input: q. B • Proposed control structure? 7

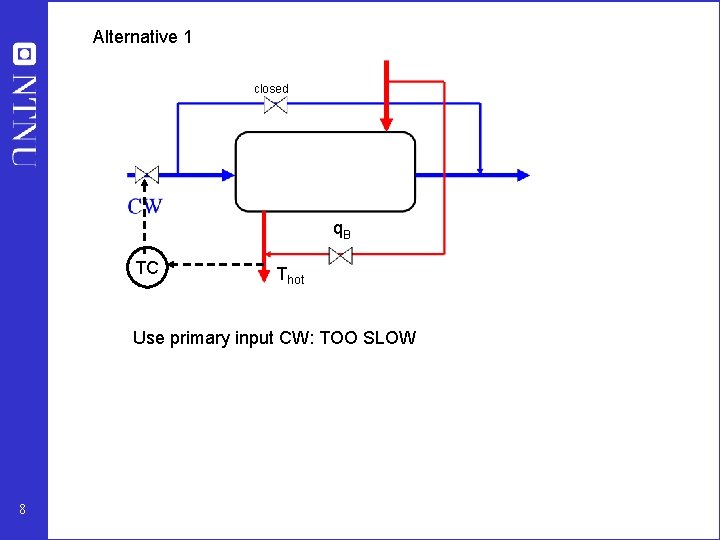

Alternative 1 closed q. B TC Thot Use primary input CW: TOO SLOW 8

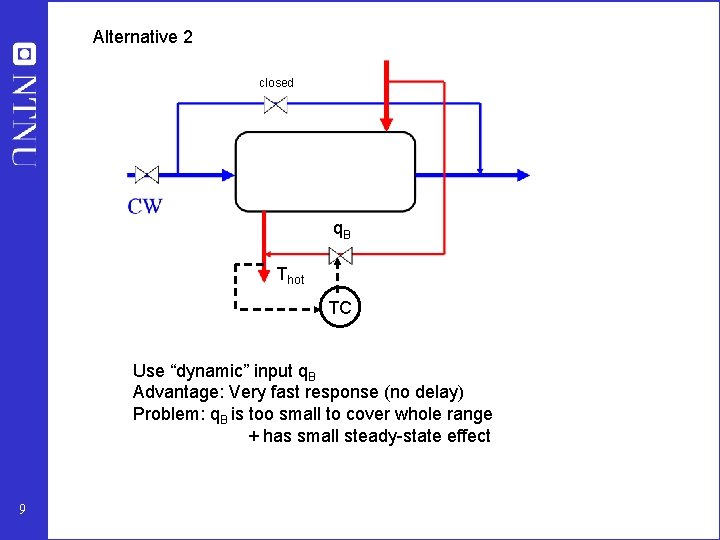

Alternative 2 closed q. B Thot TC Use “dynamic” input q. B Advantage: Very fast response (no delay) Problem: q. B is too small to cover whole range + has small steady-state effect 9

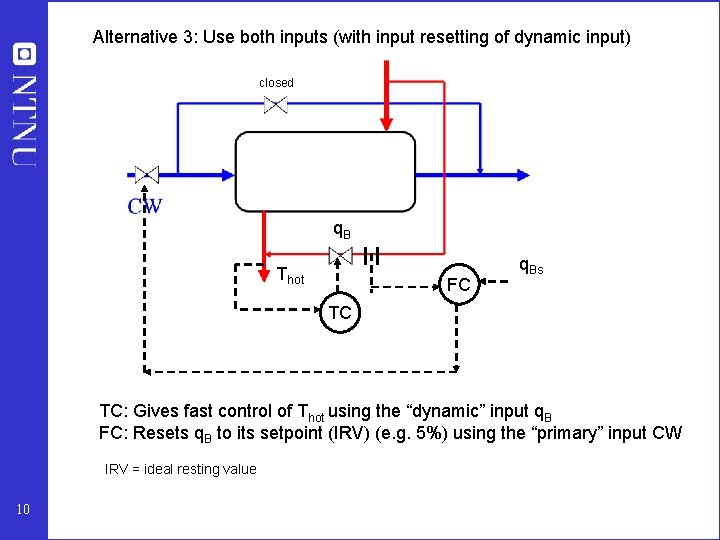

Alternative 3: Use both inputs (with input resetting of dynamic input) closed q. B Thot FC q. Bs TC TC: Gives fast control of Thot using the “dynamic” input q. B FC: Resets q. B to its setpoint (IRV) (e. g. 5%) using the “primary” input CW IRV = ideal resting value 10

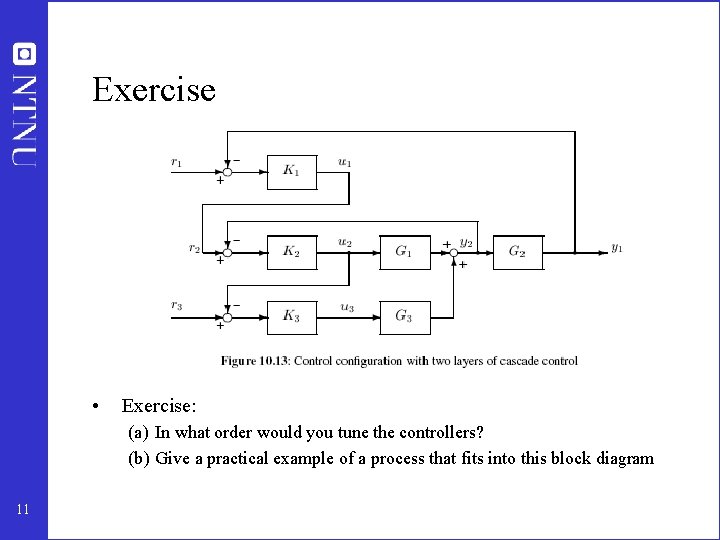

Exercise • Exercise: (a) In what order would you tune the controllers? (b) Give a practical example of a process that fits into this block diagram 11

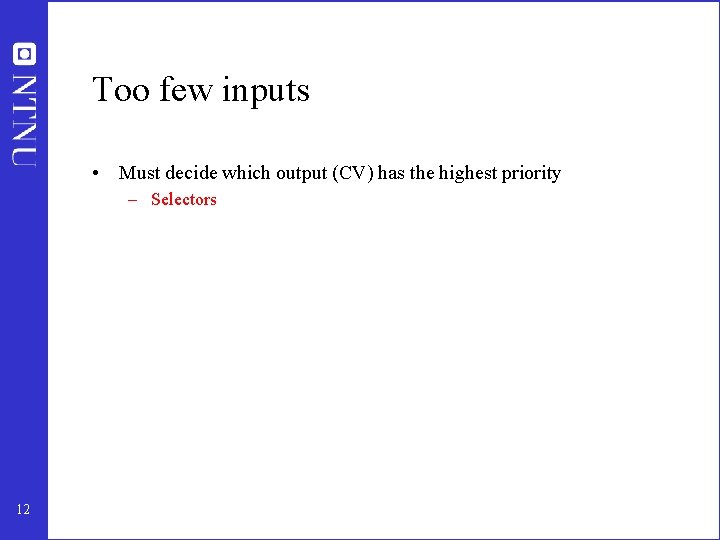

Too few inputs • Must decide which output (CV) has the highest priority – Selectors 12

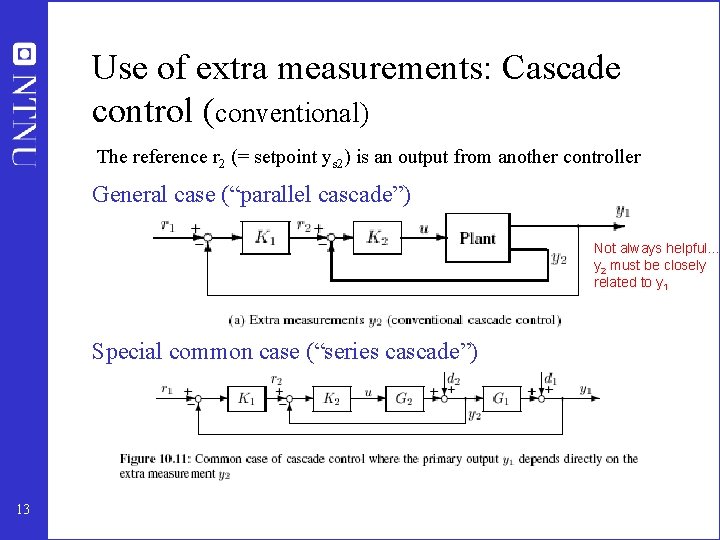

Use of extra measurements: Cascade control (conventional) The reference r 2 (= setpoint ys 2) is an output from another controller General case (“parallel cascade”) Not always helpful… y 2 must be closely related to y 1 Special common case (“series cascade”) 13

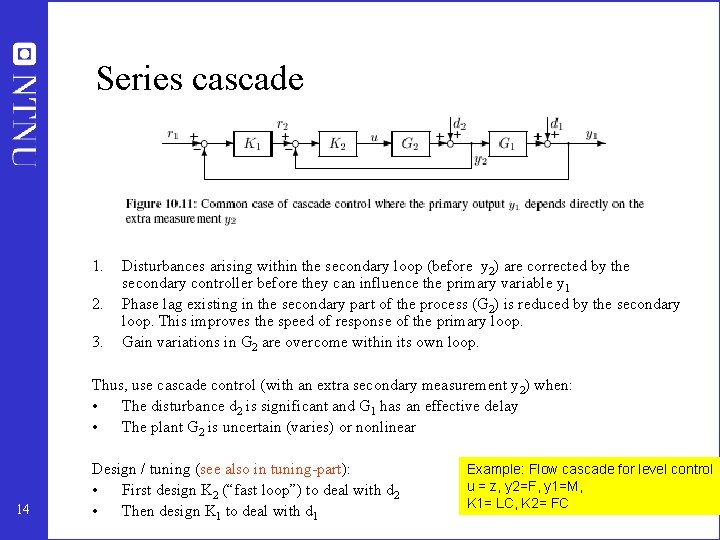

Series cascade 1. 2. 3. Disturbances arising within the secondary loop (before y 2) are corrected by the secondary controller before they can influence the primary variable y 1 Phase lag existing in the secondary part of the process (G 2) is reduced by the secondary loop. This improves the speed of response of the primary loop. Gain variations in G 2 are overcome within its own loop. Thus, use cascade control (with an extra secondary measurement y 2) when: • The disturbance d 2 is significant and G 1 has an effective delay • The plant G 2 is uncertain (varies) or nonlinear 14 Design / tuning (see also in tuning-part): • First design K 2 (“fast loop”) to deal with d 2 • Then design K 1 to deal with d 1 Example: Flow cascade for level control u = z, y 2=F, y 1=M, K 1= LC, K 2= FC

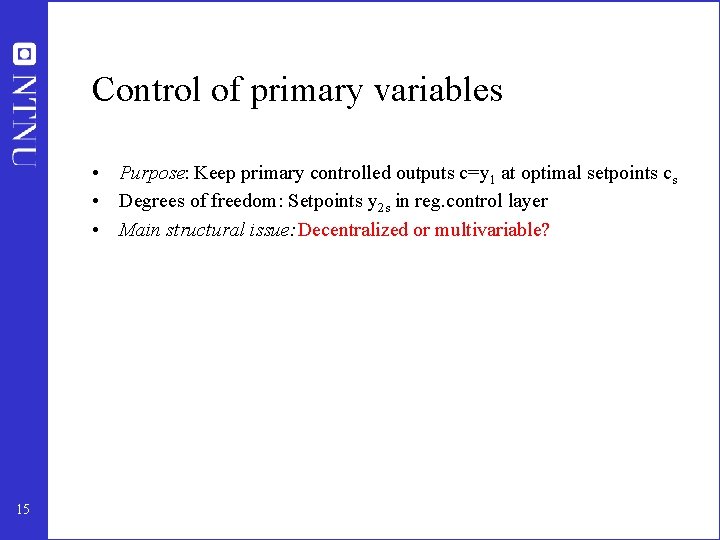

Control of primary variables • Purpose: Keep primary controlled outputs c=y 1 at optimal setpoints cs • Degrees of freedom: Setpoints y 2 s in reg. control layer • Main structural issue: Decentralized or multivariable? 15

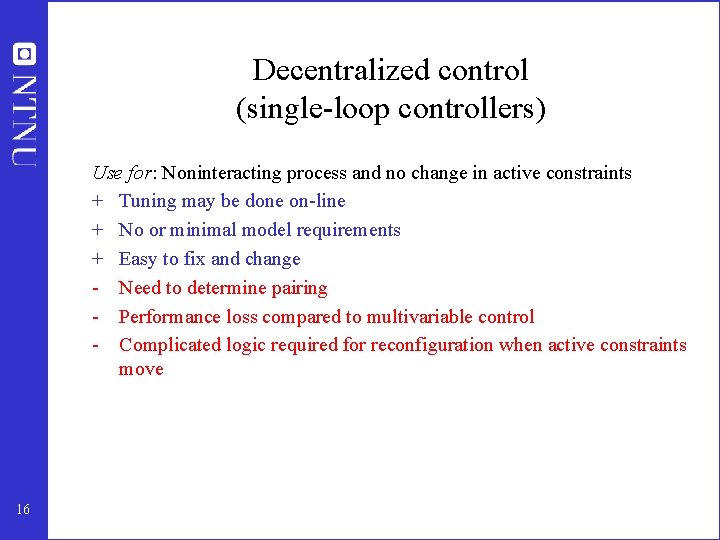

Decentralized control (single-loop controllers) Use for: Noninteracting process and no change in active constraints + Tuning may be done on-line + No or minimal model requirements + Easy to fix and change - Need to determine pairing - Performance loss compared to multivariable control - Complicated logic required for reconfiguration when active constraints move 16

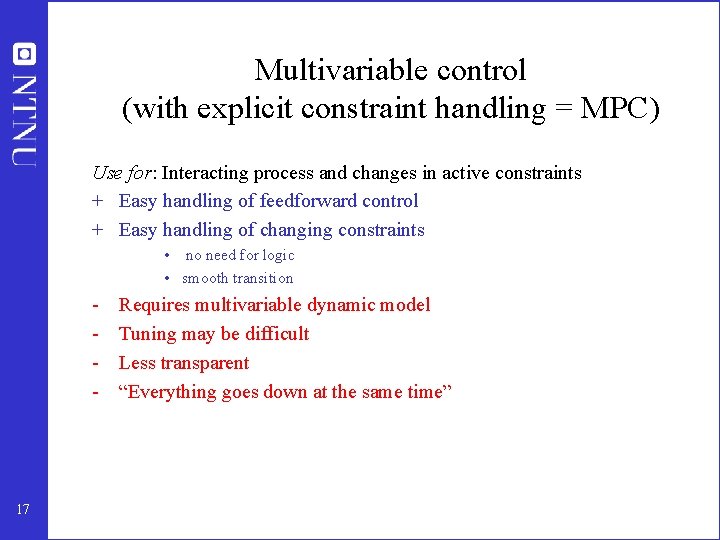

Multivariable control (with explicit constraint handling = MPC) Use for: Interacting process and changes in active constraints + Easy handling of feedforward control + Easy handling of changing constraints • no need for logic • smooth transition - 17 Requires multivariable dynamic model Tuning may be difficult Less transparent “Everything goes down at the same time”

Outline • Skogestad procedure for control structure design I Top Down • Step S 1: Define operational objective (cost) and constraints • Step S 2: Identify degrees of freedom and optimize operation for disturbances • Step S 3: Implementation of optimal operation – What to control ? (primary CV’s) (self-optimizing control) • Step S 4: Where set the production rate? (Inventory control) II Bottom Up • Step S 5: Regulatory control: What more to control (secondary CV’s) ? • Step S 6: Supervisory control • Step S 7: Real-time optimization 18

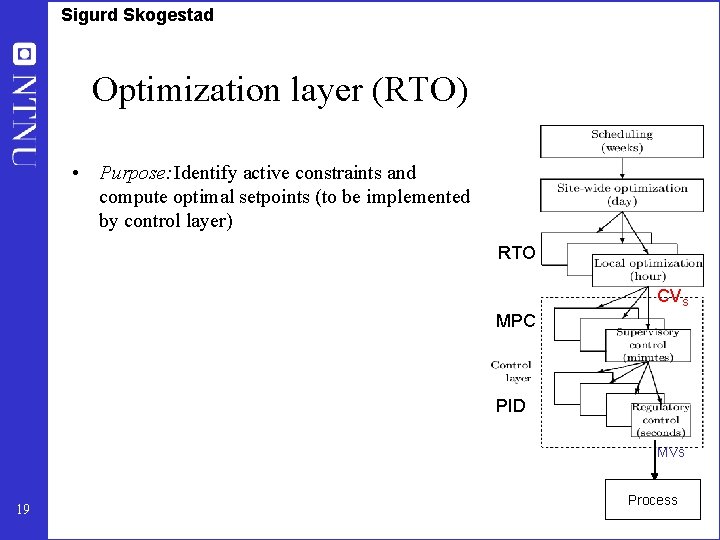

Sigurd Skogestad Optimization layer (RTO) • Purpose: Identify active constraints and compute optimal setpoints (to be implemented by control layer) RTO CVs MPC PID MVs 19 Process

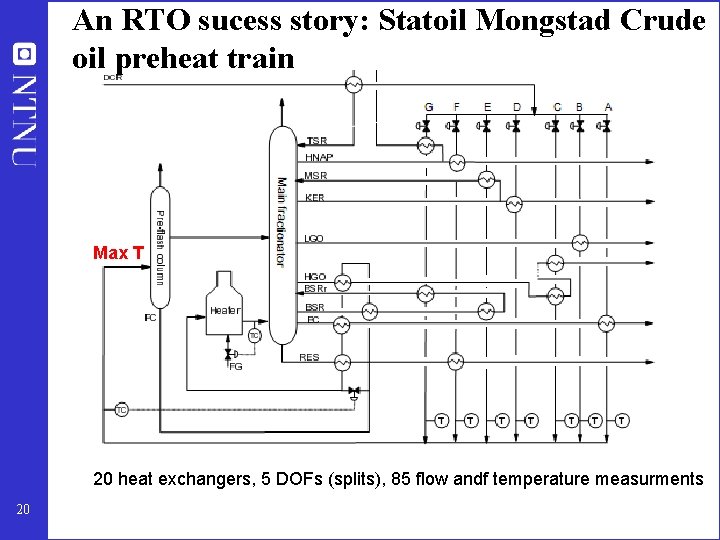

An RTO sucess story: Statoil Mongstad Crude oil preheat train Max T 20 heat exchangers, 5 DOFs (splits), 85 flow andf temperature measurments 20

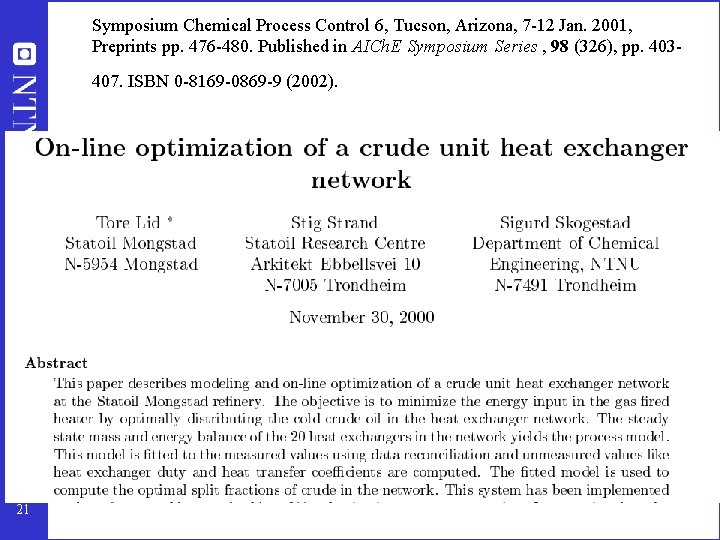

Symposium Chemical Process Control 6, Tucson, Arizona, 7 -12 Jan. 2001, Preprints pp. 476 -480. Published in AICh. E Symposium Series , 98 (326), pp. 403407. ISBN 0 -8169 -0869 -9 (2002). 21

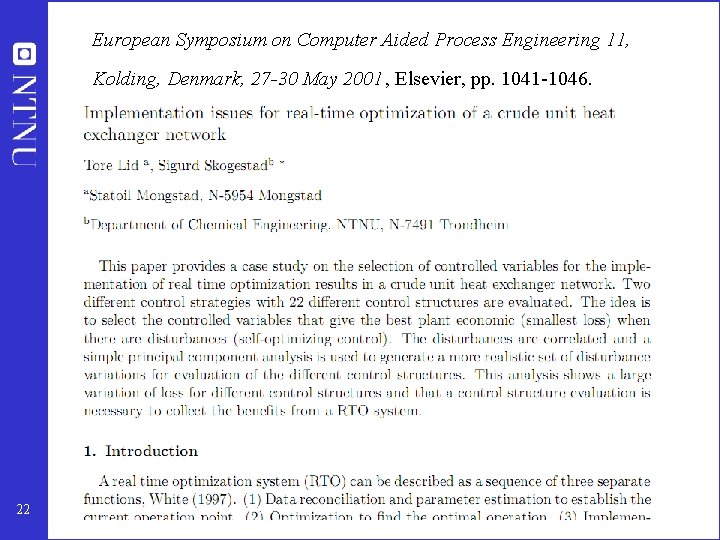

European Symposium on Computer Aided Process Engineering 11, Kolding, Denmark, 27 -30 May 2001 , Elsevier, pp. 1041 -1046. 22

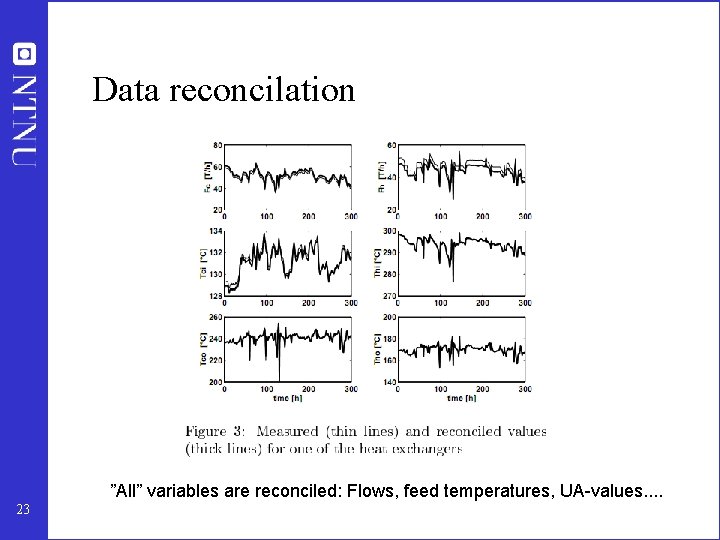

Data reconcilation ”All” variables are reconciled: Flows, feed temperatures, UA-values. . 23

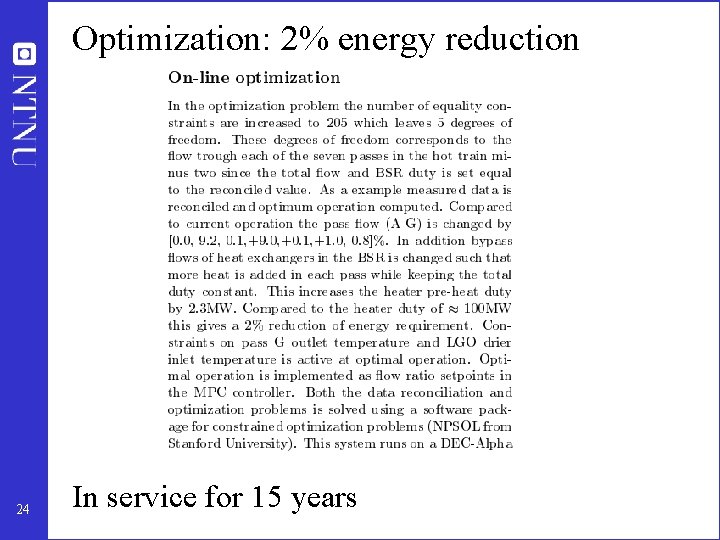

Optimization: 2% energy reduction 24 In service for 15 years

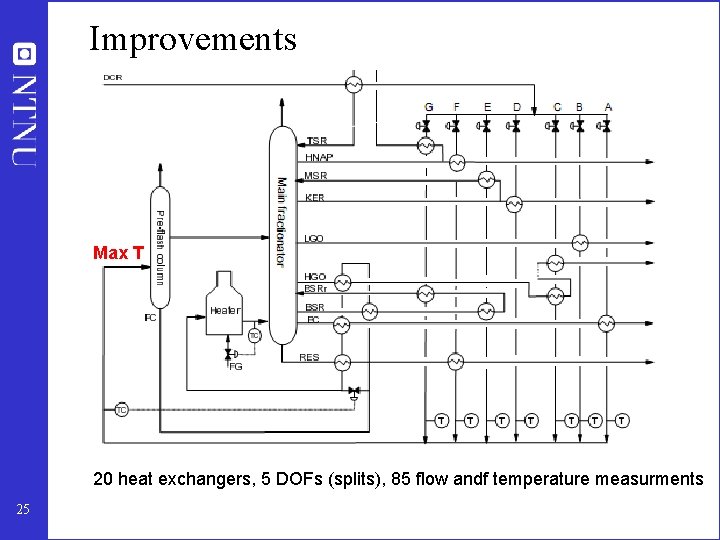

Improvements Max T 20 heat exchangers, 5 DOFs (splits), 85 flow andf temperature measurments 25

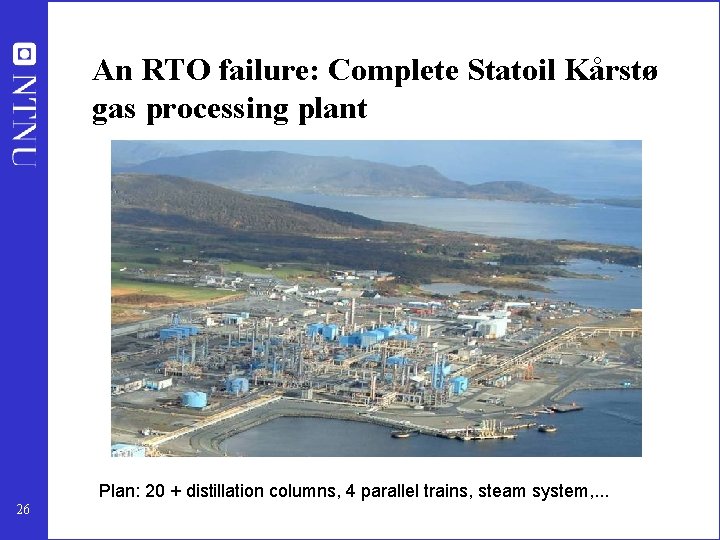

An RTO failure: Complete Statoil Kårstø gas processing plant Plan: 20 + distillation columns, 4 parallel trains, steam system, . . . 26

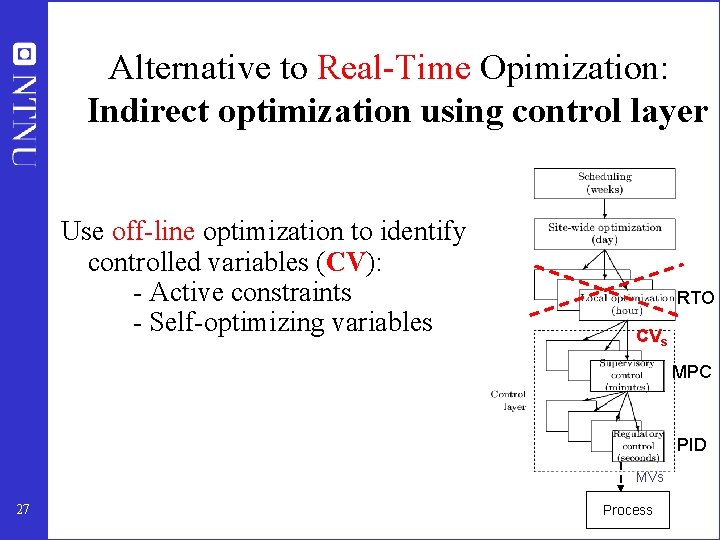

Alternative to Real-Time Opimization: Indirect optimization using control layer Use off-line optimization to identify controlled variables (CV): - Active constraints - Self-optimizing variables RTO CVs MPC PID MVs 27 Process

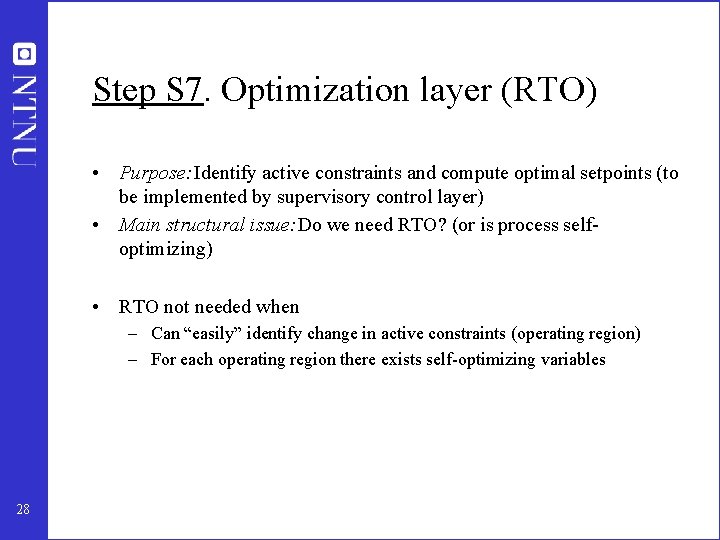

Step S 7. Optimization layer (RTO) • Purpose: Identify active constraints and compute optimal setpoints (to be implemented by supervisory control layer) • Main structural issue: Do we need RTO? (or is process selfoptimizing) • RTO not needed when – Can “easily” identify change in active constraints (operating region) – For each operating region there exists self-optimizing variables 28

• Reserach issue ( 29

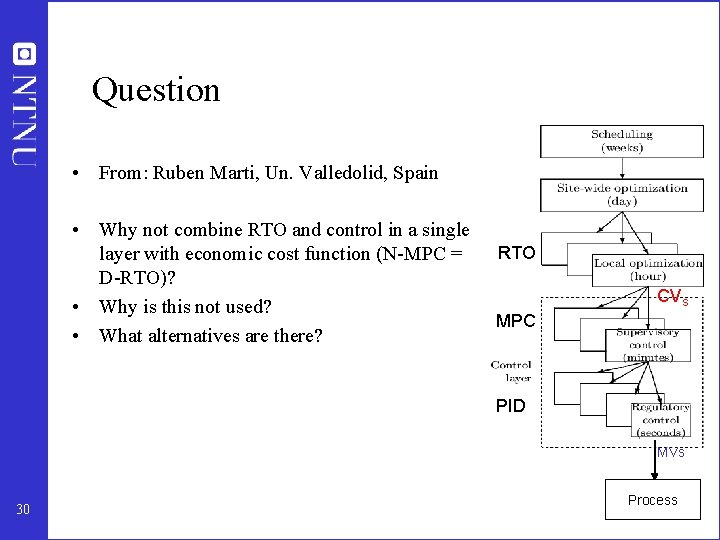

Question • From: Ruben Marti, Un. Valledolid, Spain • Why not combine RTO and control in a single layer with economic cost function (N-MPC = D-RTO)? • Why is this not used? • What alternatives are there? RTO CVs MPC PID MVs 30 Process
