Alternatives in Distributed Database Systems Distribution Distributed multi-DBMS Peer-to-peer Distributed DBMS Client/server Autonomy Multi-DBMS Federated DBMS Heterogeneity Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 3
Dimensions of the Problem Distribution Whether the components of the system are located on the same machine or not Heterogeneity Various levels (hardware, communications, operating system) DBMS important one data model, query language, transaction management algorithms Autonomy Not well understood and most troublesome Various versions Design autonomy: Ability of a component DBMS to decide on issues related to its own design. Communication autonomy: Ability of a component DBMS to decide whether and how to communicate with other DBMSs. Execution autonomy: Ability of a component DBMS to execute local operations in any manner it wants to. Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 4
Datalogical Distributed DBMS Architecture ES 1 ES 2 . . . ESn ES: External Schema GCS: Global Conceptual Schema LCS: Local Conceptual Schema LIS: Local Internal Schema GCS LCS 1 LCS 2 LIS 1 LIS 2 Distributed DBMS . . . LCSn LISn © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 5

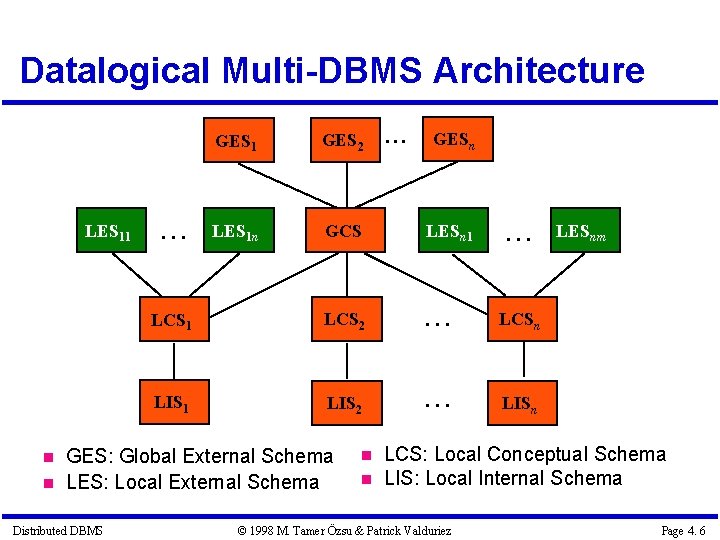

Datalogical Multi-DBMS Architecture LES 11 GESn GES 2 LES 1 n GCS LESn 1 … LCS 1 LCS 2 … LCSn LIS 1 LIS 2 … LISn … GES: Global External Schema LES: Local External Schema Distributed DBMS . . . GES 1 LESnm LCS: Local Conceptual Schema LIS: Local Internal Schema © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 6

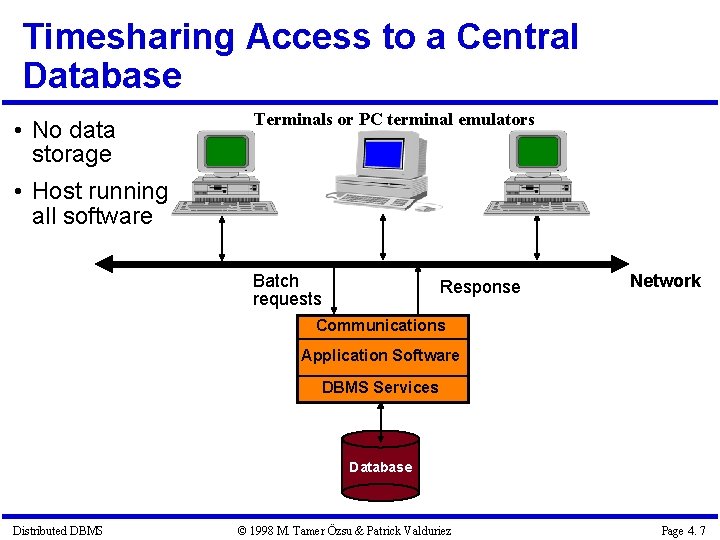

Timesharing Access to a Central Database • No data storage • Host running all software Terminals or PC terminal emulators Batch requests Response Network Communications Application Software DBMS Services Database Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 7
Multiple Clients/Single Server Applications Client Services Communications High-level requests Filtered data only LAN Communications DBMS Services Database Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 8

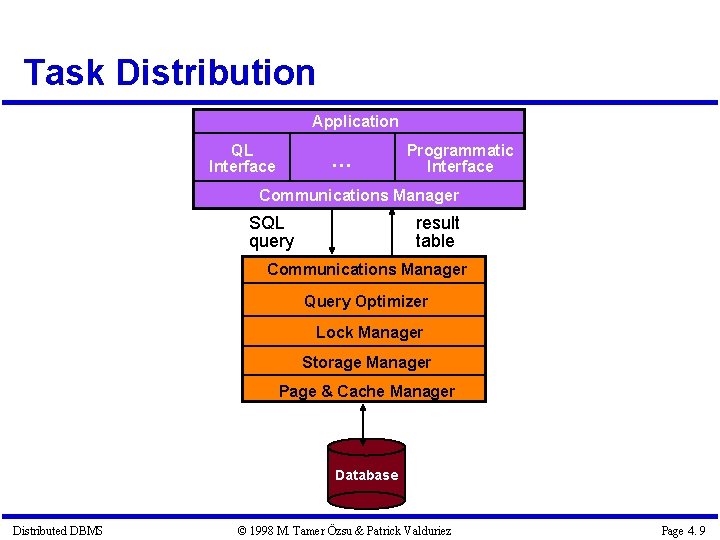

Task Distribution Application QL Interface … Programmatic Interface Communications Manager SQL query result table Communications Manager Query Optimizer Lock Manager Storage Manager Page & Cache Manager Database Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 9
Advantages of Client-Server Architectures More efficient division of labor Horizontal and vertical scaling of resources Better price/performance on client machines Ability to use familiar tools on client machines Client access to remote data (via standards) Full DBMS functionality provided to client workstations Overall better system price/performance Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 10
Problems With Multiple. Client/Single Server forms bottleneck Server forms single point of failure Database scaling difficult Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 11
Multiple Clients/Multiple Servers directory caching query decomposition commit protocols Applications Client Services Communications LAN Communications DBMS Services Database Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Database Page 4. 12

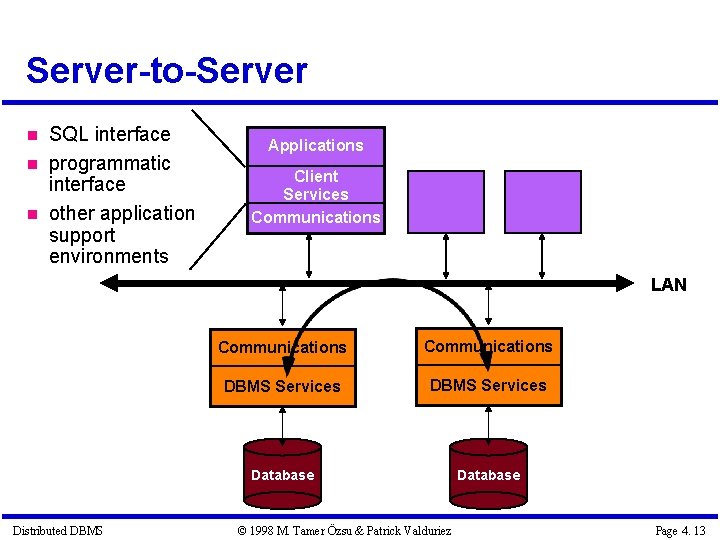

Server-to-Server SQL interface programmatic interface other application support environments Applications Client Services Communications LAN Distributed DBMS Communications DBMS Services Database © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 13

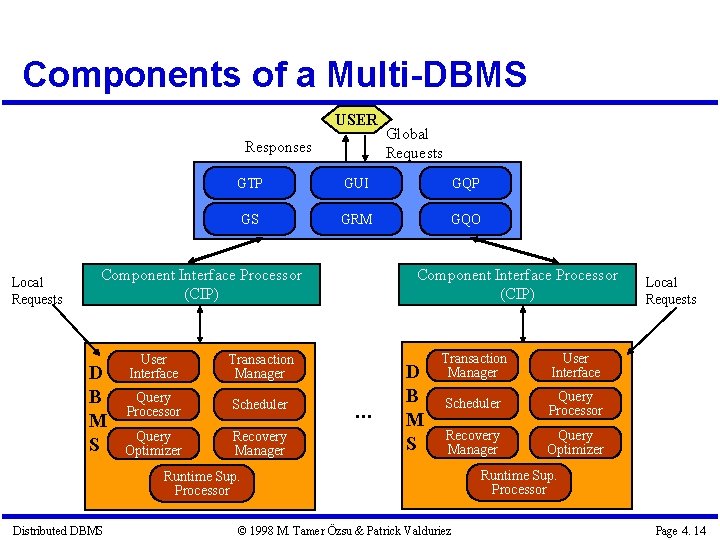

Components of a Multi-DBMS USER Responses Local Requests GTP GUI GQP GS GRM GQO Component Interface Processor (CIP) D B M S Global Requests User Interface Transaction Manager Query Processor Scheduler Query Optimizer Recovery Manager Component Interface Processor (CIP) … D B M S Transaction Manager User Interface Scheduler Query Processor Recovery Manager Query Optimizer Runtime Sup. Processor Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Local Requests Runtime Sup. Processor Page 4. 14

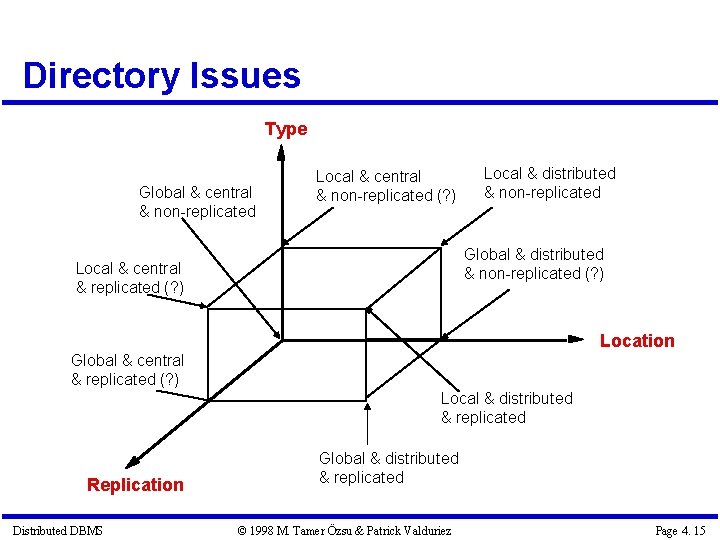

Directory Issues Type Global & central & non-replicated Local & central & non-replicated (? ) Local & distributed & non-replicated Global & distributed & non-replicated (? ) Local & central & replicated (? ) Location Global & central & replicated (? ) Local & distributed & replicated Replication Distributed DBMS Global & distributed & replicated © 1998 M. Tamer Özsu & Patrick Valduriez Page 4. 15
