Outline Distributed DBMS Introduction Background Distributed DBMS Architecture
Outline Distributed DBMS Introduction Background Distributed DBMS Architecture Distributed Database Design Distributed Query Processing Distributed Transaction Management Transaction Concepts and Models Distributed Concurrency Control Distributed Reliability Building Distributed Database Systems (RAID) Mobile Database Systems Privacy, Trust, and Authentication Peer to Peer Systems © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 1

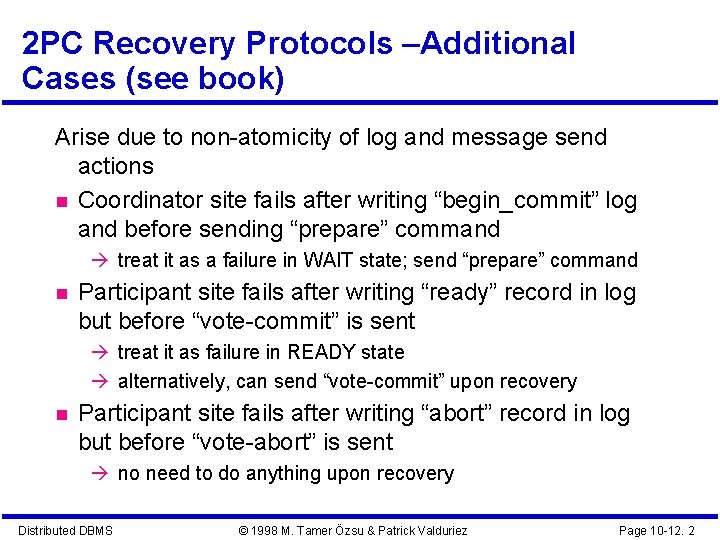

2 PC Recovery Protocols –Additional Cases (see book) Arise due to non-atomicity of log and message send actions Coordinator site fails after writing “begin_commit” log and before sending “prepare” command treat it as a failure in WAIT state; send “prepare” command Participant site fails after writing “ready” record in log but before “vote-commit” is sent treat it as failure in READY state alternatively, can send “vote-commit” upon recovery Participant site fails after writing “abort” record in log but before “vote-abort” is sent no need to do anything upon recovery Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 2

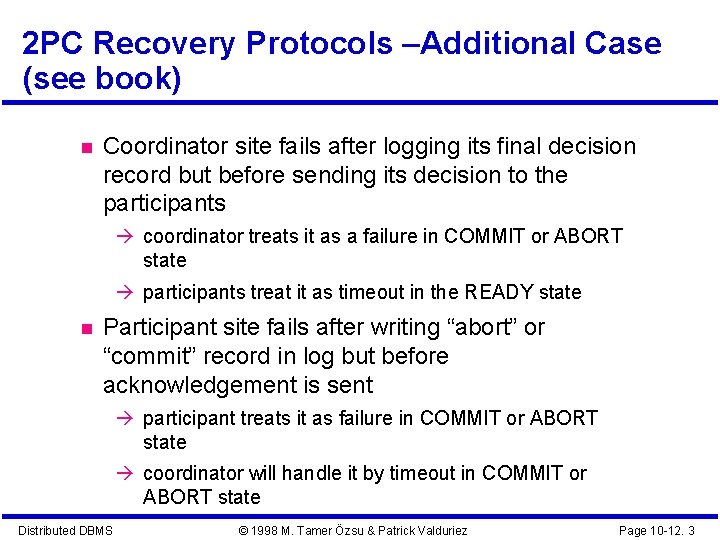

2 PC Recovery Protocols –Additional Case (see book) Coordinator site fails after logging its final decision record but before sending its decision to the participants coordinator treats it as a failure in COMMIT or ABORT state participants treat it as timeout in the READY state Participant site fails after writing “abort” or “commit” record in log but before acknowledgement is sent participant treats it as failure in COMMIT or ABORT state coordinator will handle it by timeout in COMMIT or ABORT state Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 3

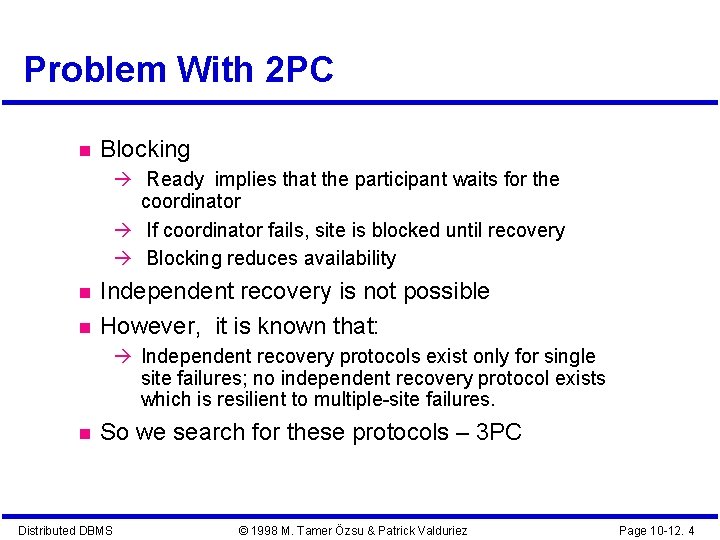

Problem With 2 PC Blocking Ready implies that the participant waits for the coordinator If coordinator fails, site is blocked until recovery Blocking reduces availability Independent recovery is not possible However, it is known that: Independent recovery protocols exist only for single site failures; no independent recovery protocol exists which is resilient to multiple-site failures. So we search for these protocols – 3 PC Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 4
Three-Phase Commit 3 PC is non-blocking. A commit protocols is non-blocking iff it is synchronous within one state transition, and its state transition diagram contains no state which is “adjacent” to both a commit and an abort state, and no non-committable state which is “adjacent” to a commit state Adjacent: possible to go from one stat to another with a single state transition Committable: all sites have voted to commit a transaction e. g. : COMMIT state Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 5

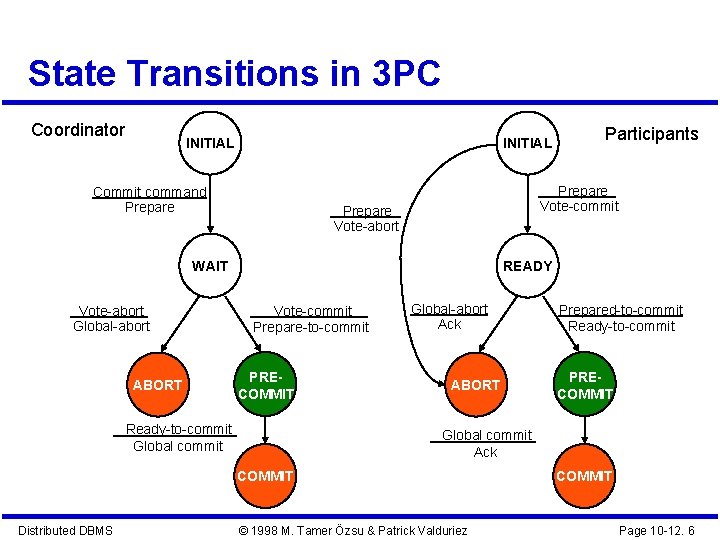

State Transitions in 3 PC Coordinator INITIAL Commit command Prepare Vote-commit Prepare Vote-abort WAIT Vote-abort Global-abort ABORT READY Vote-commit Prepare-to-commit PRECOMMIT Ready-to-commit Global-abort Ack ABORT Prepared-to-commit Ready-to-commit PRECOMMIT Global commit Ack COMMIT Distributed DBMS Participants © 1998 M. Tamer Özsu & Patrick Valduriez COMMIT Page 10 -12. 6

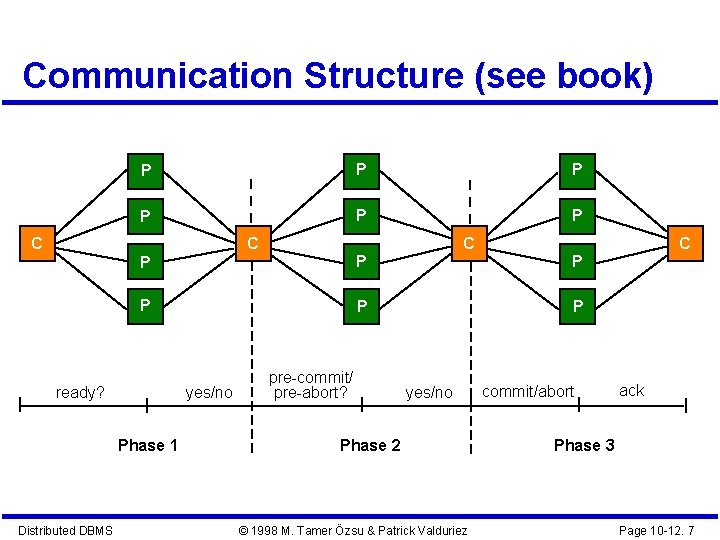

Communication Structure (see book) P P P C C C P P P ready? yes/no Phase 1 Distributed DBMS C pre-commit/ pre-abort? yes/no Phase 2 © 1998 M. Tamer Özsu & Patrick Valduriez commit/abort ack Phase 3 Page 10 -12. 7

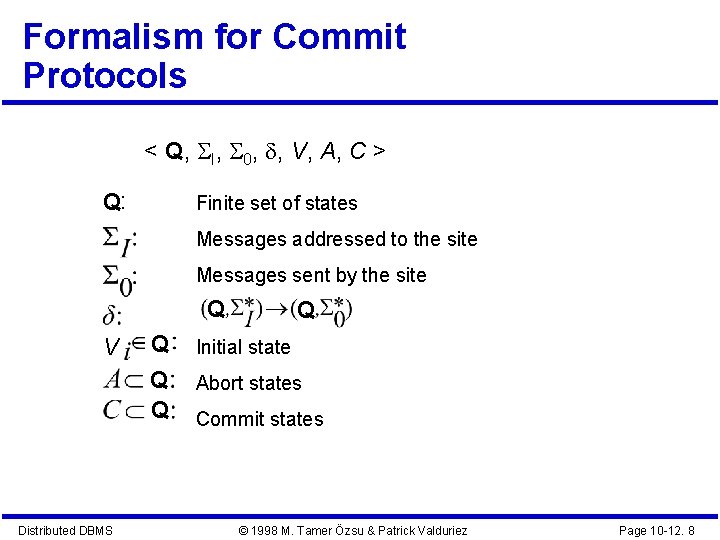

Formalism for Commit Protocols < Q, I, 0, , V, A, C > Q: Finite set of states Messages addressed to the site Messages sent by the site Q V Distributed DBMS Q Q Initial state Q Q Abort states Commit states © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 8

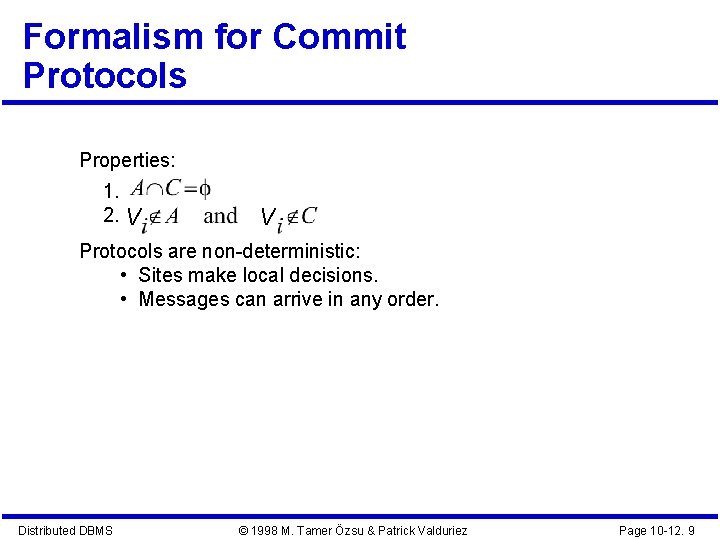

Formalism for Commit Protocols Properties: 1. 2. V V Protocols are non-deterministic: • Sites make local decisions. • Messages can arrive in any order. Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 9

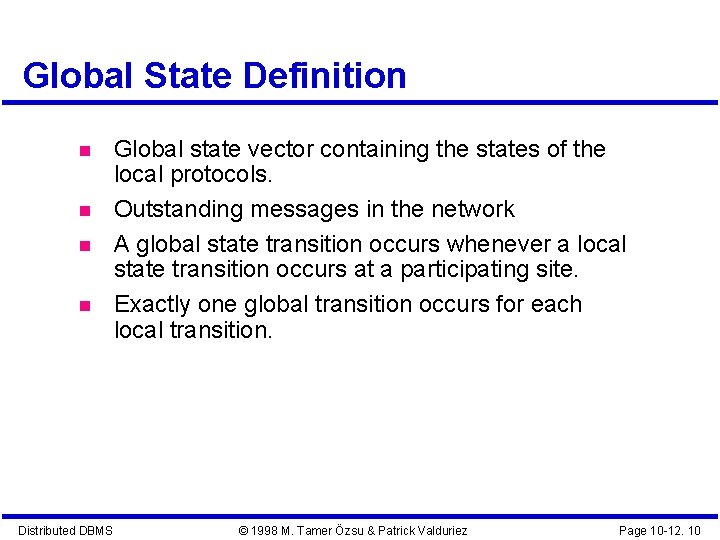

Global State Definition Distributed DBMS Global state vector containing the states of the local protocols. Outstanding messages in the network A global state transition occurs whenever a local state transition occurs at a participating site. Exactly one global transition occurs for each local transition. © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 10

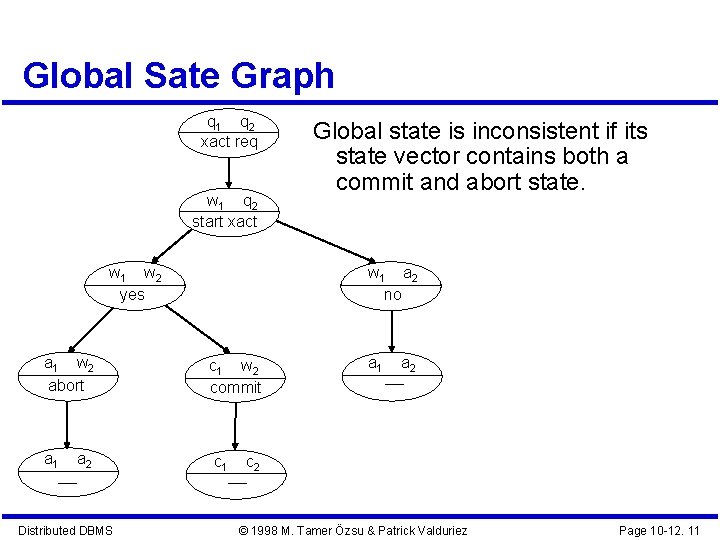

Global Sate Graph q 1 q 2 xact req w 1 q 2 start xact w 1 w 2 yes a 1 w 2 abort a 1 a 2 Distributed DBMS Global state is inconsistent if its state vector contains both a commit and abort state. w 1 a 2 no c 1 w 2 commit c 1 a 2 c 2 © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 11
Two states are potentially concurrent if there exists a reachable global state that contains both local states. Concurrency set of s is set of all local states that are potentially concurrent with it. C(s) C(w 1) = {q 2, a 2 , w 2} The sender set for s, S(s) = {t/t sends message m & m M} where M be the set of messages that are received by s. t is a local state. Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 12

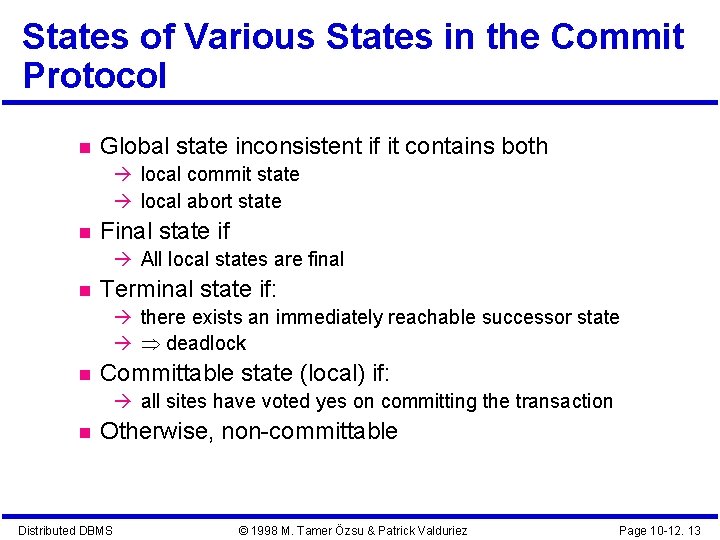

States of Various States in the Commit Protocol Global state inconsistent if it contains both local commit state local abort state Final state if All local states are final Terminal state if: there exists an immediately reachable successor state deadlock Committable state (local) if: all sites have voted yes on committing the transaction Otherwise, non-committable Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 13

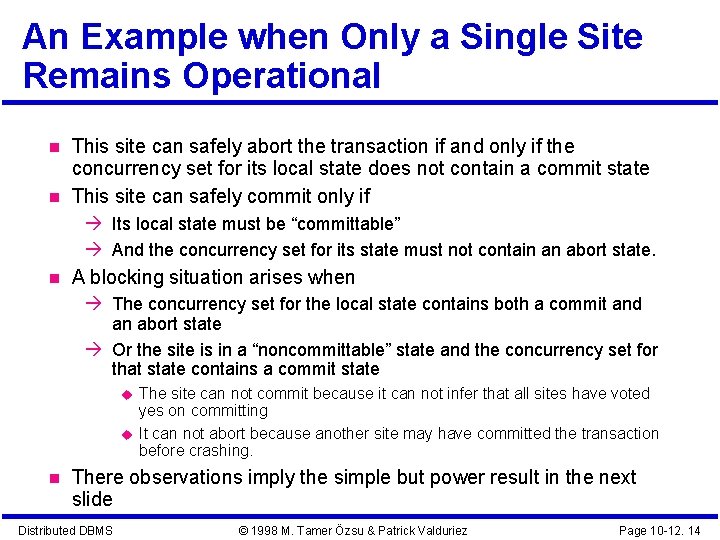

An Example when Only a Single Site Remains Operational This site can safely abort the transaction if and only if the concurrency set for its local state does not contain a commit state This site can safely commit only if Its local state must be “committable” And the concurrency set for its state must not contain an abort state. A blocking situation arises when The concurrency set for the local state contains both a commit and an abort state Or the site is in a “noncommittable” state and the concurrency set for that state contains a commit state The site can not commit because it can not infer that all sites have voted yes on committing It can not abort because another site may have committed the transaction before crashing. There observations imply the simple but power result in the next slide Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 14
Fundamental Non-blocking Theorem Definition: protocol is synchronous within one state transition if one site never leads another site by more than one state transition. Theorem Fundamental non-blocking: A protocol is non-blocking iff There exists no local state s C(s) = A (abort) and C (commit) And there exists no non-committable state s C(s) = C (commit) Lemma: A protocol that is synchronous within one state transition is non-blocking iff: No local state is adjacent to both a commit & an abort state No non-committable state is adjacent to a commit state Distributed DBMS © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 15
Three-Phase Commit Protocol Site I (co-ordinator) Site i (i = 2, 3, …n) (slave) q 1 request xact 2…xact 4 no 2| … |non abort 2 … abortn a 1 w 1 yes 2 … yesn prepare 2 … preparen xacti …i yes wi c 1 aborti xacti noi ai preparei acki p 1 ack 2 … ackn commit 2 … commitn Distributed DBMS qi pi commiti ci © 1998 M. Tamer Özsu & Patrick Valduriez Page 10 -12. 16
