Outline Announcements Process Scheduling continued Preemptive scheduling algorithms
- Slides: 71
Outline • Announcements • Process Scheduling– continued • Preemptive scheduling algorithms – SJN – Priority scheduling – Round robin – Multiple-level queue Please pick up your quiz if you have not done so Please pick up a copy of Homework #2 9/16/2020 COP 4610 1
Announcements • About the first quiz – If the first quiz is not the worst among all of your quizzes, it will replace the worst you have – If the first quiz is the worst among all of your quizzes, it will be ignored in grading 9/16/2020 COP 4610 2
Announcements – cont. • A few things about the first lab – How to check a directory that is valid or not • Using opendir and closedir • Using access() – Note that your program should accept both command names only and full path commands • Using strchr to check if ‘/’ occurs in my_argv[0] • If yes, execv(my_argv[0], my_argv) • If no, then you need to search through the directories 9/16/2020 COP 4610 3
Scheduling - review • Scheduling mechanism is the part of the process manager that handles the removal of the running process of CPU and the selection of another process on the basis of a particular strategy – Scheduler chooses one from the ready threads to use the CPU when it is available – Scheduling policy determines when it is time for a thread to be removed from the CPU and which ready thread should be allocated the CPU next 9/16/2020 COP 4610 4
Process Scheduler - review Preemption or voluntary yield New Process Ready List Scheduler CPU job job Done “Running” “Ready” Allocate Resource Manager job Request “Blocked” Resources 9/16/2020 COP 4610 5
Voluntary CPU Sharing • Each process will voluntarily share the CPU – By calling the scheduler periodically – The simplest approach – Requires a yield instruction to allow the running process to release CPU 9/16/2020 COP 4610 6

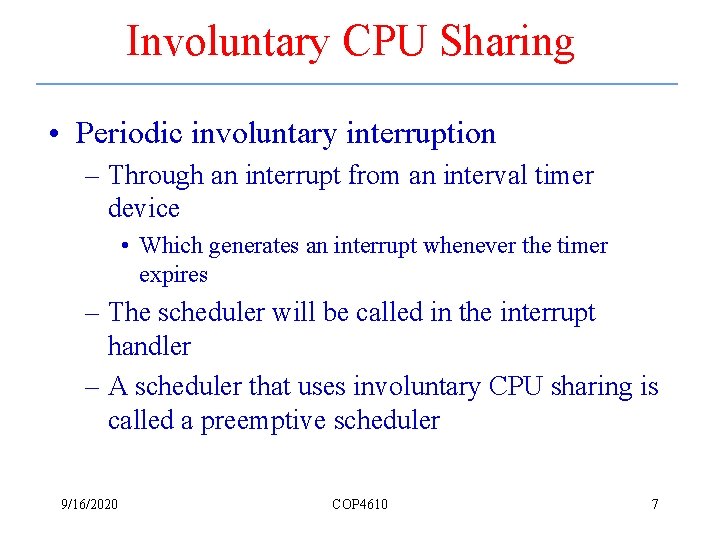

Involuntary CPU Sharing • Periodic involuntary interruption – Through an interrupt from an interval timer device • Which generates an interrupt whenever the timer expires – The scheduler will be called in the interrupt handler – A scheduler that uses involuntary CPU sharing is called a preemptive scheduler 9/16/2020 COP 4610 7
Programmable Interval Timer 9/16/2020 COP 4610 8
Scheduler as CPU Resource Manager Ready List Release Dispatch Process Dispatch Ready to run Release Scheduler Release Dispatch Units of time for a time-multiplexed CPU 9/16/2020 COP 4610 9
The Scheduler Organization From Other States Process Descriptor Ready Process Enqueuer Ready List Context Switcher Dispatcher CPU Running Process 9/16/2020 COP 4610 10
Dispatcher • Dispatcher module gives control of the CPU to the process selected by the scheduler; this involves: – switching context – switching to user mode – jumping to the proper location in the user program to restart that program 9/16/2020 COP 4610 11
Diagram of Process State 9/16/2020 COP 4610 12
CPU Scheduler • Selects from among the processes in memory that are ready to execute, and allocates the CPU to one of them. • CPU scheduling decisions may take place when a process: 1. 2. 3. 4. Switches from running to waiting state. Switches from running to ready state. Switches from waiting/new to ready. Terminates. 9/16/2020 COP 4610 13
CPU Scheduler – cont. • Non-preemptive and preemptive scheduling – Scheduling under 1 and 4 is non-preemptive • A process runs for as long as it likes • In other words, non-preemptive scheduling algorithms allow any process/thread to run to “completion” once it has been allocated to the processor – All other scheduling is preemptive • May preempt the CPU before a process finishes its current CPU burst 9/16/2020 COP 4610 14
Working Process Model and Metrics • P will be a set of processes, p 0, p 1, . . . , pn-1 – S(pi) is the state of pi – (pi), the service time • The amount of time pi needs to be in the running state before it is completed – W (pi), the wait time • The time pi spends in the ready state before its first transition to the running state – TTRnd(pi), turnaround time • The amount of time between the moment pi first enters the ready state and the moment the process exists the running state for the last time 9/16/2020 COP 4610 15
Alternating Sequence of CPU And I/O Bursts 9/16/2020 COP 4610 16
Scheduling Criteria • CPU utilization – keep the CPU as busy as possible • Throughput – # of processes that complete their execution per time unit • Turnaround time – amount of time to execute a particular process • Waiting time – amount of time a process has been waiting in the ready queue • Response time – amount of time it takes from when a request was submitted until the first response is produced, not output (for time-sharing environment) 9/16/2020 COP 4610 17
First-Come-First-Served • First-Come-First-Served – Assigns priority to processes in the order in which they request the processor 0 350 p 0 9/16/2020 475 p 1 900 p 2 COP 4610 1200 p 3 1275 p 4 18
Predicting Wait Time in FCFS • In FCFS, when a process arrives, all in ready list will be processed before this job • Let m be the service rate • Let L be the ready list length • Wavg(p) = L*1/m + 0. 5* 1/m = L/m+1/(2 m) • Compare predicted wait with actual in earlier examples 9/16/2020 COP 4610 19
Shortest-Job-Next Scheduling • Associate with each process the length of its next CPU burst. – Use these lengths to schedule the process with the shortest time. • SJN is optimal – gives minimum average waiting time for a given set of processes. 9/16/2020 COP 4610 20
Nonpreemptive SJN 0 75 p 4 9/16/2020 200 p 1 450 p 3 800 p 0 COP 4610 1275 p 2 21
Determining Length of Next CPU Burst • Can only estimate the length. • Can be done by using the length of previous CPU bursts, using exponential averaging. 9/16/2020 COP 4610 22
Examples of Exponential Averaging • =0 – n+1 = n – Recent history does not count. • =1 – n+1 = tn – Only the actual last CPU burst counts. • If we expand the formula, we get: n+1 = tn+(1 - ) tn -1 + … +(1 - )j tn -1 + … +(1 - )n=1 tn 0 • Since both and (1 - ) are less than or equal to 1, each successive term has less weight than its predecessor. 9/16/2020 COP 4610 23
Priority Scheduling • In priority scheduling, processes/threads are allocated to the CPU based on the basis of an externally assigned priority – A commonly used convention is that lower numbers have higher priority – SJN is a priority scheduling where priority is the predicted next CPU burst time. – FCFS is a priority scheduling where priority is the arrival time 9/16/2020 COP 4610 24
Nonpreemptive Priority Scheduling 9/16/2020 COP 4610 25
Priority Scheduling – cont. • Starvation problem – low priority processes may never execute. • Solution through aging – as time progresses increase the priority of the process 9/16/2020 COP 4610 26
Deadline Scheduling i (pi) Deadline 0 350 575 1 125 550 2 475 1050 3 250 (none) 4 75 200 • Allocates service by deadline • May not be feasible 200 0 p 1 p 4 9/16/2020 p 4 p 1 p 0 550 575 1050 p 2 p 3 p 1 COP 4610 1275 27
Real-Time Scheduling • Hard real-time systems – required to complete a critical task within a guaranteed amount of time. • Soft real-time computing – requires that critical processes receive priority over less fortunate ones. 9/16/2020 COP 4610 28
Preemptive Schedulers Preemption or voluntary yield New Process Ready List Scheduler CPU Done • Highest priority process is guaranteed to be running at all times – Or at least at the beginning of a time slice • Dominant form of contemporary scheduling • But complex to build & analyze 9/16/2020 COP 4610 29
Preemptive Shortest Job Next • Also called the shortest remaining job next • When a new process arrives, its next CPU burst is compared to the remaining time of the running process – If the new arriver’s time is shorter, it will preempt the CPU from the current running process 9/16/2020 COP 4610 30
Example of Preemptive SJF Process P 1 0. 0 P 2 2. 0 P 3 4. 0 P 4 5. 0 P 1 0 P 2 2 Arrival Time 7 4 1 4 P 3 4 P 2 5 Burst Time P 4 7 P 1 11 16 • Average time spent in ready queue = (9 + 1 + 0 +2)/4 =3 9/16/2020 COP 4610 31
Comparison of Non-Preemptive and Preemptive SJF Process P 1 0. 0 P 2 2. 0 P 3 4. 0 P 4 5. 0 Arrival Time 7 4 1 4 • SJN (non-preemptive) Burst Time P 1 0 P 3 3 7 P 2 8 P 4 12 16 • Average time spent in ready queue – (0 + 6 + 3 + 7)/4 = 4 9/16/2020 COP 4610 32
Round Robin (RR) • Each process gets a small unit of CPU time (time quantum), usually 10 -100 milliseconds. After this time has elapsed, the process is preempted and added to the end of the ready queue. • If there are n processes in the ready queue and the time quantum is q, then each process gets 1/n of the CPU time in chunks of at most q time units at once. No process waits more than (n-1)q time units. 9/16/2020 COP 4610 33
Round Robin (TQ=50) i (pi) 0 350 1 125 2 475 3 250 4 75 0 50 p 0 W(p 0) = 0 9/16/2020 COP 4610 34
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 100 p 1 W(p 0) = 0 W(p 1) = 50 9/16/2020 COP 4610 35
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 9/16/2020 COP 4610 36
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 200 p 3 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 9/16/2020 COP 4610 37
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 200 p 3 p 4 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 9/16/2020 COP 4610 38
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 200 p 3 p 4 300 p 0 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 9/16/2020 COP 4610 39
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 200 p 3 p 4 300 p 1 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 TTRnd(p 4) = 475 9/16/2020 400 475 p 2 p 3 p 4 COP 4610 40
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 100 p 1 p 2 200 p 3 p 4 300 p 1 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 TTRnd(p 1) = 550 TTRnd(p 4) = 475 9/16/2020 400 475 550 p 2 p 3 p 4 p 0 p 1 COP 4610 41
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 650 p 0 100 p 1 p 2 750 p 2 p 3 200 p 3 p 4 850 p 2 300 p 1 650 p 3 950 p 3 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 TTRnd(p 1) = 550 TTRnd(p 3) = 950 TTRnd(p 4) = 475 9/16/2020 400 475 550 p 2 p 3 p 4 p 0 p 1 p 2 COP 4610 42
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 650 p 0 100 p 1 p 2 200 p 3 p 4 750 p 2 p 3 850 p 2 300 p 1 950 p 3 p 0 TTRnd(p 0) = 1100 TTRnd(p 1) = 550 650 p 3 1050 p 2 p 0 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 TTRnd(p 3) = 950 TTRnd(p 4) = 475 9/16/2020 400 475 550 p 2 p 3 p 4 p 0 p 1 p 2 COP 4610 43
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 0 p 0 650 p 0 100 p 1 p 2 200 p 3 p 4 750 p 2 p 3 850 p 2 300 p 1 950 p 3 p 0 TTRnd(p 0) = 1100 TTRnd(p 1) = 550 TTRnd(p 2) = 1275 TTRnd(p 3) = 950 TTRnd(p 4) = 475 9/16/2020 400 475 550 p 2 p 3 p 4 p 0 p 1 p 2 1050 p 2 p 0 1150 p 2 650 p 3 1250 1275 p 2 W(p 0) = 0 W(p 1) = 50 W(p 2) = 100 W(p 3) = 150 W(p 4) = 200 COP 4610 44
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 3 250 4 75 • Equitable • Most widely-used • Fits naturally with interval timer 0 p 0 650 p 0 100 p 1 p 2 750 p 2 p 3 200 p 3 p 4 300 p 1 850 p 2 950 p 3 p 0 400 475 550 p 2 p 3 p 4 p 0 p 1 p 2 1050 p 2 p 0 1150 p 2 650 p 3 1250 1275 p 2 TTRnd(p 0) = 1100 W(p 0) = 0 TTRnd(p 1) = 550 W(p 1) = 50 TTRnd(p 2) = 1275 W(p 2) = 100 TTRnd(p 3) = 950 W(p 3) = 150 TTRnd(p 4) = 475 W(p 4) = 200 TTRnd_avg = (1100+550+1275+950+475)/5 = 4350/5 = 870 Wavg = (0+50+100+150+200)/5 = 500/5 = 100 9/16/2020 COP 4610 45
Round Robin – cont. • Performance – q large FIFO – q small q must be large with respect to context switch, otherwise overhead is too high. 9/16/2020 COP 4610 46
Turnaround Time Varies With The Time Quantum 9/16/2020 COP 4610 47
How a Smaller Time Quantum Increases Context Switches 9/16/2020 COP 4610 48
Round-robin Time Quantum 9/16/2020 COP 4610 49
Process/Thread Context Right Operand Left Operand Status Registers R 1 R 2. . . Rn Functional Unit Result ALU PC Ctl Unit 9/16/2020 COP 4610 IR 50
Context Switching - review Old Thread Descriptor CPU New Thread Descriptor 9/16/2020 COP 4610 51
Cost of Context Switching • Suppose there are n general registers and m control registers • Each register needs b store operations, where each operation requires K time units – (n+m)b x K time units • Note that at least two pairs of context switches occur when application programs are multiplexed each time 9/16/2020 COP 4610 52
Round Robin (TQ=50) – cont. i (pi) 0 350 1 125 2 475 0 p 0 3 250 4 75 790 p 0 • Overhead must be considered 120 p 1 240 p 2 910 p 2 p 3 360 p 4 1030 p 2 p 0 p 1 1150 p 3 p 0 TTRnd(p 0) = 1320 TTRnd(p 1) = 660 TTRnd(p 2) = 1535 TTRnd(p 3) = 1140 TTRnd(p 4) = 565 480 540 575 635 670 p 2 p 3 p 4 p 0 p 1 p 2 1270 p 2 p 0 1390 p 2 790 p 3 1510 1535 p 2 W(p 0) = 0 W(p 1) = 60 W(p 2) = 120 W(p 3) = 180 W(p 4) = 240 TTRnd_avg = (1320+660+1535+1140+565)/5 = 5220/5 = 1044 Wavg = (0+60+120+180+240)/5 = 600/5 = 120 9/16/2020 COP 4610 53
Multi-Level Queues Preemption or voluntary yield Ready List 0 New Process Ready List 1 Ready List 2 Scheduler CPU Done • All processes at level i run before any process at level j • At a level, use another policy, e. g. RR Ready List 3 9/16/2020 COP 4610 54
Multilevel Queues • Ready queue is partitioned into separate queues – foreground (interactive) – background (batch) • Each queue has its own scheduling algorithm – foreground – RR – background – FCFS 9/16/2020 COP 4610 55
Multilevel Queues – cont. • Scheduling must be done between the queues. – Fixed priority scheduling; i. e. , serve all from foreground then from background. Possibility of starvation. – Time slice – each queue gets a certain amount of CPU time which it can schedule amongst its processes; i. e. , • 80% to foreground in RR • 20% to background in FCFS 9/16/2020 COP 4610 56
Multilevel Queue Scheduling 9/16/2020 COP 4610 57
Multilevel Feedback Queue • A process can move between the various queues; aging can be implemented this way. • Multilevel-feedback-queue scheduler defined by the following parameters: – – – number of queues scheduling algorithms for each queue method used to determine when to upgrade a process method used to determine when to demote a process method used to determine which queue a process will enter when that process needs service 9/16/2020 COP 4610 58
Multilevel Feedback Queues – cont. 9/16/2020 COP 4610 59
Example of Multilevel Feedback Queue • Three queues: – Q 0 – time quantum 8 milliseconds – Q 1 – time quantum 16 milliseconds – Q 2 – FCFS • Scheduling – A new job enters queue Q 0 which is served FCFS. When it gains CPU, job receives 8 milliseconds. If it does not finish in 8 milliseconds, job is moved to queue Q 1. – At Q 1 job is again served FCFS and receives 16 additional milliseconds. If it still does not complete, it is preempted and moved to queue Q 2. 9/16/2020 COP 4610 60
Two-queue scheduling 9/16/2020 COP 4610 61
Three-queue scheduling 9/16/2020 COP 4610 62
Multiple-Processor Scheduling • CPU scheduling more complex when multiple CPUs are available. • Homogeneous processors within a multiprocessor. • Load sharing • Asymmetric multiprocessing – only one processor accesses the system data structures, alleviating the need for data sharing. 9/16/2020 COP 4610 63
Algorithm Evaluation • Deterministic modeling – takes a particular predetermined workload and defines the performance of each algorithm for that workload. • Queuing models • Implementation 9/16/2020 COP 4610 64
Evaluation of CPU Schedulers by Simulation 9/16/2020 COP 4610 65
Contemporary Scheduling • Involuntary CPU sharing -- timer interrupts – Time quantum determined by interval timer -usually fixed for every process using the system – Sometimes called the time slice length • Priority-based process (job) selection – Select the highest priority process – Priority reflects policy • With preemption • Usually a variant of Multi-Level Queues 9/16/2020 COP 4610 66
Scheduling in real OSs • All use a multiple-queue system • UNIX SVR 4: 160 levels, three classes – time-sharing, system, real-time • Solaris: 170 levels, four classes – time-sharing, system, real-time, interrupt • OS/2 2. 0: 128 level, four classes – background, normal, server, real-time • Windows NT 3. 51: 32 levels, two classes – regular and real-time • Mach uses “hand-off scheduling” 9/16/2020 COP 4610 67
BSD 4. 4 Scheduling • Involuntary CPU Sharing • Preemptive algorithms • 32 Multi-Level Queues – Queues 0 -7 are reserved for system functions – Queues 8 -31 are for user space functions – nice influences (but does not dictate) queue level 9/16/2020 COP 4610 68

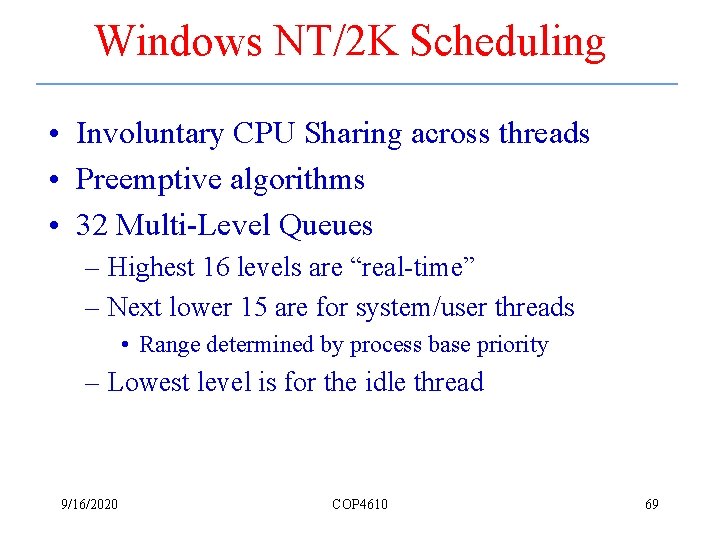

Windows NT/2 K Scheduling • Involuntary CPU Sharing across threads • Preemptive algorithms • 32 Multi-Level Queues – Highest 16 levels are “real-time” – Next lower 15 are for system/user threads • Range determined by process base priority – Lowest level is for the idle thread 9/16/2020 COP 4610 69
Scheduler in Linux • In file kernel/sched. c • The policy is a variant of RR scheduling 9/16/2020 COP 4610 70
Summary • The scheduler is responsible for multiplexing the CPU among a set of ready processes / threads – It is invoked periodically by a timer interrupt, by a system call, other device interrupts, any time that the running process terminates – It selects from the ready list according to its scheduling policy • Which includes non-preemptive and preemptive algorithms 9/16/2020 COP 4610 71
