Outflow Tract Development Heart Start Week 5 right
- Slides: 21
Outflow Tract Development Heart – Start Week 5 (right ventrolateral view) UNSW Embryology
Heart – Start Week 5 (right ventrolateral view) Lumen of Conotruncus Right and Left Atria Right and Left AV Canals
Heart – Start Week 5 (right ventrolateral view) Lumen of Conotruncus Endocardial Cushions Muscular Ventricular Septum Right and Left Ventricles
Development of Truncal and Bulbar Endocardial Cushions
Development of Truncal and Bulbar Endocardial Cushions Truncal Ridges Bulbar Ridges

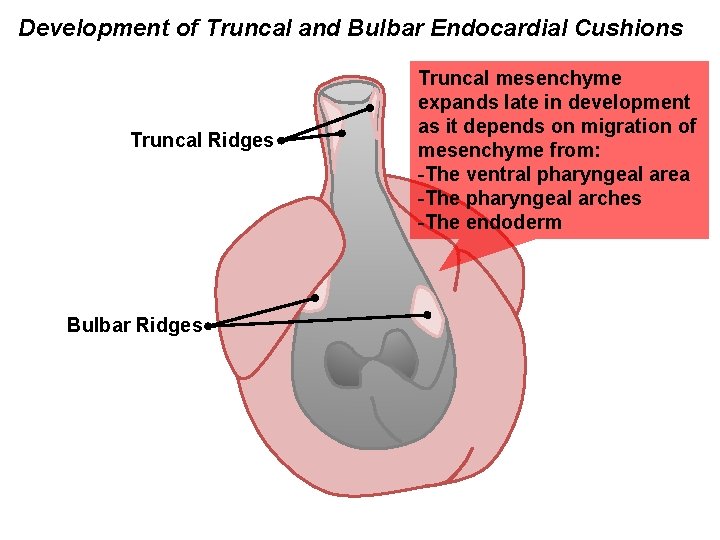

Development of Truncal and Bulbar Endocardial Cushions Truncal Ridges Bulbar Ridges Truncal mesenchyme expands late in development as it depends on migration of mesenchyme from: -The ventral pharyngeal area -The pharyngeal arches -The endoderm

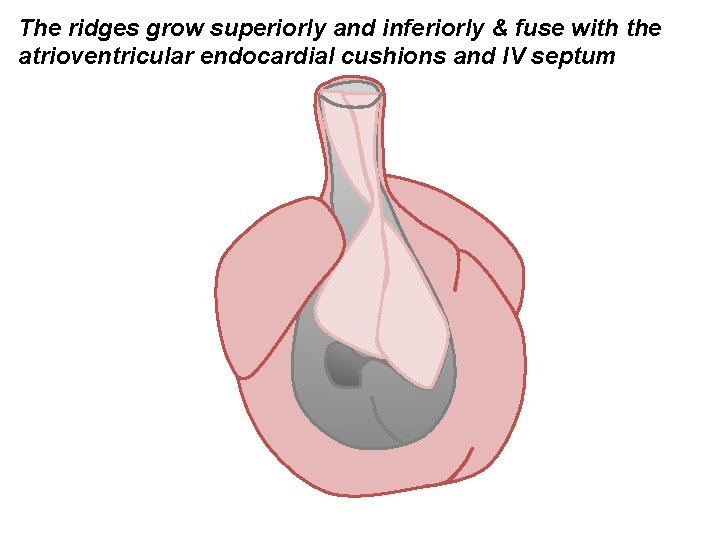

The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum
The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum Migration of cardiac neural crest from the pharyngeal arches contributes to division of the outflow tract
The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum
The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum
The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum
The ridges grow superiorly and inferiorly & fuse with the atrioventricular endocardial cushions and IV septum

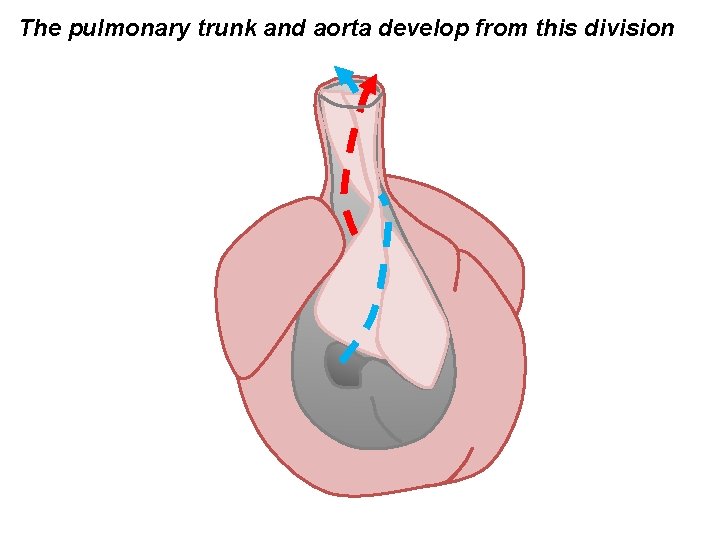

The pulmonary trunk and aorta develop from this division
The pulmonary trunk and aorta develop from this division Future Pulmonary Trunk Future Aorta
The pulmonary trunk and aorta develop from this division
The pulmonary trunk and aorta develop from this division
The pulmonary trunk and aorta develop from this division
The pulmonary trunk and aorta develop from this division Aorta Pulmonary Trunk
