Oscillatory Baffled Reactors for Biological Applications Claudia Tröger School of Chemical Engineering and Advanced Materials Newcastle University April 2008

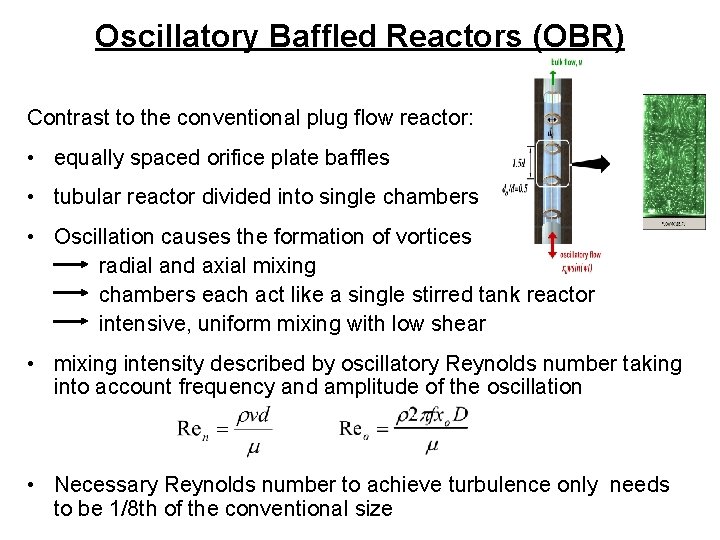

Oscillatory Baffled Reactors (OBR) Contrast to the conventional plug flow reactor: • equally spaced orifice plate baffles • tubular reactor divided into single chambers • Oscillation causes the formation of vortices radial and axial mixing chambers each act like a single stirred tank reactor intensive, uniform mixing with low shear • mixing intensity described by oscillatory Reynolds number taking into account frequency and amplitude of the oscillation • Necessary Reynolds number to achieve turbulence only needs to be 1/8 th of the conventional size

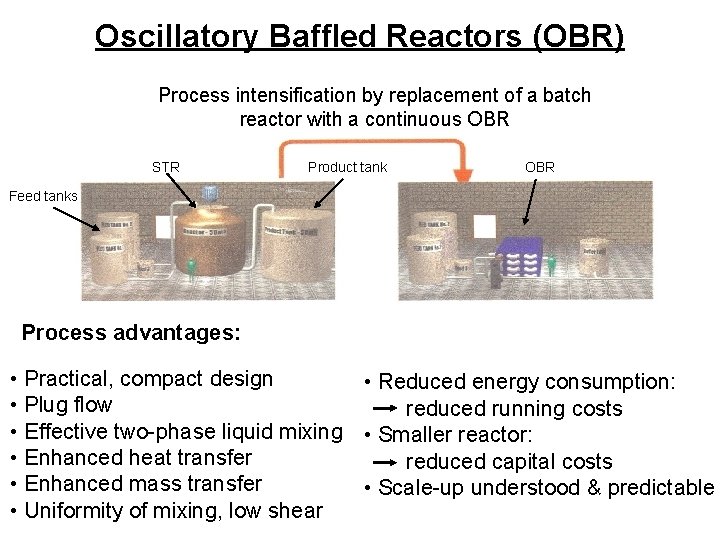

Oscillatory Baffled Reactors (OBR) Process intensification by replacement of a batch reactor with a continuous OBR STR Product tank OBR Feed tanks Process advantages: • Practical, compact design • Reduced energy consumption: • Plug flow reduced running costs • Effective two-phase liquid mixing • Smaller reactor: • Enhanced heat transfer reduced capital costs • Enhanced mass transfer • Scale-up understood & predictable • Uniformity of mixing, low shear

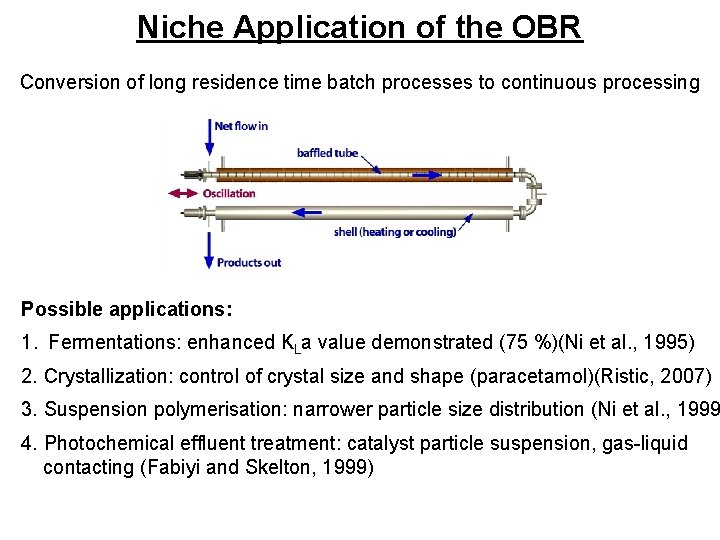

Niche Application of the OBR Conversion of long residence time batch processes to continuous processing Possible applications: 1. Fermentations: enhanced KLa value demonstrated (75 %)(Ni et al. , 1995) 2. Crystallization: control of crystal size and shape (paracetamol)(Ristic, 2007) 3. Suspension polymerisation: narrower particle size distribution (Ni et al. , 1999 4. Photochemical effluent treatment: catalyst particle suspension, gas-liquid contacting (Fabiyi and Skelton, 1999)

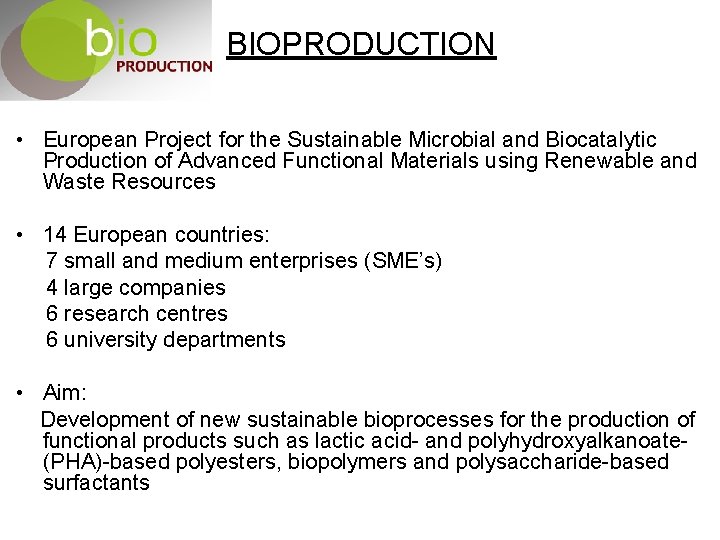

BIOPRODUCTION • European Project for the Sustainable Microbial and Biocatalytic Production of Advanced Functional Materials using Renewable and Waste Resources • 14 European countries: 7 small and medium enterprises (SME’s) 4 large companies 6 research centres 6 university departments • Aim: Development of new sustainable bioprocesses for the production of functional products such as lactic acid- and polyhydroxyalkanoate(PHA)-based polyesters, biopolymers and polysaccharide-based surfactants

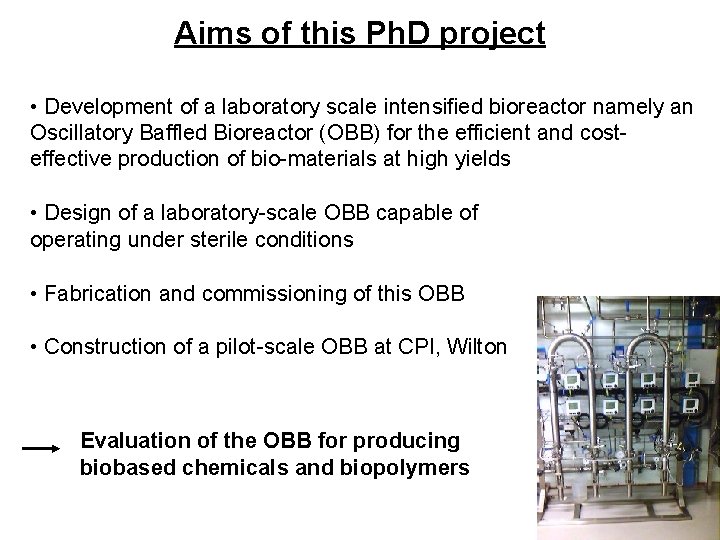

Aims of this Ph. D project • Development of a laboratory scale intensified bioreactor namely an Oscillatory Baffled Bioreactor (OBB) for the efficient and costeffective production of bio-materials at high yields • Design of a laboratory-scale OBB capable of operating under sterile conditions • Fabrication and commissioning of this OBB • Construction of a pilot-scale OBB at CPI, Wilton Evaluation of the OBB for producing biobased chemicals and biopolymers

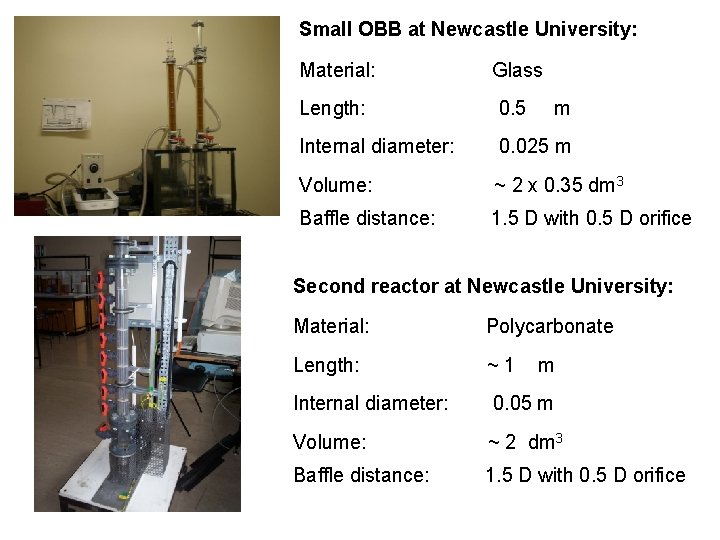

Small OBB at Newcastle University: Material: Glass Length: 0. 5 Internal diameter: 0. 025 m Volume: ~ 2 x 0. 35 dm 3 Baffle distance: 1. 5 D with 0. 5 D orifice m Second reactor at Newcastle University: Material: Polycarbonate Length: ~1 Internal diameter: 0. 05 m Volume: ~ 2 dm 3 Baffle distance: 1. 5 D with 0. 5 D orifice m

Pilot-scale OBB designed, constructed, commissioned, based at CPI OBB at CPI: Material: 316 dm 3 Stainless Steel Length of whole unit: ~ 4 m Internal diameter: 0. 05 m Volume: ~ 8 dm 3 Baffle distance: 1. 5 D with 0. 5 D orifice Online monitoring: p. H and DO

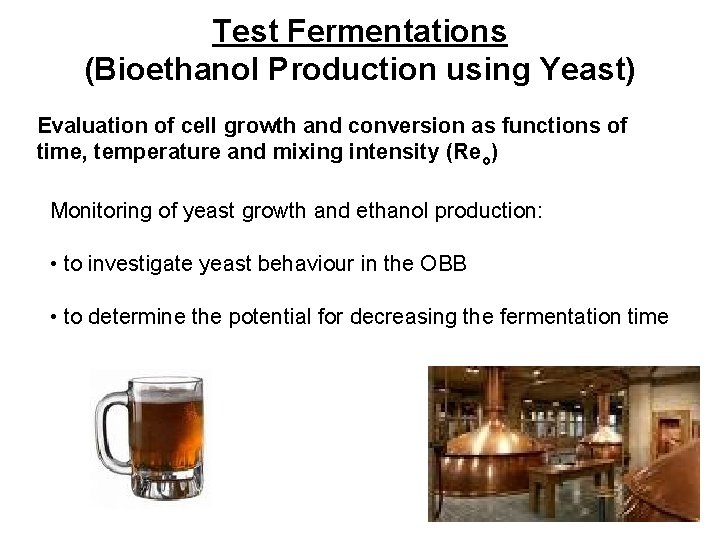

Test Fermentations (Bioethanol Production using Yeast) Evaluation of cell growth and conversion as functions of time, temperature and mixing intensity (Reo) Monitoring of yeast growth and ethanol production: • to investigate yeast behaviour in the OBB • to determine the potential for decreasing the fermentation time

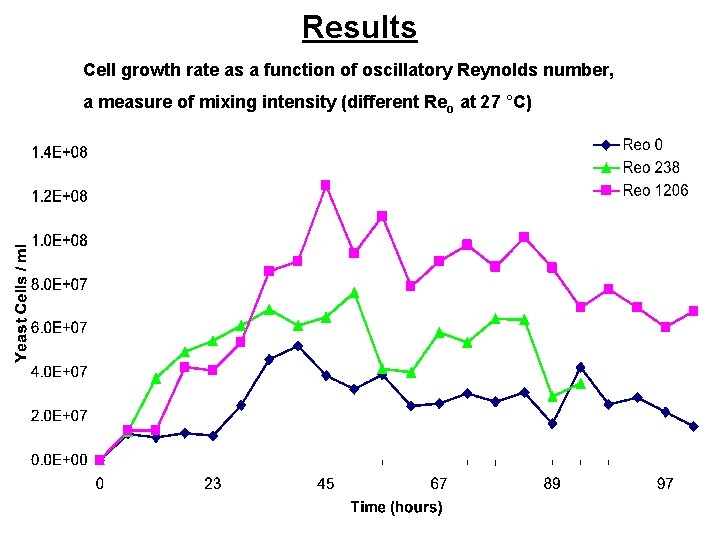

Results Cell growth rate as a function of oscillatory Reynolds number, a measure of mixing intensity (different Reo at 27 °C)

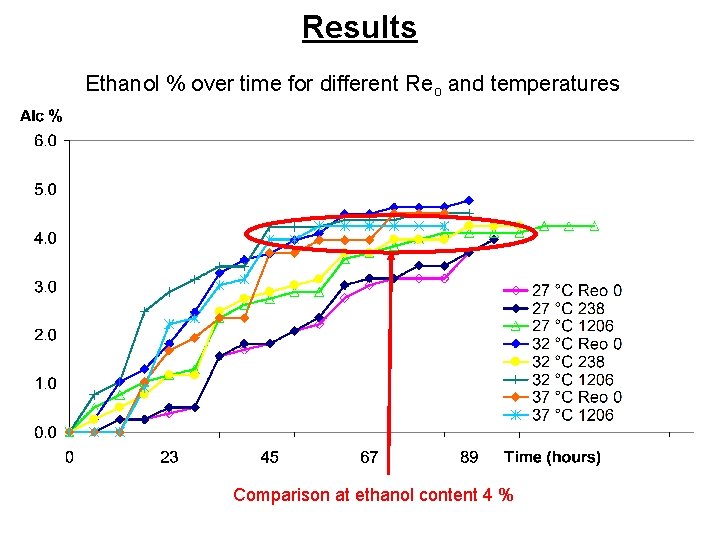

Results Ethanol % over time for different Reo and temperatures Comparison at ethanol content 4 %

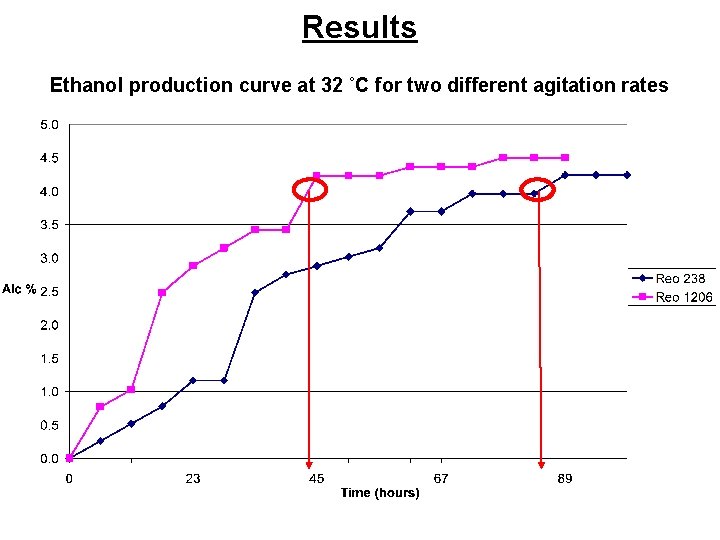

Results Ethanol production curve at 32 ˚C for two different agitation rates

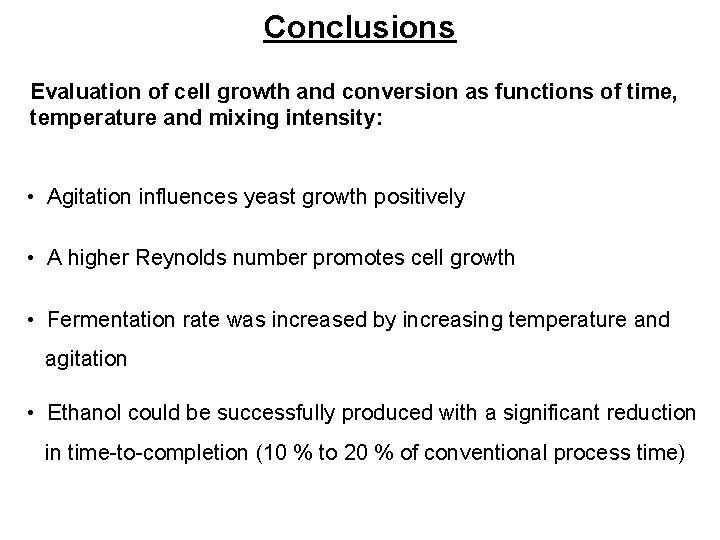

Conclusions Evaluation of cell growth and conversion as functions of time, temperature and mixing intensity: • Agitation influences yeast growth positively • A higher Reynolds number promotes cell growth • Fermentation rate was increased by increasing temperature and agitation • Ethanol could be successfully produced with a significant reduction in time-to-completion (10 % to 20 % of conventional process time)

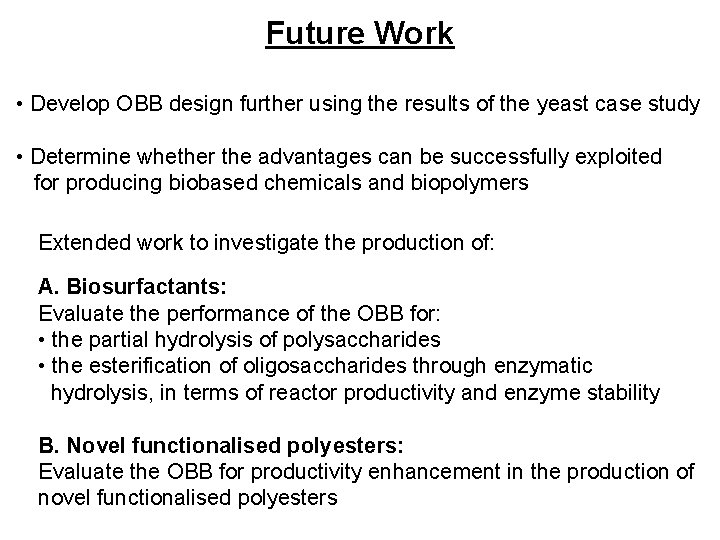

Future Work • Develop OBB design further using the results of the yeast case study • Determine whether the advantages can be successfully exploited for producing biobased chemicals and biopolymers Extended work to investigate the production of: A. Biosurfactants: Evaluate the performance of the OBB for: • the partial hydrolysis of polysaccharides • the esterification of oligosaccharides through enzymatic hydrolysis, in terms of reactor productivity and enzyme stability B. Novel functionalised polyesters: Evaluate the OBB for productivity enhancement in the production of novel functionalised polyesters

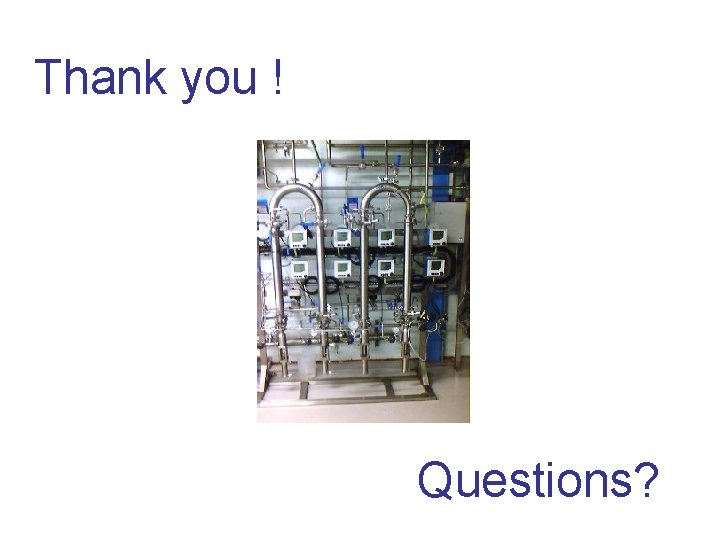

Thank you ! Questions?
