Learning objectives Why do we use symbols? What are O. S. symbols? What can we learn from place names? What are 4 figure and 6 figure grid references? 2 of 31 © Boardworks Ltd 2006

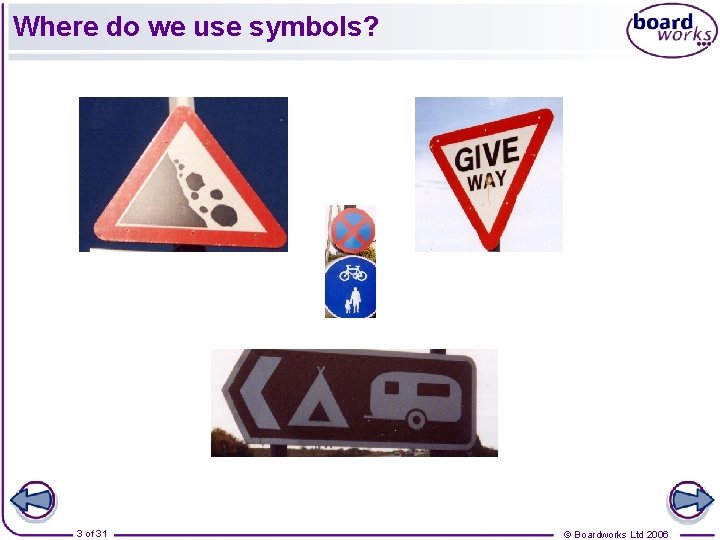

Where do we use symbols? 3 of 31 © Boardworks Ltd 2006

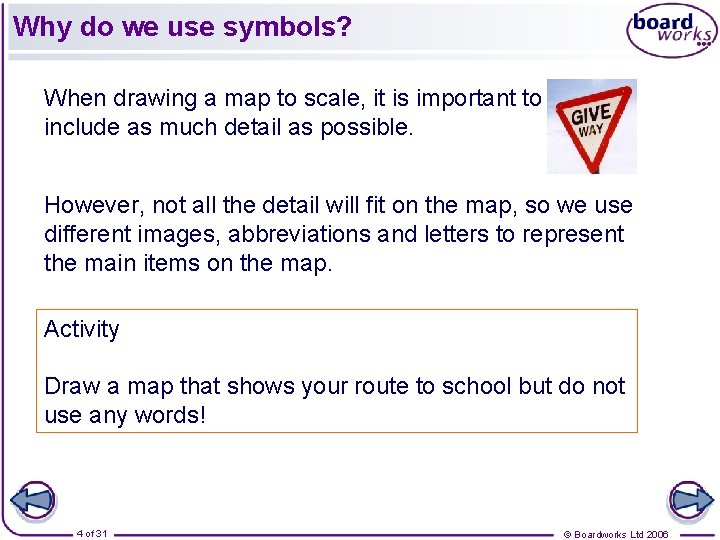

Why do we use symbols? When drawing a map to scale, it is important to include as much detail as possible. However, not all the detail will fit on the map, so we use different images, abbreviations and letters to represent the main items on the map. Activity Draw a map that shows your route to school but do not use any words! 4 of 31 © Boardworks Ltd 2006

Learning objectives Why do we use symbols? What are O. S. symbols? What can we learn from place names? What are 4 figure and 6 figure grid references? 5 of 31 © Boardworks Ltd 2006

O. S. map symbols 6 of 31 © Boardworks Ltd 2006

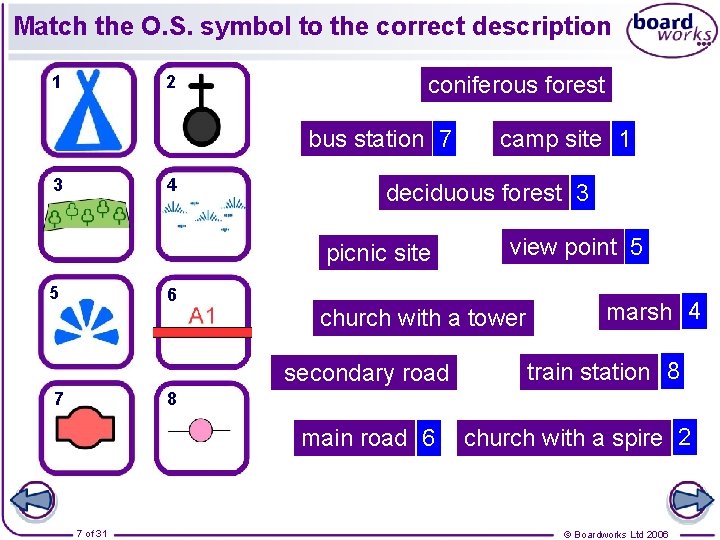

Match the O. S. symbol to the correct description 1 2 coniferous forest bus station 7 3 4 deciduous forest 3 picnic site 5 6 view point 5 church with a tower secondary road 7 camp site 1 marsh 4 train station 8 8 main road 6 7 of 31 church with a spire 2 © Boardworks Ltd 2006

O. S. map symbols 8 of 31 © Boardworks Ltd 2006

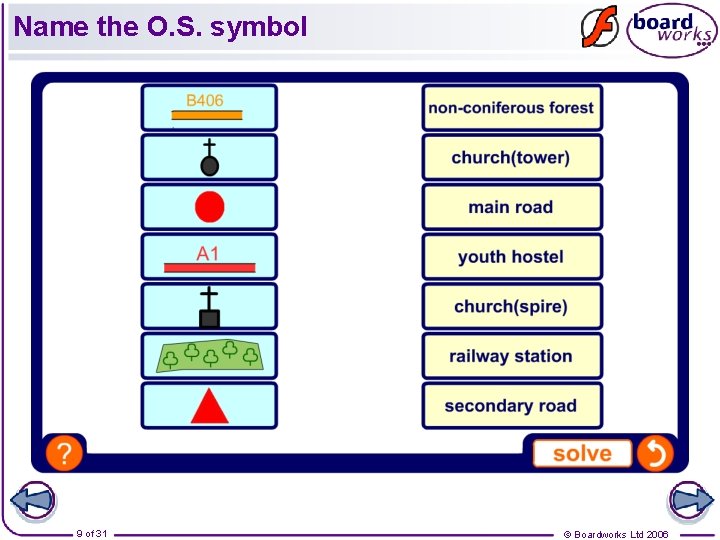

Name the O. S. symbol 9 of 31 © Boardworks Ltd 2006

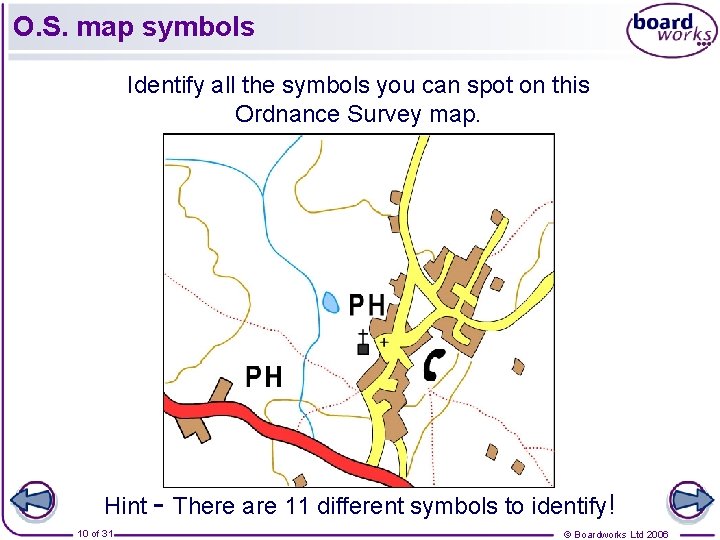

O. S. map symbols Identify all the symbols you can spot on this Ordnance Survey map. Hint - There are 11 different symbols to identify! 10 of 31 © Boardworks Ltd 2006

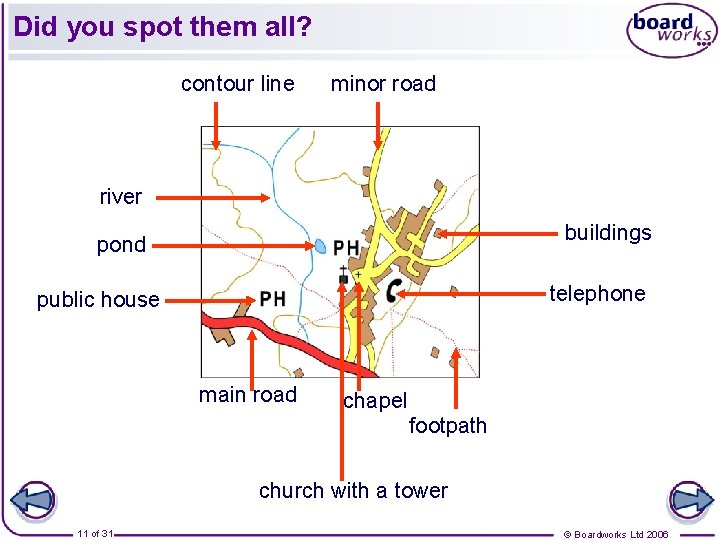

Did you spot them all? contour line minor road river buildings pond telephone public house main road chapel footpath church with a tower 11 of 31 © Boardworks Ltd 2006

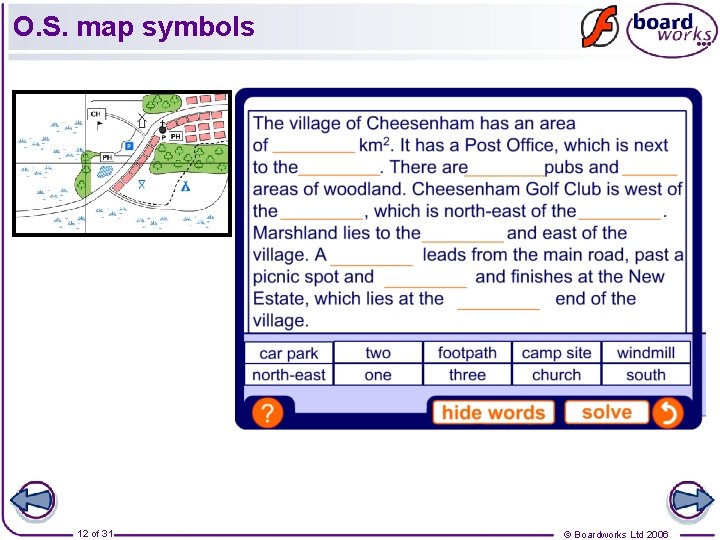

O. S. map symbols 12 of 31 © Boardworks Ltd 2006

Learning objectives Why do we use symbols? What are O. S. symbols? What can we learn from place names? What are 4 figure and 6 figure grid references? 13 of 31 © Boardworks Ltd 2006

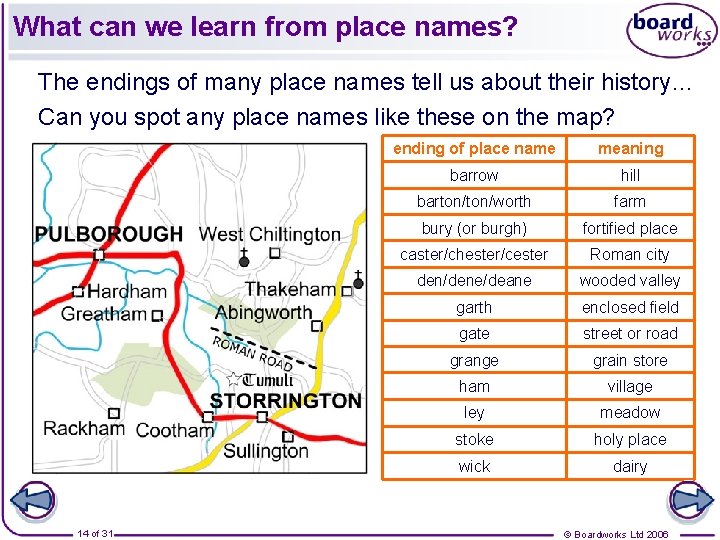

What can we learn from place names? The endings of many place names tell us about their history… Can you spot any place names like these on the map? 14 of 31 ending of place name meaning barrow hill barton/worth farm bury (or burgh) fortified place caster/chester/cester Roman city den/dene/deane wooded valley garth enclosed field gate street or road grange grain store ham village ley meadow stoke holy place wick dairy © Boardworks Ltd 2006

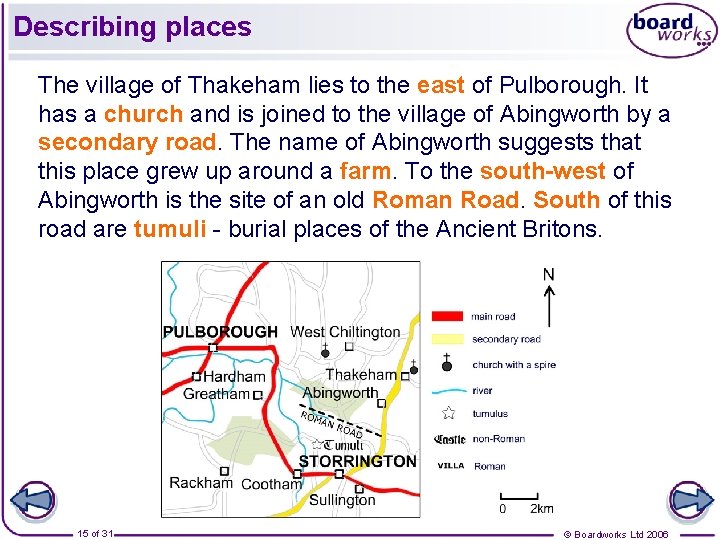

Describing places The village of Thakeham lies to the east of Pulborough. It has a church and is joined to the village of Abingworth by a secondary road. The name of Abingworth suggests that this place grew up around a farm. To the south-west of Abingworth is the site of an old Roman Road. South of this road are tumuli - burial places of the Ancient Britons. 15 of 31 © Boardworks Ltd 2006

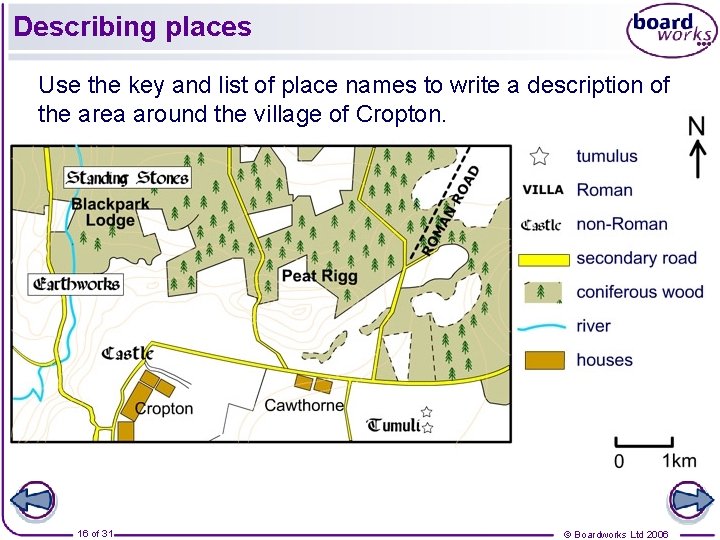

Describing places Use the key and list of place names to write a description of the area around the village of Cropton. 16 of 31 © Boardworks Ltd 2006

Learning objectives Why do we use symbols? What are O. S. symbols? What can we learn from place names? What are 4 figure and 6 figure grid references? 17 of 31 © Boardworks Ltd 2006

Grid references Geographers use maps constantly but sometimes they can seem a little confusing. Maps are often covered by a grid. 32 31 This is so we can find places more easily. These grids have numbers. 30 29 28 27 26 25 24 23 01 02 18 of 31 03 04 05 06 07 08 09 10 11 © Boardworks Ltd 2006

Eastings and northings Specific areas on maps can be identified using a grid reference. These come in the form of numbers, for example 0431. To find this place on a map is simple: The second two digit number is called the northing. This is the number at the side of the map. 32 31 30 29 28 The first two digit number is 27 called the easting, this is 26 25 the number along the 24 top or bottom of the map. 23 19 of 31 01 02 03 04 05 06 07 08 09 10 11 © Boardworks Ltd 2006

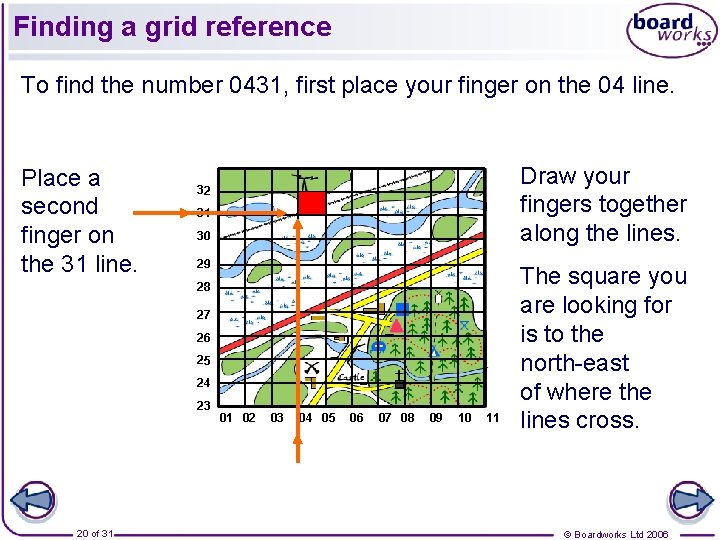

Finding a grid reference To find the number 0431, first place your finger on the 04 line. Place a second finger on the 31 line. Draw your fingers together along the lines. 32 31 30 29 28 27 26 25 24 23 20 of 31 01 02 03 04 05 06 07 08 09 10 11 The square you are looking for is to the north-east of where the lines cross. © Boardworks Ltd 2006

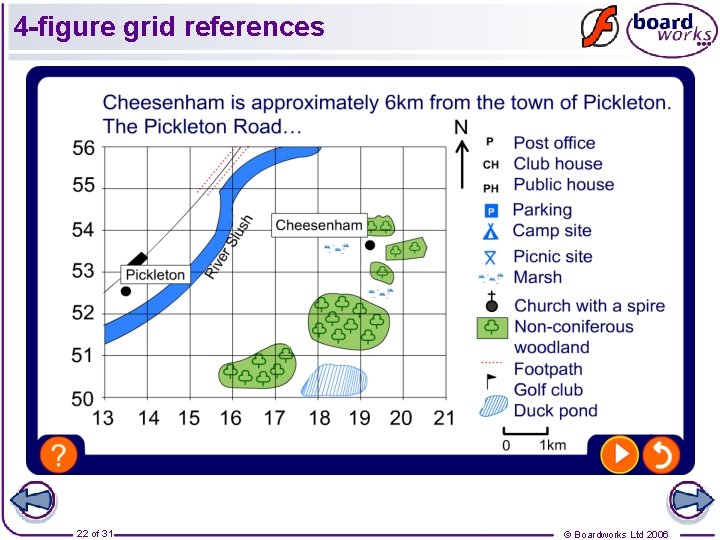

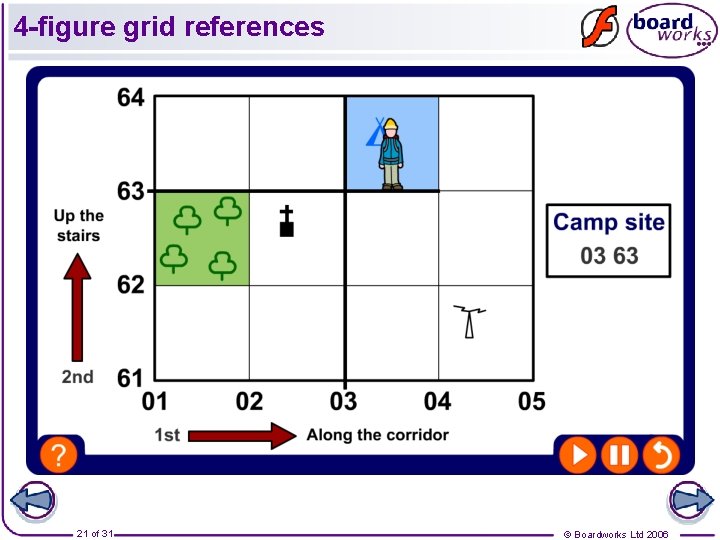

4 -figure grid references 21 of 31 © Boardworks Ltd 2006

4 -figure grid references 22 of 31 © Boardworks Ltd 2006

5 in a Row 23 of 31 © Boardworks Ltd 2006

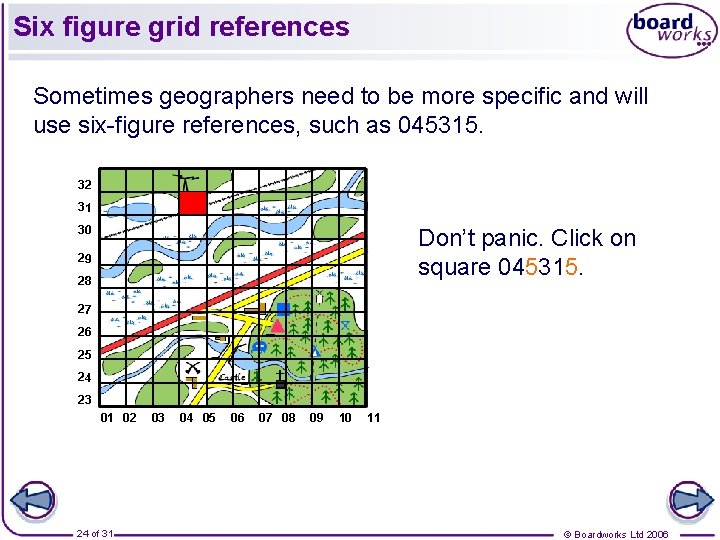

Six figure grid references Sometimes geographers need to be more specific and will use six-figure references, such as 045315. 32 31 30 Don’t panic. Click on square 045315. 29 28 27 26 25 24 23 01 02 24 of 31 03 04 05 06 07 08 09 10 11 © Boardworks Ltd 2006

Finding a grid reference You can then imagine that you can divide box 0431, further into a ten by ten grid. Use the same rules for finding eastings and northings. 32 9 8 7 6 5 4 045315 will be here. 3 2 1 31 04 25 of 31 1 2 3 4 5 6 7 8 9 05 © Boardworks Ltd 2006

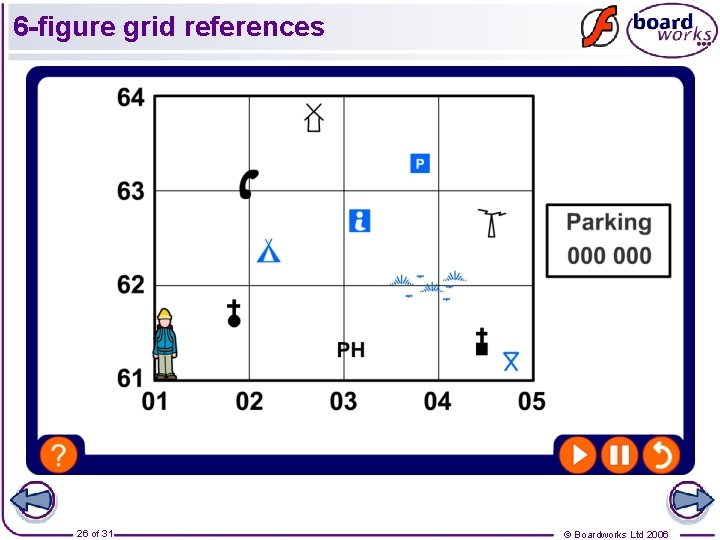

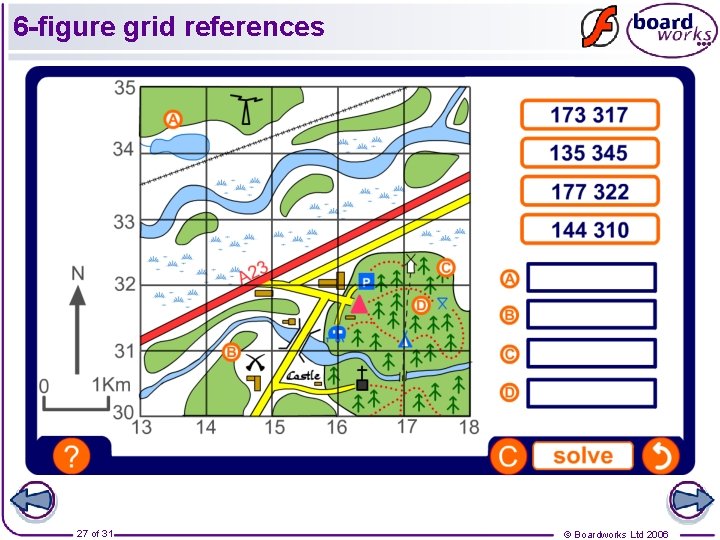

6 -figure grid references 26 of 31 © Boardworks Ltd 2006

6 -figure grid references 27 of 31 © Boardworks Ltd 2006

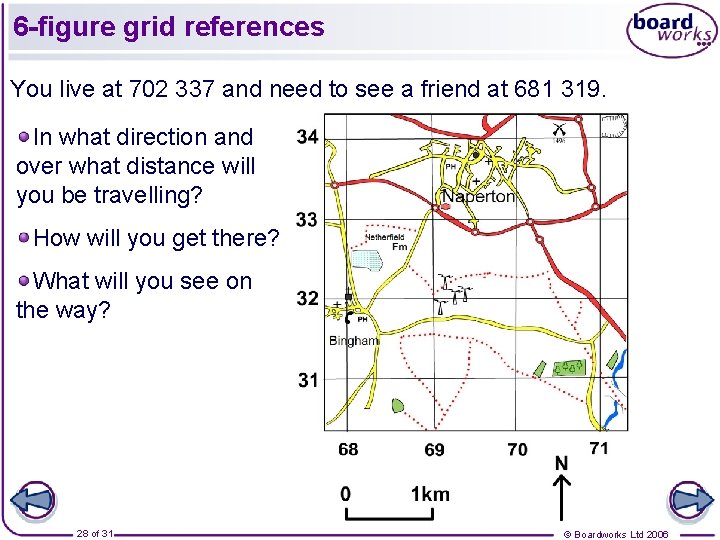

6 -figure grid references You live at 702 337 and need to see a friend at 681 319. In what direction and over what distance will you be travelling? How will you get there? What will you see on the way? 28 of 31 © Boardworks Ltd 2006

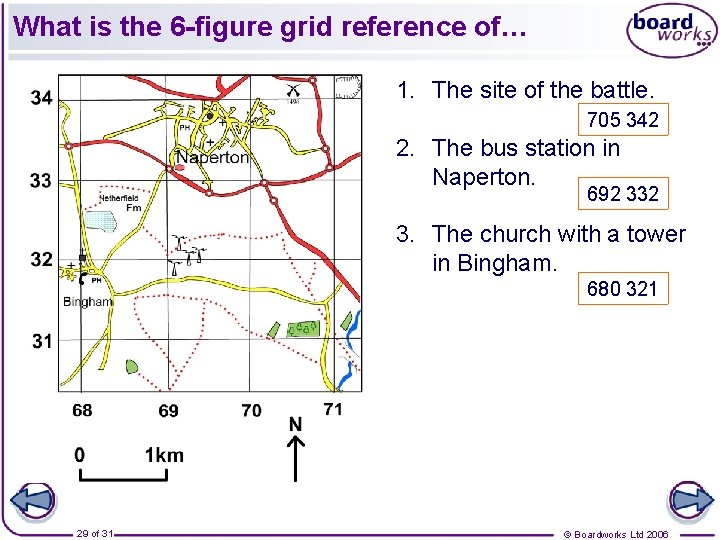

What is the 6 -figure grid reference of… 1. The site of the battle. 705 342 2. The bus station in Naperton. 692 332 3. The church with a tower in Bingham. 680 321 29 of 31 © Boardworks Ltd 2006
