Orthotic Devices Orthotic Devices Definition An orthosis is

Orthotic Devices

Orthotic Devices -Definition An orthosis is a mechanical device that applies forces to the body in an effort to: support limit stabilize moving parts assist and improve motion correct and align deformities prevent and protect susceptible areas.

Orthotic Devices -Definition “orthos” - straight, normal, or true.

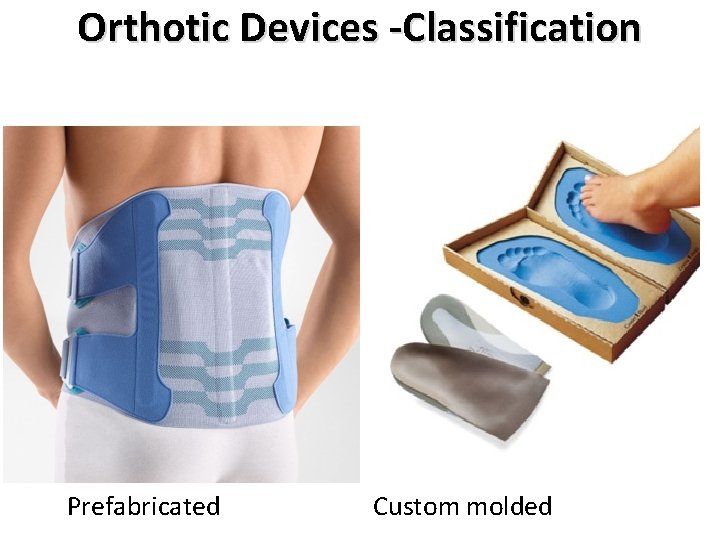

Orthotic Devices -Classification Prefabricated Custom molded

Orthotic Device -Prescription The prescription of an orthosis requires an understanding of the pathology of the disorder to be treated and must take into account: Goals to be achieved Knowledge of anatomy, biomechanics, and kinesiology Understanding of the indications (positive effects) and limitations (negative effects) of the orthosis

Upper Limb Orthosis-Classification ü Static ü Dynamic ü Hybrid

Upper Limb Orthotic - Goals It is the preservation or restoration of hand function that we strive for with upper limb orthotics.

Upper Limb Orthotic Goals Five common goals for upper limb orthotics: 1. Substitute for weak or absent muscles 2. Protect damaged or diseased segments by limiting load or motion 3. Prevention of deformity 4. Correction of contracture 5. Attachment of other assistive devices

Upper Limb Orthotic Goals 1. Substitute for weak or absent muscles

Upper Limb Orthotic Goals 2. Protect damaged or diseased segments by limiting load or motion

Upper Limb Orthotic Goals 3. Prevention of deformity

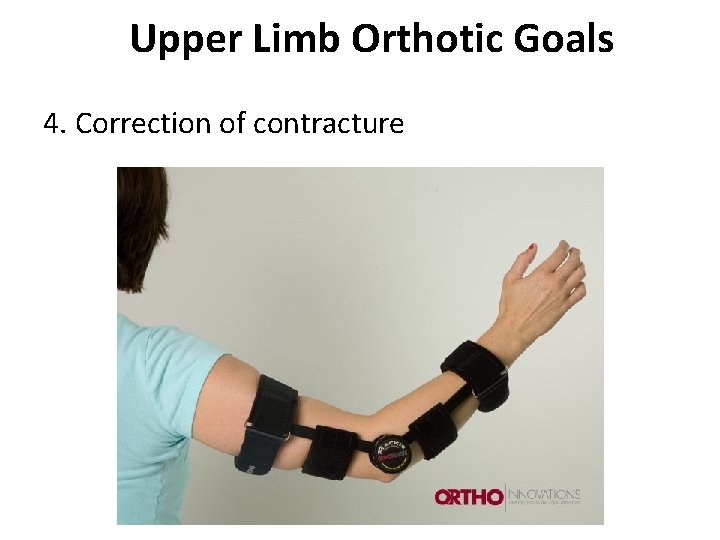

Upper Limb Orthotic Goals 4. Correction of contracture

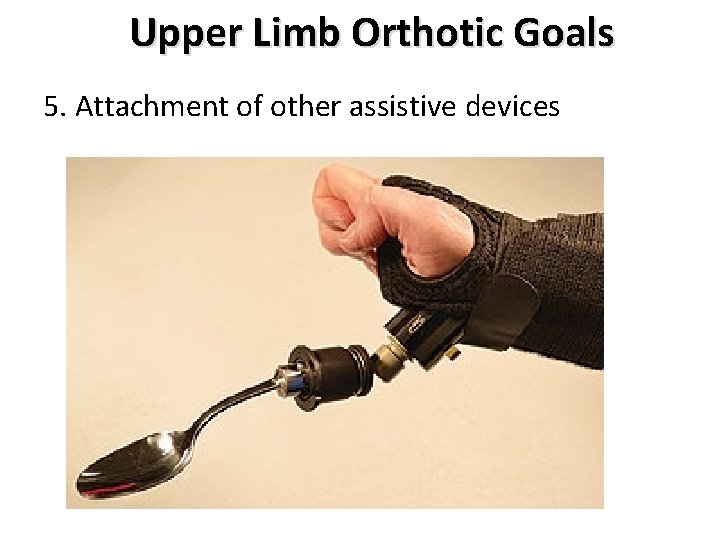

Upper Limb Orthotic Goals 5. Attachment of other assistive devices

Orthotic Devices -Bimechanical Principles The five principles include: 1. Three-point control concept 2. Tissue tolerance to compression and shear forces 3. The biomechanics of levers and forces 4. Selection of materials 5. Static versus dynamic control

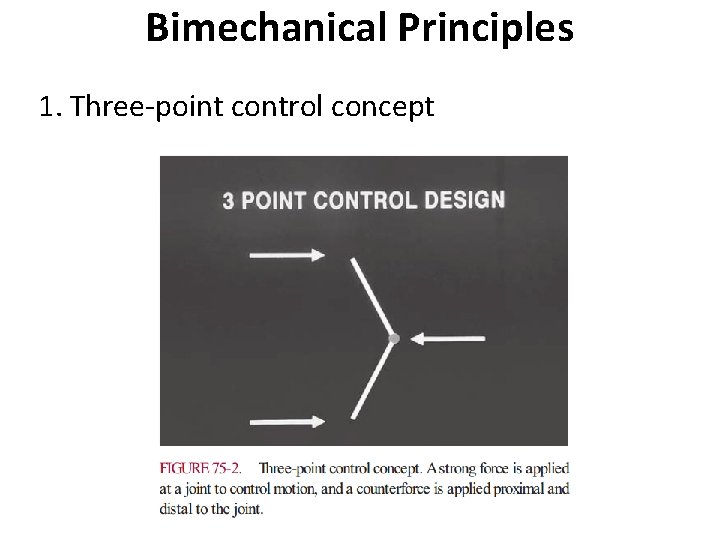

Bimechanical Principles 1. Three-point control concept

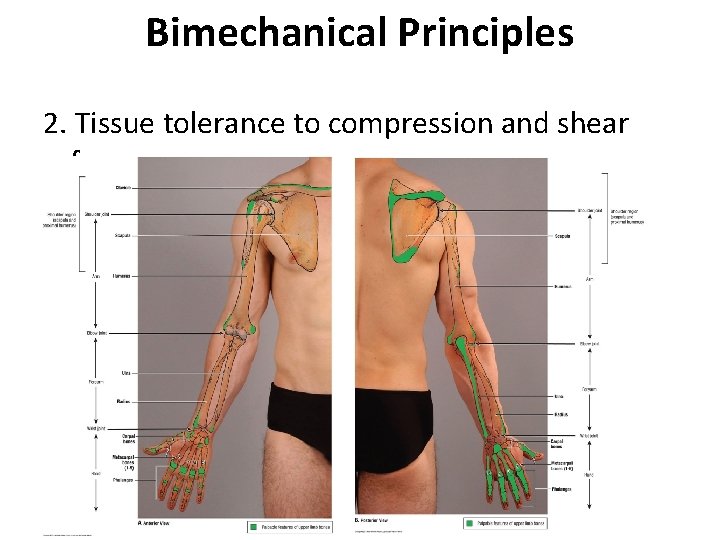

Bimechanical Principles 2. Tissue tolerance to compression and shear forces

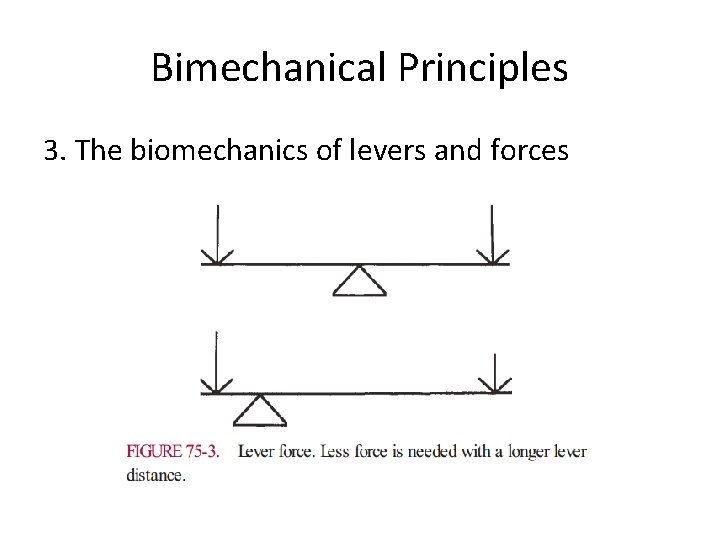

Bimechanical Principles 3. The biomechanics of levers and forces

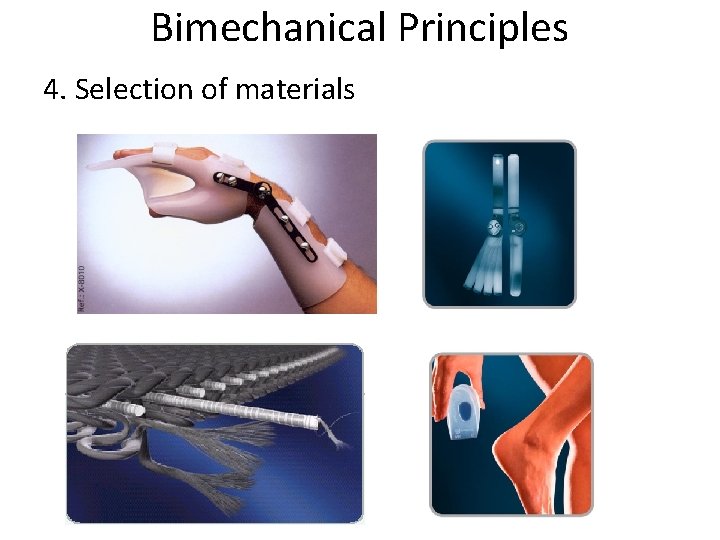

Bimechanical Principles 4. Selection of materials

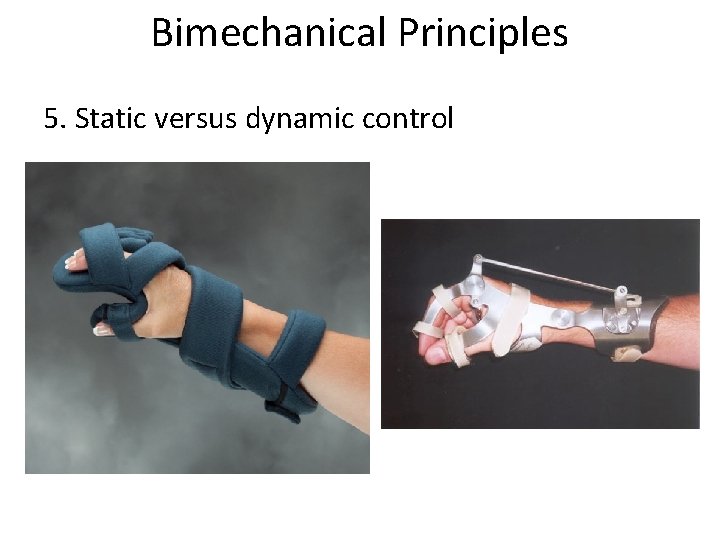

Bimechanical Principles 5. Static versus dynamic control

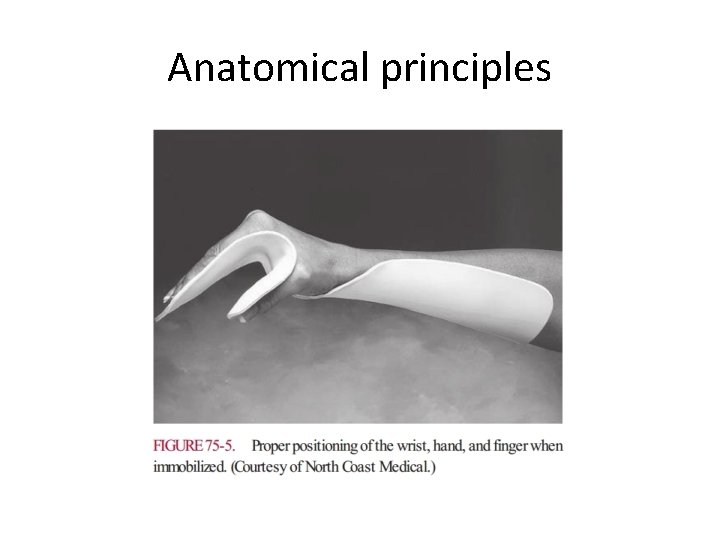

Anatomical principles

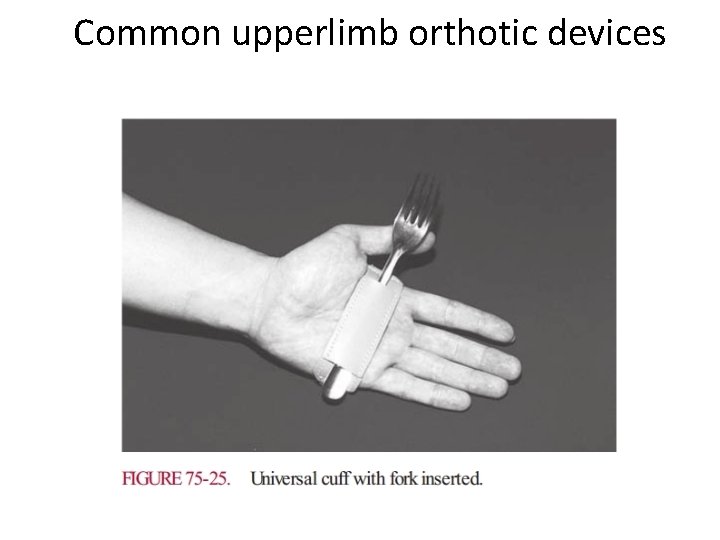

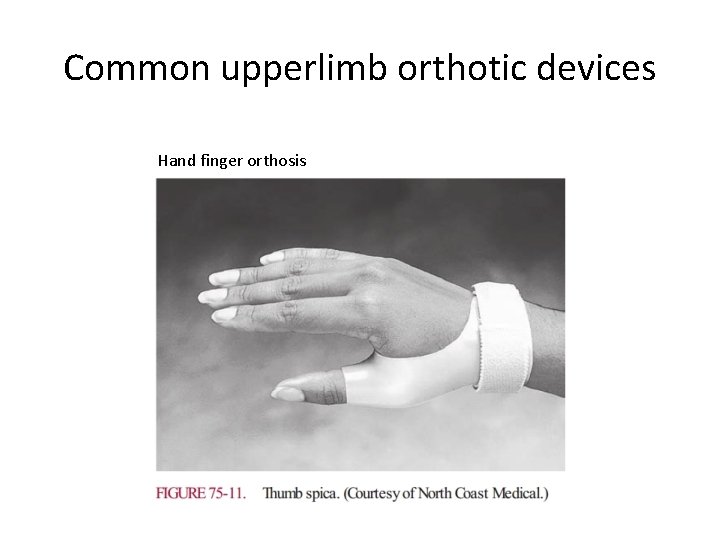

Common upperlimb orthotic devices Hand finger orthosis

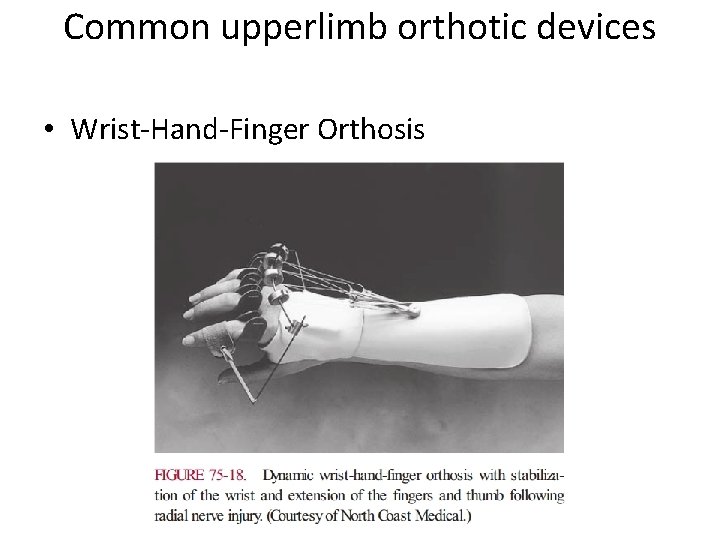

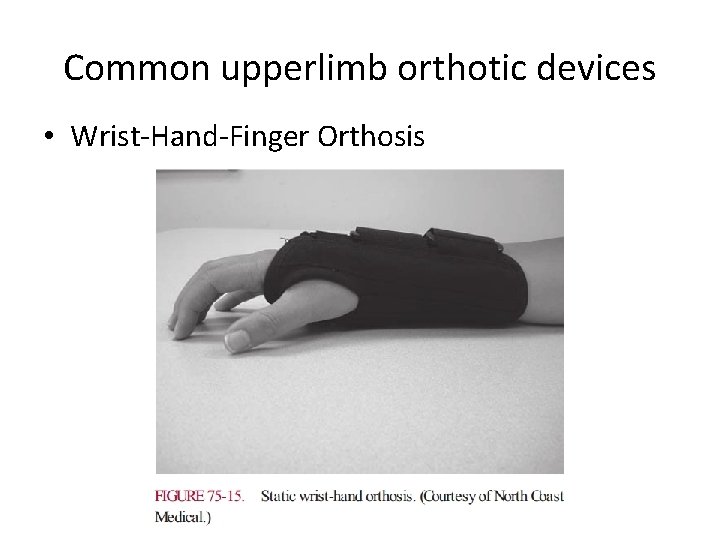

Common upperlimb orthotic devices • Wrist-Hand-Finger Orthosis

Common upperlimb orthotic devices • Wrist-Hand-Finger Orthosis

Common upperlimb orthotic devices • Shoulder orthoses

Common upperlimb orthotic devices

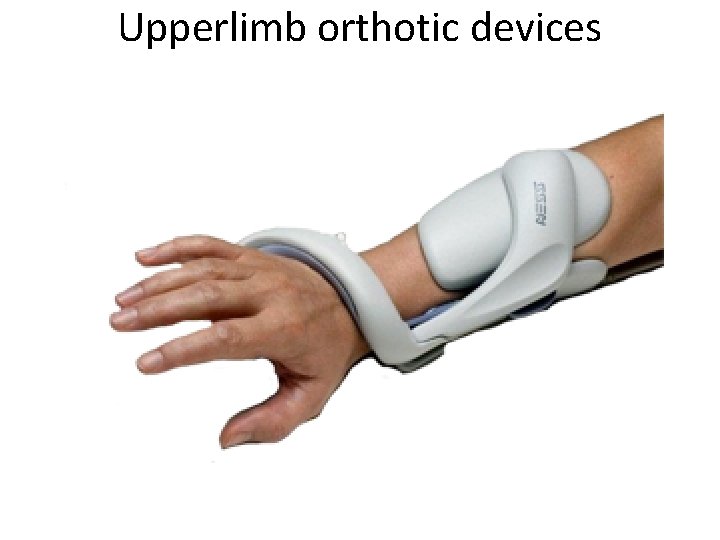

Upperlimb orthotic devices

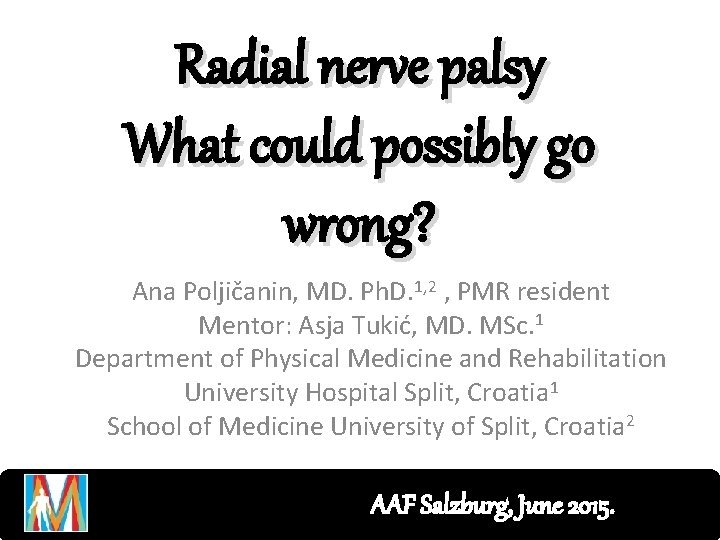

Radial nerve palsy What could possibly go wrong? Ana Poljičanin, MD. Ph. D. 1, 2 , PMR resident Mentor: Asja Tukić, MD. MSc. 1 Department of Physical Medicine and Rehabilitation University Hospital Split, Croatia 1 School of Medicine University of Split, Croatia 2 AAF Salzburg, June 2015.

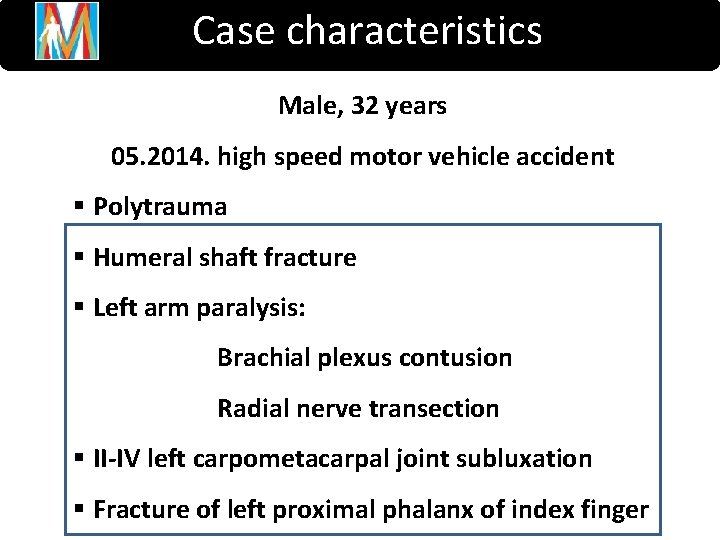

Case characteristics Male, 32 years 05. 2014. high speed motor vehicle accident § Polytrauma § Humeral shaft fracture § Left arm paralysis: Brachial plexus contusion Radial nerve transection § II-IV left carpometacarpal joint subluxation § Fracture of left proximal phalanx of index finger

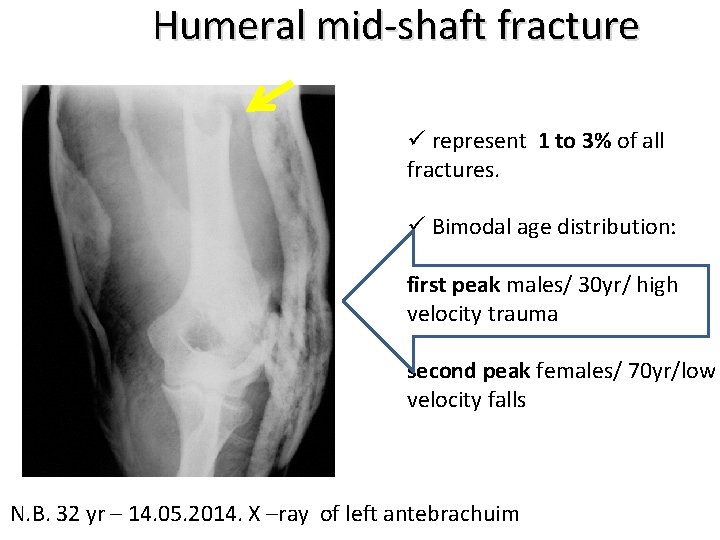

Humeral mid-shaft fracture ü represent 1 to 3% of all fractures. ü Bimodal age distribution: first peak males/ 30 yr/ high velocity trauma second peak females/ 70 yr/low velocity falls N. B. 32 yr – 14. 05. 2014. X –ray of left antebrachuim

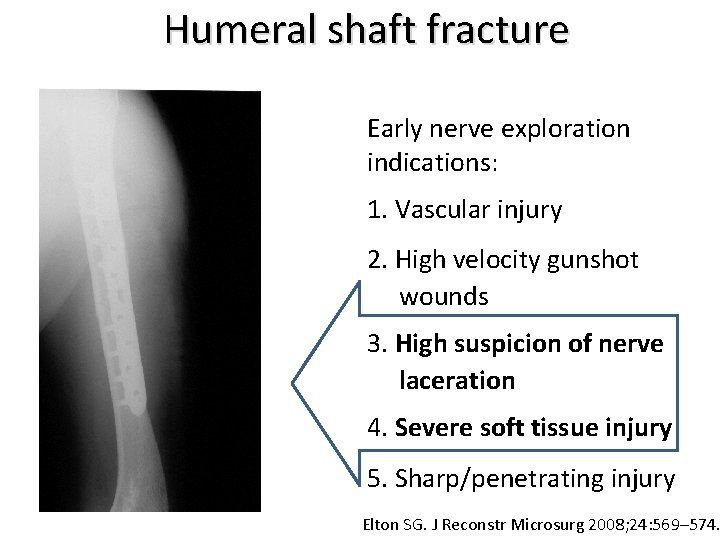

Humeral shaft fracture Early nerve exploration indications: 1. Vascular injury 2. High velocity gunshot wounds 3. High suspicion of nerve laceration 4. Severe soft tissue injury 5. Sharp/penetrating injury Elton SG. J Reconstr Microsurg 2008; 24: 569– 574.

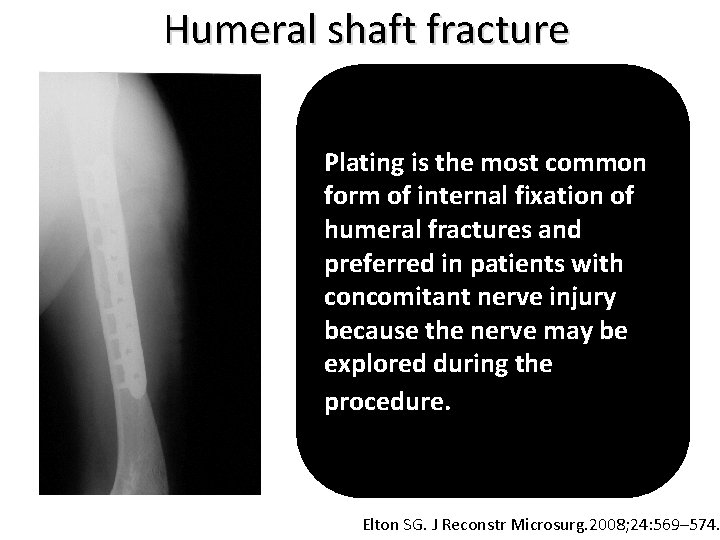

Humeral shaft fracture Plating is the most common form of internal fixation of humeral fractures and preferred in patients with concomitant nerve injury because the nerve may be explored during the procedure. . Elton SG. J Reconstr Microsurg. 2008; 24: 569– 574.

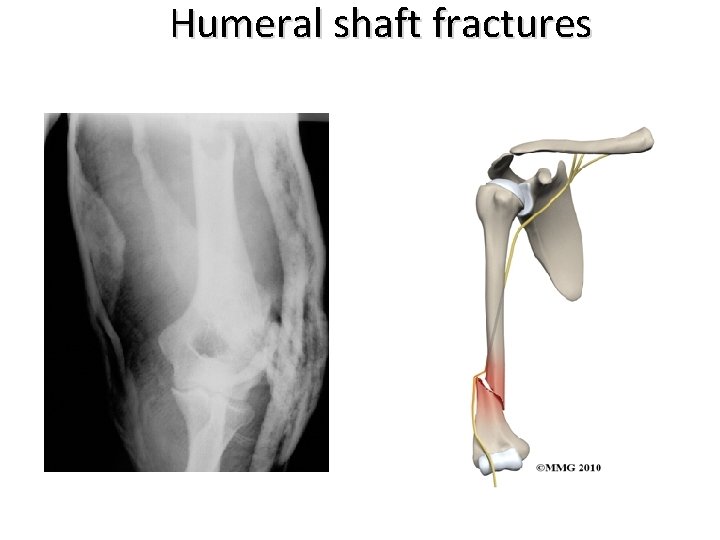

Humeral shaft fractures

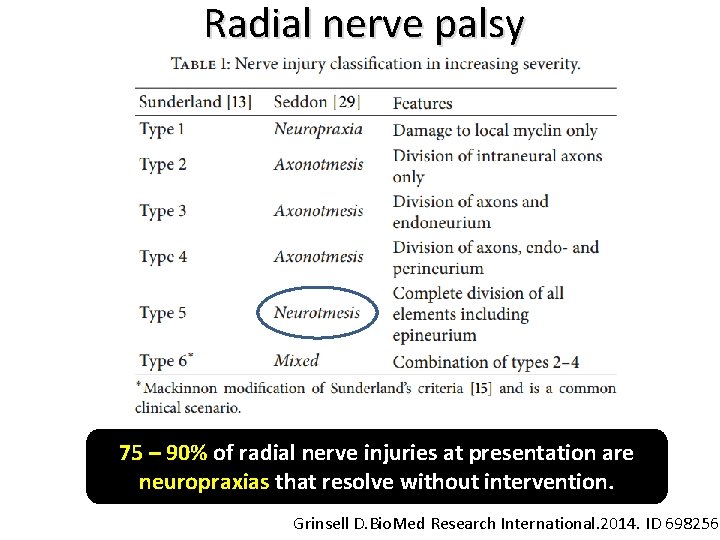

Radial nerve palsy 75 – 90% of radial nerve injuries at presentation are neuropraxias that resolve without intervention. Grinsell D. Bio. Med Research International. 2014. ID 698256

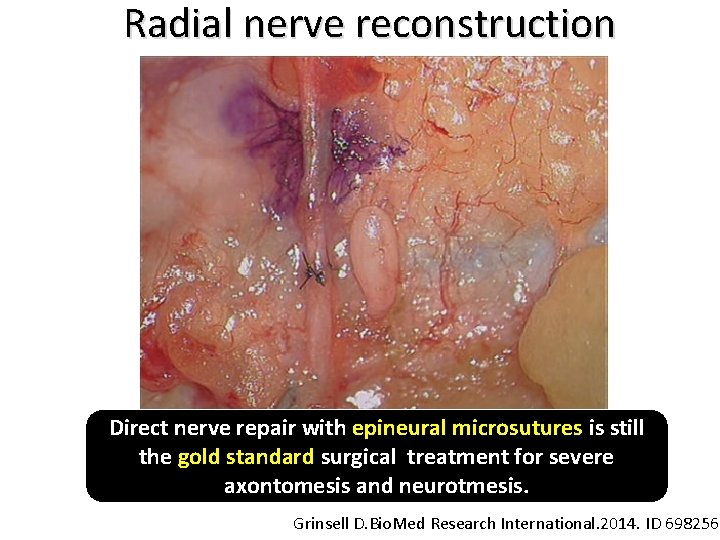

Radial nerve reconstruction Direct nerve repair with epineural microsutures is still the gold standard surgical treatment for severe axontomesis and neurotmesis. Grinsell D. Bio. Med Research International. 2014. ID 698256

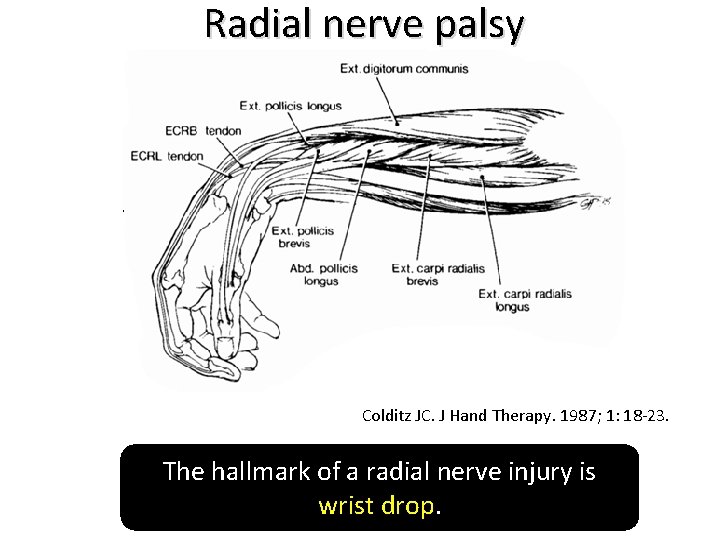

Radial nerve palsy Colditz JC. J Hand Therapy. 1987; 1: 18 -23. The hallmark of a radial nerve injury is wrist drop.

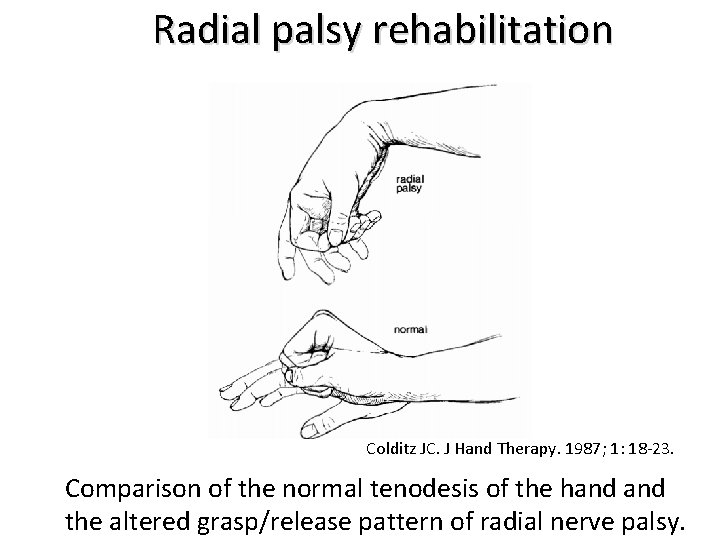

Radial palsy rehabilitation Colditz JC. J Hand Therapy. 1987; 1: 18 -23. Comparison of the normal tenodesis of the hand the altered grasp/release pattern of radial nerve palsy.

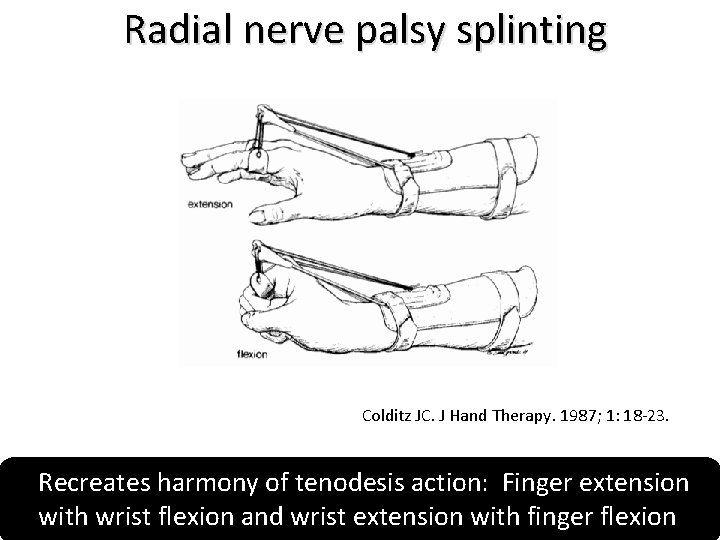

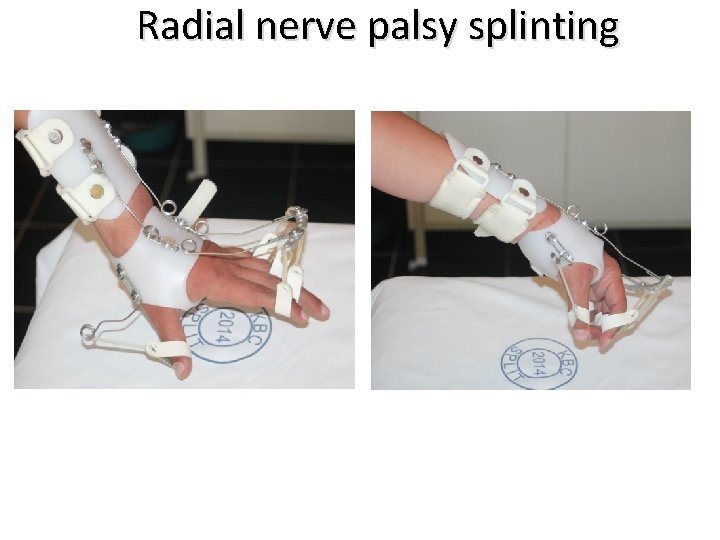

Radial nerve palsy splinting Colditz JC. J Hand Therapy. 1987; 1: 18 -23. Recreates harmony of tenodesis action: Finger extension with wrist flexion and wrist extension with finger flexion.

Radial nerve palsy splinting

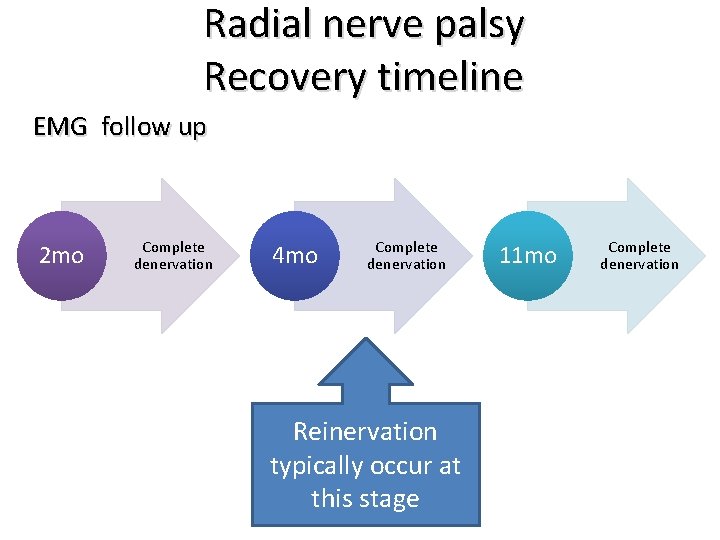

Radial nerve palsy Recovery timeline EMG follow up 2 mo Complete denervation 4 mo Complete denervation Reinervation typically occur at this stage 11 mo Complete denervation

Recovery complications Brachial plexus contusion

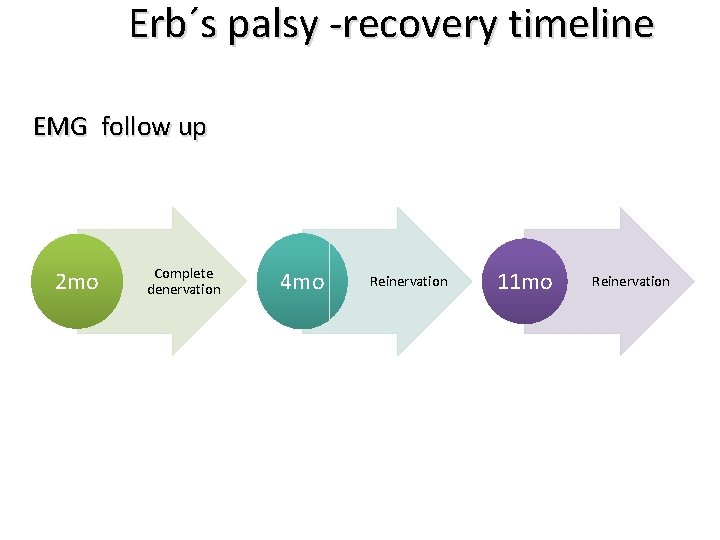

Erb´s palsy -recovery timeline EMG follow up 2 mo Complete denervation 4 mo Reinervation 11 mo Reinervation

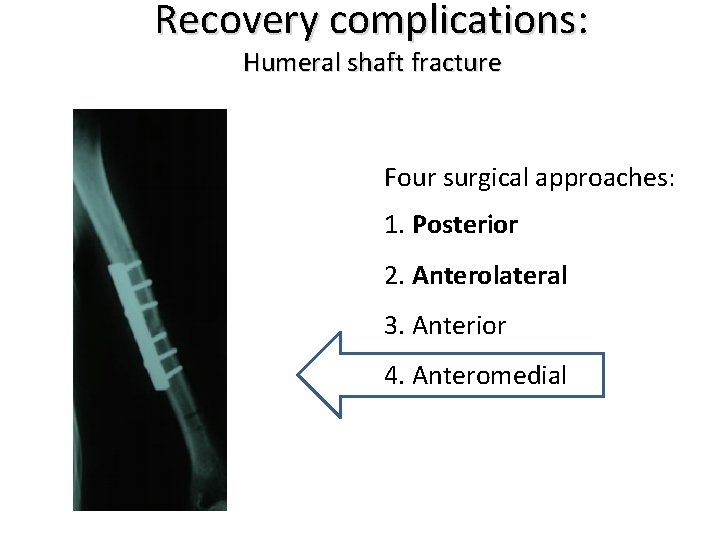

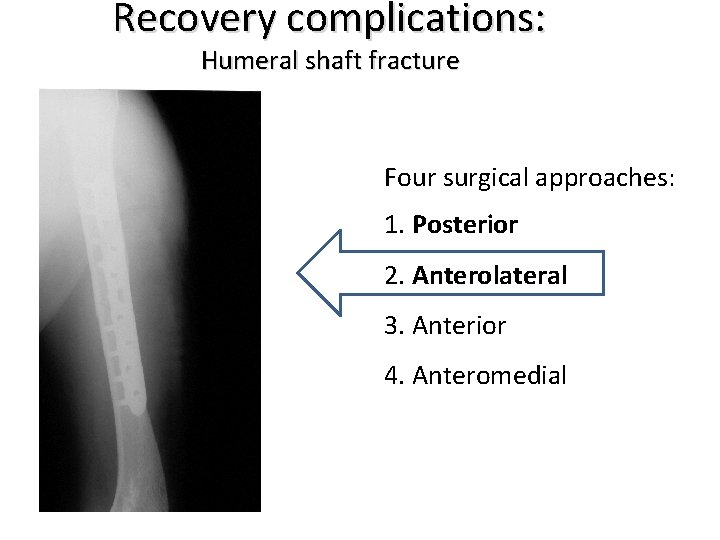

Recovery complications: Humeral shaft fracture Four surgical approaches: 1. Posterior 2. Anterolateral 3. Anterior 4. Anteromedial

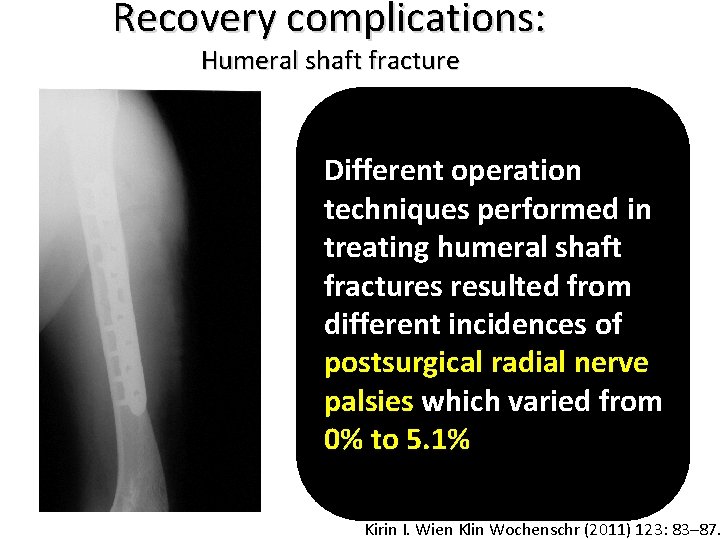

Recovery complications: Humeral shaft fracture Different operation techniques performed in treating humeral shaft fractures resulted from different incidences of postsurgical radial nerve palsies which varied from 0% to 5. 1% Kirin I. Wien Klin Wochenschr (2011) 123: 83– 87.

Recovery complications: Humeral shaft fracture Four surgical approaches: 1. Posterior 2. Anterolateral 3. Anterior 4. Anteromedial

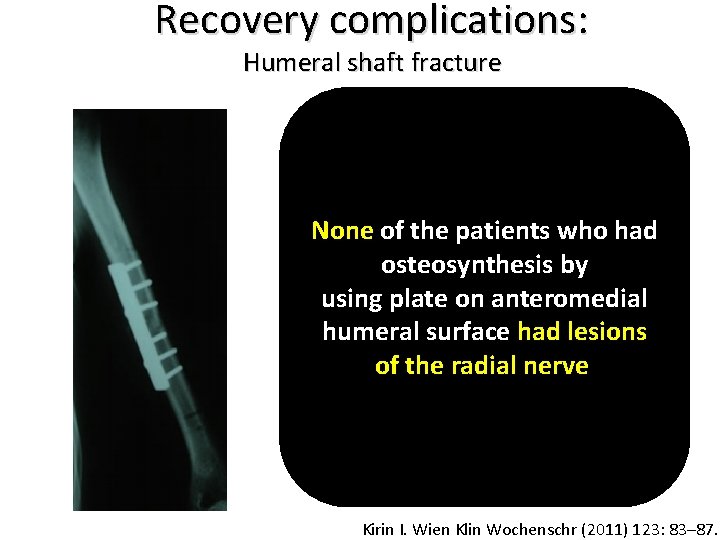

Recovery complications: Humeral shaft fracture None of the patients who had osteosynthesis by using plate on anteromedial humeral surface had lesions of the radial nerve. Kirin I. Wien Klin Wochenschr (2011) 123: 83– 87.

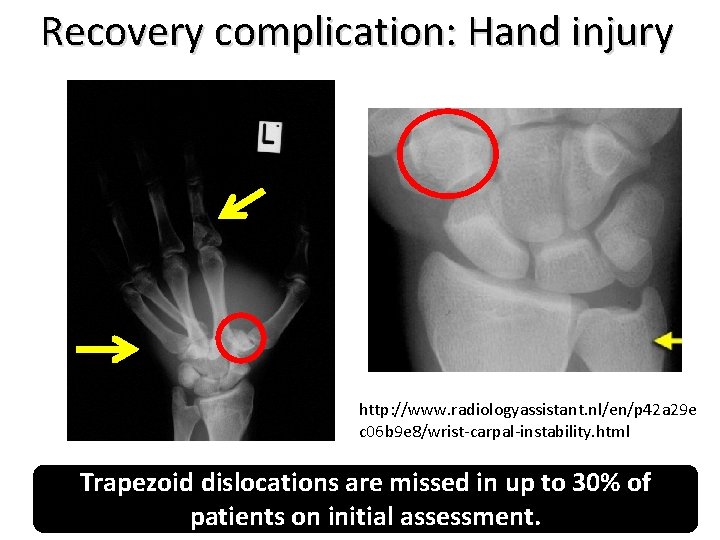

Recovery complication: Hand injury http: //www. radiologyassistant. nl/en/p 42 a 29 e c 06 b 9 e 8/wrist-carpal-instability. html Trapezoid dislocations are missed in up to 30% of patients on initial assessment.

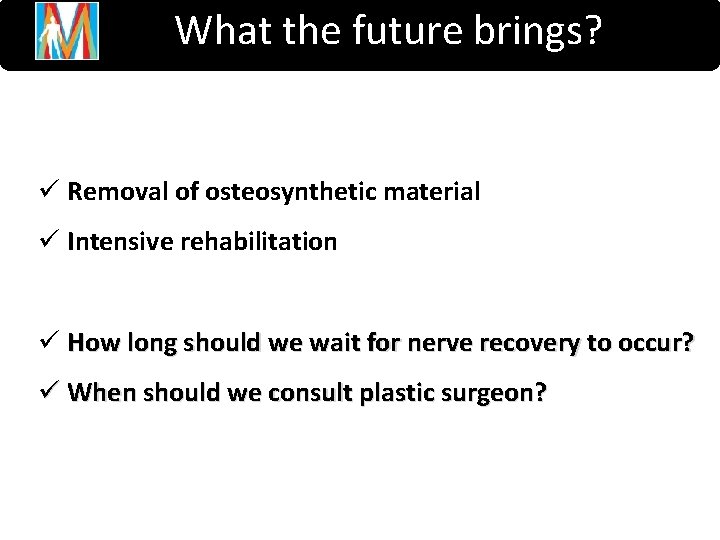

What the future brings? ü Removal of osteosynthetic material ü Intensive rehabilitation ü How long should we wait for nerve recovery to occur? ü When should we consult plastic surgeon?

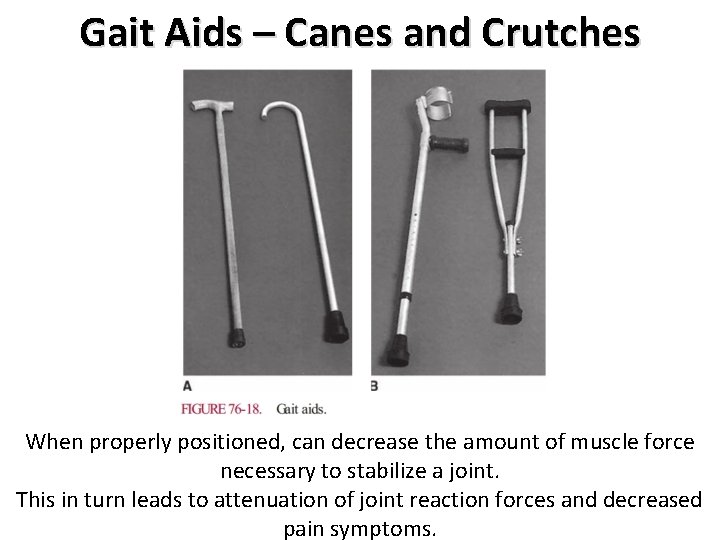

Gait Aids – Canes and Crutches When properly positioned, can decrease the amount of muscle force necessary to stabilize a joint. This in turn leads to attenuation of joint reaction forces and decreased pain symptoms.

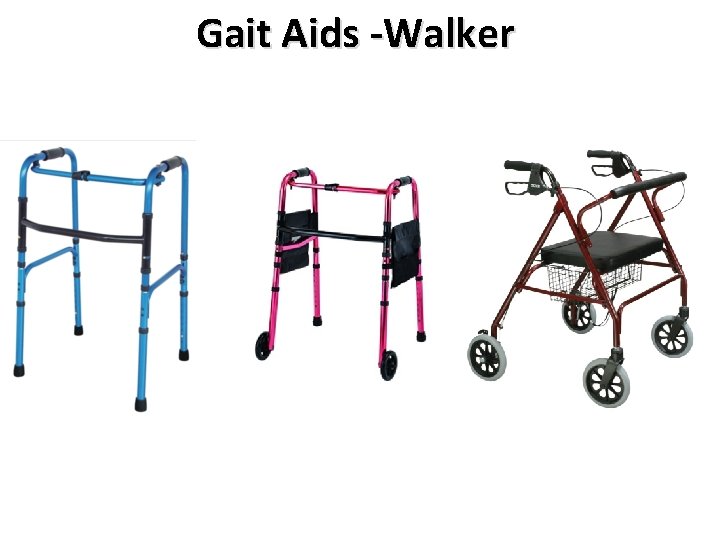

Gait Aids -Walker

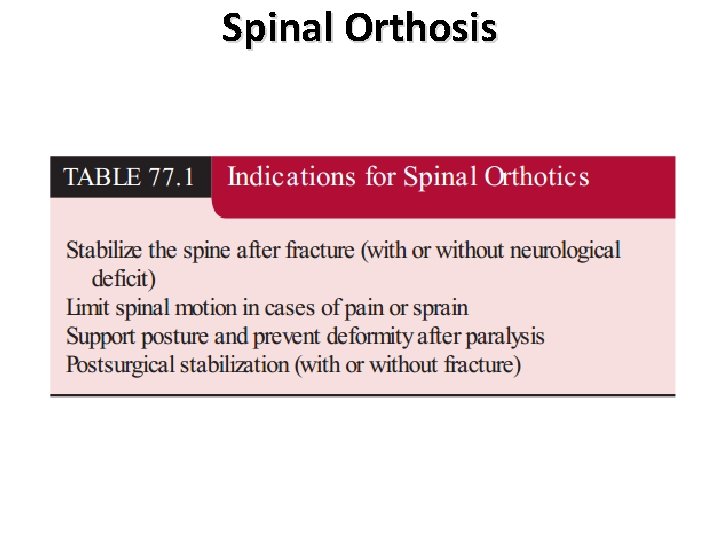

Spinal Orthosis

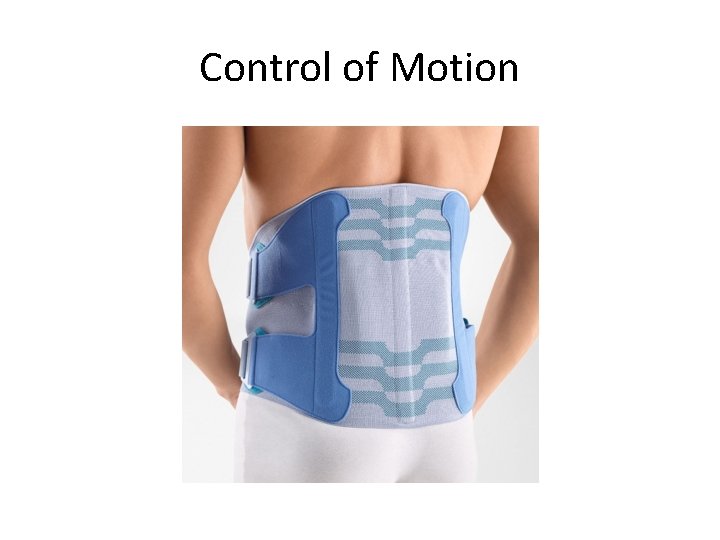

Control of Motion

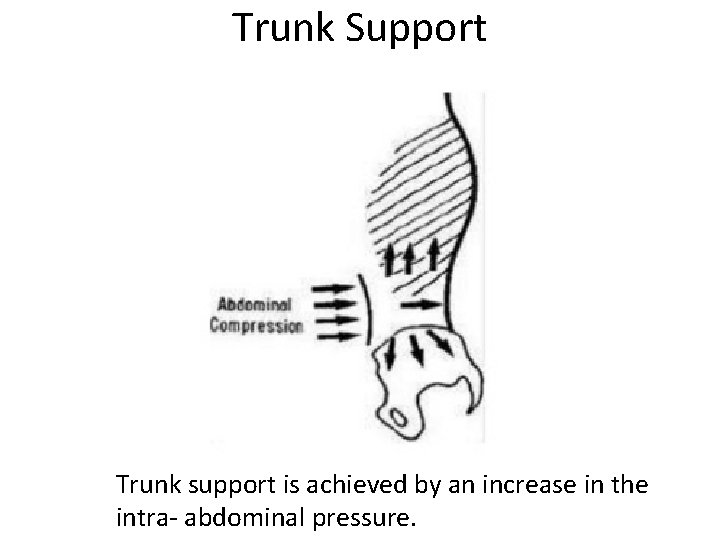

Trunk Support Trunk support is achieved by an increase in the intra- abdominal pressure.

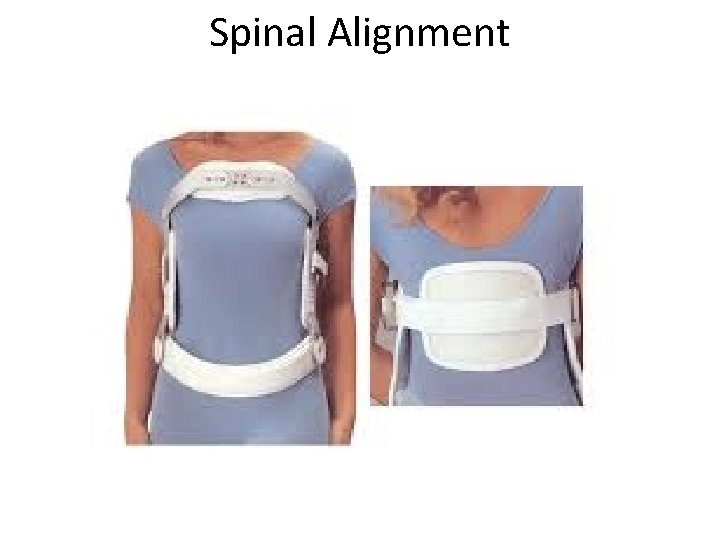

Spinal Alignment

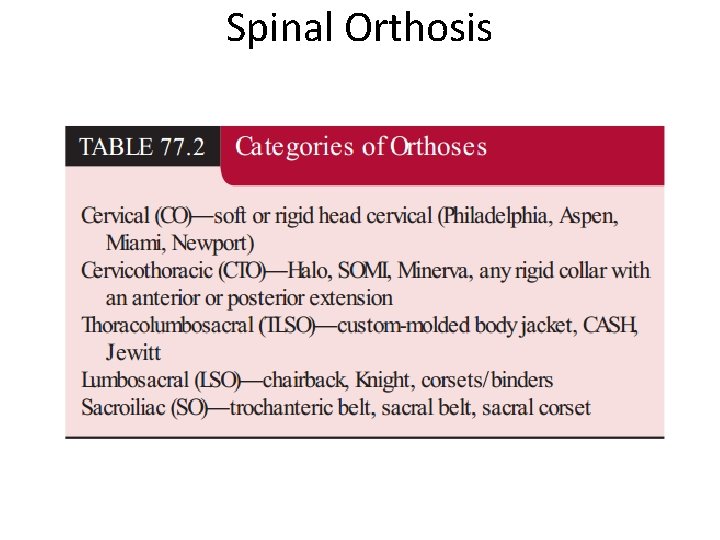

Spinal Orthosis

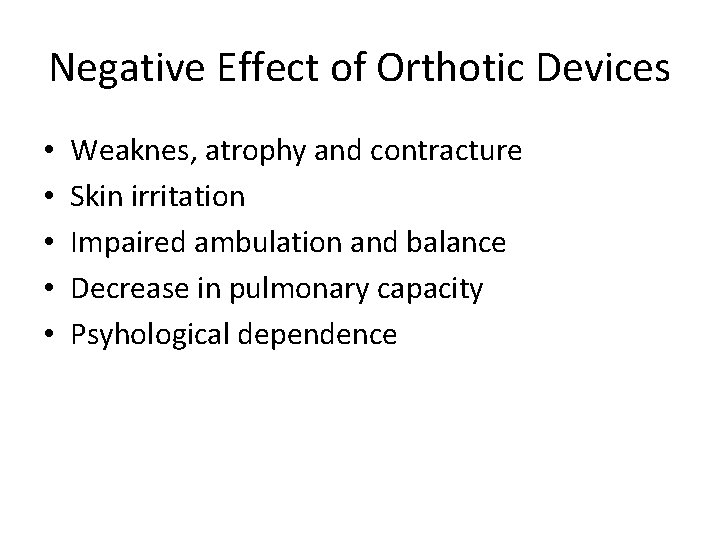

Negative Effect of Orthotic Devices • • • Weaknes, atrophy and contracture Skin irritation Impaired ambulation and balance Decrease in pulmonary capacity Psyhological dependence

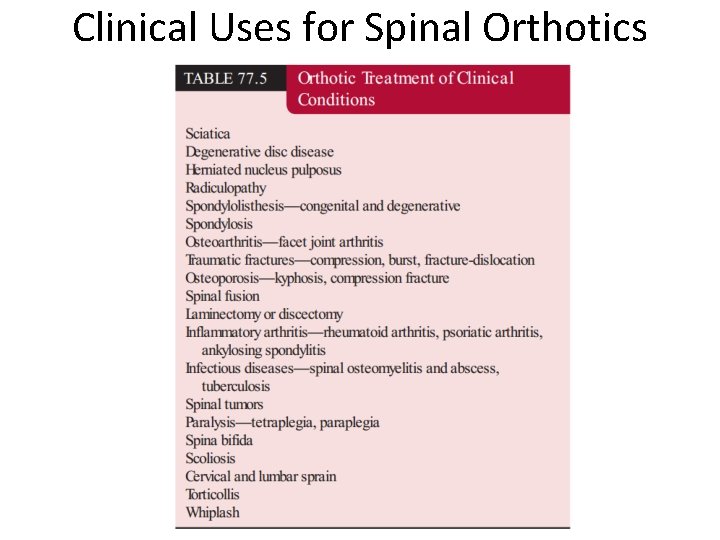

Clinical Uses for Spinal Orthotics

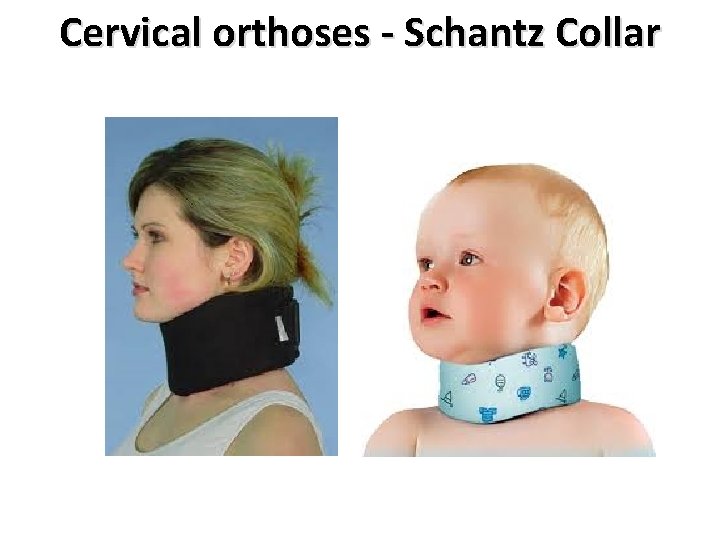

Cervical orthoses - Schantz Collar

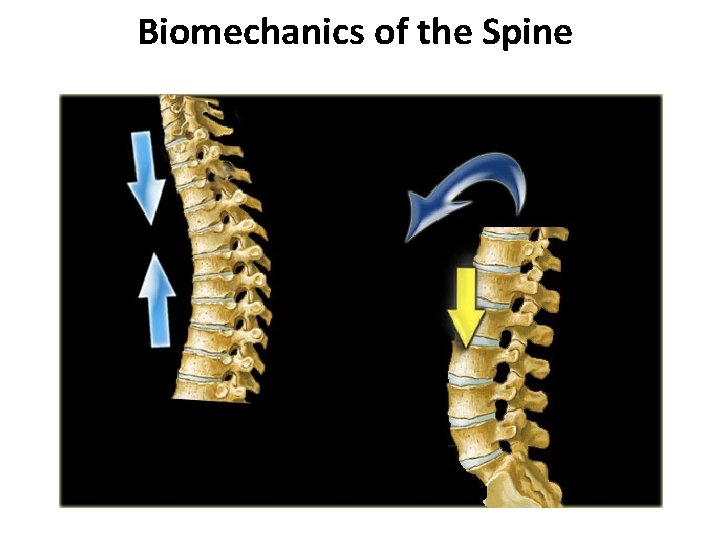

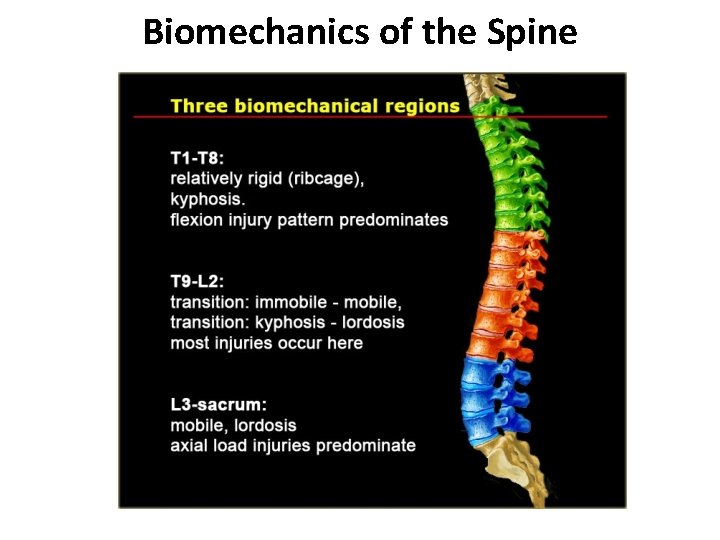

Biomechanics of the Spine

Biomechanics of the Spine

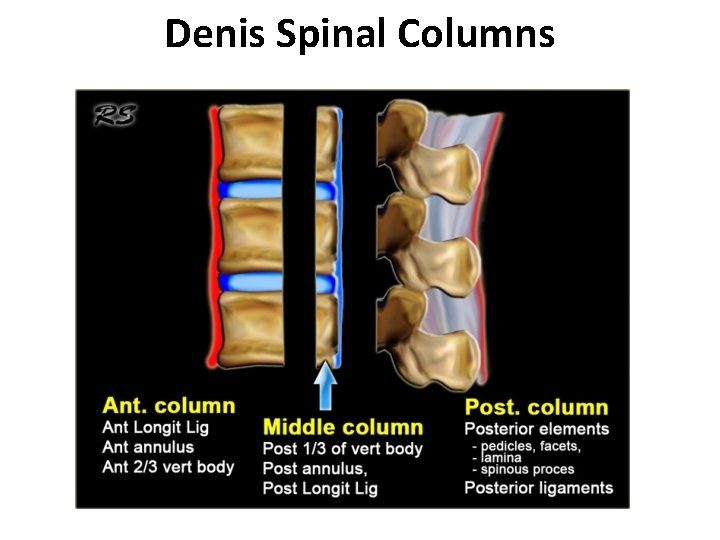

Denis Spinal Columns

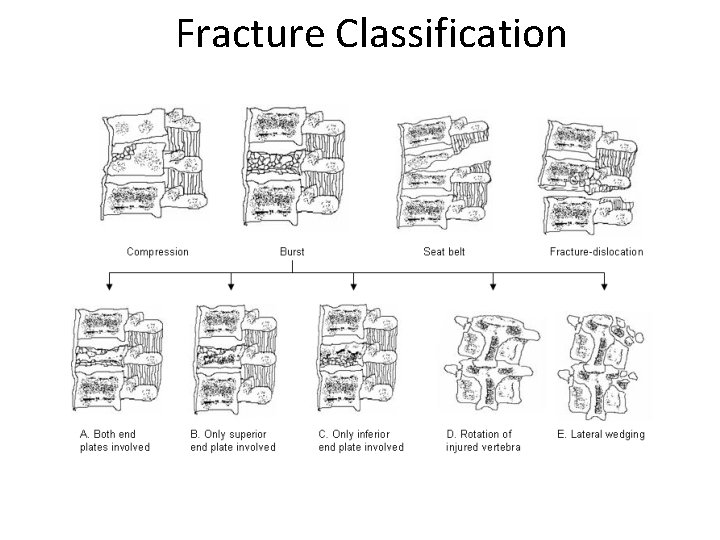

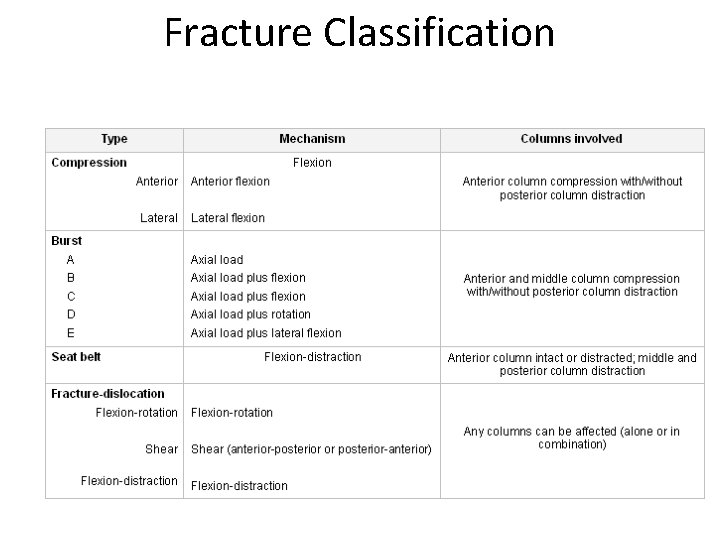

Fracture Classification

Fracture Classification

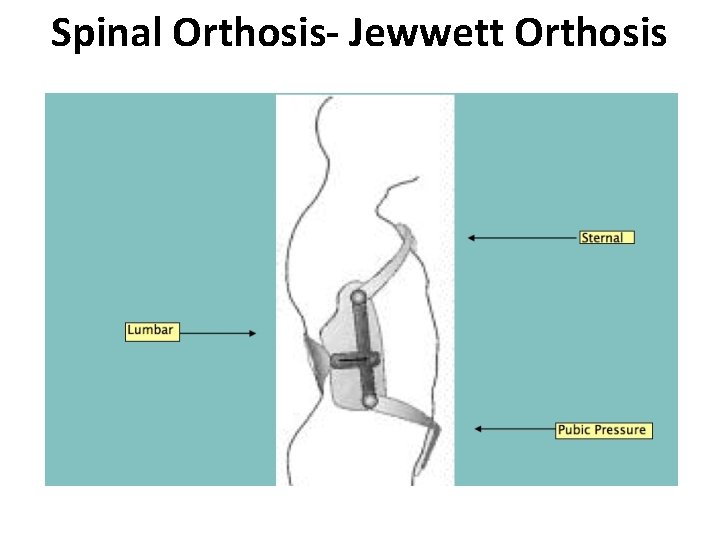

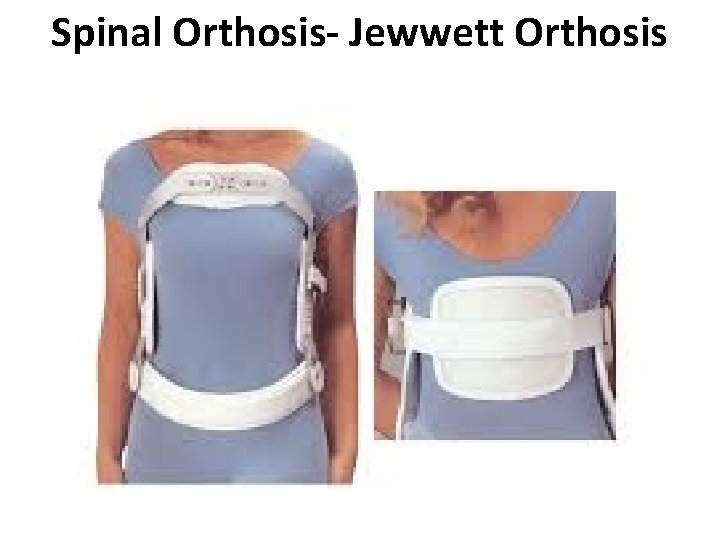

Spinal Orthosis- Jewwett Orthosis

Spinal Orthosis- Jewwett Orthosis

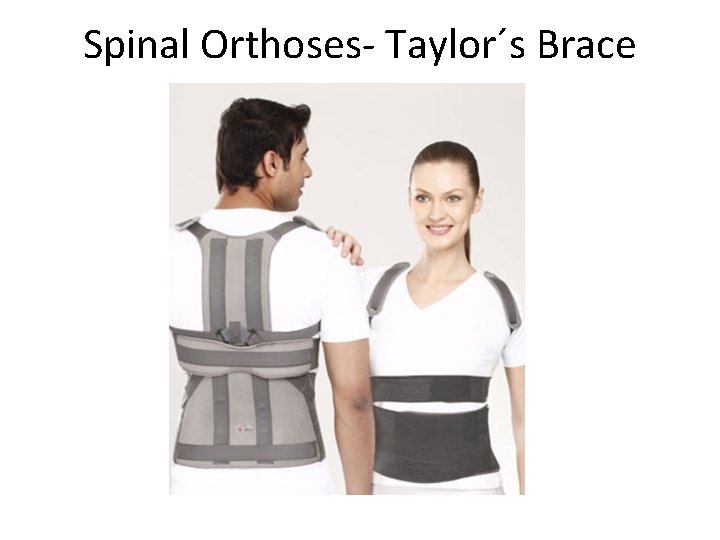

Spinal Orthoses- Taylor´s Brace

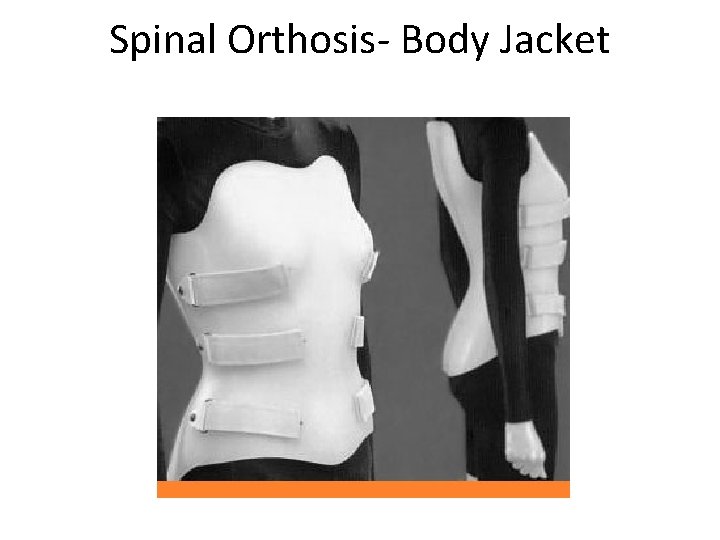

Spinal Orthosis- Body Jacket

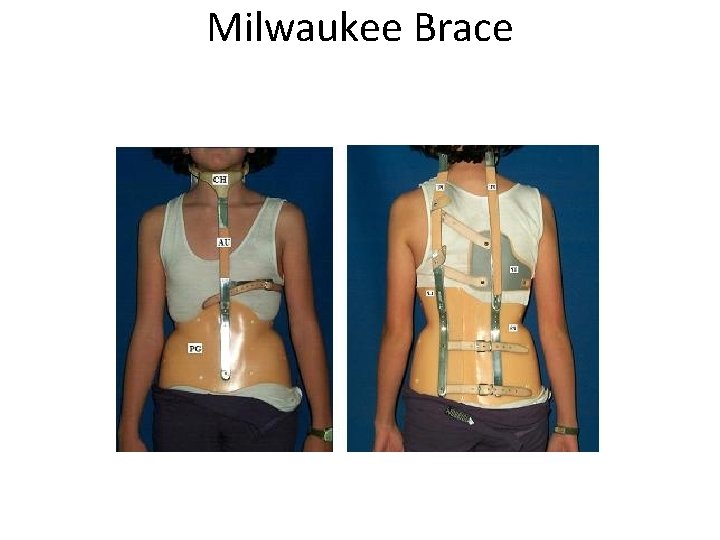

Milwaukee Brace
