Orthoses for Rheumatoid Arthritis James Carter Senior Orthotist

Orthoses for Rheumatoid Arthritis James Carter Senior Orthotist

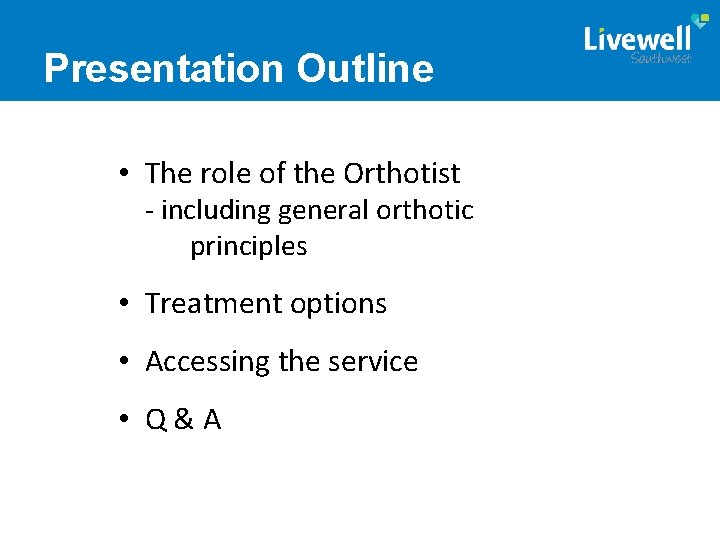

Presentation Outline • The role of the Orthotist - including general orthotic principles • Treatment options • Accessing the service • Q&A

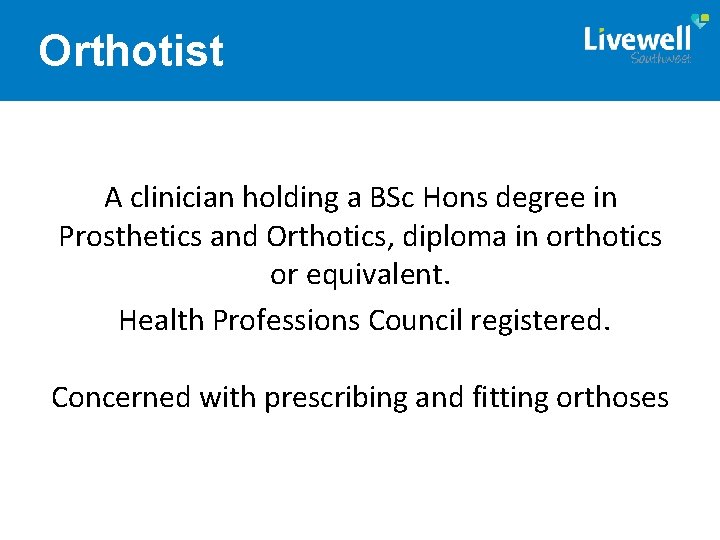

Orthotist A clinician holding a BSc Hons degree in Prosthetics and Orthotics, diploma in orthotics or equivalent. Health Professions Council registered. Concerned with prescribing and fitting orthoses

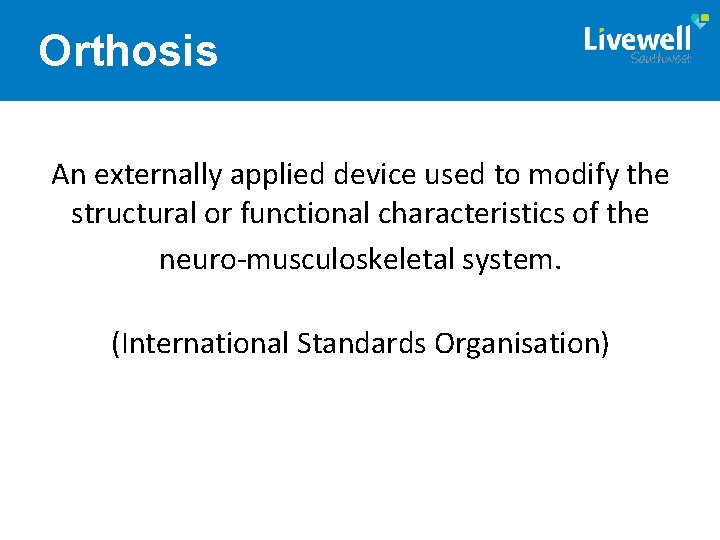

Orthosis An externally applied device used to modify the structural or functional characteristics of the neuro-musculoskeletal system. (International Standards Organisation)

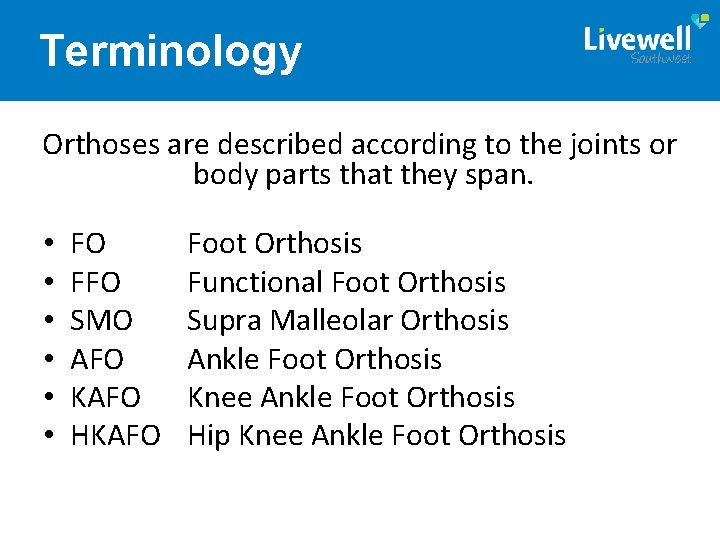

Terminology Orthoses are described according to the joints or body parts that they span. • • • FO FFO SMO AFO KAFO HKAFO Foot Orthosis Functional Foot Orthosis Supra Malleolar Orthosis Ankle Foot Orthosis Knee Ankle Foot Orthosis Hip Knee Ankle Foot Orthosis

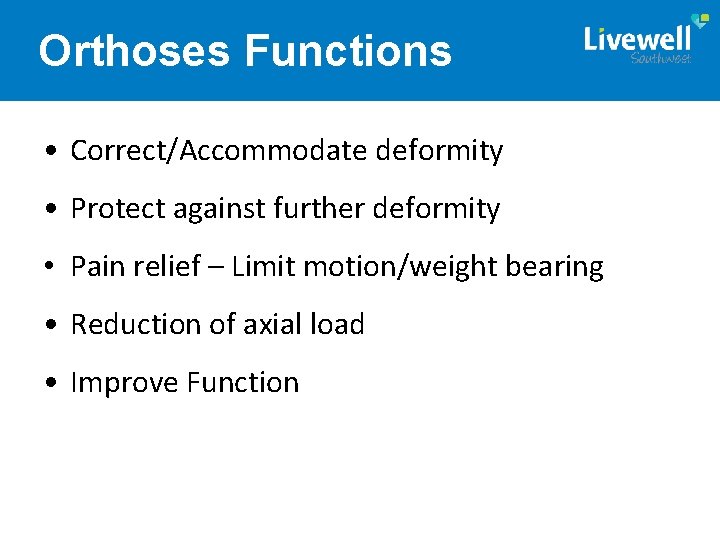

Orthoses Functions • Correct/Accommodate deformity • Protect against further deformity • Pain relief – Limit motion/weight bearing • Reduction of axial load • Improve Function

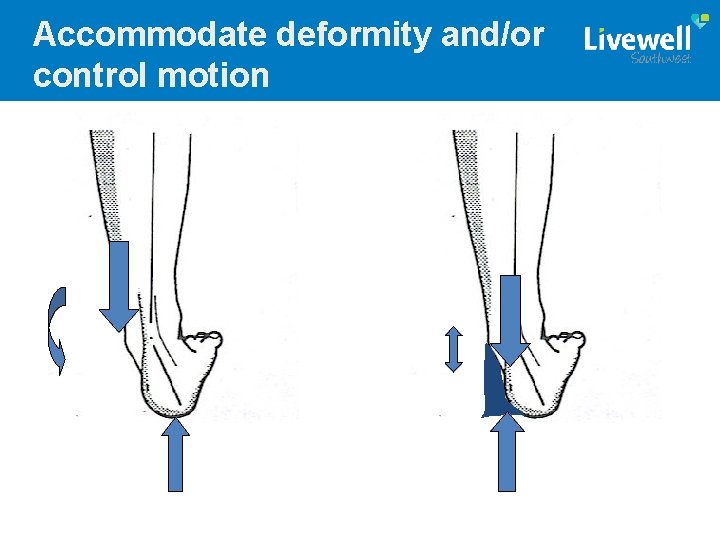

Accommodate deformity and/or control motion

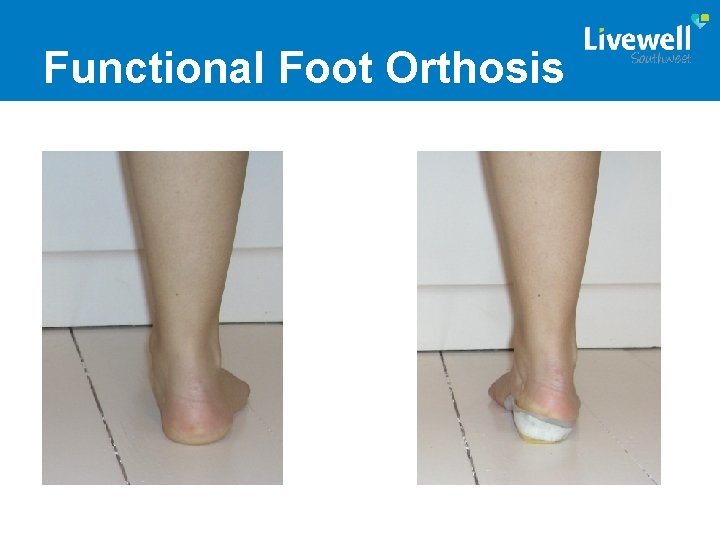

Functional Foot Orthosis

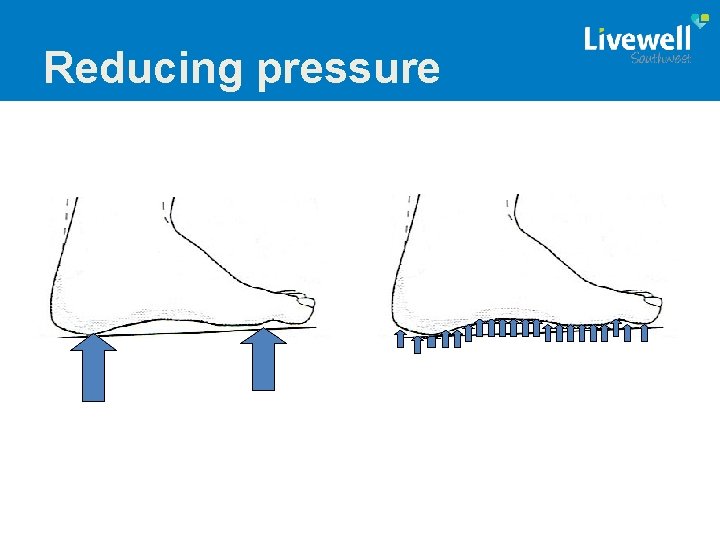

Reducing pressure

Plantar Deformities

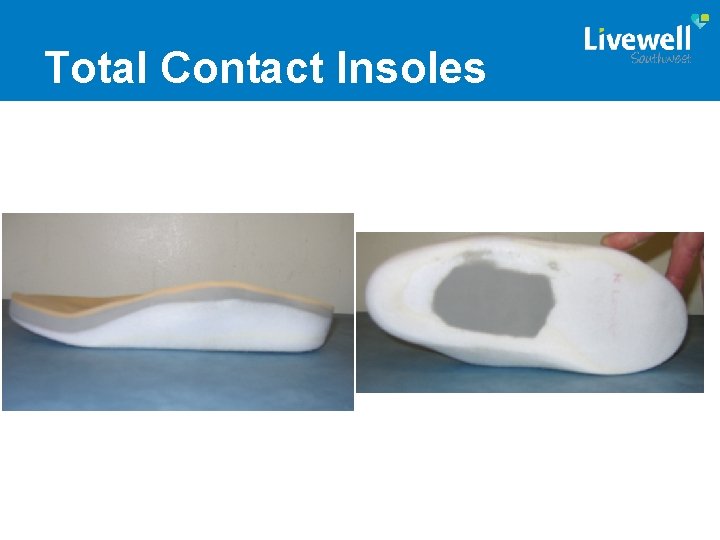

Total Contact Insoles

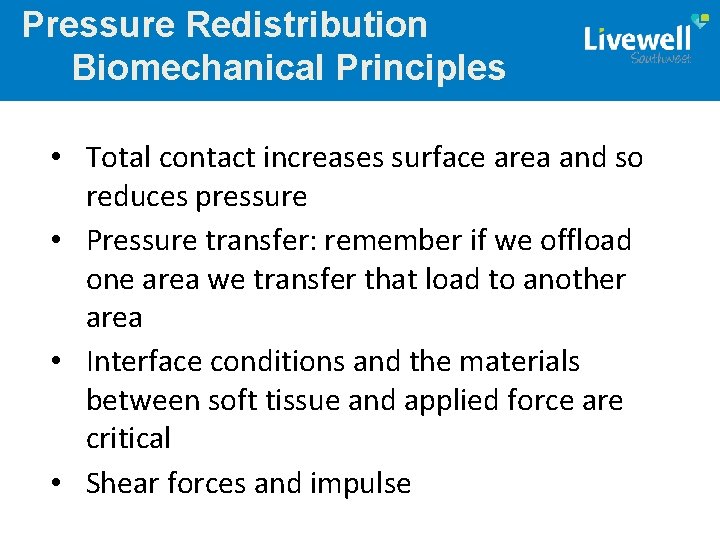

Pressure Redistribution Biomechanical Principles • Total contact increases surface area and so reduces pressure • Pressure transfer: remember if we offload one area we transfer that load to another area • Interface conditions and the materials between soft tissue and applied force are critical • Shear forces and impulse

Example Rheumatoid foot typically has a narrow heel and wide joint line (for obvious reasons). Normally won’t be accommodated satisfactorily in stock footwear

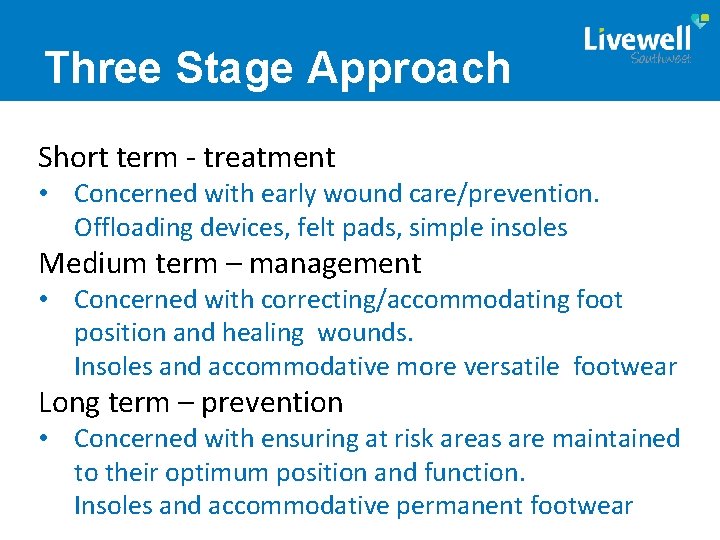

Three Stage Approach Short term - treatment • Concerned with early wound care/prevention. Offloading devices, felt pads, simple insoles Medium term – management • Concerned with correcting/accommodating foot position and healing wounds. Insoles and accommodative more versatile footwear Long term – prevention • Concerned with ensuring at risk areas are maintained to their optimum position and function. Insoles and accommodative permanent footwear

Dorsal Deformities

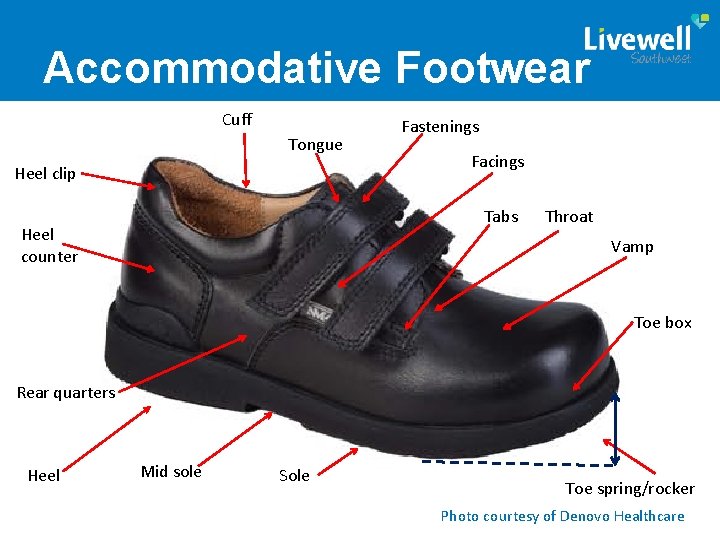

Accommodative Footwear Cuff Tongue Heel clip Fastenings Facings Tabs Heel counter Throat Vamp Toe box Rear quarters Heel Mid sole Sole Toe spring/rocker Photo courtesy of Denovo Healthcare

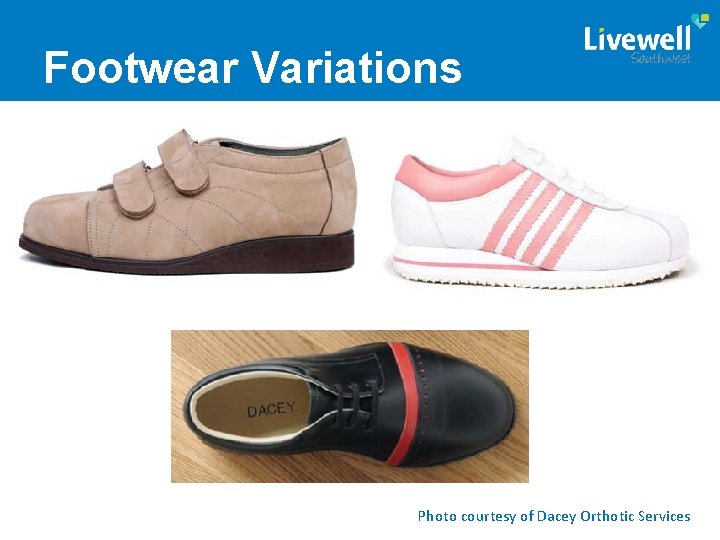

Footwear Variations Photo courtesy of Dacey Orthotic Services

Footwear Adaptions SACH Heel • Soft insert in the heel of a shoe • Accommodates rigidity of the ankle • Aids shock absorption

Footwear Adaptions Rocker Sole • Reduces forefoot pressure • Facilitates forward progression

Considerations Needs holistic approach May concentrate on mechanical deficit but outcomes guided by multifaceted input including any other medical aspect, lifestyle, activity level, beliefs and customs etc. Indoor/outdoor ratio Balancing the need for supportive footwear with “traditions” of slippers indoors. Body Image Acceptance of advise regarding not wearing certain styles of footwear. Any device has to reflect the anatomical shape.

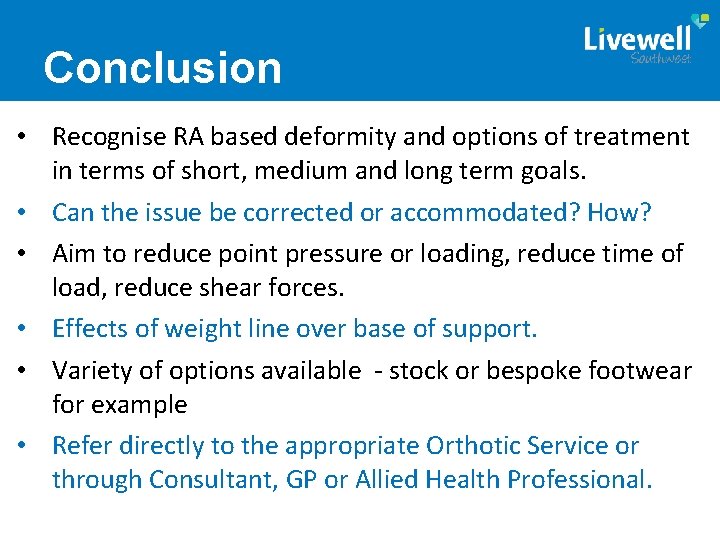

Conclusion • Recognise RA based deformity and options of treatment in terms of short, medium and long term goals. • Can the issue be corrected or accommodated? How? • Aim to reduce point pressure or loading, reduce time of load, reduce shear forces. • Effects of weight line over base of support. • Variety of options available - stock or bespoke footwear for example • Refer directly to the appropriate Orthotic Service or through Consultant, GP or Allied Health Professional.

Thank you Any Questions

Information Useful link National Rheumatoid Arthritis Society - http: //www. nras. org. uk/ Their footwear information section. Contact details: James Carter Senior Orthotist & Clinical lead Orthotic Service Local Care Centre Mount Gould Hospital PL 4 7 PY 01752 434229 email: james. carter 2@nhs. net Photos/pictures unacknowledged on slides are courtesy of Gary Parfett, Prosthetic & Orthotic Service Manager
