Organic Compounds ORGANIC COMPOUNDS Summary of Presentation Carbohydrates
Organic Compounds

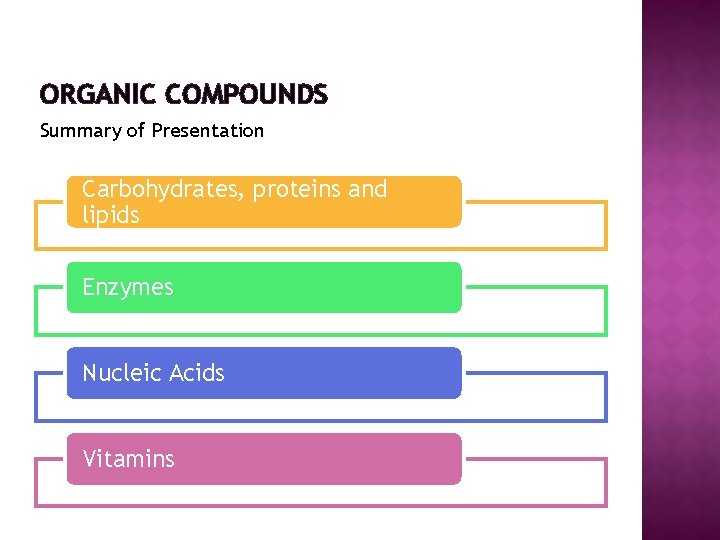

ORGANIC COMPOUNDS Summary of Presentation Carbohydrates, proteins and lipids Enzymes Nucleic Acids Vitamins
ORGANIC COMPOUNDS � Organic substances contain the element carbon together with hydrogen. � They may also contain oxygen. � Some organic compounds may have other elements than the ones mentioned above. � Such as nitrogen and phosphorus. � We shall look at the following organic substances: a. Carbohydrates b. Lipids c. Proteins d. Nucleic acids e. Vitamins
CARBOHYDRATES � Carbohydrates are made up of the elements carbon, hydrogen and oxygen. � There are usually double the number of hydrogen atoms than oxygen atoms in any carbohydrate molecule. � There are three types of carbohydrates. � These are: a. Monosaccharide b. Disaccharides c. polysaccharides
MONOSACCHARIDE � These are simple sugars. � They all have a single ring, six sided structure as shown in the picture alongsidethis picture is called a structural formula. � Glucose and fructose are examples of monosaccharide's.
MONOSACCHARIDE �A monosaccharide is the simplest form of carbohydrates. � In other words they are the smallest units that more complex carbohydrates are made up of. � The smallest or simplest unit of any substance is called its building block. � Another word for building block is monomer. � The monomer of a carbohydrate is the monosaccharide. Can you define the term monomer?
�A monomer is a building block or simplest unit of a more complex substance.

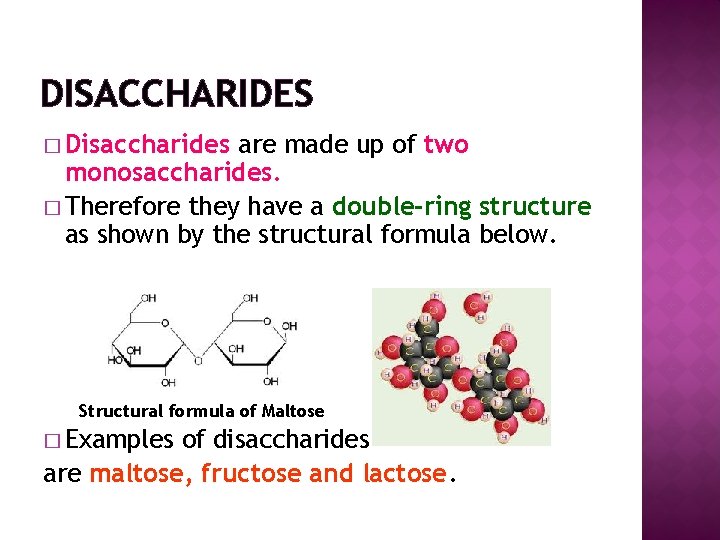

DISACCHARIDES � Disaccharides are made up of two monosaccharides. � Therefore they have a double-ring structure as shown by the structural formula below. Structural formula of Maltose � Examples of disaccharides are maltose, fructose and lactose.
POLYSACCHARIDES � These are carbohydrates that are made up of more than two monosaccharides. � Examples of polysaccharides are cellulose and starch.
CARBOHYDRATES-FUNCTIONS � Carbohydrates � These have three main functions. are: 1. Energy. 2. Storage. 3. Building materials. They are an important source of energy. During cellular respiration glucose is broken down to release energy. They serve as storage substances for energy. For example in the human body extra glucose (energy source) is converted into glycogen and stored in the liver. For example they supply cellulose for the making of plant cell walls.
LIPIDS � Lipids include fats and oils. � They are made up of the elements carbon, hydrogen and oxygen. � They can contain other elements such as phosphorus. � The ratio of hydrogen to oxygen in lipids is greater than 2: 1 � The building blocks or monomers of lipids are fatty acids and glycerol.

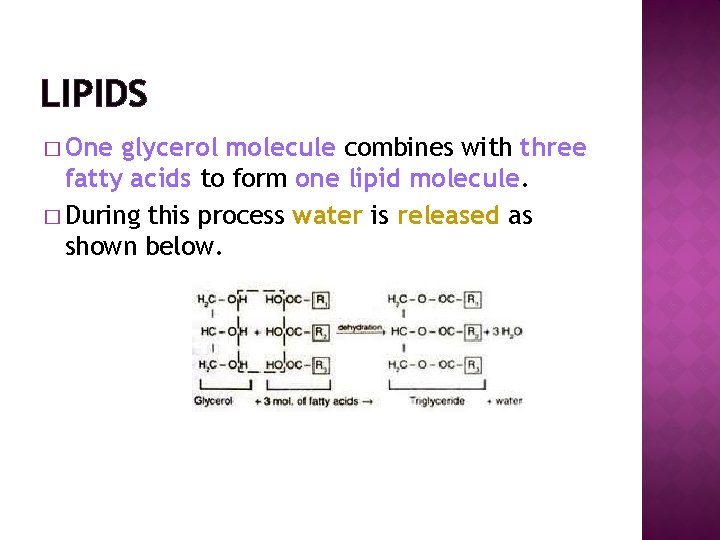

LIPIDS � One glycerol molecule combines with three fatty acids to form one lipid molecule. � During this process water is released as shown below.
LIPIDS-SATURATED FATS � Some fatty acids cannot take any more hydrogen atoms. � Such fatty acids are said to be saturated or are called saturated fatty acids. � Fats that are formed from such fatty acids are called saturated fats. � Saturated fats are solid at room temperature. � Some examples of saturated fats are lard, beeswax, butter and animal fat.
LIPIDS-UNSATURATED FATS � Of course there are unsaturated fatty acids. � Fats formed from these fatty acids are called unsaturated fats. � Unsaturated fats are called oils. � They are liquid at room temperature. � Examples include olive oil, cod-liver oil.
SOMETHING FOR YOU TO DO: Tabulate 2 differences between saturated and unsaturated fats. (NB. : remember your table rules)
SOLUTION Difference between saturated and unsaturated fats. Saturated fats Unsaturated fats Made from saturated fatty acids Made from unsaturated fatty acids Solid at room temperature Liquid at room temperature
LIPIDS-FUNCTIONS 1. 2. 3. 4. They are able to store large amounts of energy. They act as packing tissue between organs. All major organs are surrounded by a layer of fat like the kidneys. The fat acts as a shock absorber. They acts as insulation. Fat is found as a layer below the skin, its function is to reduce heat loss. The cell membranes of all living organisms are made up of a lipid called phospholipids.

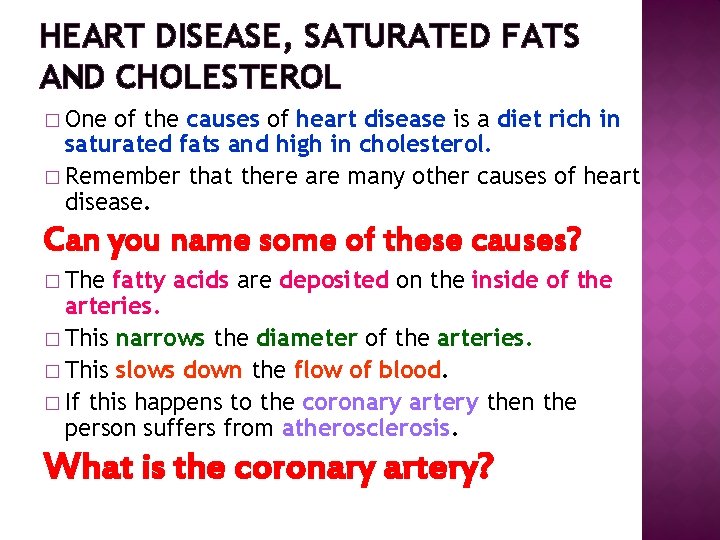

HEART DISEASE, SATURATED FATS AND CHOLESTEROL � One of the causes of heart disease is a diet rich in saturated fats and high in cholesterol. � Remember that there are many other causes of heart disease. Can you name some of these causes? � The fatty acids are deposited on the inside of the arteries. � This narrows the diameter of the arteries. � This slows down the flow of blood. � If this happens to the coronary artery then the person suffers from atherosclerosis. What is the coronary artery?
SOLUTION � Other causes of heart disease are: Heredity, age, gender, smoking, lack of exercise and high blood pressure. � The coronary artery is a blood vessel that supplies the heart muscle with food and oxygen.

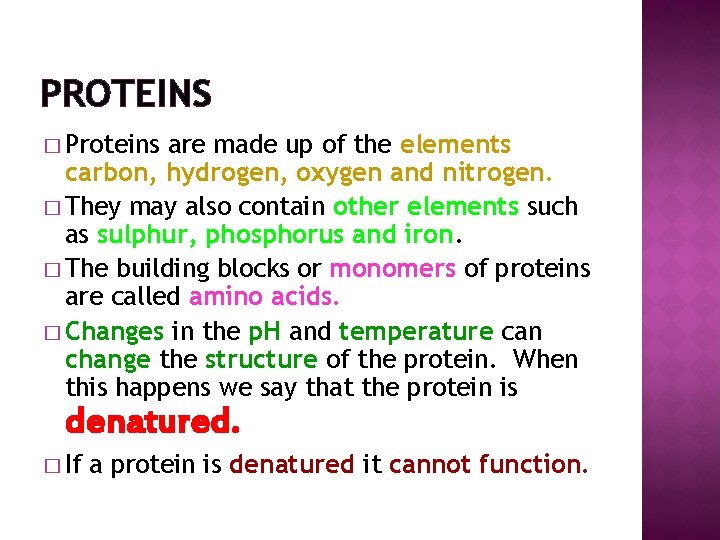

PROTEINS � Proteins are made up of the elements carbon, hydrogen, oxygen and nitrogen. � They may also contain other elements such as sulphur, phosphorus and iron. � The building blocks or monomers of proteins are called amino acids. � Changes in the p. H and temperature can change the structure of the protein. When this happens we say that the protein is denatured. � If a protein is denatured it cannot function.
PROTEINS-FUNCTIONS 1. 2. 3. Proteins store energy. They form cell components. This means that they make up parts of the cell like the cell membrane. Enzymes and hormones are protein in nature.
SOMETHING FOR YOU TO DO: � The list below shows some characteristics of organic compounds. A. Contain nitrogen B. Contain H, C and O C. Energy source D. Ratio of H: O is 2: 1 E. Denatured by excessive heat � Choose letters from the above list that correspond to: 1. Two characteristics of lipid 2. Three characteristics of carbohydrates 3. Three characteristics of proteins
SOLUTION 1. 2. 3. B, D B, C, D A, B, E
ENZYMES � Enzymes are organic catalyst. � A catalyst is a substance that speeds up a chemical reaction without being used up in the reaction. � An organic catalyst is one that contains the element carbon and is usually protein in nature.
ENZYMES-FUNCTIONS � Enzymes � As function as catalysts they have 2 functions. � These 1. 2. are: They speed up the chemical reactions without being used up during the chemical reaction. They control and regulate all chemical reactions so that they occur at the best possible or optimum rate.
OPTIMUM RATE � Optimum rate is the rate at which the most product is formed in the shortest space of time.
LOCK AND KEY THEORY 2. The substance on which the enzyme works is called a substrate 3. This is part of the enzyme to which the substrate becomes attached. 1. Each enzyme has a particular shape.
LOCK AND KEY THEORY A- the substrate fits into the active site of the enzyme forming… B- an enzyme-substrate complex C- a chemical reaction occurs and the substrate changes shape D- the enzyme and substrate separate and the enzyme can now react with more of the substrate A B C D
LOCK AND KEY THEORY � Most enzymes need the help of a partner. � This partner is organic and non-protein in nature � The partner is called a co-enzyme is loosely bound to the enzyme

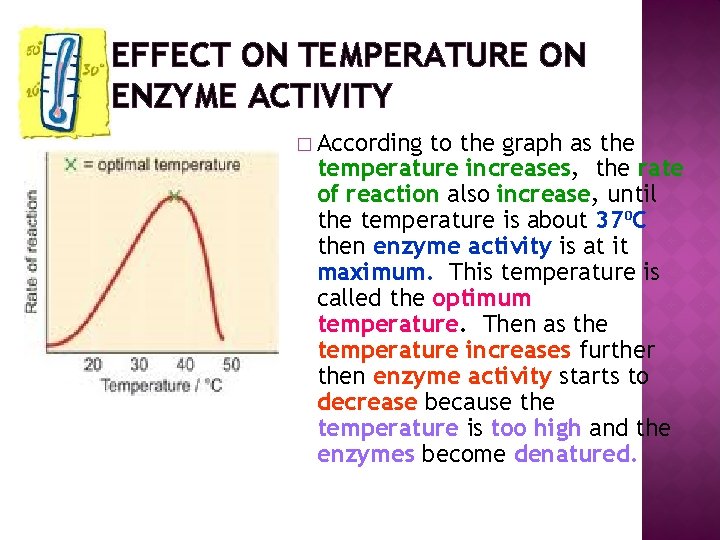

EFFECT ON TEMPERATURE ON ENZYME ACTIVITY � According to the graph as the temperature increases, the rate of reaction also increase, until the temperature is about 37⁰C then enzyme activity is at it maximum. This temperature is called the optimum temperature. Then as the temperature increases further then enzyme activity starts to decrease because the temperature is too high and the enzymes become denatured.
EFFECT ON TEMPERATURE ON ENZYME ACTIVITY � When the enzyme becomes denatured the shape of the enzyme changes. � This means that the substrate can no longer fit into the enzyme. � This cause the chemical reaction to either slow down or stop.
EFFECT OF PH ON ENZYME ACTIVITY � The graph shows that the enzyme activity peaks at a certain p. H. � This p. H is called the optimum p. H. � If the p. H is lower or higher than this optimum p. H, then enzyme activity decreases, because the enzyme becomes denatured.
EFFECT OF PH ON ENZYME ACTIVITY � The shape of the enzyme changes and enzyme activity slows down or stops. � This tell us that enzymes are very specific, that is a certain enzyme will only work in a certain p. H. � Salivary amylase only works in an alkaline medium.
USE OF ENZYMES IN INDUSTRY There are many uses of enzymes in industry. 1. They are used as meat tenderizer 2. They remove hair form skins 3. They are used in the making of beer, wine and vinegar 4. They are also used to make chocolate and syrups. 5. They also used to make washing powders.
USE OF ENZYMES IN INDUSTRY � Most washing powders only contain one type of enzyme while some have more than one. � This is done to keep costs down. � Most washing powders contain protease. � Protease is an enzyme that breaks down protein. � Therefore these washing powders can be used to remove stains caused by blood, egg and gravy. � Other washing powders contain amylase. � Amylase remove greasy stains.
USE OF ENZYMES IN INDUSTRY � Enzymes can be used over and over again. � They do not need high temperatures to work. � Therefore they are cheap to use in industry.
SOMETHING FOR YOU TO DO 3. 4. 5. 1. 2. Provide a suitable heading for the graph. Name the dependent and independent variables 6. What is the enzyme activity at 20⁰ C? At what temperature does enzyme activity start to decrease. Explain your answer. What is the optimum temperature for this enzyme? Use the graph to describe the relationship between enzyme activity and temperature.
SOLUTION 1. 2. 3. 4. 5. 6. The effect of temperature (⁰ C) on the rate of reaction. Independent- temperature; dependent-rate of reaction 1 About 41⁰C. The temperature is too high the enzyme becomes denatured and its shape changes and it can no longer function. 40⁰C As the temperature increases so does the rate of reaction. The rate of reaction is at its max. at 40⁰C, this is the optimum temperature. As the temperature continues to increase the rate of reaction slows down and eventually stops because the temperature is too high and the enzymes has become denatured.

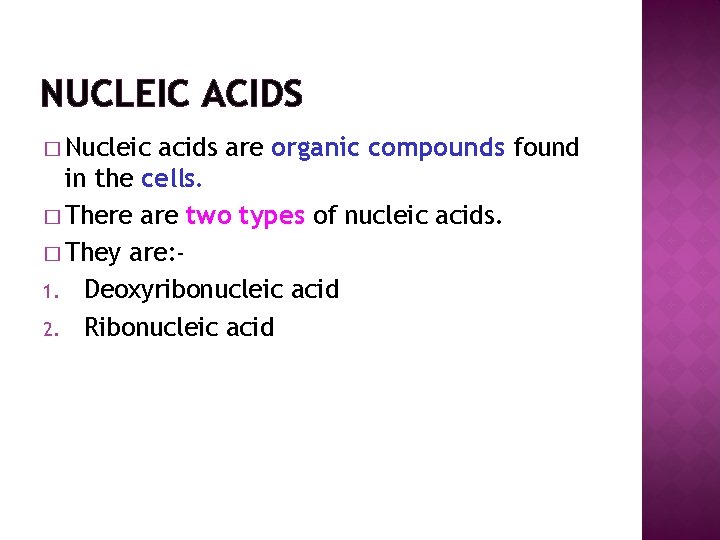

NUCLEIC ACIDS � Nucleic acids are organic compounds found in the cells. � There are two types of nucleic acids. � They are: 1. Deoxyribonucleic acid 2. Ribonucleic acid

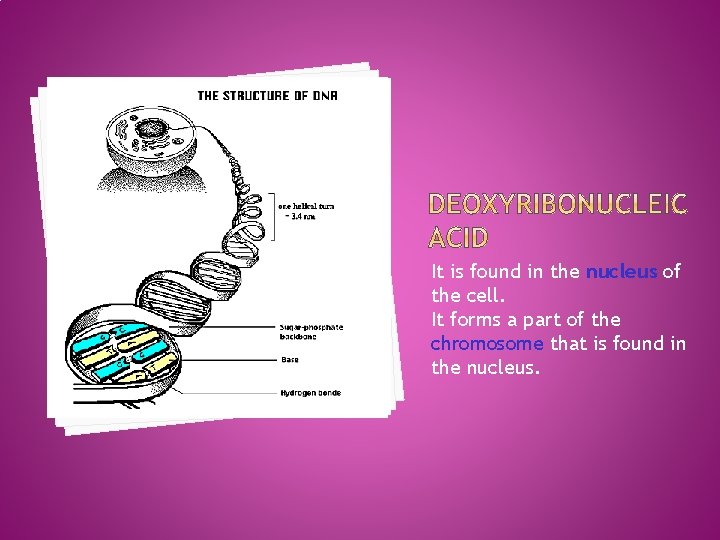

It is found in the nucleus of the cell. It forms a part of the chromosome that is found in the nucleus.
STRUCTURE OF DNA � The structure of DNA is based on a model put forward by two scientist, James Watson and Francis Crick, in 1953 � According to their model the DNA is a ladder like structure with a double helix shape.

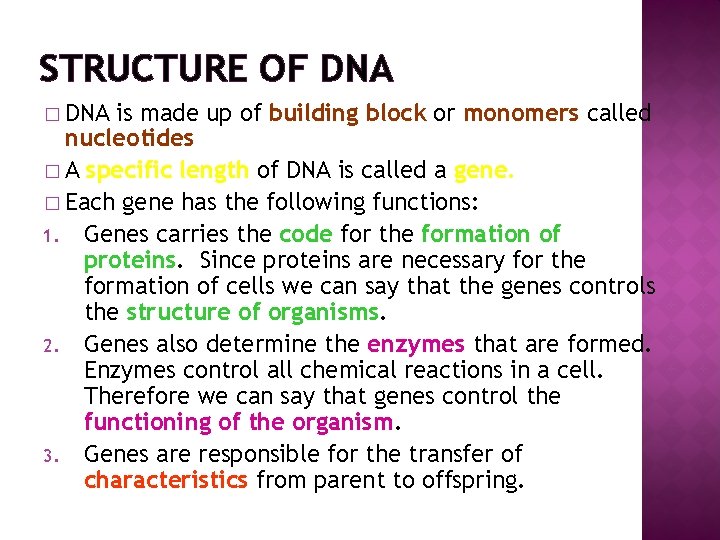

STRUCTURE OF DNA � DNA is made up of building block or monomers called nucleotides � A specific length of DNA is called a gene. � Each gene has the following functions: 1. Genes carries the code for the formation of proteins. Since proteins are necessary for the formation of cells we can say that the genes controls the structure of organisms. 2. Genes also determine the enzymes that are formed. Enzymes control all chemical reactions in a cell. Therefore we can say that genes control the functioning of the organism. 3. Genes are responsible for the transfer of characteristics from parent to offspring.
STRUCTURE OF RNA � RNA occurs in cells � There many different types of RNA. � Some occur in the nucleus and some occur in the cytoplasm. � They are single stranded. � They are involved in protein synthesis.

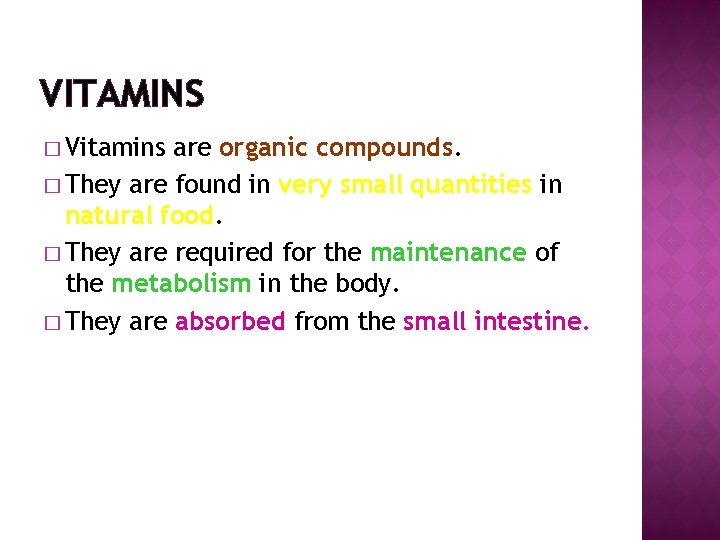

VITAMINS � Vitamins are organic compounds. � They are found in very small quantities in natural food. � They are required for the maintenance of the metabolism in the body. � They are absorbed from the small intestine.
Vitamin Function Sources Deficiency disease and their symptoms Vitamin A Essential for the correct functioning of the eye. Liver, milk products, fruit and vegetables Night blindness: difficulty in seeing in dim light Vitamin B Acts as a co-enzyme in cellular respiration Whole grains of cereals, nuts, meat and yeast. Beri-beri: stunted growth and heart disorders Vitamin C Maintains intercellular substance in cartilage, bone & dentine. May acts as a catalyst in cell respiration Citrus fruit, Scurvy: bleeding guavas, tomatoes, gums, under the potatoes. skin especially at the joints. Poor healing of wounds.
Vitamin Function Sources Deficiency disease and symptoms Vitamin D Increases absorption of calcium & phosphate salts. Diary products, egg yolk Rickets in children: abnormal bone formation. Osteomalacia in adults: compressed vertebrae, bowshaped legs, swollen joints. Vitamin E Prevents oxidation of unsaturated fatty acids Leafy green vegetables Excessive bleeding -known as haemorrhage
TERMINOLOGY: � � � Organic substances contain the element carbon together with hydrogen. Monosaccharides are simple sugars and are monomers of carbohydrates. Monomer is another word for building block. Disaccharides are carbohydrates that are made up of two monosaccharides. Polysaccharides are carbohydrates that are made up of more than two monosaccharides. Fatty acids and glycerol are the building blocks or monomers of lipids.
TERMINOLOGY � Saturated fatty acids are fatty acids that cannot take any more hydrogen atoms. � Amino acids are the building blocks or monomers of proteins. � Denatured occurs when the shape of the enzyme changes and it can no longer function. � Enzymes are organic catalyst. � A catalyst is a substance that speeds up a chemical reaction without being used up in the reaction.
TERMINOLOGY � An organic catalyst is one that contains the element carbon and is usually protein in nature. � Optimum rate is the rate at which the most product is formed in the shortest space of time. � Co-enzymes � Double is the non protein organic partner of helix shape is the twisted shape of the DNA molecule. � Nucleotides the building block or monomers of nucleic acids.
SOMETHING FOR YOU TO DO 1. Organic compound made up of H, C, and O whose monomer is monosaccharide is… A. Carbohydrate B. Protein C. Lipids D. Vitamins
2. A disaccharide is made up of … A. Nucleotides B. Enzymes C. Amino acids D. Monosaccharides
3. An organic compound who is a source of energy and serves as a substance in which energy is stored is … A. Carbohydrate B. Protein C. Lipids D. Vitamins
4. The organic compound in which the ratio or H: O is greater than 2: 1 A. Carbohydrate B. Protein C. Lipids D. Vitamins
5. The monomer of lipids are A. Nucleotides B. Enzymes C. Amino acids D. Fatty acids and glycerol
6. The monomer of proteins are… A. Nucleotides B. Enzymes C. Amino acids D. Monosaccharides
7. The organic compound that may contain other element such as Fe in addition to H, O and C. A. Lipid B. Carbohydrate C. Protein D. Vitamin

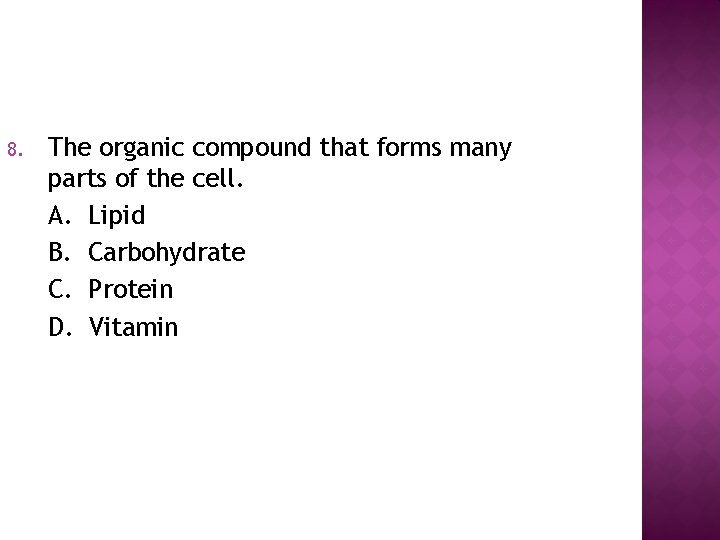

8. The organic compound that forms many parts of the cell. A. Lipid B. Carbohydrate C. Protein D. Vitamin
9. Enzymes are ______ in nature. A. Lipid B. Carbohydrate C. Protein D. Vitamin
10. Organic catalysts are called… A. Amino acids B. Enzymes C. Nucleotides D. Lipids
11. Proteases are… A. Co enzymes B. Nucleotides C. Lipids D. Enzymes
12. The enzyme that can remove oily stains are… A. Proteases B. Amylase C. Both A and B D. None of the above

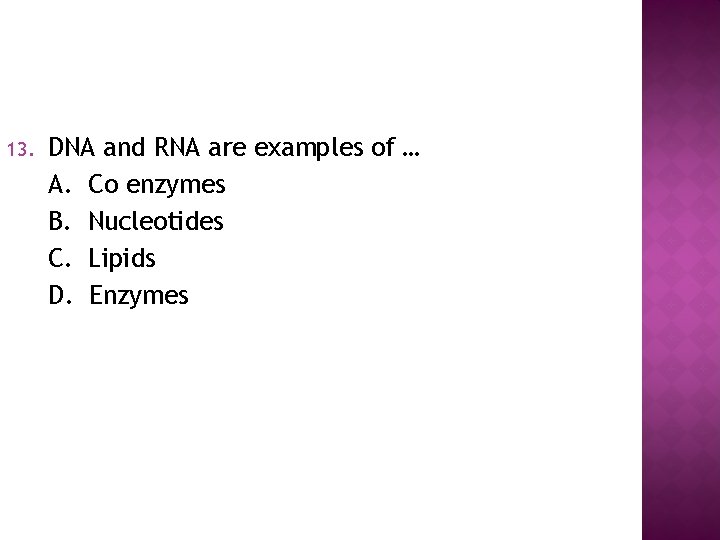

13. DNA and RNA are examples of … A. Co enzymes B. Nucleotides C. Lipids D. Enzymes
14. The nucleotide that has a double helix shape is… A. DNA B. RNA C. Both A and B. D. None of the above
15. The vitamin that prevents scurvy is… A. Vitamin A B. Vitamin B C. Vitamin C D. Vitamin D
16. The vitamin that increases the absorption of calcium… A. Vitamin A B. Vitamin B C. Vitamin C D. Vitamin D
17. This vitamin prevents night blindness. A. Vitamin A B. Vitamin B C. Vitamin C D. Vitamin D

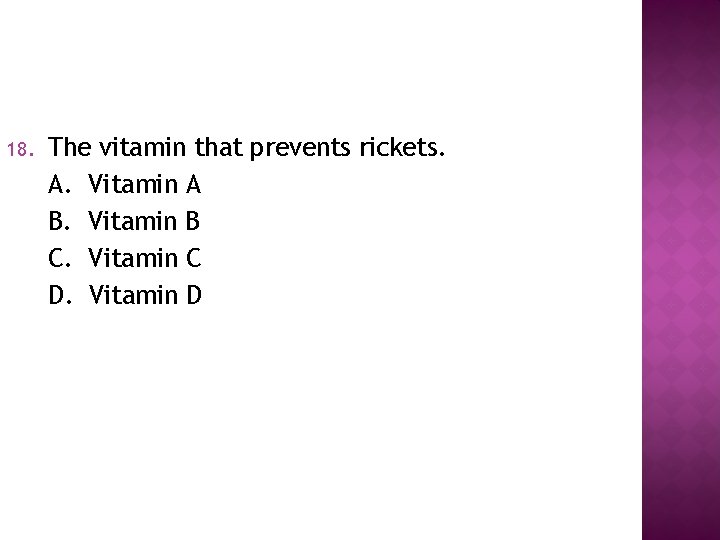

18. The vitamin that prevents rickets. A. Vitamin A B. Vitamin B C. Vitamin C D. Vitamin D

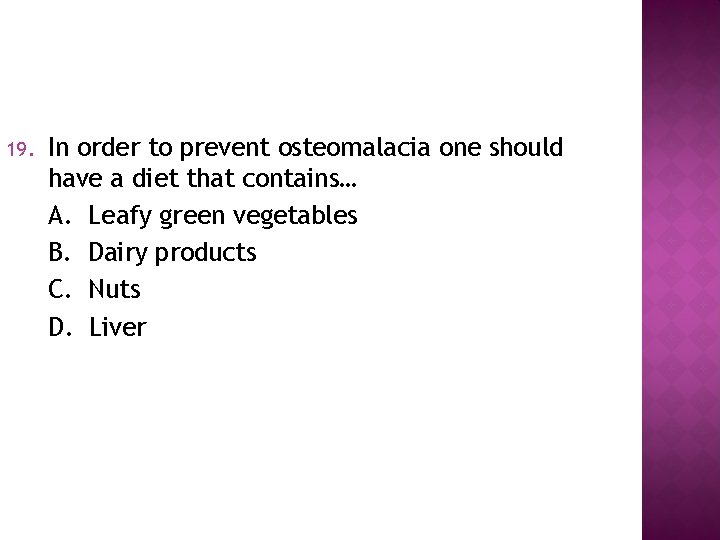

19. In order to prevent osteomalacia one should have a diet that contains… A. Leafy green vegetables B. Dairy products C. Nuts D. Liver
20. The vitamin maintains the intercellular substance in cartilage is… A. Vitamin A B. Vitamin B C. Vitamin C D. Vitamin D
SOLUTION 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. A D A C D C C B

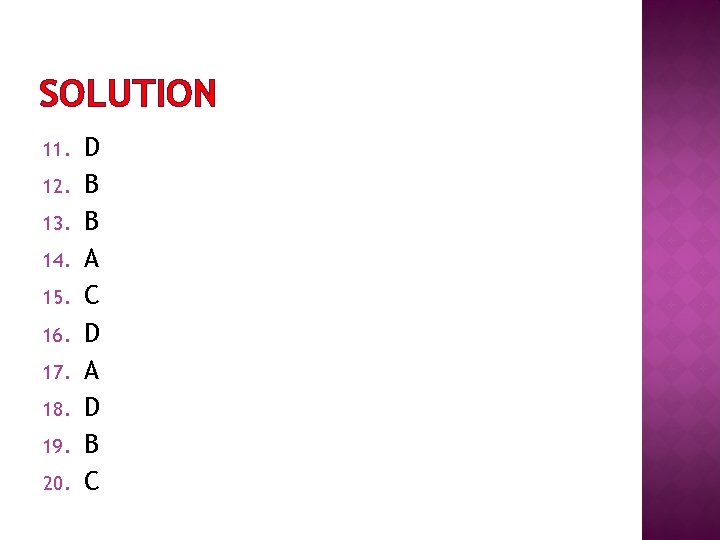

SOLUTION 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. D B B A C D A D B C
