ORGANIC CHEMISTRY Chapter 22 1 Hydrocarbons Naming Drawing
ORGANIC CHEMISTRY Chapter 22. 1 Hydrocarbons Naming, Drawing, and Properties

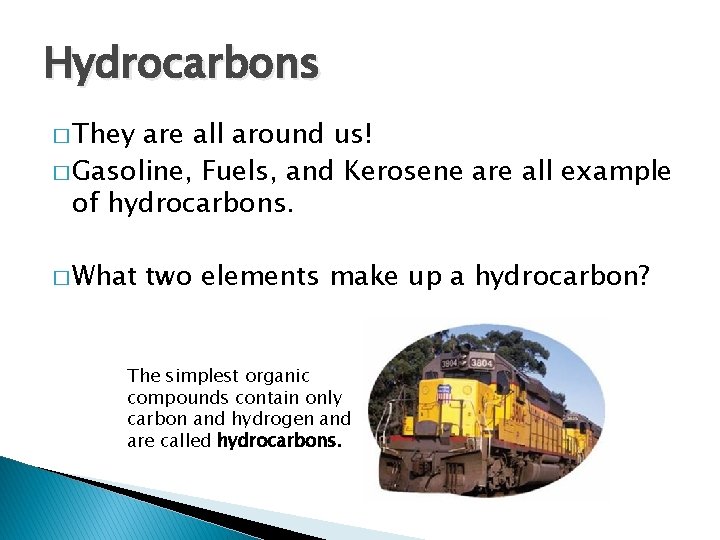

Hydrocarbons � They are all around us! � Gasoline, Fuels, and Kerosene are all example of hydrocarbons. � What two elements make up a hydrocarbon? The simplest organic compounds contain only carbon and hydrogen and are called hydrocarbons.

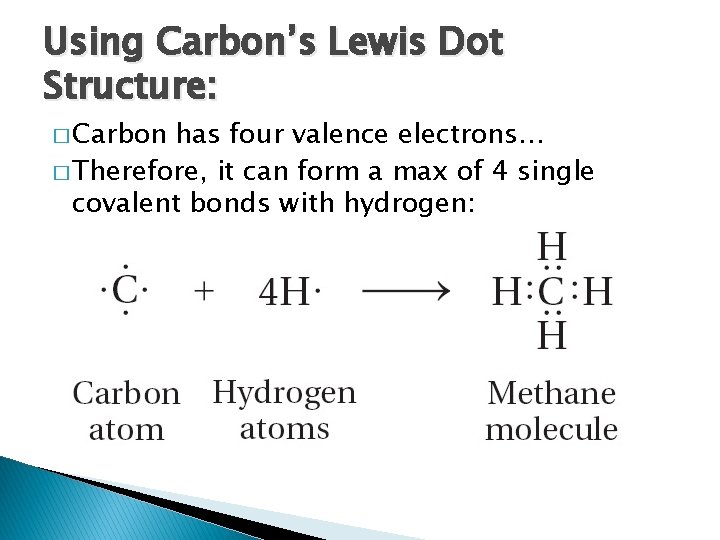

Using Carbon’s Lewis Dot Structure: � Carbon has four valence electrons… � Therefore, it can form a max of 4 single covalent bonds with hydrogen:

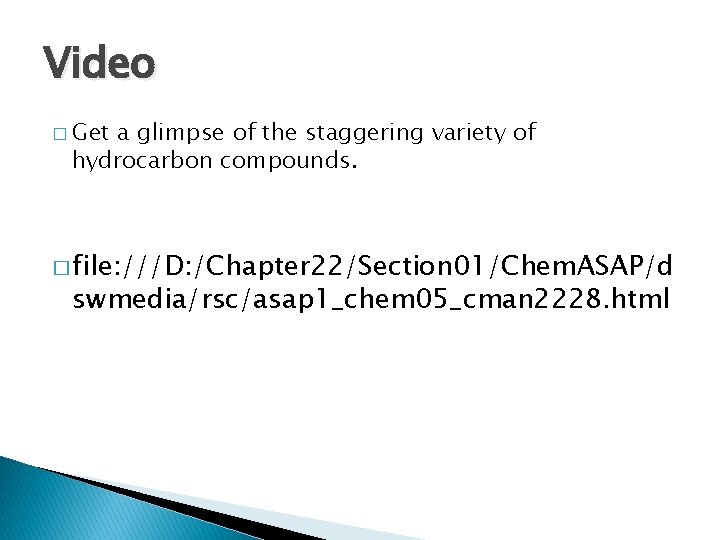

Video � Get a glimpse of the staggering variety of hydrocarbon compounds. � file: ///D: /Chapter 22/Section 01/Chem. ASAP/d swmedia/rsc/asap 1_chem 05_cman 2228. html

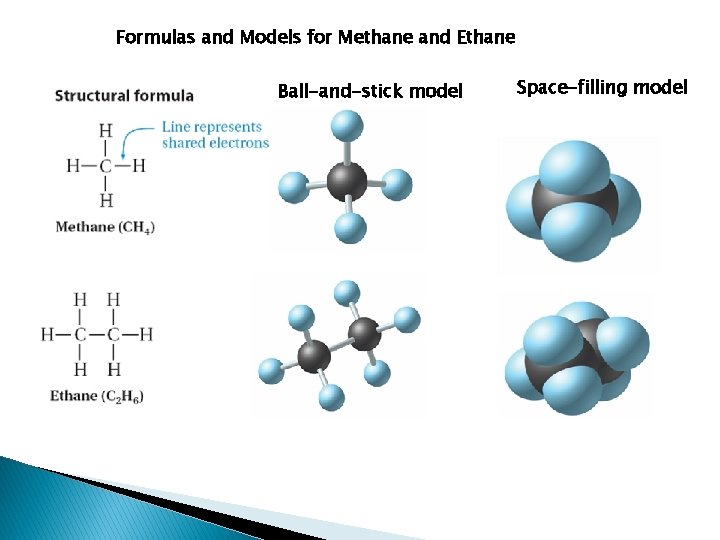

Formulas and Models for Methane and Ethane Ball-and-stick model Space-filling model

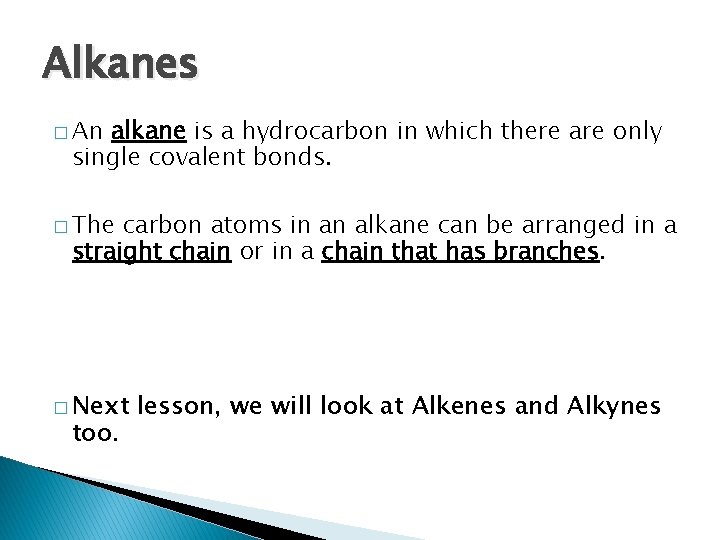

Alkanes � An alkane is a hydrocarbon in which there are only single covalent bonds. � The carbon atoms in an alkane can be arranged in a straight chain or in a chain that has branches. � Next too. lesson, we will look at Alkenes and Alkynes

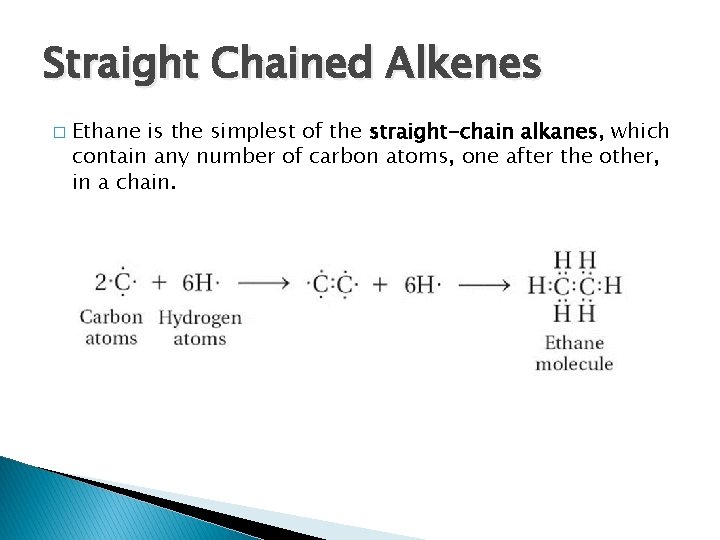

Straight Chained Alkenes � Ethane is the simplest of the straight-chain alkanes, which contain any number of carbon atoms, one after the other, in a chain.

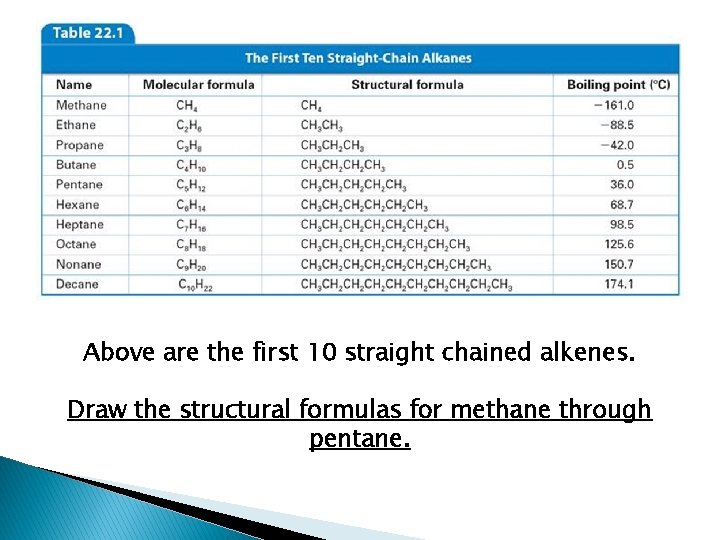

Above are the first 10 straight chained alkenes. Draw the structural formulas for methane through pentane.
Hydrocarbons used as fuels.

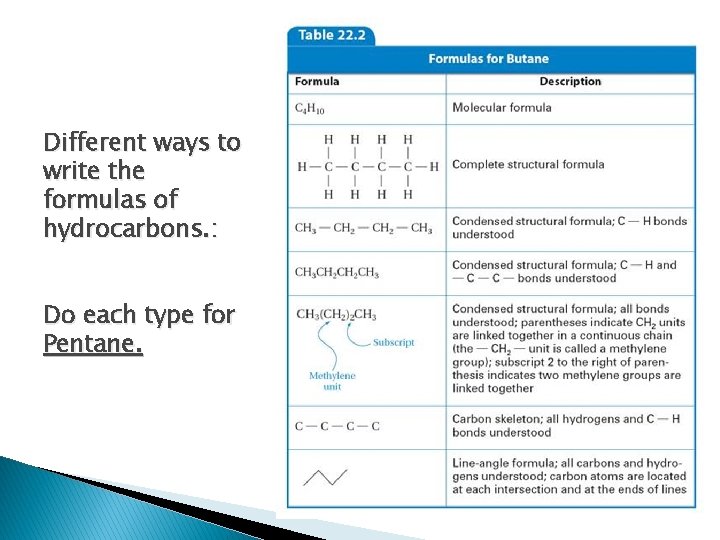

Different ways to write the formulas of hydrocarbons. : Do each type for Pentane.

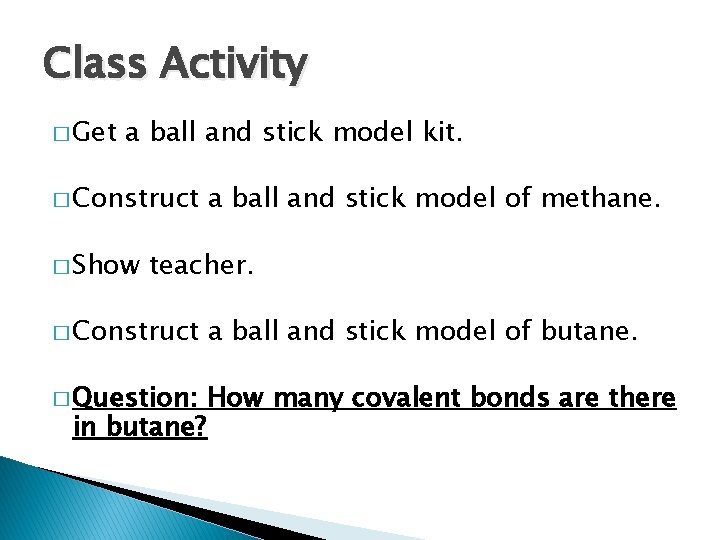

Class Activity � Get a ball and stick model kit. � Construct � Show a ball and stick model of methane. teacher. � Construct � Question: a ball and stick model of butane. How many covalent bonds are there in butane?

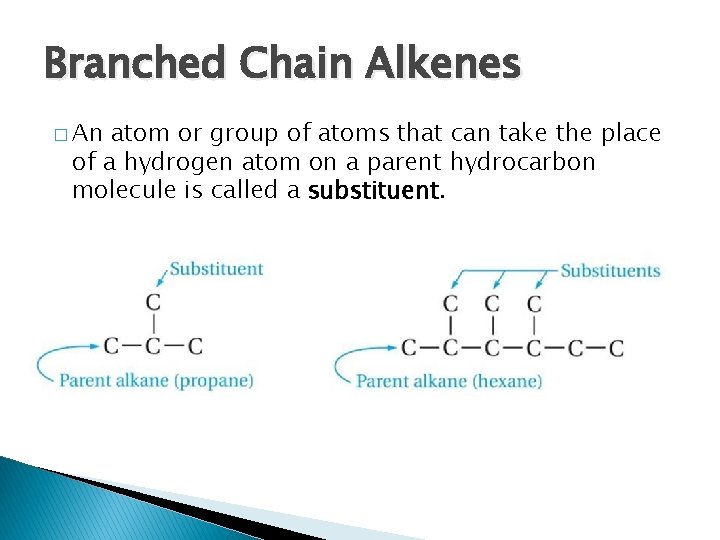

Branched Chain Alkenes � An atom or group of atoms that can take the place of a hydrogen atom on a parent hydrocarbon molecule is called a substituent.

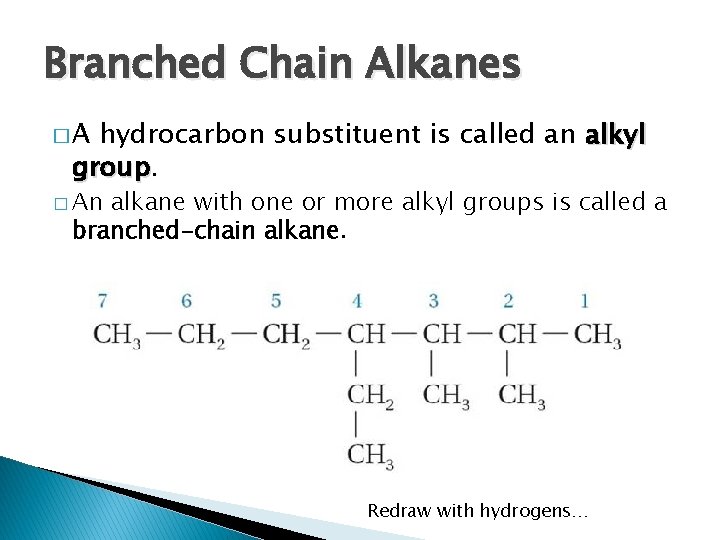

Branched Chain Alkanes �A hydrocarbon substituent is called an alkyl group � An alkane with one or more alkyl groups is called a branched-chain alkane. Redraw with hydrogens…

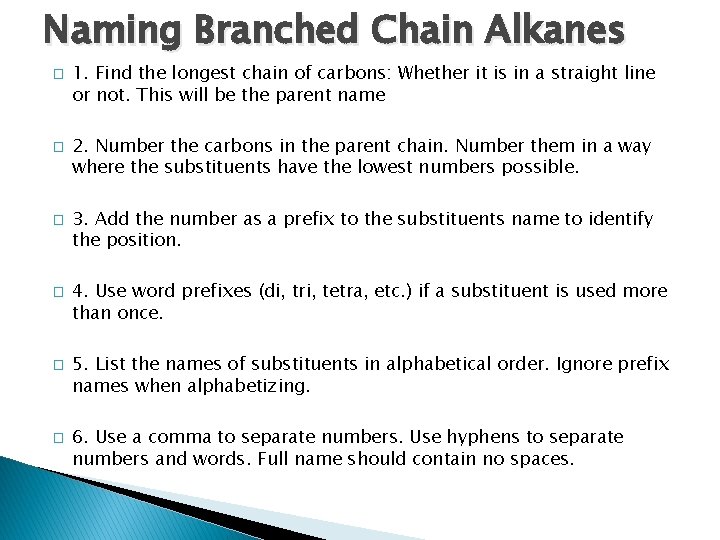

Naming Branched Chain Alkanes � � � 1. Find the longest chain of carbons: Whether it is in a straight line or not. This will be the parent name 2. Number the carbons in the parent chain. Number them in a way where the substituents have the lowest numbers possible. 3. Add the number as a prefix to the substituents name to identify the position. 4. Use word prefixes (di, tri, tetra, etc. ) if a substituent is used more than once. 5. List the names of substituents in alphabetical order. Ignore prefix names when alphabetizing. 6. Use a comma to separate numbers. Use hyphens to separate numbers and words. Full name should contain no spaces.

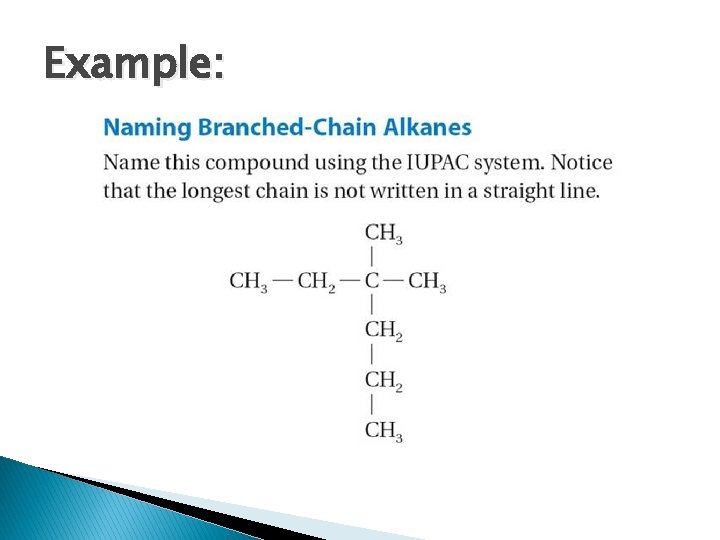

Example:

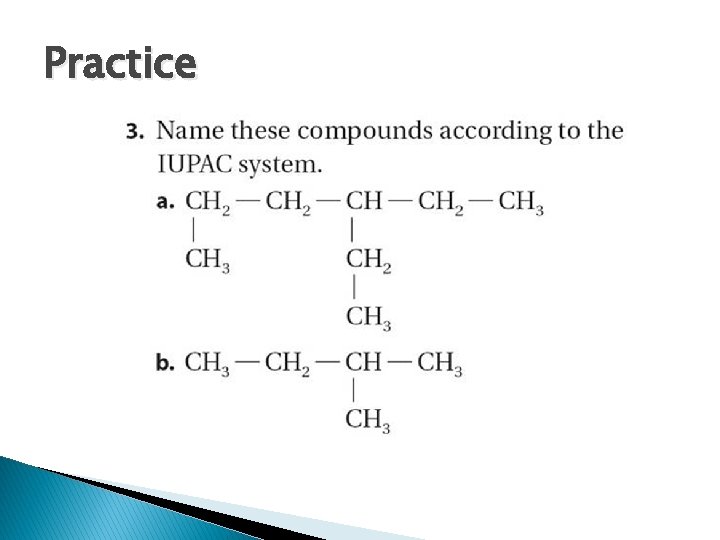

Practice

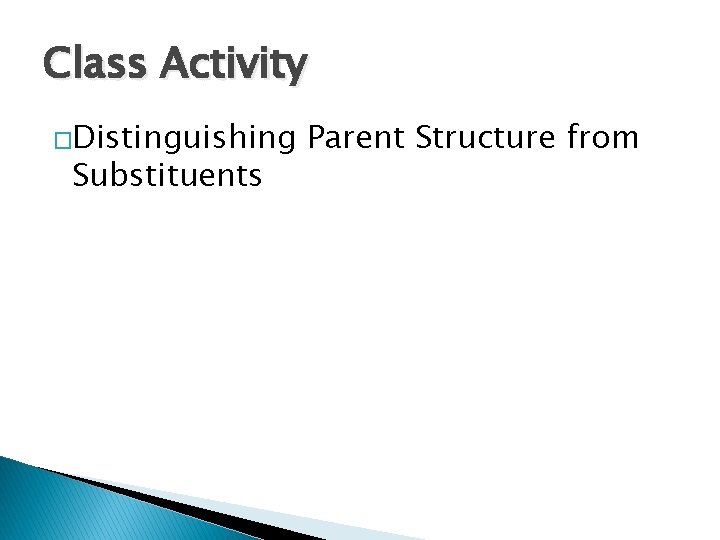

Class Activity �Distinguishing Substituents Parent Structure from

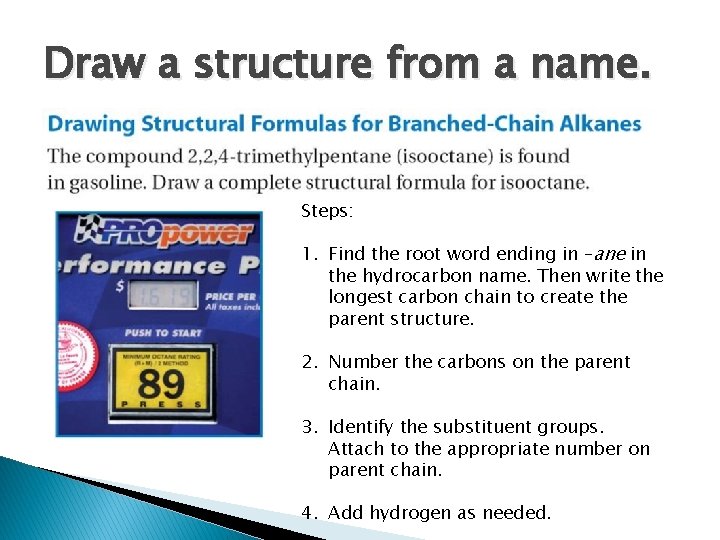

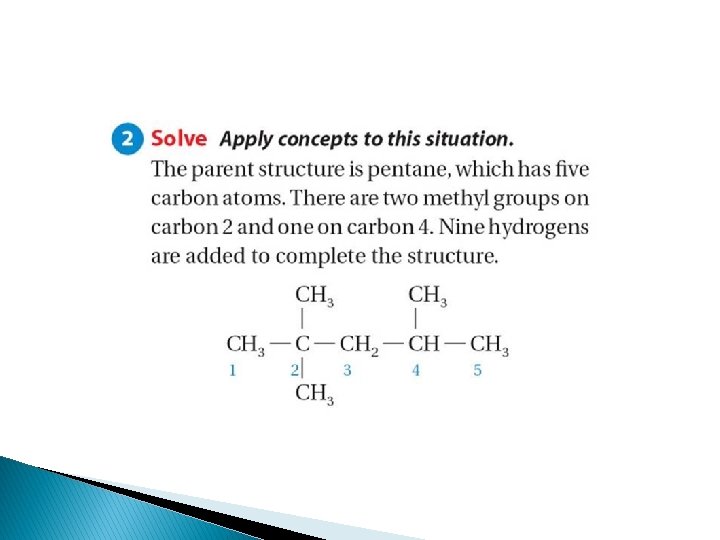

Draw a structure from a name. Steps: 1. Find the root word ending in –ane in the hydrocarbon name. Then write the longest carbon chain to create the parent structure. 2. Number the carbons on the parent chain. 3. Identify the substituent groups. Attach to the appropriate number on parent chain. 4. Add hydrogen as needed.

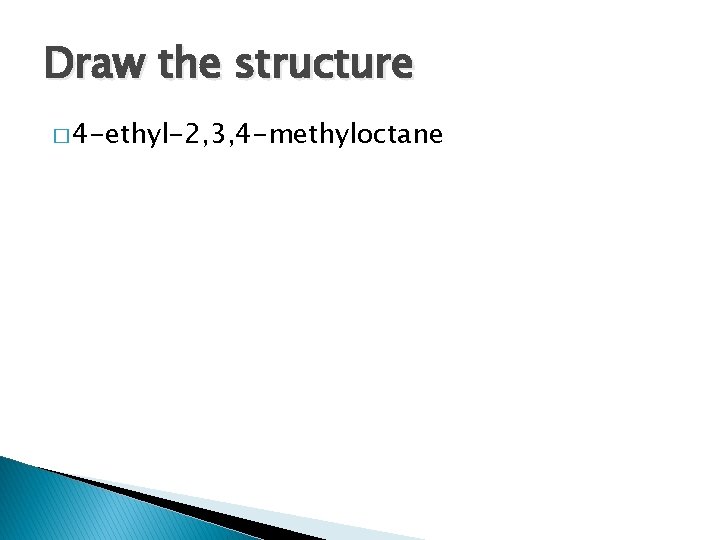

Draw the structure � 4 -ethyl-2, 3, 4 -methyloctane

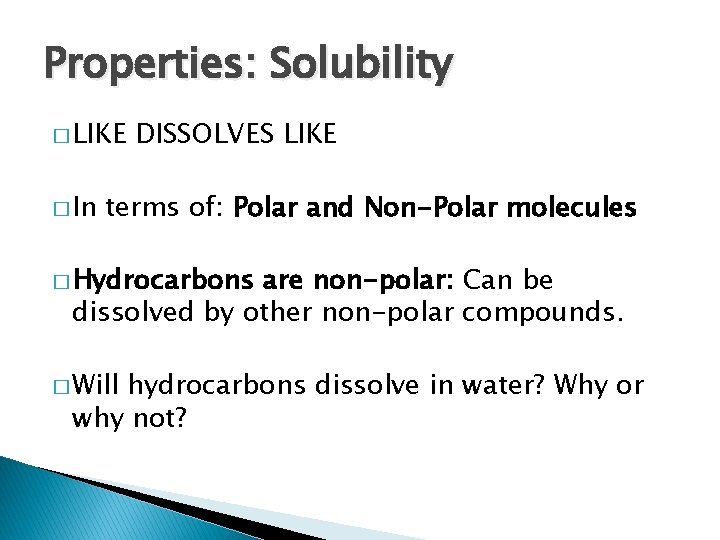

Properties: Solubility � LIKE � In DISSOLVES LIKE terms of: Polar and Non-Polar molecules � Hydrocarbons are non-polar: Can be dissolved by other non-polar compounds. � Will hydrocarbons dissolve in water? Why or why not?

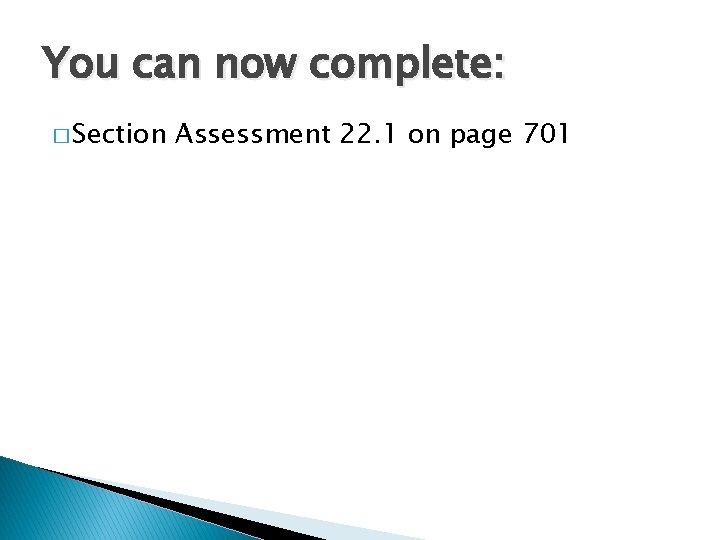

You can now complete: � Section Assessment 22. 1 on page 701
