Oracle Optimizer

Types of Optimizers • There are different modes for the optimizer ALTER SESSION SET optimizer_mode = {choose|rule|first_rows(_n)|all_rows} • RULE: Rule-based optimizer (RBO) – Deprecated; not updated since 1994 • CHOOSE: Default option. Chooses cost-based optimizer (CBO) if statistics available, rulebased optimizer otherwise.

Types of Optimizers • ALL_ROWS (CBO): Execute the query so that all of the rows are returned as quickly as possible – Merge Join has priority over Block Nested Loop Join • FIRST_ROWS(n) (CBO): execute the query so that all of the first n rows are returned as quickly as possible – Block Nested Loop Join has priority over Merge Join

Analyzing the Data analyze table | index <table_name> | <index_name> compute statistics | estimate statistics [sample <integer> rows | percent] | delete statistics; analyze table Sailors estimate statistics sample 25 percent;

Viewing the Execution Plan • You need a PLAN_TABLE table. So, the first time that you want to see execution plans, run the command: @$ORACLE_HOME/rdbms/admin/utlxplan. sql • Set autotrace on to see all plans – Display the execution path for each query, after being executed

Operations that Access Tables • TABLE ACCESS FULL: sequential table scan – Oracle optimizes by reading multiple blocks – Used whenever there is no where clause on a query select * from Sailors • TABLE ACCESS BY ROWID: access rows by their Row. ID values. – How do you get the rowid? From an index! select * from Sailors where sid > 10

Types of Indexes • Unique: each row of the indexed table contains a unique value for the indexed column • Nonunique: the row’s indexed values can repeat

Operations that Use Indexes • INDEX UNIQUE SCAN: Access of an index that is defined to be unique • INDEX RANGE SCAN: Access of an index that is not unique or access of a unique index for a range of values

When are Indexes Used/Not Used? • If you set an indexed column equal to a value, e. g. , sname = 'Jim' • If you specify a range of values for an indexed column, e. g. , sname like 'J%' – sname like '%m': will not use an index – UPPER(sname) like 'J%' : will not use an index – sname is null: will not use an index, since null values are not stored in the index – sname is not null: will not use an index, since every value in the index would have to be accessed

When are Indexes Used? (cont( • 2*age = 20: Index on age will not be used. Index on 2*age will be used. • sname != 'Jim': Index will not be used. • MIN and MAX functions: Index will be used • Equality of a column in a leading column of a multicolumn index. For example, suppose we have a multicolumn index on (sid, bid, day) – sid = 12: Can use the index – bid = 101: Cannot use the index

Optimizer Hints • You can give the optimizer hints about how to perform query evaluation • Hints are written in /*+ */ right after the select • Note: These are only hints. The Oracle optimizer can choose to ignore your hints

Hints • FULL hint: tell the optimizer to perform a TABLE ACCESS FULL operation on the specified table • ROWID hint: tell the optimizer to perform a TABLE ACCESS BY ROWID operation on the specified table • INDEX hint: tells the optimizer to use an indexbased scan on the specified table

Examples Select /*+ FULL (sailors) */ sid From sailors Where sname=‘Joe’; Select /*+ INDEX (sailors s_ind) */ sid From sailors S, reserves R Where S. sid=R. sid AND sname=‘Joe’;

Combining Output From Multiple Index Scans • Suppose we have 2 indexes: sname, rating • select * from sailors where sname = 'Jim' and rating = 10 -----------------0 SELECT STATEMENT Optimizer=CHOOSE 1 0 TABLE ACCESS (BY INDEX ROWID) OF 'SAILORS‘ 2 1 3 2 INDEX (RANGE SCAN) OF 'SNAME_IND' (NON-UNIQUE) 4 2 INDEX (RANGE SCAN) OF 'RAT' (NON-UNIQUE) AND-EQUAL

Operations that Manipulate Data Sets • Up until now, all operations returned the rows as they were found • There are operations that must find all rows before returning a single row • Try to avoid these operations for online users! – SORT ORDER BY: query with order by select sname, age from Sailors order by age;

Operations that Manipulate Data Sets – SORT UNIQUE: sorting records while eliminating duplicates (e. g. , query with distinct; query with minus, intersect or union) – SORT AGGREGATE, SORT GROUP BY: queries with aggregate or grouping functions (like MIN, MAX)

Is the table always accessed? What if there is no index?

Operations that Manipulate Data Sets • Consider the query: – select sname from sailors union select bname from boats;

Operations that Manipulate Data Sets • Consider the query: – select sname from sailors minus select bname from boats; How do you think that Oracle implements intersect? union all?

Operations that Manipulate Data Sets • Select MIN(age), COUNT(*) from Sailors GROUP BY rating ---------------------0 SELECT STATEMENT Optimizer=CHOOSE 1 0 2 1 SORT (GROUP BY) TABLE ACCESS (FULL) OF 'SAILORS'

Distinct • What should Oracle do when processing the query (assuming that sid is the primary key): – select distinct sid from Sailors • Try it!!

Join Methods • Select * from Sailors, Reserves where Sailors. sid = Reserves. sid • Oracle can use an index on Sailors. sid or on Reserves. sid (note that both will not be used) • Join Methods: MERGE JOIN, NESTED LOOPS, HASH JOIN

Nested Loops Joins • Block nested loop join NESTED LOOPS TABLE ACCESS FULL OF our_outer_table TABLE ACCESS FULL OF our_inner_table • Index nested loop join NESTED LOOPS TABLE ACCESS FULL OF our_outer_table TABLE ACCESS BY ROWID OF our_inner_table INDEX RANGE SCAN OF inner_table_index

Nested Loops Joins • Select * from reserves r, sailors s where r. sid=s. sid; ---------------------------0 SELECT STATEMENT Optimizer=CHOOSE 1 0 NESTED LOOPS 2 1 TABLE ACCESS (FULL) OF 'RESERVES‘ 3 1 TABLE ACCESS (BY INDEX ROWID) OF 'SAILORS‘ 4 3 INDEX (UNIQUE SCAN) OF 'SYS_C 00628777' (UNIQUE)

When Are Nested Loops Joins Used? • If tables are of unequal size • If results should be returned online

Hash Join Plan HASH JOIN TABLE ACCESS FULL OF table_A TABLE ACCESS FULL OF table_B

When Are Hash Joins Used? • If tables are small • If results should be returned online

Sort-Merge Join Plan MERGE JOIN SORT JOIN TABLE ACCESS FULL OF table_A SORT JOIN TABLE ACCESS FULL OF table_B

When Are Sort/Merge Joins Used? • Performs badly when tables are of unequal size. Why?

Hint Examples for Joins Select /*+ USE_NL (sailors) */ sid From sailors S, reserves R Where S. sid=R. sid AND sname=‘Joe’; inner table Select /*+ USE_MERGE (sailors, reserves) */ sid From sailors S, reserves R Where S. sid=R. sid AND sname=‘Joe’; Select /*+ USE_HASH */ sid From sailors S, reserves R Where S. sid=R. sid AND sname=‘Joe’;

XML (Extensible Markup Language) and the Semi-Structured Data Model

Motivation • We have seen that relational databases are very convenient to query. However: – There is a LOT of data not in relational databases!! • Perhaps the most widely accessed database is the web, and it certainly isn’t a relational database.

Querying the Web • The web can be queried using a search engine, however, we can’t ask questions like: – What is the lowest price for which a Jaguar is sold on the web? • Problems: – There are no facilities for asking complex questions, such as aggregation of data

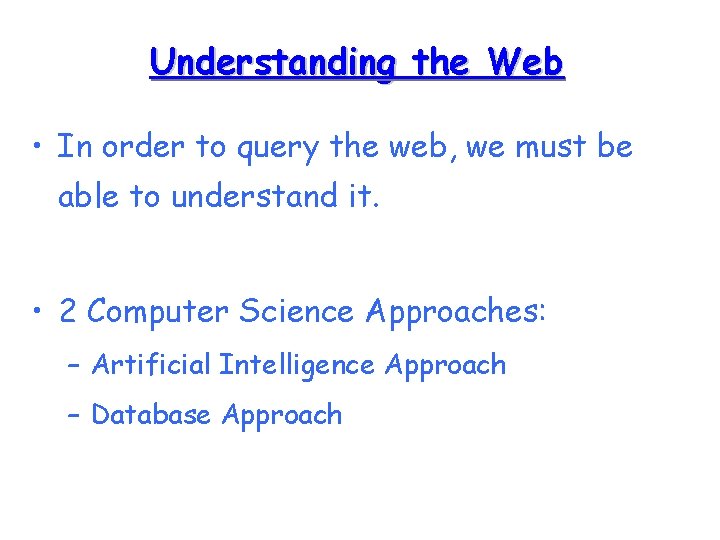

Understanding the Web • In order to query the web, we must be able to understand it. • 2 Computer Science Approaches: – Artificial Intelligence Approach – Database Approach

Database Approach “The web is unstructured and we will structure it” • Sometimes problems that are very difficult can be solved easily by enforcing a standard • Encourage the use of XML as a standard for data exchange on the web

Example XML Document <addresses > <person friend="yes"> Opening Tag <name> Jeff Cohen</name> <tel> 04 -828 -1345 </tel> <tel> 054 -470 -778 </tel> <email> jeffc@cs. technion. ac. il </email> </person> Attribute <person friend="no"> <name> Irma Levy</name> <tel> 03 -426 -1142 </tel> <email>irmal@yourmail. com</email> </person> </addresses> Closing Tag Element

Very Unstructured XML <? xml version=“ 1. 0”? > <Damage. Report> The insured’s <Vehicle Make = “Toyota”> Corolla </Vehicle> broke through the guard rail and plummeted into the ravine. The cause was determined to be <Cause>faulty brakes </Cause>. Amazingly there were no casualties. </Damage. Report>

XML Vs. HTML • XML and HTML are brothers. They are both special cases of SGML. • HTML has specific tag and attribute names. These are associated with a specific meaning • XML can have any tag and attribute name. These are not associated with any meaning • HTML is used to specify visual style • XML is used to specify meaning

Characteristics of Semistructured Data (From http: //www 2. cs. uh. edu/~ceick/6340/intro-xml. ppt) • Missing or additional attributes • Multi-valued attributes • Different types in different objects • Heterogeneous collections Self-describing, irregular data, no a priori structure

Relational vs Semi-Structured Relational Semi-Structured Abstract Sets of Labeled Directed Model tuples Graph Concrete Tables XML Documents Standard Storing Data Exchange for Data Separating Content Model from Style

Data Exchange • Problem: Many data sources, each of a different type (different vendor), with a different schema. – How can the data be combined and used together? – How can different companies collaborate on their data? – What format should be used to exchange the data?

Separating Content from Style • Web sites develop over time • Important to separate style from data in order to allow changes to the site structure and appearance • Using XML, we can store data alone • CSS separates style from data only in a limited way • Using XSL, this data can be translated into HTML • The data can be translated differently as the site develops

Write Once Use Everywhere XML Data XS L WML (hand-held devices) XSL HTML (web browser L S X TEXT (Excel)

Using XML • Quering and Searching XML: There are query languages and search engines that query XML and return XML. Examples: Xpath, Xquery /SQL 4 X, Equix, XSEarch • Displaying XML: An XML document can have an associated style-sheet which specifies how the document should be translated to HTML. Examples: CSS, XSL
