Oracle EBusiness Suite Why ERP Why ERP Changing
Oracle E-Business Suite
Why ERP?
Why ERP? – Changing business needs • Stage-1 – • Daily Job: • Collect goods from vendor. • Sell items/goods to customers. • If any goods out of stock note it down to order it from vendor. • Daily accounting - Profit & loss. Stage-2 : After a year you business is developed & you are becoming a whole sole dealer. – – Changes in Business • Many branches. • Hire People for working. • Maintaining a small database for the business. • Transportation services. Daily Job: • Collect goods from vendor & store it in inventory. • Take order from shop keepers. • Maintain small database for goods, shopkeepers & employees. • Using a computer for accounting. & Delivering items to customers.
Why ERP? – Business changing needs • Stage-3 – – Changes in business • Worldwide Branches and customers. • Developed as a Multinational Organization. • International Transportation. • Ecommerce, Phone marketing. etc. Workload in business • Now the owner of the business cannot go to sites (all over the world) daily. • He has to maintain a big database for his business to run continuously. • Need to manage inventory activities (how much is sold, received items etc. ). • Need to maintain the employees and their benefits (Needs HR • Need to calculate accounting (profit & loss for worldwide business). • Asset management. team).
ERP Benefits Software package that allows organizations to manage key business processes. Enable organizations to Make better decisions Reduce costs Increase performance. No Integration cost Common data
Why ERP?
Other Names Oracle Enterprise Resource Planning (ERP) Oracle Apps Oracle Applications Oracle Financials E-Biz EBS (E-Business Suite).
Architecture: From Past to Now Past Character based Input → Dumb terminals Oracle Forms & DB at back end GUI Smart. Client Oracle form at Client Tier Access DB over network Difficult to upgrade, as need to update on all clients. Three Tier Architecture Oracle Form → HTML & Other Web Based Technologies. Browser, remove applets also. Light
Other Vendors
Modules • First level text with bullets – Second level text with bullets • Third level text with bullets – Fourth level text with bullets • Fifth level text with bullets
Modules • First level text with bullets – Second level text with bullets • Third level text with bullets – Fourth level text with bullets • Fifth level text with bullets
Responsibility Level of Authority Let user access function/data that they are authorized to.

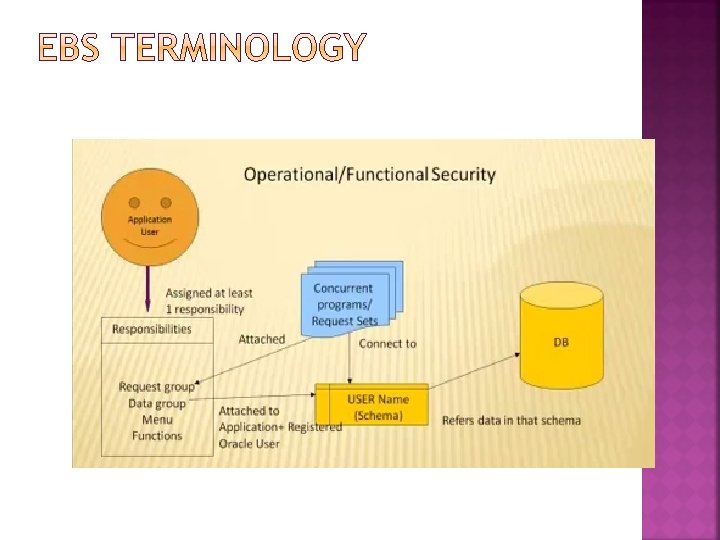

EBS Terminology Responsibility Collection of business functionality what a user can do Assigned Menu & Request Group Menu represents a hierarchy of functions and other menus reusable grouping of application functionality and consists of functions and other menus Request Group grouping of reports and concurrent programs that is assigned to a responsibility allows access to programs and reports relevant to the organizational role. Screen Functions call screen. Different functions can create different looking screen using one screen, by passing different parameters

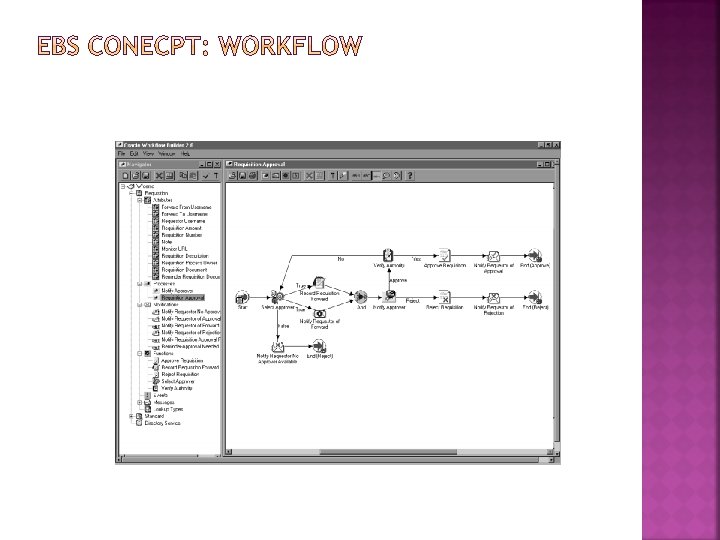

Why Workflow? Large data. Data should reach to all required persons. Internal or External. Nick Name → Routing Information. B 2 B data. Modifying rules. Notifications Work. Flow Builder
Navigate workflow

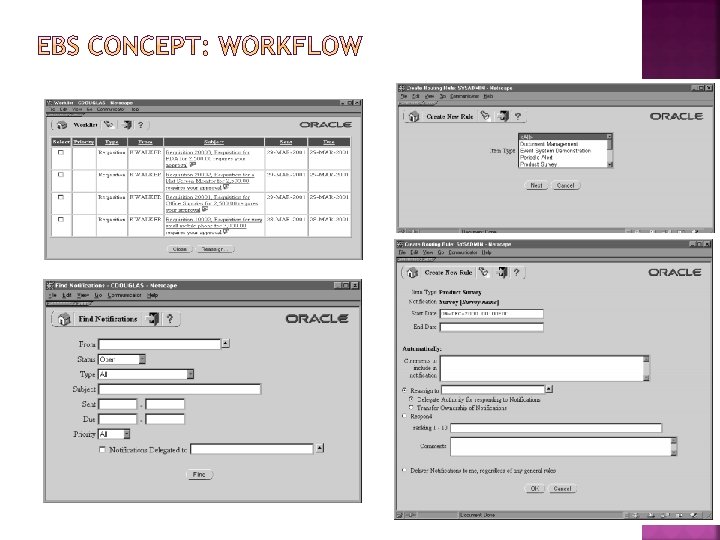

Worklist link to display your list of workflow notifications Find Notification Search Notification Rules Find Process To serach list of workflow process instance & STATUS. User Preference Language, date
Business Requirement When Item created in inventory Launch workflow Collect details of created item. Send notification to a group. Send link of item form. Implementation: Process flow When item is created, entry would go to Table. X Create workflow. Create DB trigger to launch workflow.
Back office functions Financial Manufacturing HR Front office functions Customer Relationship & Management Call center Internet sales & marketing E-commerece
Business Terminology • Purchase Order (PO) – Commercial document issued by a buyer to a seller. – Indicates the type, quantities and agreed prices for products or services the seller will provide to the buyer. – Sending a PO to a supplier constitutes a legal offer to buy products or services. – Acceptance of a PO by a seller usually forms a once-off contract between the buyer and seller so no contract exists until the PO is accepted. • • Pack Slip • A pack slip denotes what should be “packed’ for a delivery. It may consolidate several orders to a route, truck or customer. Item – A physical quantity • Invoice – Bill – Commercial document issues by seller to buyer. – Contains the products, quantities, and agreed prices for products or services the seller has provided the buyer. – Indicates the buyer must pay the seller, according to the payment terms.
Financial Module overview • First level text with bullets – Second level text with bullets • Third level text with bullets – Fourth level text with bullets • Fifth level text with bullets
Environments Master Configuration setup No Transactional Data Development Test Deployment After Testing, attach with patches & Scripts. Patching Support Clone production, reproduce issue. CRP Conference room pilot, during sign off Migration – Data Migration Production
Building Blocks/Tools • Oracle DB • PL/SQL • Forms Limitation: JInitiator • Report tool Available XML/BI publisher • Java • Can generate template using ms-word To replace Forms ADI: Application Desktop Integrator Operations from spreadsheet.
Project Manager Functional consultant Creating scripts, reports, additional screens. System Admin/DBA Interact with business users, collect info Create functional documentation Technical consultant Connects client & implementation team. Security, user access management, scripts, patches. User Super User e. g Setting up bank accounts
Navigation
Navigation: Help Made up of Web Pages Java Forms Mobile Log in Types Normal Single Sign on
Navigation: Help Made up of Web Pages Java Forms Mobile Log in Types Normal Single Sign on
Navigation: Log In Screen
Navigation: Home Page
Navigation: Home Page Break up Header and footer Favorites Log out Preferences Help
Navigation: Application Types → to access web-based applications → icon allows you to access java-based applications.
Navigation: Application Types
Directory Structure
Directory Structure <APPL_TOP> product directories E. g General Ledger (GL), Purchasing (PO) <COMMON_TOP> Common directories and files such as log files & Java libraries shared across different products <ORACLE_HOME> Contains the technology stack components such as Oracle Database RDBMS and Oracle Developer Tools (Forms, Reports) software. <DATA_TOP> Contains database data files for Oracle Applications. <INST_TOP> This is new to R 12. Contains various configuration files to provide the ability to share Applications and technology stack code between multiple instances.

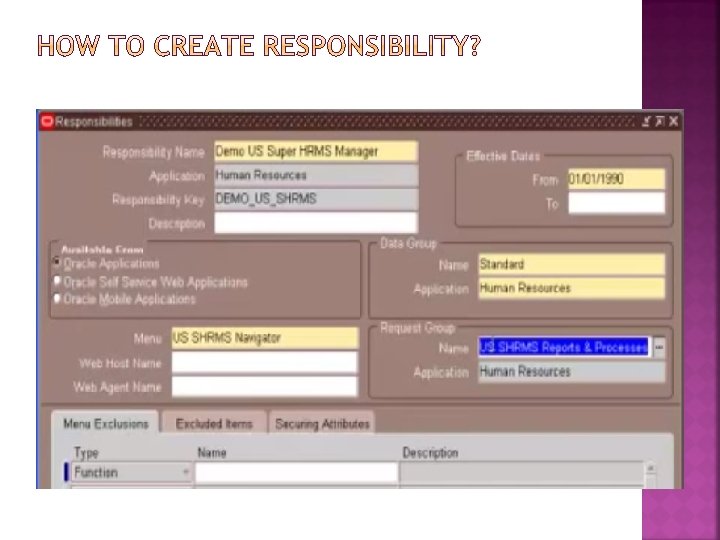

Login with user which have system admin responsibility access. System Admin → Security → Responsibility → Define
Entry Mode F 4 Query Mode F 11 – query mode Ctrl + F 11 – execute query
Login with user which have system admin responsibility access. System Admin → Security → Responsibility → Define
Customizable data field. Types Key. Flexfield Multi Value field e. g display emp. No. emp. Designation, 10727639. Software Engineer Intelligent Display – Married, in DB - M Descriptive Flexfield For additional info

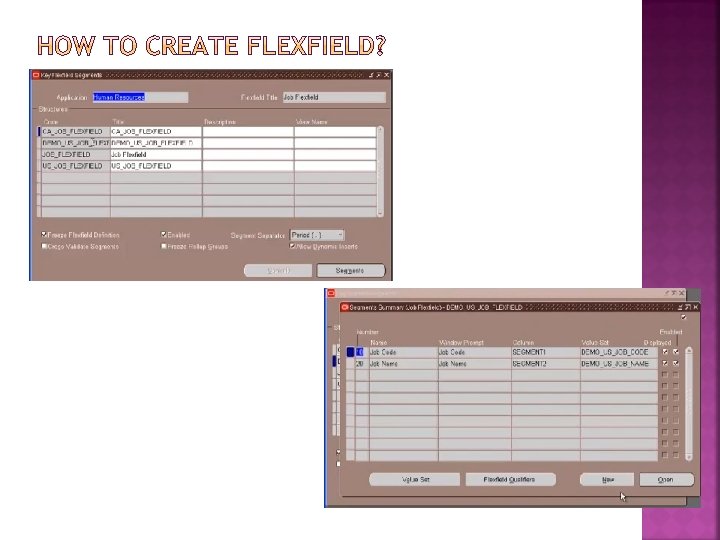

Login with user which have system admin responsibility access. System Admin → Application → Flex. Fields → Key → Segments

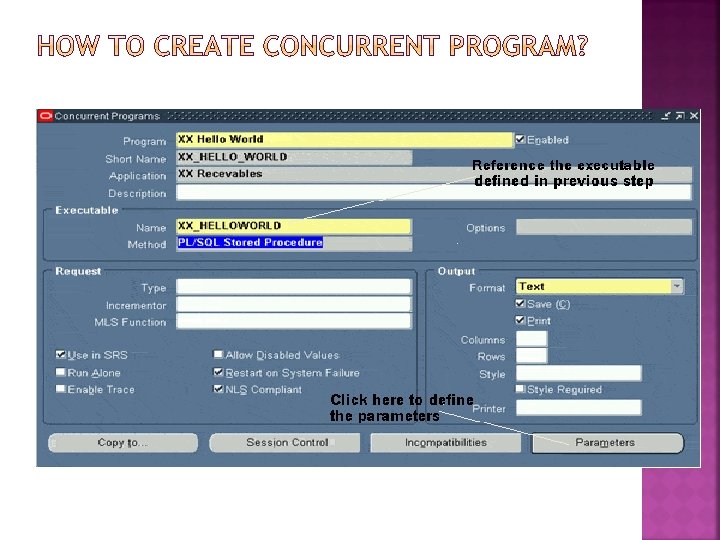

Login with user which have system admin responsibility access. System Admin → Concurrent → Program → Define

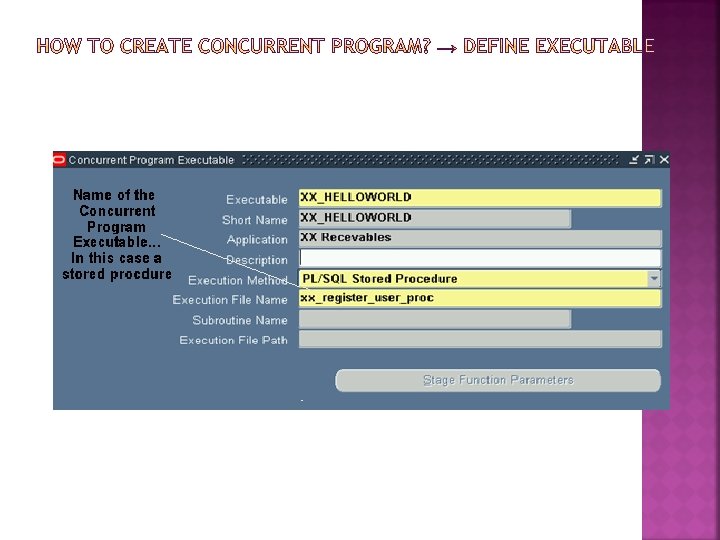

Login with user which have system admin responsibility access. System Admin → Concurrent → Executable
Executable Types Host → Shell Intermediate Java Stored Procedure Java concurrent program PL/SQL stored procedure
Complete Example: Creating function, menu, responsibility for one business requirement.
Business requirement Employes should be able to access one business document. Create responsibility Create document, say HTM document Transfer to application server using tool like Win. SCP /u 01/apps/oracle/testcomn/html Run dos 2 unix command Create function System Admin → Application → Function
Create function System Admin → Application → Function Fill section Description, Web Host & Properties in order Web. Host http: //testsrvr: 8000/OA_HTML/W 2_employee_ltr. htm

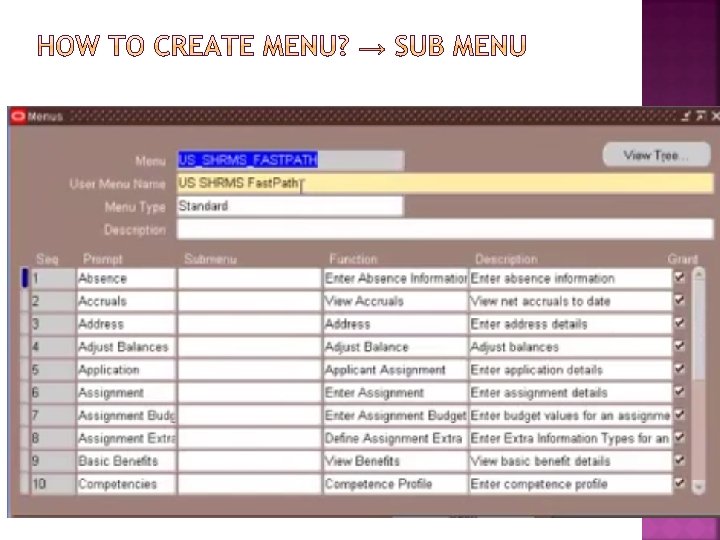

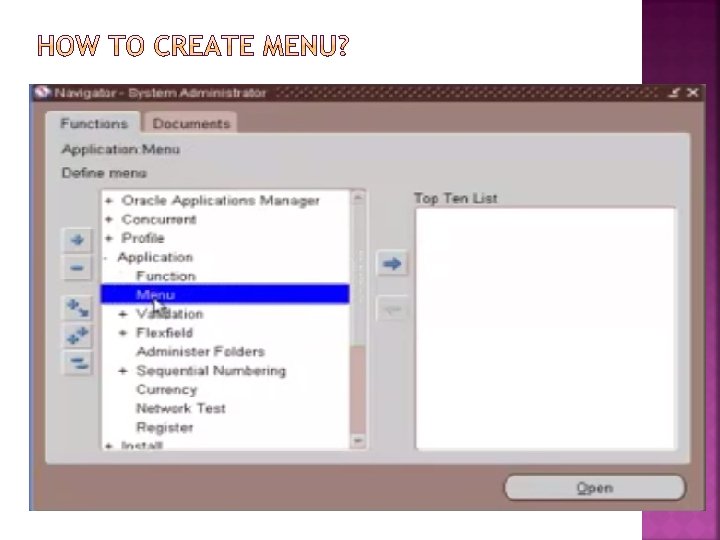

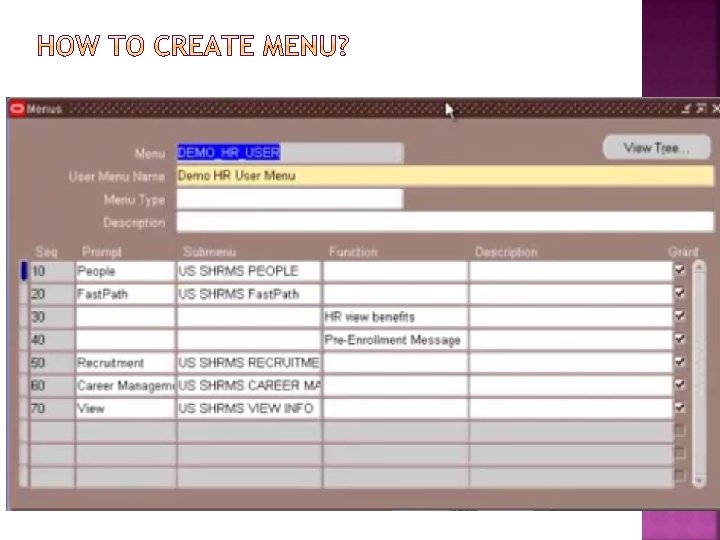

Create Menu for responsibility.
System Administrator → Go to “Application Administrator” responsibility → user → define Information of Responsibility is stored in FND_USER Table. User Responsibilities stored in FND_USER_RESP_GROUPS Table.

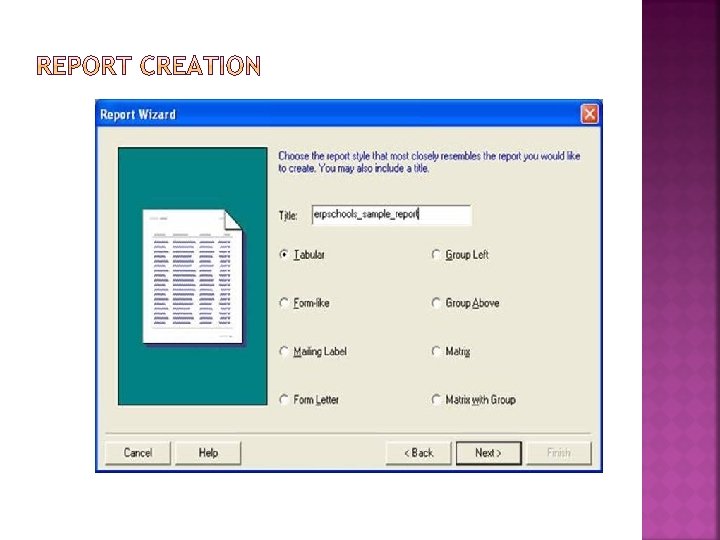

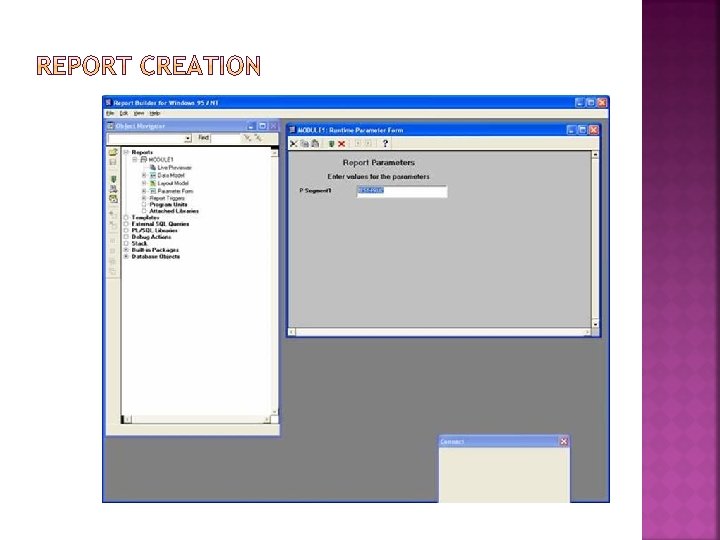

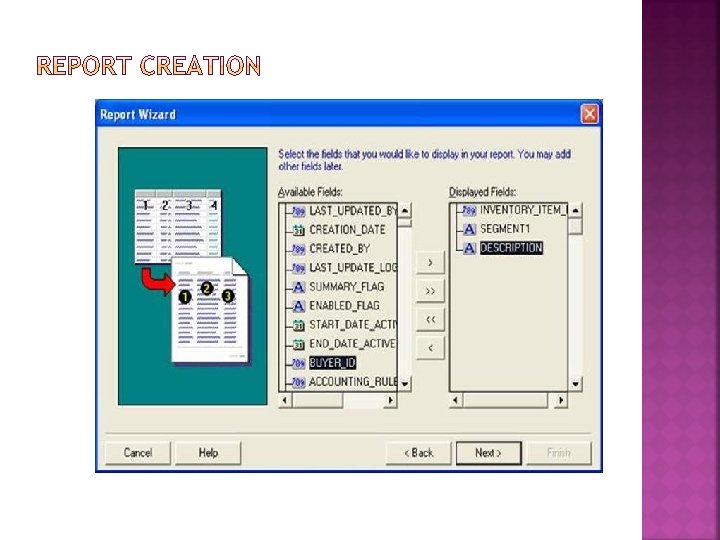

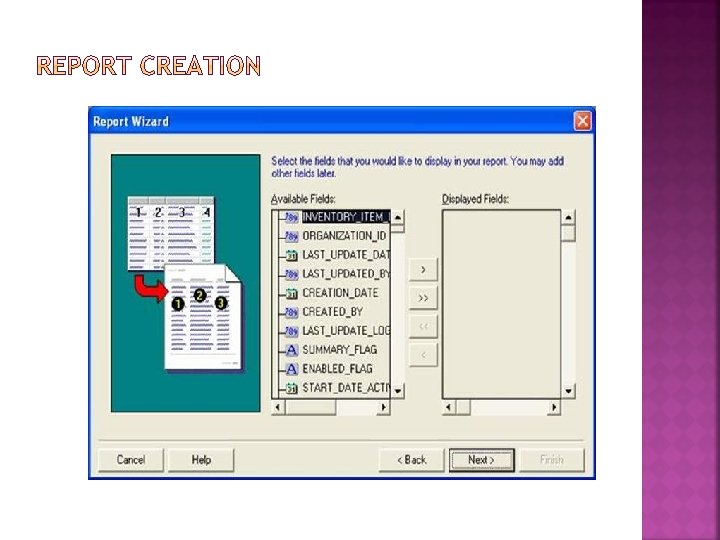

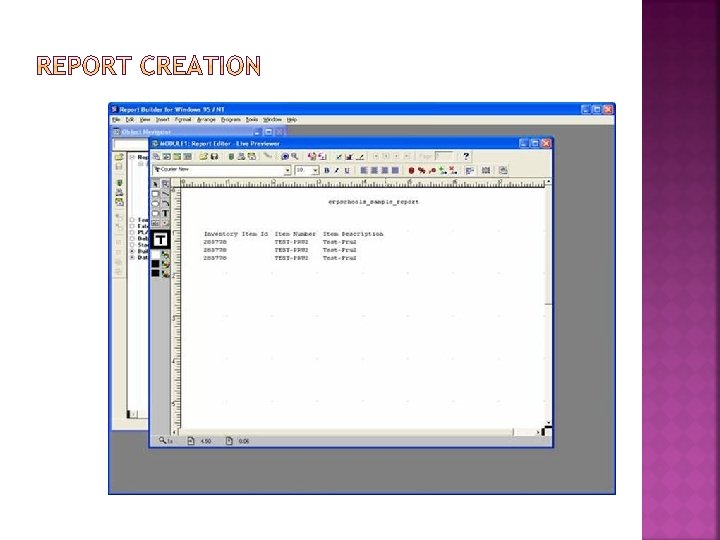

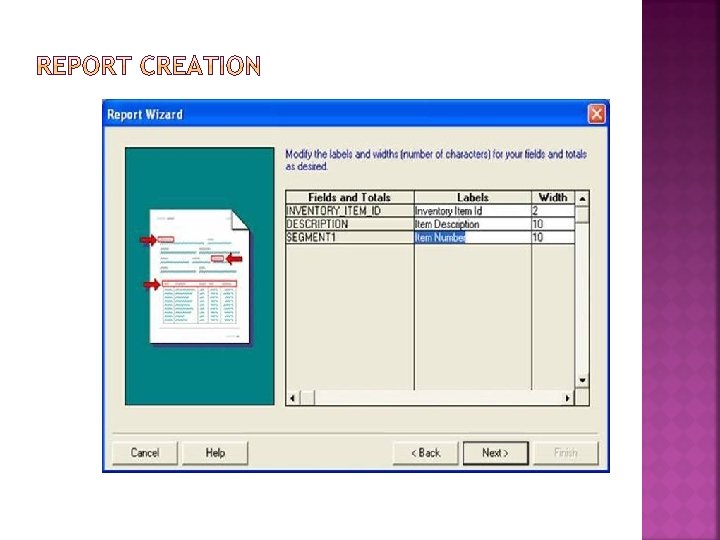

Open Report Builder

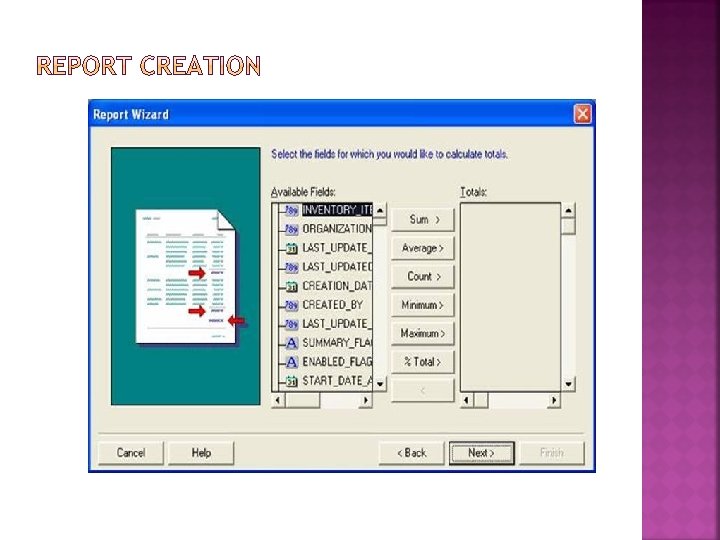

SQL statement: Write query Express Query: connect to DB, select columns.
Save as. rdf Attach with concurrent program Move report to reports directory.
Thank you.
