Oracle Database 11 g Real Application Testing What

Oracle Database 11 g Real Application Testing

What is Real Application Testing? • New database option available with EE only • Includes two new features • Database Replay (DB Replay) • SQL Performance Analyzer (SPA) • SQL Tuning Set (STS) functionality is shared between Real Application Testing option and EM Tuning Pack • Advance functionality requires additional packs • Diagnostic Pack for DB Replay • Tuning Pack for SPA • Price (? ) 2

Real Application Testing • Value • Reduces testing cost • Improves testing quality • Business Benefit • Faster technology adoption • Lower risk Deploy Test Change Remediate Solution for the Agile Business 3

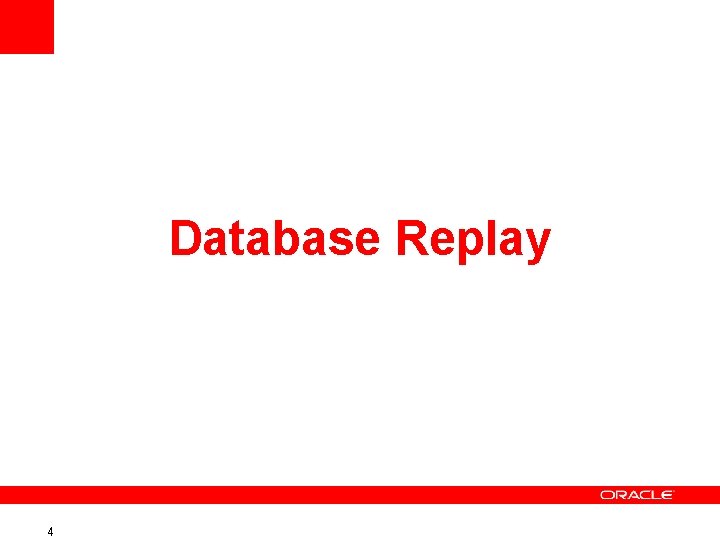

Database Replay 4

The Need for Database Replay • • System changes like hardware/software upgrades are fact of life Customers want to identify full impact of change before going live Extensive testing and validation can be expensive in time and $$$ Despite expensive testing success rate low • • • Cause of low success rate • • 5 Many issues go undetected Changes can impact system availability and performance negatively Inability to properly test with real world production workloads results in many issues to go undetected Database Replay makes it possible to do real world testing

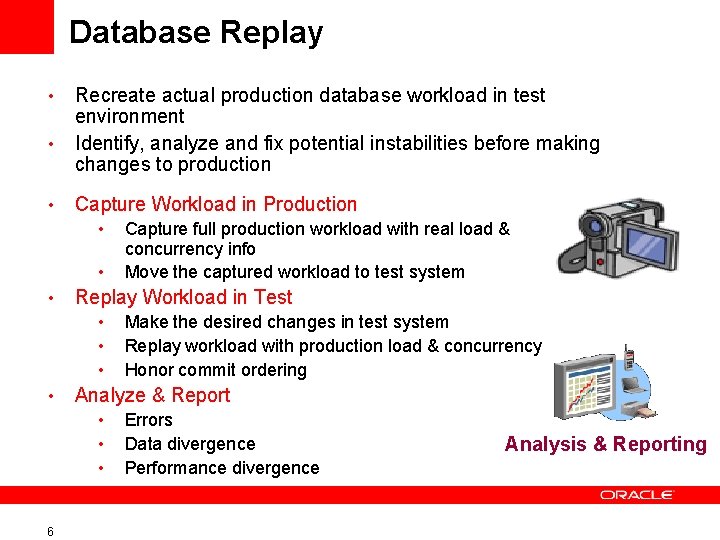

Database Replay • • • Recreate actual production database workload in test environment Identify, analyze and fix potential instabilities before making changes to production Capture Workload in Production • • • Replay Workload in Test • • Make the desired changes in test system Replay workload with production load & concurrency Honor commit ordering Analyze & Report • • • 6 Capture full production workload with real load & concurrency info Move the captured workload to test system Errors Data divergence Performance divergence Analysis & Reporting

Database Replay: Supported Changes Client … Client Changes Unsupported Middle Tier Changes Supported • Database Upgrades, Patches Recording of External Client Requests • Schema, Parameters • RAC nodes, Interconnect • OS Platforms, OS Upgrades • CPU, Memory • Storage • Etc. 7 Storage

Comparison of Load. Runner & DB Replay Testing e-Business Suite 80 24 4 20 20 5 0 0 2 Total Testing Time DB Replay: 2 weeks Load. Runner: 30 weeks 8 5

Why DB Replay? 150 Days 9 From: To: Artificial workloads Production workloads Partial workflows Complete workflows Months of development Days of development Manual intensive Automated High risk Low risk 10 Days

Database Replay Overview 10

Step 1: Workload Capture • • All external client requests captured in binary files System background, internal activity excluded Production System Client … Client File System • Minimal performance overhead for capture • For RAC, shared and local file system supported • Specify interesting time period for capture, e. g. , peak workload, month-end processing, etc. Middle Tier File 1 File 2 … File n Storage 11

Capture Options • Workload can be filtered to customize what is captured • Filter Types • Inclusion Filters: Specifies which sessions should be captured • Exclusion Filters: Specifies which sessions should NOT be captured • Filter Attributes: Workload capture can be filtered using any of the following session attributes • User • Program • Module • Action • Service • Session ID • Workload capture can be run on-demand or scheduled to run at later time 12

Step 2: Process Workload Files • Setup test system • Logically similar data as production • Use RMAN to physically restore production db from backup • Use Snapshot standby • Use imp/exp, Data Pump, etc. • Processing transforms captured • • data into replay files and generates necessary meta-data Must be done on same version of database as replay system Recommended to process on test system Once processed, workload can be replayed many times For RAC, if using local file system, copy all capture files to single location for replay 13 Test System File 1 File 2 … … File n Metadata Capture Files Replay Files

Step 3: Replay Workload Replay Driver is a special client program that consumes processed workload and sends requests to the replay system • Replay requests preserve timing, concurrency and dependencies seen on the capture system • Replay Driver consists of one or more clients. For workloads with high concurrency, it may be necessary to start multiple clients to drive workload • Once all replay clients are started, workload replay is then initiated by user • 14 Replay Driver Replay Client File 1 File 2 … File n Metadata Replay Files

Replay Options • Synchronized Replay • • • Workload is replayed in full synchronized mode Exact same concurrency and timing as production workload Transaction commit order is honored Ensures minimal data divergence Unsynchronized Replay • • Workload can be replayed in unsynchronized mode Useful for load/stress testing High Data Divergence Three (3) parameters provided to control degree of synchronization • Think time synchronization • Commit order synchronization • Connect (logon) time synchronization 15

Replay Options • Unsynchronized Replay Parameters • Think time synchronization • Controls think time between database calls • Auto (Default): Adjusts think time so as to maintain captured request rate • Percentage • 0% No think time, highest possible request rate • <100% Higher request rate • 100% Exact think time • >100% Lower request rate • Commit order synchronization • Controls commit order between transactions • In asynchronous mode, commit order not honored – transactions are committed as soon as commit call is issued • Connect (logon) time synchronization • Controls when sessions are created • 0%: All session are connected immediately • 100% (Default): Sessions connect at same time as in captured system 16

Replay Options • Number of Replay Clients • Configurable by user • Client Calibration Advisor recommends number of replay clients needed for specific workload • Replay clients are multithreaded clients that can drive multiple workload sessions each 17

Analysis & Reporting • • Comprehensive reports are provided for analysis purposes There (3) types of divergences are reported • • • 18 Data Divergence: Number of rows returned by each call are compared and divergences reported Error Divergence: For each call error divergence is reported • New: Error encountered during replay not seen during capture • Not Found: Error encountered during capture not seen during replay • Mutated: Different error produced in replay than during capture Performance Divergence • Capture and Replay Report: Provides high-level performance information • ADDM Report: Provides in-depth performance analysis • AWR, ASH Report: Facilitates comparative or skew analysis

Workload Types Supported • All SQL (DML, DDL, PLSQL) with practically all types of binds • Full LOB functionality (Cursor based and direct OCI) • Local transactions • Login/Logoffs • Session switching • Limited PL/SQL RPCs Limitations • Direct path load, import/export • OCI based object navigation (ADTs) and REF binds • Streams, non-PL/SQL based AQ • Distributed txns, remote describe/commit operations • Flashback • Shared Server 19

EM Interface: DB Replay Summary 20

Best Practices • Capture • • Test System Setup • • • Processing workload has performance overhead and can possibly take a long time Process workload on test system after rather than production system Replay • 21 Ensure data in test is identical to production as of capture start time to minimize data divergence during replay Use RMAN backup/restore or Snapshot Standby feature to setup test system Reset system clock to same time as production if application logic involves SYSDATE usage Process Workload • • Provide adequate disk space for captured workload (binary files) Database restart (Optional): Recommended to minimize divergence during replay For RAC, use shared file system Use Client Calibration Advisor to identify number of replay clients needed to replay workload properly

DB Replay Security Model • Any “Non-SYS” user with DBA Role • SYSDBA role is not mandatory • Does not have to be the user whose workload is captured • “Execute” privileges on DBMS_WORLOAD_CAPTURE/REPLAY procedures • DBMS_WORKLOAD_CAPTURE • START_CAPTURE, FINISH_CAPTURE, REPORT(), ADD_FILTER, DELETE_FILTER • DBMS_WORKLOAD_REPLAY • PROCESS_CAPTURE, INITIALIZE_REPLAY, PREPARE_REPLAY(), START_REPLAY(), CANCEL(), REPORT, ADD_FILTER, REMAP_CONNECTION • Capture and Replay user can be different if they have appropriate privileges 22

SQL Performance Analyzer (SPA) 23

SQL Performance Analyzer (SPA) • • • Test impact of change on SQL query performance Capture SQL workload in production including statistics & bind variables Re-execute SQL queries in test environment Client … Client Production Test Re-execute SQL Queries Middle Tier Capture SQL Oracle DB Storage 24 … … Use SQL Tuning Advisor to tune regression

SPA Benefits • • Enables identification of SQL performance regressions before end -users can be impacted SPA can help with any change that impacts SQL execution plan • • • 25 DB upgrades Optimizer statistics refresh New indexes, Materialized Views, Partitions, etc. Fix regressed SQL with SQL Tuning Advisor and SQL Plan Baselines Integrated with query optimizer Captures SQL workload with low overhead

SQL Performance Analyzer Workflow Make Change Initial Environment Execute Production SQL and Gather Stats Tune SQL Post-Change Environment Re-execute SQL Tuning Advisor Execute SQL Compare Performance 26 Tuned Environment

Step 1: Capture SQL Workload • • Cursor Cache SQL Tuning Set (STS) used to store SQL workload STS includes: • SQL Text • Bind variables • Execution plans • Execution statistics Incremental Capture • Incremental capture used to populate STS from cursor cache over a time period • SQL tuning set’s filtering and ranking capabilities filters out undesirable SQL Tuning Set Production Database 27

Step 2: Move SQL Workload to Test System Cursor Cache SQL Tuning Set Production Database • • • 28 Export/Import SQL Tuning Set Test Database Copy SQL tuning set to staging table (“pack”) Transport staging table to test system (datapump, db link, etc. ) Copy SQL tuning set from staging table (“unpack”)

Step 3: Execute SQL Before Making Change SQL Tuning Set • “Before change” SQL performance version is the SQL workload performance baseline • SQL Performance = execution plans + execution statistics • Test-Execute SQL in SQL tuning set: • produce execution plans and statistics • execute SQL serially (no concurrency) • every SQL is executed only once • skip DDL/DML effects • Explain plan SQL in SQL tuning set to generate SQL plans only Fetch Next SQL Test Execute Execution Plan & Statistics Save Result nge e Cha r o f e B SQL Performance Analyzer 29

Step 4: Execute SQL After Making Change • Manually implement the planned change: SQL Tuning Set Fetch Next SQL Test Execute Execution Plan & Statistics • • • Database upgrade Implementation of tuning recommendations Schema changes Statistics gathering Database parameter changes, • OS/hardware changes, etc. Re-execute SQL after change: • Save Result Completed • hange e. C Befor After SQL Performance Analyzer 30 ge Chan Test-Execute SQL in SQL tuning set to generate SQL execution plans and statistics Explain plan SQL in SQL tuning set to generate SQL plans

Step 5: Compare & Analyze Performance Completed • Completed ange re Ch Befo Compare performance using different metrics • • ge Chan After Compare SQL Performance • SPA Report shows impact of change for each SQL • • Analysis Report • • SQL Performance Analyzer 31 Elapsed Time Parse Time Execute Elapsed Time Execute CPU Time Buffer Gets Disk Reads Disk Writes Optimizer Cost Improved SQL Regressed SQL Unchanged SQL with Errors Tune regressed SQL using SQL Tuning Advisor Analysis results can be used to seed SQL Plan Management repository

EM Interface: SPA Report 32

SPA Security Model • Based on DBMS_SQLTUNE/SQL Tuning Advisor • Requires “Advisor”, “Administer [Any] SQL Tuning” privileges • Create/Drop/Alter SQL Profile privileges 33

Q& A
