Oracle Cloud Infrastructure icon set for topologies and diagrams 04. 30. 21 Quick guide and assets 1 Copyright © 2021 Oracle and/or its affiliates.

Quick guide: introduction Thank you for downloading Oracle Cloud Infrastructure Icon Set for topologies and diagrams. The primary use of these icons is to create a unified visual language to illustrate topologies for Oracle’s Cloud products and services. The symbols, graphics, and connecting lines on the following pages will help you accurately communicate complex offerings, systems, ideas into an Oracle-branded diagram. Please read the following quick guide to get started. This set is available in the following formats: • EPS (for print) • SVG • PNG • PPT Copyright © 2021 Oracle and/or its affiliates.

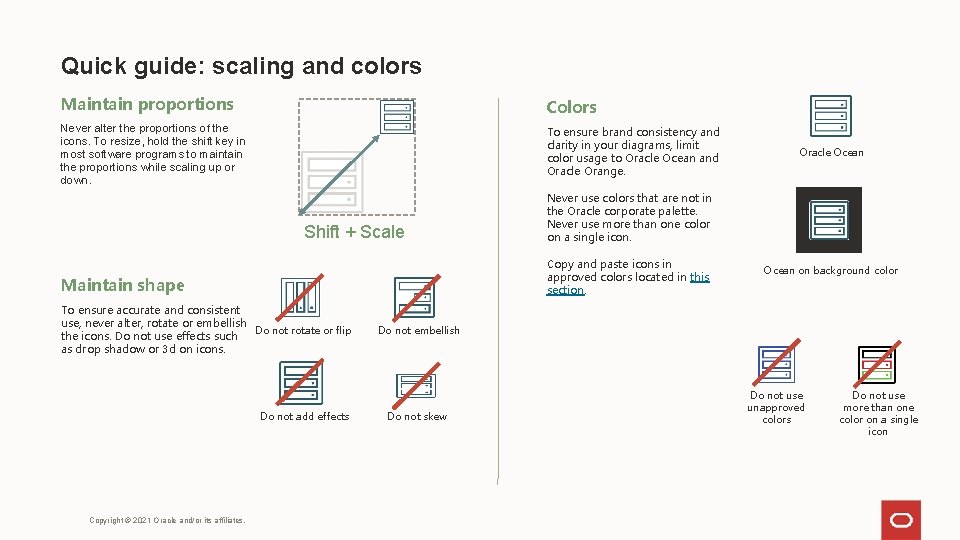

Quick guide: scaling and colors Maintain proportions Colors Never alter the proportions of the icons. To resize, hold the shift key in most software programs to maintain the proportions while scaling up or down. To ensure brand consistency and clarity in your diagrams, limit color usage to Oracle Ocean and Oracle Orange. Shift + Scale To ensure accurate and consistent use, never alter, rotate or embellish Do not rotate or flip the icons. Do not use effects such as drop shadow or 3 d on icons. Do not add effects Copyright © 2021 Oracle and/or its affiliates. Never use colors that are not in the Oracle corporate palette. Never use more than one color on a single icon. Copy and paste icons in approved colors located in this section. Maintain shape Oracle Ocean on background color Do not embellish Do not skew Do not use unapproved colors Do not use more than one color on a single icon

Quick guide: groupings Groupings Compartment Groupings Use the boxes on the right when depicting groupings in your diagrams. Groupings are divided by logical and physical resource groupings and are indicated by dashed or solid outlines. Icons and captions are not mandatory but should be used if they add clarity and purpose to your diagram. Compartment Location Groupings Oracle Cloud Infrastructure (Region) Tenancy See this slide for sample usage. Availability Domain Fault Domain Text Outlines & Text Backgrounds & Outlines Network Groupings VCN Subnet 00. 0. 0/00 4 Copyright © 2021 Oracle and/or its affiliates. Other Groupings User Group Tier

Quick guide: connectors Connectors Use connectors to connect icons to other icons or icons within different groupings. Indicate flow using arrows. You may rotate or additional connectors to your diagram. Connectors should be kept in the dark Brown color as indicated below. Sample Connectors Correct Usage with Icons and Groupings Subnet A 10. 0. 30. 0/24 Keep the width of the pegs consistent within your diagram for visual clarity. Keep lines aligned and centered at each joint. Keep a small gap between icon and connector for visual clarity. See this slide for sample usage. Use this dark brown color for connectors 5 Copyright © 2021 Oracle and/or its affiliates. Subnet B 10. 0. 30. 0/24

Sample diagram: icons, groupings and connectors Oracle Cloud Infrastructure (Region) Availability Domain 1 VCN Server Subnet A 10. 0. 30. 0/24 Bastian Server AD 3 Availability Domain 2 Subnet D 10. 0. 30. 0/24 Loaded Balanced Web Servers Virtual Machine VPN Bare Metal Compute Dynamic Routing Gateway Identity & Access Management Load Balancer Virtual Machine Subnet B 10. 0. 30. 0/24 Primary Database System 6 Copyright © 2021 Oracle and/or its affiliates. Subnet C 10. 0. 30. 0/24 Standby Database System Auditing Object Storage

Oracle Cloud Infrastructure Icons Oracle Ocean with captions Copyright © 2021 Oracle and/or its affiliates.

OCI Icons Networking & Connectivity Compute Local Peering Gateway Bare Metal Compute Virtual Machine Roving Edge Infrastructure Virtual Cloud Network Load Balancer Dedicated Region Customer Data Center Remote Peering Gateway Containers Container Engine For Kubernetes Persistent Volume Service Gateway Internet Gateway Backbone Router Autoscaling Instance Pools Local Storage Dynamic Routing Gateway Route Table NAT Gateway CDN VPN Functions Container Registry Security Lists Firewall Customer Premises Equipment Fast. Connect DNS Network Switch Copyright © 2021 Oracle and/or its affiliates.

OCI Icons Observability and Management Governance Oracle Cloud Identifier Logging Policies Groups Auditing Tagging Compartments User Security Queuing Workflow Notifications Search Email Delivery Resource Manager Healthcheck Events Monitoring Alarms VCN Flow Logs Marketplace Service Connector Hub DDo. S Protection WAF Cloud Guard Key Vault Encryption Key Management Maximum Security Zone IAM Copyright © 2021 Oracle and/or its affiliates. API Services API Gateway API Service

OCI Icons Data management Storage Analytics Data Catalog Database Migration Streaming Block Storage Object Storage Data Integration Autonomous Data Warehouse Cloud Service Autonomous Database Buckets Back Up/ Restore Data Transfer My. SQL Database Service Exadata Cloud Data Flow Database System Autonomous Data Warehouse Big Data No SQL Database Cloud Service Autonomous Transaction Processing ATP Copyright © 2021 Oracle and/or its affiliates. Elastic Performance File Storage Block Storage Cloning Storage Gateway Analytics Cloud Service Low Code APEX Oracle Machine Learning Artificial Intelligence Other Cloud Service Data Science
