Выбирайте правильные передатчики под каждую задачу Обзор передатчиков семейства OPTOPUS © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 2 | Karsten Brauner PM Sep-21
Сдвоенный HFC передатчик LX 12 HFC передатчик прямого канала повышенной плотности монтажа § § Два передатчика в одном модуле Optopus Расширенный диапазон частот для DOCSIS 3. 1 – 10 … 1218 MHz § Неохлаждаемый DFB лазер – +3 d. Bm или +6 d. Bm § § § Регулируемое OMI, контрольная точка для OMI Система АРУ (Automatic Level Control - ALC) Очень низкое энергопотребление – Всего 6 W на каждый передатчик § Переключаемая контрольная точка – Контроль входного сигнала или OMI после ALC © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 4 | Karsten Brauner PM Sep-21

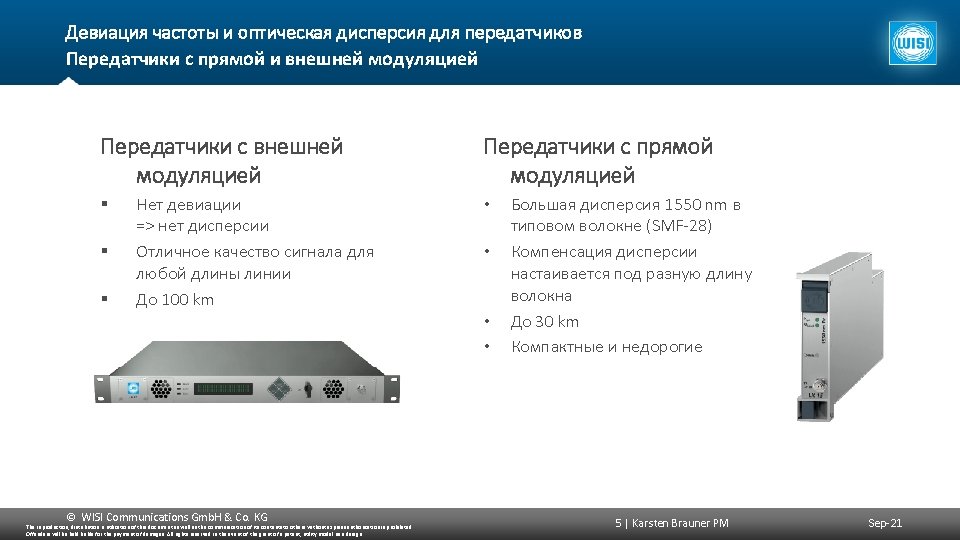

Вещательный передатчик LX 15 Передатчик C-диапазона с прямой модуляцией § § § § Расширенный диапазон частот для DOCSIS 3. 1 – 10 … 1218 MHz Выходная мощность 10 d. Bm Регулируемое OMI, контрольная точка для OMI Система АРУ (Automatic Level Control - ALC) Электронные предыскажения – обеспечивается высокая линейность Подавление SBS – обеспечивается качество сигнала в приложениях с высокими уровнями сигнала Компенсация дисперсии до 25 km/40 km © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 7 | Karsten Brauner PM Sep-21
Вещательные передатчики LX 15 S 2 хх0/4 xx 0 Передатчики с внешней модуляцией LX 15 S 2 xx 0 Одиночный Tx LX 15 S 4 xx 0 Сдвоенный Tx © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 9 | Karsten Brauner PM Sep-21
Вещательные передатчики LX 15 S 3 хх0 Передатчики с внешней модуляцией LX 15 S 3 xx 0 Одиночный Tx со встроенным EDFA © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 10 | Karsten Brauner PM Sep-21

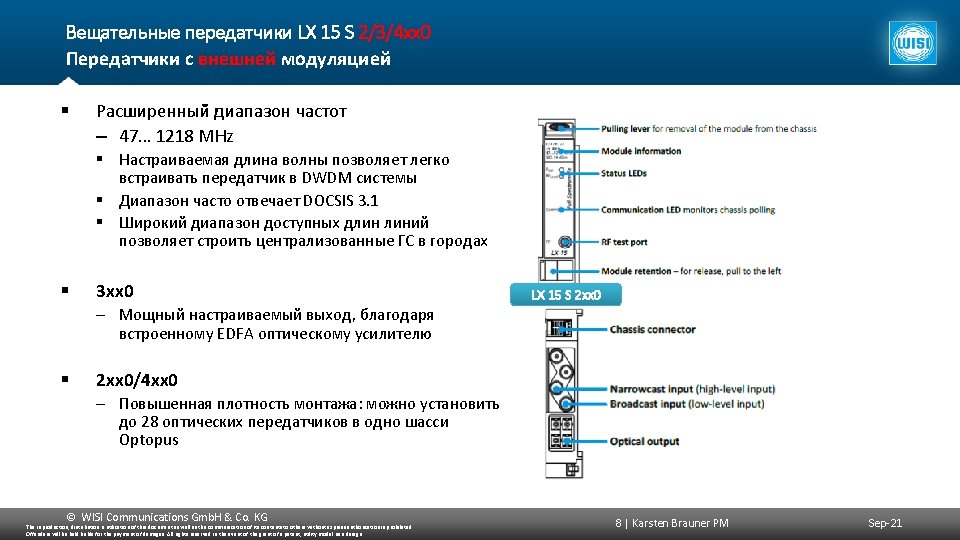

Вещательные передатчики LX 15 S 2/3/4 xx 0 Один передатчик для всех видов HFC § § Совместимы с DOCSIS 3. 1 Работа на длинные линии Дешевле стандартных передатчиков с внешней модуляцией Высокая плотность монтажа – до 28 передатчиков в однм шасси OPTOPUS § § Регулируемая выходная мощность Доступны варианты с фиксированными, DWDM и настраиваемыми длинами волн © WISI Communications Gmb. H & Co. KG The reproduction, distribution и utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model или design. 11 | Karsten Brauner PM Sep-21
