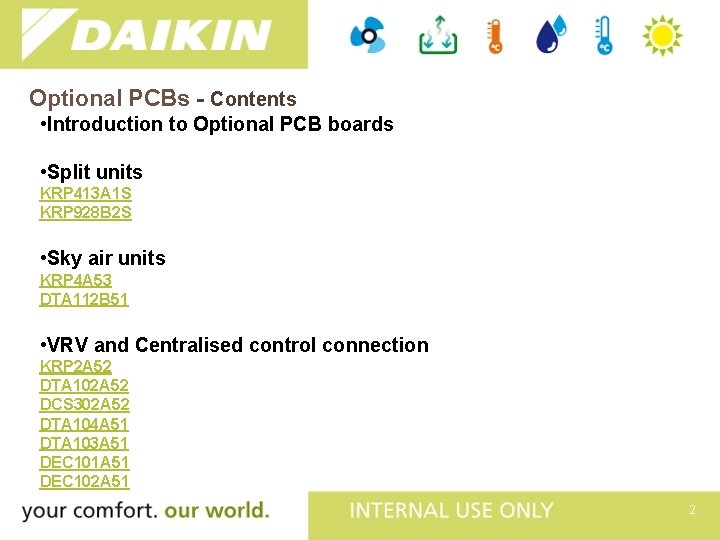

Optional PCBs - Contents • Introduction to Optional PCB boards • Split units KRP 413 A 1 S KRP 928 B 2 S • Sky air units KRP 4 A 53 DTA 112 B 51 • VRV and Centralised control connection KRP 2 A 52 DTA 102 A 52 DCS 302 A 52 DTA 104 A 51 DTA 103 A 51 DEC 101 A 51 DEC 102 A 51 2

Optional PCBs • KRPs and DTA boards are essentially interface boards that allow 2 way communication with an external source. • Each PCB can have numerous settings and function differently depending on the signal provided to them. • Not all KRPs and DTAs are compatible with every Fan coil unit due to how they connect. 3

Splits FVX, FVK, FLX, FLK, FDX, FDK, FTXS units. • KRP 413 A 1 S – Not for use with G series wall mounts!! – This board gives the ability to switch the units on & off remotely (from BMS or timeclock) BMS stands for Building Management System. This KRP is also capable of providing a fault run signal and has the ability to change the units operation. • 1 Per Fan Coil • Use KRP 928 A 2 S for G Series Wall mounts. • KRP 928 B 2 S – This board gives split units the ability to be linked to a Daikin centralised controller (I Controller etc …) via the F 1 F 2 communications loop. This board is also used for the G Series Wallmounts to provide the ability to switch the units on & off remotely • 1 Per Fan Coil 4

KRP 413 A 1 S Full installation manual • This KRP is for use with Daikin Split units (excluding G Series Wallmounts!) • This boards main function is to switch the units on & off remotely but can be used to provide a fault signal and although rarely used can also change fan speed and operation mode. • The KRP 413 A 1 S is designed to plug directly into the indoor PCB board in the S 21 Connector and then be mounted on the wall in the fixing box that is included. 5

KRP 413 A 1 S - Switches • As with most KRPs there are numerous settings on the PCB which change the functionally of how it operates. • There are 2 dip switches on the PCB SW 1 -1 & SW 1 -2. SW 1 -1 determines if the FCU remote manually overides the KRP on off signal. SW 1 -2 determines if the unit will auto restart. SW 1 -1 Selecting operation mode Off On SW 1 -2 Selecting On/Off when power is restored after power failure Off On All remote control buttons available Limited remote control buttons available. Allways Off if operation was in off mode before power failure, On if operation mode was on before power failure 6

KRP 413 A 1 S – On/Off signal The On Off signal is provided to the KRP using the S 1&S 2 contact on the left hand side of the board using either a Pulsed or Constant Contact volt free signal. Generally speaking in the UK a constant volt free contact is provided. A Volt free signal is a very low (usually milliamp) power signal that just has enough energy to close a relay Link 7

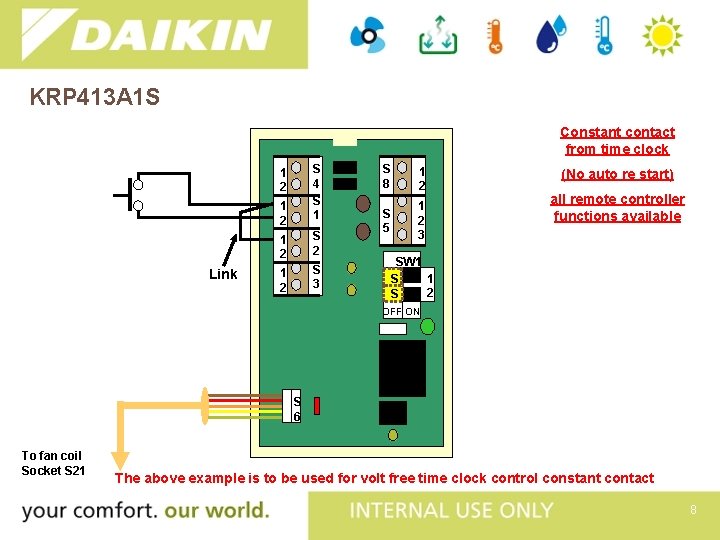

KRP 413 A 1 S Constant contact from time clock 1 2 S 4 S 1 1 2 S 2 1 2 S 3 1 2 Link S 8 1 2 S 5 1 2 3 (No auto re start) all remote controller functions available SW 1 1 S 2 S OFF ON S 6 To fan coil Socket S 21 The above example is to be used for volt free time clock control constant contact 8

KRP 413 A 1 S Link 1 2 S 4 1 2 S 1 1 2 S 2 1 2 S 3 S 8 1 2 S 5 1 2 3 Constant contact from time clock (auto re start) all remote controller functions available SW 1 1 S S 2 OFF ON S 6 To fan coil Socket S 21 The above example is to be used for volt free time clock control constant contact 9

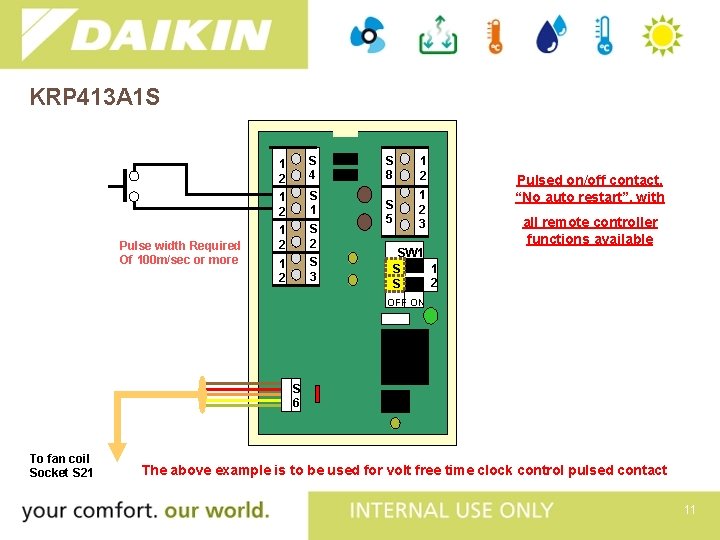

KRP 413 A 1 S • Pulse width Required Of 100 m/sec or more 1 2 1 2 S 4 S 1 S 2 S 3 S 8 1 2 S 5 1 2 3 Pulsed on/off contact, “auto restart”, with • all remote controller functions available SW 1 1 S S 2 OFF ON S 6 To fan coil Socket S 21 The above example is to be used for volt free time clock control pulsed contact 10

KRP 413 A 1 S Pulse width Required Of 100 m/sec or more 1 2 S 4 1 2 S 1 1 2 S 2 1 2 S 3 S 8 1 2 S 5 1 2 3 SW 1 1 S 2 S Pulsed on/off contact, “No auto restart”, with all remote controller functions available OFF ON S 6 To fan coil Socket S 21 The above example is to be used for volt free time clock control pulsed contact 11

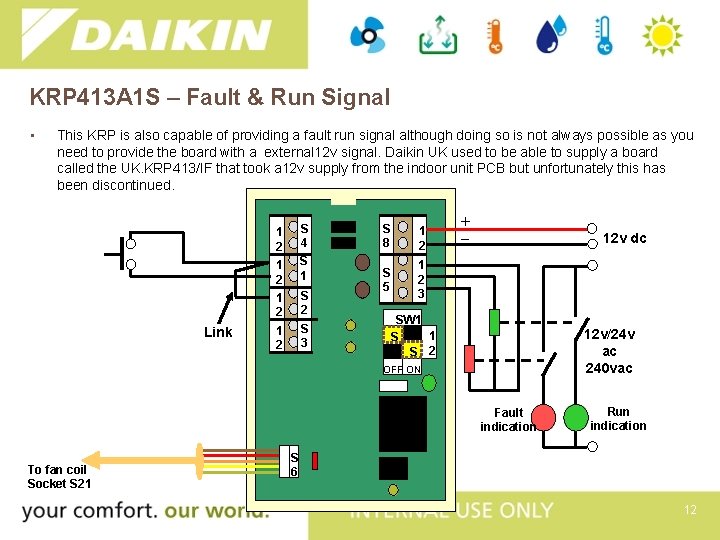

KRP 413 A 1 S – Fault & Run Signal • This KRP is also capable of providing a fault run signal although doing so is not always possible as you need to provide the board with a external 12 v signal. Daikin UK used to be able to supply a board called the UK. KRP 413/IF that took a 12 v supply from the indoor unit PCB but unfortunately this has been discontinued. Link 1 2 S 4 1 2 S 1 1 2 S 2 1 2 S 3 S 8 1 2 S 5 1 2 3 + _ 12 v dc SW 1 1 S S 2 12 v/24 v ac 240 vac OFF ON Fault indication To fan coil Socket S 21 Run indication S 6 12

KRP 413 A 1 S – Fault, Run & Fan speed & Mode slector • Although very really used this KRP also can be used to change the fan speed and operation mode. T/C System on (Low Fan speed signal) Medium speed High speed 1 2 S 4 S 1 1 2 1 2 S 3 Heating available 1 2 S 5 1 2 3 + 12 v dc _ SW 1 S 2 12 v/24 vac 240 vac OFF ON Fault indication Cooling available S 6 To fan coil Socket S 21 S 8 Run indication The above example is to be used for volt free time clock control constant contact, a remote Heat / cool input is required, and a remote Fan speed input. The remote controller is now purely available for temperature adjustment and air flow direction, no other functions are available 13

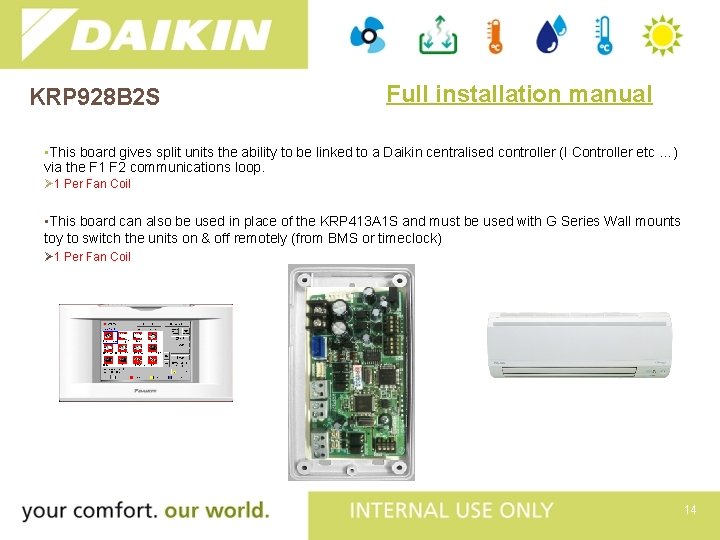

KRP 928 B 2 S Full installation manual • This board gives split units the ability to be linked to a Daikin centralised controller (I Controller etc …) via the F 1 F 2 communications loop. Ø 1 Per Fan Coil • This board can also be used in place of the KRP 413 A 1 S and must be used with G Series Wall mounts toy to switch the units on & off remotely (from BMS or timeclock) Ø 1 Per Fan Coil 14

KRP 928 B 2 S To connect the indoor units to a DIII net (F 1/F 2 communication, e. g. Centralised or ITouch Controller) S 1 Terminals are used to turn the unit on and off via a volt free signal Connection for connector harness (S 6) to room air conditioner (S 21) Group/Address numbers are set by the dip switches SW 1 SW 2 S 8 Terminals to supply a DC 12 V required to enable terminals S 5 Terminals are to provide a fault run signal in exactly the same way as the KRP 413 A 1 s SW 3 Switches; 1 – Japan / Europe 2 – Constant /pulsed input 3 – Forced stop settings switch 15

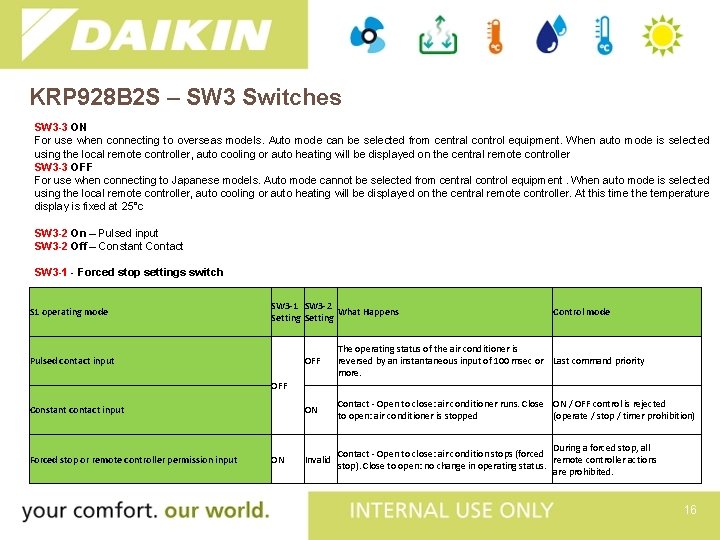

KRP 928 B 2 S – SW 3 Switches SW 3 -3 ON For use when connecting to overseas models. Auto mode can be selected from central control equipment. When auto mode is selected using the local remote controller, auto cooling or auto heating will be displayed on the central remote controller SW 3 -3 OFF For use when connecting to Japanese models. Auto mode cannot be selected from central control equipment. When auto mode is selected using the local remote controller, auto cooling or auto heating will be displayed on the central remote controller. At this time the temperature display is fixed at 25°c SW 3 -2 On – Pulsed input SW 3 -2 Off – Constant Contact SW 3 -1 - Forced stop settings switch S 1 operating mode SW 3 -1 SW 3 -2 What Happens Setting Pulsed contact input Control mode OFF The operating status of the air conditioner is reversed by an instantaneous input of 100 msec or Last command priority more. ON Contact - Open to close: air conditioner runs. Close ON / OFF control is rejected to open: air conditioner is stopped (operate / stop / timer prohibition) Invalid During a forced stop, all Contact - Open to close: air condition stops (forced remote controller actions stop). Close to open: no change in operating status. are prohibited. OFF Constant contact input Forced stop or remote controller permission input ON 16

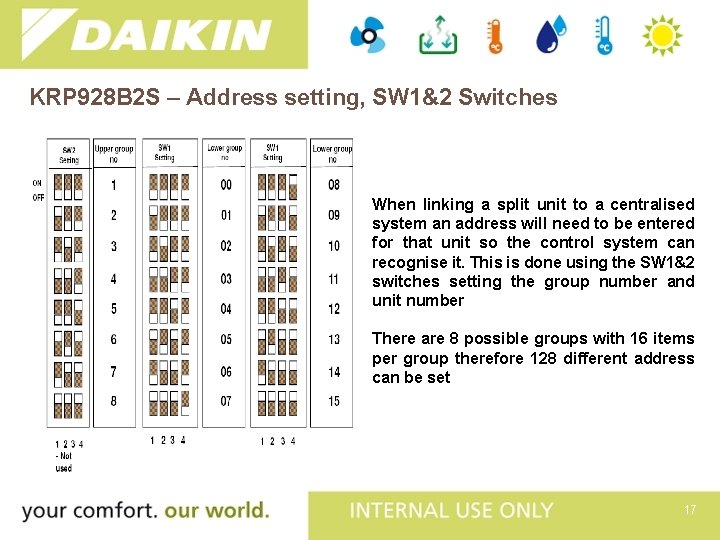

KRP 928 B 2 S – Address setting, SW 1&2 Switches When linking a split unit to a centralised system an address will need to be entered for that unit so the control system can recognise it. This is done using the SW 1&2 switches setting the group number and unit number There are 8 possible groups with 16 items per group therefore 128 different address can be set 17

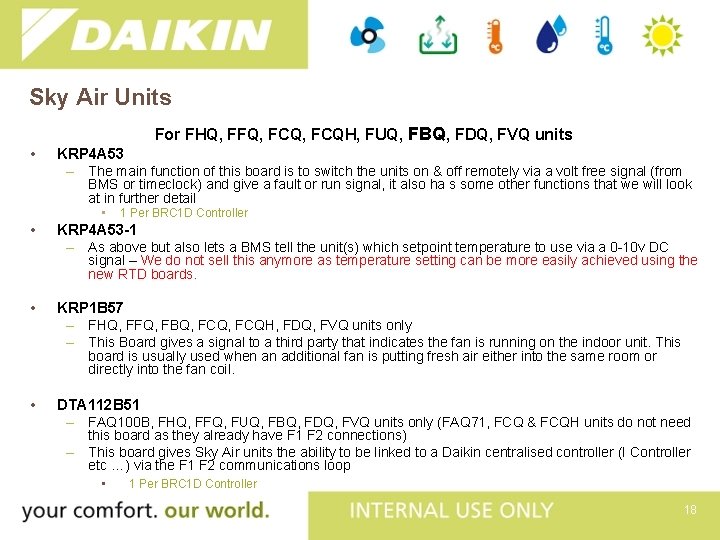

Sky Air Units For FHQ, FFQ, FCQH, FUQ, FBQ, FDQ, FVQ units • KRP 4 A 53 – The main function of this board is to switch the units on & off remotely via a volt free signal (from BMS or timeclock) and give a fault or run signal, it also ha s some other functions that we will look at in further detail • • 1 Per BRC 1 D Controller KRP 4 A 53 -1 – As above but also lets a BMS tell the unit(s) which setpoint temperature to use via a 0 -10 v DC signal – We do not sell this anymore as temperature setting can be more easily achieved using the new RTD boards. • KRP 1 B 57 – FHQ, FFQ, FBQ, FCQH, FDQ, FVQ units only – This Board gives a signal to a third party that indicates the fan is running on the indoor unit. This board is usually used when an additional fan is putting fresh air either into the same room or directly into the fan coil. • DTA 112 B 51 – FAQ 100 B, FHQ, FFQ, FUQ, FBQ, FDQ, FVQ units only (FAQ 71, FCQ & FCQH units do not need – this board as they already have F 1 F 2 connections) This board gives Sky Air units the ability to be linked to a Daikin centralised controller (I Controller etc …) via the F 1 F 2 communications loop • 1 Per BRC 1 D Controller 18

KRP 4 A 53 Full installation manual This commonly used adapter board is the most flexible and adaptable in the range. It can be used for: • • • Time clock control Fire shut down Remote temperature set point control. Run and fault indication. Disabling on, off and temperature buttons on remote controllers. • Using the remote controller P 1/P 2 wiring it can be connected to a maximum 16 fan coils all connected to the same remote controller. • The KRP is externally mounted in all current units apart from the FDQ and FXMQ FCUs and can no longer be mounted internal in the FBQ-C and FXSQ-P ducted units. A separate fixing box (UK. FB 2) is required 19

KRP 4 A 53 – Wiring Diagram 16 VOLT DC POWER SUPPLY AVAILABLE FROM FAN COIL SOCKET X 18 A D 1 W 1 D 2 W 3 P 1&P 2 TRANSMISION SIGNAL CABLES 1 BOARD REQUIRED PER 1 REMOTE CONTROLLER P 1 P 2 W 4 LEDH 10 P SS 1 LEDHAP EB 93741 OPERATION INDICATION REMOTE POWER SUPPLY AC 24 v/ AC 240 v DC 24 v RS 1 01 2 3 4 FAULT INDICATION SS 2 X 35 A P 1 P 2 _ B 1 B 2 BC A+ A ON / OFF VOLT FREE CONTACT FIRE SHUT DOWN CONTACT REMOTE TEMPERATURE ADJUSTMENT FACILITY OBTAINED BY VARIABLE RESISTANCE INPUT 20

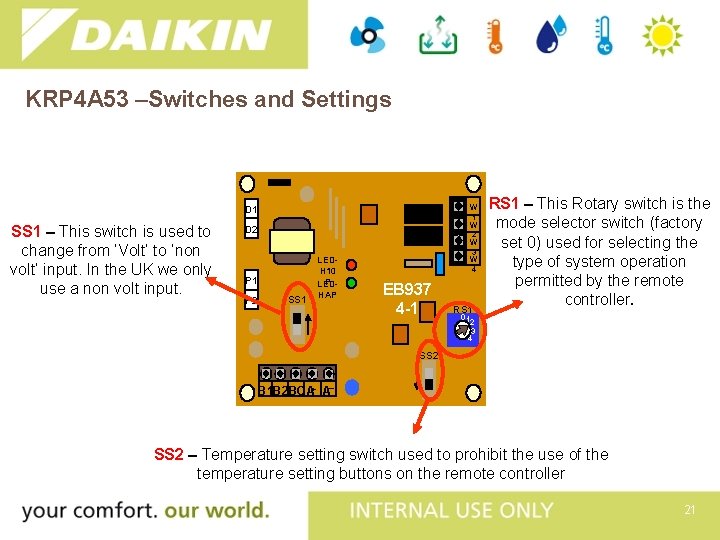

KRP 4 A 53 –Switches and Settings W 1 W 2 W 3 W 4 D 1 SS 1 – This switch is used to change from ‘Volt’ to ‘non volt’ input. In the UK we only use a non volt input. D 2 P 1 P 2 SS 1 LEDH 10 P LEDHAP EB 937 4 -1 RS 1 – This Rotary switch is the mode selector switch (factory set 0) used for selecting the type of system operation permitted by the remote controller. 01 2 3 4 SS 2 _ B 1 B 2 BC A+ A SS 2 – Temperature setting switch used to prohibit the use of the temperature setting buttons on the remote controller 21

KRP 4 A 53 – RS Switch Settings RS 1 01 2 3 4 Run and Trip indication only Set RS 1 to 0 The B 1, B 2 and BC terminals will not be operational. Run and trip signals will be available from terminals W 1 -W 2 & W 3 -W 4 Computer rooms etc Set: RS 1 to 1 SS 1 to Non Volt SS 2 to Impossible When terminals B 1 to BC are shorted the fan coils will run, it will be impossible to turn the fan coils off from the remote controller or adjust the set point temperature. When terminals B 1 to BC are opened the fan coils will stop and you will not be able to start the fan coils from the remote controller. 22

KRP 4 A 53 – RS Switch Settings RS 1 01 2 3 4 Offices etc Set: RS 1 to 2 SS 1 to Non Volt When terminals B 1 to BC are shorted the fan coils will run, it will be possible to turn the fan coils off and back on from the remote controller. When terminals B 1 to BC are opened the fan coils will stop and you will not be able to start the fan coils from the remote controller. Meeting rooms etc Set: RS 1 to 4 SS 1 to Non Volt When terminals B 1 to BC are shorted the fan coils will not run, it will be possible to turn the fan coils on and back off from the remote controller. When terminals B 1 to BC are opened the fan coils will stop and you will not be able to start the fan coils from the remote controller. 23

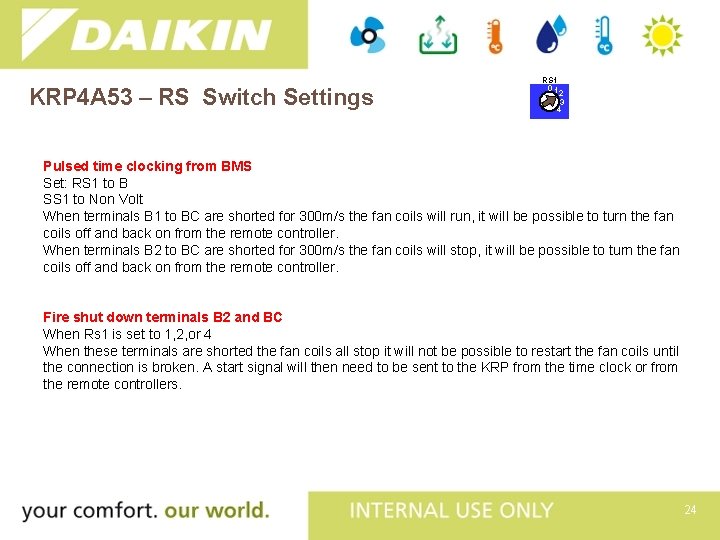

KRP 4 A 53 – RS Switch Settings RS 1 01 2 3 4 Pulsed time clocking from BMS Set: RS 1 to B SS 1 to Non Volt When terminals B 1 to BC are shorted for 300 m/s the fan coils will run, it will be possible to turn the fan coils off and back on from the remote controller. When terminals B 2 to BC are shorted for 300 m/s the fan coils will stop, it will be possible to turn the fan coils off and back on from the remote controller. Fire shut down terminals B 2 and BC When Rs 1 is set to 1, 2, or 4 When these terminals are shorted the fan coils all stop it will not be possible to restart the fan coils until the connection is broken. A start signal will then need to be sent to the KRP from the time clock or from the remote controllers. 24

KRP 4 A 53 A+ A- Terminals • Temperature setting via the KRP is possible (as per below) but generally speaking quite difficult to do as a variable resistance (Ohms) signal needs to be sent to the A+A- terminals. Daikin used to offer the KRP 4 A 53 -1 to change the temperature via a 0 -10 v signal this has been withdrawn and an RTD board should now be recommended for temperature setting. SS 2 Use the S 22 switch to determine if temperature setting is also available using the remote control (possible/impossible) 25

KRP 4 A 53 26

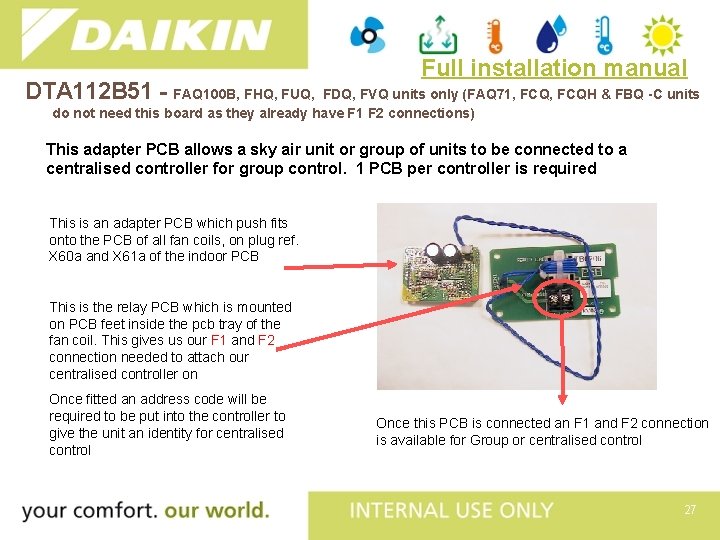

DTA 112 B 51 - FAQ 100 B, FHQ, FUQ, Full installation manual FDQ, FVQ units only (FAQ 71, FCQH & FBQ -C units do not need this board as they already have F 1 F 2 connections) This adapter PCB allows a sky air unit or group of units to be connected to a centralised controller for group control. 1 PCB per controller is required This is an adapter PCB which push fits onto the PCB of all fan coils, on plug ref. X 60 a and X 61 a of the indoor PCB This is the relay PCB which is mounted on PCB feet inside the pcb tray of the fan coil. This gives us our F 1 and F 2 connection needed to attach our centralised controller on Once fitted an address code will be required to be put into the controller to give the unit an identity for centralised control Once this PCB is connected an F 1 and F 2 connection is available for Group or centralised control 27

DTA 112 B 51 – FFQ Models F 1 and F 2 connection wires On the FFQ models you only require the adapter pcb which push fits onto the main pcb. The 2 core blue cable then wires into the spare F 1 and F 2 terminals on the indoor fan coil terminal block 28

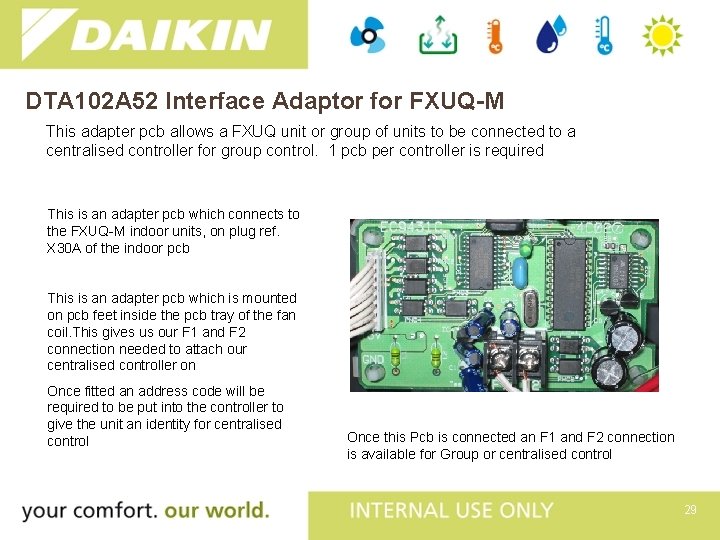

DTA 102 A 52 Interface Adaptor for FXUQ-M This adapter pcb allows a FXUQ unit or group of units to be connected to a centralised controller for group control. 1 pcb per controller is required This is an adapter pcb which connects to the FXUQ-M indoor units, on plug ref. X 30 A of the indoor pcb This is an adapter pcb which is mounted on pcb feet inside the pcb tray of the fan coil. This gives us our F 1 and F 2 connection needed to attach our centralised controller on Once fitted an address code will be required to be put into the controller to give the unit an identity for centralised control Once this Pcb is connected an F 1 and F 2 connection is available for Group or centralised control 29

KRP 2 A 52 • Full installation manual This board is essentially the same as the KRP 4 A 53 but gives the ability to switch an entire VRV system or VAM unit on & off remotely via a volt free signal and also the ability to give a fault or run signal. It also has all the other functionality of the KRP 4 A 53 • 1 Per F 1 F 2 loop • Cannot be used when a centralised controller is used on the system • Using the centralised F 1/F 2 wiring it can be connected to a Max 64 fan coils or 10 condensing units. 30

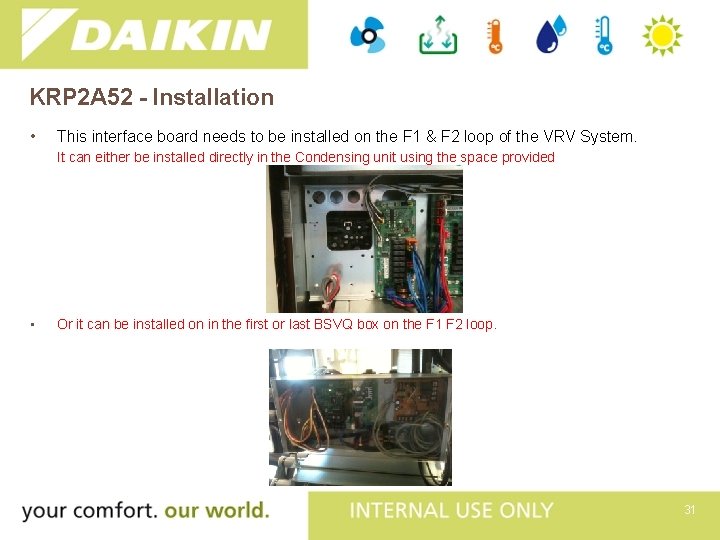

KRP 2 A 52 - Installation • This interface board needs to be installed on the F 1 & F 2 loop of the VRV System. It can either be installed directly in the Condensing unit using the space provided • Or it can be installed on in the first or last BSVQ box on the F 1 F 2 loop. 31

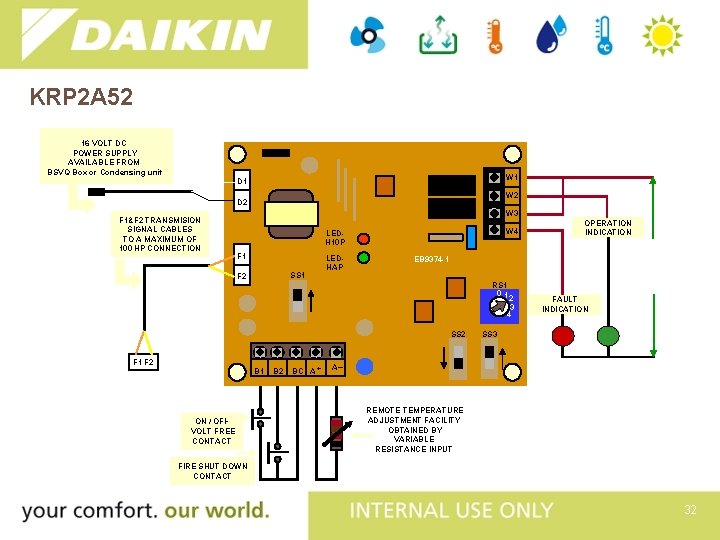

KRP 2 A 52 16 VOLT DC POWER SUPPLY AVAILABLE FROM BSVQ Box or Condensing unit W 1 D 1 W 2 D 2 F 1&F 2 TRANSMISION SIGNAL CABLES TO A MAXIMUM OF 100 HP CONNECTION W 3 W 4 LEDH 10 P F 1 SS 1 F 2 LEDHAP EB 9374 -1 RS 1 01 2 3 4 SS 2 F 1 F 2 B 1 ON / OFF VOLT FREE CONTACT B 2 BC A + A OPERATION INDICATION FAULT INDICATION SS 3 _ REMOTE TEMPERATURE ADJUSTMENT FACILITY OBTAINED BY VARIABLE RESISTANCE INPUT FIRE SHUT DOWN CONTACT 32

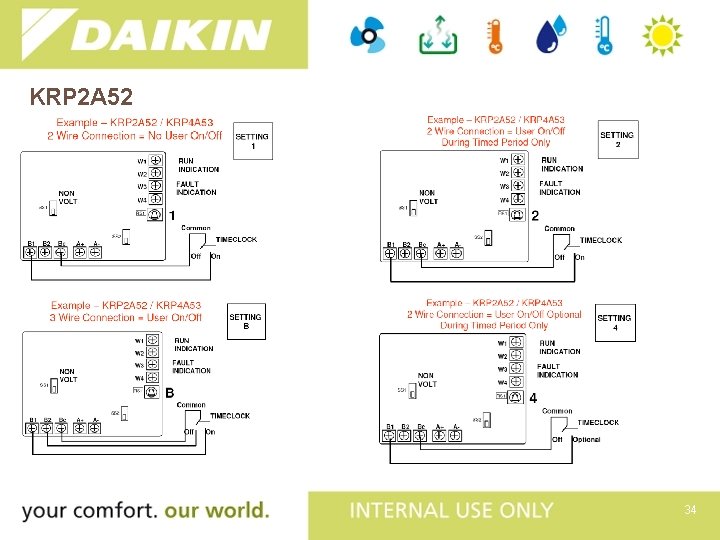

KRP 2 A 52 SS 1 Up position = volt free Start /stop signal SS 1 Down position = voltage Start/stop signal H 10 P red led normal out light on when wiring problem W 1 D 1 W 3 W 4 LEDH 10 P LEDHAP F 1 SS 2 Down position = remote controller Temperature adjustment possible EB 9374 -1 SS 1 F 2 RS 1 01 2 3 4 HAP green LED normal blinking SS 2 B 1 SS 3 Down position = Individual “fan coil” Run & fault monitoring SS 3 up position = All fan coils Run & fault monitoring SS 2 Up position = remote controller Temperature adjustment impossible W 2 D 2 BC A + A R/C ON/OFF AVAILABLE SS 3 RS 1 = 1 _ RS 1 = 2 RS 1 = 4 Temperature required °C 16 Resistance required 0. 0 5. 0 13. 8 22. 4 31. 0 39. 4 48. 2 56. 6 65. 2 73. 8 82. 4 91. 0 99. 4 108. 6117. 2125. 8134. 2 | | | | | 3. 4 11. 6 20. 0 28. 4 36. 4 44. 8 52. 8 61. 2 69. 4 77. 8 85. 8 94. 0 102. 2110. 4119. 2127. 4 140. 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 NO T/C OFF UNIT RUN YES NO POSS NO NO NO YES T/C ON 32 33

KRP 2 A 52 34

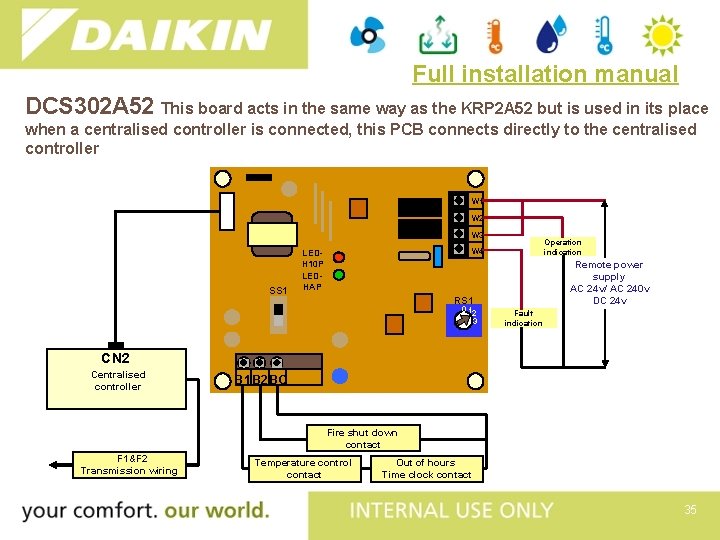

Full installation manual DCS 302 A 52 This board acts in the same way as the KRP 2 A 52 but is used in its place when a centralised controller is connected, this PCB connects directly to the centralised controller W 1 W 2 W 3 SS 1 Operation indication W 4 LEDH 10 P LEDHAP Remote power supply AC 24 v/ AC 240 v DC 24 v RS 1 01 2 3 Fault indication CN 2 Centralised controller B 1 B 2 BC Fire shut down contact F 1&F 2 Transmission wiring Temperature control contact Out of hours Time clock contact 35

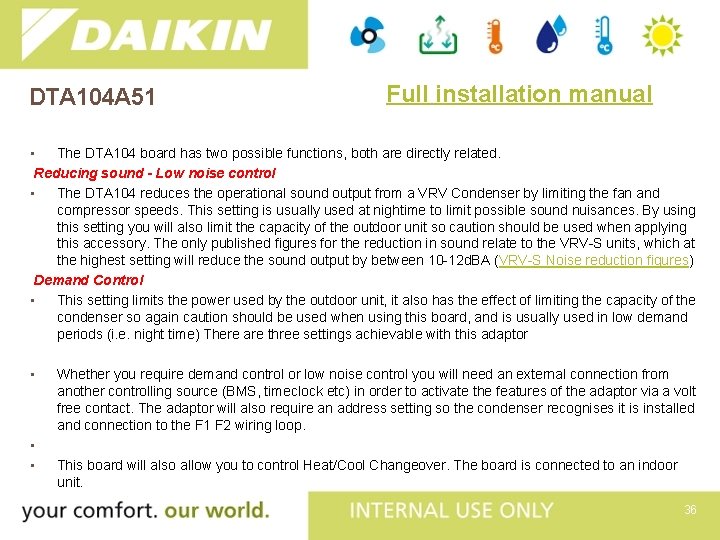

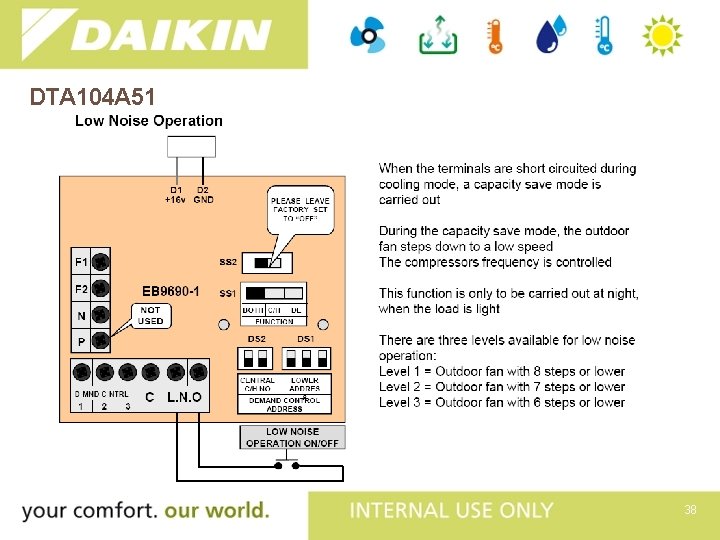

DTA 104 A 51 Full installation manual • The DTA 104 board has two possible functions, both are directly related. Reducing sound - Low noise control • The DTA 104 reduces the operational sound output from a VRV Condenser by limiting the fan and compressor speeds. This setting is usually used at nightime to limit possible sound nuisances. By using this setting you will also limit the capacity of the outdoor unit so caution should be used when applying this accessory. The only published figures for the reduction in sound relate to the VRV-S units, which at the highest setting will reduce the sound output by between 10 -12 d. BA (VRV-S Noise reduction figures) Demand Control • This setting limits the power used by the outdoor unit, it also has the effect of limiting the capacity of the condenser so again caution should be used when using this board, and is usually used in low demand periods (i. e. night time) There are three settings achievable with this adaptor • • • Whether you require demand control or low noise control you will need an external connection from another controlling source (BMS, timeclock etc) in order to activate the features of the adaptor via a volt free contact. The adaptor will also require an address setting so the condenser recognises it is installed and connection to the F 1 F 2 wiring loop. This board will also allow you to control Heat/Cool Changeover. The board is connected to an indoor unit. 36

DTA 104 A 51 37

DTA 104 A 51 38

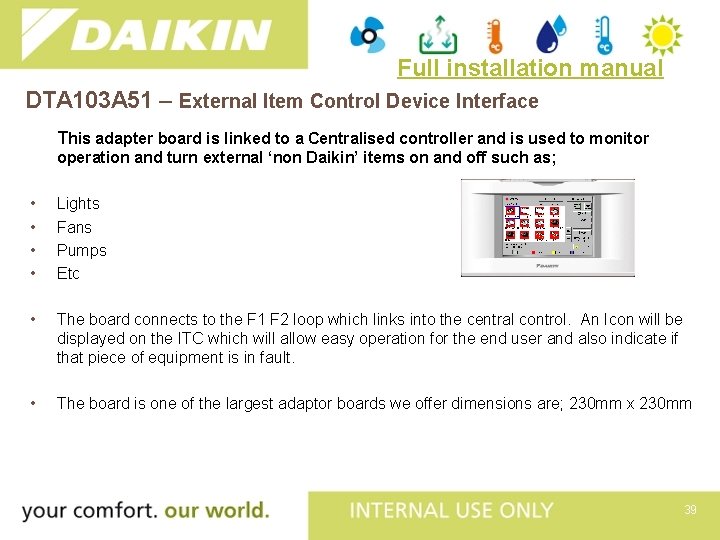

Full installation manual DTA 103 A 51 – External Item Control Device Interface This adapter board is linked to a Centralised controller and is used to monitor operation and turn external ‘non Daikin’ items on and off such as; • • Lights Fans Pumps Etc • The board connects to the F 1 F 2 loop which links into the central control. An Icon will be displayed on the ITC which will allow easy operation for the end user and also indicate if that piece of equipment is in fault. • The board is one of the largest adaptor boards we offer dimensions are; 230 mm x 230 mm 39

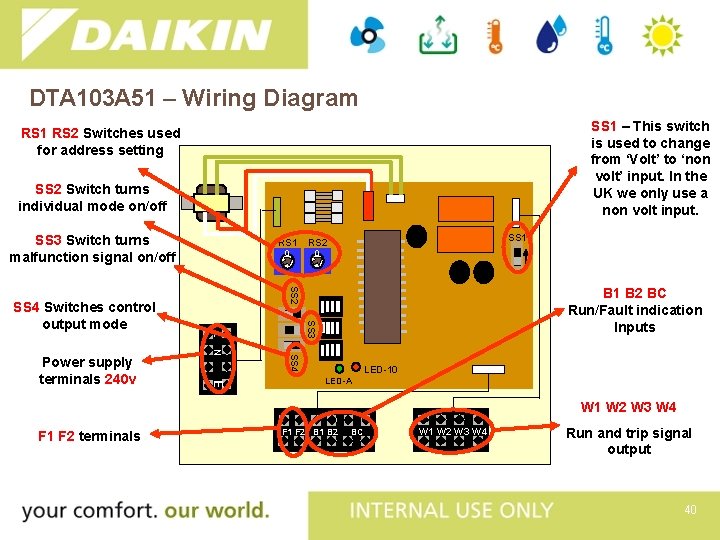

DTA 103 A 51 – Wiring Diagram SS 1 – This switch is used to change from ‘Volt’ to ‘non volt’ input. In the UK we only use a non volt input. RS 1 RS 2 Switches used for address setting SS 2 Switch turns individual mode on/off SS 3 Switch turns malfunction signal on/off 0 0 SS 1 B 2 BC Run/Fault indication Inputs SS 2 SS 3 SS 4 N E Power supply terminals 240 v RS 2 L SS 4 Switches control output mode RS 1 LED-10 LED-A W 1 W 2 W 3 W 4 F 1 F 2 terminals F 1 F 2 B 1 B 2 BC W 1 W 2 W 3 W 4 Run and trip signal output 40

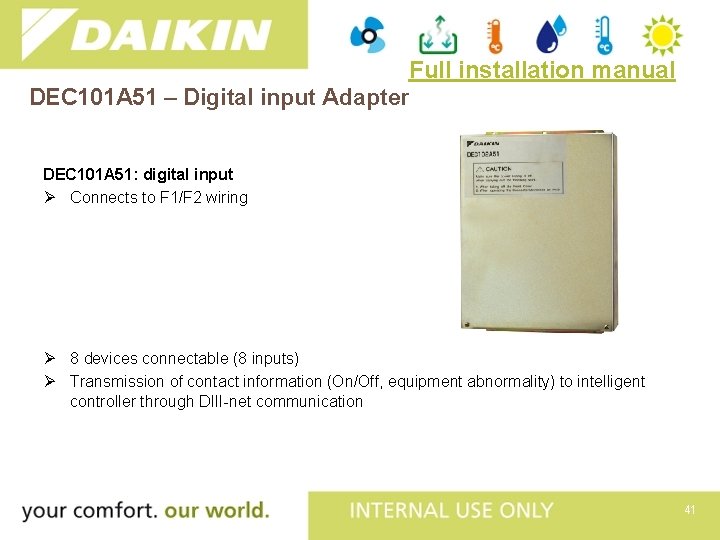

Full installation manual DEC 101 A 51 – Digital input Adapter DEC 101 A 51: digital input Ø Connects to F 1/F 2 wiring Ø 8 devices connectable (8 inputs) Ø Transmission of contact information (On/Off, equipment abnormality) to intelligent controller through DIII-net communication 41

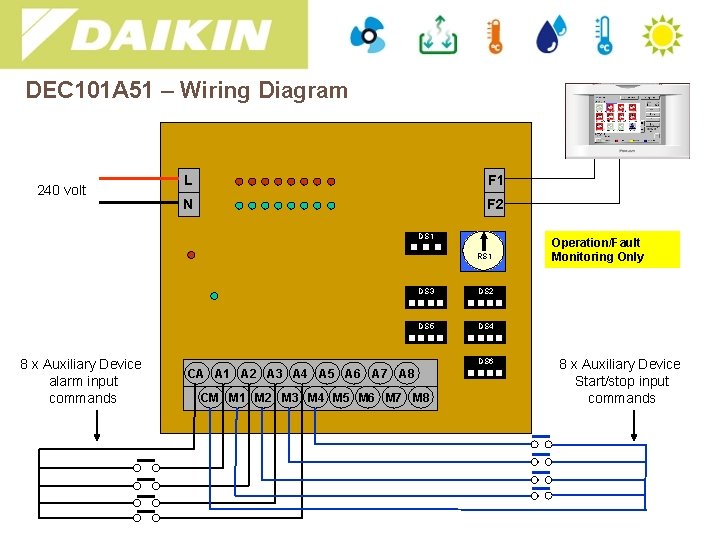

DEC 101 A 51 – Wiring Diagram 240 volt L F 1 N F 2 DS 1 RS 1 8 x Auxiliary Device alarm input commands DS 3 DS 2 DS 5 DS 4 DS 6 CA A 1 A 2 A 3 A 4 A 5 A 6 A 7 A 8 CM M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8 Operation/Fault Monitoring Only 8 x Auxiliary Device Start/stop input commands 42

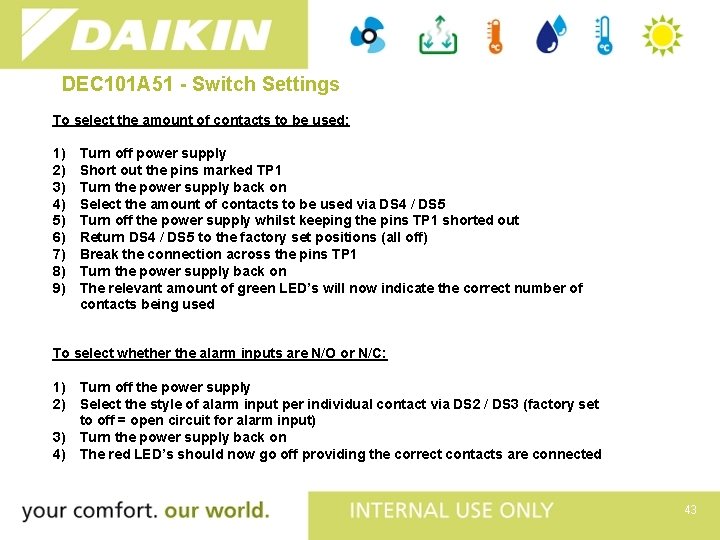

DEC 101 A 51 - Switch Settings To select the amount of contacts to be used: 1) 2) 3) 4) 5) 6) 7) 8) 9) Turn off power supply Short out the pins marked TP 1 Turn the power supply back on Select the amount of contacts to be used via DS 4 / DS 5 Turn off the power supply whilst keeping the pins TP 1 shorted out Return DS 4 / DS 5 to the factory set positions (all off) Break the connection across the pins TP 1 Turn the power supply back on The relevant amount of green LED’s will now indicate the correct number of contacts being used To select whether the alarm inputs are N/O or N/C: 1) Turn off the power supply 2) Select the style of alarm input per individual contact via DS 2 / DS 3 (factory set to off = open circuit for alarm input) 3) Turn the power supply back on 4) The red LED’s should now go off providing the correct contacts are connected 43

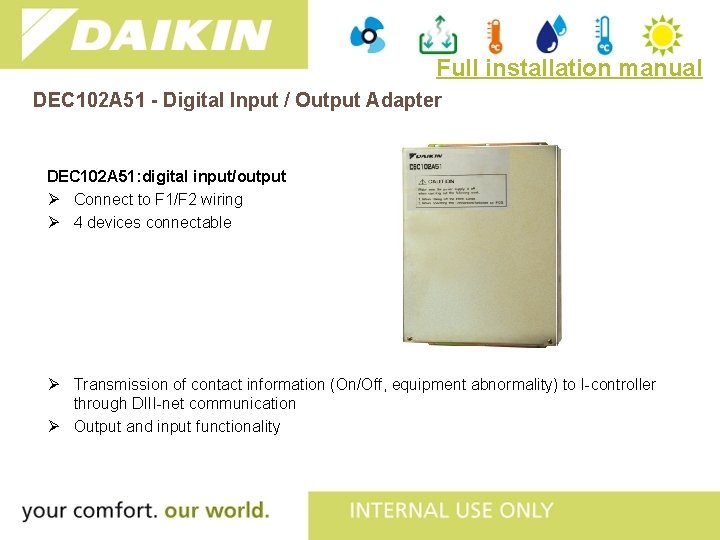

Full installation manual DEC 102 A 51 - Digital Input / Output Adapter DEC 102 A 51: digital input/output Ø Connect to F 1/F 2 wiring Ø 4 devices connectable Ø Transmission of contact information (On/Off, equipment abnormality) to I-controller through DIII-net communication Ø Output and input functionality

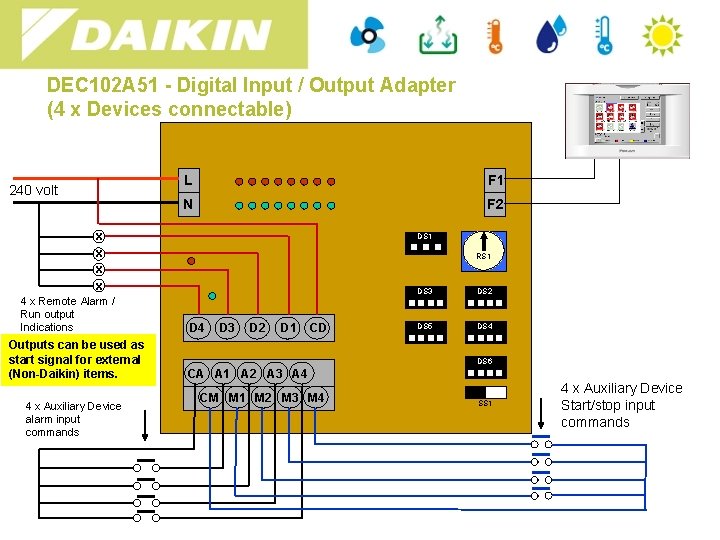

DEC 102 A 51 - Digital Input / Output Adapter (4 x Devices connectable) 240 volt L F 1 N F 2 x x 4 x Remote Alarm / Run output Indications Outputs can be used as start signal for external (Non-Daikin) items. 4 x Auxiliary Device alarm input commands DS 1 RS 1 D 4 D 3 D 2 D 1 CD DS 3 DS 2 DS 5 DS 4 DS 6 CA A 1 A 2 A 3 A 4 CM M 1 M 2 M 3 M 4 SS 1 4 x Auxiliary Device Start/stop input commands 45

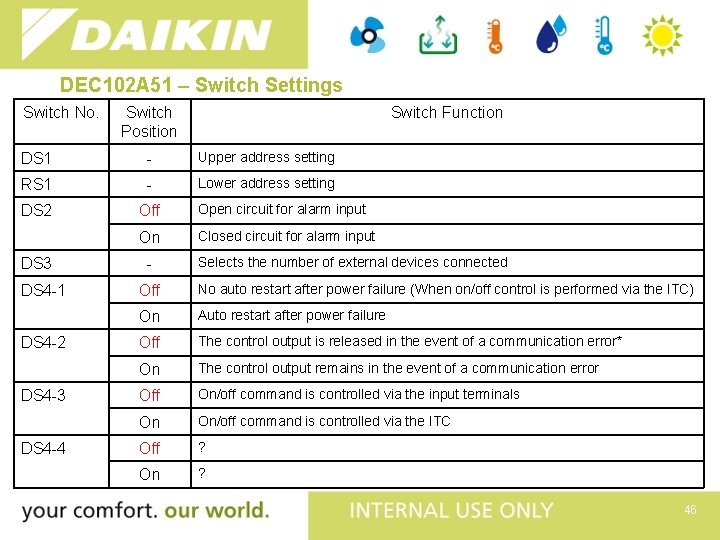

DEC 102 A 51 – Switch Settings Switch No. Switch Position Switch Function DS 1 - Upper address setting RS 1 - Lower address setting DS 2 Off Open circuit for alarm input On Closed circuit for alarm input DS 3 DS 4 -1 DS 4 -2 DS 4 -3 DS 4 -4 - Selects the number of external devices connected Off No auto restart after power failure (When on/off control is performed via the ITC) On Auto restart after power failure Off The control output is released in the event of a communication error* On The control output remains in the event of a communication error Off On/off command is controlled via the input terminals On On/off command is controlled via the ITC Off ? On ? 46

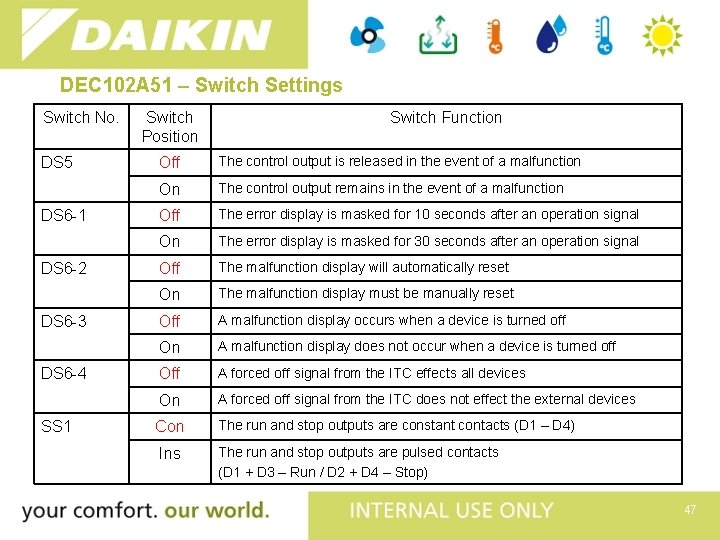

DEC 102 A 51 – Switch Settings Switch No. DS 5 DS 6 -1 DS 6 -2 DS 6 -3 DS 6 -4 SS 1 Switch Position Switch Function Off The control output is released in the event of a malfunction On The control output remains in the event of a malfunction Off The error display is masked for 10 seconds after an operation signal On The error display is masked for 30 seconds after an operation signal Off The malfunction display will automatically reset On The malfunction display must be manually reset Off A malfunction display occurs when a device is turned off On A malfunction display does not occur when a device is turned off Off A forced off signal from the ITC effects all devices On A forced off signal from the ITC does not effect the external devices Con The run and stop outputs are constant contacts (D 1 – D 4) Ins The run and stop outputs are pulsed contacts (D 1 + D 3 – Run / D 2 + D 4 – Stop) 47

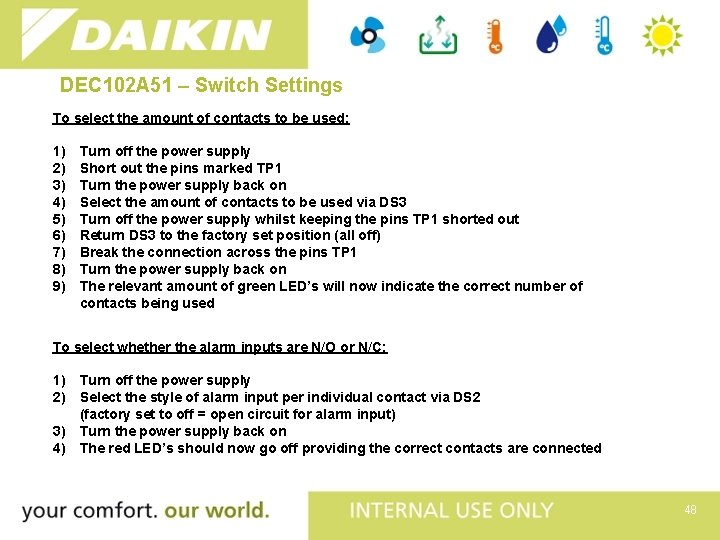

DEC 102 A 51 – Switch Settings To select the amount of contacts to be used: 1) 2) 3) 4) 5) 6) 7) 8) 9) Turn off the power supply Short out the pins marked TP 1 Turn the power supply back on Select the amount of contacts to be used via DS 3 Turn off the power supply whilst keeping the pins TP 1 shorted out Return DS 3 to the factory set position (all off) Break the connection across the pins TP 1 Turn the power supply back on The relevant amount of green LED’s will now indicate the correct number of contacts being used To select whether the alarm inputs are N/O or N/C: 1) Turn off the power supply 2) Select the style of alarm input per individual contact via DS 2 (factory set to off = open circuit for alarm input) 3) Turn the power supply back on 4) The red LED’s should now go off providing the correct contacts are connected 48
