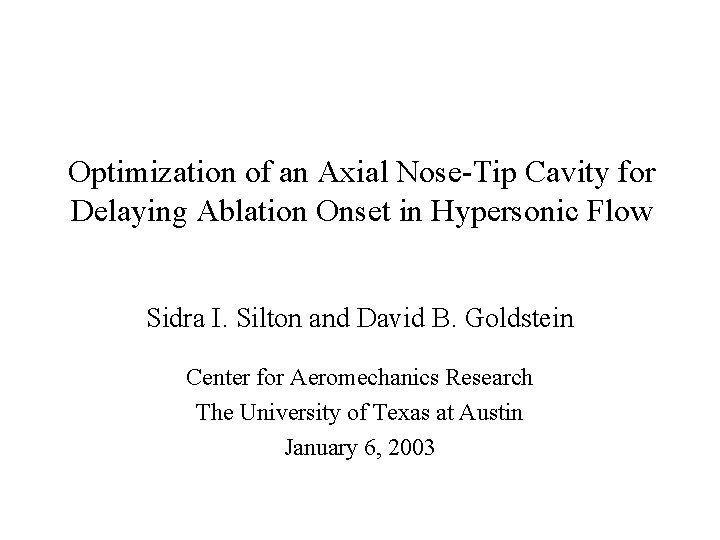

Optimization of an Axial Nose-Tip Cavity for Delaying Ablation Onset in Hypersonic Flow Sidra I. Silton and David B. Goldstein Center for Aeromechanics Research The University of Texas at Austin January 6, 2003

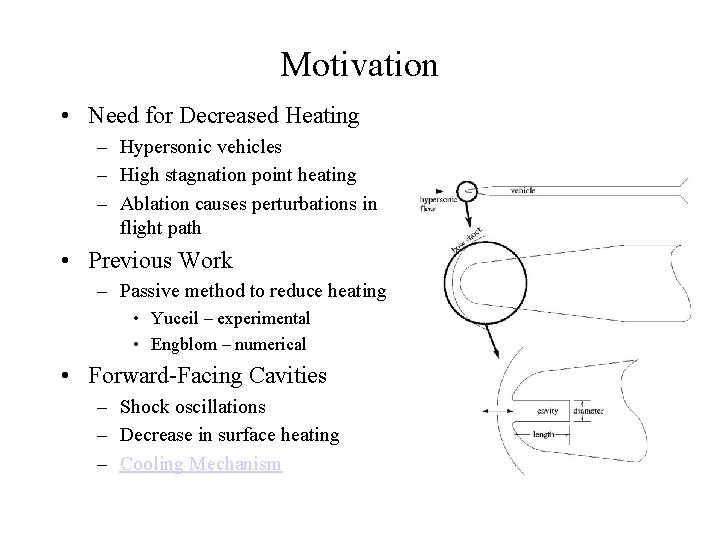

Motivation • Need for Decreased Heating – Hypersonic vehicles – High stagnation point heating – Ablation causes perturbations in flight path • Previous Work – Passive method to reduce heating • Yuceil – experimental • Engblom – numerical • Forward-Facing Cavities – Shock oscillations – Decrease in surface heating – Cooling Mechanism

Cooling Mechanism

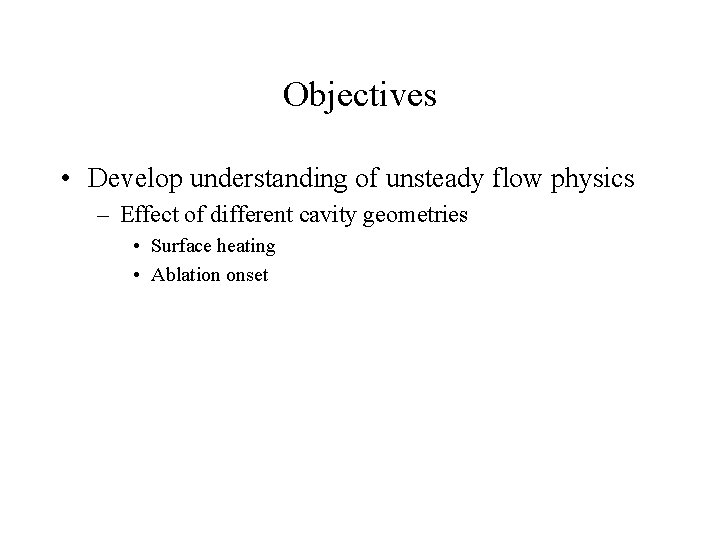

Objectives • Develop understanding of unsteady flow physics – Effect of different cavity geometries • Surface heating • Ablation onset

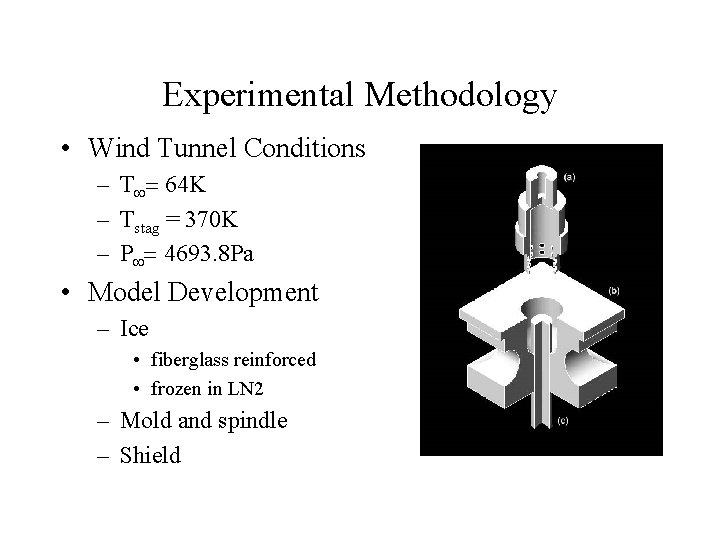

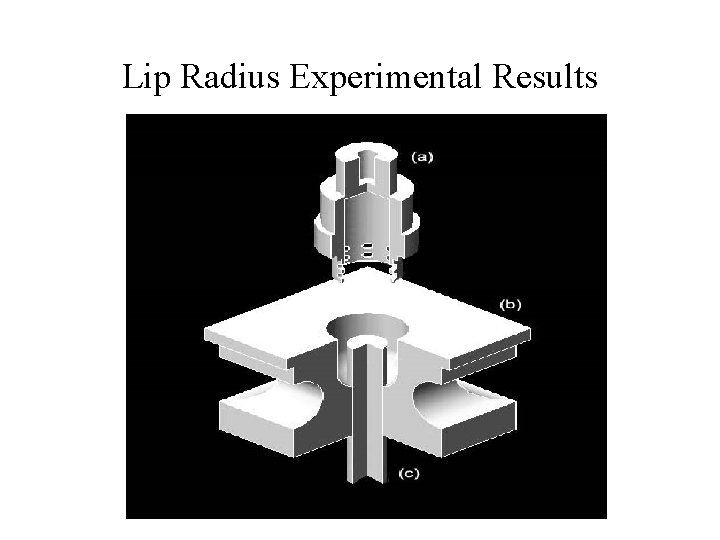

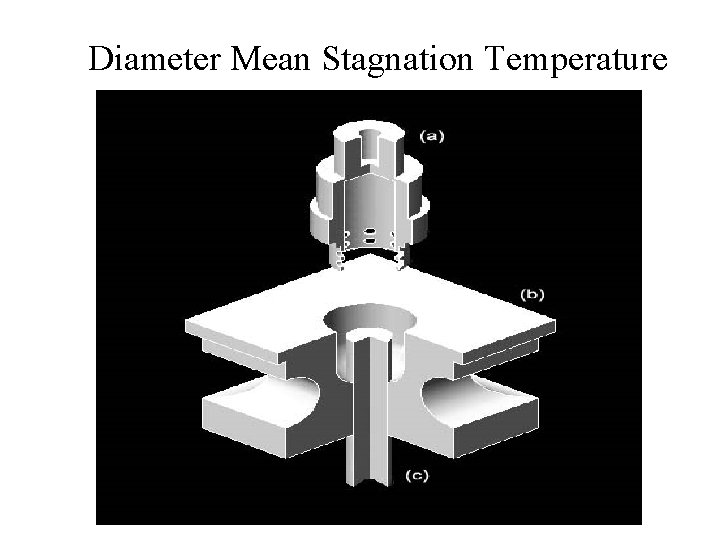

Experimental Methodology • Wind Tunnel Conditions – T¥= 64 K – Tstag = 370 K – P¥= 4693. 8 Pa • Model Development – Ice • fiberglass reinforced • frozen in LN 2 – Mold and spindle – Shield

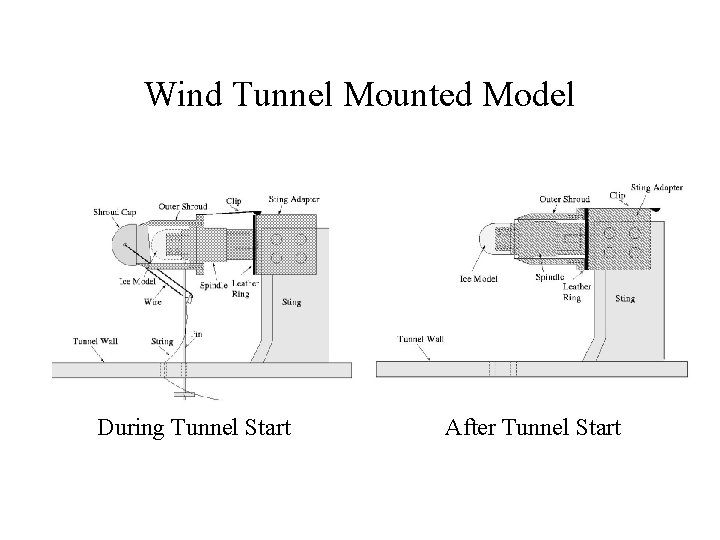

Wind Tunnel Mounted Model During Tunnel Start After Tunnel Start

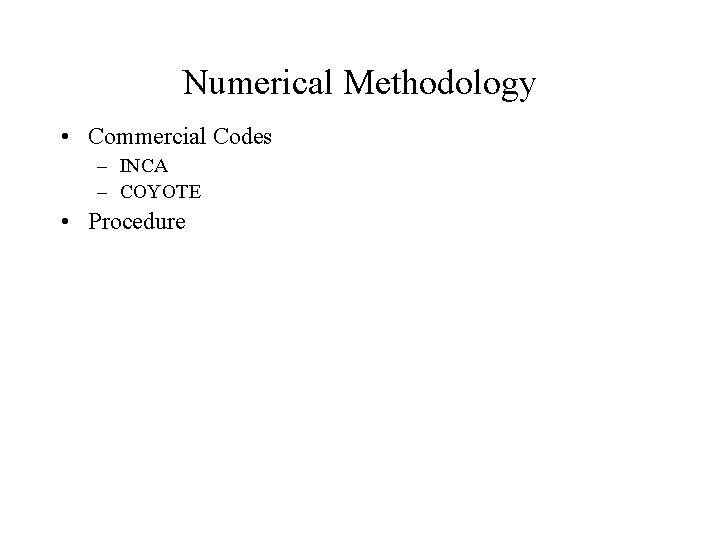

Numerical Methodology • Commercial Codes – INCA – COYOTE • Procedure

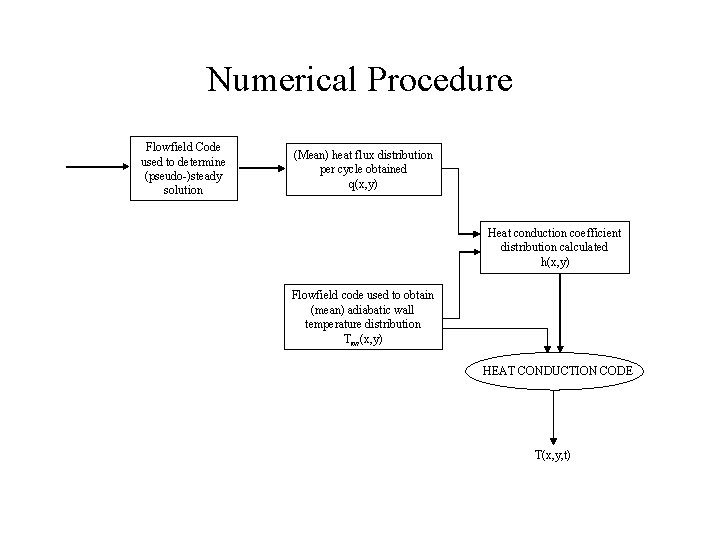

Numerical Procedure Flowfield Code used to determine (pseudo-)steady solution (Mean) heat flux distribution per cycle obtained q(x, y) Heat conduction coefficient distribution calculated h(x, y) Flowfield code used to obtain (mean) adiabatic wall temperature distribution Taw(x, y) HEAT CONDUCTION CODE T(x, y, t)

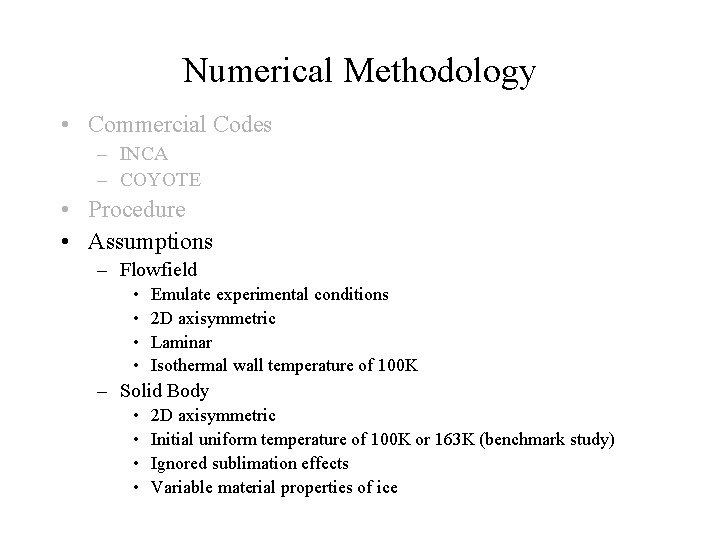

Numerical Methodology • Commercial Codes – INCA – COYOTE • Procedure • Assumptions – Flowfield • • Emulate experimental conditions 2 D axisymmetric Laminar Isothermal wall temperature of 100 K – Solid Body • • 2 D axisymmetric Initial uniform temperature of 100 K or 163 K (benchmark study) Ignored sublimation effects Variable material properties of ice

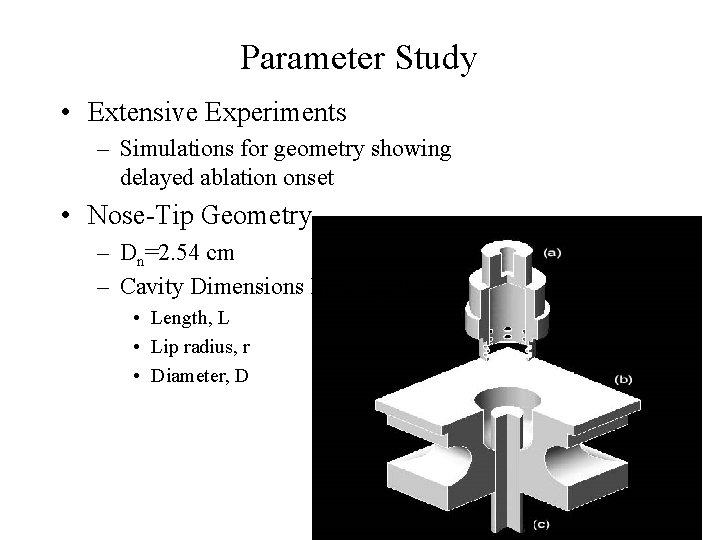

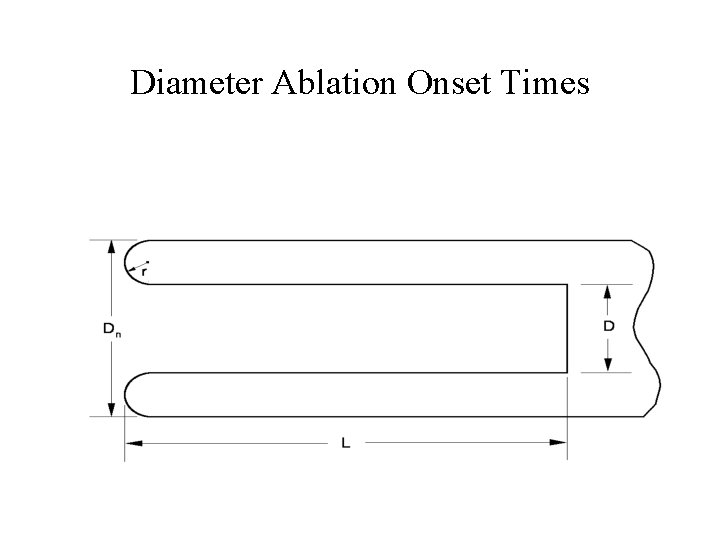

Parameter Study • Extensive Experiments – Simulations for geometry showing delayed ablation onset • Nose-Tip Geometry – Dn=2. 54 cm – Cavity Dimensions Investigated • Length, L • Lip radius, r • Diameter, D

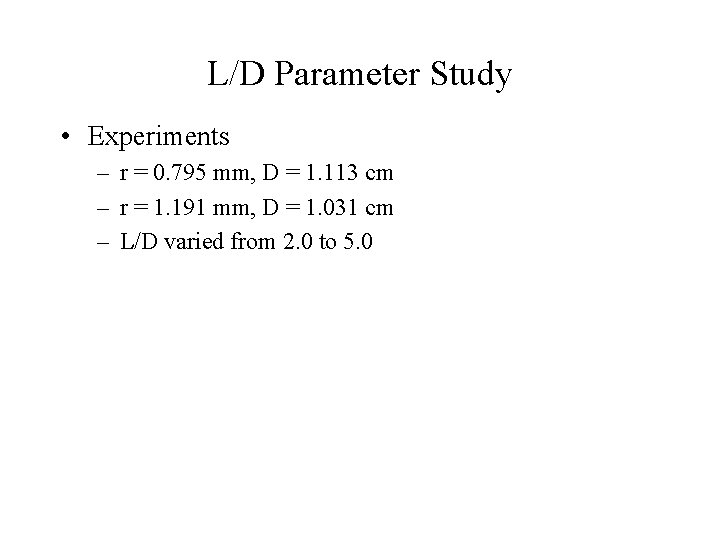

L/D Parameter Study • Experiments – r = 0. 795 mm, D = 1. 113 cm – r = 1. 191 mm, D = 1. 031 cm – L/D varied from 2. 0 to 5. 0

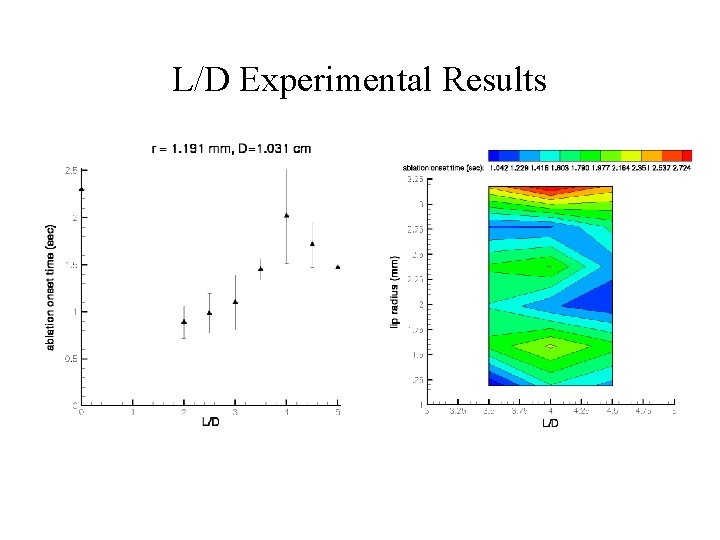

L/D Experimental Results

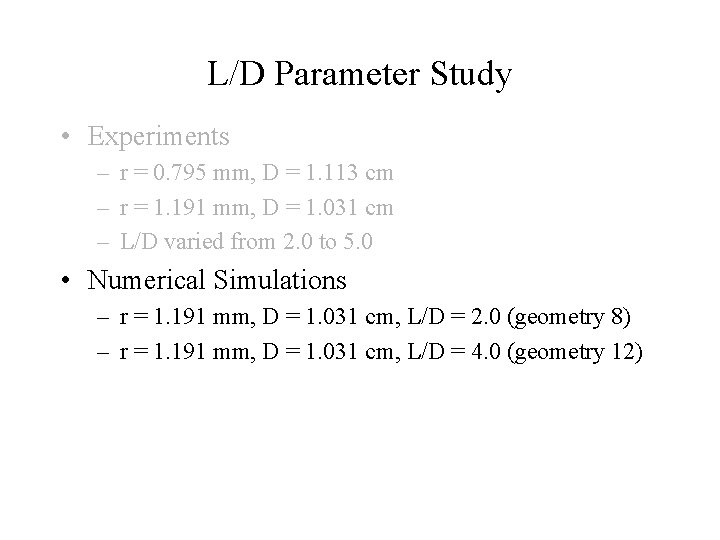

L/D Parameter Study • Experiments – r = 0. 795 mm, D = 1. 113 cm – r = 1. 191 mm, D = 1. 031 cm – L/D varied from 2. 0 to 5. 0 • Numerical Simulations – r = 1. 191 mm, D = 1. 031 cm, L/D = 2. 0 (geometry 8) – r = 1. 191 mm, D = 1. 031 cm, L/D = 4. 0 (geometry 12)

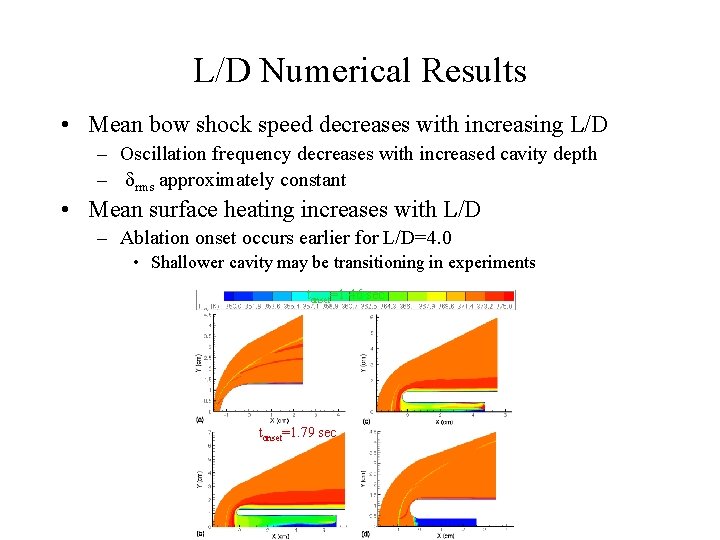

L/D Numerical Results • Mean bow shock speed decreases with increasing L/D – Oscillation frequency decreases with increased cavity depth – drms approximately constant • Mean surface heating increases with L/D – Ablation onset occurs earlier for L/D=4. 0 • Shallower cavity may be transitioning in experiments tonset=1. 46 sec tonset=1. 79 sec

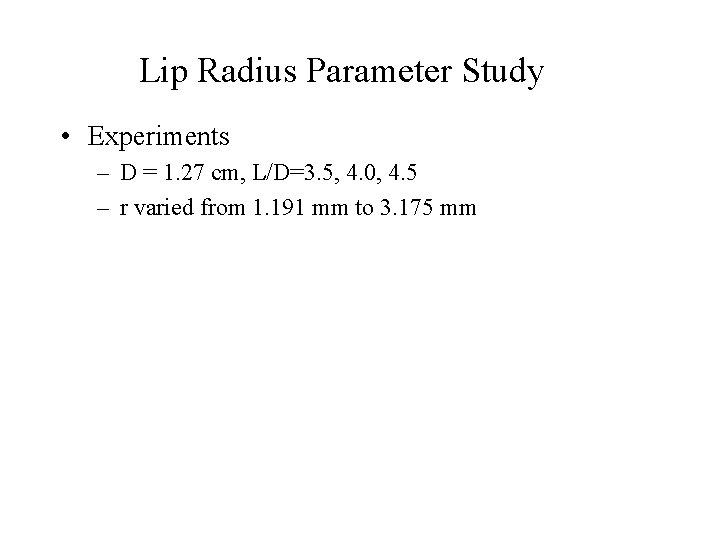

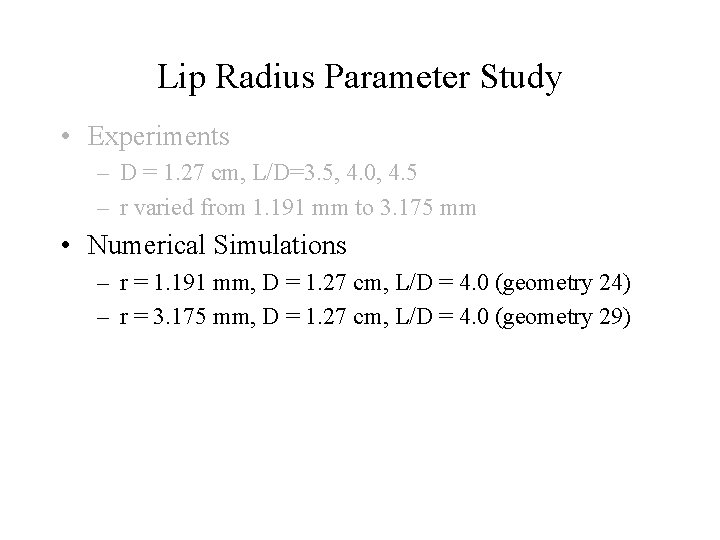

Lip Radius Parameter Study • Experiments – D = 1. 27 cm, L/D=3. 5, 4. 0, 4. 5 – r varied from 1. 191 mm to 3. 175 mm

Lip Radius Experimental Results

Lip Radius Parameter Study • Experiments – D = 1. 27 cm, L/D=3. 5, 4. 0, 4. 5 – r varied from 1. 191 mm to 3. 175 mm • Numerical Simulations – r = 1. 191 mm, D = 1. 27 cm, L/D = 4. 0 (geometry 24) – r = 3. 175 mm, D = 1. 27 cm, L/D = 4. 0 (geometry 29)

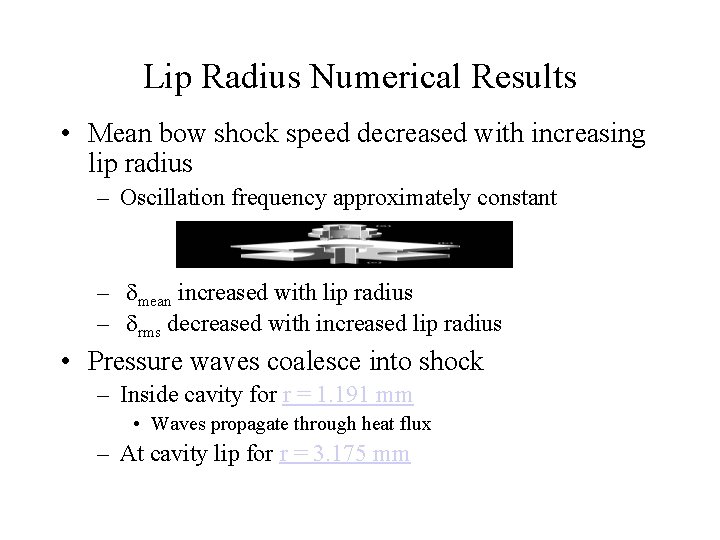

Lip Radius Numerical Results • Mean bow shock speed decreased with increasing lip radius – Oscillation frequency approximately constant – dmean increased with lip radius – drms decreased with increased lip radius • Pressure waves coalesce into shock – Inside cavity for r = 1. 191 mm • Waves propagate through heat flux – At cavity lip for r = 3. 175 mm

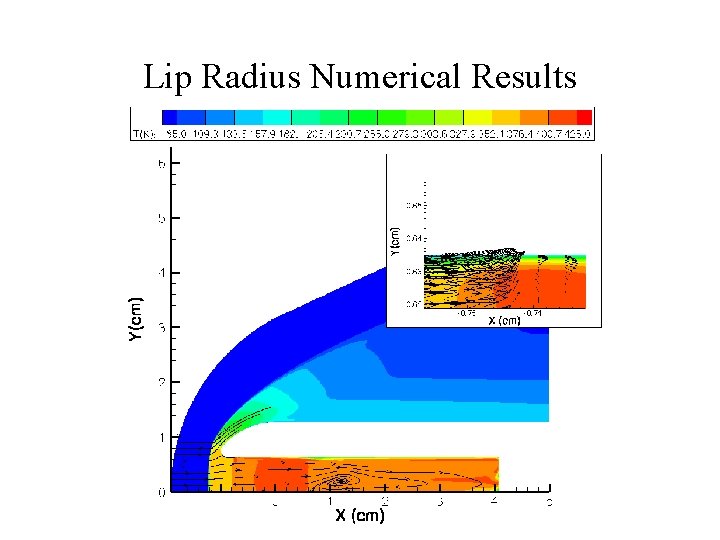

Lip Radius Numerical Results

Lip Radius Numerical Results

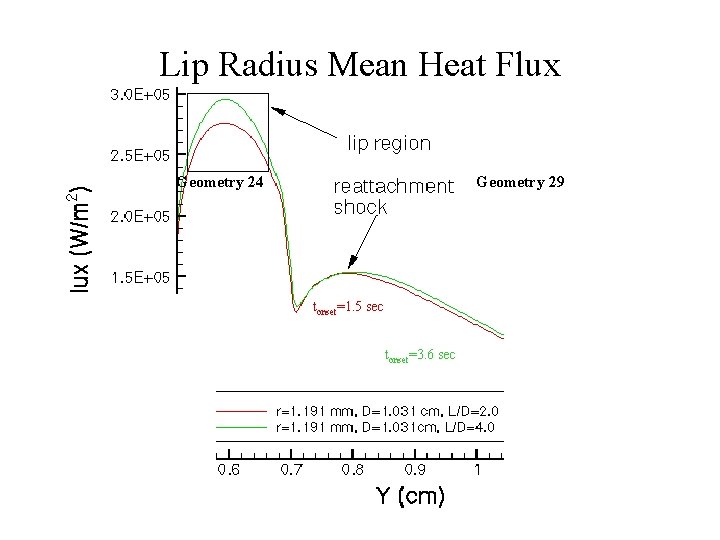

Lip Radius Mean Heat Flux Geometry 24 Geometry 29 tonset=1. 5 sec tonset=3. 6 sec

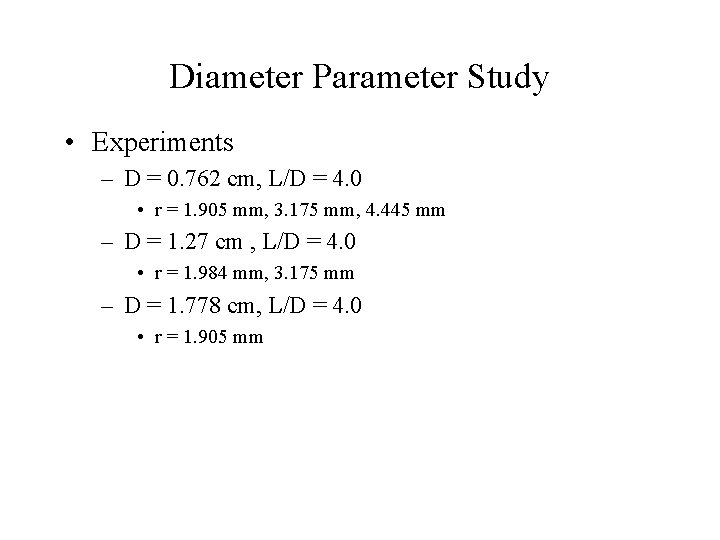

Diameter Parameter Study • Experiments – D = 0. 762 cm, L/D = 4. 0 • r = 1. 905 mm, 3. 175 mm, 4. 445 mm – D = 1. 27 cm , L/D = 4. 0 • r = 1. 984 mm, 3. 175 mm – D = 1. 778 cm, L/D = 4. 0 • r = 1. 905 mm

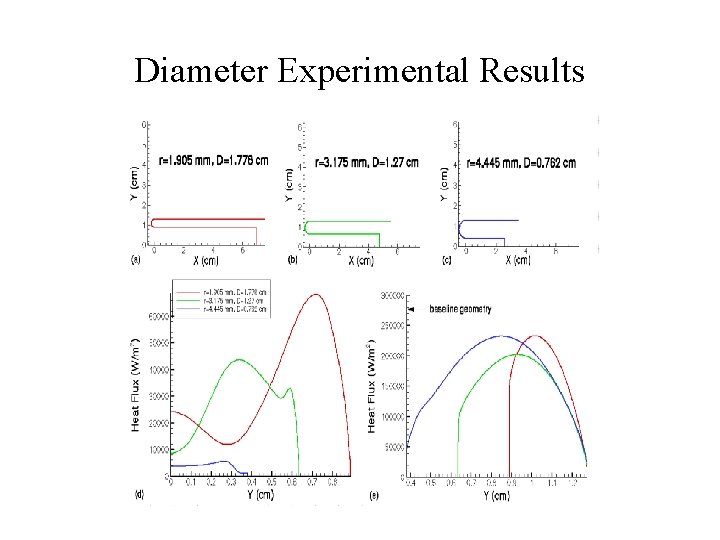

Diameter Experimental Results

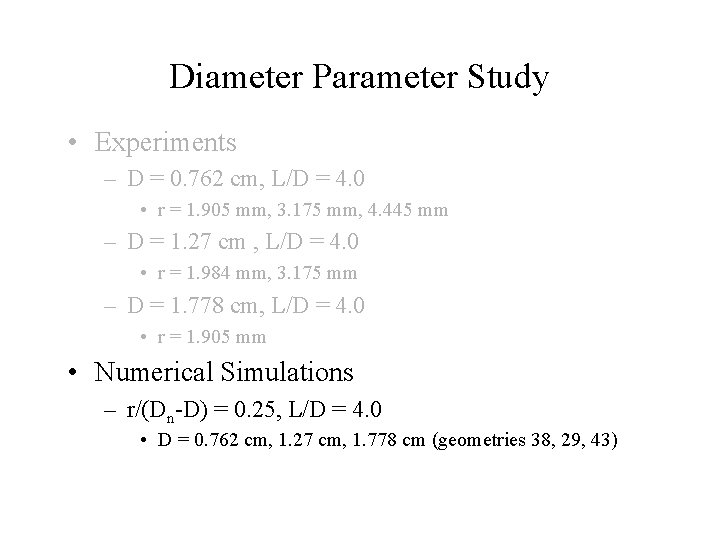

Diameter Parameter Study • Experiments – D = 0. 762 cm, L/D = 4. 0 • r = 1. 905 mm, 3. 175 mm, 4. 445 mm – D = 1. 27 cm , L/D = 4. 0 • r = 1. 984 mm, 3. 175 mm – D = 1. 778 cm, L/D = 4. 0 • r = 1. 905 mm • Numerical Simulations – r/(Dn-D) = 0. 25, L/D = 4. 0 • D = 0. 762 cm, 1. 27 cm, 1. 778 cm (geometries 38, 29, 43)

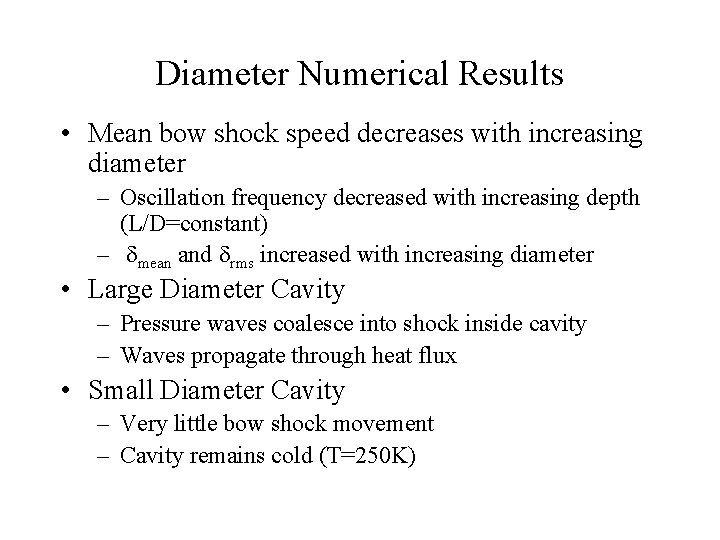

Diameter Numerical Results • Mean bow shock speed decreases with increasing diameter – Oscillation frequency decreased with increasing depth (L/D=constant) – dmean and drms increased with increasing diameter • Large Diameter Cavity – Pressure waves coalesce into shock inside cavity – Waves propagate through heat flux • Small Diameter Cavity – Very little bow shock movement – Cavity remains cold (T=250 K)

Diameter Mean Stagnation Temperature

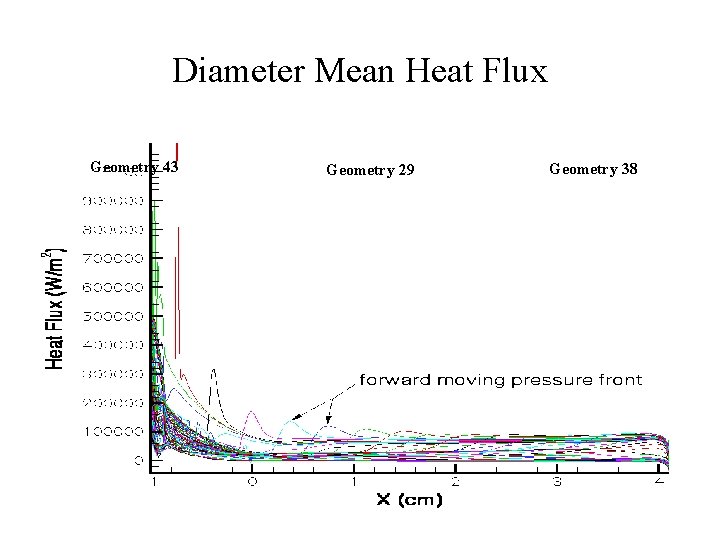

Diameter Mean Heat Flux Geometry 43 Geometry 29 Geometry 38

Diameter Ablation Onset Times

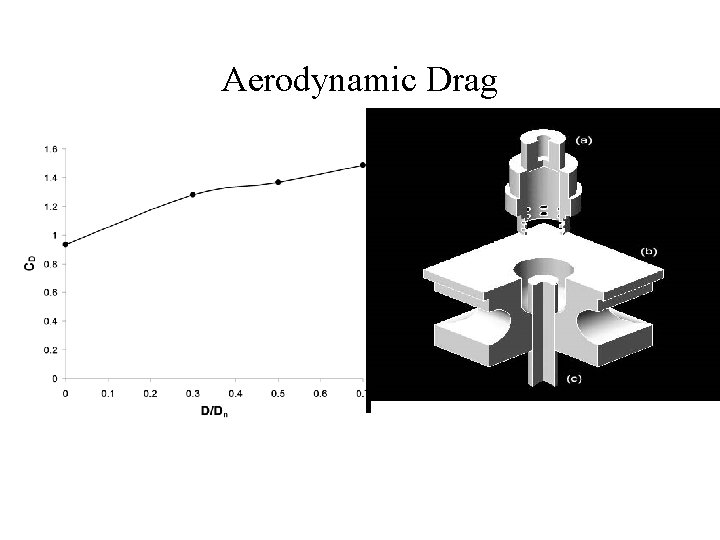

Aerodynamic Drag

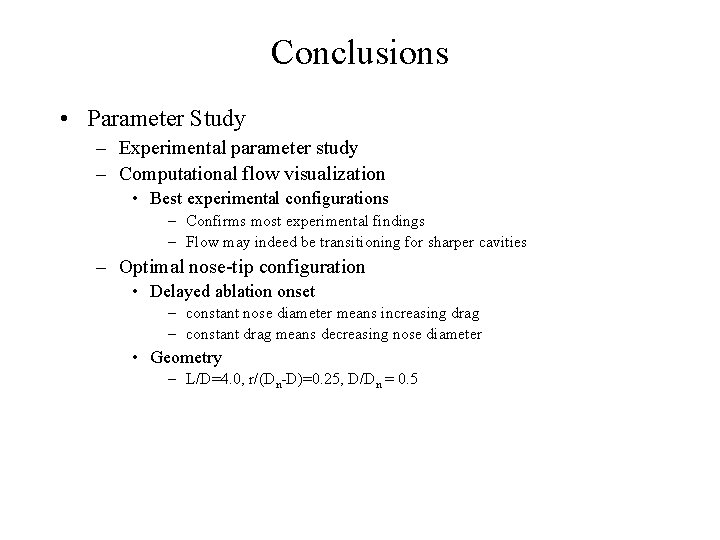

Conclusions • Parameter Study – Experimental parameter study – Computational flow visualization • Best experimental configurations – Confirms most experimental findings – Flow may indeed be transitioning for sharper cavities – Optimal nose-tip configuration • Delayed ablation onset – constant nose diameter means increasing drag – constant drag means decreasing nose diameter • Geometry – L/D=4. 0, r/(Dn-D)=0. 25, D/Dn = 0. 5
