Optimal External Route Selection Tips and Techniques for

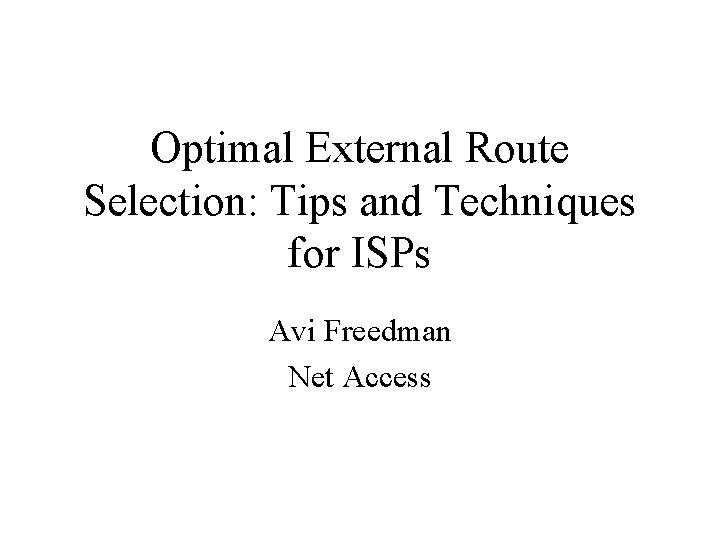

Optimal External Route Selection: Tips and Techniques for ISPs Avi Freedman Net Access

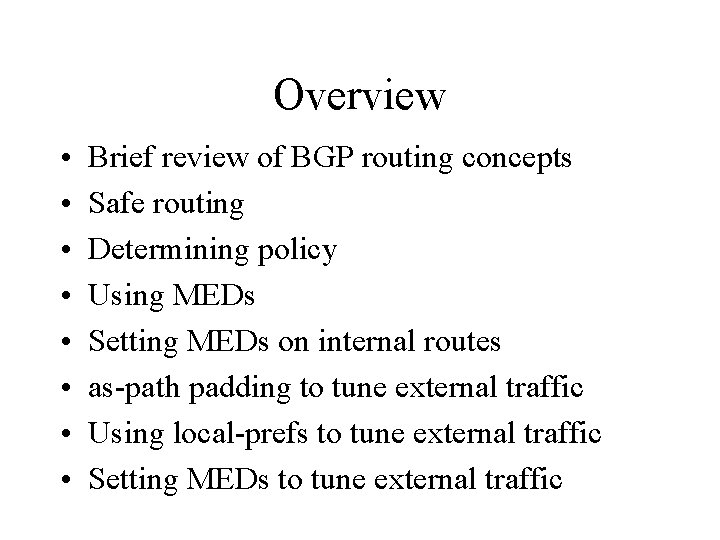

Overview • • Brief review of BGP routing concepts Safe routing Determining policy Using MEDs Setting MEDs on internal routes as-path padding to tune external traffic Using local-prefs to tune external traffic Setting MEDs to tune external traffic

BGP Concept Review

BGP Intro • BGP 4 is the protocol used on the Internet to exchange routing information between providers, and to propagate external routing information through networks. • Each autonomous network is called an Autonomous System. • ASs which inject routing information on their own behalf have ASNs.

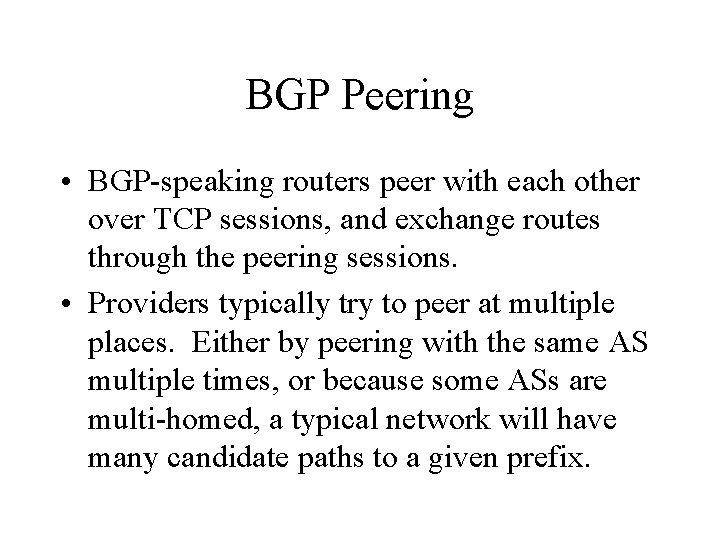

BGP Peering • BGP-speaking routers peer with each other over TCP sessions, and exchange routes through the peering sessions. • Providers typically try to peer at multiple places. Either by peering with the same AS multiple times, or because some ASs are multi-homed, a typical network will have many candidate paths to a given prefix.

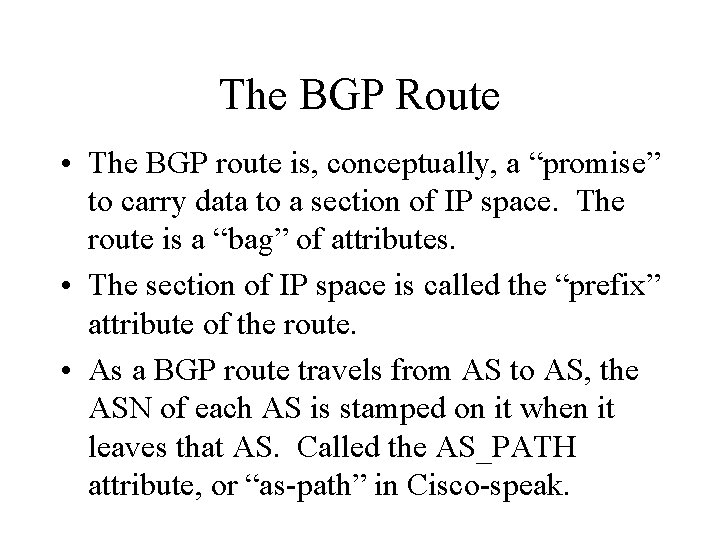

The BGP Route • The BGP route is, conceptually, a “promise” to carry data to a section of IP space. The route is a “bag” of attributes. • The section of IP space is called the “prefix” attribute of the route. • As a BGP route travels from AS to AS, the ASN of each AS is stamped on it when it leaves that AS. Called the AS_PATH attribute, or “as-path” in Cisco-speak.

BGP Route Attributes • In addition to the prefix, the as-path, and the next-hop, the BGP route has other attributes, affectionately known as “knobs and twiddles” – weight, rarely used - “sledgehammer” – local-pref, sometimes used - “hammer” – origin code, rarely used – MED (“metric”) - a gentle nudge

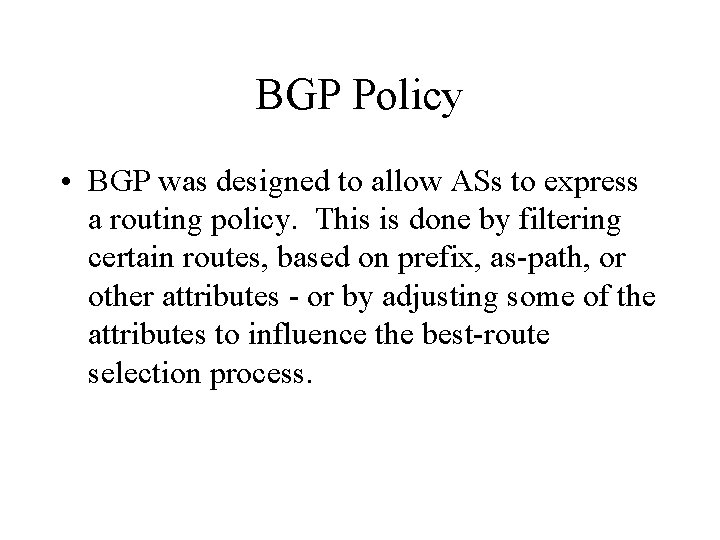

BGP Policy • BGP was designed to allow ASs to express a routing policy. This is done by filtering certain routes, based on prefix, as-path, or other attributes - or by adjusting some of the attributes to influence the best-route selection process.

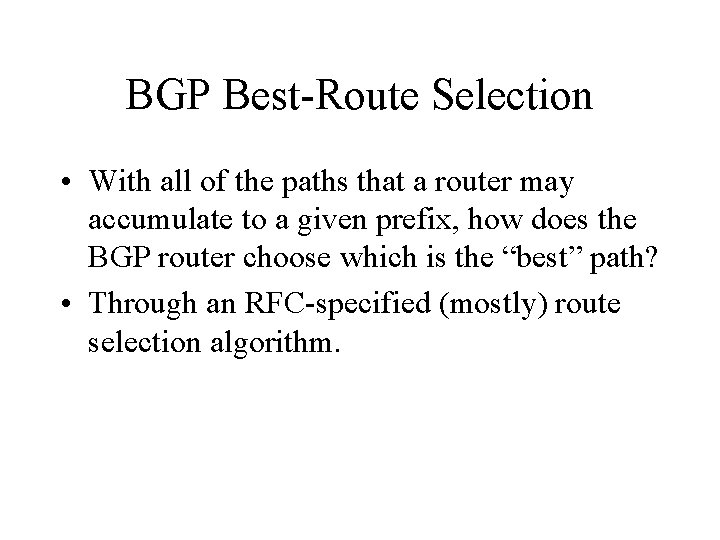

BGP Best-Route Selection • With all of the paths that a router may accumulate to a given prefix, how does the BGP router choose which is the “best” path? • Through an RFC-specified (mostly) route selection algorithm.

BGP Best-Route Selection • Do not consider IBGP path if not synchronized • Do not consider path if no route to next hop • Highest weight (local to router) • Highest local preference (global within AS) • Shortest AS path • Lowest origin code IGP < EGP < incomplete • Lowest MED • Prefer EBGP path over IBGP path • Path with shortest next-hop metric wins • Lowest router-id

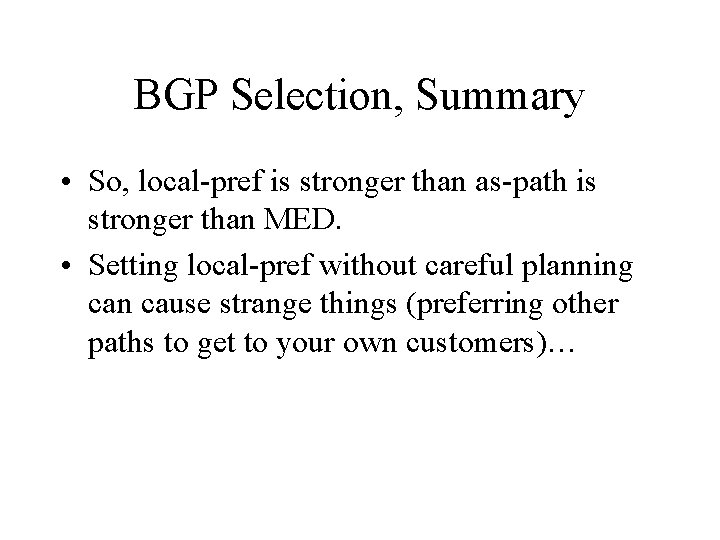

BGP Selection, Summary • So, local-pref is stronger than as-path is stronger than MED. • Setting local-pref without careful planning can cause strange things (preferring other paths to get to your own customers)…

Safe Routing

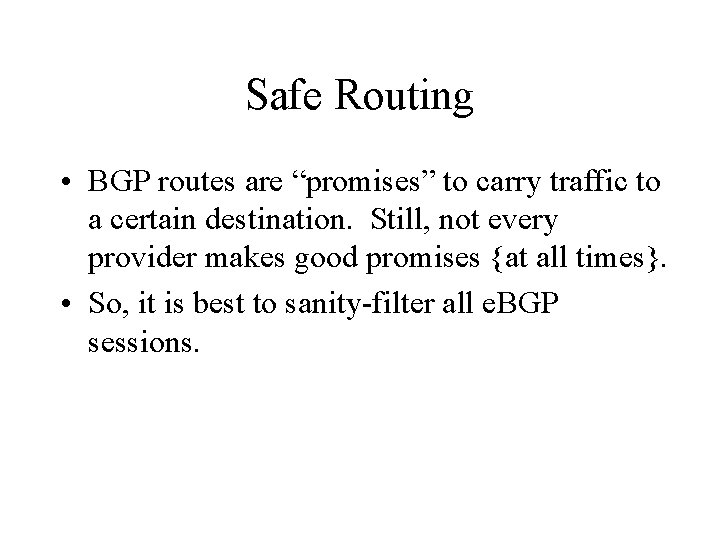

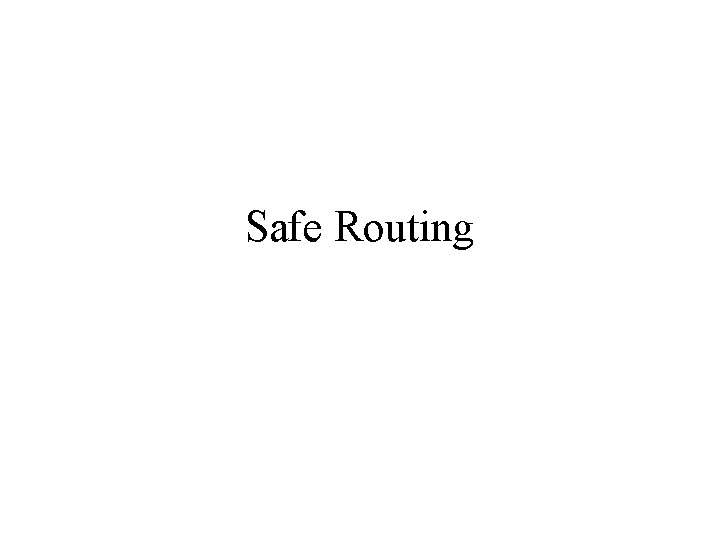

Safe Routing • BGP routes are “promises” to carry traffic to a certain destination. Still, not every provider makes good promises {at all times}. • So, it is best to sanity-filter all e. BGP sessions.

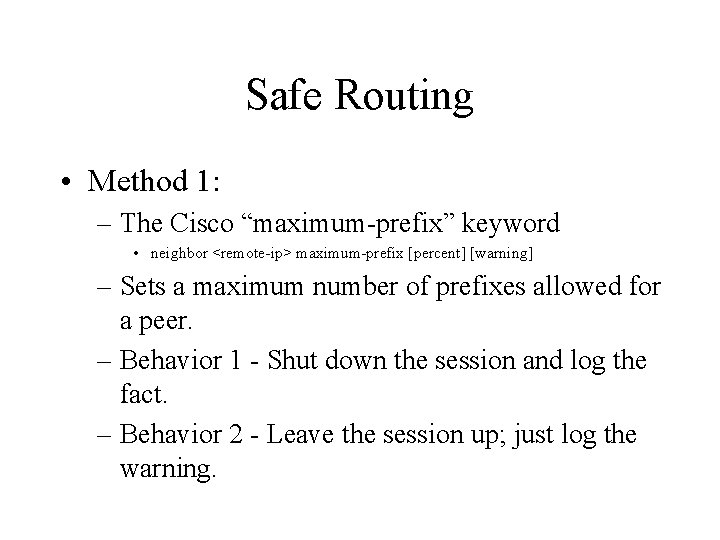

Safe Routing • Method 1: – The Cisco “maximum-prefix” keyword • neighbor <remote-ip> maximum-prefix [percent] [warning] – Sets a maximum number of prefixes allowed for a peer. – Behavior 1 - Shut down the session and log the fact. – Behavior 2 - Leave the session up; just log the warning.

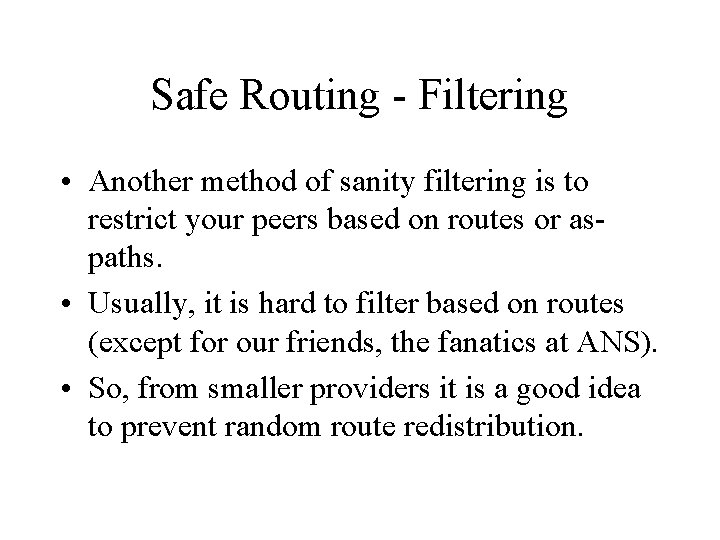

Safe Routing - Filtering • Another method of sanity filtering is to restrict your peers based on routes or aspaths. • Usually, it is hard to filter based on routes (except for our friends, the fanatics at ANS). • So, from smaller providers it is a good idea to prevent random route redistribution.

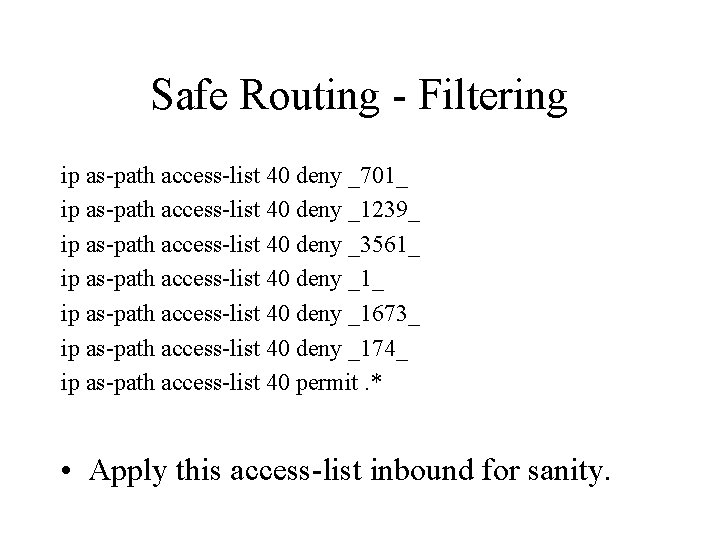

Safe Routing - Filtering ip as-path access-list 40 deny _701_ ip as-path access-list 40 deny _1239_ ip as-path access-list 40 deny _3561_ ip as-path access-list 40 deny _1673_ ip as-path access-list 40 deny _174_ ip as-path access-list 40 permit. * • Apply this access-list inbound for sanity.

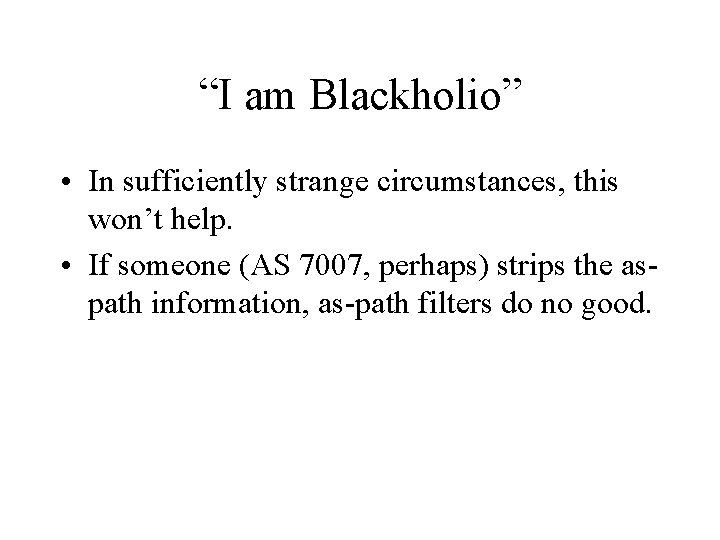

“I am Blackholio” • In sufficiently strange circumstances, this won’t help. • If someone (AS 7007, perhaps) strips the aspath information, as-path filters do no good.

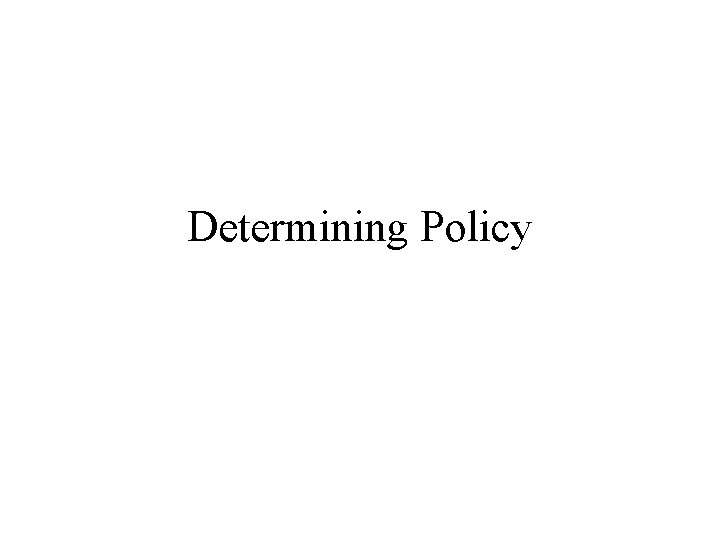

Determining Policy

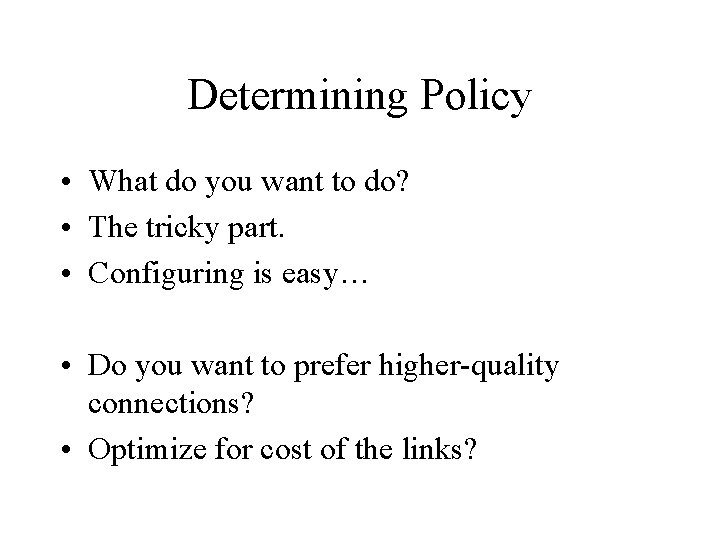

Determining Policy • What do you want to do? • The tricky part. • Configuring is easy… • Do you want to prefer higher-quality connections? • Optimize for cost of the links?

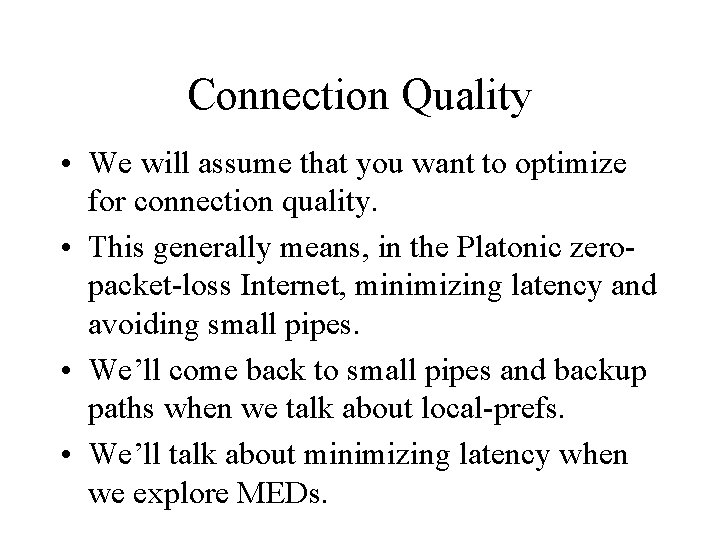

Connection Quality • We will assume that you want to optimize for connection quality. • This generally means, in the Platonic zeropacket-loss Internet, minimizing latency and avoiding small pipes. • We’ll come back to small pipes and backup paths when we talk about local-prefs. • We’ll talk about minimizing latency when we explore MEDs.

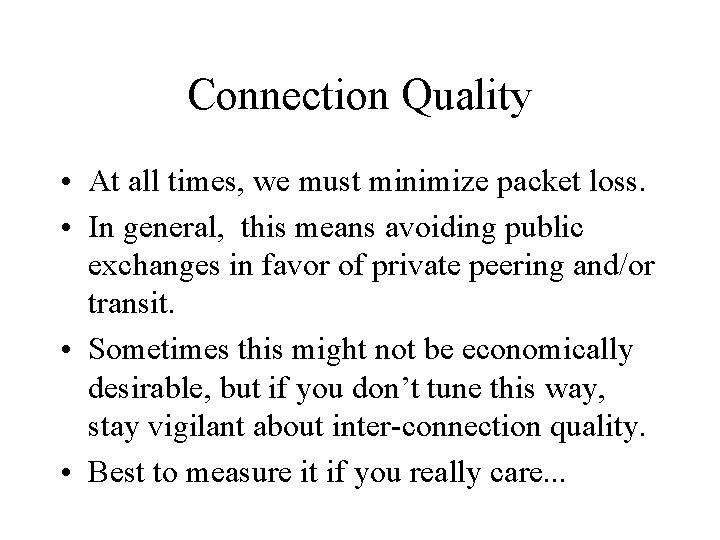

Connection Quality • At all times, we must minimize packet loss. • In general, this means avoiding public exchanges in favor of private peering and/or transit. • Sometimes this might not be economically desirable, but if you don’t tune this way, stay vigilant about inter-connection quality. • Best to measure it if you really care. . .

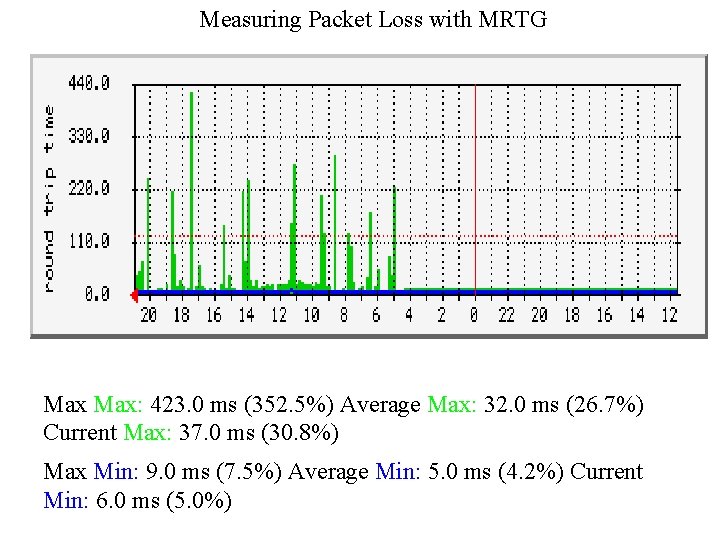

Measuring Packet Loss with MRTG Max: 423. 0 ms (352. 5%) Average Max: 32. 0 ms (26. 7%) Current Max: 37. 0 ms (30. 8%) Max Min: 9. 0 ms (7. 5%) Average Min: 5. 0 ms (4. 2%) Current Min: 6. 0 ms (5. 0%)

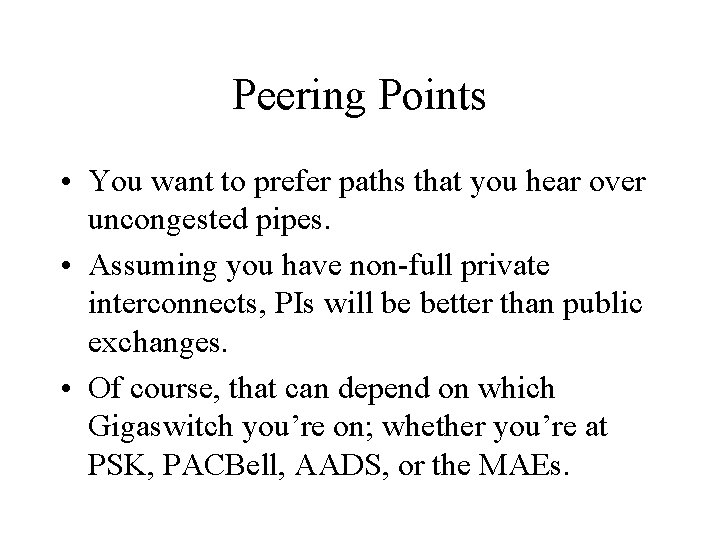

Peering Points • You want to prefer paths that you hear over uncongested pipes. • Assuming you have non-full private interconnects, PIs will be better than public exchanges. • Of course, that can depend on which Gigaswitch you’re on; whether you’re at PSK, PACBell, AADS, or the MAEs.

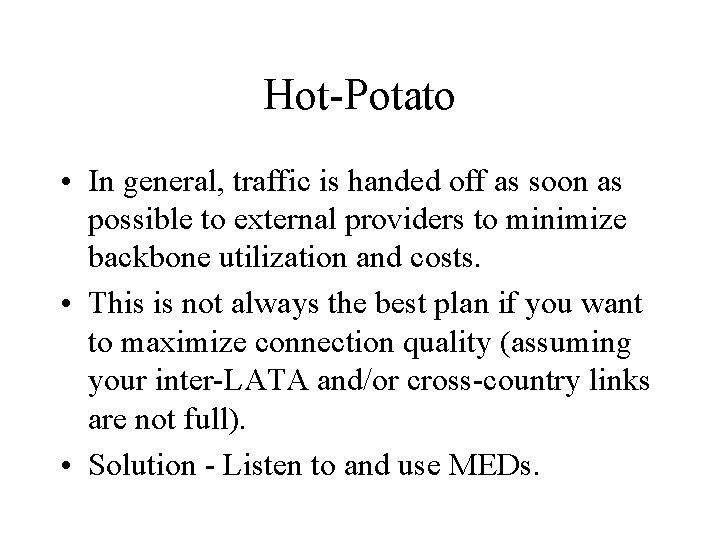

Hot-Potato • In general, traffic is handed off as soon as possible to external providers to minimize backbone utilization and costs. • This is not always the best plan if you want to maximize connection quality (assuming your inter-LATA and/or cross-country links are not full). • Solution - Listen to and use MEDs.

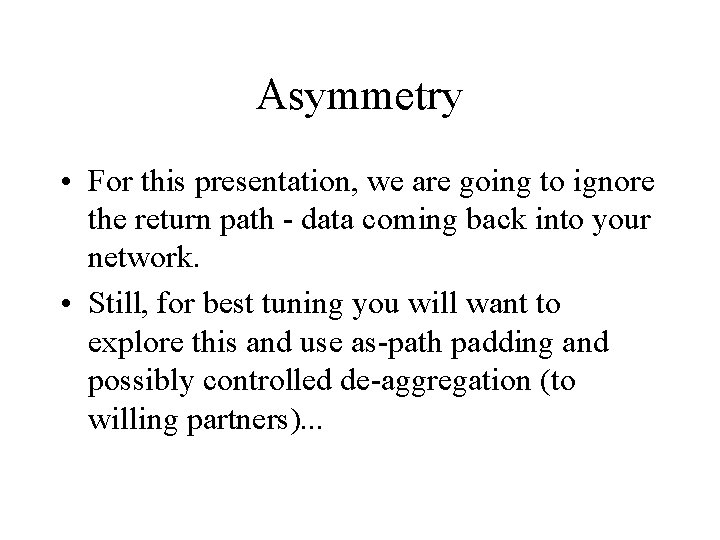

Asymmetry • For this presentation, we are going to ignore the return path - data coming back into your network. • Still, for best tuning you will want to explore this and use as-path padding and possibly controlled de-aggregation (to willing partners). . .

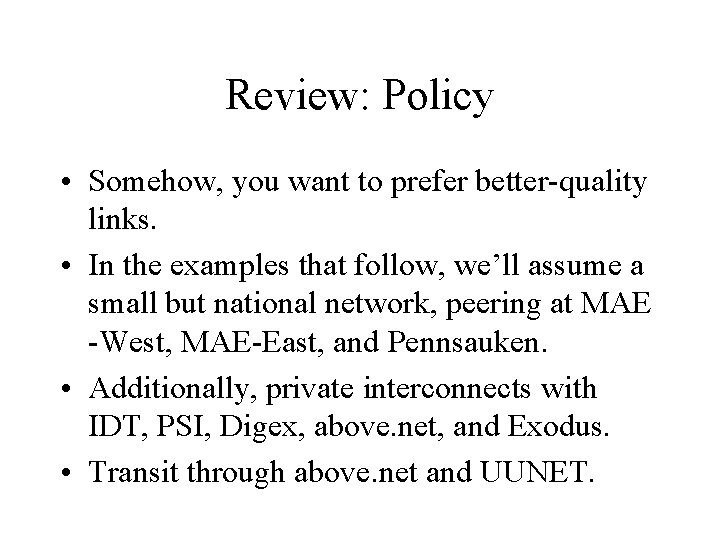

Review: Policy • Somehow, you want to prefer better-quality links. • In the examples that follow, we’ll assume a small but national network, peering at MAE -West, MAE-East, and Pennsauken. • Additionally, private interconnects with IDT, PSI, Digex, above. net, and Exodus. • Transit through above. net and UUNET.

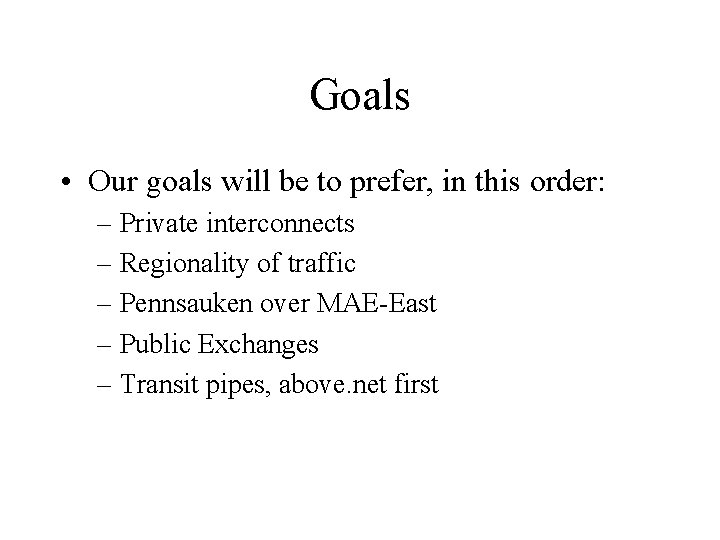

Goals • Our goals will be to prefer, in this order: – Private interconnects – Regionality of traffic – Pennsauken over MAE-East – Public Exchanges – Transit pipes, above. net first

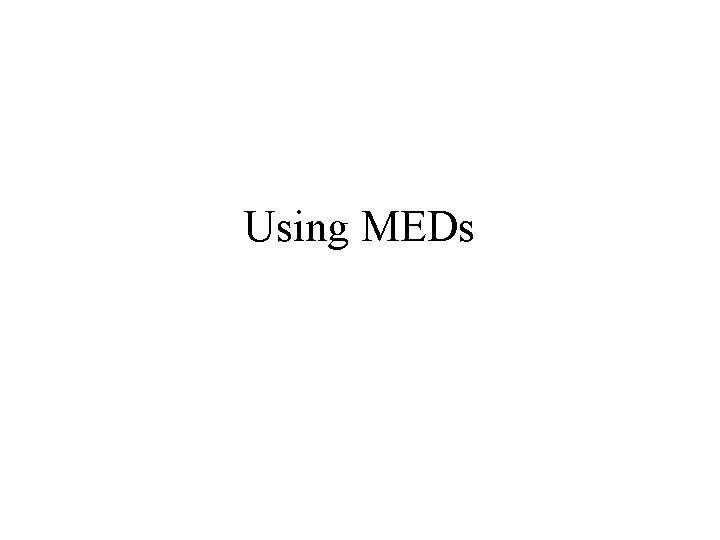

Using MEDs

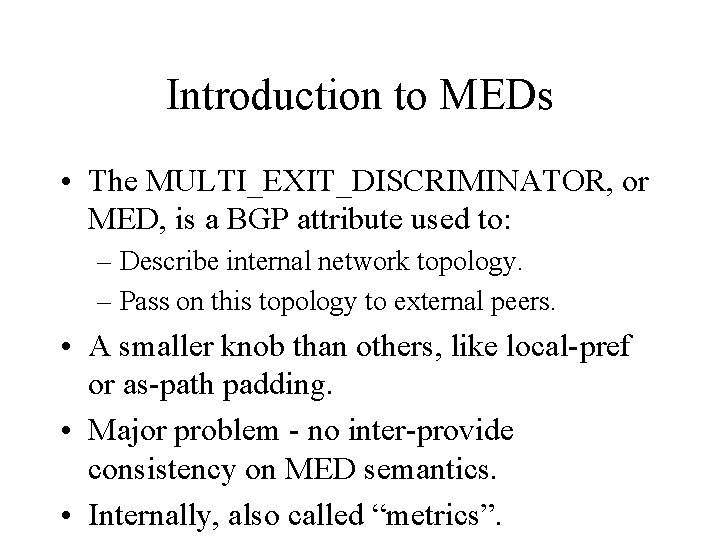

Introduction to MEDs • The MULTI_EXIT_DISCRIMINATOR, or MED, is a BGP attribute used to: – Describe internal network topology. – Pass on this topology to external peers. • A smaller knob than others, like local-pref or as-path padding. • Major problem - no inter-provide consistency on MED semantics. • Internally, also called “metrics”.

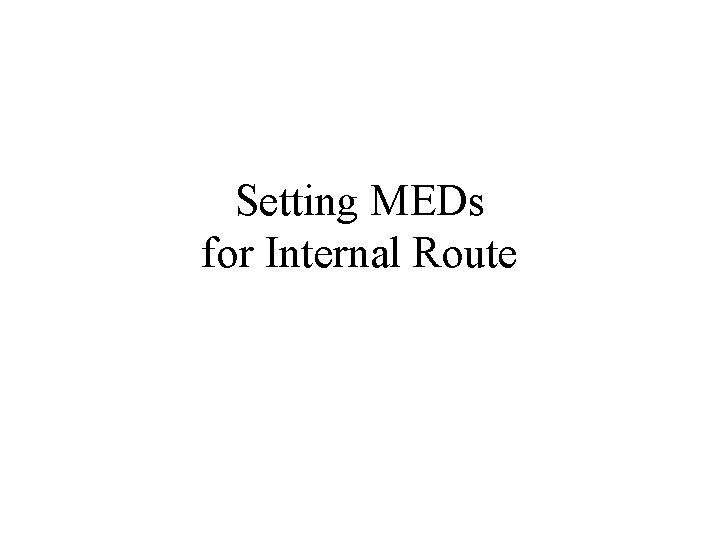

Setting MEDs for Internal Route

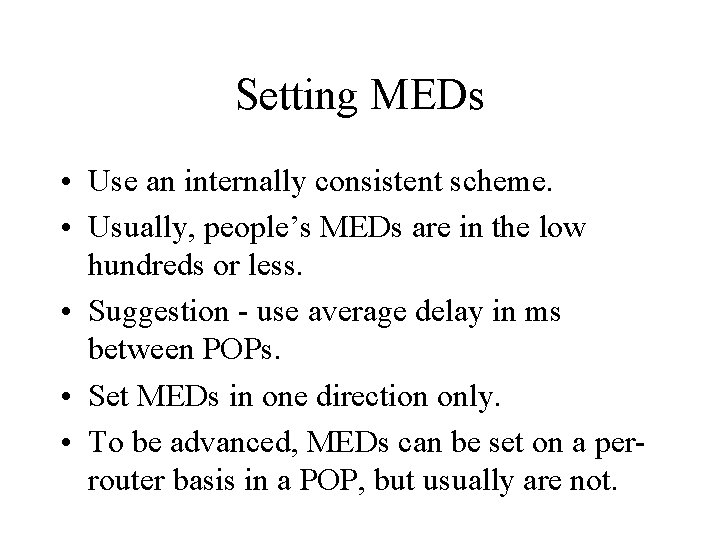

Setting MEDs • Use an internally consistent scheme. • Usually, people’s MEDs are in the low hundreds or less. • Suggestion - use average delay in ms between POPs. • Set MEDs in one direction only. • To be advanced, MEDs can be set on a perrouter basis in a POP, but usually are not.

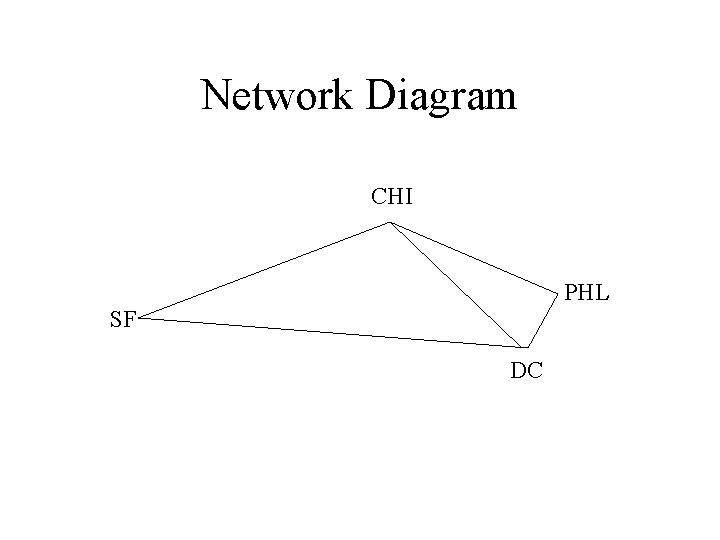

Network Diagram CHI PHL SF DC

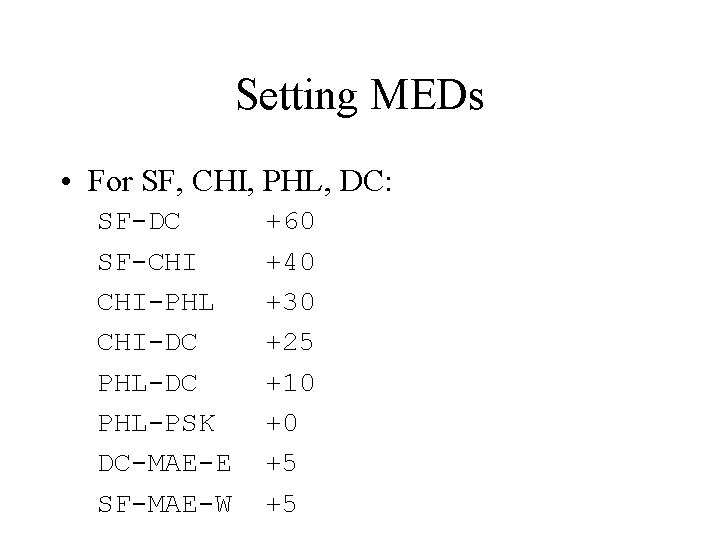

Setting MEDs • For SF, CHI, PHL, DC: SF-DC SF-CHI CHI-PHL CHI-DC PHL-PSK DC-MAE-E SF-MAE-W +60 +40 +30 +25 +10 +0 +5 +5

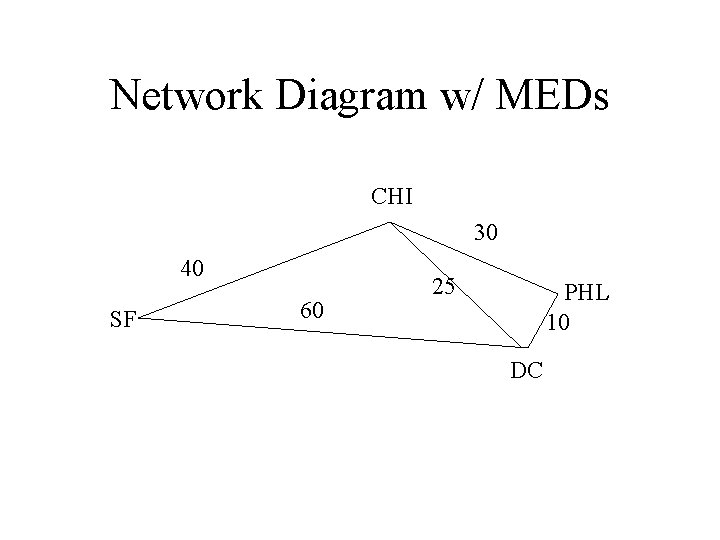

Network Diagram w/ MEDs CHI 30 40 SF 60 25 PHL 10 DC

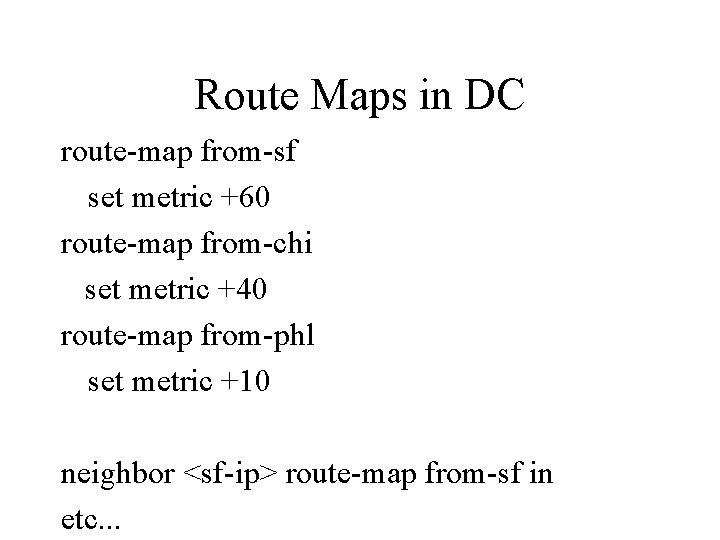

Route Maps in DC route-map from-sf set metric +60 route-map from-chi set metric +40 route-map from-phl set metric +10 neighbor <sf-ip> route-map from-sf in etc. . .

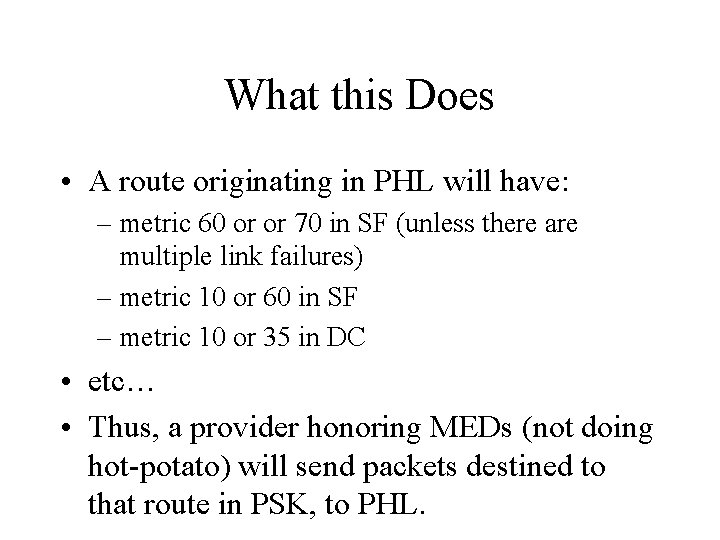

What this Does • A route originating in PHL will have: – metric 60 or or 70 in SF (unless there are multiple link failures) – metric 10 or 60 in SF – metric 10 or 35 in DC • etc… • Thus, a provider honoring MEDs (not doing hot-potato) will send packets destined to that route in PSK, to PHL.

Slight Improvement? • Or, change things to weight PSK vs. DC over PHL vs. DC. PSK +0 MAE-E +20 • Thus, a provider honoring MEDs will send a PHL-destined packet to PSK. This is generally a good thing.

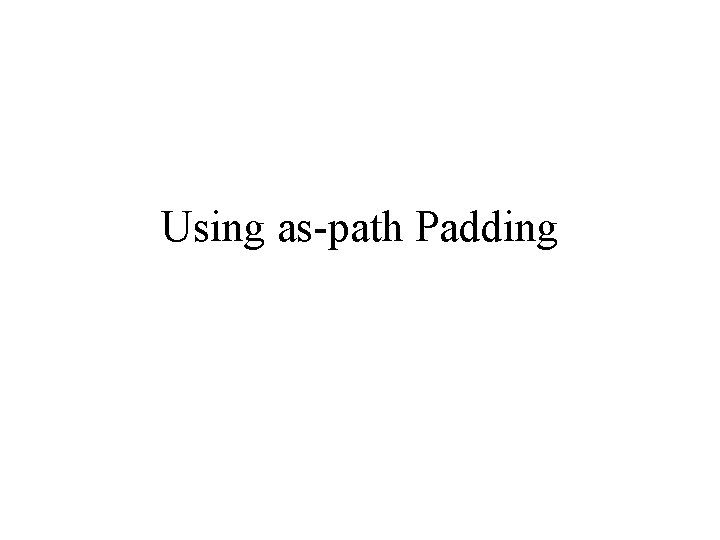

Using as-path Padding

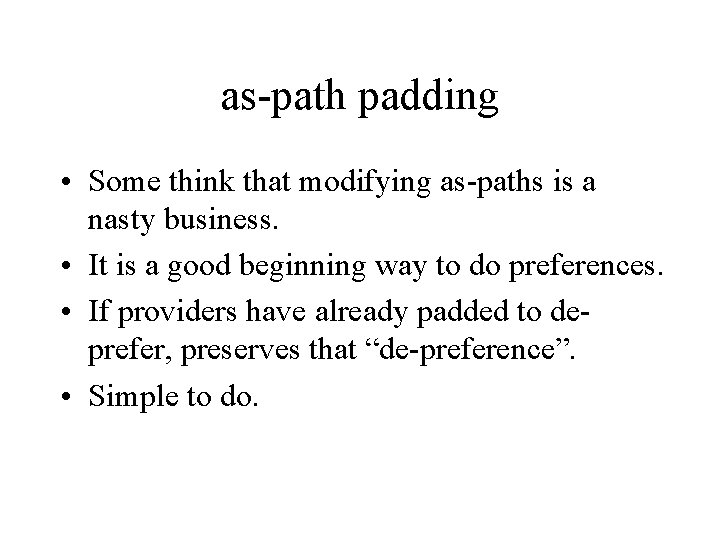

as-path padding • Some think that modifying as-paths is a nasty business. • It is a good beginning way to do preferences. • If providers have already padded to deprefer, preserves that “de-preference”. • Simple to do.

as-path padding • First, policy? – – – Private interconnects - pad no times Regionality of traffic - pad four times x-country Pennsauken over MAE-East - pad once; twice Public Exchanges - twice at MAE-West Transit pipes, above. net first - pad three • Problem - can’t pad easily going cross-country. • But we can do the rest. – Problem - lots of route-maps and typing. • Why? Can’t prepend our own AS inside network, so must have separate roue-map per session.

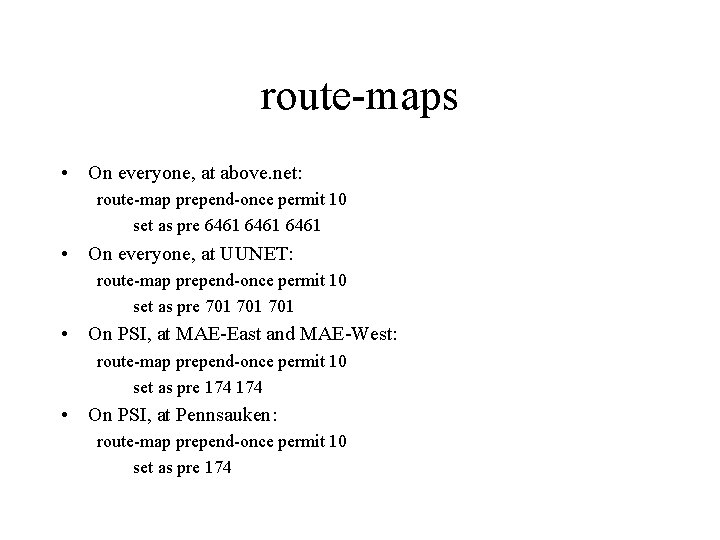

route-maps • On everyone, at above. net: route-map prepend-once permit 10 set as pre 6461 • On everyone, at UUNET: route-map prepend-once permit 10 set as pre 701 701 • On PSI, at MAE-East and MAE-West: route-map prepend-once permit 10 set as pre 174 • On PSI, at Pennsauken: route-map prepend-once permit 10 set as pre 174

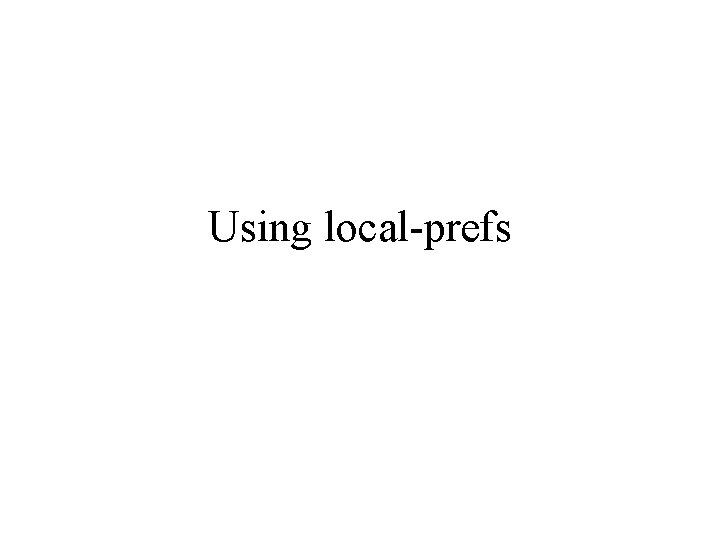

Using local-prefs

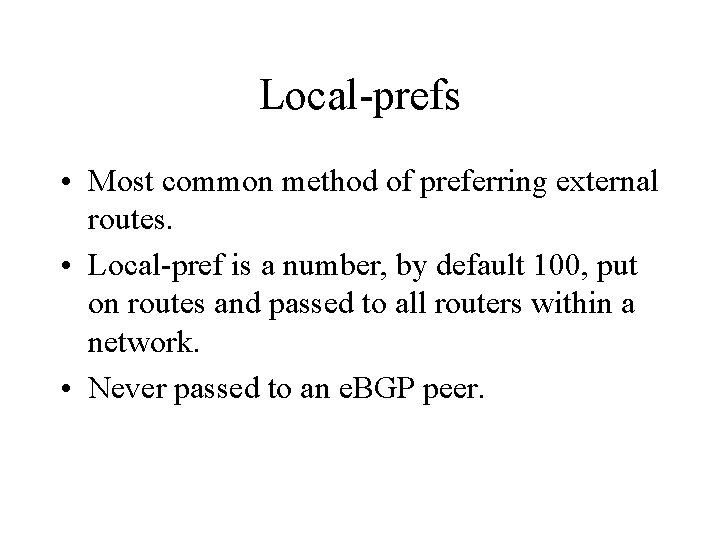

Local-prefs • Most common method of preferring external routes. • Local-pref is a number, by default 100, put on routes and passed to all routers within a network. • Never passed to an e. BGP peer.

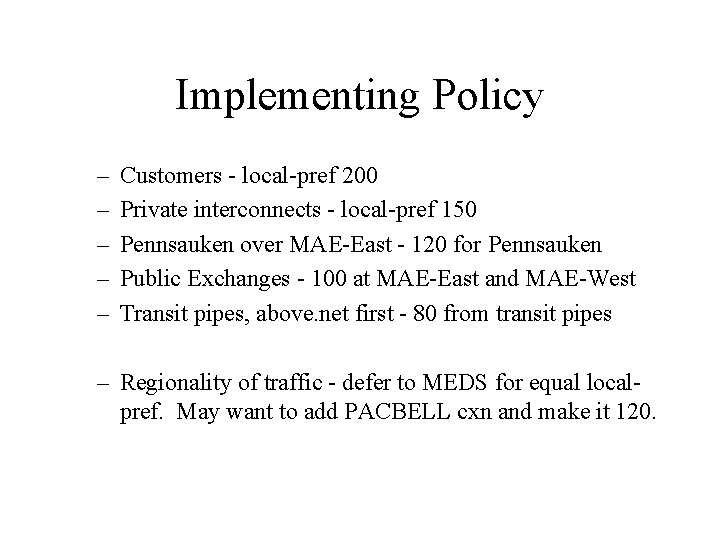

Implementing Policy – – – Customers - local-pref 200 Private interconnects - local-pref 150 Pennsauken over MAE-East - 120 for Pennsauken Public Exchanges - 100 at MAE-East and MAE-West Transit pipes, above. net first - 80 from transit pipes – Regionality of traffic - defer to MEDS for equal localpref. May want to add PACBELL cxn and make it 120.

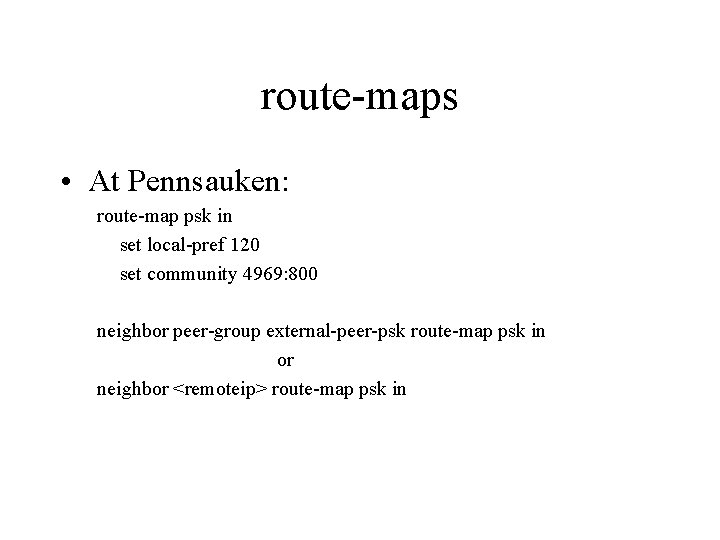

route-maps • At Pennsauken: route-map psk in set local-pref 120 set community 4969: 800 neighbor peer-group external-peer-psk route-map psk in or neighbor <remoteip> route-map psk in

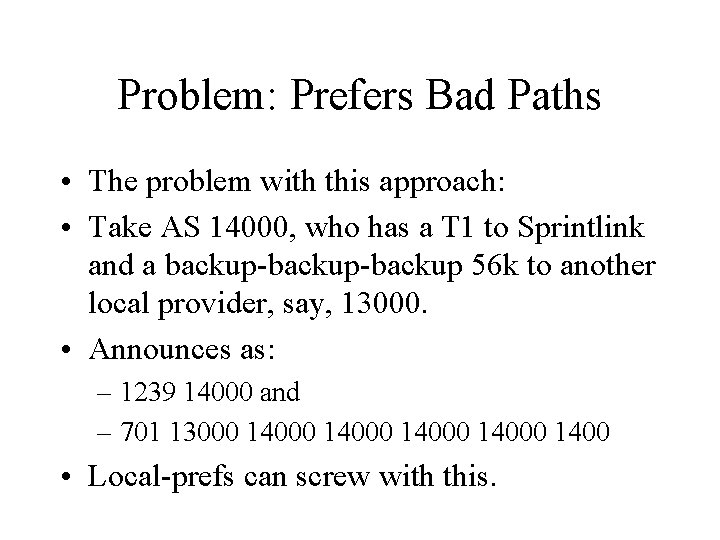

Problem: Prefers Bad Paths • The problem with this approach: • Take AS 14000, who has a T 1 to Sprintlink and a backup-backup 56 k to another local provider, say, 13000. • Announces as: – 1239 14000 and – 701 13000 14000 1400 • Local-prefs can screw with this.

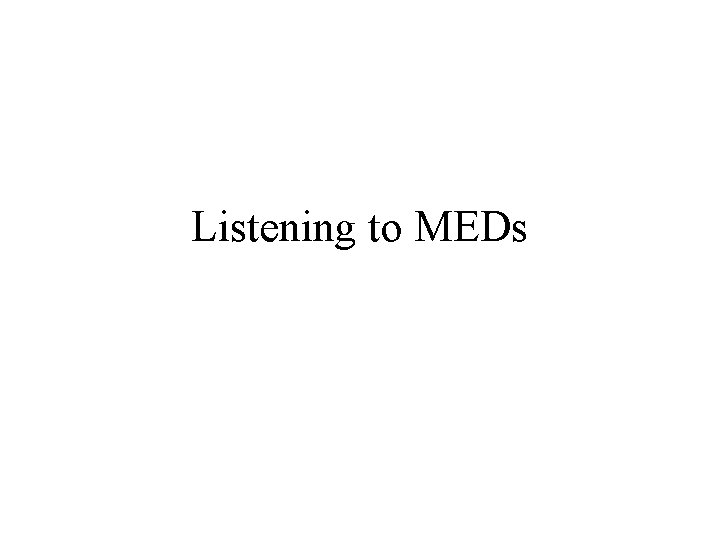

Listening to MEDs

Listening to MEDs: Same Peer • Nothing special is required to listen to MEDs. • Because MEDs mean different things to different networks, one approach is no only set MEDs inbound for your own routes. • When listening to MEDs at multiple locations from a peer, set to internal MEDs if you want to hot-potato.

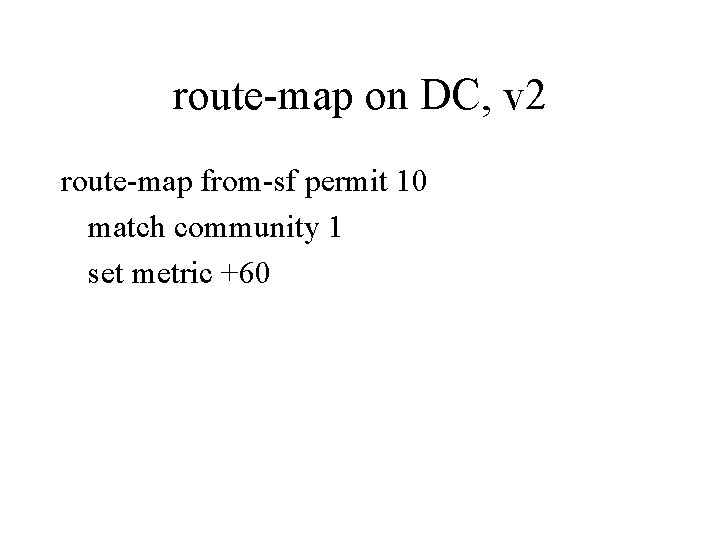

route-map on DC, v 2 route-map from-sf permit 10 match community 1 set metric +60

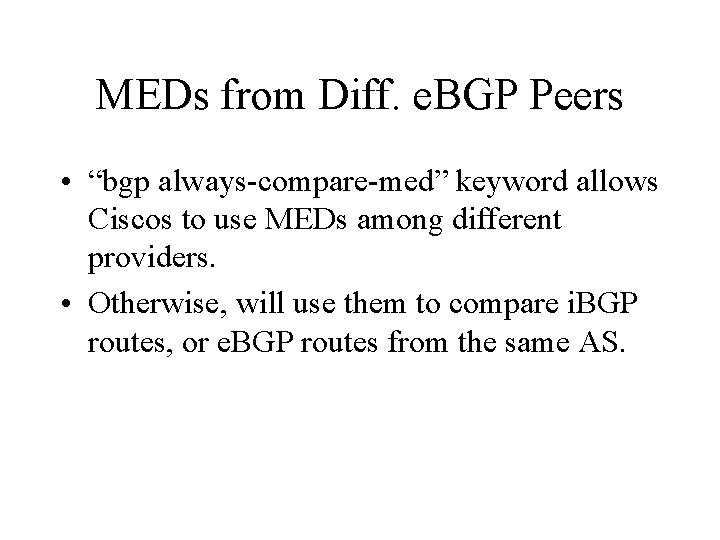

MEDs from Diff. e. BGP Peers • “bgp always-compare-med” keyword allows Ciscos to use MEDs among different providers. • Otherwise, will use them to compare i. BGP routes, or e. BGP routes from the same AS.

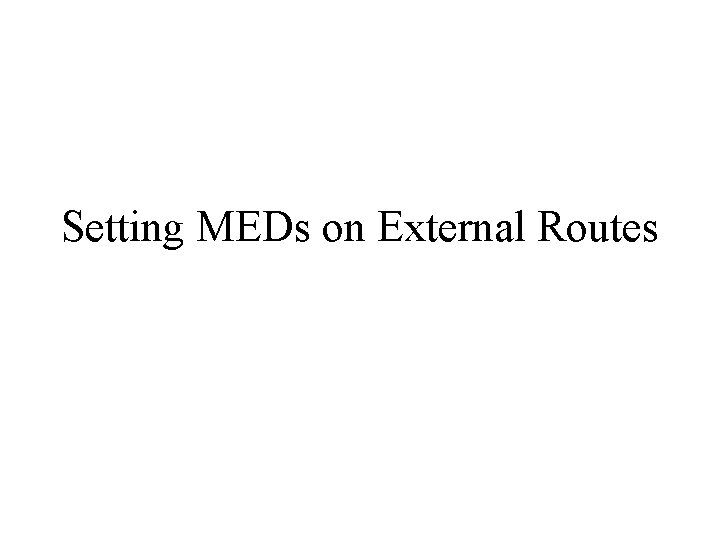

Setting MEDs on External Routes

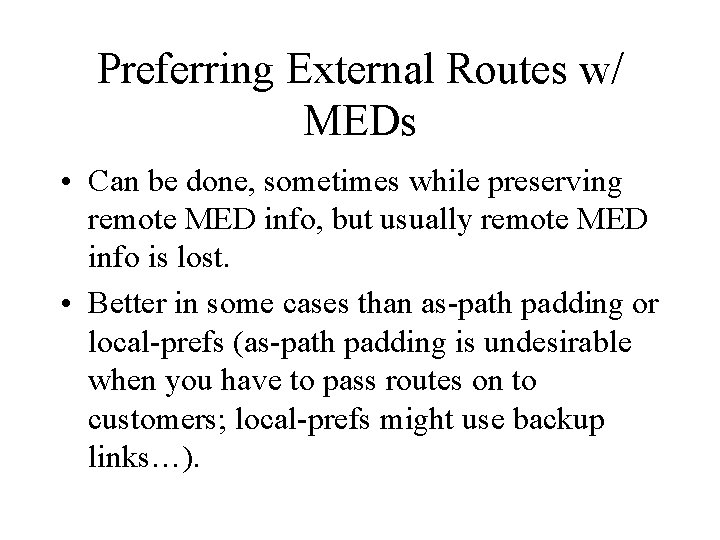

Preferring External Routes w/ MEDs • Can be done, sometimes while preserving remote MED info, but usually remote MED info is lost. • Better in some cases than as-path padding or local-prefs (as-path padding is undesirable when you have to pass routes on to customers; local-prefs might use backup links…).

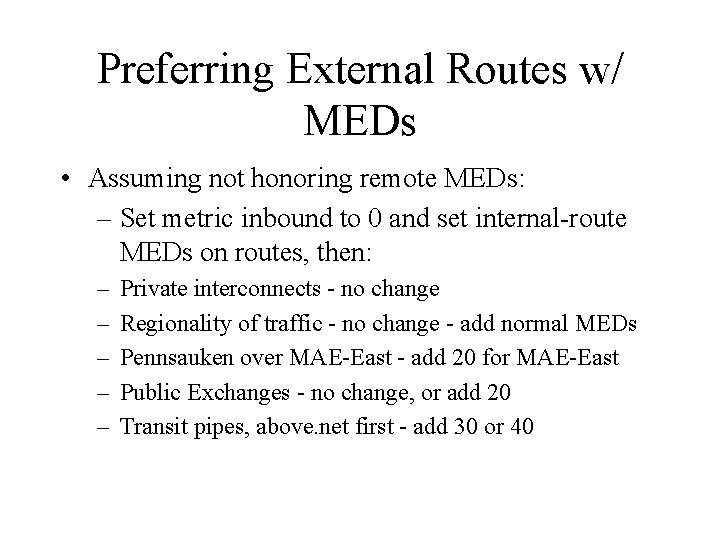

Preferring External Routes w/ MEDs • Assuming not honoring remote MEDs: – Set metric inbound to 0 and set internal-route MEDs on routes, then: – – – Private interconnects - no change Regionality of traffic - no change - add normal MEDs Pennsauken over MAE-East - add 20 for MAE-East Public Exchanges - no change, or add 20 Transit pipes, above. net first - add 30 or 40

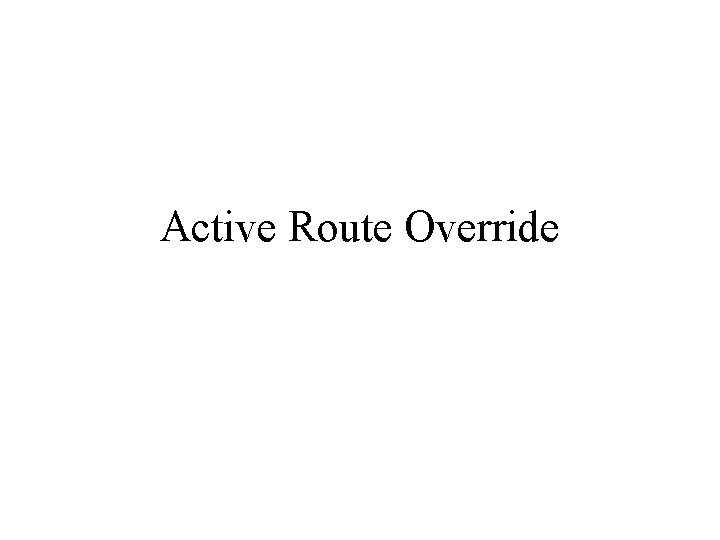

Active Route Override

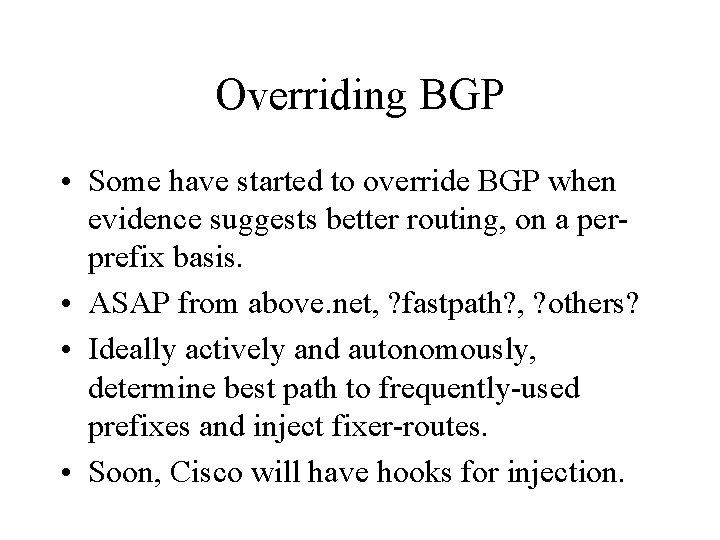

Overriding BGP • Some have started to override BGP when evidence suggests better routing, on a perprefix basis. • ASAP from above. net, ? fastpath? , ? others? • Ideally actively and autonomously, determine best path to frequently-used prefixes and inject fixer-routes. • Soon, Cisco will have hooks for injection.
