Optimal Blocking of Orthogonal Arrays in Designed Experiments Peter Goos

Optimal Blocking of Orthogonal Arrays in Designed Experiments Peter Goos In collaboration with Eric Schoen and Bagus Sartono

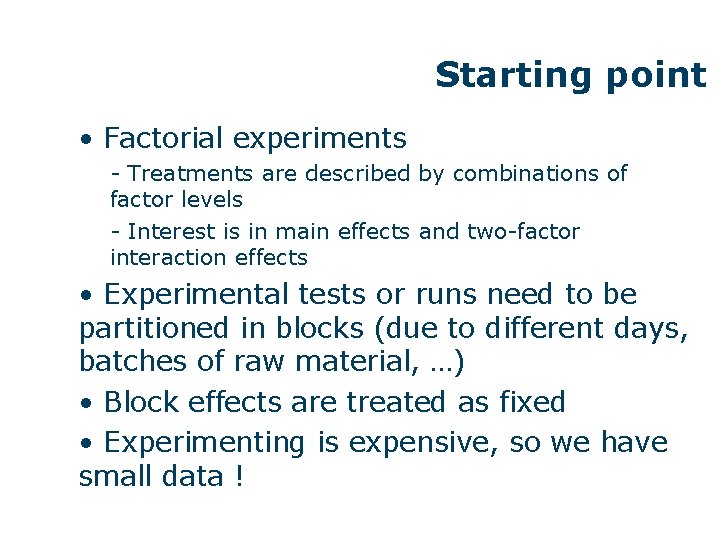

Starting point • Factorial experiments - Treatments are described by combinations of factor levels - Interest is in main effects and two-factor interaction effects • Experimental tests or runs need to be partitioned in blocks (due to different days, batches of raw material, …) • Block effects are treated as fixed • Experimenting is expensive, so we have small data !

Experiments in blocks 1. Many processes have sources of variability that are uncontrollable. 2. Examples are day-to-day variation, batch-tobatch variation, etc. 3. When experimenting, this leads to groups of observations. 4. The groups are called blocks. 5. The grouping variable (day, batch) is called a blocking factor. 6. Responses within each group are more homogeneous or similar than responses from different groups.

Outline • PART 1: the number of observations exceeds the number of main effects and two-factor interactions - Vitaming stability experiment - 32 observations (8 blocks of size 4) - 64 observations (16 blocks of size 4) • PART 2: the number of observations is too small to estimate all two-factor interaction effects

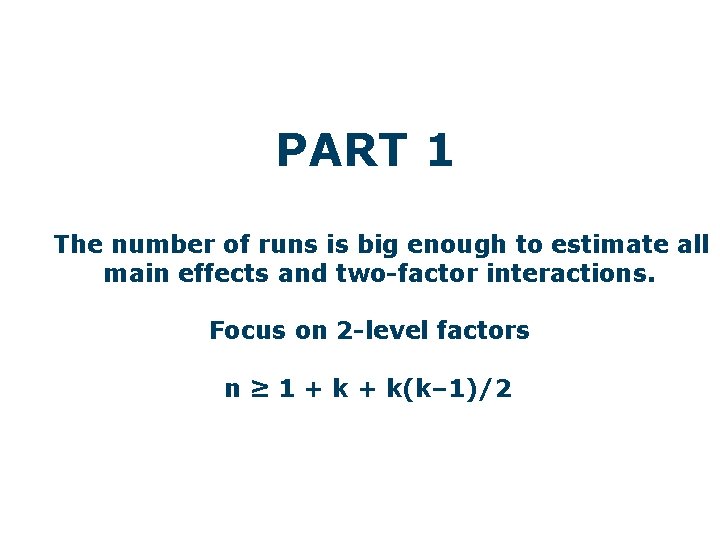

PART 1 The number of runs is big enough to estimate all main effects and two-factor interactions. Focus on 2 -level factors n ≥ 1 + k(k‒ 1)/2

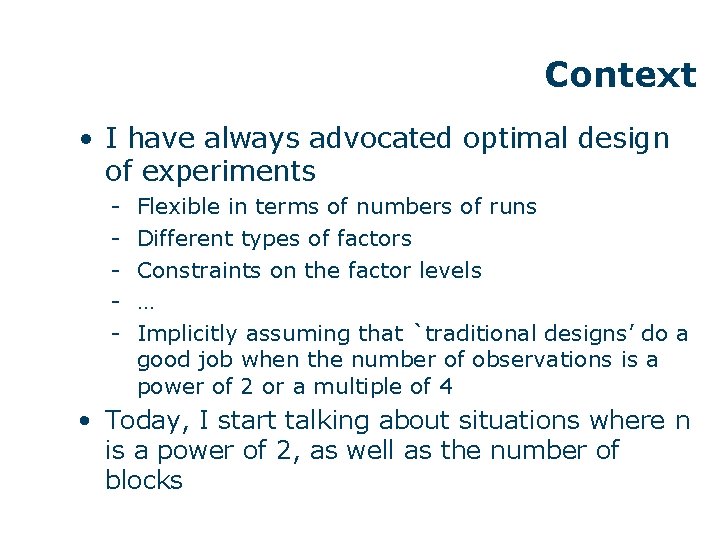

Context • I have always advocated optimal design of experiments - Flexible in terms of numbers of runs Different types of factors Constraints on the factor levels … Implicitly assuming that `traditional designs’ do a good job when the number of observations is a power of 2 or a multiple of 4 • Today, I start talking about situations where n is a power of 2, as well as the number of blocks

Vitamin stabilityexperiment • Vitamins degrade when exposed to light • Can be stabilized when embedded in a special molecule, called a fatty molecule • Five different fatty molecules • Binding with sugar might help as well to stabilize the vitamins • Experiment involving 6 two-level factors

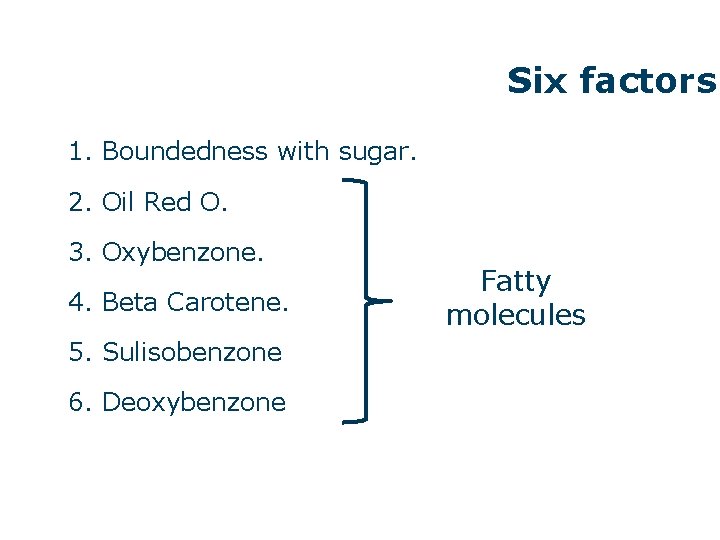

Six factors 1. Boundedness with sugar. 2. Oil Red O. 3. Oxybenzone. 4. Beta Carotene. 5. Sulisobenzone 6. Deoxybenzone Fatty molecules

Vitamin stabilityexperiment • Vitamins degrade when exposed to light • Can be stabilized when embedded in a special molecule, called a fatty molecule • Five different fatty molecules • Binding with sugar might help as well to stabilize the vitamins • Experiment involving 6 two-level factors

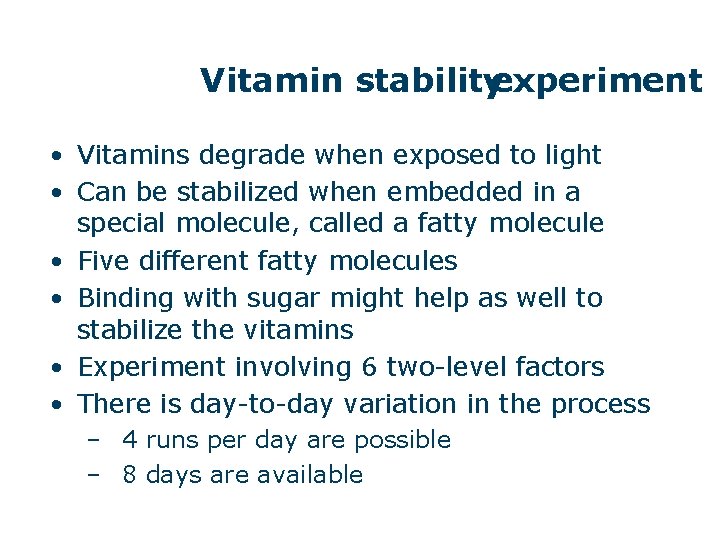

Vitamin stabilityexperiment • Vitamins degrade when exposed to light • Can be stabilized when embedded in a special molecule, called a fatty molecule • Five different fatty molecules • Binding with sugar might help as well to stabilize the vitamins • Experiment involving 6 two-level factors • There is day-to-day variation in the process

Vitamin stabilityexperiment • Vitamins degrade when exposed to light • Can be stabilized when embedded in a special molecule, called a fatty molecule • Five different fatty molecules • Binding with sugar might help as well to stabilize the vitamins • Experiment involving 6 two-level factors • There is day-to-day variation in the process ‒ 4 runs per day are possible ‒ 8 days are available

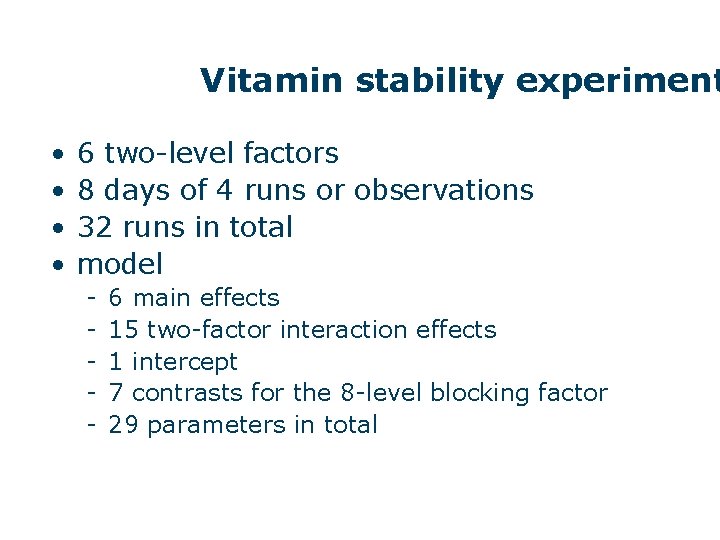

Vitamin stability experiment • • 6 two-level factors 8 days of 4 runs or observations 32 runs in total model - 6 main effects 15 two-factor interaction effects 1 intercept 7 contrasts for the 8 -level blocking factor 29 parameters in total

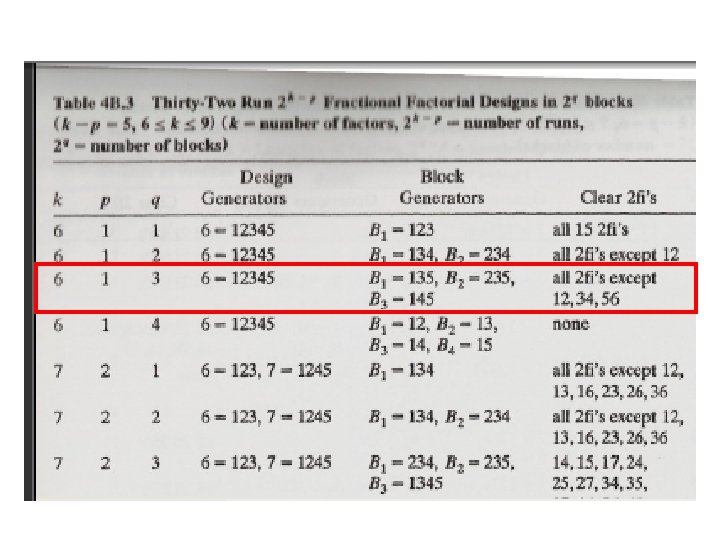

Traditional design approach Table 4 B. 3 in Wu & Hamada (26 -1 design)

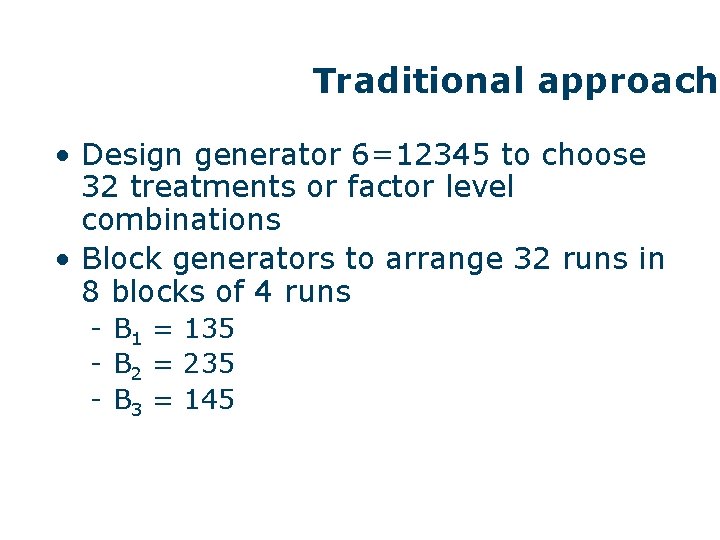

Traditional approach • Design generator 6=12345 to choose 32 treatments or factor level combinations • Block generators to arrange 32 runs in 8 blocks of 4 runs - B 1 = 135 - B 2 = 235 - B 3 = 145

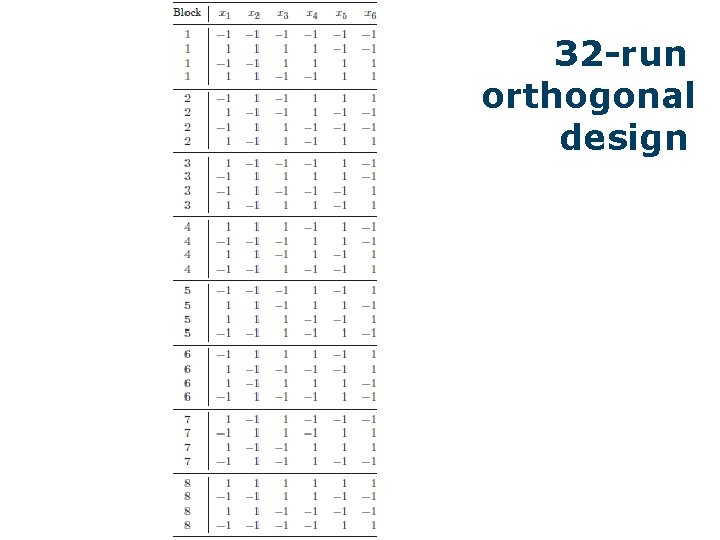

32 -run orthogonal design

Traditional approach • Perfect design for main effects - Can be estimated independently, with maximum precision - Estimates not affected by day-to-day variation - No variance inflation - No multicollinearity • Not so for interaction effects - 12 of the 15 interactions can be estimated independently, with maximum precision - 3 interaction effects (12, 34, 56) cannot be estimated - Perfect collinearity with the blocks

Traditional approach (bis) • Double the number of runs ! • 64 instead of 32 runs • Full factorial design instead of half fraction • 16 blocks of size 4 • Table 3 A in Wu & Hamada (2000)

Traditional approach (bis) • Block generators to arrange 64 runs in 16 blocks of 4 runs - B 1 B 2 B 3 B 4 = = 136 1234 3456 123456 • We can estimate all two-factor interaction effects except 12, 34 and 56

Conclusion The 64 -run design is a waste of resources. The traditional approach doesn’t work.

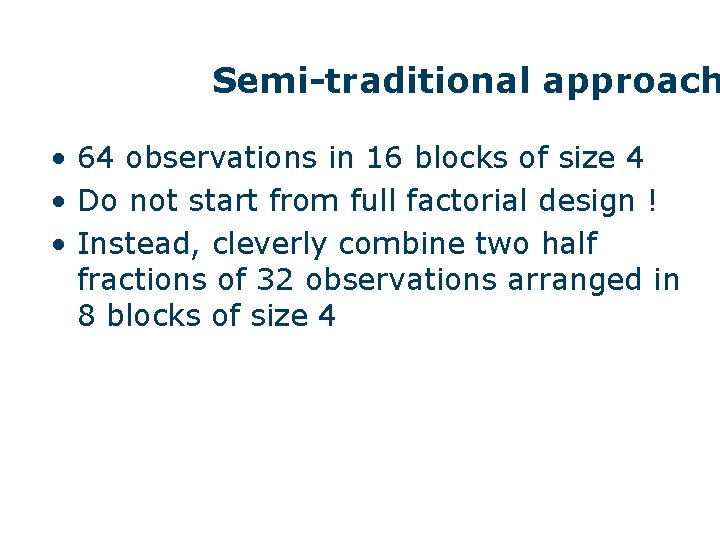

Semi-traditional approach • 64 observations in 16 blocks of size 4 • Do not start from full factorial design ! • Instead, cleverly combine two half fractions of 32 observations arranged in 8 blocks of size 4

First half fraction • Design generator 6=12345 to choose 32 treatments or factor level combinations • Block generators to arrange 32 observations in 8 blocks of 4 runs - B 1 = 135 - B 2 = 235 - B 3 = 145 • We can estimate all two-factor interaction effects except 12, 34 and 56 • This was the original idea

Second half fraction • Design generator 6=‒ 12345 to choose 32 treatments or factor level combinations • Block generators to arrange 32 observations in 8 blocks of 4 runs - B 1 = 135 124 - B 2 = 235 134 - B 3 = 145 125 • We can estimate all two-factor interaction effects except 23, 45 and 16

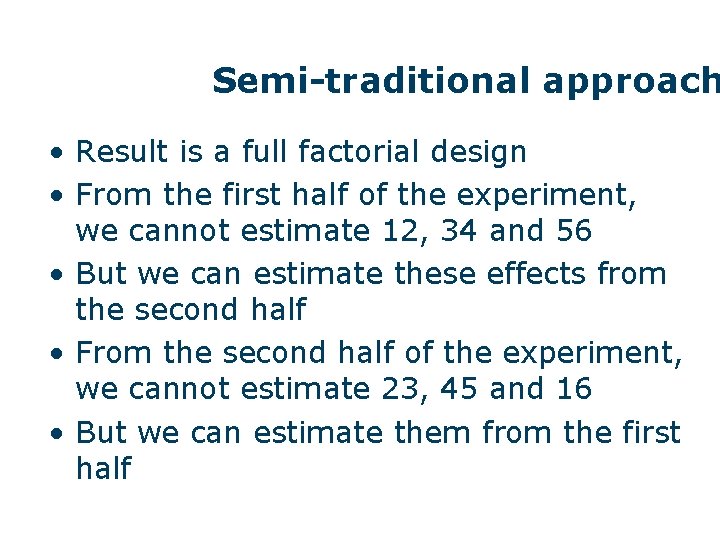

Semi-traditional approach • Result is a full factorial design • From the first half of the experiment, we cannot estimate 12, 34 and 56 • But we can estimate these effects from the second half • From the second half of the experiment, we cannot estimate 23, 45 and 16 • But we can estimate them from the first half

Semi-traditional approach

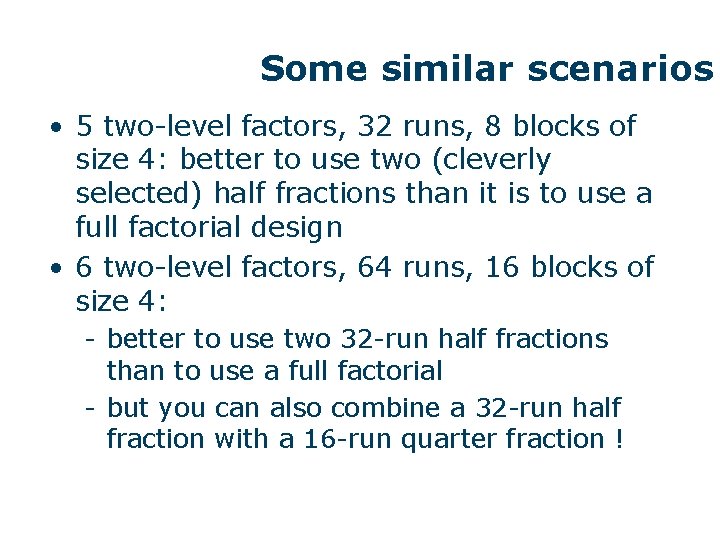

Some similar scenarios • 5 two-level factors, 32 runs, 8 blocks of size 4: better to use two (cleverly selected) half fractions than it is to use a full factorial design • 6 two-level factors, 64 runs, 16 blocks of size 4: - better to use two 32 -run half fractions than to use a full factorial - but you can also combine a 32 -run half fraction with a 16 -run quarter fraction !

Advice to experimenters Do not trust tables in DOE textbooks ! Do not trust options for screening designs in your favorite software !

Advice to DOE textbook writers Make clear that certain designs in the tables should not be used ! And describe the better alternatives.

Advice to DOE software developers Make clear that certain screening design options should not be used ! And provide the better alternatives.

Advice to experimenters Do not trust tables in DOE textbooks ! Do not trust options for screening designs in your favorite software !

Advice to experimenters Throw away the DOE textbooks ! Do not trust options for screening designs in your favorite software !

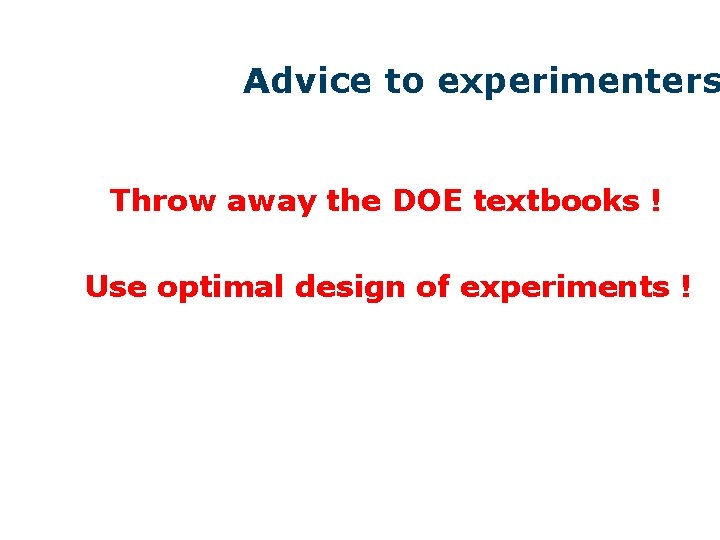

Advice to experimenters Throw away the DOE textbooks ! Use optimal design of experiments !

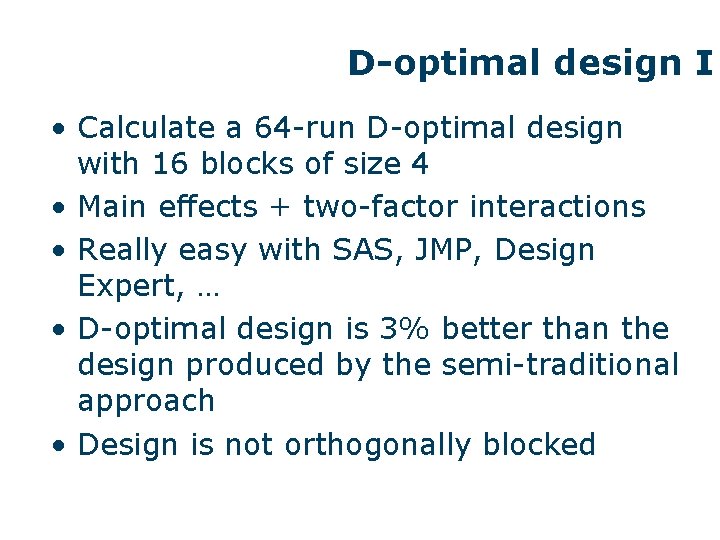

D-optimal design I • Calculate a 64 -run D-optimal design with 16 blocks of size 4 • Main effects + two-factor interactions • Really easy with SAS, JMP, Design Expert, … • D-optimal design is 3% better than the design produced by the semi-traditional approach • Design is not orthogonally blocked

D-optimal design I

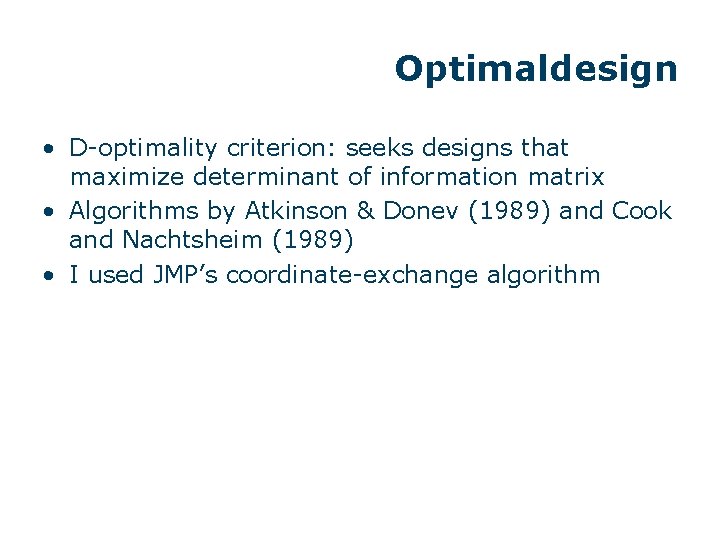

Optimaldesign • D-optimality criterion: seeks designs that maximize determinant of information matrix • Algorithms by Atkinson & Donev (1989) and Cook and Nachtsheim (1989) • I used JMP’s coordinate-exchange algorithm

This is interesting … … but it does not solve the original problem … … which was to find a 32 -run two-level design in 8 blocks of size 4 for estimating main effects and two-factor interaction effects

D-optimal design II • Calculate a 32 -run D-optimal design with 8 blocks of size 4 • Main effects + two-factor interactions • Really easy with SAS, JMP, Design Expert, … • All 2 fis are estimable • Design is not orthogonally blocked • VIFs range from 1 to 2. 6 only

D-optimal design II

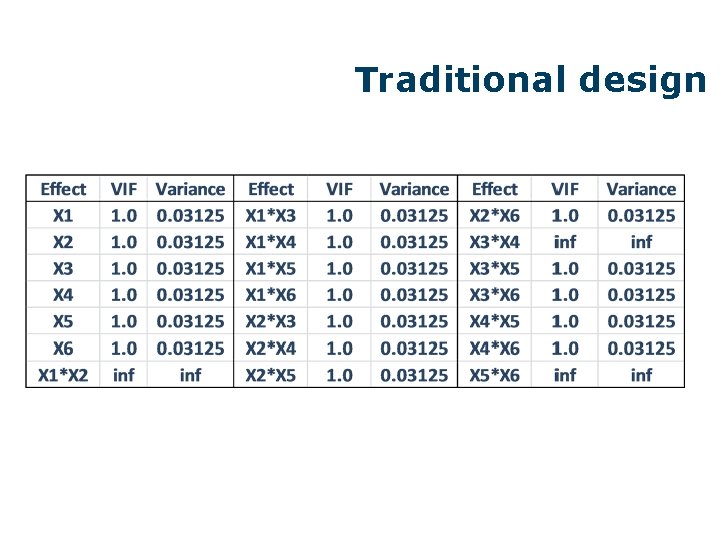

Traditional design

Conclusion Part 1 • 64 runs ‒ 64 -run textbook design was beaten by manually constructed design ‒ manually constructed design was beaten by optimal design • 32 -run textbook design was beaten by optimal design • So, optimal designs do a better job than classical designs even in scenarios that are ideal for classical designs 42

PART 2 The number of runs is not big enough to estimate all main effects and two-factor interactions. Optimal design approach not feasible since information matrix is singular in that case. Factors with 2, 3 and 4 levels

Orthogonal arrays • There exist many orthogonal arrays (OAs) that can be used as an experimental design • 2 -level arrays ‒ Regular full and fractional factorial designs ‒ Plackett-Burman designs ‒ Other nonregular arrays • 3 -level arrays: regular full and fractional factorial designs, nonregular arrays • Mixed-level arrays: not all factors have the same number of levels (e. g. Taguchi’s L 18) 44

Strength-2 (or resolution-III) arrays • Main effects can be estimated independently from each other • But they are aliased with two-factor interactions • Using complete catalogs of OAs, we sought optimal blocking patterns based on the concept of “generalized word-length pattern” ‒ Orthogonal blocking for main effects ‒ As little aliasing and confounding for twofactor interactions as possible • We listed optimally blocked designs with 12, 16, 20, 24 and 27 runs 45

20 runs, eight 2 -level factors, five blocks Blocks ------X 1 X 2 X 3 X 4 X 5 X 6 X 7 X 8 00001111222233334444 ---------------0011001100110101011100 00110110101011000101 00111001010011011011001010 0101100110101001 010110100101011001011100001110010110 46

27 runs, nine 3 -level factors, nine blocks Blocks -------X 1 X 2 X 3 X 4 X 5 X 6 X 7 X 8 X 9 000111222333444555666777888 ---------------------0120120120120120201201201201120120120 012120201012120201012201012120201201012120120201012 012201120120012201120 012201120012201120012 47

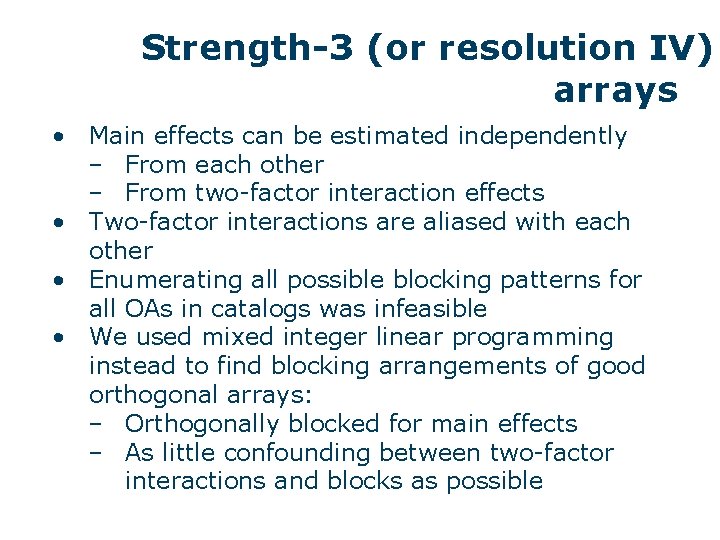

Strength-3 (or resolution IV) arrays • Main effects can be estimated independently ‒ From each other ‒ From two-factor interaction effects • Two-factor interactions are aliased with each other • Enumerating all possible blocking patterns for all OAs in catalogs was infeasible • We used mixed integer linear programming instead to find blocking arrangements of good orthogonal arrays: ‒ Orthogonally blocked for main effects ‒ As little confounding between two-factor interactions and blocks as possible 48

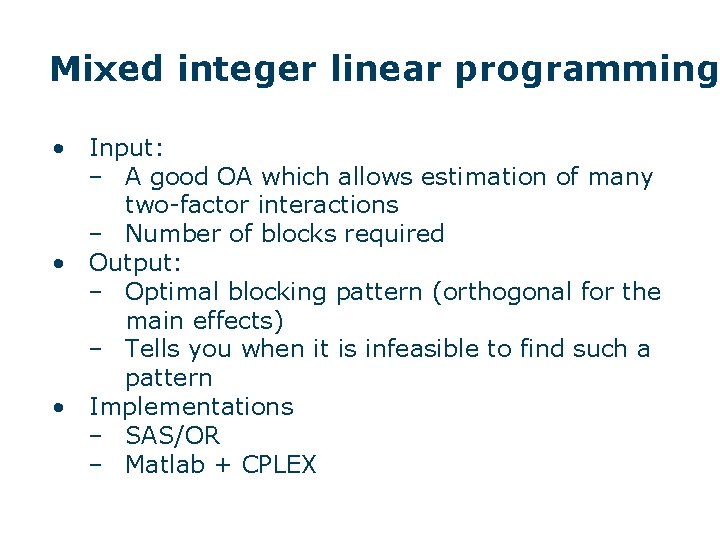

Mixed integer linear programming • Input: ‒ A good OA which allows estimation of many two-factor interactions ‒ Number of blocks required • Output: ‒ Optimal blocking pattern (orthogonal for the main effects) ‒ Tells you when it is infeasible to find such a pattern • Implementations ‒ SAS/OR ‒ Matlab + CPLEX 49

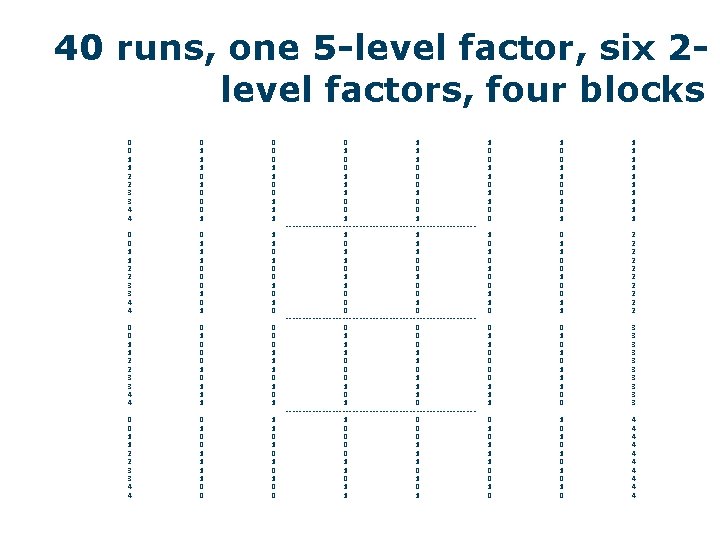

40 runs, one 5 -level factor, six 2 level factors, four blocks 0 0 1 1 2 2 3 3 4 4 0 1 1 1 0 0 0 1 1 1 0 0 1 1 2 2 3 3 4 4 0 1 1 1 0 0 0 1 1 1 0 1 0 0 0 1 1 2 2 3 3 4 4 0 1 0 0 0 1 1 1 0 1 0 0 1 1 2 2 3 3 4 4 0 1 0 0 1 1 0 1 0 0 0 1 1 1 0 0 1 0 1 1 0 0 1 1 ----------------------------1 1 0 0 0 1 1 1 0 0 ----------------------------0 0 1 0 1 1 0 0 0 1 1 1 0 ----------------------------1 0 0 0 1 0 1 1 0 0 1 1 0 0 1 1 1 1 0 1 0 0 1 1 2 2 2 2 2 0 1 1 0 0 1 1 1 0 1 0 1 1 1 0 0 3 3 3 3 3 0 1 1 1 0 0 1 0 1 0 1 0 4 4 4 4 4 50

Conclusion Part 2 • Catalogs of orthogonal arrays offer a starting point for designing blocked experiments • For small numbers of observations, it is possible to completely enumerate all possible designs and select the best • For larger numbers of observations, a mixed integer linear programming approach can be used to arrange an appropriate orthogonal array in blocks 51

Based on … • Sartono, B. , Goos, P. , Schoen, E. D. (2014) Blocking Orthogonal Designs with Mixed Integer Linear Programming, Technometrics 56, to appear. • Schoen E. D. , Sartono B. , Goos, P. (2013) Optimum blocking for general resolution-3 designs, Journal of Quality Technology 45, 166 -187. • Goos, P. , Jones, B. (2011) Optimal Design of Experiments: A Case-Study Approach, Wiley.
