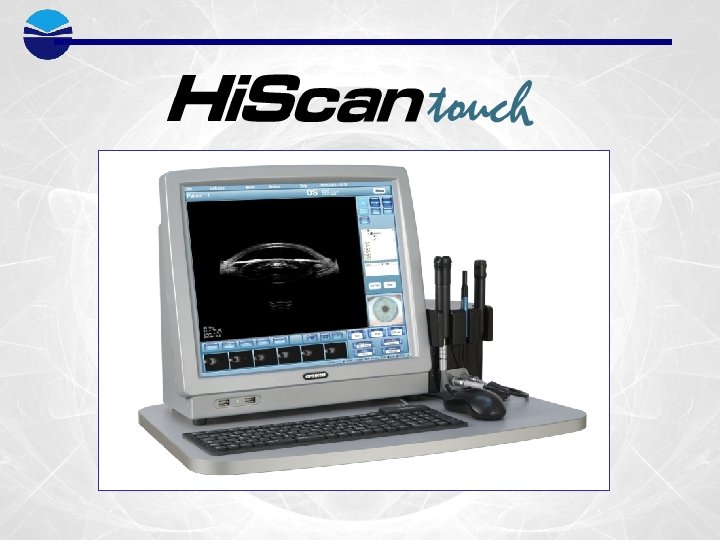

Optikon Hi Scan Touch New Hi Scan Touch

Optikon Hi. Scan Touch New Hi. Scan Touch l l l l l B-Scan /UBM Diagnostic A-Scan Biometry A-Scan on B-Scan Pachymetry IOL calculation 3 D reconstruction All-in-one Touch Screen

Optikon Hi. Scan Touch New Hi. Scan Touch - New design and style: Hardware e Software - 17” Touch Screen - No installation required - Transportable and isolated from external noise - Special Features - Pachymetry

Optikon Hi. Scan Touch Design: HW & SW - Windows XP embedded - Quadrant information saved - Multiple Bscan image selection - Ergonomic and resistant

Optikon Hi. Scan Touch Design: HW & SW - Graphical User Interface resolution 1280 x 1024 - Bscan resolution 1024 x 768 - Sensibility of the probes - New probes design

Optikon Hi. Scan Touch Screen - Built-in the unit 17” - Secondary Video Output - High brightness and contrast - Extremely easy to use

Optikon Hi. Scan Touch Installation - No external PC required - Pre-installed software / Upgrades free of charge - No cable connection required - Keyboard and mouse supplied with the unit

Optikon Hi. Scan Touch Transportable and noise isolated - Reduced weight - Posterior handle - Class B - Noise immune

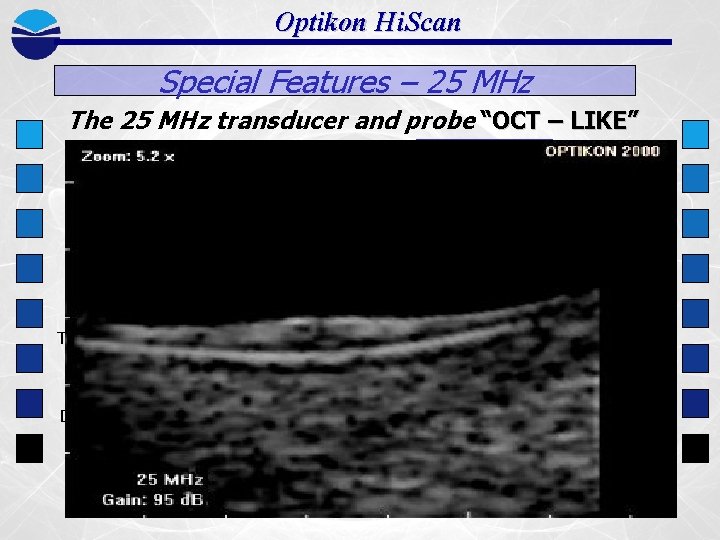

Optikon Hi. Scan Special Features – 25 MHz The 25 MHz transducer and probe “OCT – LIKE” The 25 MHz probe combines penetration, to access all the structures of the posterior segment, and an outstanding resolution to better distinguish the various internal structures Designed to get the best image of the retinal tissues and ocular fundus.

Optikon Hi. Scan Touch Special Features B-Scan probe holder arm and interchangeable transducers - Ergonomic and easy to use - No need for the - Easy Doctors to install to hold the probes - Allows to have echographies two probes almost at the price of one - Allows very accurate for immersion technique

Optikon Hi. Scan Touch Special Features – 3 D Reconstruction Hi. Scan Touch is the only A/B and UBM Scan able to make 3 D reconstruction both for anterior and posterior segment Anterior Segment Ciliary Bodies Posterior Segment Melanoma of the choroid

Optikon Hi. Scan Touch Pachymetry - Available soon with new software version free of charge

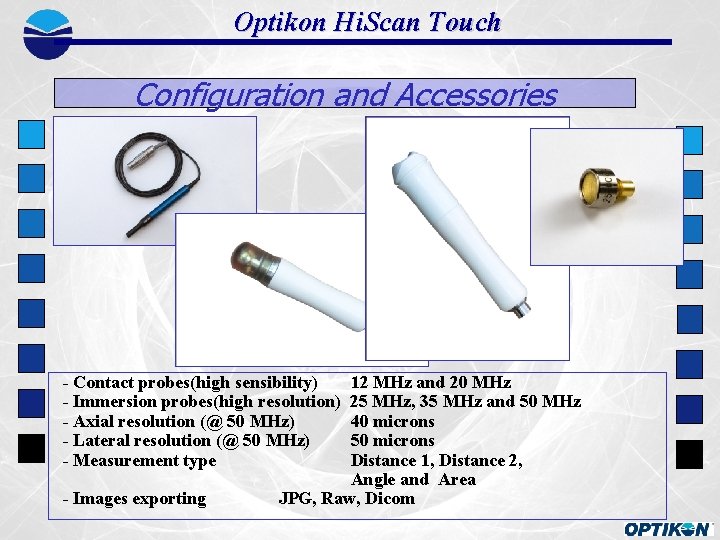

Optikon Hi. Scan Touch Configuration and Accessories - Contact probes(high sensibility) - Immersion probes(high resolution) - Axial resolution (@ 50 MHz) - Lateral resolution (@ 50 MHz) - Measurement type - Images exporting 12 MHz and 20 MHz 25 MHz, 35 MHz and 50 MHz 40 microns 50 microns Distance 1, Distance 2, Angle and Area JPG, Raw, Dicom

Optikon Hi. Scan Touch Configuration and Accessories

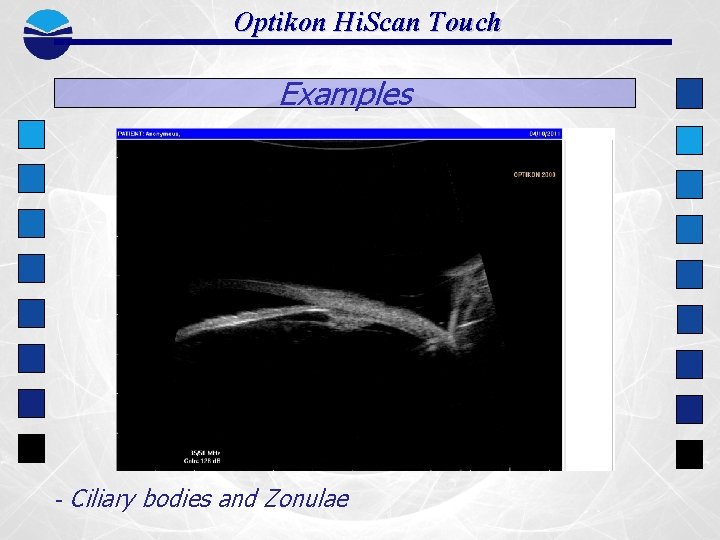

Optikon Hi. Scan Touch Examples - Ciliary bodies and Zonulae

Optikon Hi. Scan Touch Examples - Crystalline lens and zonulae

Optikon Hi. Scan Touch Examples - Blood in the Anterior Chamber

Optikon Hi. Scan Touch Examples - Synchrony lens

Optikon Hi. Scan Touch Examples - All the images have been taken without pupil dilation - Ciliary bodies and zonular fibres are clearly visible with a very high resolution - Crystalline bag outline is clear even with a mature cataract - Dr. Marina Modesti -> JCRS Oct 2011 N 37 pag. 17751784: Preoperative and Postoperative size and movements of the lens capsular bag: Ultrasound Biomicroscopy analysis (Modesti M. MD; Sourdille P. MD; et. al. ) comparative measurement of AC with OCT and UBM result statistically significant and equivalent
