Optical System for Micro Boo NE Arati Prakash

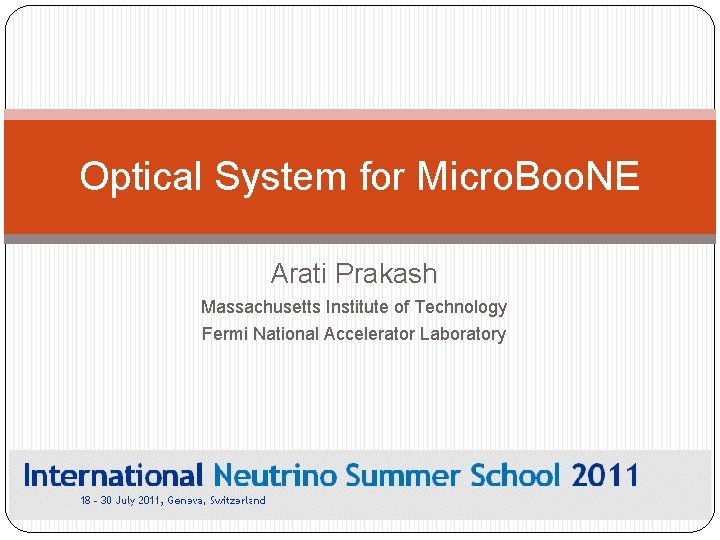

Optical System for Micro. Boo. NE Arati Prakash Massachusetts Institute of Technology Fermi National Accelerator Laboratory

Outline �Introduction - What is Micro. Boo. NE �Light in Liquid Argon �Micro. Boo. NE PMT System Design 2 Arati Prakash INSS 07/20/2011

Outline �Introduction - What is Micro. Boo. NE �Light in Liquid Argon �Micro. Boo. NE PMT System Design 3 Arati Prakash INSS 07/20/2011

Micro. Boo. NE Experiment � 170 ton Liquid Argon Time Projection Chamber (LAr. TPC) � Examine low energy neutrino cross sections �Low energy excess observed in Mini. Boo. NE experiment – or e? � Start taking data early 2014 � Located on axis to the ~1 Ge. V Booster Neutrino Beamline at Fermilab (Chicago, IL) 4 Arati Prakash INSS 07/20/2011

Micro. Boo. NE Detector Design � LAr. TPC: 3 wire planes with 2. 5 m drift in 170 tons of LAr � Located in a cylindrical cryostat vessel: 4 m radius x 12 m length � PMT system sits along the wall behind the TPC �Charge drifts to the TPC planes T~ms �PMT scintillation light detected T ~ns �So, the PMT system in principle can trigger the TPC 5 Arati Prakash INSS 07/20/2011

Outline �Introduction - What is Micro. Boo. NE �Light in Liquid Argon �Micro. Boo. NE PMT System Design 6 Arati Prakash INSS 07/20/2011

LAr Scintillation Light Prompt component: T ~ 6 ns (25%) Excitation Ar* Excited molecule Ar 2* Ar+ Ionization Ar 2+ Ar 2* Ionized molecule Delayed component: T ~1. 6 us (75%) Arati Prakash 128 nm Ar Ar 7 Ar e. Recombination INSS 07/20/2011

Outline �Introduction - What is Micro. Boo. NE �Light in Liquid Argon �Micro. Boo. NE PMT System Design 8 Arati Prakash INSS 07/20/2011

System Requirements �In the Micro. Boo. NE E = 500 V/cm, we expect 24, 000 photons/Me. V �Need to trigger on a 40 Me. V proton (~30 Me. V MIP particles) for Micro. Boo. NE �Further goal: trigger on a 5 Me. V electron to see supernovae events 9 Arati Prakash INSS 07/20/2011

Design Constraints �PMTs must work efficiently at cryogenic temp (87 K) �UV light does not pass through glass - Scintillation light (128 nm) must be made visible to PMTs �Optimize Cost vs. coverage �Maintain LAr purity �Allow enough space for TPC �Longevity of the System 10 Arati Prakash INSS 07/20/2011

Choice of PMT � 30 x 8 -inch, 14 -stage Hamamatsu cryogenic PMT �Gain ~10^9 11 Arati Prakash INSS 07/20/2011

Wavelength shifting � Scintillation light is produced in the UV ~128 nm. � We coat acrylic plates with TPB mixture to shift the light into the visible, ~425 nm. (Previous experiments (ICARUS) coated PMTs directly. ) 12 Arati Prakash INSS 07/20/2011

Conclusion �Micro. Boo. NE will hopefully provide valuable information for LAr. TPC detector R&D, as well as data that will be informative for understanding the Mini. Boo. NE observed excess etc. �Come see my poster! Thank You 13 Arati Prakash INSS 07/20/2011
