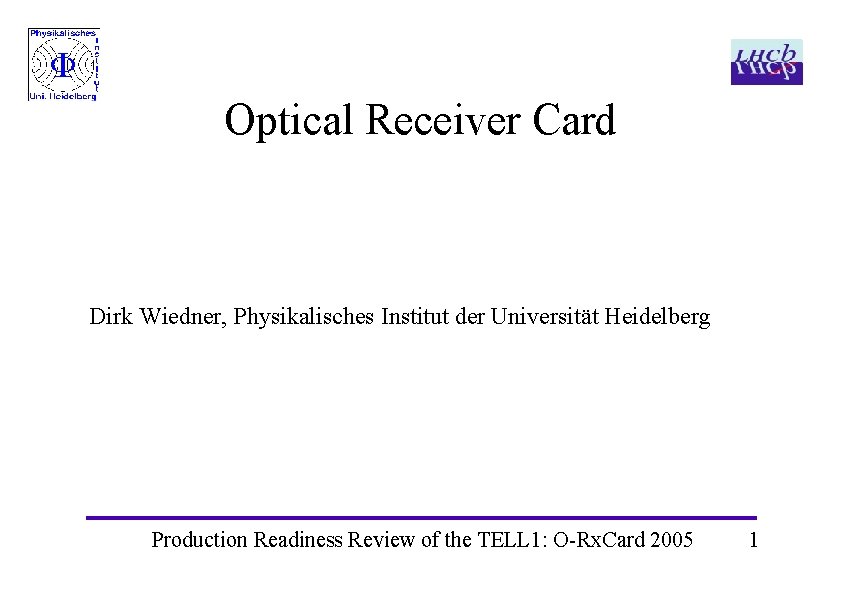

Optical Receiver Card Dirk Wiedner, Physikalisches Institut der Universität Heidelberg Production Readiness Review of the TELL 1: O-Rx. Card 2005 1

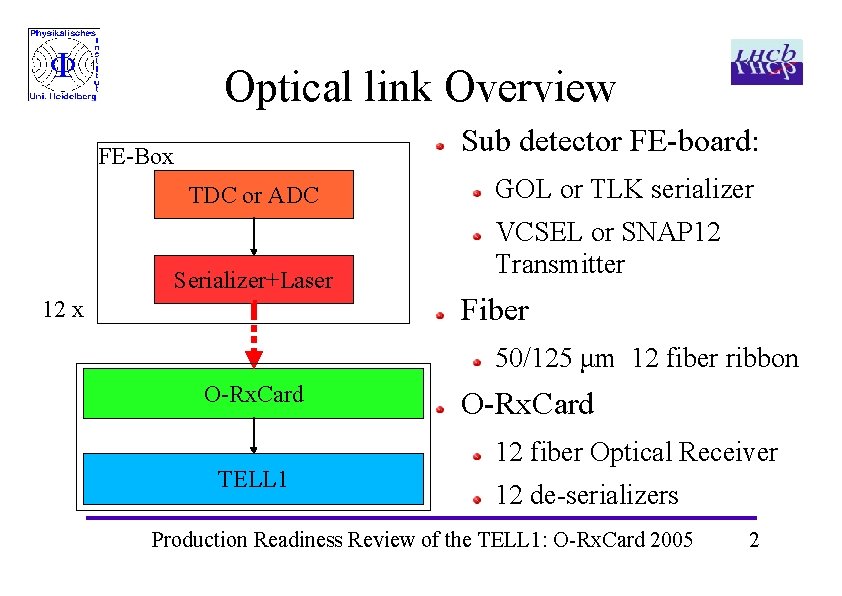

Optical link Overview Sub detector FE-board: FE-Box TDC or ADC Serializer+Laser 12 x GOL or TLK serializer VCSEL or SNAP 12 Transmitter Fiber 50/125 μm 12 fiber ribbon O-Rx. Card TELL 1 O-Rx. Card 12 fiber Optical Receiver 12 de-serializers Production Readiness Review of the TELL 1: O-Rx. Card 2005 2

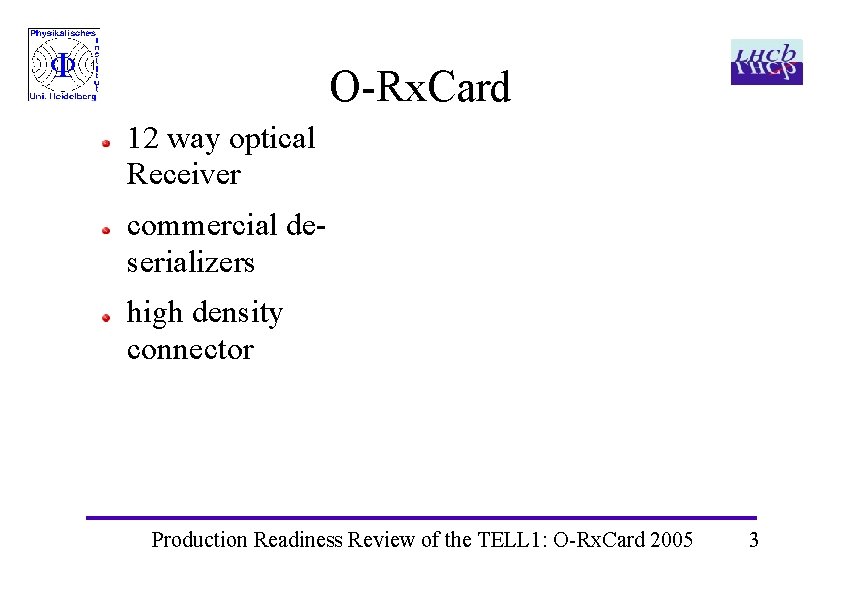

O-Rx. Card 12 way optical Receiver commercial deserializers high density connector Production Readiness Review of the TELL 1: O-Rx. Card 2005 3

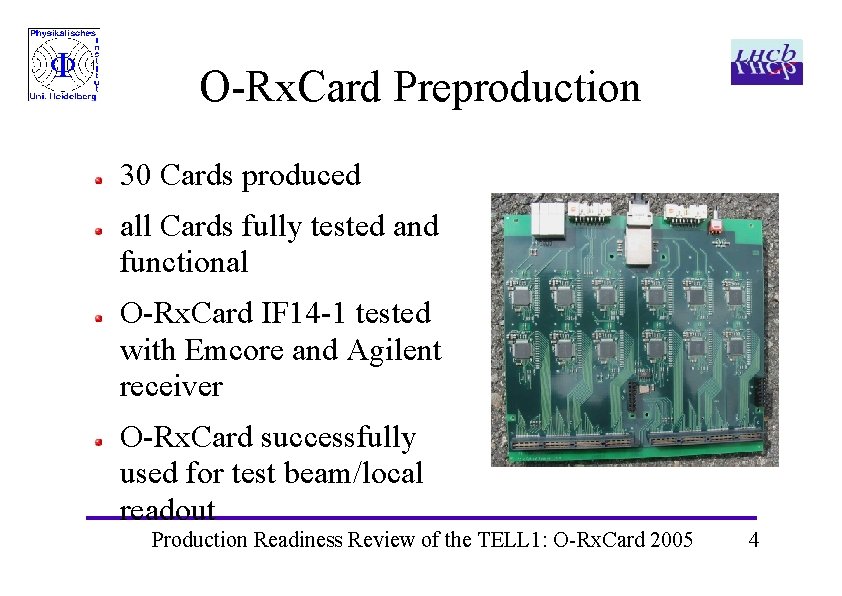

O-Rx. Card Preproduction 30 Cards produced all Cards fully tested and functional O-Rx. Card IF 14 -1 tested with Emcore and Agilent receiver O-Rx. Card successfully used for test beam/local readout Production Readiness Review of the TELL 1: O-Rx. Card 2005 4

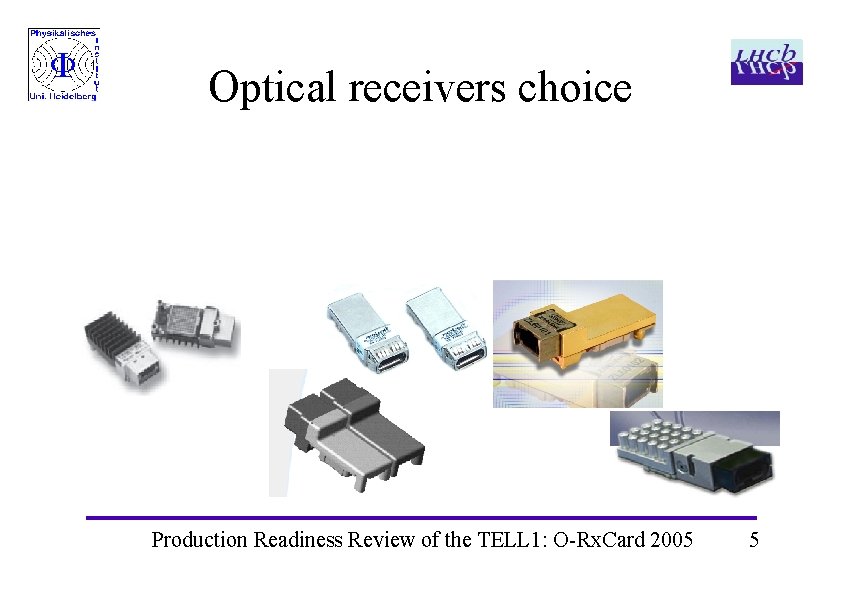

Optical receivers choice Production Readiness Review of the TELL 1: O-Rx. Card 2005 5

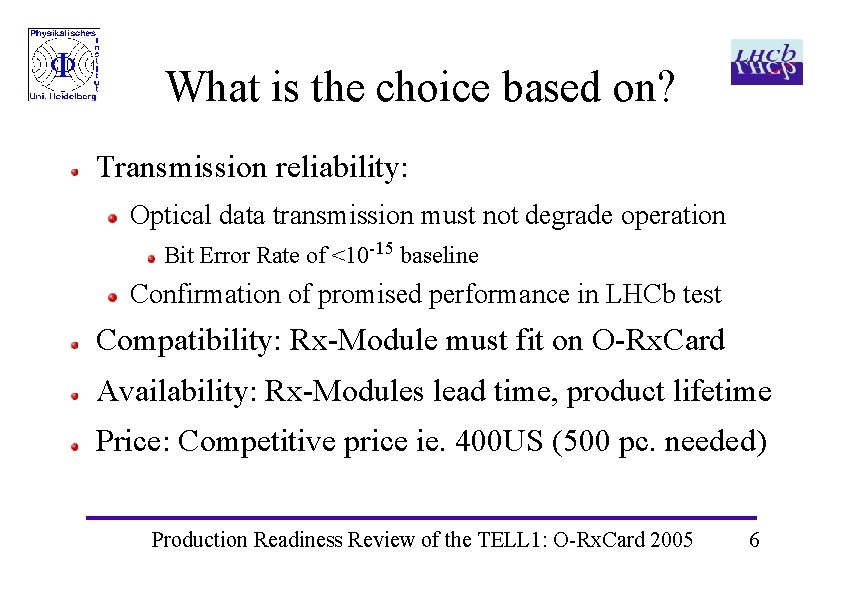

What is the choice based on? Transmission reliability: Optical data transmission must not degrade operation Bit Error Rate of <10 -15 baseline Confirmation of promised performance in LHCb test Compatibility: Rx-Module must fit on O-Rx. Card Availability: Rx-Modules lead time, product lifetime Price: Competitive price ie. 400 US (500 pc. needed) Production Readiness Review of the TELL 1: O-Rx. Card 2005 6

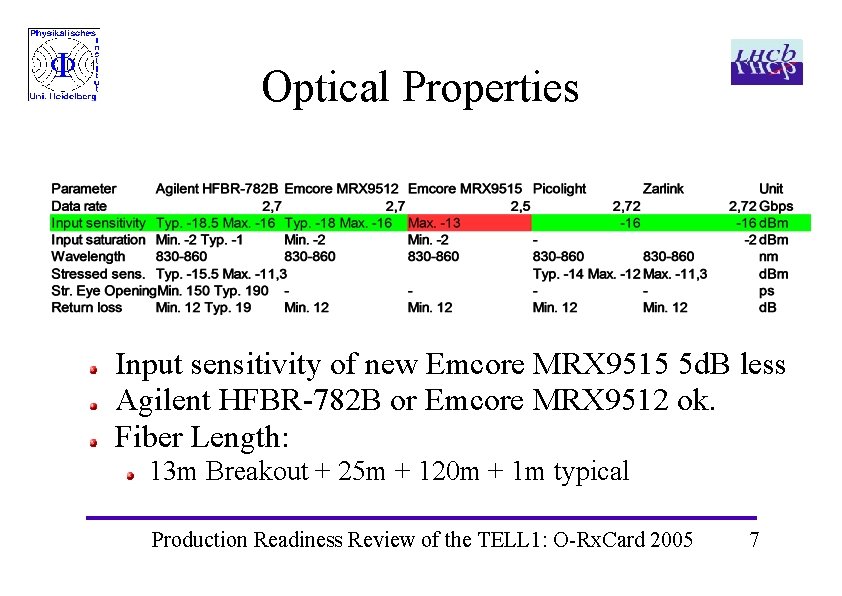

Optical Properties Input sensitivity of new Emcore MRX 9515 5 d. B less Agilent HFBR-782 B or Emcore MRX 9512 ok. Fiber Length: 13 m Breakout + 25 m + 120 m + 1 m typical Production Readiness Review of the TELL 1: O-Rx. Card 2005 7

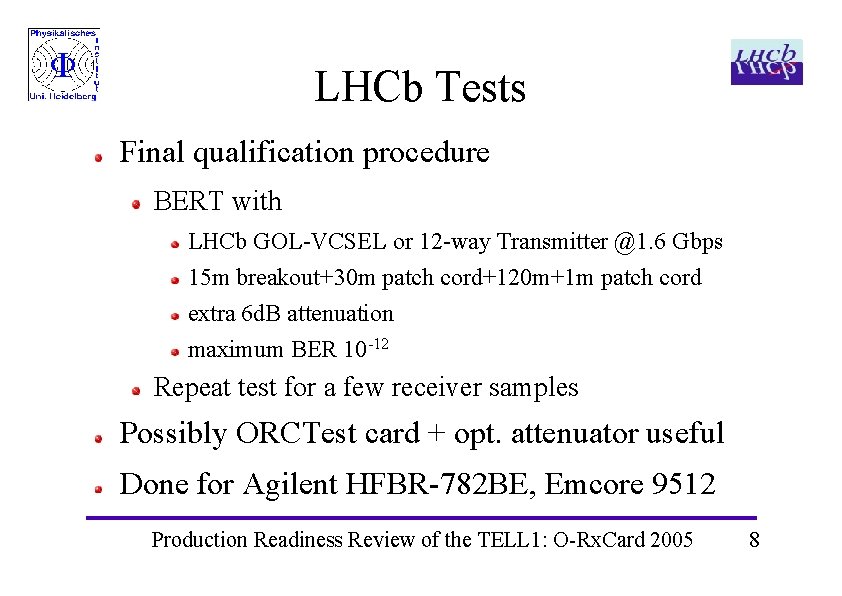

LHCb Tests Final qualification procedure BERT with LHCb GOL-VCSEL or 12 -way Transmitter @1. 6 Gbps 15 m breakout+30 m patch cord+120 m+1 m patch cord extra 6 d. B attenuation maximum BER 10 -12 Repeat test for a few receiver samples Possibly ORCTest card + opt. attenuator useful Done for Agilent HFBR-782 BE, Emcore 9512 Production Readiness Review of the TELL 1: O-Rx. Card 2005 8

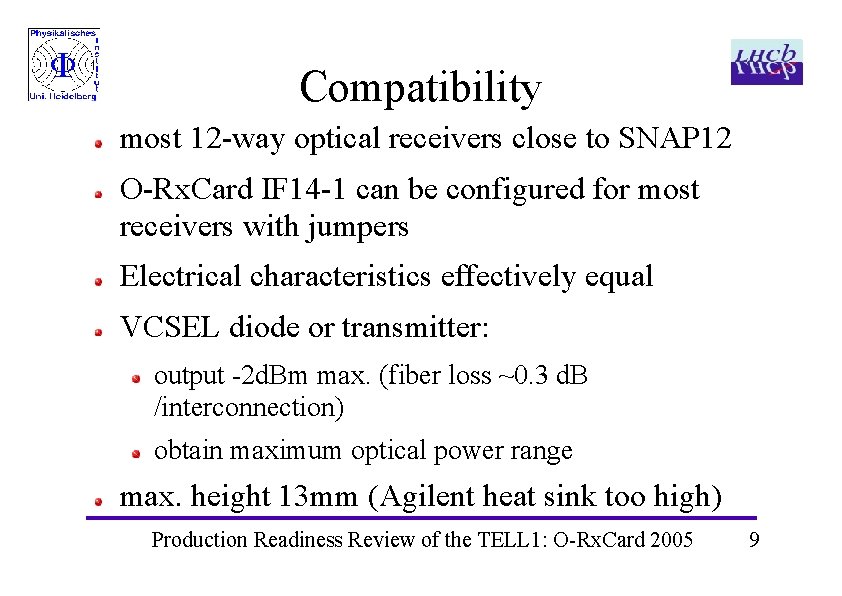

Compatibility most 12 -way optical receivers close to SNAP 12 O-Rx. Card IF 14 -1 can be configured for most receivers with jumpers Electrical characteristics effectively equal VCSEL diode or transmitter: output -2 d. Bm max. (fiber loss ~0. 3 d. B /interconnection) obtain maximum optical power range max. height 13 mm (Agilent heat sink too high) Production Readiness Review of the TELL 1: O-Rx. Card 2005 9

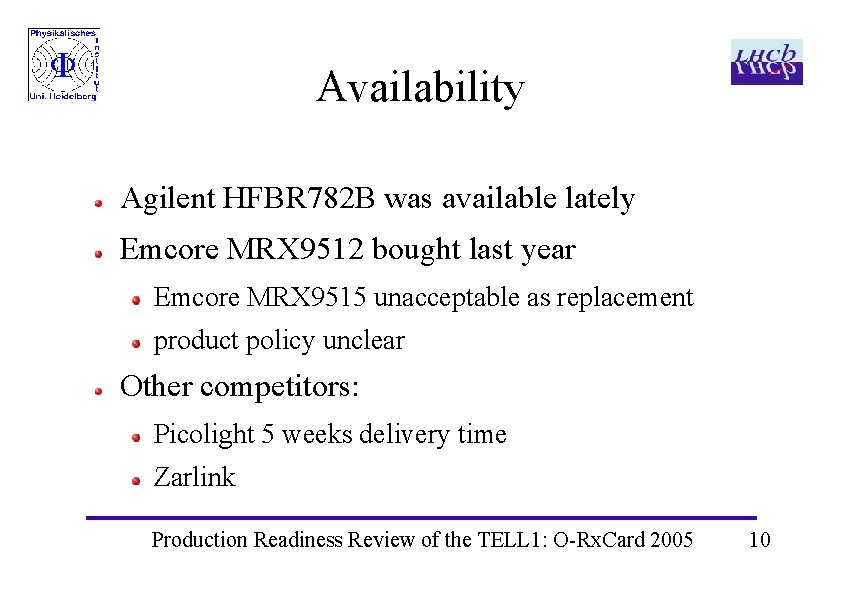

Availability Agilent HFBR 782 B was available lately Emcore MRX 9512 bought last year Emcore MRX 9515 unacceptable as replacement product policy unclear Other competitors: Picolight 5 weeks delivery time Zarlink Production Readiness Review of the TELL 1: O-Rx. Card 2005 10

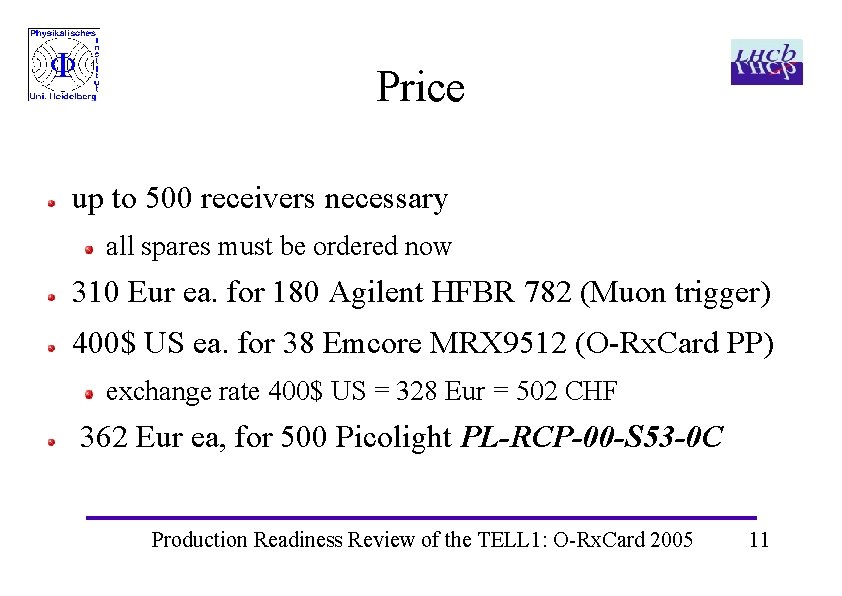

Price up to 500 receivers necessary all spares must be ordered now 310 Eur ea. for 180 Agilent HFBR 782 (Muon trigger) 400$ US ea. for 38 Emcore MRX 9512 (O-Rx. Card PP) exchange rate 400$ US = 328 Eur = 502 CHF 362 Eur ea, for 500 Picolight PL-RCP-00 -S 53 -0 C Production Readiness Review of the TELL 1: O-Rx. Card 2005 11

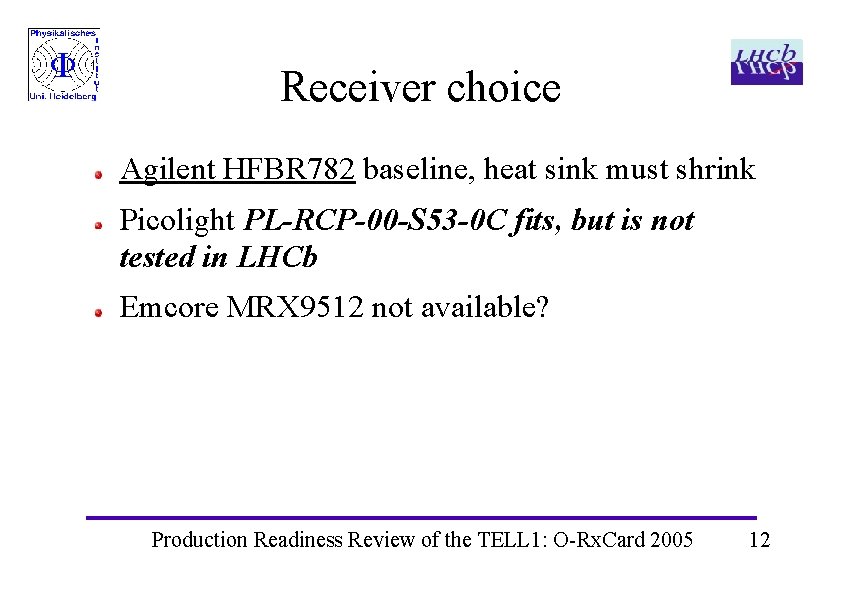

Receiver choice Agilent HFBR 782 baseline, heat sink must shrink Picolight PL-RCP-00 -S 53 -0 C fits, but is not tested in LHCb Emcore MRX 9512 not available? Production Readiness Review of the TELL 1: O-Rx. Card 2005 12

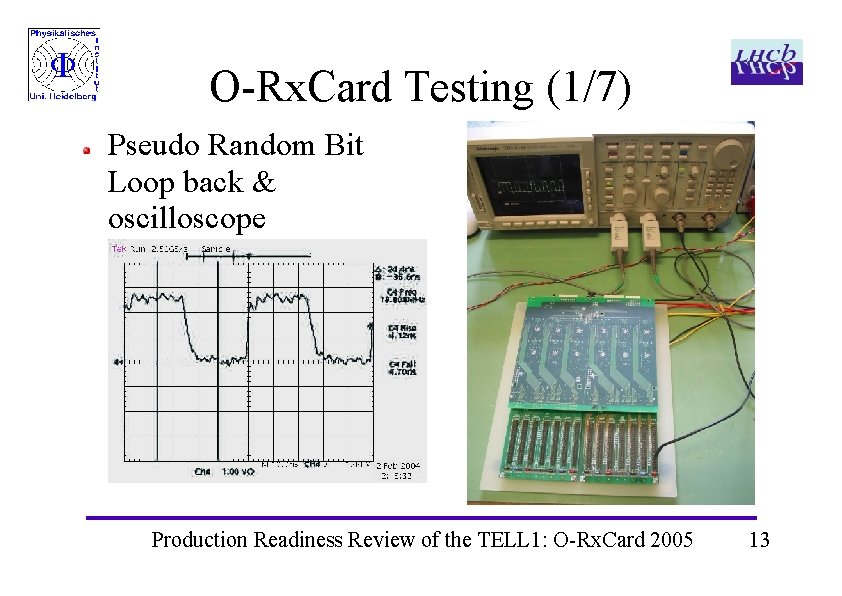

O-Rx. Card Testing (1/7) Pseudo Random Bit Loop back & oscilloscope Production Readiness Review of the TELL 1: O-Rx. Card 2005 13

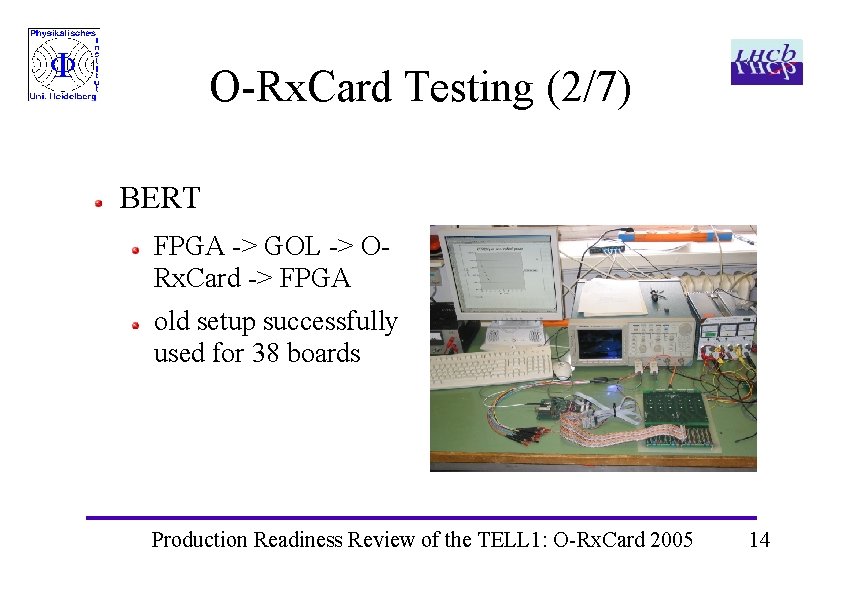

O-Rx. Card Testing (2/7) BERT FPGA -> GOL -> ORx. Card -> FPGA old setup successfully used for 38 boards Production Readiness Review of the TELL 1: O-Rx. Card 2005 14

O-Rx. Card BERT Bit error rate tested vs. optical attenuation 6 d. B extra attenuation ok BERT with 6 pieces of fiber (135 m) 1 error in 1. 4 x 1012 Bit Production Readiness Review of the TELL 1: O-Rx. Card 2005 15

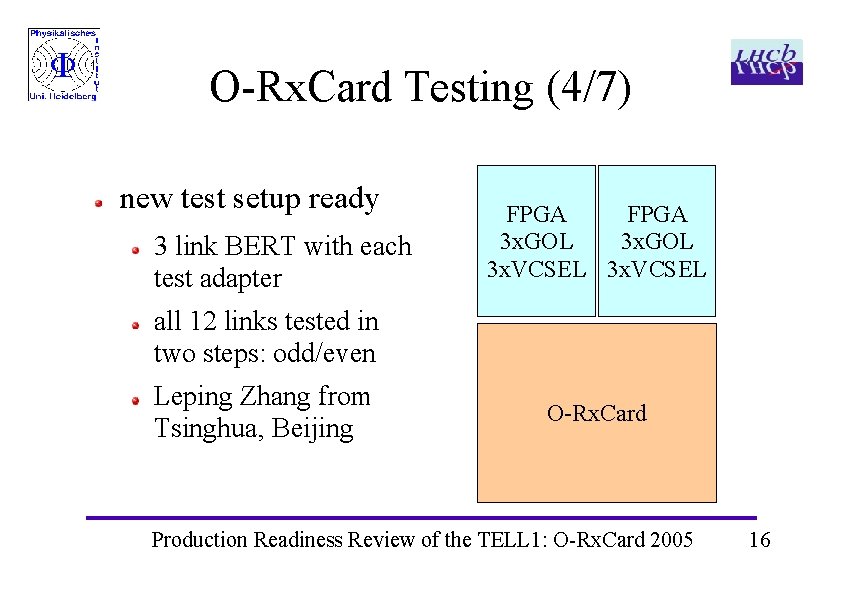

O-Rx. Card Testing (4/7) new test setup ready 3 link BERT with each test adapter FPGA 3 x. GOL 3 x. VCSEL all 12 links tested in two steps: odd/even Leping Zhang from Tsinghua, Beijing O-Rx. Card Production Readiness Review of the TELL 1: O-Rx. Card 2005 16

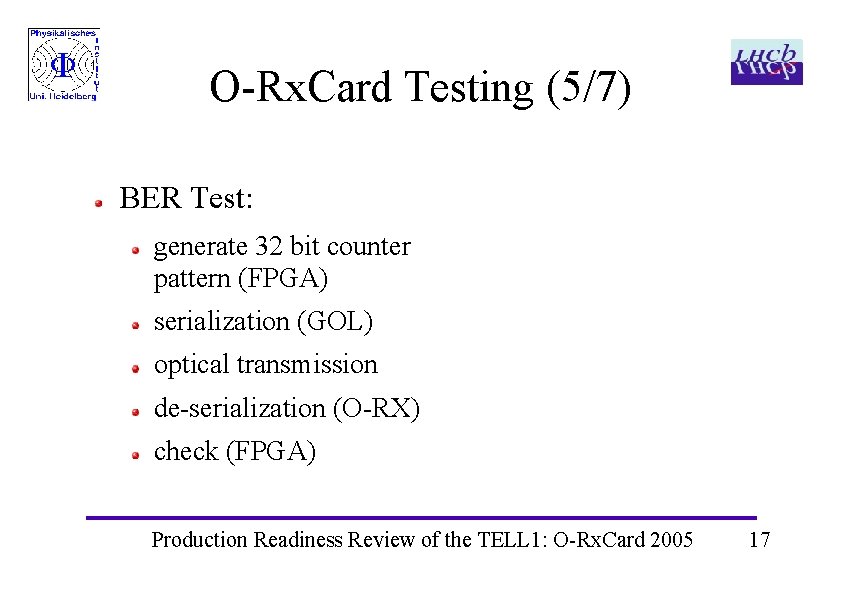

O-Rx. Card Testing (5/7) BER Test: generate 32 bit counter pattern (FPGA) serialization (GOL) optical transmission de-serialization (O-RX) check (FPGA) Production Readiness Review of the TELL 1: O-Rx. Card 2005 17

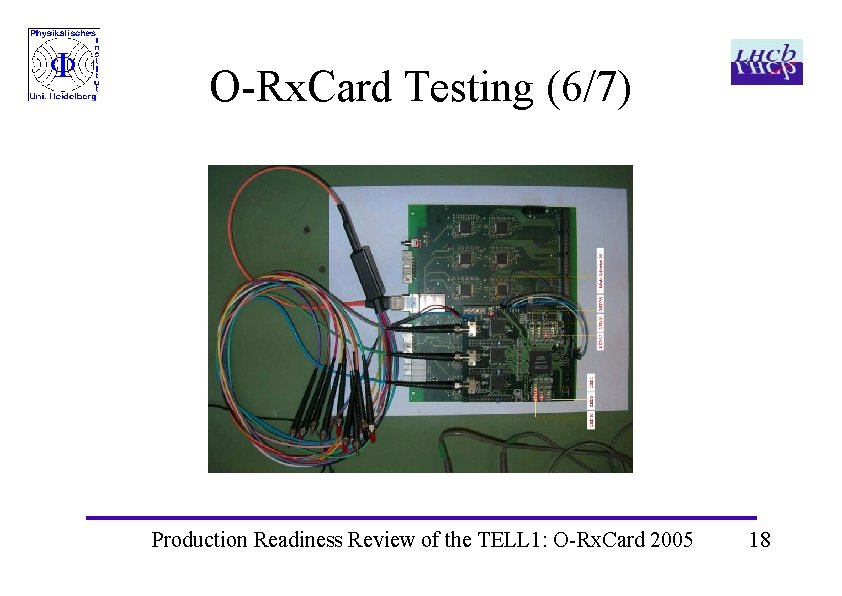

O-Rx. Card Testing (6/7) Production Readiness Review of the TELL 1: O-Rx. Card 2005 18

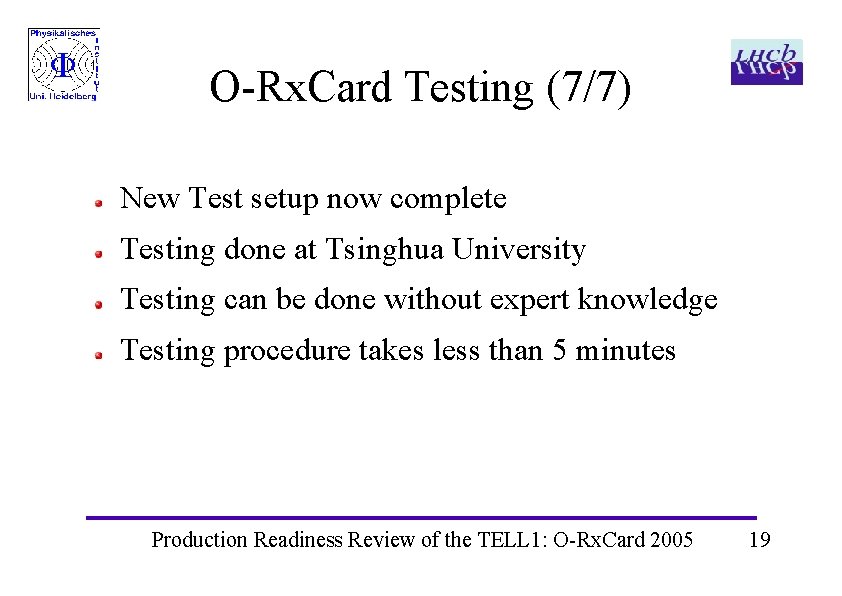

O-Rx. Card Testing (7/7) New Test setup now complete Testing done at Tsinghua University Testing can be done without expert knowledge Testing procedure takes less than 5 minutes Production Readiness Review of the TELL 1: O-Rx. Card 2005 19

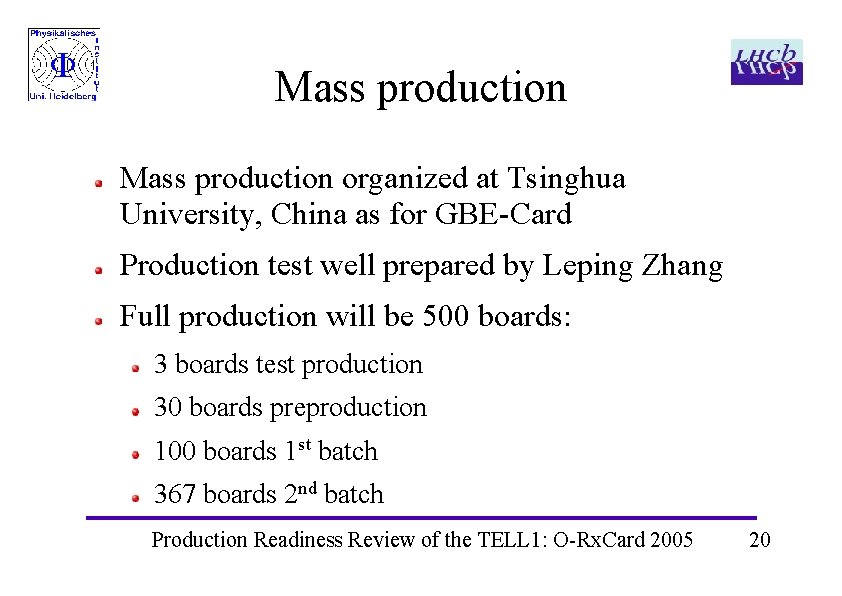

Mass production organized at Tsinghua University, China as for GBE-Card Production test well prepared by Leping Zhang Full production will be 500 boards: 3 boards test production 30 boards preproduction 100 boards 1 st batch 367 boards 2 nd batch Production Readiness Review of the TELL 1: O-Rx. Card 2005 20

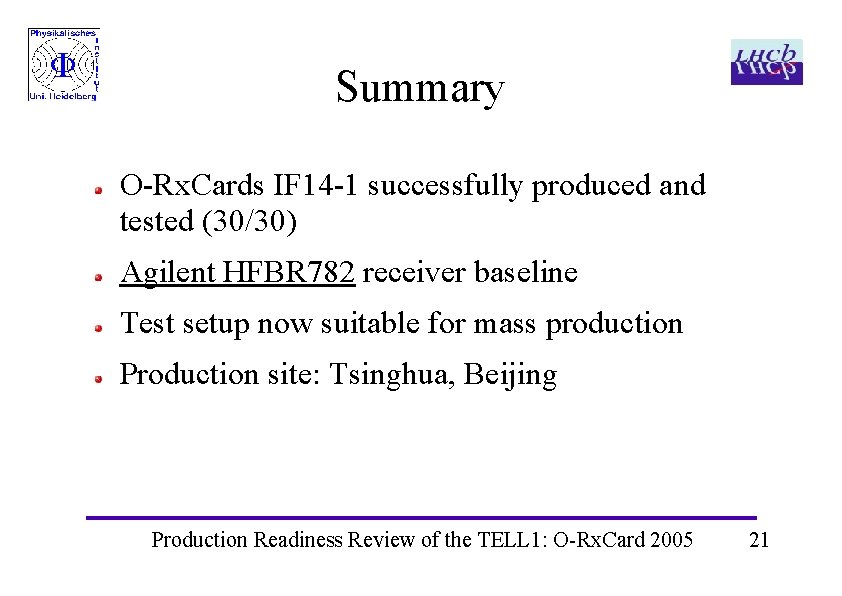

Summary O-Rx. Cards IF 14 -1 successfully produced and tested (30/30) Agilent HFBR 782 receiver baseline Test setup now suitable for mass production Production site: Tsinghua, Beijing Production Readiness Review of the TELL 1: O-Rx. Card 2005 21

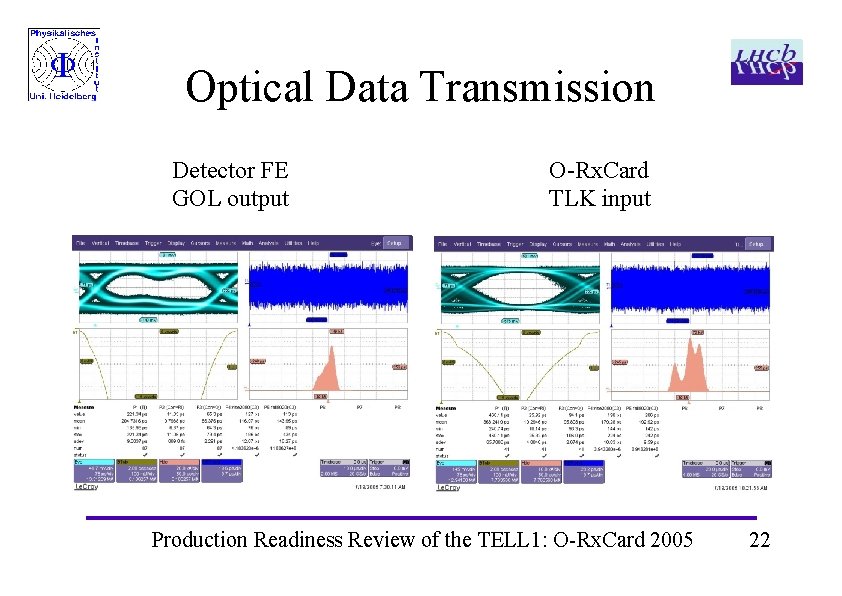

Optical Data Transmission Detector FE GOL output O-Rx. Card TLK input Production Readiness Review of the TELL 1: O-Rx. Card 2005 22
