Optical Platform Enabling the vision Microsoft Corporation Agenda

Optical Platform Enabling the vision Microsoft Corporation

Agenda IMAPIv 2 architecture Creating IMAPIv 2 extensions Erase Extension Example Using IMAPIv 2 extensions Shell Extension Example Additional Resources Discussion/Q&A

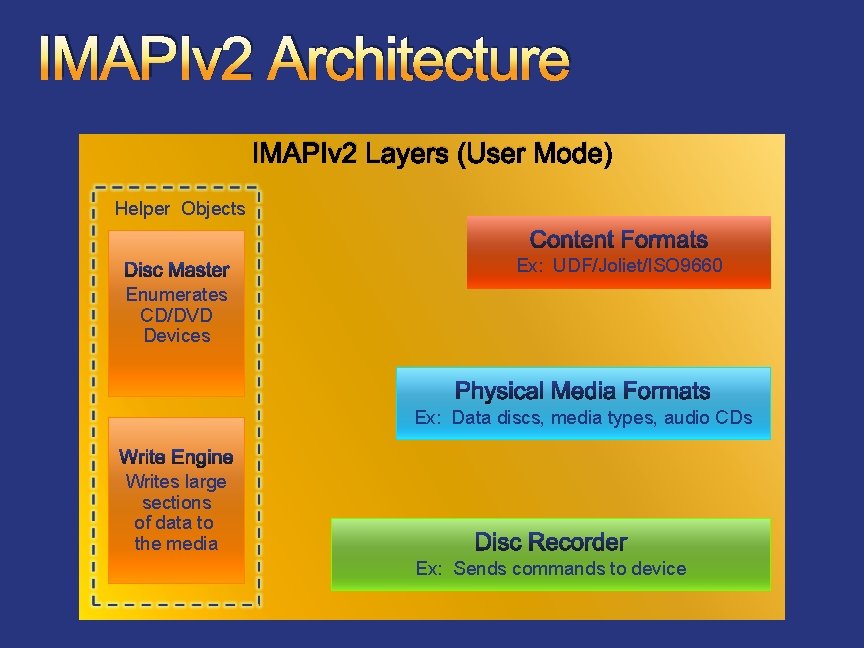

IMAPIv 2 Architecture IMAPIv 2 Layers (User Mode) Helper Objects Ex: UDF/Joliet/ISO 9660 Enumerates CD/DVD Devices Ex: Data discs, media types, audio CDs Writes large sections of data to the media Ex: Sends commands to device

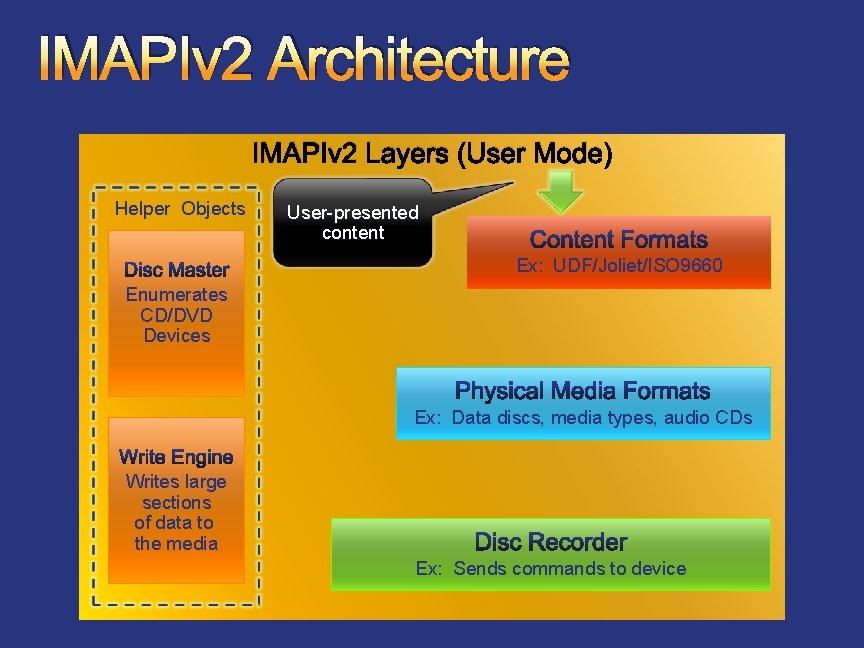

IMAPIv 2 Architecture IMAPIv 2 Layers (User Mode) Helper Objects User-presented content Ex: UDF/Joliet/ISO 9660 Enumerates CD/DVD Devices Ex: Data discs, media types, audio CDs Writes large sections of data to the media Ex: Sends commands to device

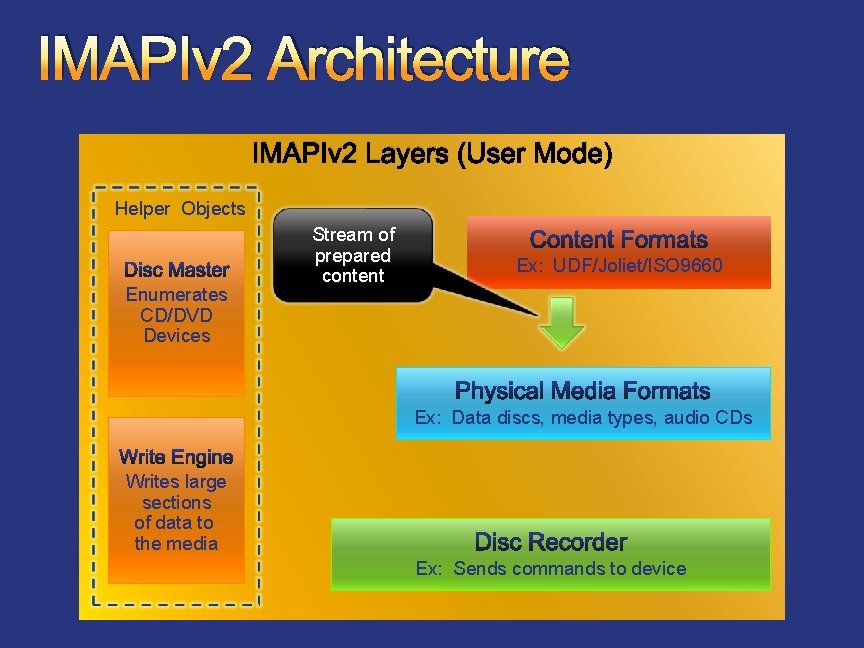

IMAPIv 2 Architecture IMAPIv 2 Layers (User Mode) Helper Objects Enumerates CD/DVD Devices Stream of prepared content Ex: UDF/Joliet/ISO 9660 Ex: Data discs, media types, audio CDs Writes large sections of data to the media Ex: Sends commands to device

IMAPIv 2 Architecture IMAPIv 2 Layers (User Mode) Helper Objects Ex: UDF/Joliet/ISO 9660 Enumerates CD/DVD Devices Writes large sections of data to the media Logical device commands Ex: Data discs, media types, audio CDs Ex: Sends commands to device

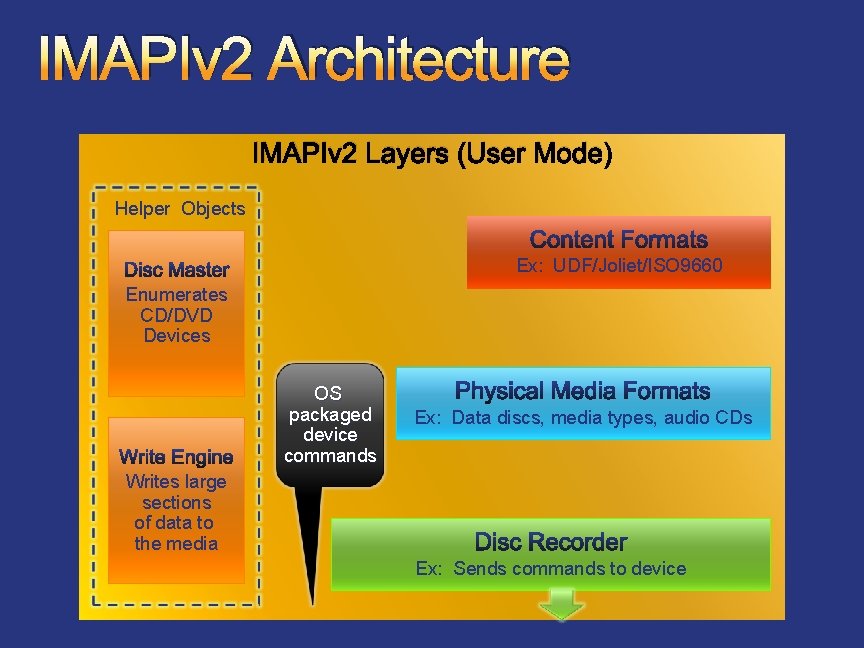

IMAPIv 2 Architecture IMAPIv 2 Layers (User Mode) Helper Objects Ex: UDF/Joliet/ISO 9660 Enumerates CD/DVD Devices OS packaged device commands Ex: Data discs, media types, audio CDs Writes large sections of data to the media Ex: Sends commands to device

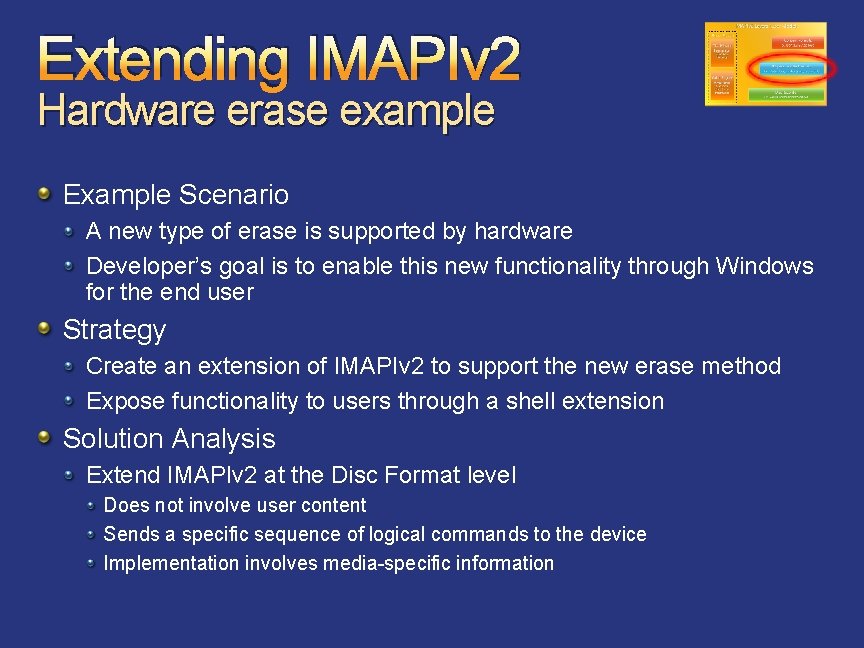

Extending IMAPIv 2 Hardware erase example Example Scenario A new type of erase is supported by hardware Developer’s goal is to enable this new functionality through Windows for the end user Strategy Create an extension of IMAPIv 2 to support the new erase method Expose functionality to users through a shell extension Solution Analysis Extend IMAPIv 2 at the Disc Format level Does not involve user content Sends a specific sequence of logical commands to the device Implementation involves media-specific information

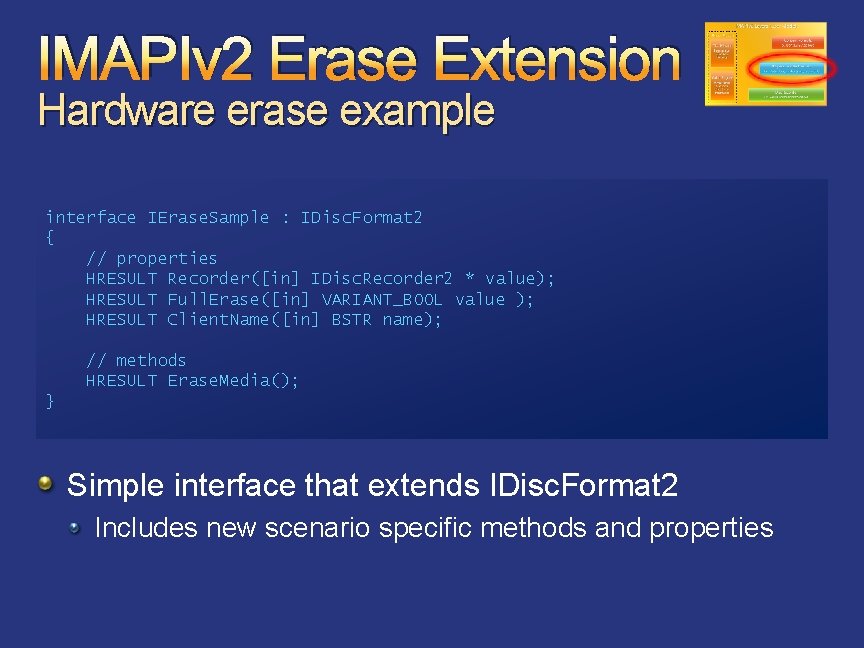

IMAPIv 2 Erase Extension Hardware erase example interface IErase. Sample : IDisc. Format 2 { // properties HRESULT Recorder([in] IDisc. Recorder 2 * value); HRESULT Full. Erase([in] VARIANT_BOOL value ); HRESULT Client. Name([in] BSTR name); // methods HRESULT Erase. Media(); } Simple interface that extends IDisc. Format 2 Includes new scenario specific methods and properties

Using IMAPIv 2 Extensions Hardware erase example HRESULT Perform. Erase(VARIANT_BOOL vb. Full. Erase, IDisc. Recorder 2 *p. Disc. Recorder) { // create the new object Co. Create. Instance(CLSID_Erase. Sample, NULL, CLSCTX_ALL, IID_PPV_ARGS(&p. Erase)); // use IDisc. Format 2 method to ensure the operation is supported p. Erase->Is. Current. Media. Supported(p. Disc. Recorder, &vb. Erase. Supported); if (vb. Erase. Supported) { // attach the standard disc recorder p. Erase->put_Recorder(p. Disc. Recorder); // set the appropriate properties p. Erase->put_Full. Erase(vb. Full. Erase); p. Erase->put_Client. Name(Sys. Alloc. String(L"Erase. Shell. Ext")); // perform the erase! p. Erase->Erase. Media(); } }

Additional Resources Documentation and Examples MSDN http: //msdn 2. microsoft. com/en-us/library/aa 366450. aspx WDK and SDK IMAPIv 2 on WHDC http: //www. microsoft. com/whdc/device/stream/DVD/default. mspx Contact Information Optical Platform Discussion Forum http: //forums. microsoft. com/MSDN/Show. Forum. aspx? Forum. ID=490 E-mail: Optissue @ microsoft. com Please don’t send code to this alias!
