Optical Packet Switching the technology and its potential role in future communication networks Results from IST project . Lars Dittmann COM – Technical University of Denmark ld@com. dtu. dk Zagreb 210503 1
![What is the next generation photonic network different targets different timescales Extension to What is the next generation photonic network? (different targets different timescales) • Extension to](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-2.jpg)
What is the next generation photonic network? (different targets different timescales) • Extension to current SDH/SONET network with LCAS, ASON, GMPLS, GFP, etc. ? • Bitrate and protocol transparent optical datapath with electrical control and management ? • All-optical network with optical control, information processing and routing ? ld@com. dtu. dk Zagreb 210503 2
![Why do we need the next generation optical network for cost reduction Why do we need the next generation optical network ? • for cost reduction](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-3.jpg)
Why do we need the next generation optical network ? • for cost reduction reasons (cost reduction potential seems larger for optics than for electronics) • to increase network efficiency and utilisation • for resource savings preserving network reliability and availability • for better network control for fast and efficient configuration of connections (reduction of manual interventions) • to increase network flexibility and responsiveness to dynamic traffic demands/changes • because an optical network is in line with a simplified core structure with more complex and intelligent flow handling at the edges (which was the original idea of the MPLS concept) ld@com. dtu. dk Zagreb 210503 3
![Technological challenges possible optical connection types ldcom dtu dk Zagreb 210503 4 Technological challenges possible optical connection types ld@com. dtu. dk Zagreb 210503 4](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-4.jpg)
Technological challenges possible optical connection types ld@com. dtu. dk Zagreb 210503 4
![Technological challenges packets vs circuits ldcom dtu dk Zagreb 210503 5 Technological challenges packets vs. circuits ld@com. dtu. dk Zagreb 210503 5](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-5.jpg)

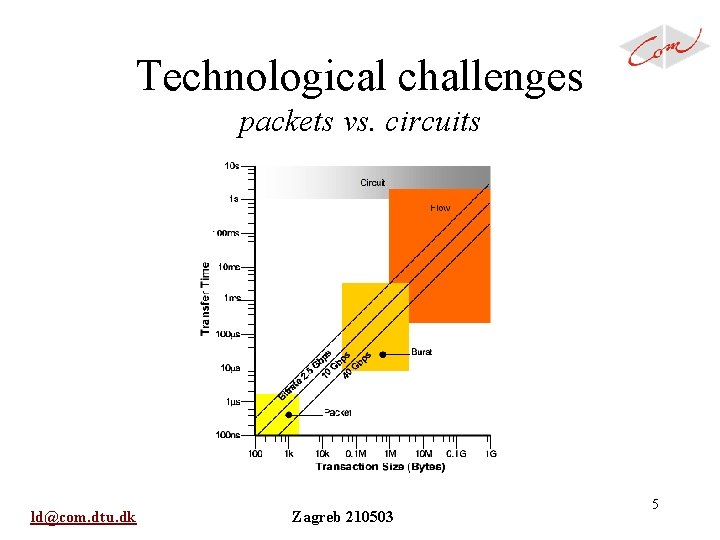

Technological challenges packets vs. circuits ld@com. dtu. dk Zagreb 210503 5
![Why packet switching Primarily a traffic engineering tool Seen as the final Why packet switching • Primarily a traffic engineering tool! • Seen as the final](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-6.jpg)

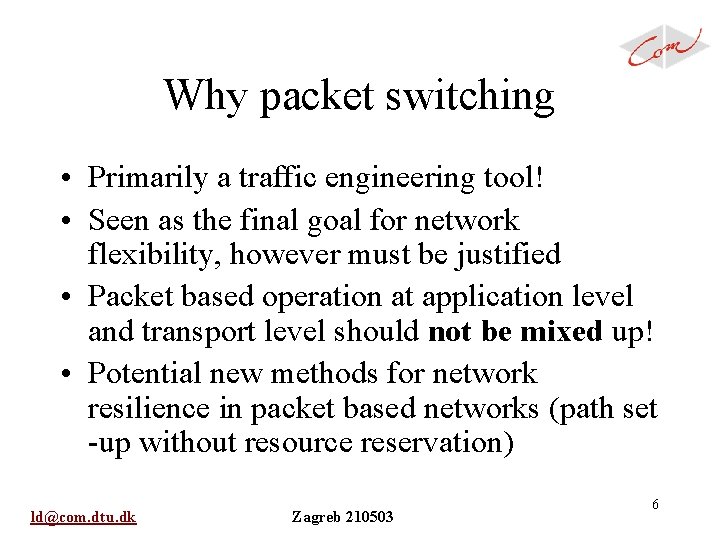

Why packet switching • Primarily a traffic engineering tool! • Seen as the final goal for network flexibility, however must be justified • Packet based operation at application level and transport level should not be mixed up! • Potential new methods for network resilience in packet based networks (path set -up without resource reservation) ld@com. dtu. dk Zagreb 210503 6
![Optical Burst and label Switching potential step towards optical transport plane ldcom dtu dk Optical Burst and label Switching potential step towards optical transport plane ld@com. dtu. dk](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-7.jpg)
Optical Burst and label Switching potential step towards optical transport plane ld@com. dtu. dk Zagreb 210503 7
![DAVID Data and Voice Integration over DWDM A European research • DAVID = Data and Voice Integration over DWDM • A European research](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-8.jpg)
• DAVID = Data and Voice Integration over DWDM • A European research project – Financially supported by the EU commission – IST program • Goals – Develop concepts and technologies for future, optical networks – Traffic engineering in packet-over-WDM based networks – Control systems for optical networks • Timeline – Start July 2000, end October 2003 ld@com. dtu. dk Zagreb 210503 8
![DAVID Project partners Companies Universities Alcatel CIT F Alcatel SEL DAVID Project partners • Companies • Universities – Alcatel, CIT (F) – Alcatel, SEL](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-9.jpg)

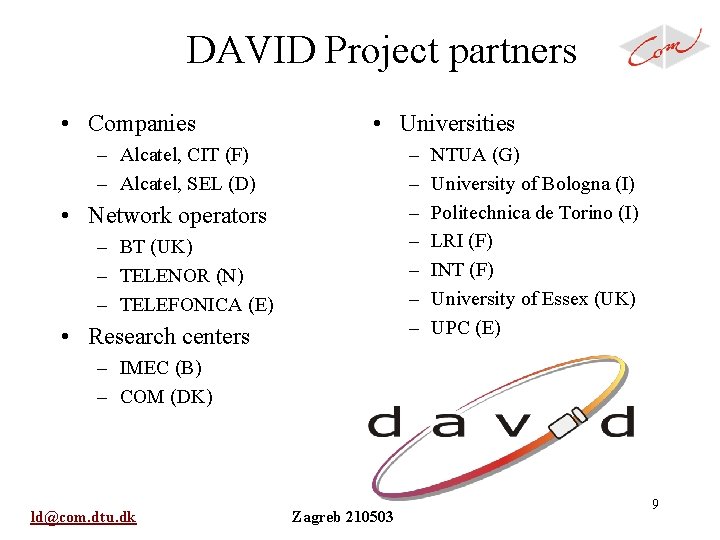

DAVID Project partners • Companies • Universities – Alcatel, CIT (F) – Alcatel, SEL (D) – – – – • Network operators – BT (UK) – TELENOR (N) – TELEFONICA (E) • Research centers NTUA (G) University of Bologna (I) Politechnica de Torino (I) LRI (F) INT (F) University of Essex (UK) UPC (E) – IMEC (B) – COM (DK) ld@com. dtu. dk Zagreb 210503 9
![Overall architecture Key components OPADM optical packet add drop Overall architecture • Key components – – OPADM – optical packet add / drop](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-10.jpg)
Overall architecture • Key components – – OPADM – optical packet add / drop multiplexer MAN Hub WAN Gateway OPR – optical packet router • Coverage – MAN and WAN • Control – MPLS-based ld@com. dtu. dk Zagreb 210503 10
![Hierarchical MPLS concept An MPLS based architecture for mixedtechnology networks Traffic optimizedconditioned Hierarchical MPLS concept • An MPLS based architecture for mixed-technology networks • Traffic optimized/conditioned](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-11.jpg)
Hierarchical MPLS concept • An MPLS based architecture for mixed-technology networks • Traffic optimized/conditioned between levels • Levels of various granularity + wavelength bands, fibers ld@com. dtu. dk Zagreb 210503 11
![The optical packet MAN Hub Topology interconnected physical DWDM rings Each The optical packet MAN Hub • Topology - interconnected physical DWDM rings • Each](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-12.jpg)
The optical packet MAN Hub • Topology - interconnected physical DWDM rings • Each physical ring -> several logical rings • Ring nodes – OPADMs - provide OPADM – Ring connectivity – Legacy network interfaces • Inter ring traffic controlled by a hub λ 0 λ 1 ld@com. dtu. dk Zagreb 210503 data slot. . . λν data slot data slot 12
![The metro part MAN Hub functionality each timeunit Hub switches traffic between The metro part: MAN • Hub functionality: – each timeunit Hub switches traffic between](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-13.jpg)
The metro part: MAN • Hub functionality: – each timeunit Hub switches traffic between rings – permutations to switch multislots between (logical) rings – permutations to use are based on measurements of "demand" ring 1 ? ring 2 ring 1 ring 2 ring 3 ring 4 ld@com. dtu. dk Zagreb 210503 ring 4 slot input ring 1 ring 2 1 2 3 1 3 3 . . . 2 3 4 3 2 1 . . . 3 4 1 2 . . . 4 1 2 4 4 4 . . . ring permutation 13
![Packet formats For synchronisation reasons fixed size packets at transport level is preferable for Packet formats For synchronisation reasons fixed size packets (at transport level) is preferable for](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-14.jpg)
Packet formats For synchronisation reasons fixed size packets (at transport level) is preferable for small units (nano-micro sec). Variable service units handled by sequence of fixed size packets. ld@com. dtu. dk Zagreb 210503 14
![Ring node evolutionary steps cost vs flexibility DAVID MAN with passive OPADMs Now ldcom Ring node evolutionary steps (cost vs. flexibility) DAVID MAN with passive OPADMs “Now” ld@com.](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-15.jpg)

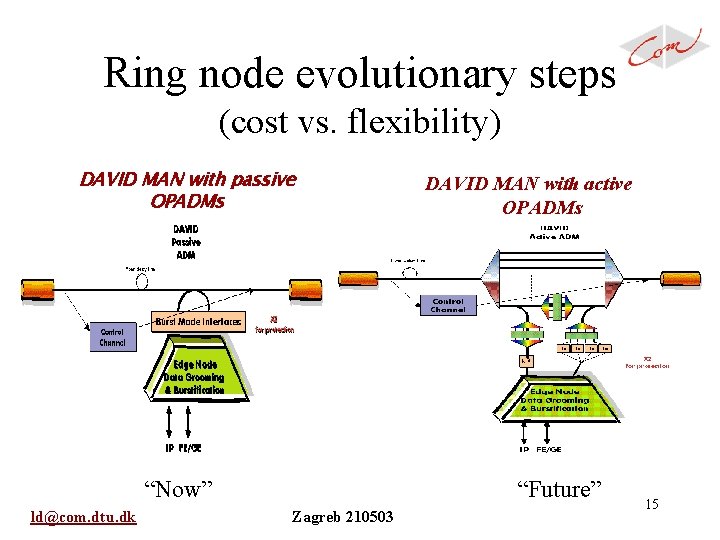

Ring node evolutionary steps (cost vs. flexibility) DAVID MAN with passive OPADMs “Now” ld@com. dtu. dk DAVID MAN with active OPADMs “Future” Zagreb 210503 15
![Administrative challanges ASON vs GMPLSMPl S Apply the dynamic configuration of service layers Administrative challanges ASON vs. GMPLS/MPl. S • Apply the dynamic configuration of service layers](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-16.jpg)
Administrative challanges ASON vs. GMPLS/MPl. S • Apply the dynamic configuration of service layers to the transport layer(s) • Integrated control of layers in the network • Optimised use of the individual layers • Standard proposals from: IETF, ITU-T, OIF • Protocol centric solutions (IETF) vs. architectural centric solutions (ITU-T) • Multi-layer resilience concepts ld@com. dtu. dk Zagreb 210503 16
![Administrative challanges IETF MPLSMPl S Technology hierarchy ldcom dtu dk Zagreb 210503 17 Administrative challanges IETF : MPLS/MPl. S Technology hierarchy ld@com. dtu. dk Zagreb 210503 17](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-17.jpg)

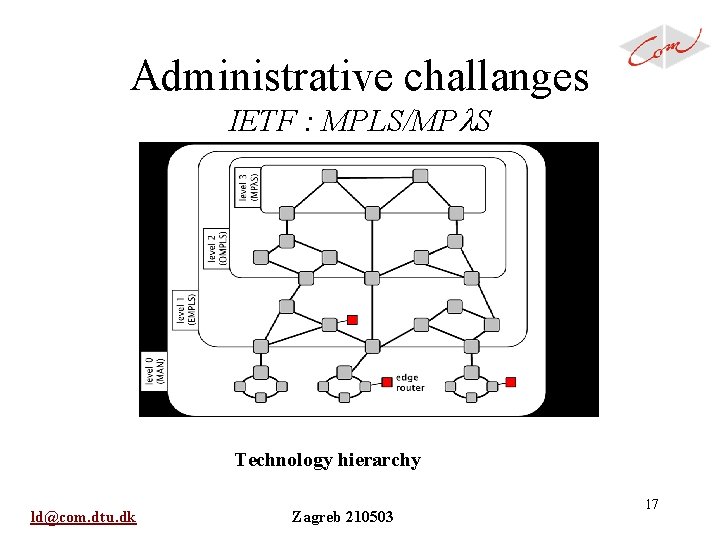

Administrative challanges IETF : MPLS/MPl. S Technology hierarchy ld@com. dtu. dk Zagreb 210503 17
![When will the next generation of photonic networks become a reality Significant effort When will the next generation of photonic networks become a reality • Significant effort](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-18.jpg)

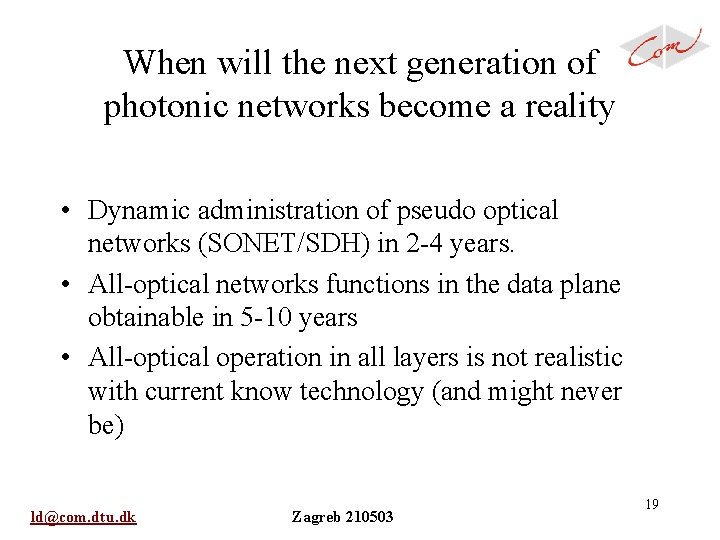

When will the next generation of photonic networks become a reality • Significant effort needed to lower the cost and enable OAM functions of optical components (higher integration and automatic packaging) • Better understanding of traffic and performance issues in core and metro networks needed to evaluate cost and reliability issues in current proposals. • Gain consensus on administrative concepts and standard. • Optical networks must become digital – 3 R in all elements as first process ld@com. dtu. dk Zagreb 210503 18
![When will the next generation of photonic networks become a reality Dynamic administration When will the next generation of photonic networks become a reality • Dynamic administration](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-19.jpg)
When will the next generation of photonic networks become a reality • Dynamic administration of pseudo optical networks (SONET/SDH) in 2 -4 years. • All-optical networks functions in the data plane obtainable in 5 -10 years • All-optical operation in all layers is not realistic with current know technology (and might never be) ld@com. dtu. dk Zagreb 210503 19
![IST DAVID info david com dtu dk Public demo in October in relation IST DAVID info @ david. com. dtu. dk Public demo in October in relation](https://slidetodoc.com/presentation_image/94ce1f225ad28119adce057f64bc7dfe/image-20.jpg)
IST DAVID info @ david. com. dtu. dk Public demo in October in relation to PS´ 2003 (photonics in switching) in Paris and (NGPN deliverables @ www. ngni-core. net) ld@com. dtu. dk Zagreb 210503 20
