Optical imaging of blood flow in the microcirculation

Optical imaging of blood flow in the microcirculation Steve Morgan Electrical Systems and Optics Research Division, University of Nottingham, UK

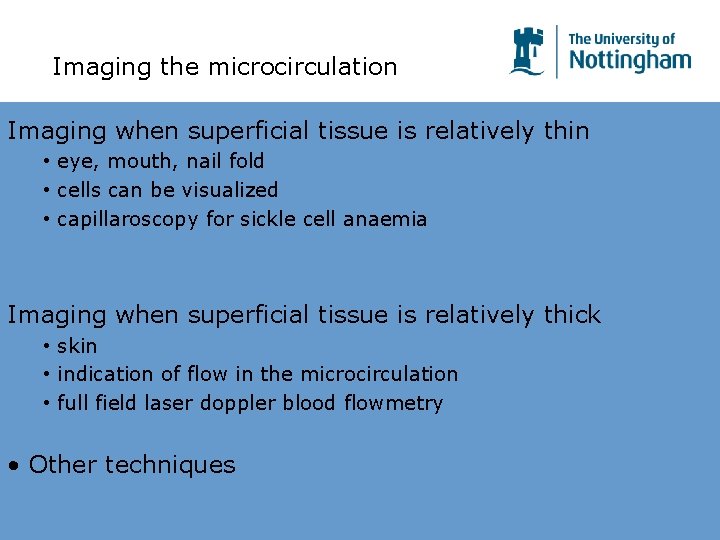

Imaging the microcirculation Imaging when superficial tissue is relatively thin • eye, mouth, nail fold • cells can be visualized • capillaroscopy for sickle cell anaemia Imaging when superficial tissue is relatively thick • skin • indication of flow in the microcirculation • full field laser doppler blood flowmetry • Other techniques

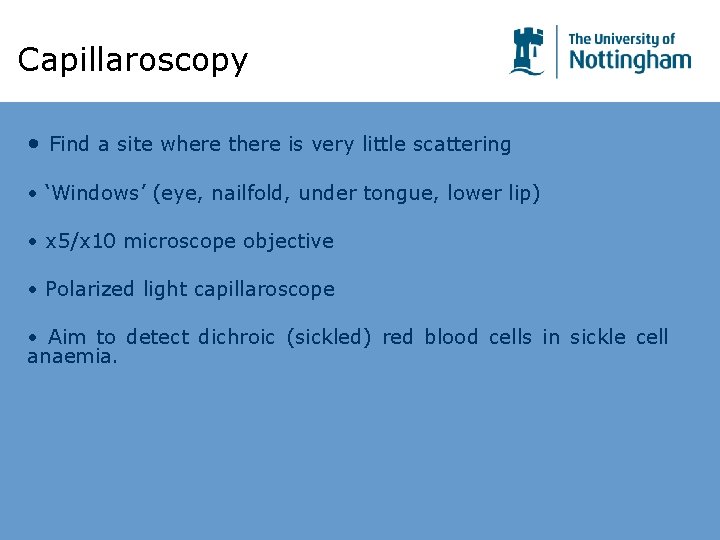

Capillaroscopy • Find a site where there is very little scattering • ‘Windows’ (eye, nailfold, under tongue, lower lip) • x 5/x 10 microscope objective • Polarized light capillaroscope • Aim to detect dichroic (sickled) red blood cells in sickle cell anaemia.

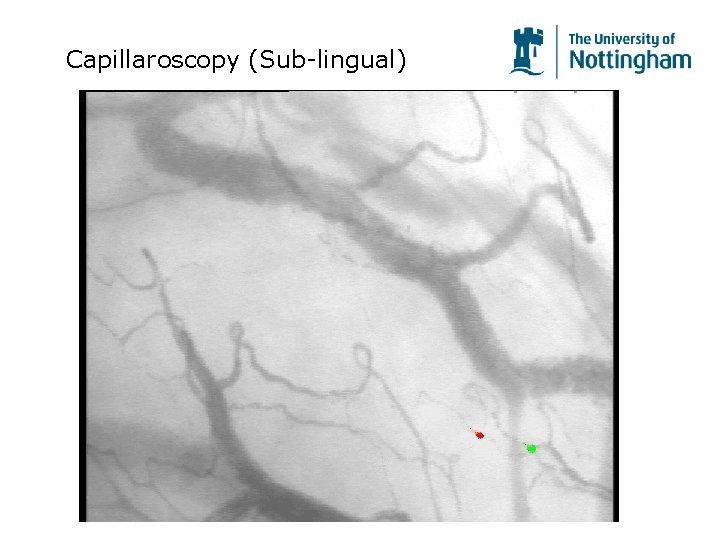

Capillaroscopy (Sub-lingual)

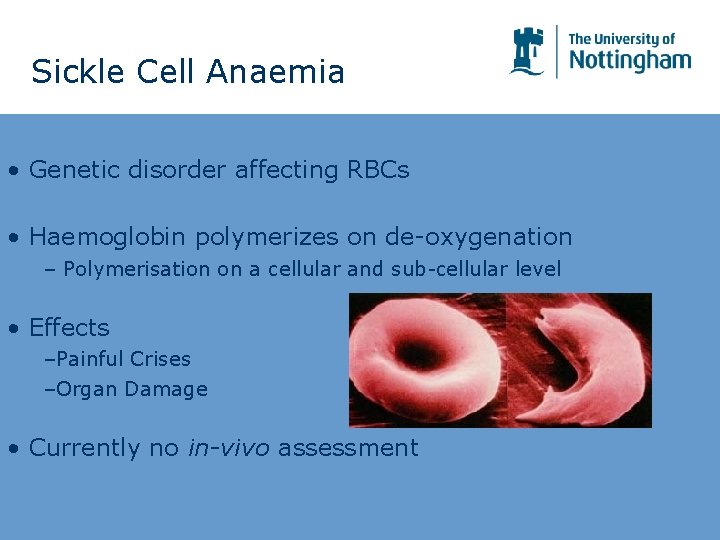

Sickle Cell Anaemia • Genetic disorder affecting RBCs • Haemoglobin polymerizes on de-oxygenation – Polymerisation on a cellular and sub-cellular level • Effects –Painful Crises –Organ Damage • Currently no in-vivo assessment

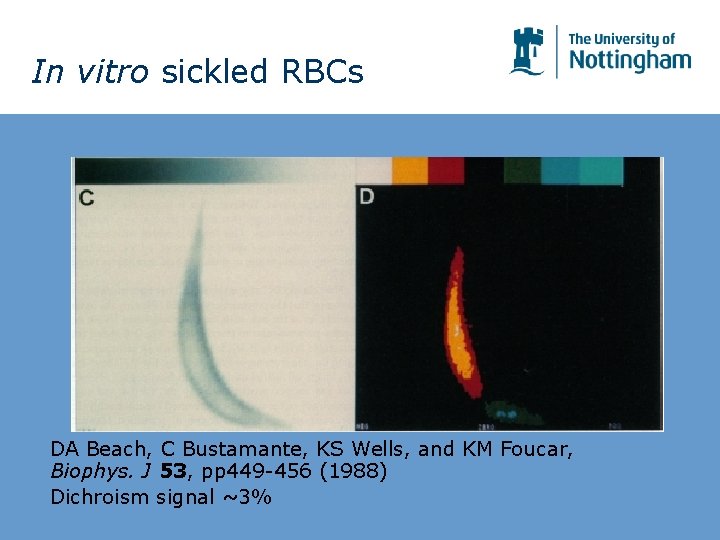

In vitro sickled RBCs DA Beach, C Bustamante, KS Wells, and KM Foucar, Biophys. J 53, pp 449 -456 (1988) Dichroism signal ~3%

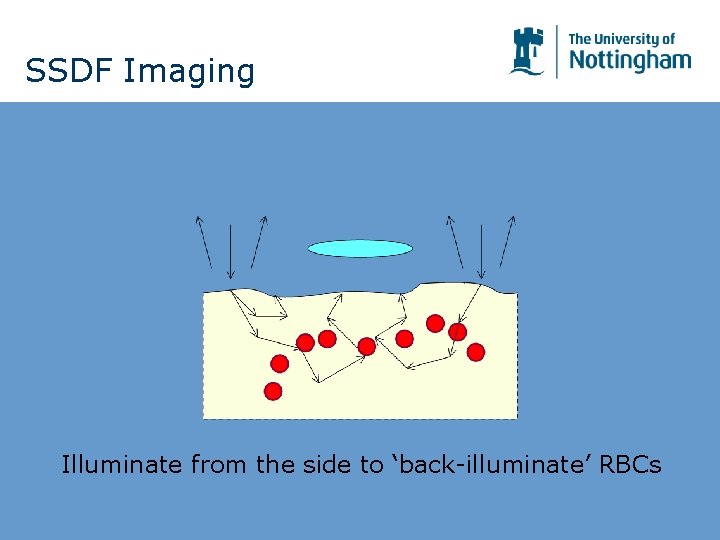

SSDF Imaging Illuminate from the side to ‘back-illuminate’ RBCs

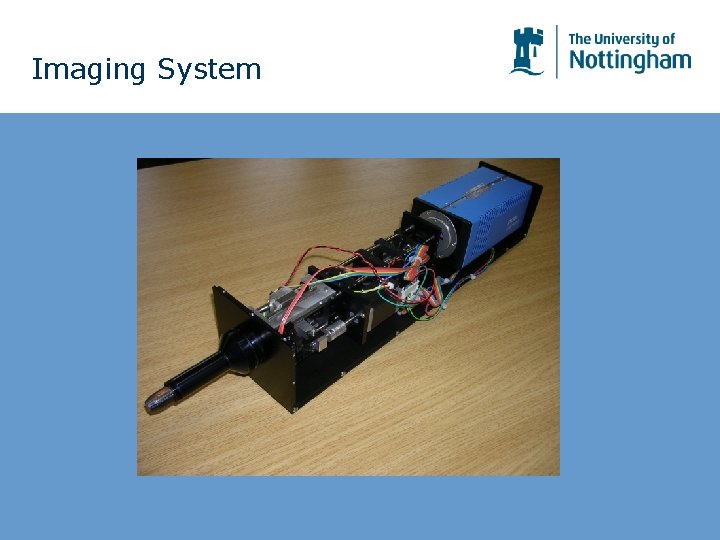

Imaging System

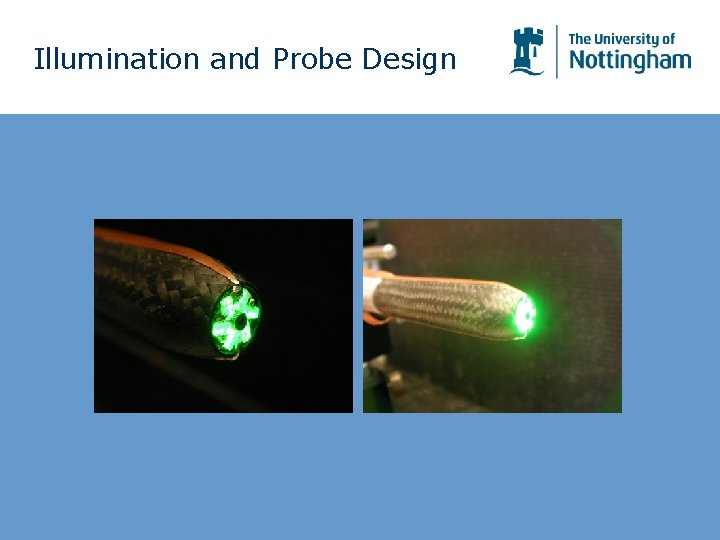

Illumination and Probe Design

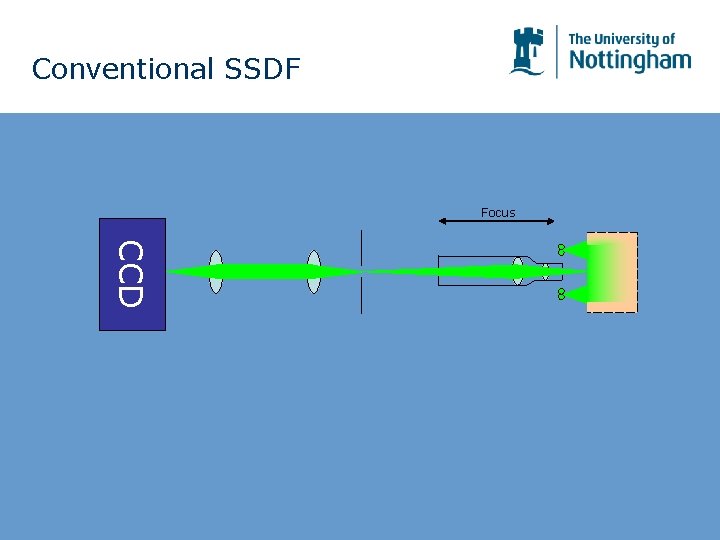

Conventional SSDF Focus CCD

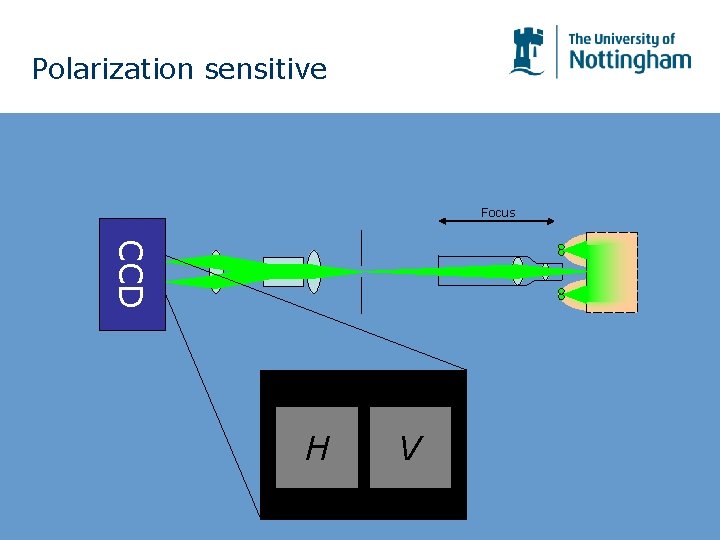

Polarization sensitive Focus CCD H V

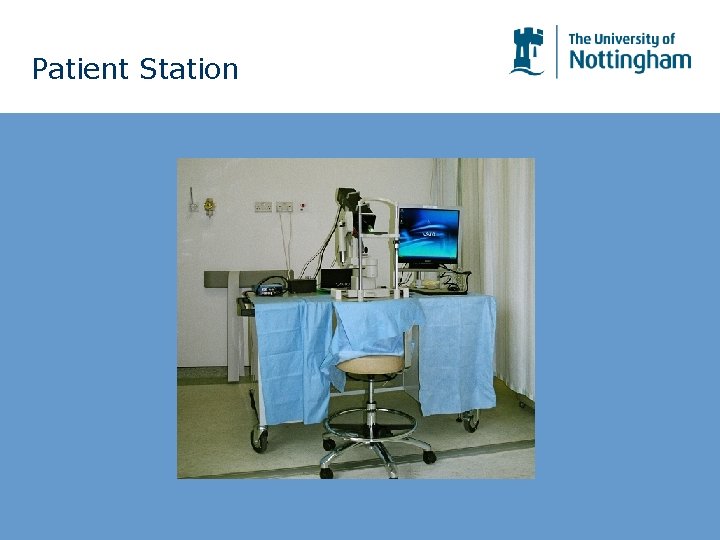

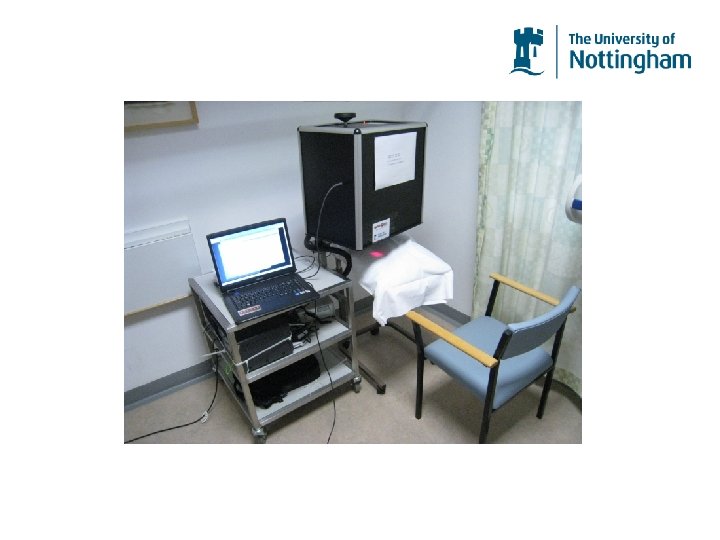

Patient Station

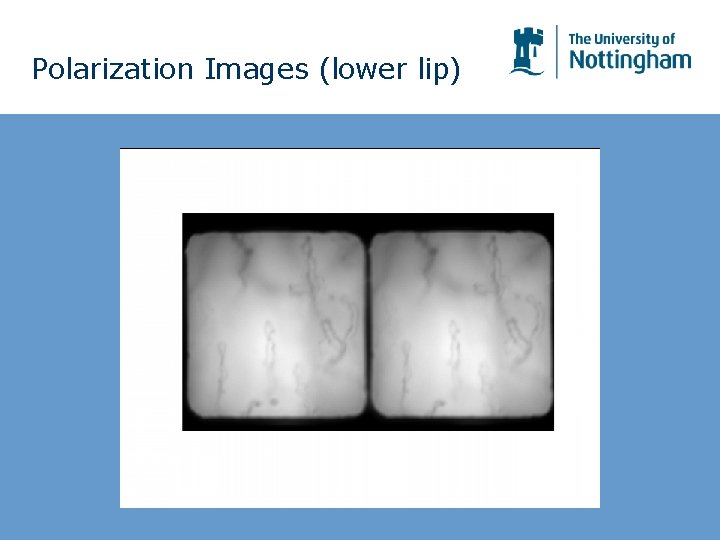

Polarization Images (lower lip)

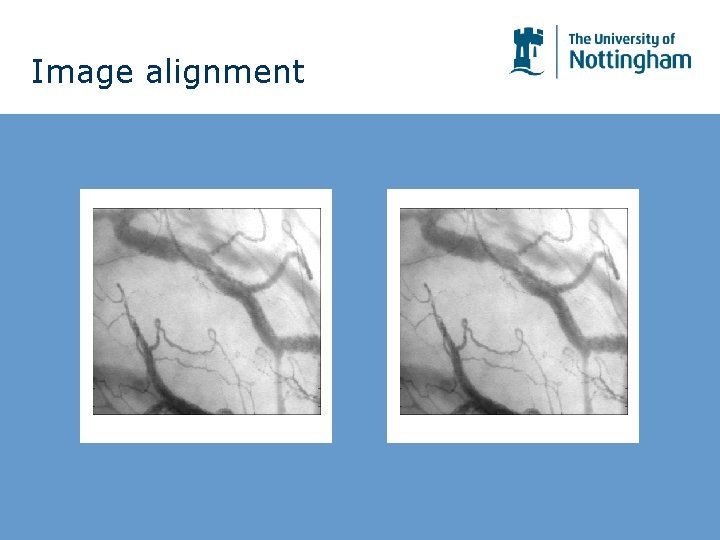

Image alignment

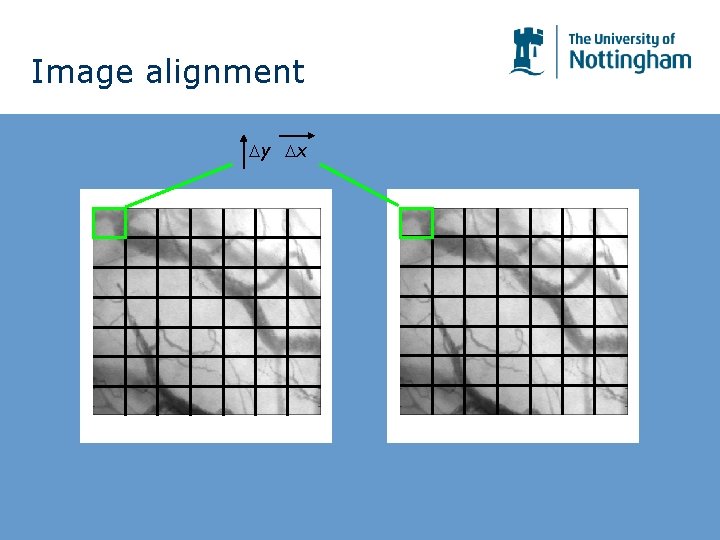

Image alignment Dy Dx

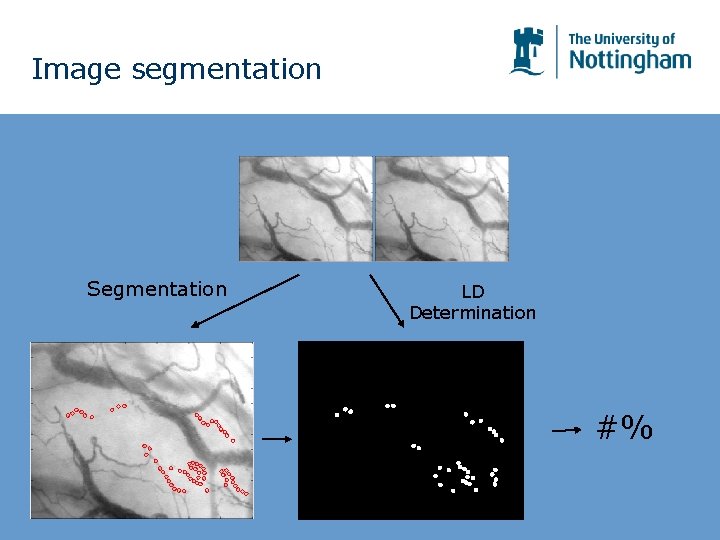

Image segmentation Segmentation LD Determination #%

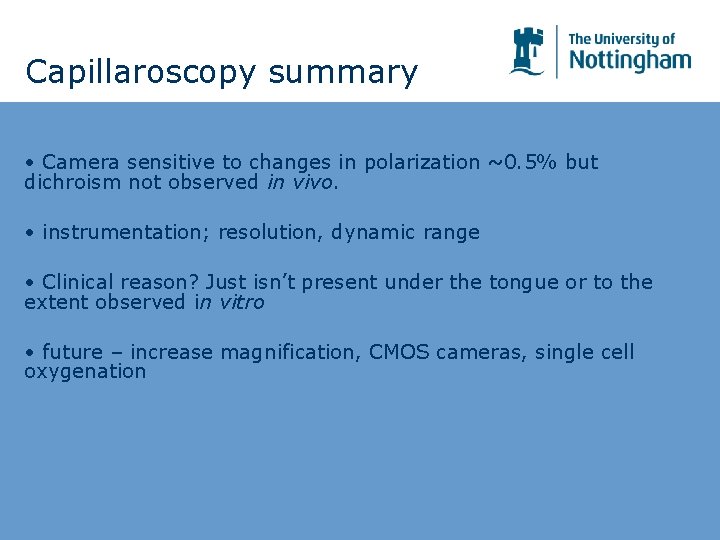

Capillaroscopy summary • Camera sensitive to changes in polarization ~0. 5% but dichroism not observed in vivo. • instrumentation; resolution, dynamic range • Clinical reason? Just isn’t present under the tongue or to the extent observed in vitro • future – increase magnification, CMOS cameras, single cell oxygenation

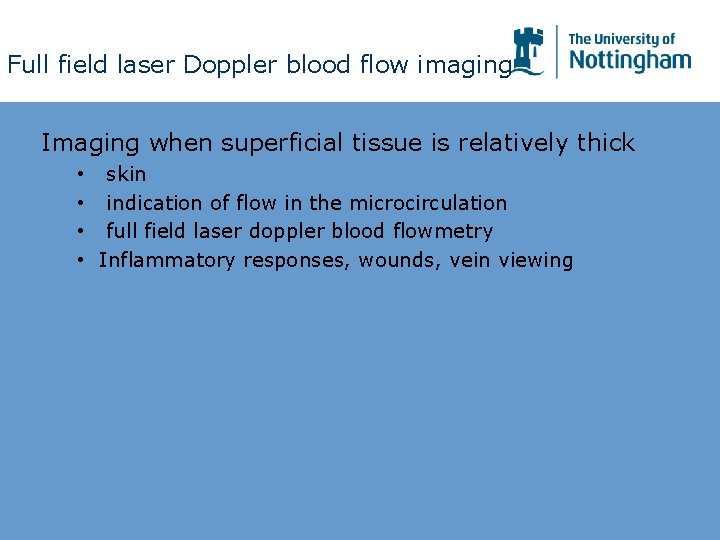

Full field laser Doppler blood flow imaging Imaging when superficial tissue is relatively thick • skin • indication of flow in the microcirculation • full field laser doppler blood flowmetry • Inflammatory responses, wounds, vein viewing

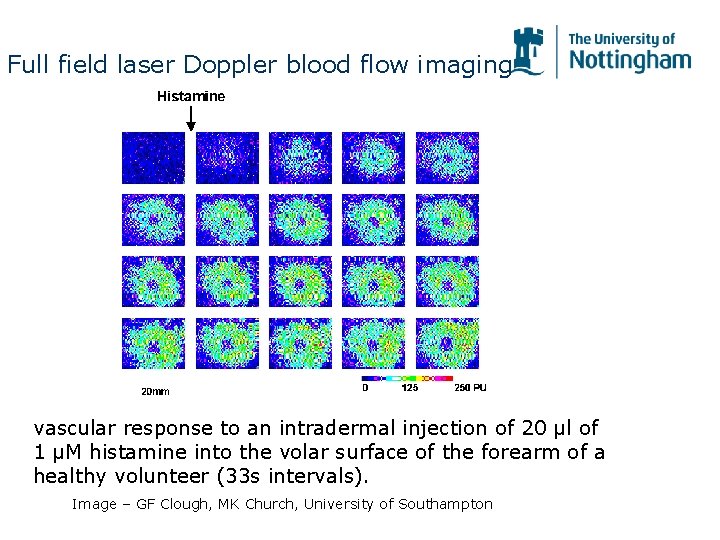

Full field laser Doppler blood flow imaging vascular response to an intradermal injection of 20 µl of 1 µM histamine into the volar surface of the forearm of a healthy volunteer (33 s intervals). Image – GF Clough, MK Church, University of Southampton

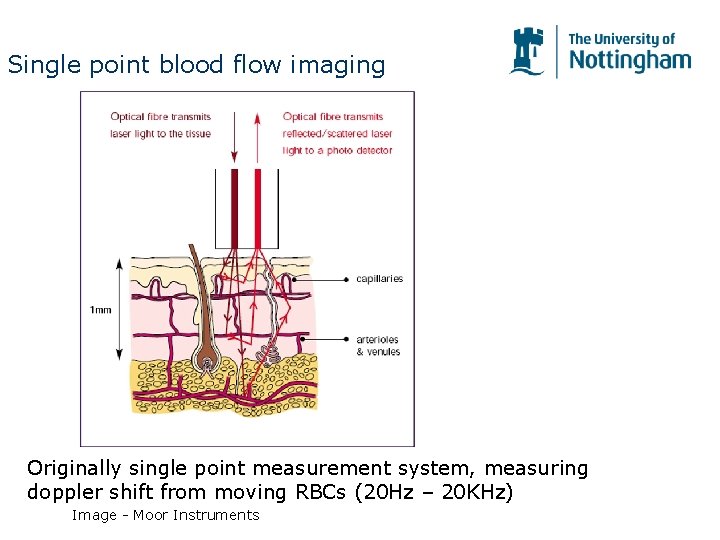

Single point blood flow imaging Originally single point measurement system, measuring doppler shift from moving RBCs (20 Hz – 20 KHz) Image - Moor Instruments

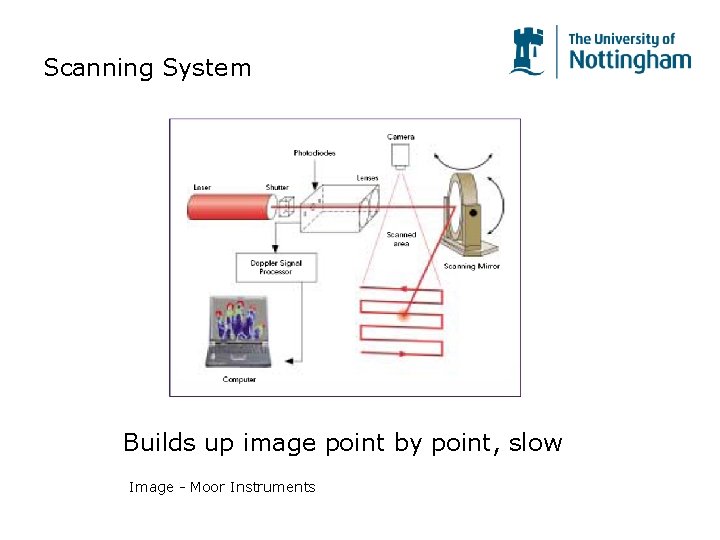

Scanning System Builds up image point by point, slow Image - Moor Instruments

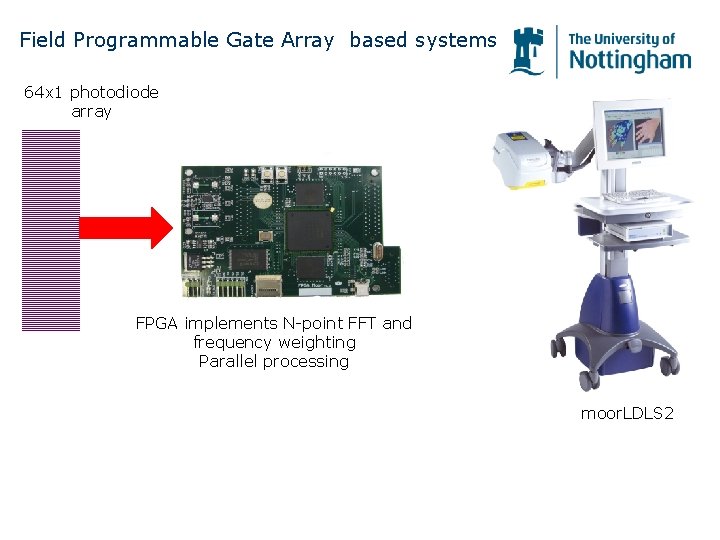

Field Programmable Gate Array based systems 64 x 1 photodiode array FPGA implements N-point FFT and frequency weighting Parallel processing moor. LDLS 2

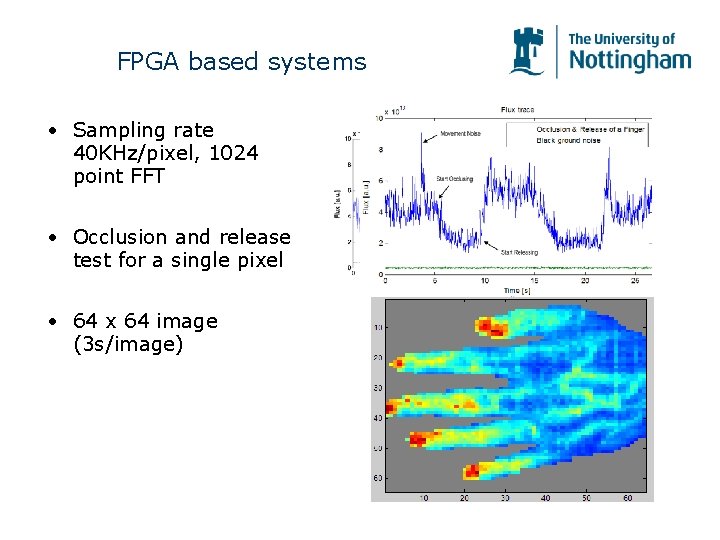

FPGA based systems • Sampling rate 40 KHz/pixel, 1024 point FFT • Occlusion and release test for a single pixel • 64 x 64 image (3 s/image)

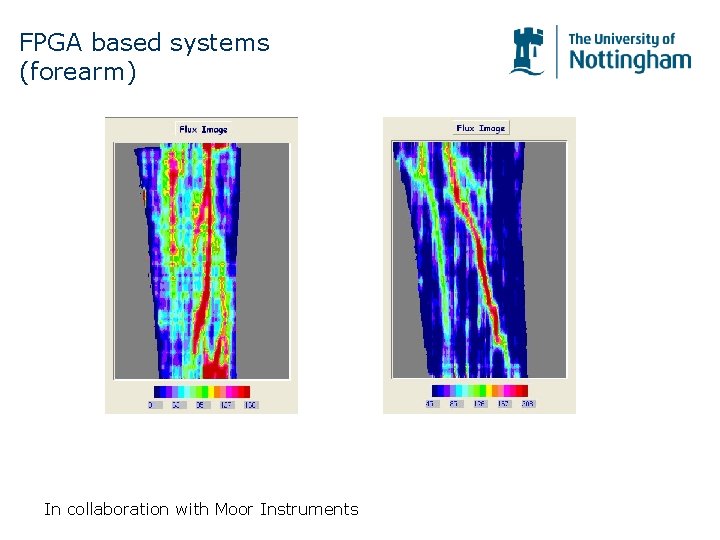

FPGA based systems (forearm) In collaboration with Moor Instruments

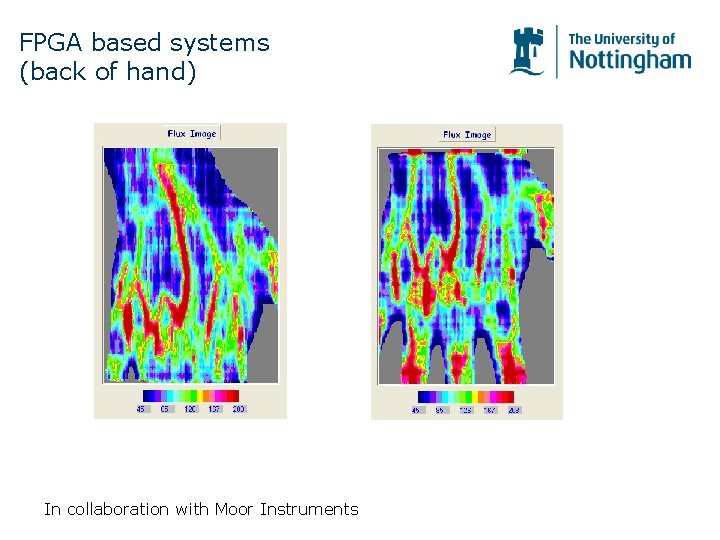

FPGA based systems (back of hand) In collaboration with Moor Instruments

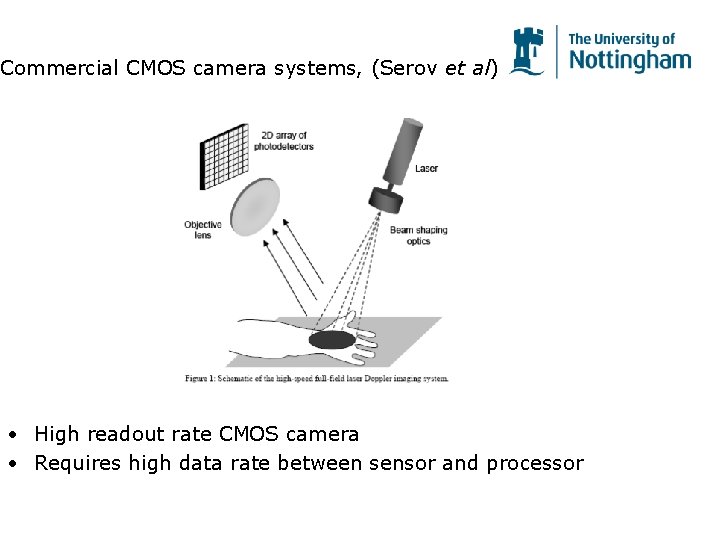

Commercial CMOS camera systems, (Serov et al) • High readout rate CMOS camera • Requires high data rate between sensor and processor

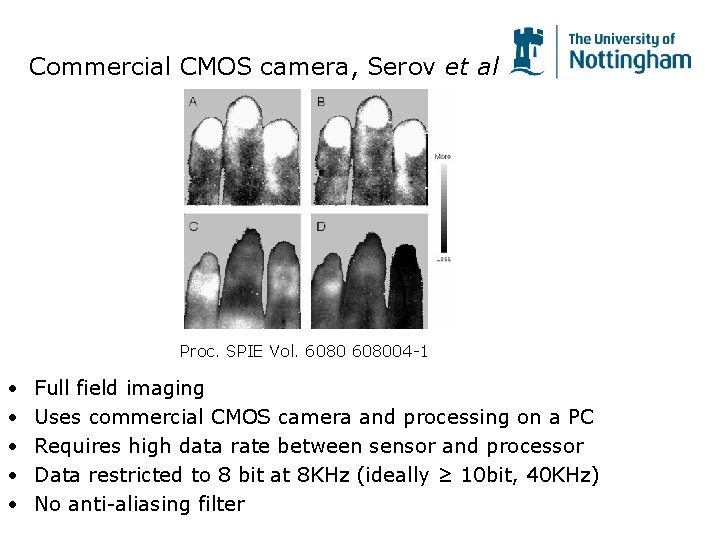

Commercial CMOS camera, Serov et al Proc. SPIE Vol. 608004 -1 • • • Full field imaging Uses commercial CMOS camera and processing on a PC Requires high data rate between sensor and processor Data restricted to 8 bit at 8 KHz (ideally ≥ 10 bit, 40 KHz) No anti-aliasing filter

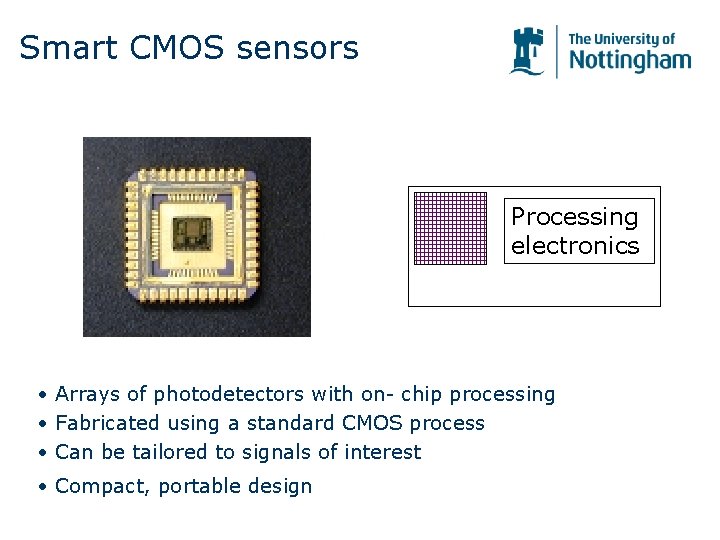

Smart CMOS sensors Processing electronics • Arrays of photodetectors with on- chip processing • Fabricated using a standard CMOS process • Can be tailored to signals of interest • Compact, portable design

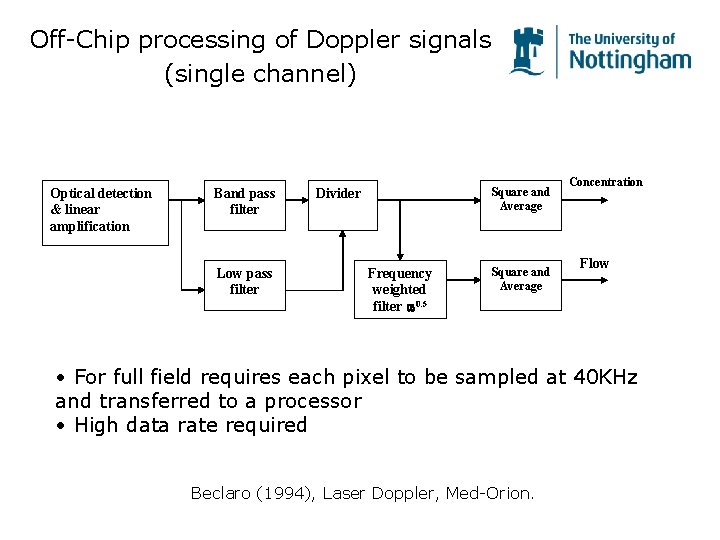

Off-Chip processing of Doppler signals (single channel) Optical detection & linear amplification Band pass filter Low pass filter Square and Average Divider Frequency weighted filter 0. 5 Square and Average Concentration Flow • For full field requires each pixel to be sampled at 40 KHz and transferred to a processor • High data rate required Beclaro (1994), Laser Doppler, Med-Orion.

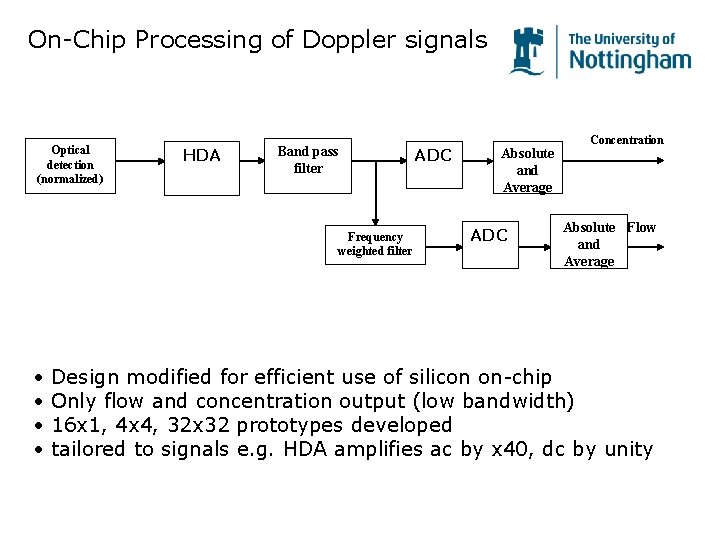

On-Chip Processing of Doppler signals Optical detection (normalized) HDA Band pass filter Frequency weighted filter • • ADC Absolute and Average ADC Concentration Absolute Flow and Average Design modified for efficient use of silicon on-chip Only flow and concentration output (low bandwidth) 16 x 1, 4 x 4, 32 x 32 prototypes developed tailored to signals e. g. HDA amplifies ac by x 40, dc by unity

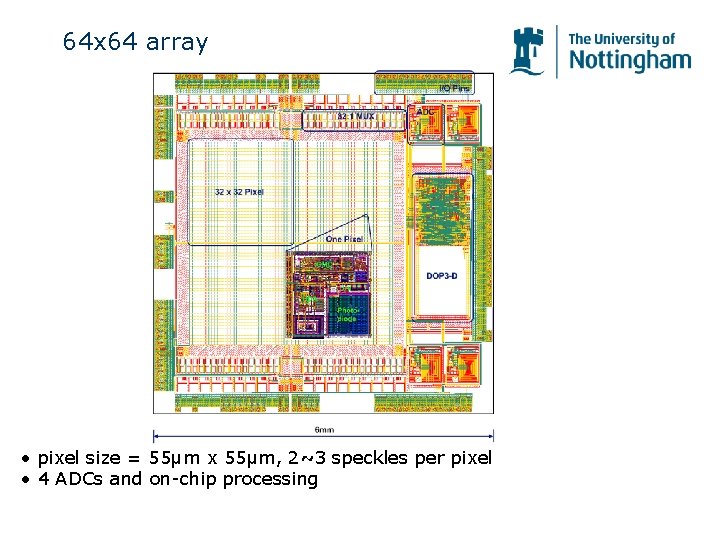

64 x 64 array • pixel size = 55μm x 55μm, 2~3 speckles per pixel • 4 ADCs and on-chip processing

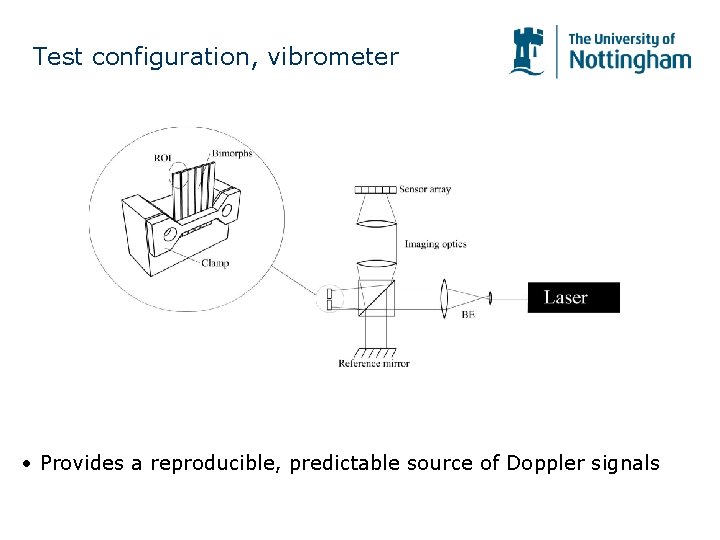

Test configuration, vibrometer • Provides a reproducible, predictable source of Doppler signals

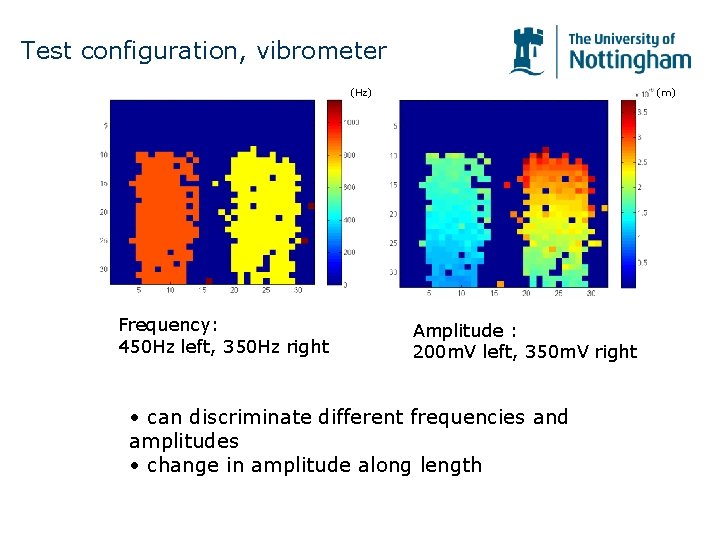

Test configuration, vibrometer (Hz) Frequency: 450 Hz left, 350 Hz right (m) Amplitude : 200 m. V left, 350 m. V right • can discriminate different frequencies and amplitudes • change in amplitude along length

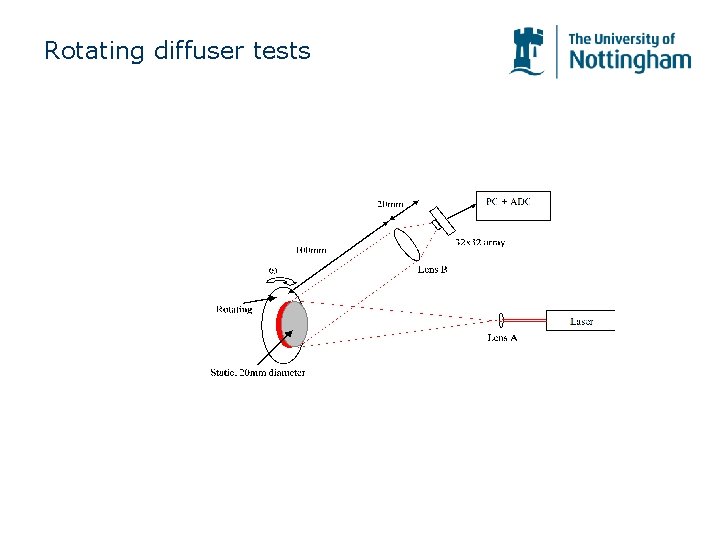

Rotating diffuser tests

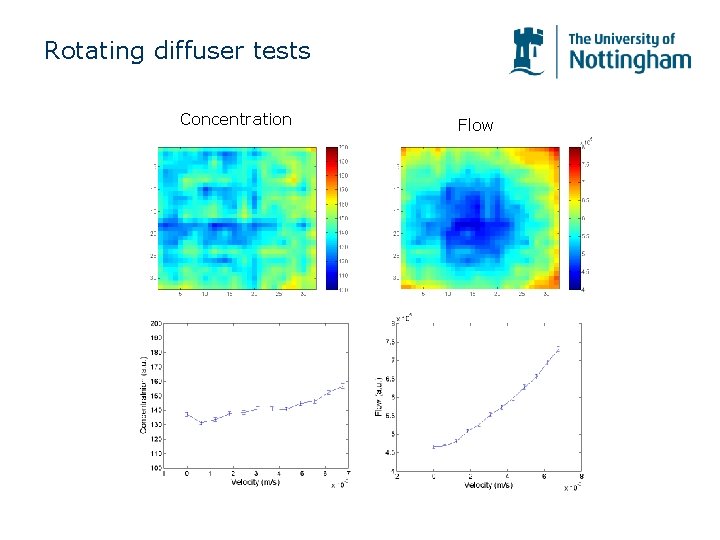

Rotating diffuser tests Concentration Flow

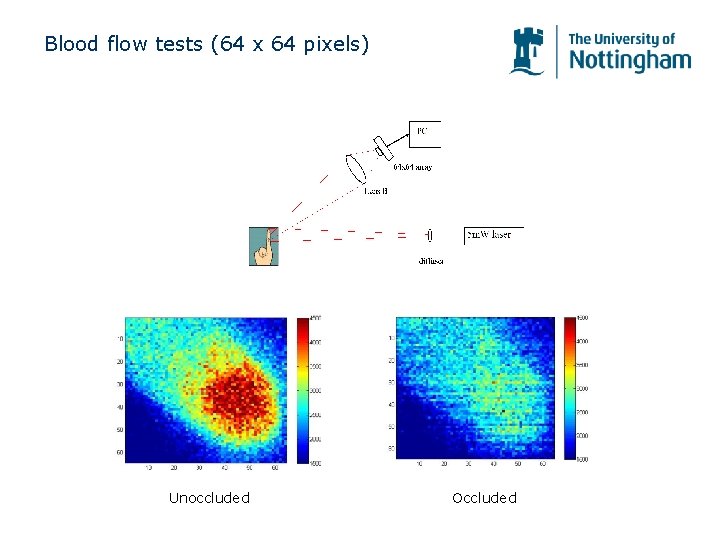

Blood flow tests (64 x 64 pixels) Unoccluded Occluded

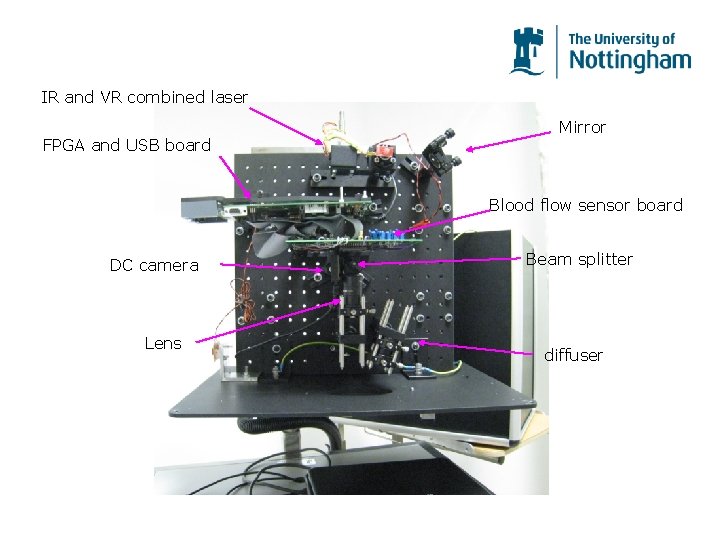

IR and VR combined laser FPGA and USB board Mirror Blood flow sensor board DC camera Lens Beam splitter diffuser

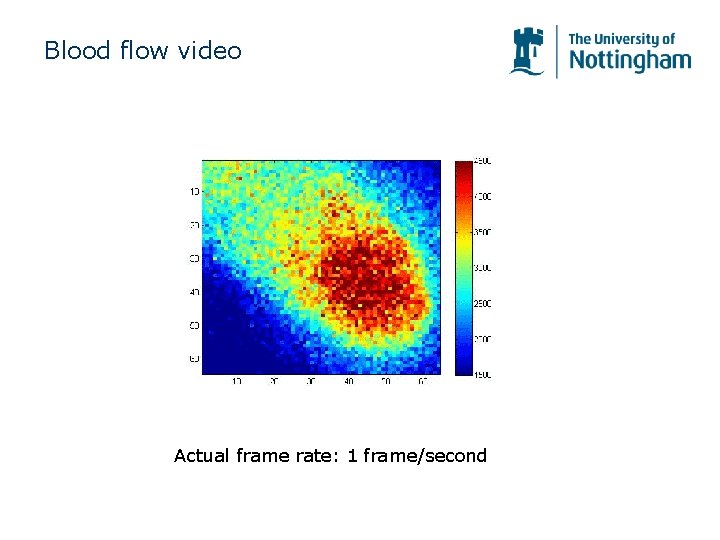

Blood flow video Actual frame rate: 1 frame/second

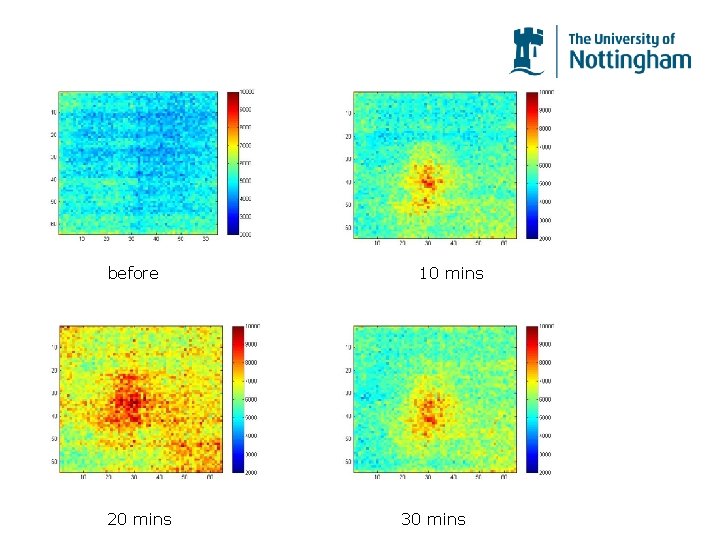

before 20 mins 10 mins 30 mins

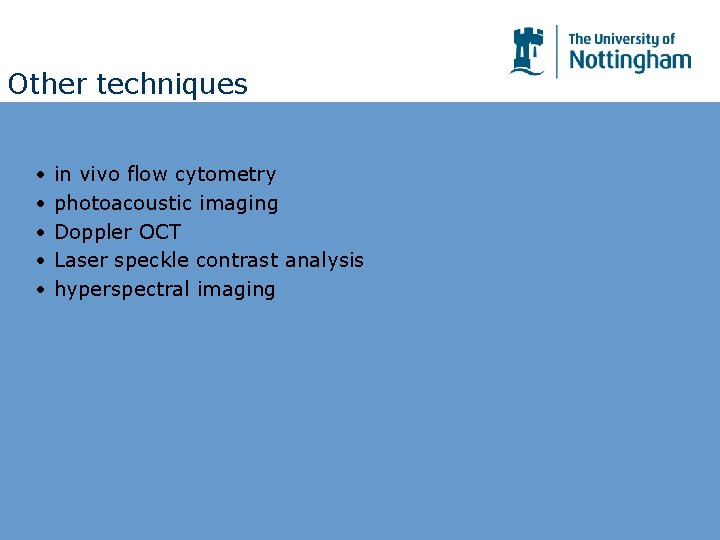

Other techniques • • • in vivo flow cytometry photoacoustic imaging Doppler OCT Laser speckle contrast analysis hyperspectral imaging

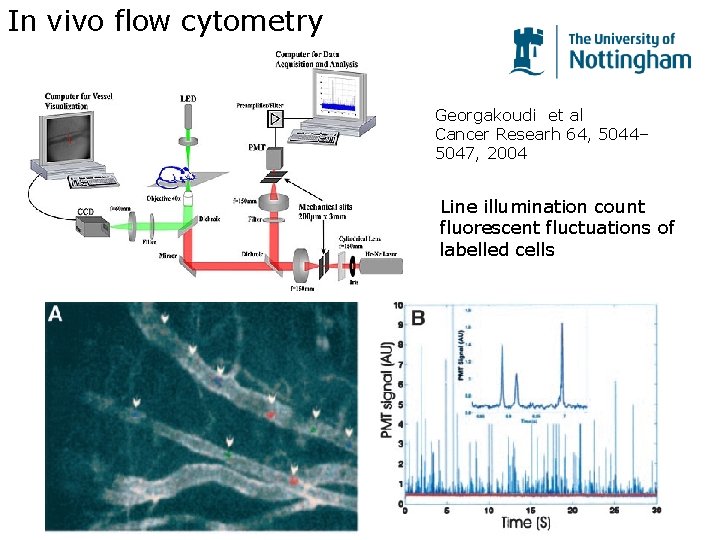

In vivo flow cytometry Georgakoudi et al Cancer Researh 64, 5044– 5047, 2004 Line illumination count fluorescent fluctuations of labelled cells

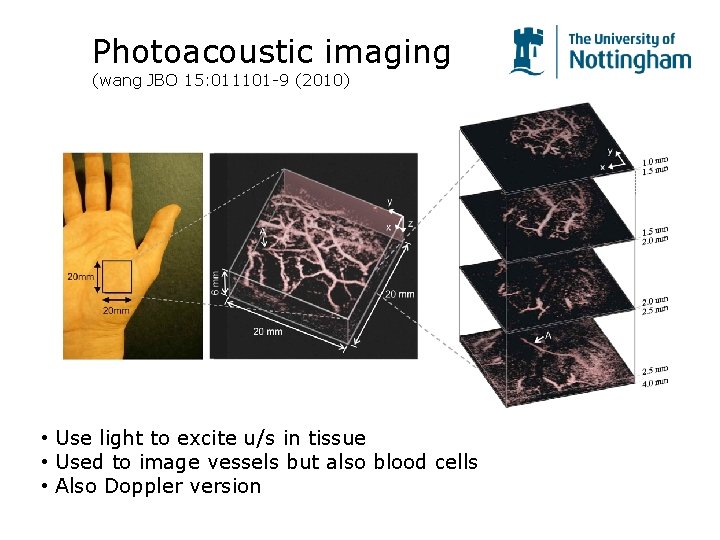

Photoacoustic imaging (wang JBO 15: 011101 -9 (2010) • Use light to excite u/s in tissue • Used to image vessels but also blood cells • Also Doppler version

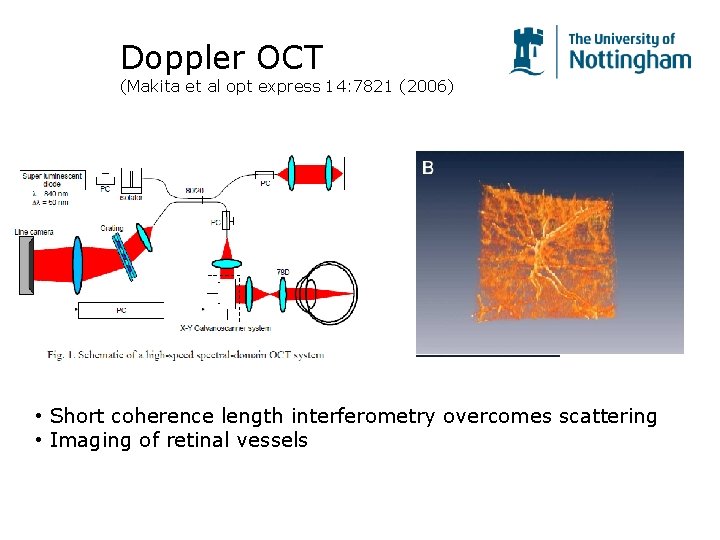

Doppler OCT (Makita et al opt express 14: 7821 (2006) • Short coherence length interferometry overcomes scattering • Imaging of retinal vessels

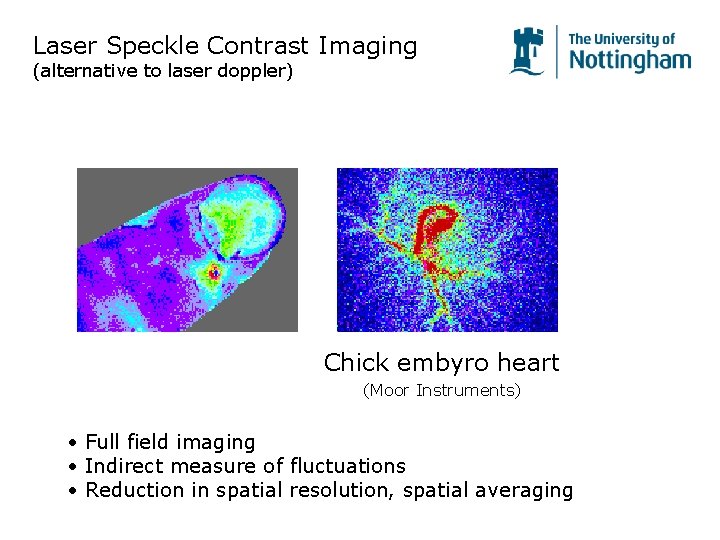

Laser Speckle Contrast Imaging (alternative to laser doppler) Chick embyro heart (Moor Instruments) • Full field imaging • Indirect measure of fluctuations • Reduction in spatial resolution, spatial averaging

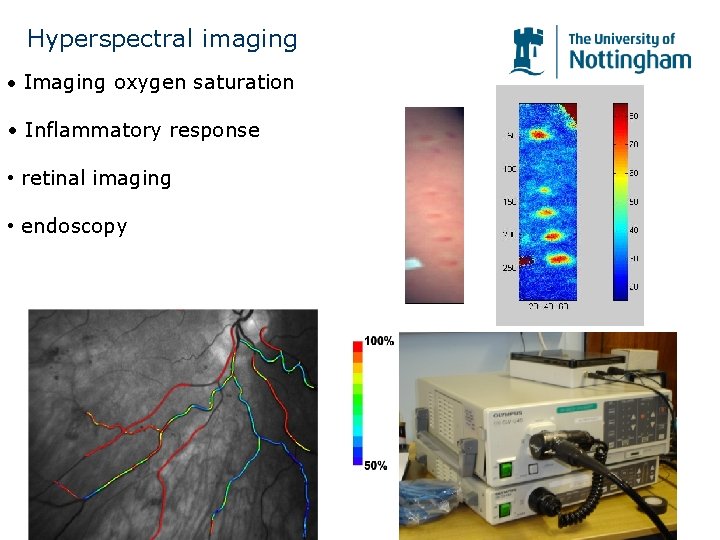

Hyperspectral imaging • Imaging oxygen saturation • Inflammatory response • retinal imaging • endoscopy

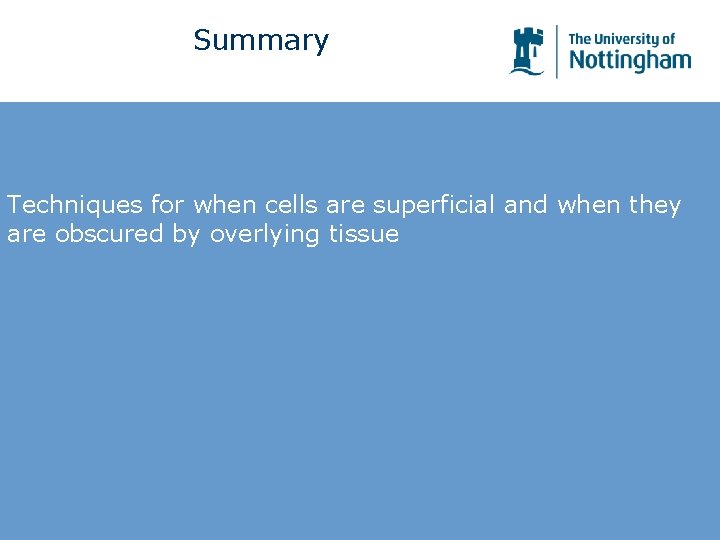

Summary Techniques for when cells are superficial and when they are obscured by overlying tissue
