Optical Fiber Communications

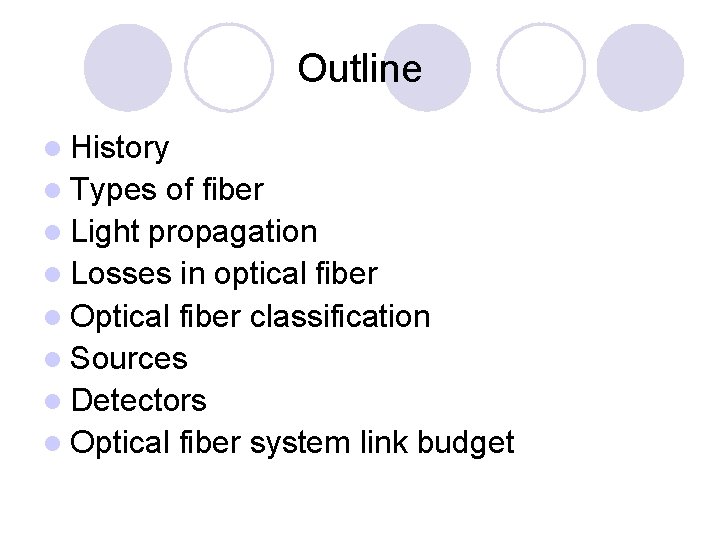

Outline l History l Types of fiber l Light propagation l Losses in optical fiber l Optical fiber classification l Sources l Detectors l Optical fiber system link budget

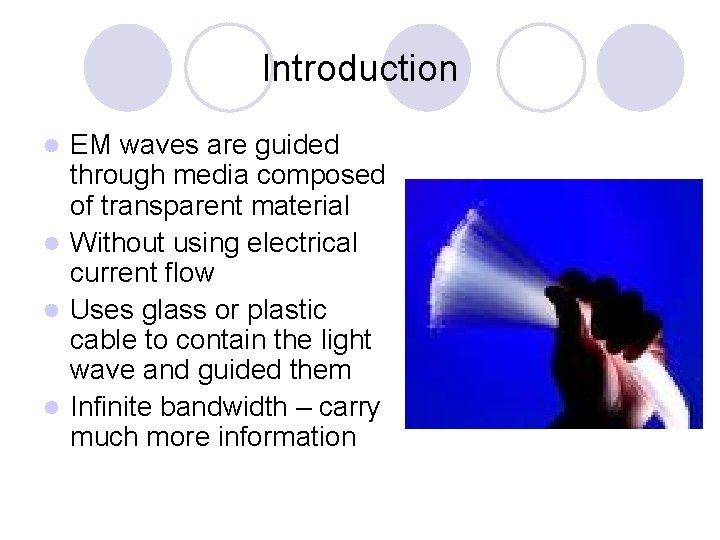

Introduction EM waves are guided through media composed of transparent material l Without using electrical current flow l Uses glass or plastic cable to contain the light wave and guided them l Infinite bandwidth – carry much more information l

History l Photophone ¡ Alexander Graham Bell ¡ Mirrors and detectors transmit sound wave via beam light ¡ Awkward, unreliable, no practical application Smoke signals and mirrors l Uncoated fiber cables l ¡ ¡ 1930, J. L. Baird and C. W. Hansell scanning and transmitting TV image

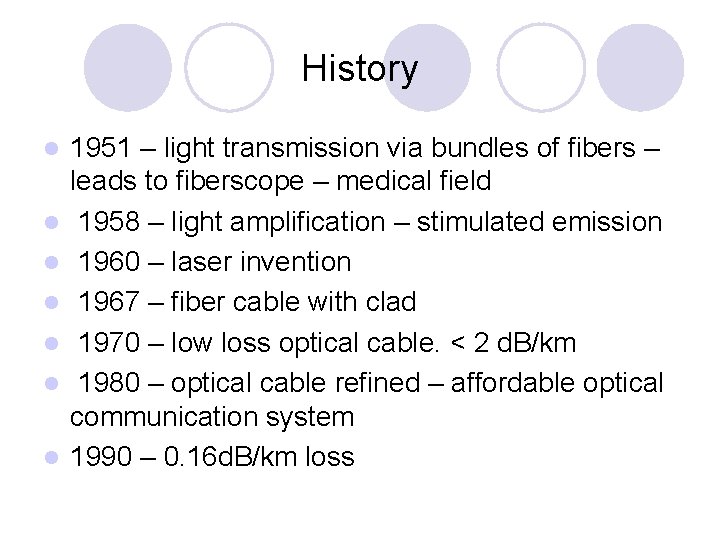

History l l l l 1951 – light transmission via bundles of fibers – leads to fiberscope – medical field 1958 – light amplification – stimulated emission 1960 – laser invention 1967 – fiber cable with clad 1970 – low loss optical cable. < 2 d. B/km 1980 – optical cable refined – affordable optical communication system 1990 – 0. 16 d. B/km loss

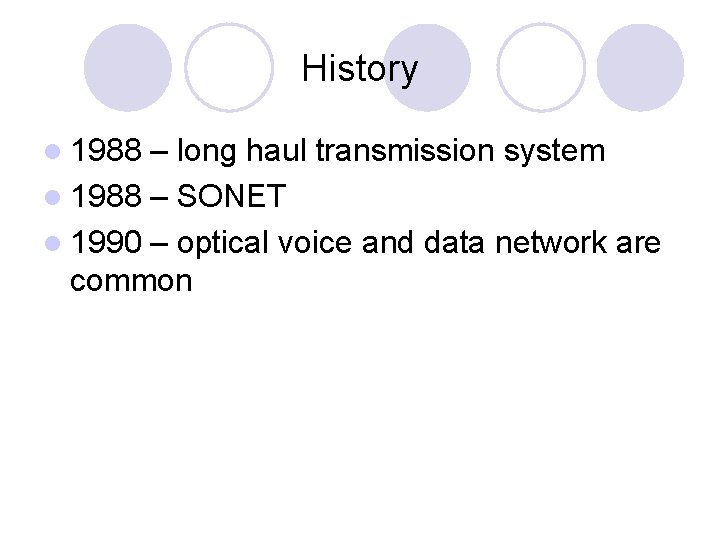

History l 1988 – long haul transmission system l 1988 – SONET l 1990 – optical voice and data network are common

Advantages l Wider bandwidth ¡ ¡ ¡ l Immunity to crosstalk ¡ ¡ l Better than metallic cables Up to several thousand GHz Speed up to several Gbps glass fiber/plastic are non-conductor to electrical current immune to adjacent cables Immunity to static interference ¡ immune to static noise – EMI, lightning etc.

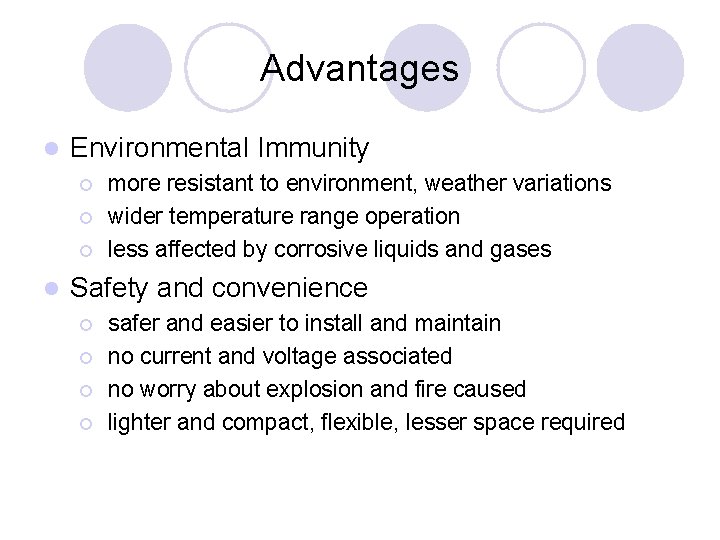

Advantages l Environmental Immunity ¡ ¡ ¡ l more resistant to environment, weather variations wider temperature range operation less affected by corrosive liquids and gases Safety and convenience ¡ ¡ safer and easier to install and maintain no current and voltage associated no worry about explosion and fire caused lighter and compact, flexible, lesser space required

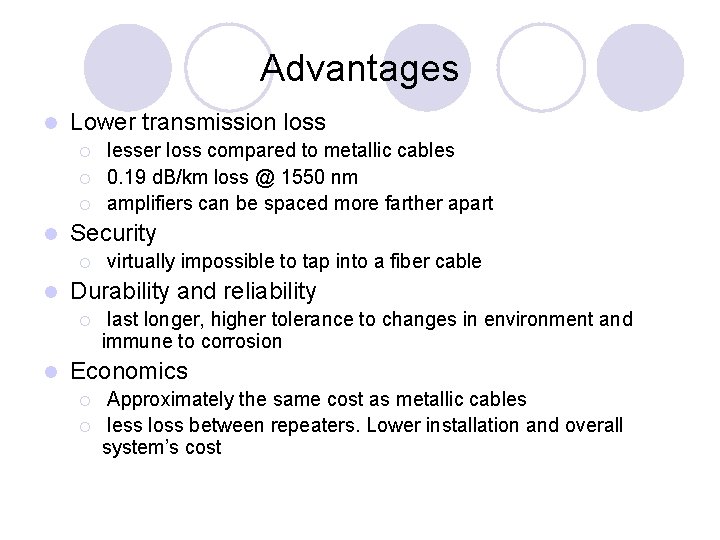

Advantages l Lower transmission loss ¡ ¡ ¡ l Security ¡ l virtually impossible to tap into a fiber cable Durability and reliability ¡ l lesser loss compared to metallic cables 0. 19 d. B/km loss @ 1550 nm amplifiers can be spaced more farther apart last longer, higher tolerance to changes in environment and immune to corrosion Economics ¡ ¡ Approximately the same cost as metallic cables less loss between repeaters. Lower installation and overall system’s cost

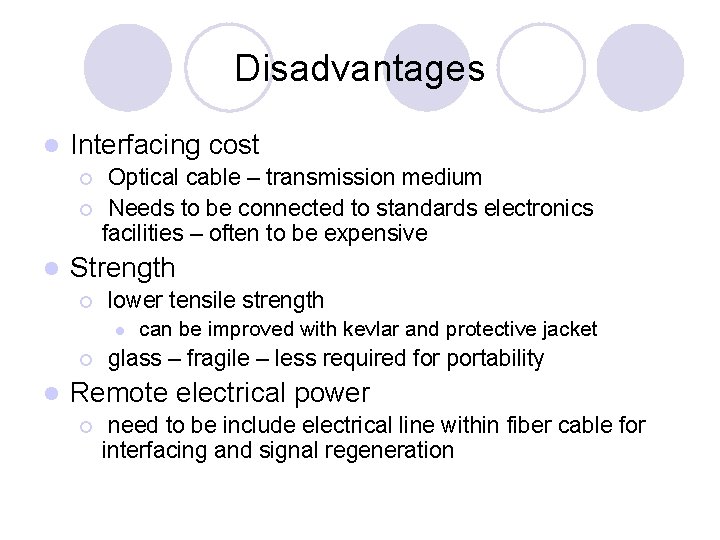

Disadvantages l Interfacing cost ¡ ¡ l Optical cable – transmission medium Needs to be connected to standards electronics facilities – often to be expensive Strength ¡ lower tensile strength l ¡ l can be improved with kevlar and protective jacket glass – fragile – less required for portability Remote electrical power ¡ need to be include electrical line within fiber cable for interfacing and signal regeneration

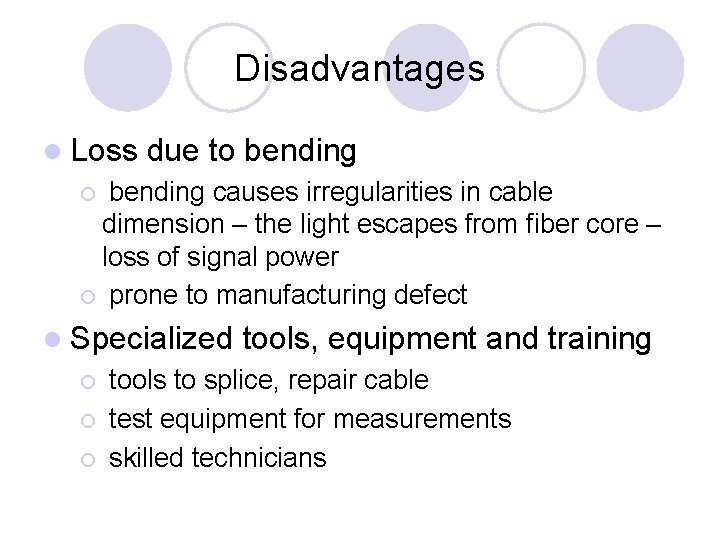

Disadvantages l Loss due to bending causes irregularities in cable dimension – the light escapes from fiber core – loss of signal power ¡ prone to manufacturing defect ¡ l Specialized ¡ ¡ ¡ tools, equipment and training tools to splice, repair cable test equipment for measurements skilled technicians

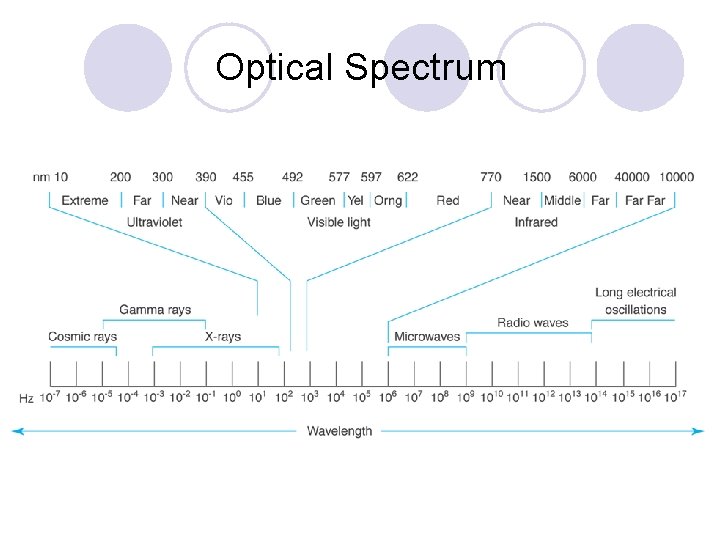

Optical Spectrum

Optical Communication systems

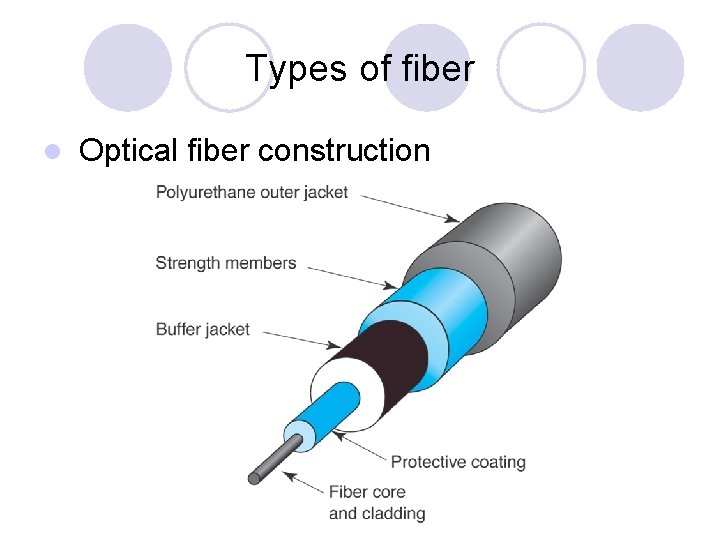

Types of fiber l Optical fiber construction

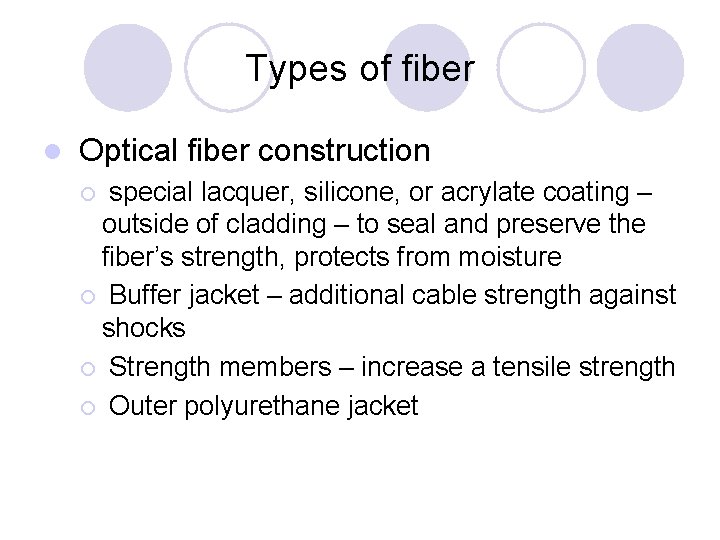

Types of fiber l Optical fiber construction special lacquer, silicone, or acrylate coating – outside of cladding – to seal and preserve the fiber’s strength, protects from moisture ¡ Buffer jacket – additional cable strength against shocks ¡ Strength members – increase a tensile strength ¡ Outer polyurethane jacket ¡

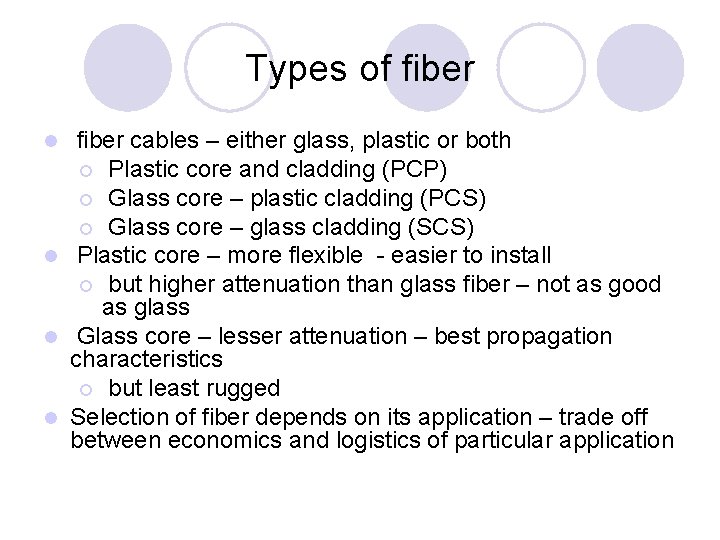

Types of fiber cables – either glass, plastic or both ¡ Plastic core and cladding (PCP) ¡ Glass core – plastic cladding (PCS) ¡ Glass core – glass cladding (SCS) l Plastic core – more flexible - easier to install ¡ but higher attenuation than glass fiber – not as good as glass l Glass core – lesser attenuation – best propagation characteristics ¡ but least rugged l Selection of fiber depends on its application – trade off between economics and logistics of particular application l

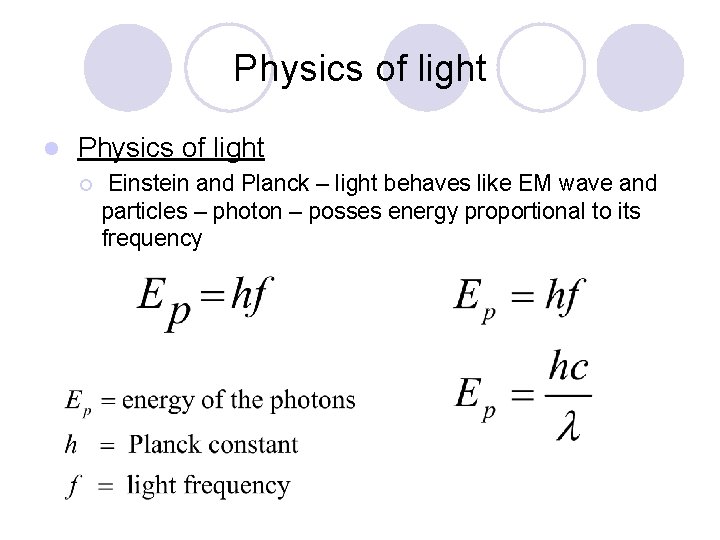

Physics of light l Physics of light ¡ Einstein and Planck – light behaves like EM wave and particles – photon – posses energy proportional to its frequency

light propagation l l l the lowest energy state – grounds state energy level above ground state – excited state if energy level decays to a lower level – loss of energy is emitted as a photons of light The process of decaying from one level to another – spontaneous decay or spontaneous emission Atoms can absorbs light energy and change its level to higher level – absorption

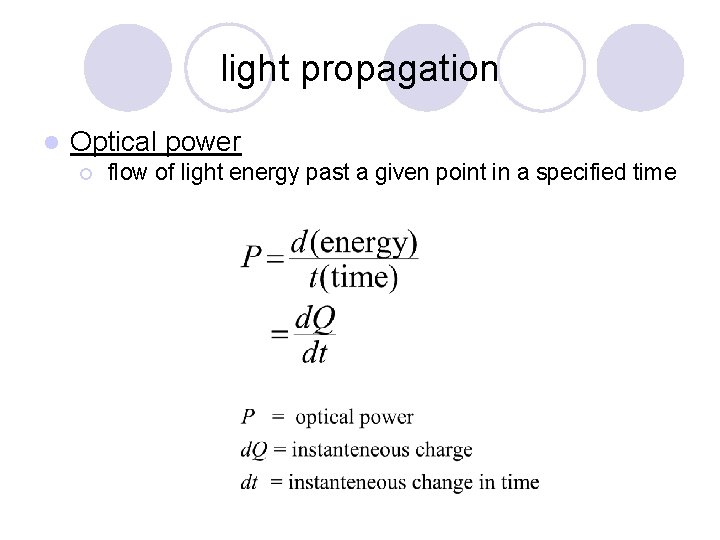

light propagation l Optical power ¡ flow of light energy past a given point in a specified time

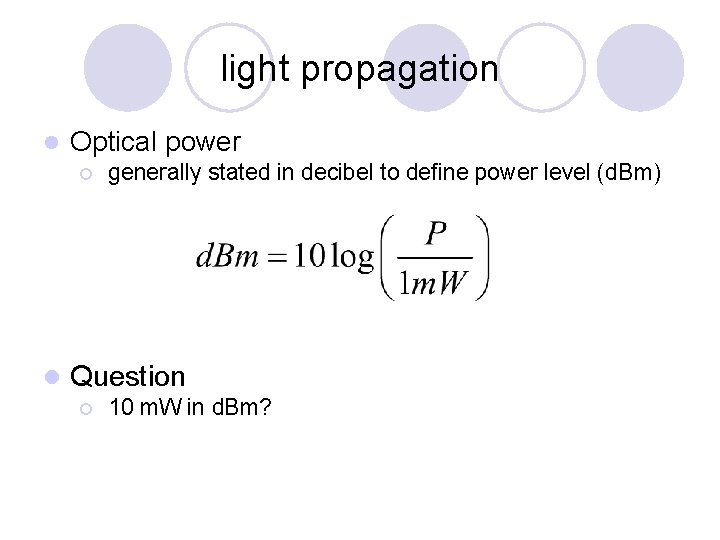

light propagation l Optical power ¡ l generally stated in decibel to define power level (d. Bm) Question ¡ 10 m. W in d. Bm?

light propagation l Velocity of Propagation ¡ in vacuum – 3 x 108 m/s ¡ but slower in a more dense material than free space ¡ when it passes through different medium or from one medium to another denser material – the ray changes its direction due to the change of speed

light propagation from less dense to more denser material – the ray refracted closer to the normal l from more denser material to less denser material – the ray refracted away from the normal l

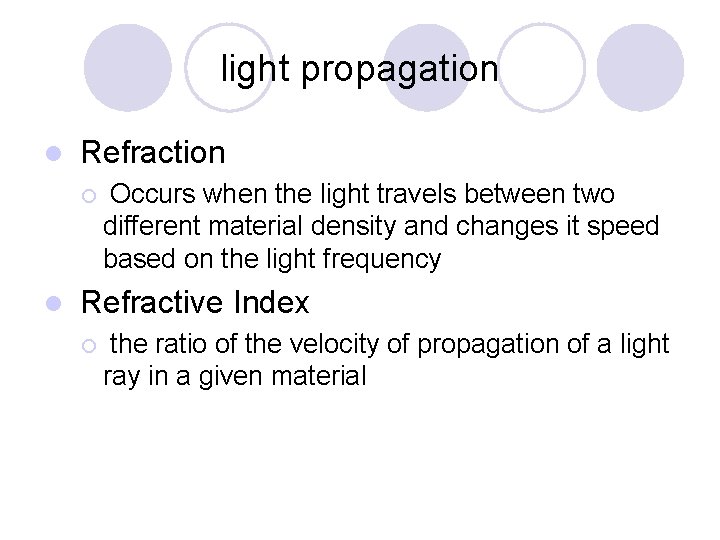

light propagation l Refraction ¡ l Occurs when the light travels between two different material density and changes it speed based on the light frequency Refractive Index ¡ the ratio of the velocity of propagation of a light ray in a given material

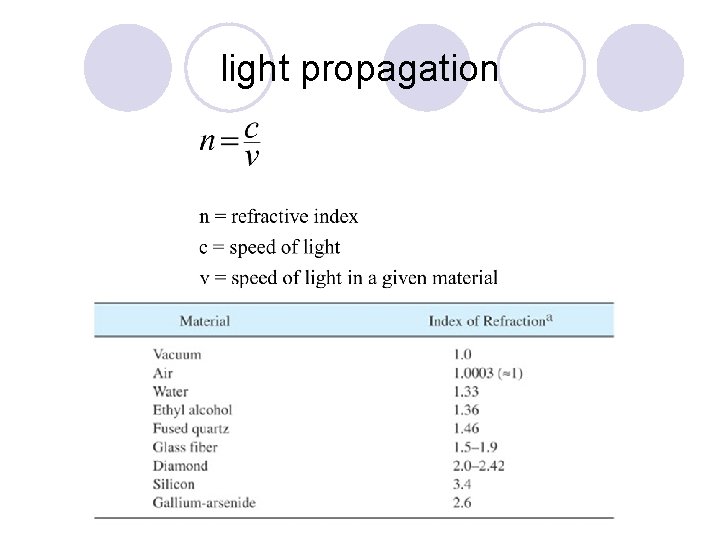

light propagation

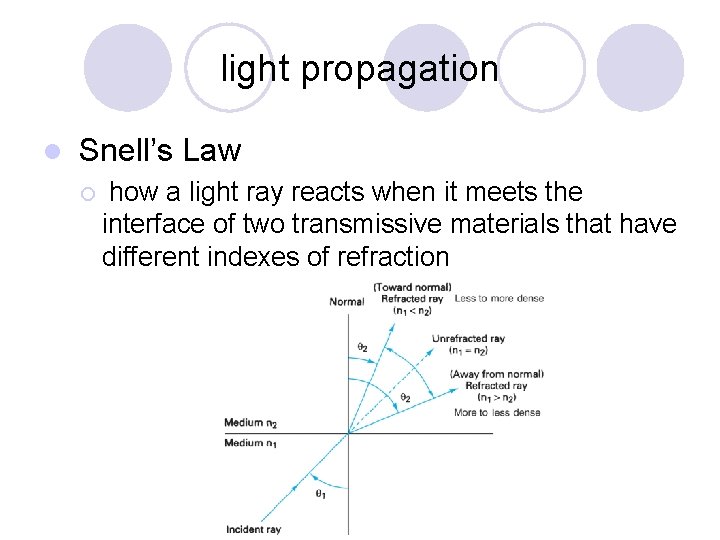

light propagation l Snell’s Law ¡ how a light ray reacts when it meets the interface of two transmissive materials that have different indexes of refraction

light propagation l Snell’s Law ¡ angle of incidence l ¡ angle at which the propagating ray strike the interface with respect to the normal angle of refraction l the angle formed between the propagating ray and the normal after the ray entered the 2 nd medium

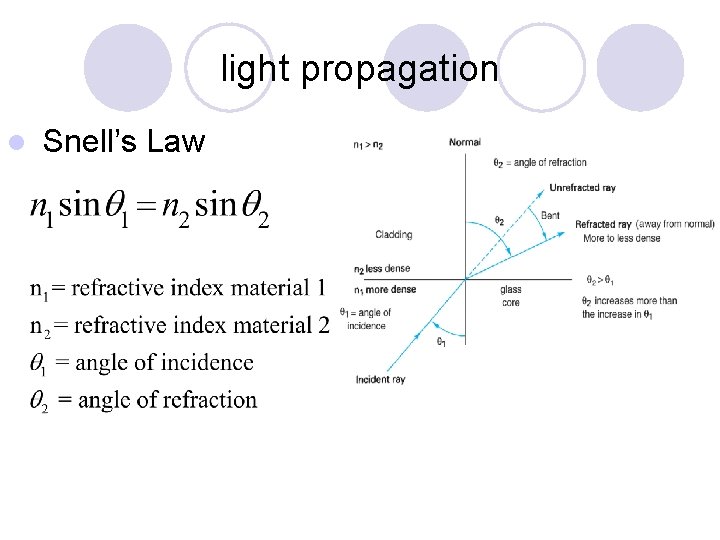

light propagation l Snell’s Law

light propagation l Question ¡ ¡ medium 1 – glass = 1. 5 medium 2 – ethyl alcohol = 1. 36 angle of incident – 30 o determine the angle of refraction

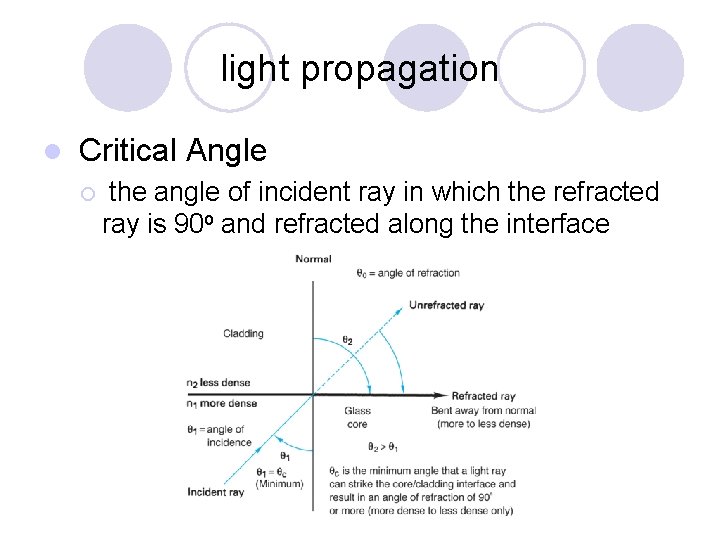

light propagation l Critical Angle ¡ the angle of incident ray in which the refracted ray is 90 o and refracted along the interface

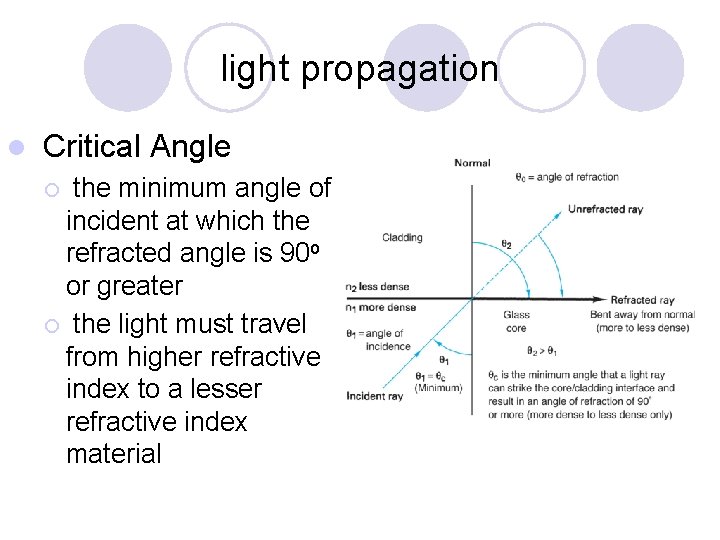

light propagation l Critical Angle the minimum angle of incident at which the refracted angle is 90 o or greater ¡ the light must travel from higher refractive index to a lesser refractive index material ¡

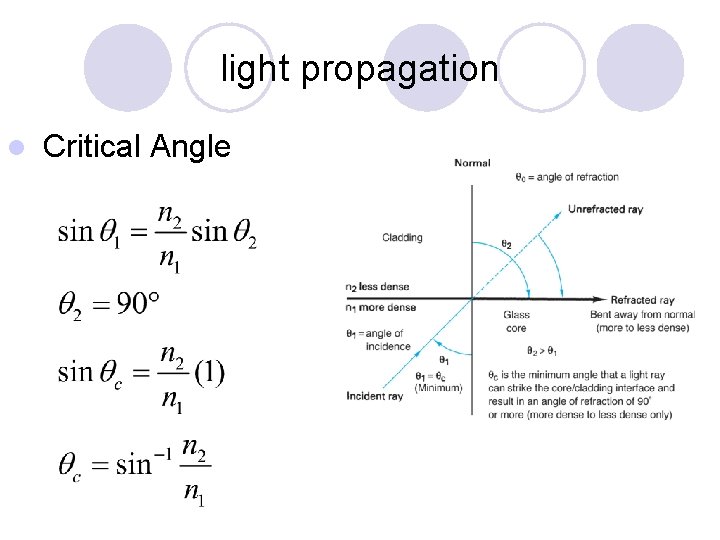

light propagation l Critical Angle

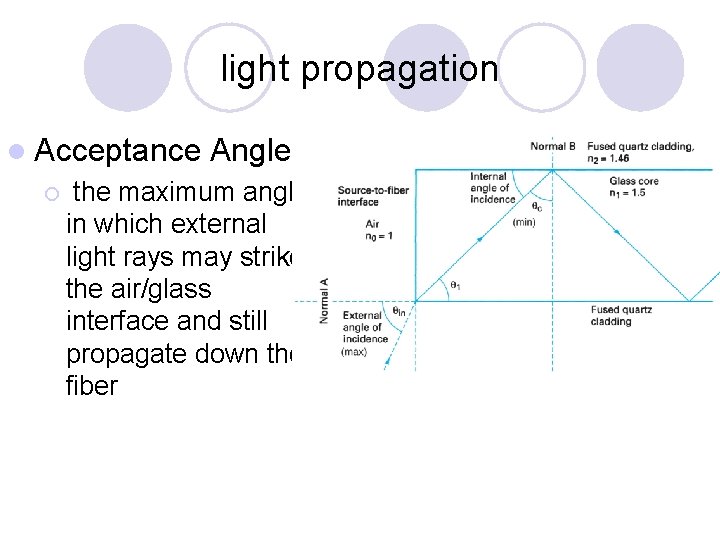

light propagation l Acceptance ¡ Angle the maximum angle in which external light rays may strike the air/glass interface and still propagate down the fiber

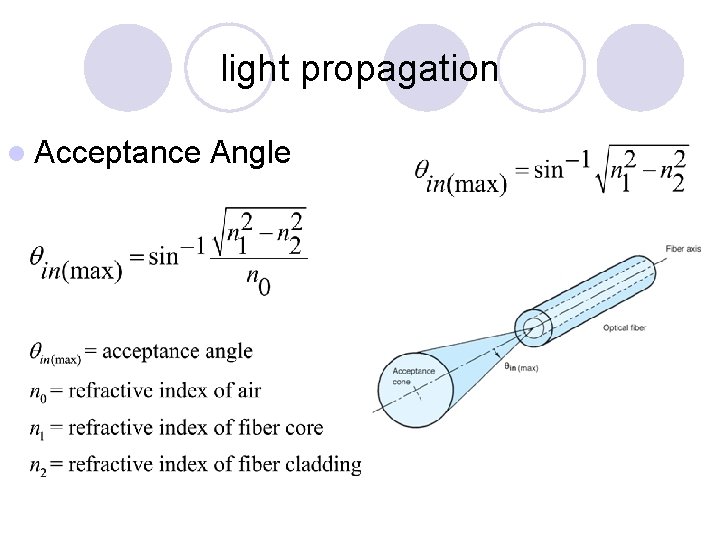

light propagation l Acceptance Angle

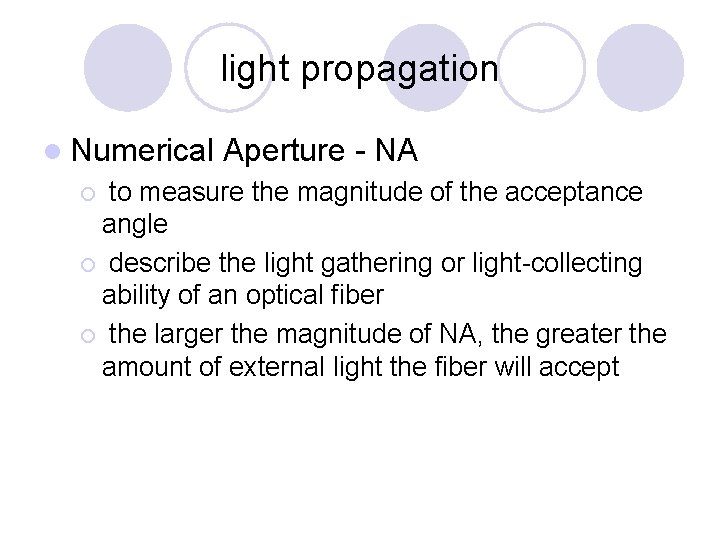

light propagation l Numerical Aperture - NA to measure the magnitude of the acceptance angle ¡ describe the light gathering or light-collecting ability of an optical fiber ¡ the larger the magnitude of NA, the greater the amount of external light the fiber will accept ¡

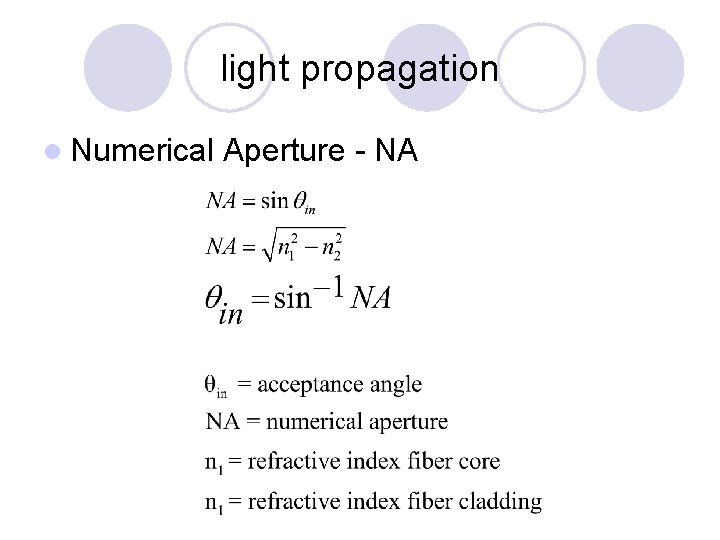

light propagation l Numerical Aperture - NA

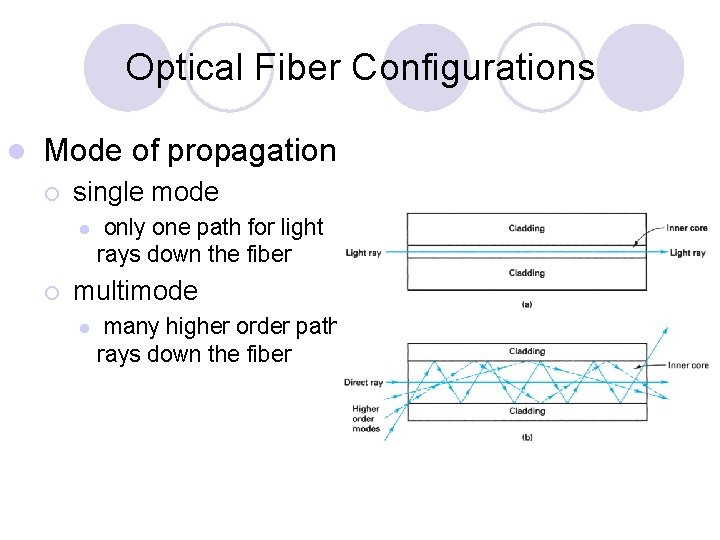

Optical Fiber Configurations l Mode of propagation ¡ single mode l ¡ only one path for light rays down the fiber multimode l many higher order path rays down the fiber

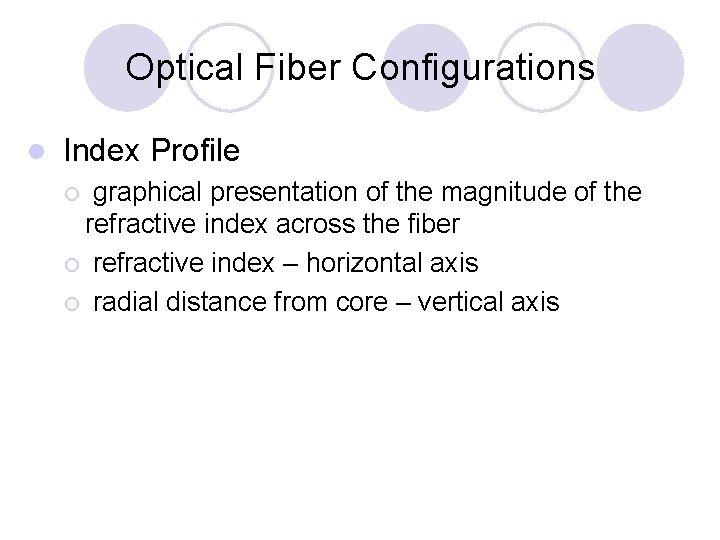

Optical Fiber Configurations l Index Profile graphical presentation of the magnitude of the refractive index across the fiber ¡ refractive index – horizontal axis ¡ radial distance from core – vertical axis ¡

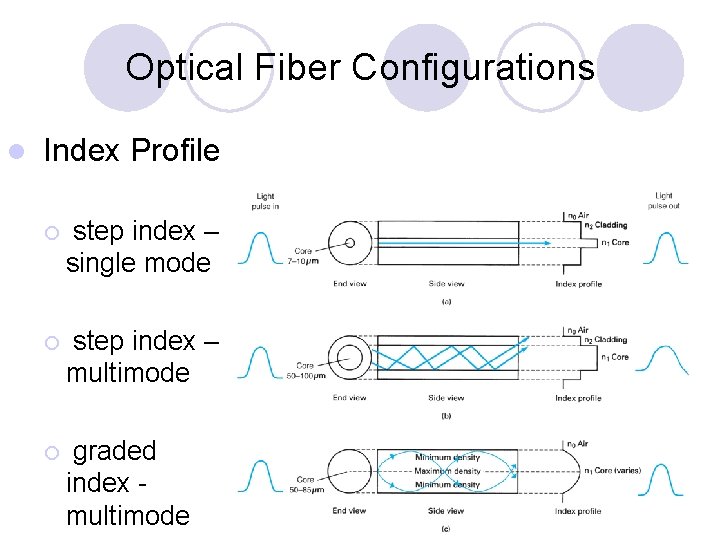

Optical Fiber Configurations l Index Profile ¡ step index – single mode ¡ step index – multimode ¡ graded index multimode

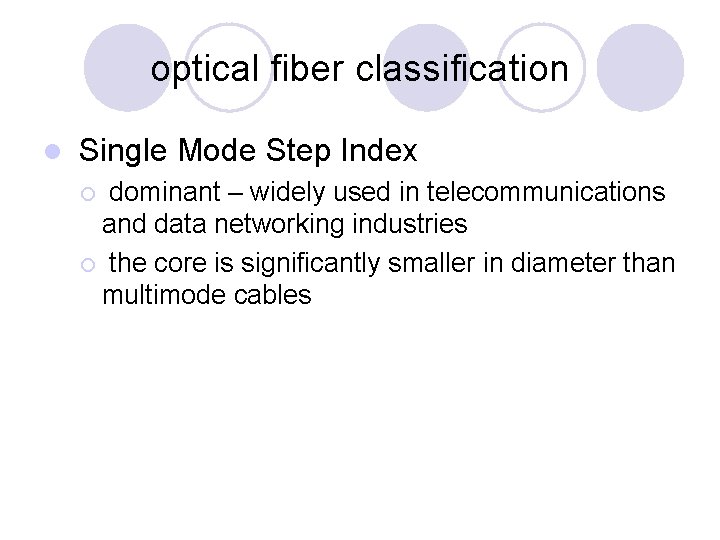

optical fiber classification l Single Mode Step Index dominant – widely used in telecommunications and data networking industries ¡ the core is significantly smaller in diameter than multimode cables ¡

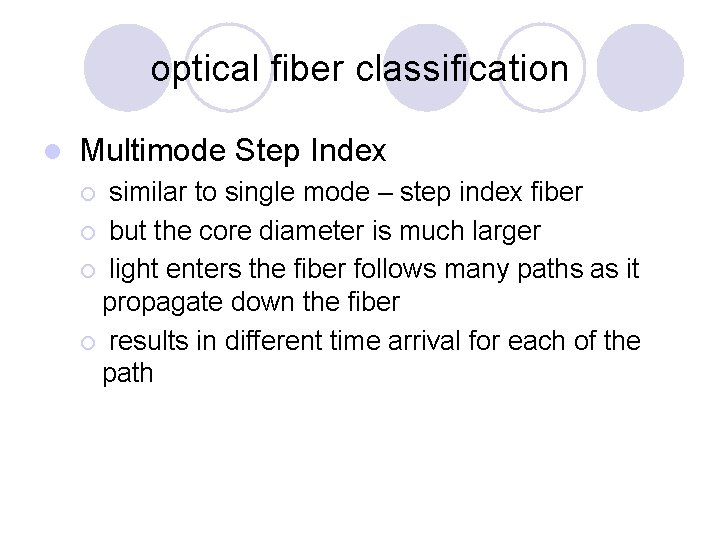

optical fiber classification l Multimode Step Index similar to single mode – step index fiber ¡ but the core diameter is much larger ¡ light enters the fiber follows many paths as it propagate down the fiber ¡ results in different time arrival for each of the path ¡

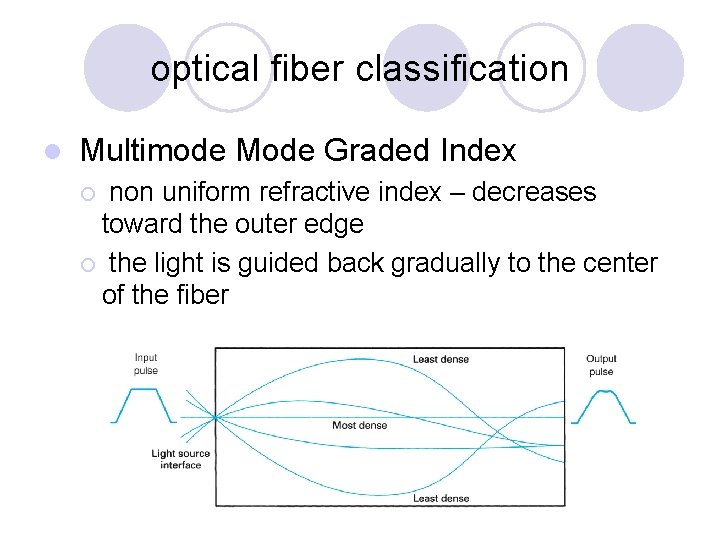

optical fiber classification l Multimode Mode Graded Index non uniform refractive index – decreases toward the outer edge ¡ the light is guided back gradually to the center of the fiber ¡

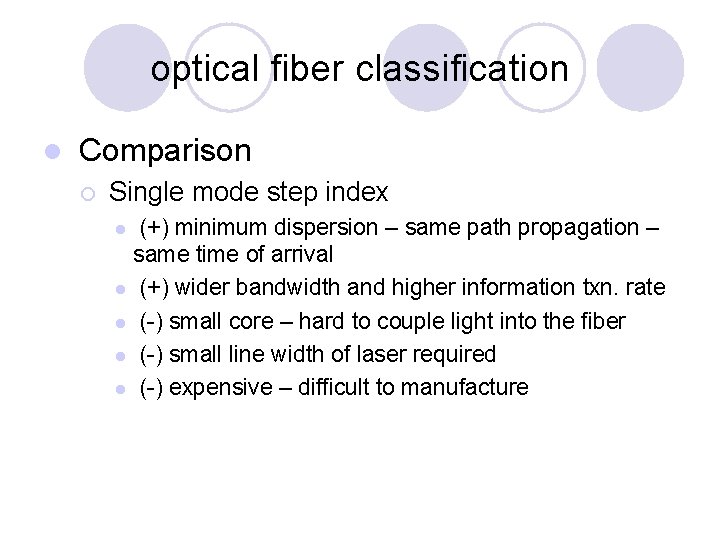

optical fiber classification l Comparison ¡ Single mode step index (+) minimum dispersion – same path propagation – same time of arrival l (+) wider bandwidth and higher information txn. rate l (-) small core – hard to couple light into the fiber l (-) small line width of laser required l (-) expensive – difficult to manufacture l

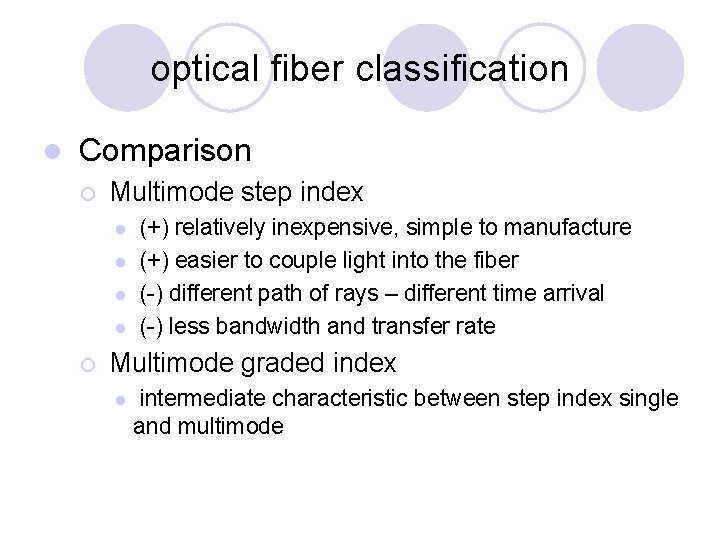

optical fiber classification l Comparison ¡ Multimode step index l l ¡ (+) relatively inexpensive, simple to manufacture (+) easier to couple light into the fiber (-) different path of rays – different time arrival (-) less bandwidth and transfer rate Multimode graded index l intermediate characteristic between step index single and multimode

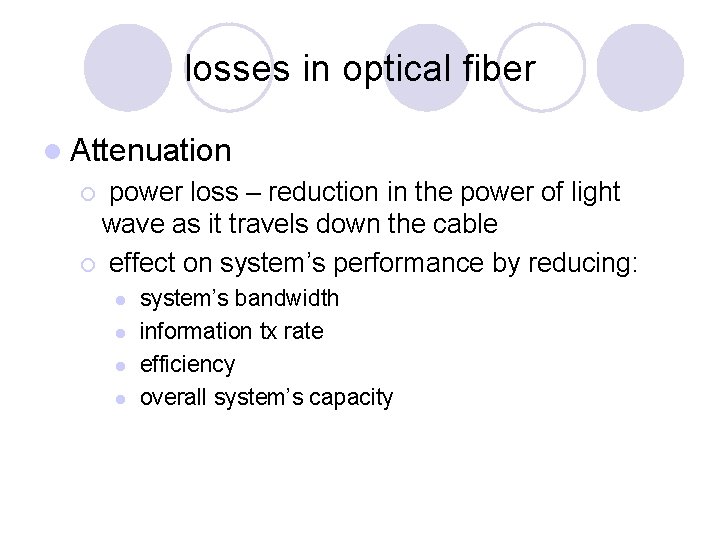

losses in optical fiber l Attenuation power loss – reduction in the power of light wave as it travels down the cable ¡ effect on system’s performance by reducing: ¡ l l system’s bandwidth information tx rate efficiency overall system’s capacity

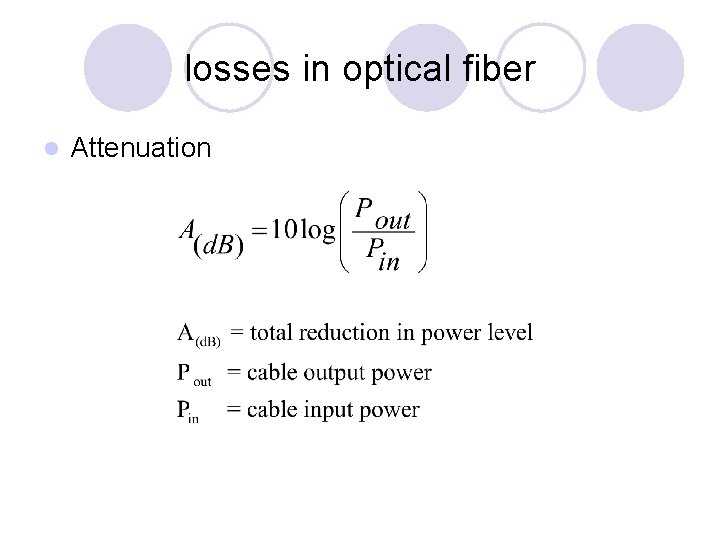

losses in optical fiber l Attenuation

losses in optical fiber l Attenuation ¡ ¡ ¡ depends on signal’s wavelength generally expressed as decibel loss per km d. B/km

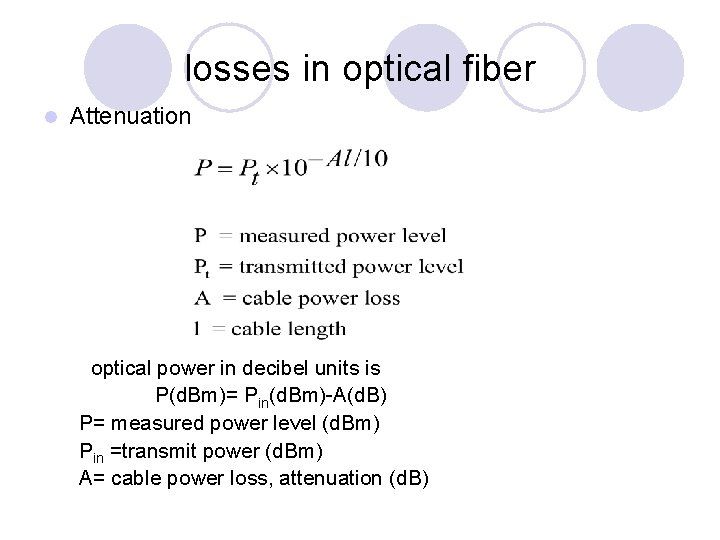

losses in optical fiber l Attenuation optical power in decibel units is P(d. Bm)= Pin(d. Bm)-A(d. B) P= measured power level (d. Bm) Pin =transmit power (d. Bm) A= cable power loss, attenuation (d. B)

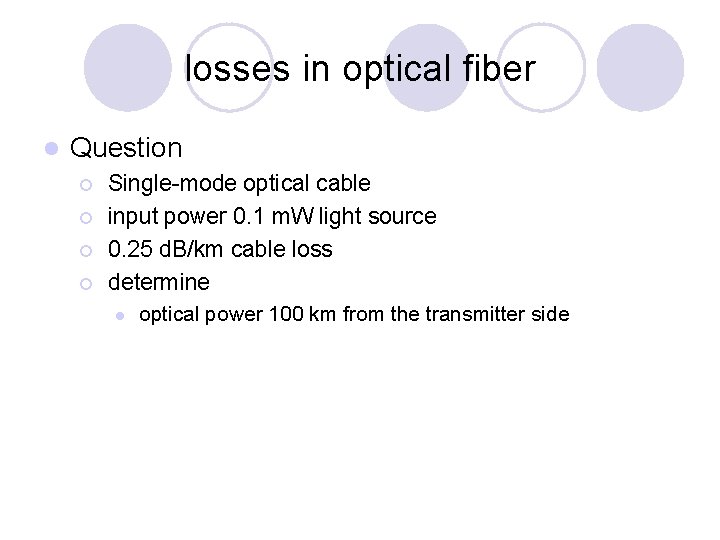

losses in optical fiber l Question ¡ ¡ Single-mode optical cable input power 0. 1 m. W light source 0. 25 d. B/km cable loss determine l optical power 100 km from the transmitter side

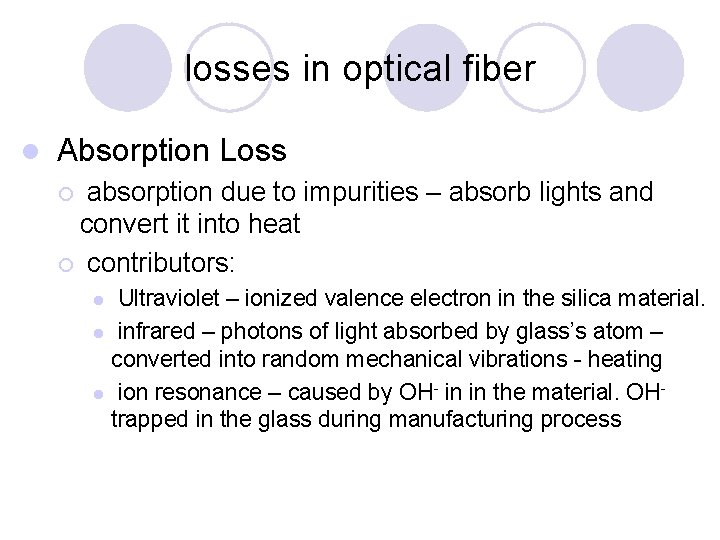

losses in optical fiber l Absorption Loss absorption due to impurities – absorb lights and convert it into heat ¡ contributors: ¡ Ultraviolet – ionized valence electron in the silica material. l infrared – photons of light absorbed by glass’s atom – converted into random mechanical vibrations - heating l ion resonance – caused by OH- in in the material. OHtrapped in the glass during manufacturing process l

losses in optical fiber l Absorption Loss

losses in optical fiber l Material – Rayleigh, Scattering Losses permanent submicroscopic irregularities during fiber drawing process ¡ when the light propagates and strike one of the impurities, they are diffracted – causes the light to disperse and spread out ¡ some continues down the fiber, some escapes via cladding – power loss ¡

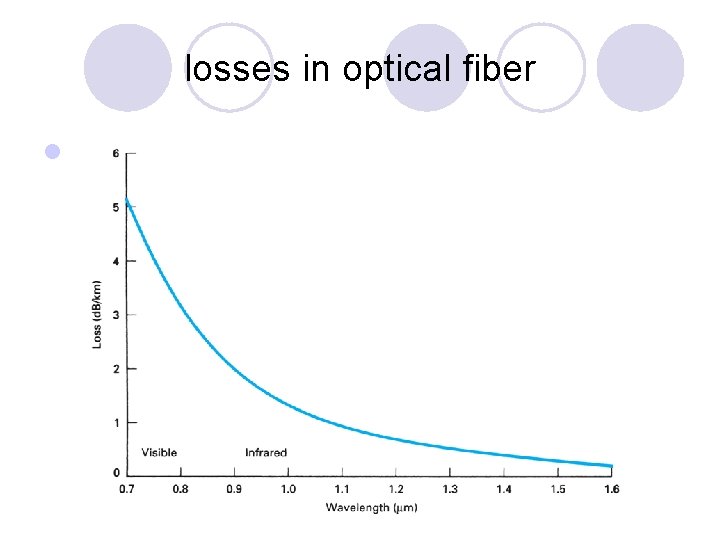

losses in optical fiber l

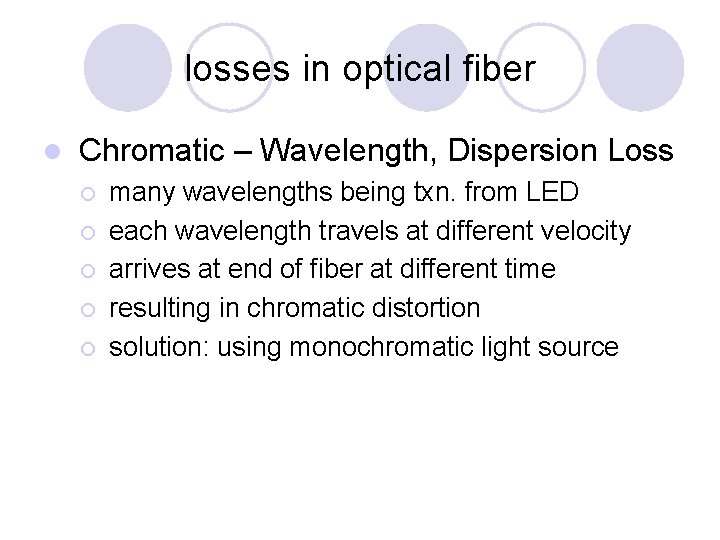

losses in optical fiber l Chromatic – Wavelength, Dispersion Loss ¡ ¡ ¡ many wavelengths being txn. from LED each wavelength travels at different velocity arrives at end of fiber at different time resulting in chromatic distortion solution: using monochromatic light source

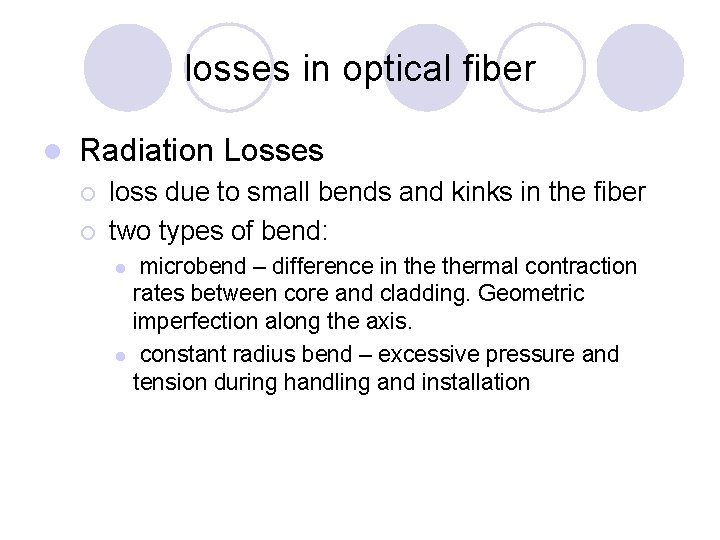

losses in optical fiber l Radiation Losses ¡ ¡ loss due to small bends and kinks in the fiber two types of bend: microbend – difference in thermal contraction rates between core and cladding. Geometric imperfection along the axis. l constant radius bend – excessive pressure and tension during handling and installation l

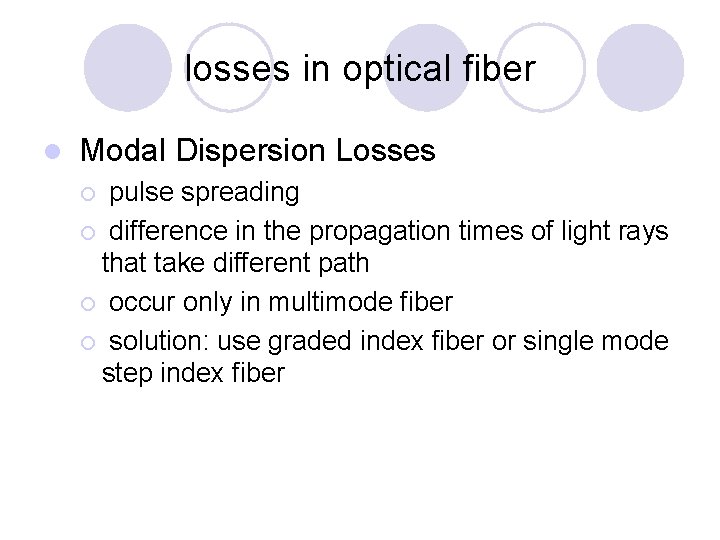

losses in optical fiber l Modal Dispersion Losses pulse spreading ¡ difference in the propagation times of light rays that take different path ¡ occur only in multimode fiber ¡ solution: use graded index fiber or single mode step index fiber ¡

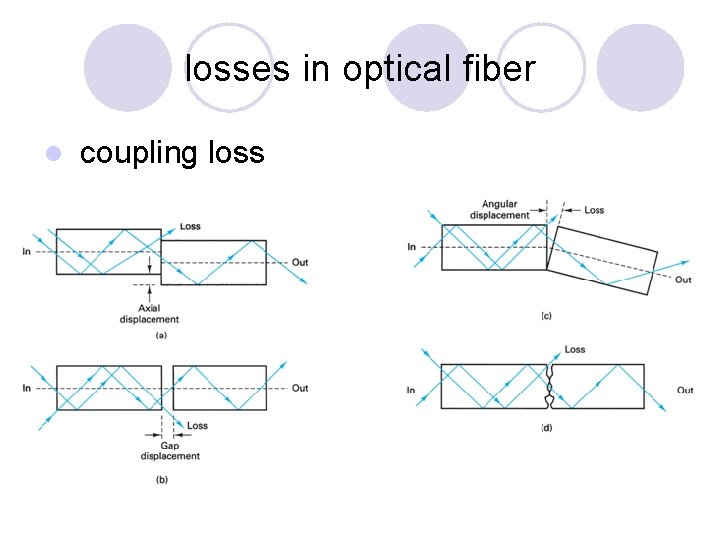

losses in optical fiber l Coupling Losses ¡ imperfect physical connection l three types of optical junctions: • Light source to fiber connection • Fiber to photodetector connection l Caused by: • • Lateral displacement Gap dispalcement Angular displacement Imperfect surface

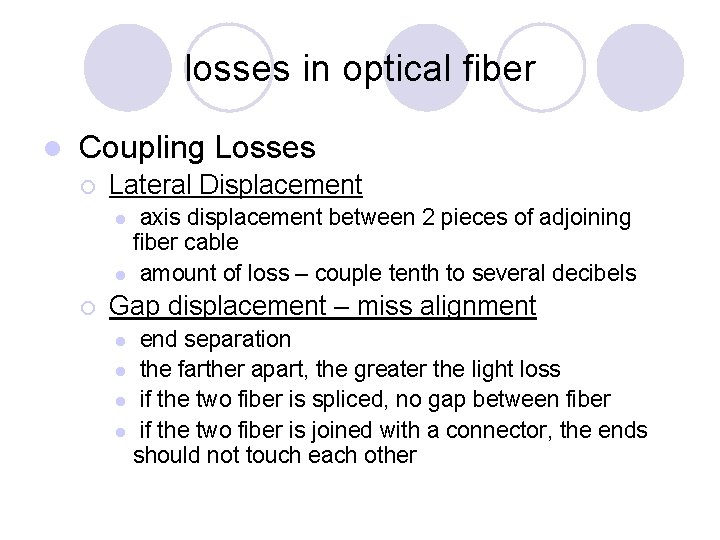

losses in optical fiber l Coupling Losses ¡ Lateral Displacement axis displacement between 2 pieces of adjoining fiber cable l amount of loss – couple tenth to several decibels l ¡ Gap displacement – miss alignment end separation l the farther apart, the greater the light loss l if the two fiber is spliced, no gap between fiber l if the two fiber is joined with a connector, the ends should not touch each other l

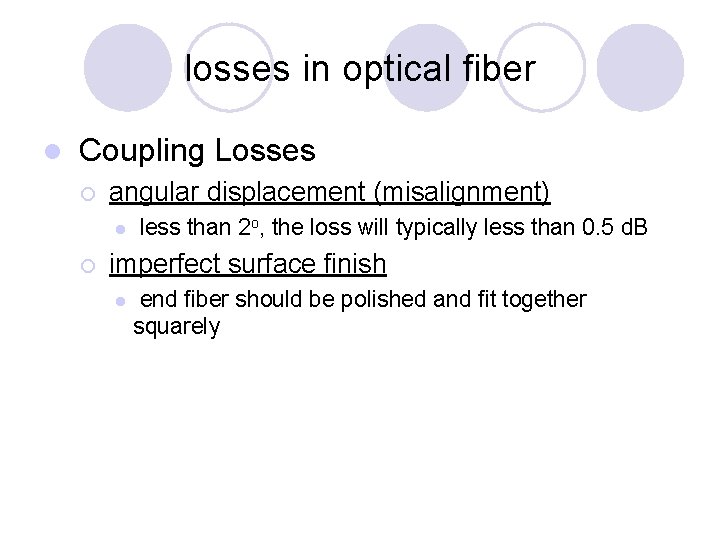

losses in optical fiber l Coupling Losses ¡ angular displacement (misalignment) l ¡ less than 2 o, the loss will typically less than 0. 5 d. B imperfect surface finish l end fiber should be polished and fit together squarely

losses in optical fiber l coupling loss

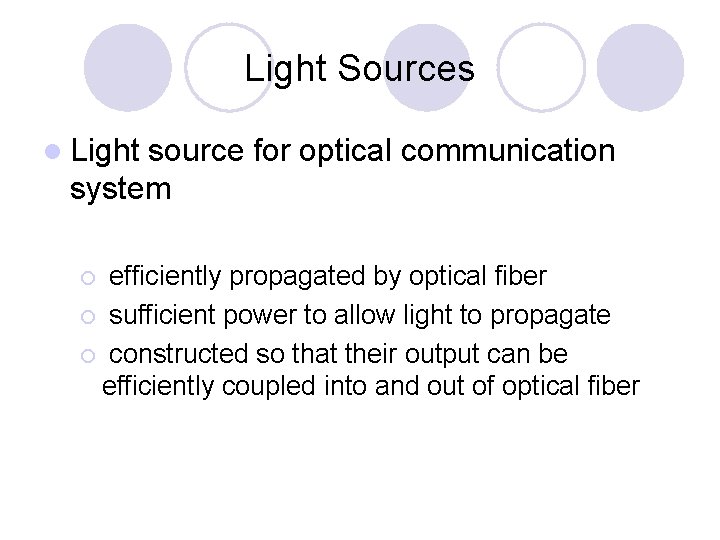

Light Sources l Light source for optical communication system efficiently propagated by optical fiber ¡ sufficient power to allow light to propagate ¡ constructed so that their output can be efficiently coupled into and out of optical fiber ¡

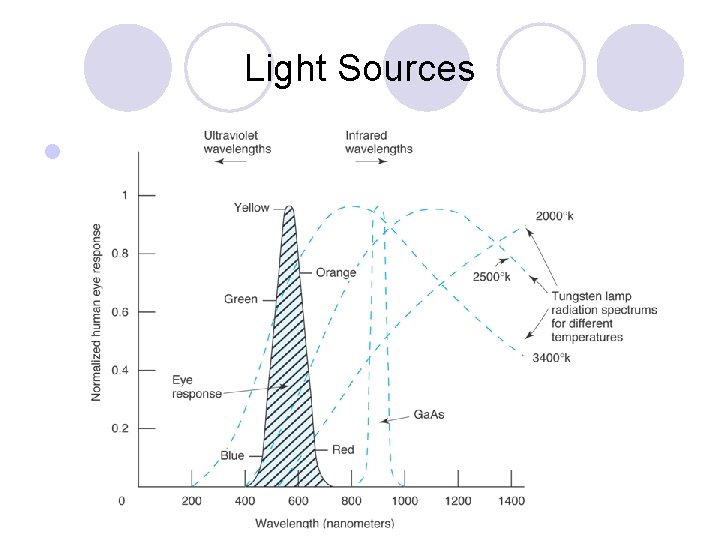

Light Sources l

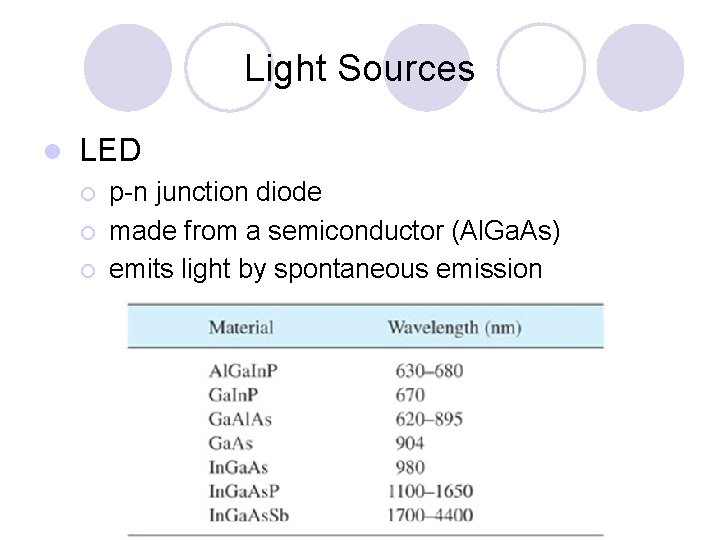

Light Sources l LED ¡ ¡ ¡ p-n junction diode made from a semiconductor (Al. Ga. As) emits light by spontaneous emission

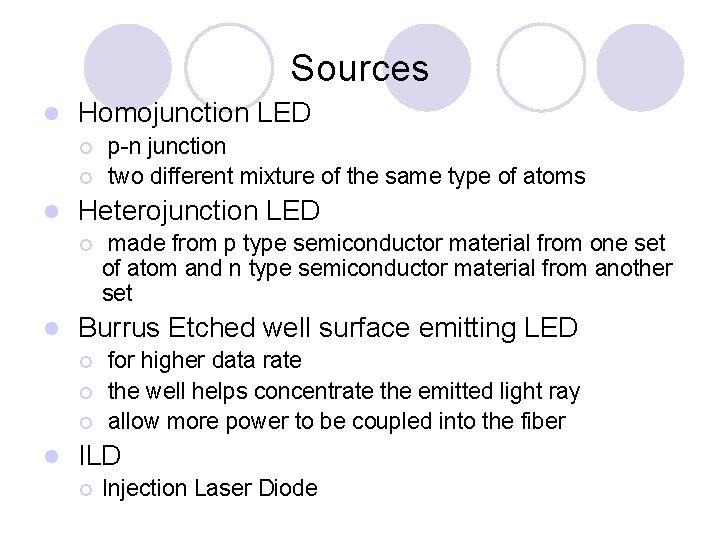

Sources l Homojunction LED ¡ ¡ l Heterojunction LED ¡ l made from p type semiconductor material from one set of atom and n type semiconductor material from another set Burrus Etched well surface emitting LED ¡ ¡ ¡ l p-n junction two different mixture of the same type of atoms for higher data rate the well helps concentrate the emitted light ray allow more power to be coupled into the fiber ILD ¡ Injection Laser Diode

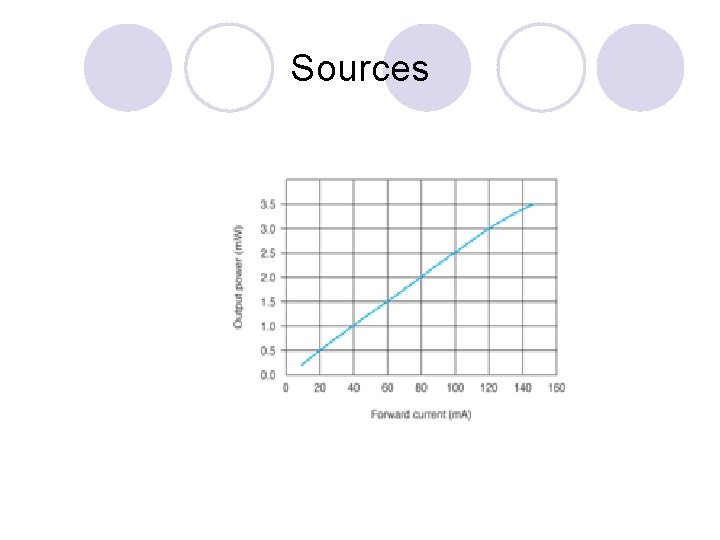

Sources

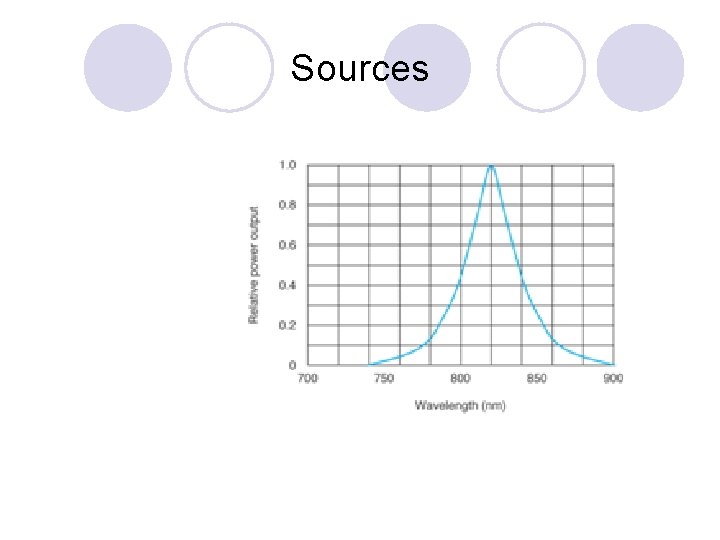

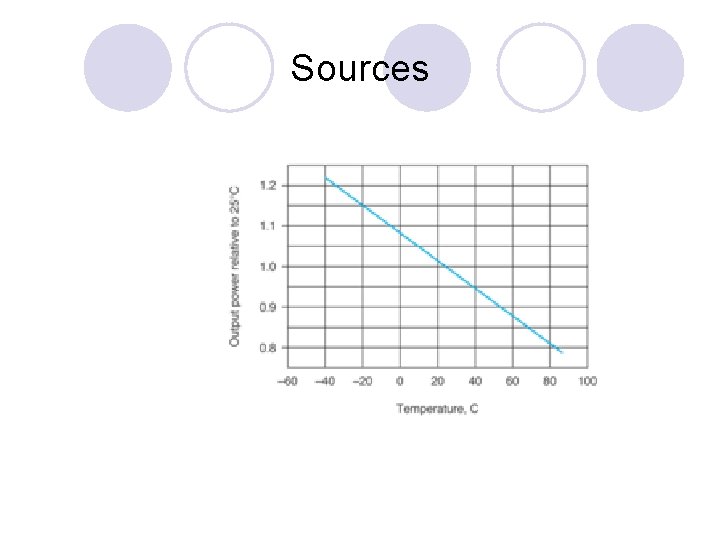

Sources

Sources

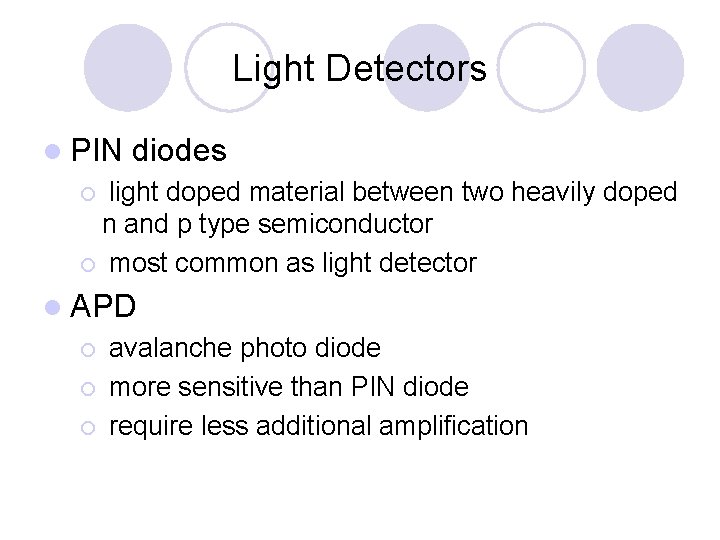

Light Detectors l PIN diodes light doped material between two heavily doped n and p type semiconductor ¡ most common as light detector ¡ l APD ¡ ¡ ¡ avalanche photo diode more sensitive than PIN diode require less additional amplification

Detectors l Characteristic of Light detectors ¡ responsivity l l ¡ dark current l ¡ time of light induced carrier to travel across the depletion region of semiconductor spectral response l ¡ the leakage current that flows through photodiode when there is no light input transit time l ¡ a measure of conversion efficiency of photodetector ratio of output current to the input optical power the range of wavelength values that a given photodiode will respond light sensitivity l the minimum optical power a light detector can receive and still produce a usable electrical output signal

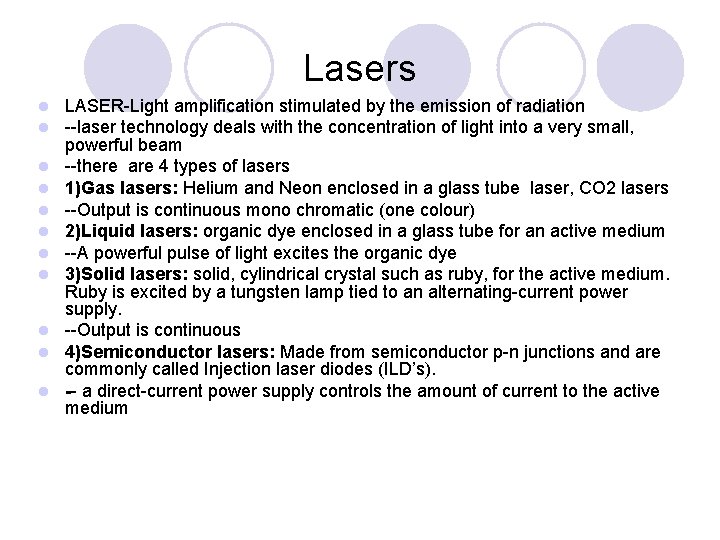

Lasers l l l LASER-Light amplification stimulated by the emission of radiation --laser technology deals with the concentration of light into a very small, powerful beam --there are 4 types of lasers 1)Gas lasers: Helium and Neon enclosed in a glass tube laser, CO 2 lasers --Output is continuous mono chromatic (one colour) 2)Liquid lasers: organic dye enclosed in a glass tube for an active medium --A powerful pulse of light excites the organic dye 3)Solid lasers: solid, cylindrical crystal such as ruby, for the active medium. Ruby is excited by a tungsten lamp tied to an alternating-current power supply. --Output is continuous 4)Semiconductor lasers: Made from semiconductor p-n junctions and are commonly called Injection laser diodes (ILD’s). -- a direct-current power supply controls the amount of current to the active medium

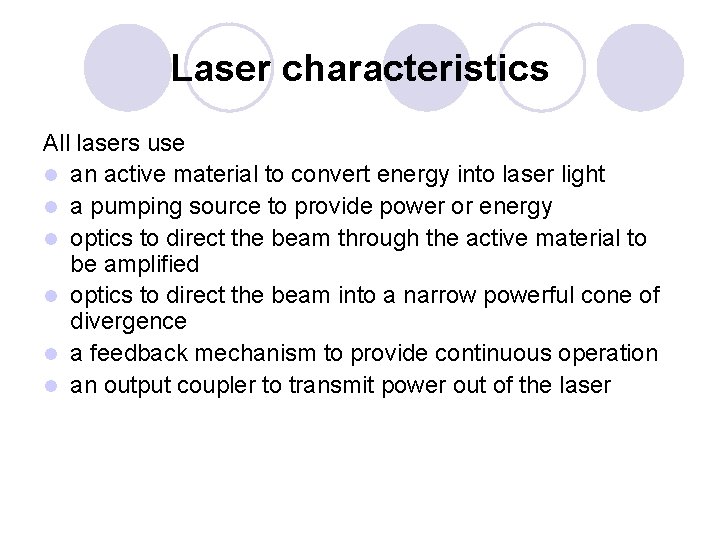

Laser characteristics All lasers use l an active material to convert energy into laser light l a pumping source to provide power or energy l optics to direct the beam through the active material to be amplified l optics to direct the beam into a narrow powerful cone of divergence l a feedback mechanism to provide continuous operation l an output coupler to transmit power out of the laser
