Optical and Electronic Measurements of Individual Carbon Nanotubes Steve Cronin University of Southern California Electrical Engineering - Electrophysics

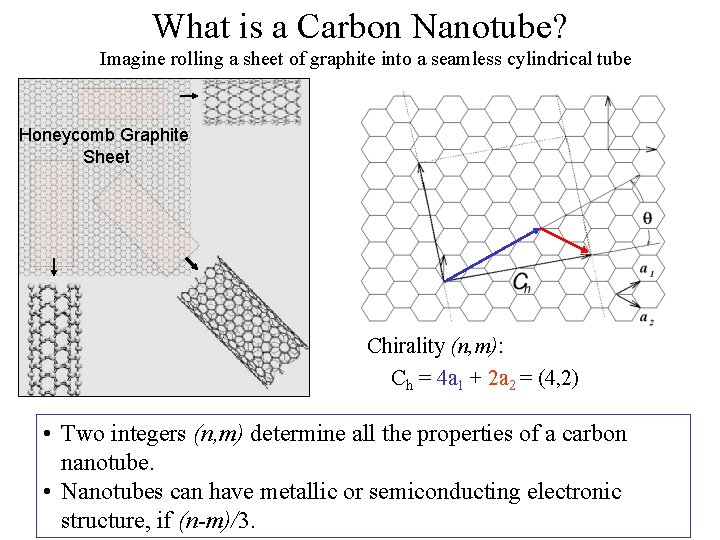

What is a Carbon Nanotube? • Imagine rolling a sheet of graphite into a seamless cylindrical tube Honeycomb Graphite Sheet Chirality (n, m): Ch = 4 a 1 + 2 a 2 = (4, 2) • Two integers (n, m) determine all the properties of a carbon nanotube. • Nanotubes can have metallic or semiconducting electronic structure, if (n-m)/3.

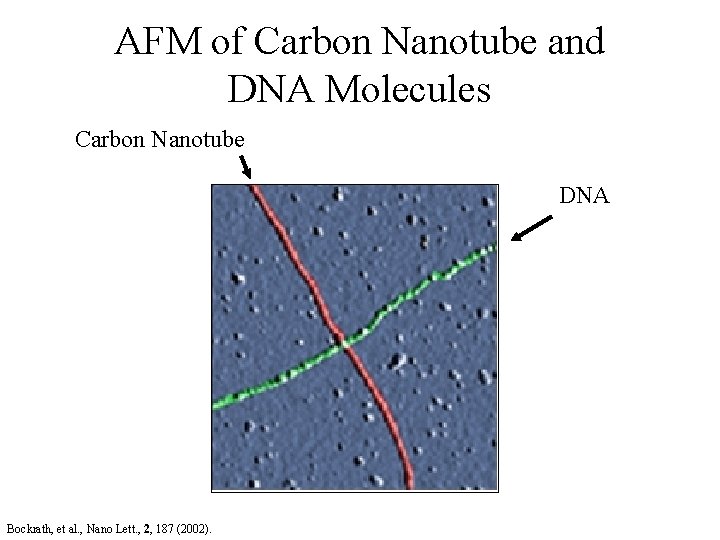

AFM of Carbon Nanotube and DNA Molecules Carbon Nanotube DNA Bockrath, et al. , Nano Lett. , 2, 187 (2002).

Why Study Carbon Nanotubes? • • • 1 nm in diameter, up to 1 cm in length, aspect ratio of 107 1 defect in 1012 C atoms => ballistic conduction High melting point ~3800 o. C High young’s modulus 1 TPa (103 times diamond) High electronic current carrying capacity (109 A/cm 2) ~103 times higher than that of the noble metals • Thermal conductivity 6600 W/m. K at room temperature is twice the maximum known bulk thermal conductor, isotropically pure diamond = 3320 W/m. K Despite 18, 000 publications, no large scale commercial applications of nanotubes Li , Yu, Rutherglen, Burke, Nano Lett. , 4 2003 (2004) Fan, Goldsmith, Collins, Nature Materials, 4, 906 (2005)

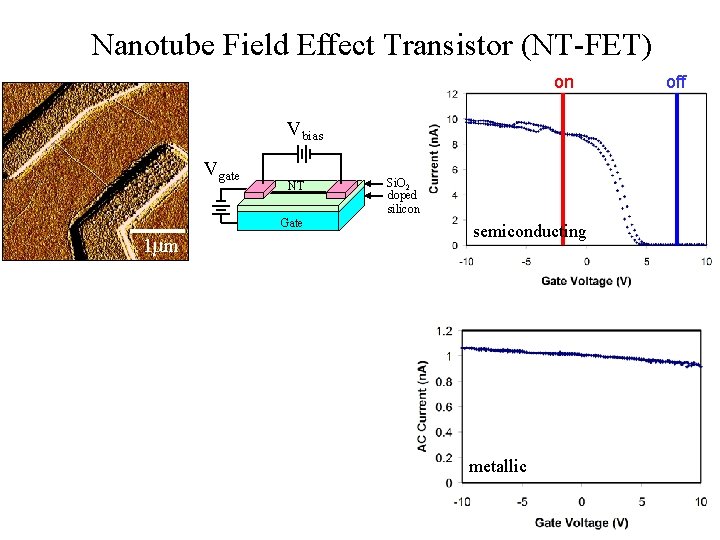

Nanotube Field Effect Transistor (NT-FET) on Vbias Vgate NT Gate 1 mm Si. O 2 doped silicon semiconducting metallic off

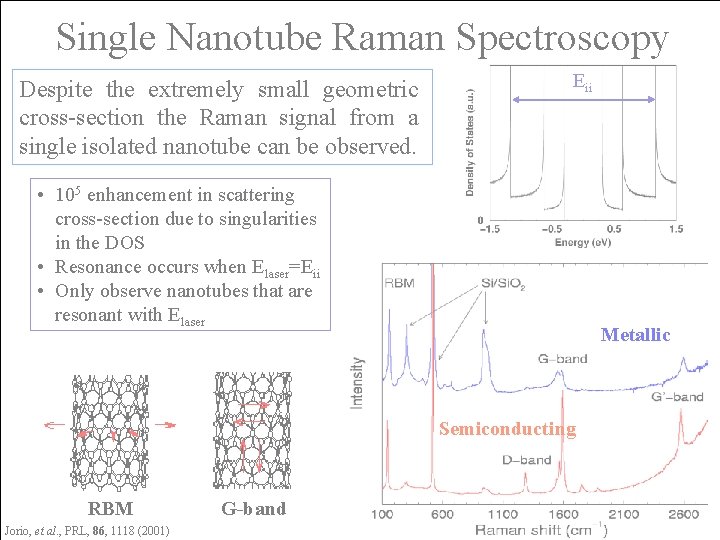

Single Nanotube Raman Spectroscopy Despite the extremely small geometric cross-section the Raman signal from a single isolated nanotube can be observed. Eii • 105 enhancement in scattering cross-section due to singularities in the DOS • Resonance occurs when Elaser=Eii • Only observe nanotubes that are resonant with Elaser Metallic Semiconducting RBM Jorio, et al. , PRL, 86, 1118 (2001) G-band

Strain Nanotubes 1 mm AFM tip unstrained length =3. 8 mm strain = 20 nm 0. 53% 5. 3 GPa Stress

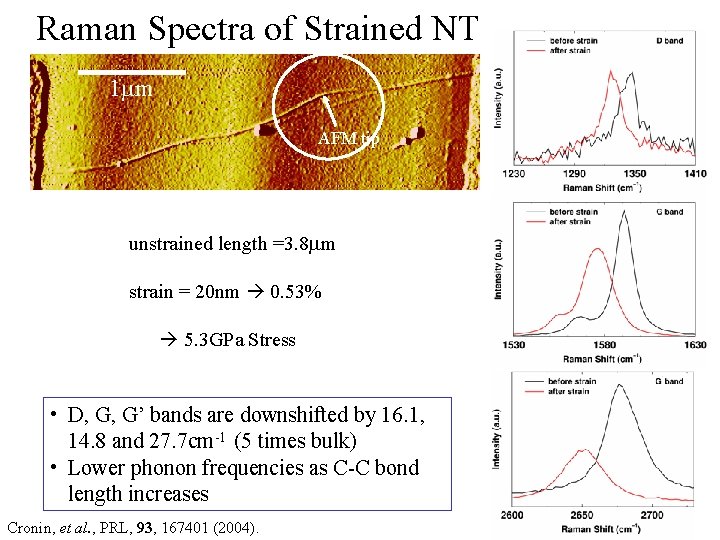

Raman Spectra of Strained NT 1 mm AFM tip unstrained length =3. 8 mm strain = 20 nm 0. 53% 5. 3 GPa Stress • D, G, G’ bands are downshifted by 16. 1, 14. 8 and 27. 7 cm-1 (5 times bulk) • Lower phonon frequencies as C-C bond length increases Cronin, et al. , PRL, 93, 167401 (2004).

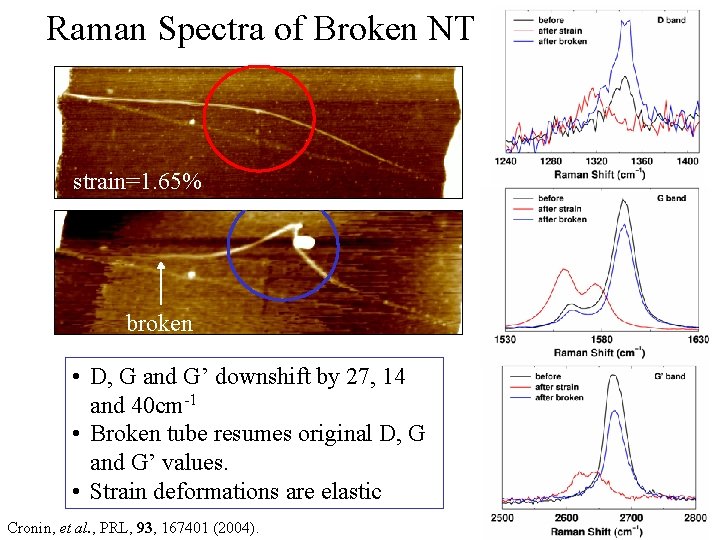

Raman Spectra of Broken NT strain=1. 65% broken • D, G and G’ downshift by 27, 14 and 40 cm-1 • Broken tube resumes original D, G and G’ values. • Strain deformations are elastic Cronin, et al. , PRL, 93, 167401 (2004).

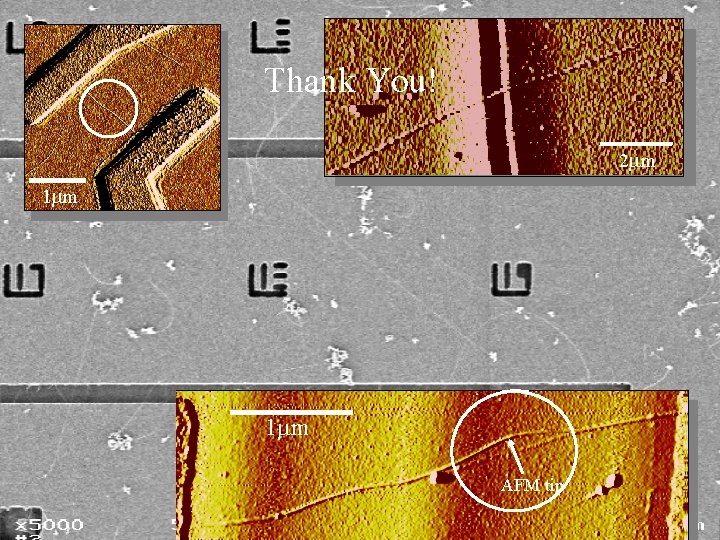

Thank You! 2 mm 1 mm AFM tip
