Optic nerve Chiasma ateral Geniculate Nucleus LGN Optic
- Slides: 18
Optic nerve Chiasma ateral Geniculate Nucleus (LGN) Optic radiations Area V 1 OPTIC CHIASMA
dorsal 1 médial antérieur (rostral) posterieur (caudal) latéral 2 ventral 4 3 5
VM Left UVF Right UVF HM Right LVF Left LVF dorsal antérieur médial latéral antérieur posterieur ventral posterieur

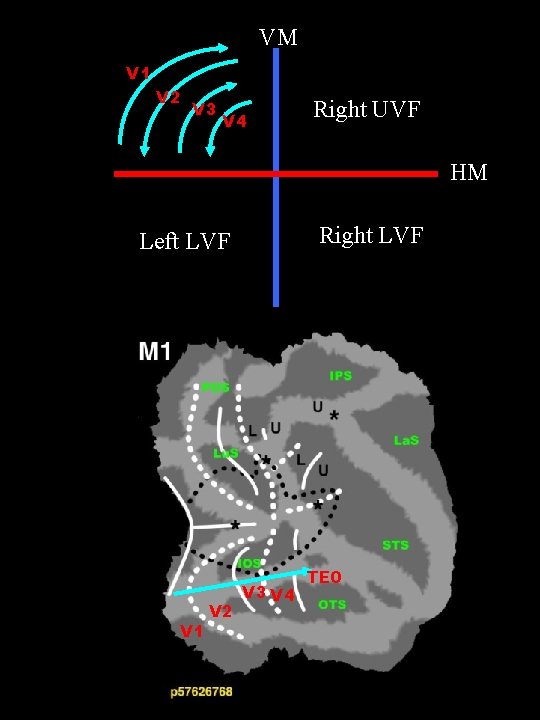

VM V 1 V 2 V 3 V 4 Right UVF HM Right LVF Left LVF V 1 V 2 V 3 V 4 TEO

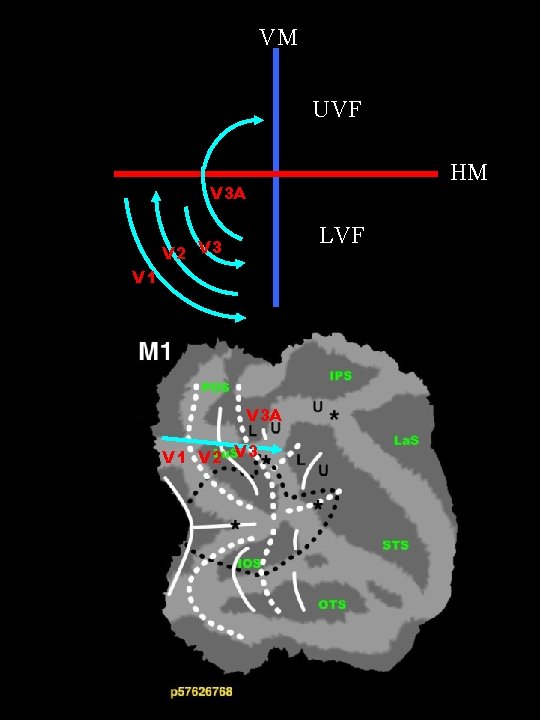

VM UVF HM V 3 A LVF V 2 V 3 V 1 V 3 A V 1 V 2 V 3
Chez le singe : • electrophysiologie, traceurs chimiques • compilation de nombreux cas Chez l’homme : • IRMf • études individuelles - carte complète chez chaque animal - reproductibilité - homologies avec l’homme (MT, V 4, V 3 A)
Methods • 4 awake macaque monkeys • fixation task (2 x 2 deg) [80 -98] % • contrast agent : MION 6 -11 mg/kg i. v. • Siemens 1. 5 T clinical scanner • 40000 EPI volumes in 16 days • standard surface coil • voxel size : 2 x 2 x 2 mm
Stimuli Static wedges which include Motion and Color • Black and white, color checkerboards • moving dots • moving lines
Horizontal and Vertical Meridians
Upper and Lower Visual Fields
Central and Peripheral Visual Fields
V 1 V 2 V 3 A V 3 V 4 V 3 MT * FST * V 4 TEO * Vanduffel et al. Neuron 2000 Summary view

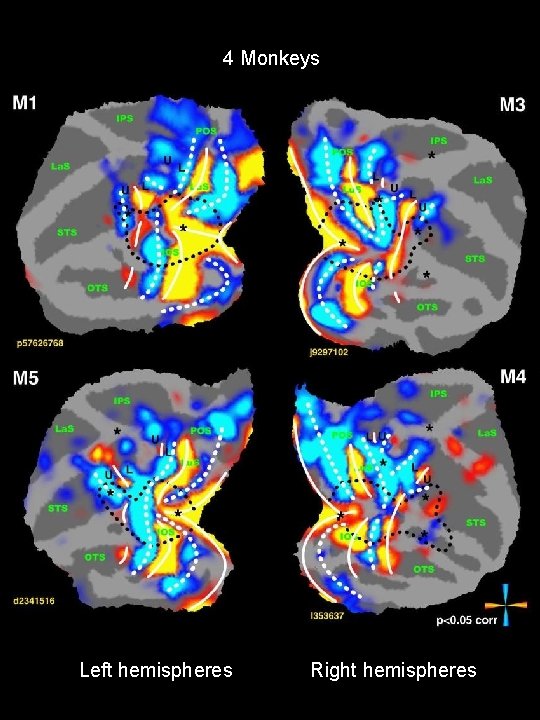

4 Monkeys Left hemispheres Right hemispheres
M 4 Right Hem.
M 1 Right Hem.
Comparison with human retinotopy Similarities beyond V 1 V 2 V 3 A • V 4 v anterior border : horizontal meridian • V 4 d (monkey) / LOS (human) : similar orientation of excentricity lines Differences • MT : clear retinotopy in monkeys, not observed yet in humans
Rapport avec le feed-back… -Feed-forward : la taille des champs recepteurs des neurones s’agrandit avec la “hiérachie” des aires : haut-niveau : absence d’organisation rétinotopique (plutôt par modules fonctionnels ex visages, lieux) -Feed-back sur V 1 -2 -3 -4 = projection sur des aires dans lesquelles l’organisation de l’espace est représentée par voisinage, avec des résolutions différentes
M 3 Right Hem.
