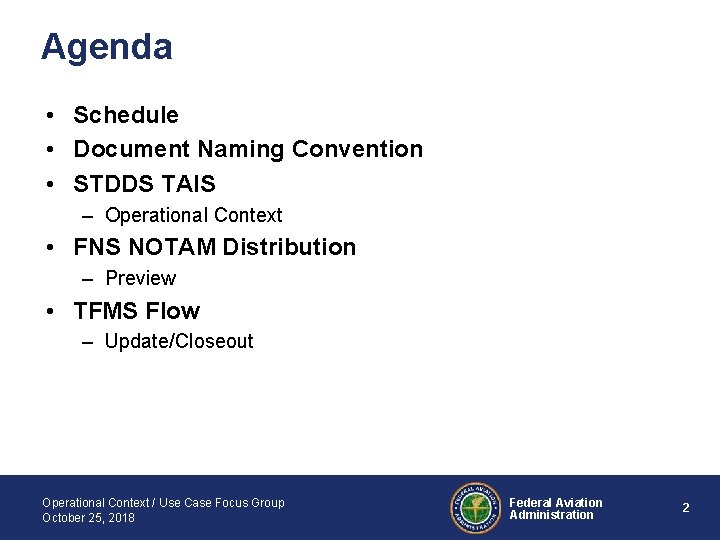

Agenda • Schedule • Document Naming Convention • STDDS TAIS – Operational Context • FNS NOTAM Distribution – Preview • TFMS Flow – Update/Closeout Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 2

Ops Context Document Schedule Oct. 2018 Nov. 2019 ------- TAIS Closeout TAIS FNS Storyboard ITWS Storyboard Dec. 2018 Jan. 2019 FNS Closeout ITWS ADPS Storyboard TFMS Status Storyboard Operational Context / Use Case Focus Group October 25, 2018 Feb. 2019 March 2019 ADPS Closeout TFMS Status SFDPS General Storyboard ISMC Storyboard April 2019 SFDPS General Closeout ISMC ------- Federal Aviation Administration May 2019 ISMC Closeout ------- 3

Document Naming Convention • All documents on SWIFT portal have been updated to a consistent naming convention per the SWIM program office Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 4

STDDS – TAIS Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 5

Decomposition of STDDS – TAIS Data Elements SWIM Terminal Data Distribution Service (STDDS)– Terminal Automation Information Service (TAIS) Track and Flight Plan Information Status Information • Status of Standard Terminal Automation Replacement System (STARS) radar sites • Terminal airspace tracks • Flight plans • Flight information from SWIM Flight Data Publication Service (SFDPS) and En Route Automation Modernization (ERAM) Operational Context / Use Case Focus Group October 25, 2018 Terminal Automation Raw Information • Alert Data • Sign In/Sign Out Events • ICM Status • Traffic Count • Performance Monitoring Federal Aviation Administration 6

Sourcing STDDS-TAIS Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 7

STDDS – TAIS Operational Context Document 1. 2. 3. 4. Introduction Terminal Area Automation STDDS TAIS Service Overview STDDS TAIS Message Types – Terminal Automation Status – Terminal Automation Track and Flight Plan Data – Terminal Automation Raw Appendix A: Acronyms Appendix B: Message Headers Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 8

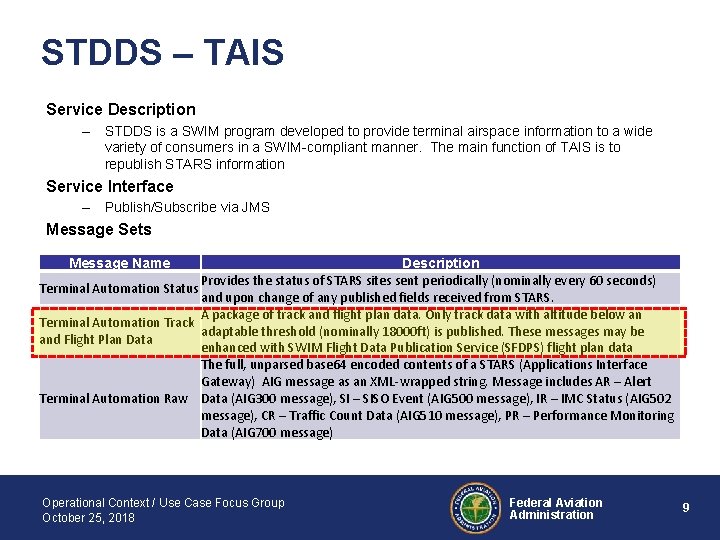

STDDS – TAIS Service Description – STDDS is a SWIM program developed to provide terminal airspace information to a wide variety of consumers in a SWIM-compliant manner. The main function of TAIS is to republish STARS information Service Interface – Publish/Subscribe via JMS Message Sets Message Name Description Provides the status of STARS sites sent periodically (nominally every 60 seconds) Terminal Automation Status and upon change of any published fields received from STARS. A package of track and flight plan data. Only track data with altitude below an Terminal Automation Track adaptable threshold (nominally 18000 ft) is published. These messages may be and Flight Plan Data enhanced with SWIM Flight Data Publication Service (SFDPS) flight plan data The full, unparsed base 64 encoded contents of a STARS (Applications Interface Gateway) AIG message as an XML-wrapped string. Message includes AR – Alert Terminal Automation Raw Data (AIG 300 message), SI – SISO Event (AIG 500 message), IR – IMC Status (AIG 502 message), CR – Traffic Count Data (AIG 510 message), PR – Performance Monitoring Data (AIG 700 message) Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 9

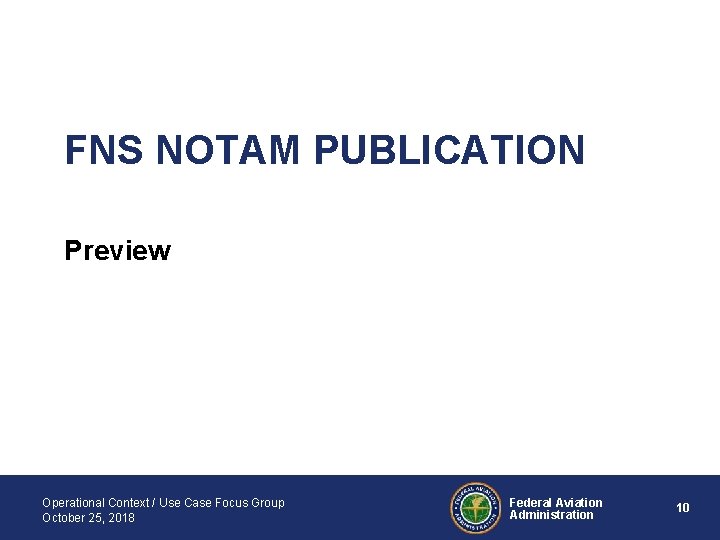

FNS NOTAM PUBLICATION Preview Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 10

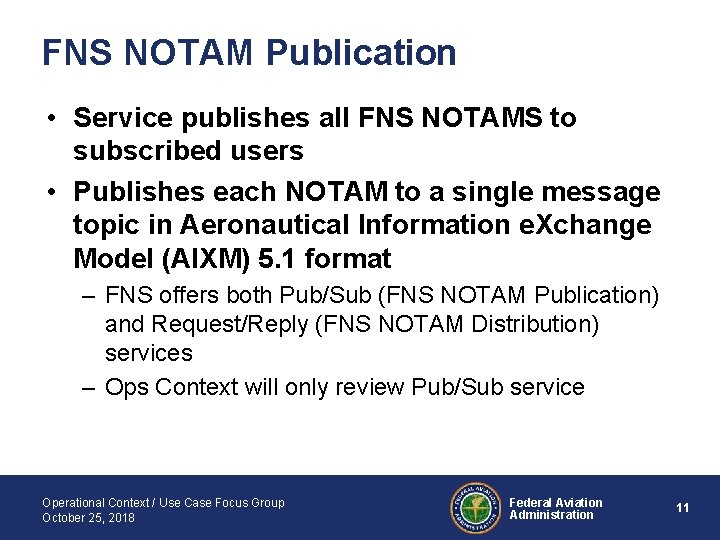

FNS NOTAM Publication • Service publishes all FNS NOTAMS to subscribed users • Publishes each NOTAM to a single message topic in Aeronautical Information e. Xchange Model (AIXM) 5. 1 format – FNS offers both Pub/Sub (FNS NOTAM Publication) and Request/Reply (FNS NOTAM Distribution) services – Ops Context will only review Pub/Sub service Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 11

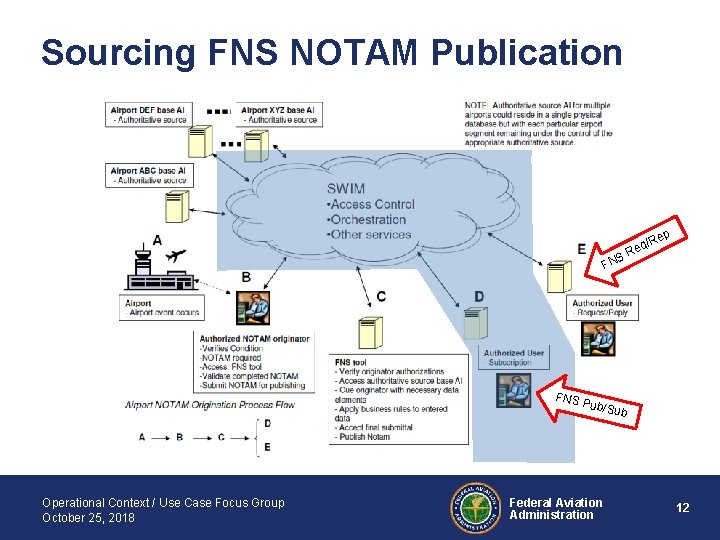

Sourcing FNS NOTAM Publication ep /R eq SR FN FNS P ub/Su Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration b 12

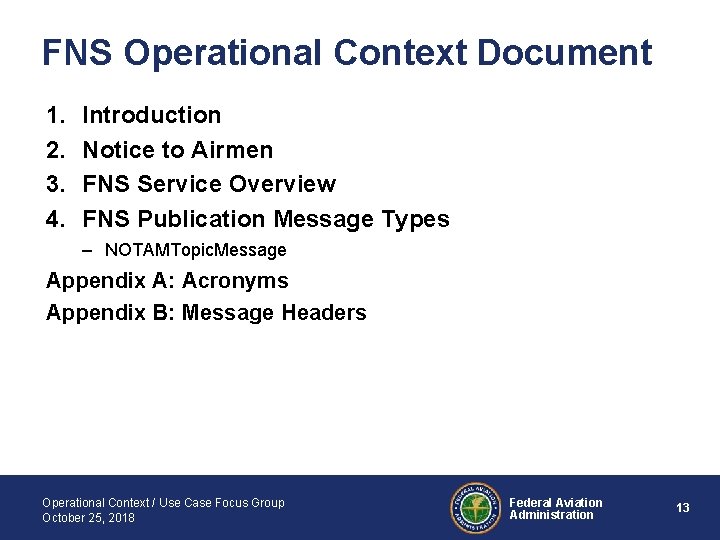

FNS Operational Context Document 1. 2. 3. 4. Introduction Notice to Airmen FNS Service Overview FNS Publication Message Types – NOTAMTopic. Message Appendix A: Acronyms Appendix B: Message Headers Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 13

TFMS FLOW Document Update/Closeout Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 14

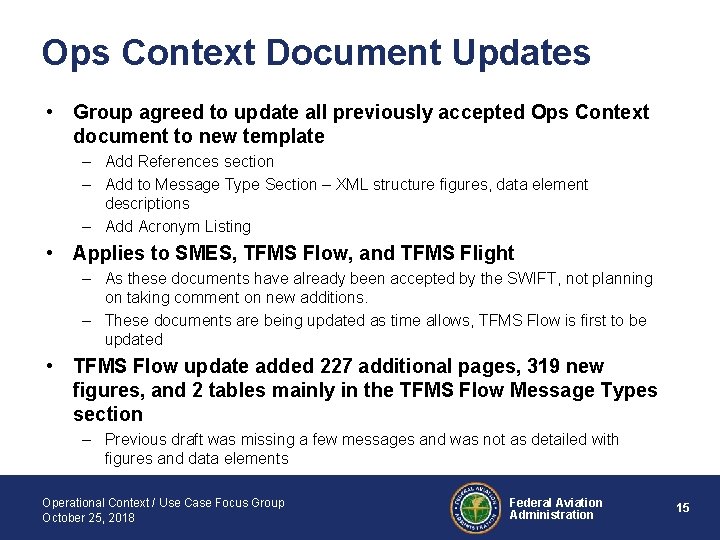

Ops Context Document Updates • Group agreed to update all previously accepted Ops Context document to new template – Add References section – Add to Message Type Section – XML structure figures, data element descriptions – Add Acronym Listing • Applies to SMES, TFMS Flow, and TFMS Flight – As these documents have already been accepted by the SWIFT, not planning on taking comment on new additions. – These documents are being updated as time allows, TFMS Flow is first to be updated • TFMS Flow update added 227 additional pages, 319 new figures, and 2 tables mainly in the TFMS Flow Message Types section – Previous draft was missing a few messages and was not as detailed with figures and data elements Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 15

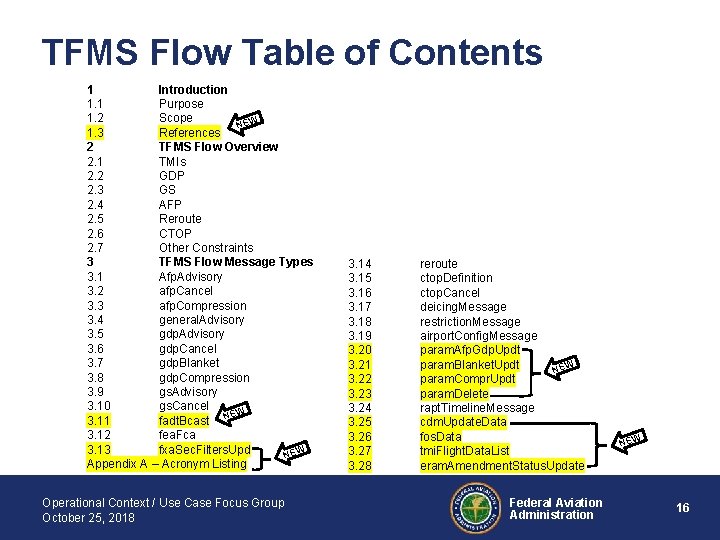

TFMS Flow Table of Contents 1 Introduction 1. 1 Purpose 1. 2 Scope NEW 1. 3 References 2 TFMS Flow Overview 2. 1 TMIs 2. 2 GDP 2. 3 GS 2. 4 AFP 2. 5 Reroute 2. 6 CTOP 2. 7 Other Constraints 3 TFMS Flow Message Types 3. 1 Afp. Advisory 3. 2 afp. Cancel 3. 3 afp. Compression 3. 4 general. Advisory 3. 5 gdp. Advisory 3. 6 gdp. Cancel 3. 7 gdp. Blanket 3. 8 gdp. Compression 3. 9 gs. Advisory 3. 10 gs. Cancel EW 3. 11 fadt. Bcast N 3. 12 fea. Fca 3. 13 fxa. Sec. Filters. Upd NEW Appendix A – Acronym Listing Operational Context / Use Case Focus Group October 25, 2018 3. 14 3. 15 3. 16 3. 17 3. 18 3. 19 3. 20 3. 21 3. 22 3. 23 3. 24 3. 25 3. 26 3. 27 3. 28 reroute ctop. Definition ctop. Cancel deicing. Message restriction. Message airport. Config. Message param. Afp. Gdp. Updt param. Blanket. Updt NEW param. Compr. Updt param. Delete rapt. Timeline. Message cdm. Update. Data fos. Data tmi. Flight. Data. List eram. Amendment. Status. Update Federal Aviation Administration NEW 16

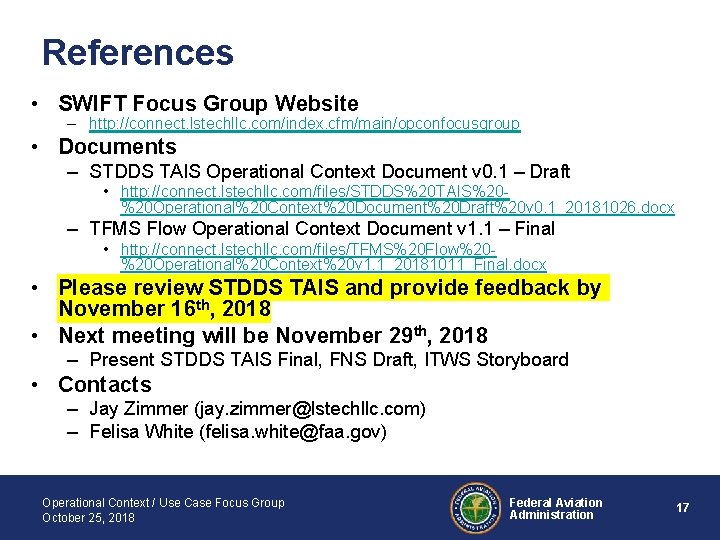

References • SWIFT Focus Group Website – http: //connect. lstechllc. com/index. cfm/main/opconfocusgroup • Documents – STDDS TAIS Operational Context Document v 0. 1 – Draft • http: //connect. lstechllc. com/files/STDDS%20 TAIS%20%20 Operational%20 Context%20 Document%20 Draft%20 v 0. 1_20181026. docx – TFMS Flow Operational Context Document v 1. 1 – Final • http: //connect. lstechllc. com/files/TFMS%20 Flow%20%20 Operational%20 Context%20 v 1. 1_20181011_Final. docx • Please review STDDS TAIS and provide feedback by November 16 th, 2018 • Next meeting will be November 29 th, 2018 – Present STDDS TAIS Final, FNS Draft, ITWS Storyboard • Contacts – Jay Zimmer (jay. zimmer@lstechllc. com) – Felisa White (felisa. white@faa. gov) Operational Context / Use Case Focus Group October 25, 2018 Federal Aviation Administration 17
