Operating Systems 112 Practical Session 14 Distributed synchronization

Operating Systems, 112 Practical Session 14, Distributed synchronization

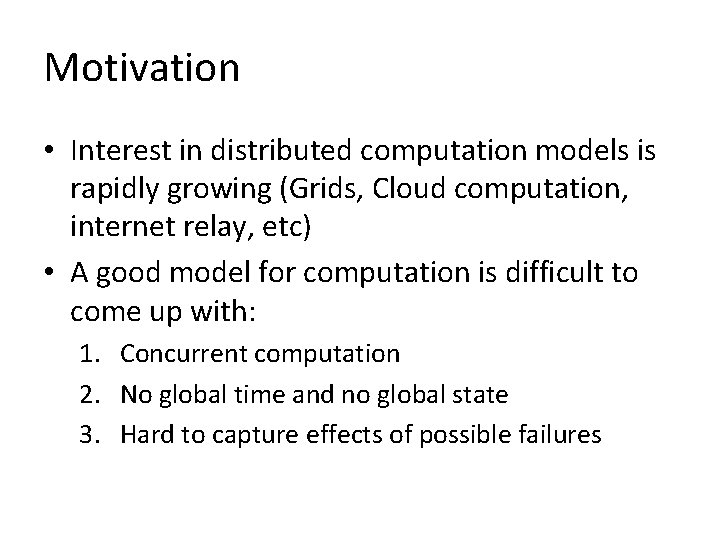

Motivation • Interest in distributed computation models is rapidly growing (Grids, Cloud computation, internet relay, etc) • A good model for computation is difficult to come up with: 1. Concurrent computation 2. No global time and no global state 3. Hard to capture effects of possible failures

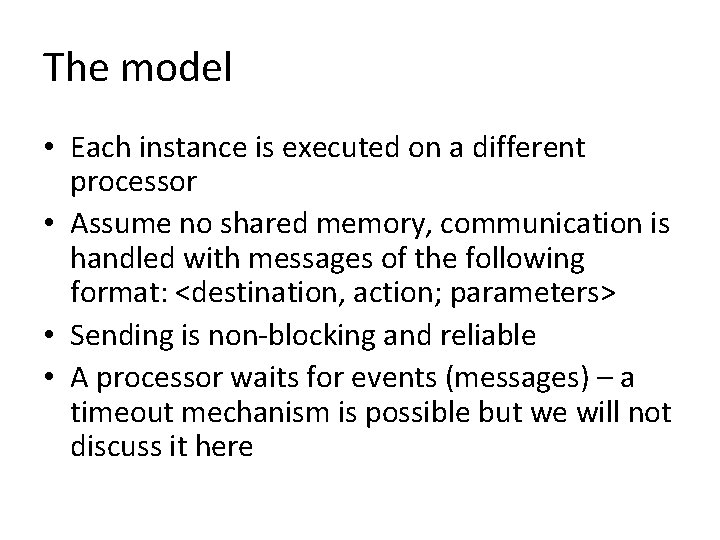

The model • Each instance is executed on a different processor • Assume no shared memory, communication is handled with messages of the following format: <destination, action; parameters> • Sending is non-blocking and reliable • A processor waits for events (messages) – a timeout mechanism is possible but we will not discuss it here

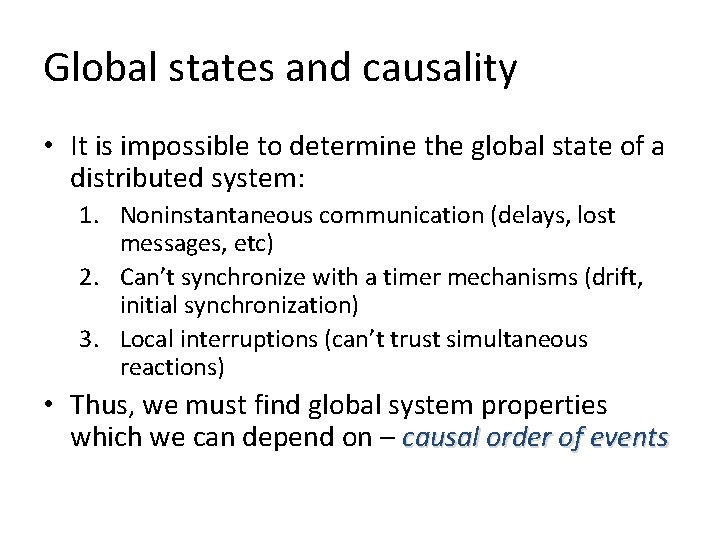

Global states and causality • It is impossible to determine the global state of a distributed system: 1. Noninstantaneous communication (delays, lost messages, etc) 2. Can’t synchronize with a timer mechanisms (drift, initial synchronization) 3. Local interruptions (can’t trust simultaneous reactions) • Thus, we must find global system properties which we can depend on – causal order of events

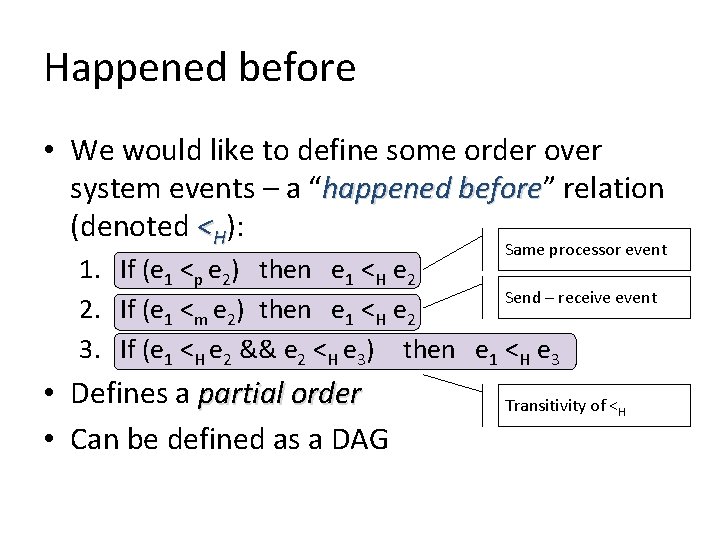

Happened before • We would like to define some order over system events – a “happened before” before relation (denoted <H): Same processor event 1. If (e 1 <p e 2) then e 1 <H e 2 Send – receive event 2. If (e 1 <m e 2) then e 1 <H e 2 3. If (e 1 <H e 2 && e 2 <H e 3) then e 1 <H e 3 • Defines a partial order • Can be defined as a DAG Transitivity of <H

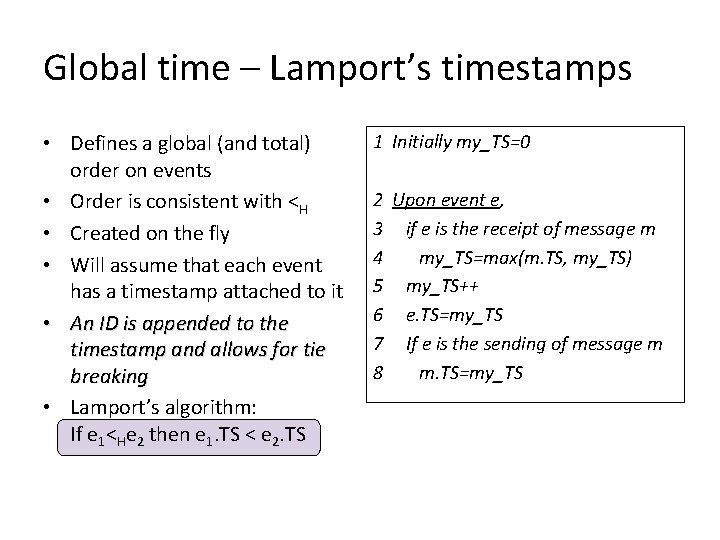

Global time – Lamport’s timestamps • Defines a global (and total) order on events • Order is consistent with <H • Created on the fly • Will assume that each event has a timestamp attached to it • An ID is appended to the timestamp and allows for tie breaking • Lamport’s algorithm: If e 1<He 2 then e 1. TS < e 2. TS 1 Initially my_TS=0 2 Upon event e, 3 if e is the receipt of message m 4 my_TS=max(m. TS, my_TS) 5 my_TS++ 6 e. TS=my_TS 7 If e is the sending of message m 8 m. TS=my_TS

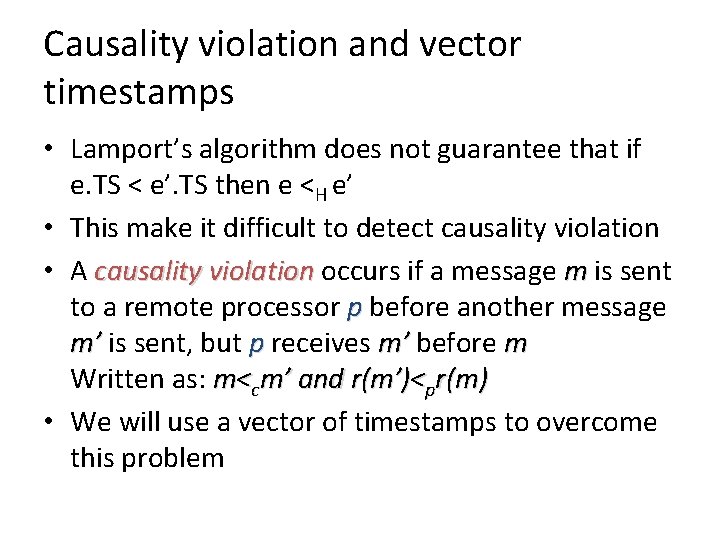

Causality violation and vector timestamps • Lamport’s algorithm does not guarantee that if e. TS < e’. TS then e <H e’ • This make it difficult to detect causality violation • A causality violation occurs if a message m is sent to a remote processor p before another message m’ is sent, but p receives m’ before m Written as: m<cm’ and r(m’)<pr(m) • We will use a vector of timestamps to overcome this problem

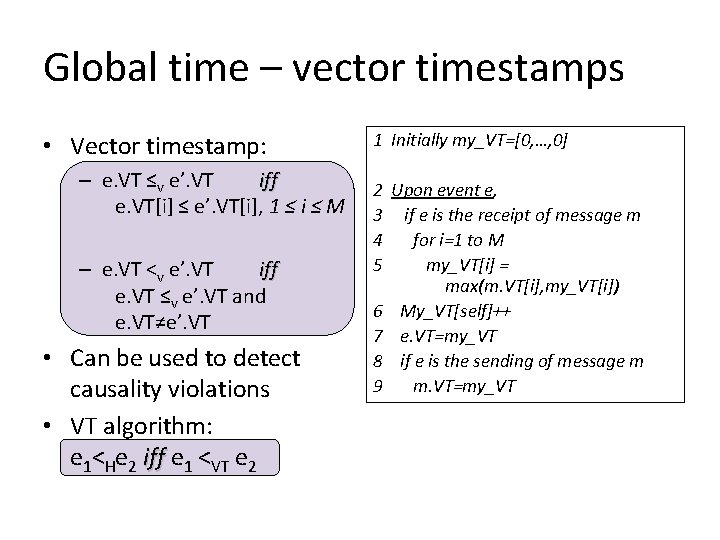

Global time – vector timestamps • Vector timestamp: – e. VT ≤v e’. VT iff e. VT[i] ≤ e’. VT[i], 1 ≤ i ≤ M – e. VT <v e’. VT iff e. VT ≤v e’. VT and e. VT≠e’. VT • Can be used to detect causality violations • VT algorithm: e 1<He 2 iff e 1 <VT e 2 1 Initially my_VT=[0, …, 0] 2 Upon event e, 3 if e is the receipt of message m 4 for i=1 to M 5 my_VT[i] = max(m. VT[i], my_VT[i]) 6 My_VT[self]++ 7 e. VT=my_VT 8 if e is the sending of message m 9 m. VT=my_VT

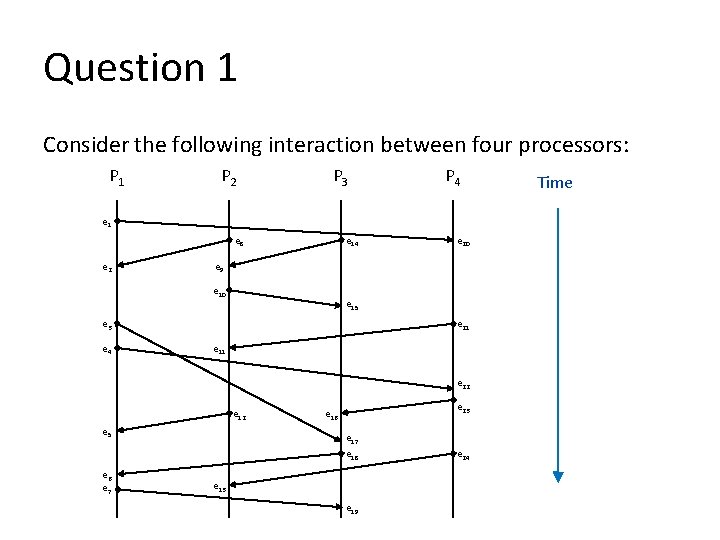

Question 1 Consider the following interaction between four processors: P 1 P 2 P 3 P 4 e 1 e 8 e 2 e 14 e 9 e 10 e 15 e 21 e 3 e 4 e 20 e 11 e 22 e 12 e 5 e 6 e 7 e 23 e 16 e 17 e 18 e 13 e 19 e 24 Time

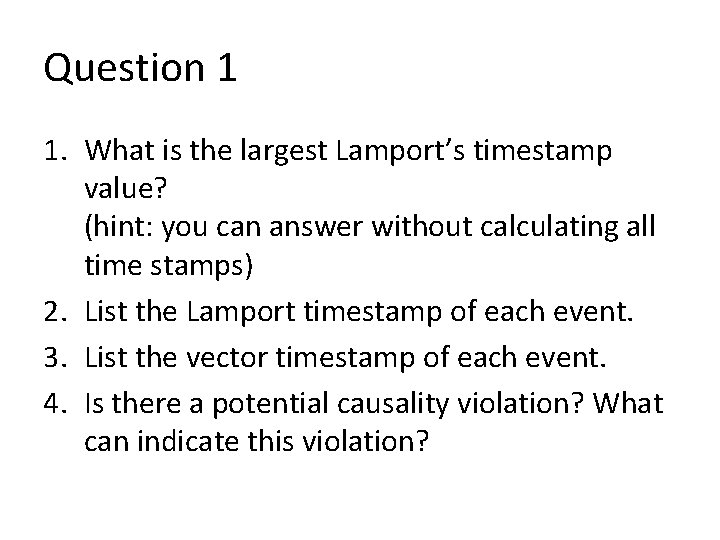

Question 1 1. What is the largest Lamport’s timestamp value? (hint: you can answer without calculating all time stamps) 2. List the Lamport timestamp of each event. 3. List the vector timestamp of each event. 4. Is there a potential causality violation? What can indicate this violation?

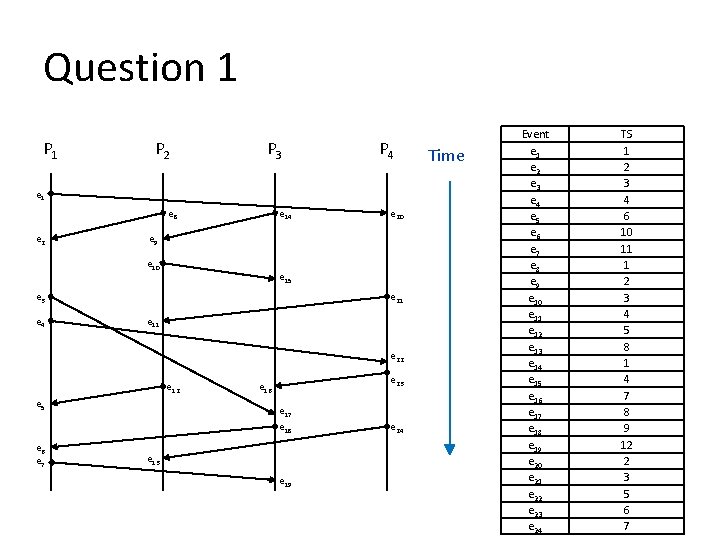

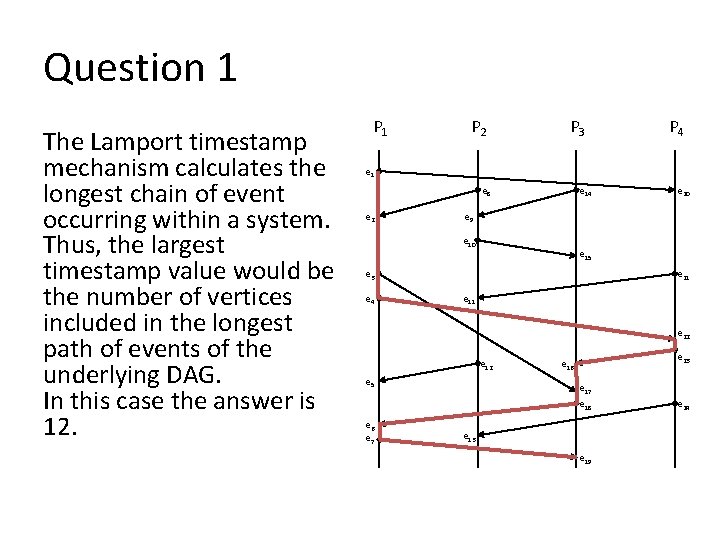

Question 1 The Lamport timestamp mechanism calculates the longest chain of event occurring within a system. Thus, the largest timestamp value would be the number of vertices included in the longest path of events of the underlying DAG. In this case the answer is 12. P 1 P 2 P 3 P 4 e 1 e 8 e 2 e 14 e 9 e 10 e 15 e 21 e 3 e 4 e 20 e 11 e 22 e 12 e 5 e 6 e 7 e 23 e 16 e 17 e 18 e 13 e 19 e 24

Question 1 P 2 P 3 P 4 e 1 e 8 e 2 e 14 e 9 e 10 e 15 e 21 e 3 e 4 e 20 e 11 e 22 e 12 e 5 e 6 e 7 e 23 e 16 e 17 e 18 e 13 e 19 e 24 Time Event e 1 e 2 e 3 e 4 e 5 e 6 e 7 e 8 e 9 e 10 e 11 e 12 e 13 e 14 e 15 e 16 e 17 e 18 e 19 e 20 e 21 e 22 e 23 e 24 TS 1 2 3 4 6 10 11 1 2 3 4 5 8 1 4 7 8 9 12 2 3 5 6 7

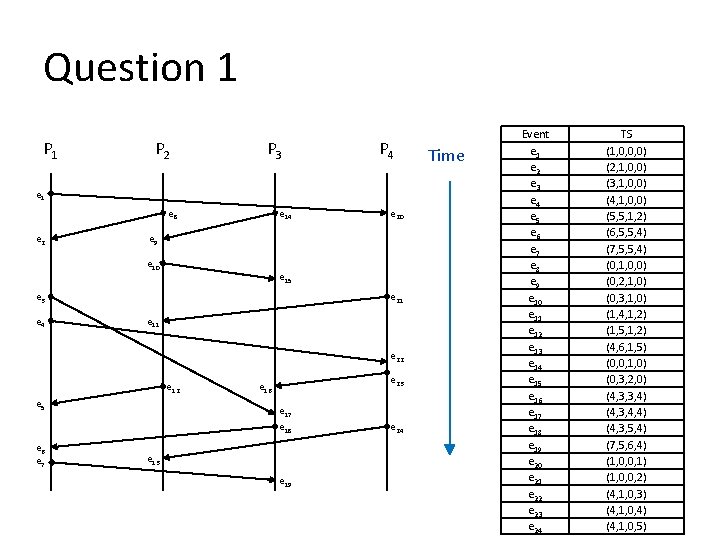

Question 1 P 2 P 3 P 4 e 1 e 8 e 2 e 14 e 9 e 10 e 15 e 21 e 3 e 4 e 20 e 11 e 22 e 12 e 5 e 6 e 7 e 23 e 16 e 17 e 18 e 13 e 19 e 24 Time Event e 1 e 2 e 3 e 4 e 5 e 6 e 7 e 8 e 9 e 10 e 11 e 12 e 13 e 14 e 15 e 16 e 17 e 18 e 19 e 20 e 21 e 22 e 23 e 24 TS (1, 0, 0, 0) (2, 1, 0, 0) (3, 1, 0, 0) (4, 1, 0, 0) (5, 5, 1, 2) (6, 5, 5, 4) (7, 5, 5, 4) (0, 1, 0, 0) (0, 2, 1, 0) (0, 3, 1, 0) (1, 4, 1, 2) (1, 5, 1, 2) (4, 6, 1, 5) (0, 0, 1, 0) (0, 3, 2, 0) (4, 3, 3, 4) (4, 3, 4, 4) (4, 3, 5, 4) (7, 5, 6, 4) (1, 0, 0, 1) (1, 0, 0, 2) (4, 1, 0, 3) (4, 1, 0, 4) (4, 1, 0, 5)

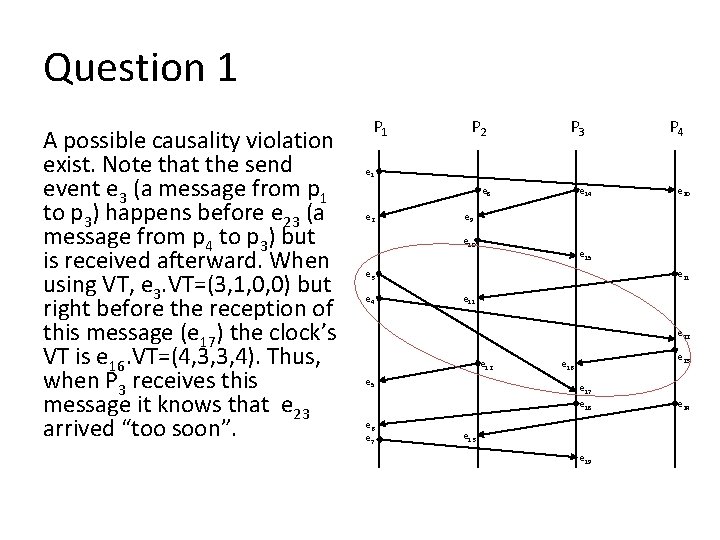

Question 1 A possible causality violation exist. Note that the send event e 3 (a message from p 1 to p 3) happens before e 23 (a message from p 4 to p 3) but is received afterward. When using VT, e 3. VT=(3, 1, 0, 0) but right before the reception of this message (e 17) the clock’s VT is e 16. VT=(4, 3, 3, 4). Thus, when P 3 receives this message it knows that e 23 arrived “too soon”. P 1 P 2 P 3 P 4 e 1 e 8 e 2 e 14 e 9 e 10 e 15 e 21 e 3 e 4 e 20 e 11 e 22 e 12 e 5 e 6 e 7 e 23 e 16 e 17 e 18 e 13 e 19 e 24

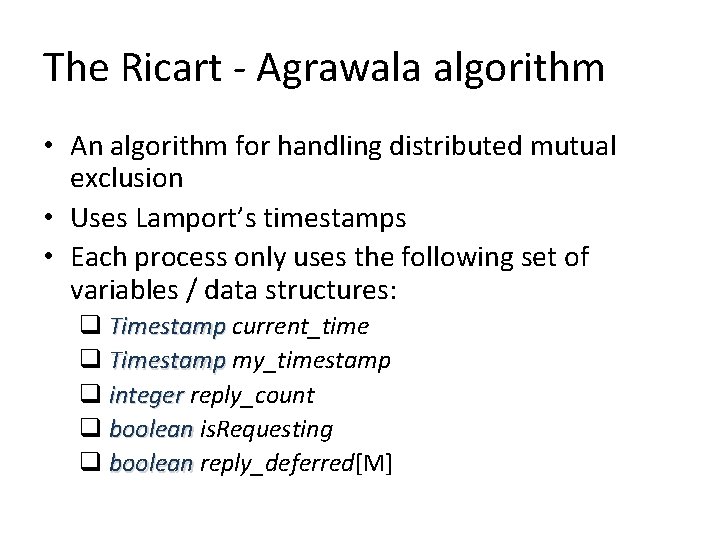

The Ricart - Agrawala algorithm • An algorithm for handling distributed mutual exclusion • Uses Lamport’s timestamps • Each process only uses the following set of variables / data structures: q Timestamp current_time q Timestamp my_timestamp q integer reply_count q boolean is. Requesting q boolean reply_deferred[M]

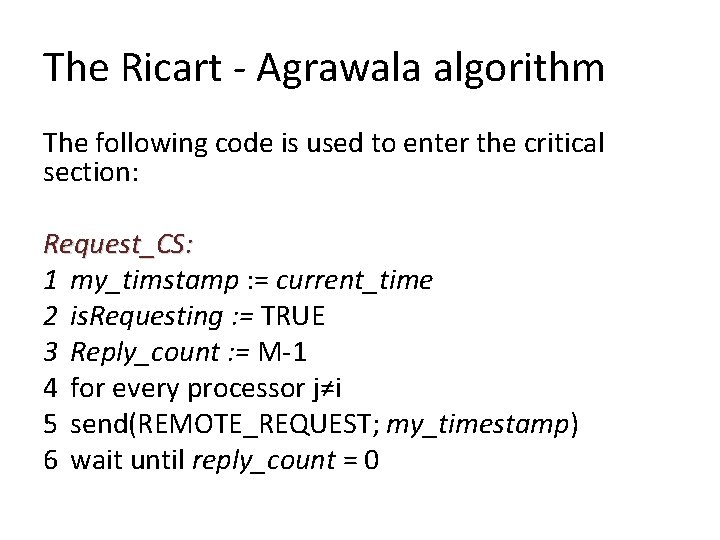

The Ricart - Agrawala algorithm The following code is used to enter the critical section: Request_CS: 1 my_timstamp : = current_time 2 is. Requesting : = TRUE 3 Reply_count : = M-1 4 for every processor j≠i 5 send(REMOTE_REQUEST; my_timestamp) 6 wait until reply_count = 0

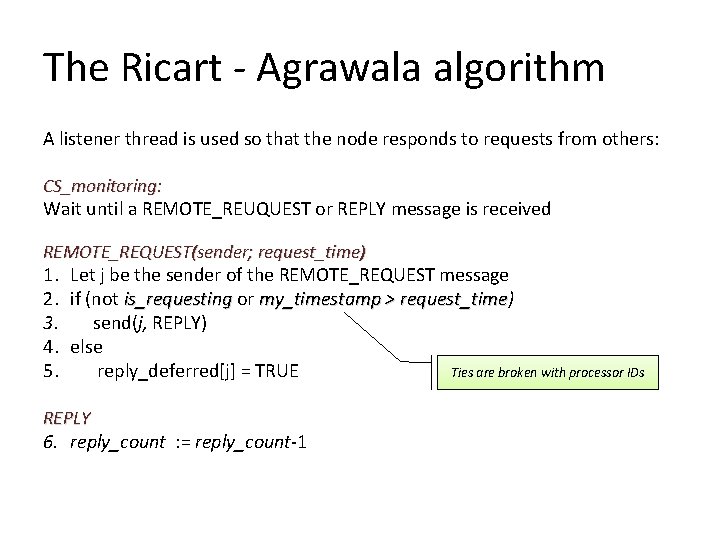

The Ricart - Agrawala algorithm A listener thread is used so that the node responds to requests from others: CS_monitoring: Wait until a REMOTE_REUQUEST or REPLY message is received REMOTE_REQUEST(sender; request_time) 1. Let j be the sender of the REMOTE_REQUEST message 2. if (not is_requesting or my_timestamp > request_time) request_time 3. send(j, REPLY) 4. else Ties are broken with processor IDs 5. reply_deferred[j] = TRUE REPLY 6. reply_count : = reply_count-1

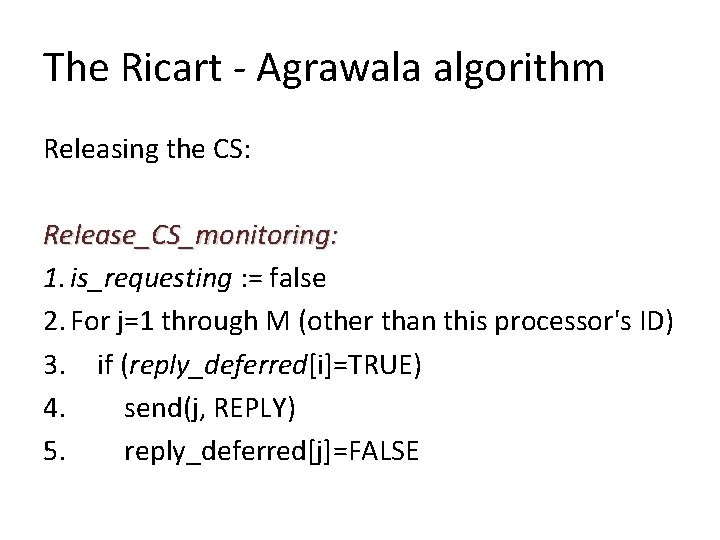

The Ricart - Agrawala algorithm Releasing the CS: Release_CS_monitoring: 1. is_requesting : = false 2. For j=1 through M (other than this processor's ID) 3. if (reply_deferred[i]=TRUE) 4. send(j, REPLY) 5. reply_deferred[j]=FALSE

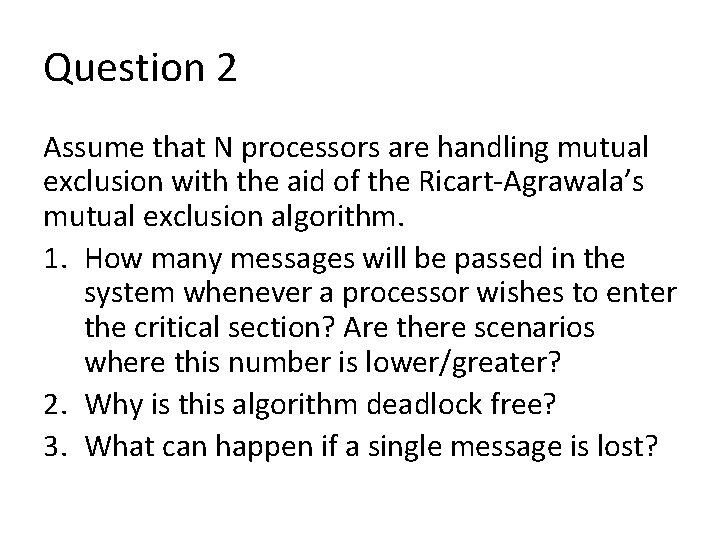

Question 2 Assume that N processors are handling mutual exclusion with the aid of the Ricart-Agrawala’s mutual exclusion algorithm. 1. How many messages will be passed in the system whenever a processor wishes to enter the critical section? Are there scenarios where this number is lower/greater? 2. Why is this algorithm deadlock free? 3. What can happen if a single message is lost?

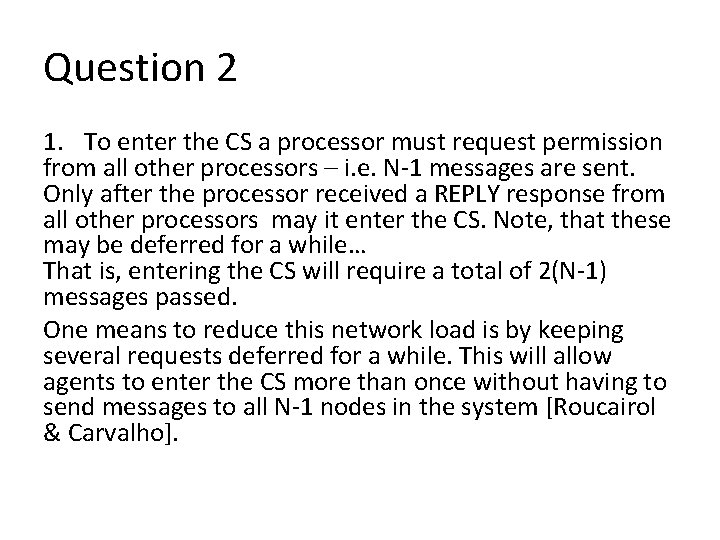

Question 2 1. To enter the CS a processor must request permission from all other processors – i. e. N-1 messages are sent. Only after the processor received a REPLY response from all other processors may it enter the CS. Note, that these may be deferred for a while… That is, entering the CS will require a total of 2(N-1) messages passed. One means to reduce this network load is by keeping several requests deferred for a while. This will allow agents to enter the CS more than once without having to send messages to all N-1 nodes in the system [Roucairol & Carvalho].

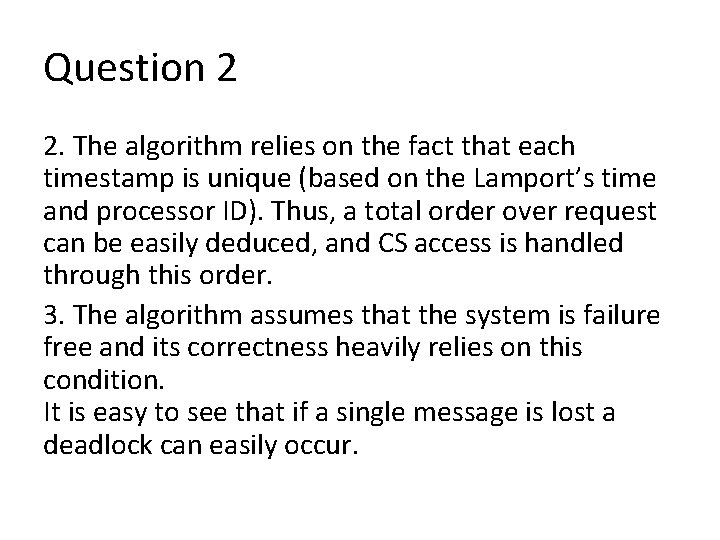

Question 2 2. The algorithm relies on the fact that each timestamp is unique (based on the Lamport’s time and processor ID). Thus, a total order over request can be easily deduced, and CS access is handled through this order. 3. The algorithm assumes that the system is failure free and its correctness heavily relies on this condition. It is easy to see that if a single message is lost a deadlock can easily occur.

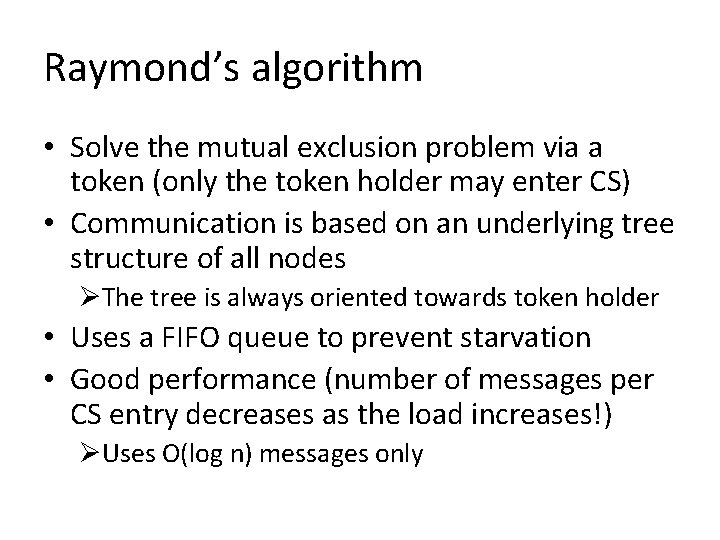

Raymond’s algorithm • Solve the mutual exclusion problem via a token (only the token holder may enter CS) • Communication is based on an underlying tree structure of all nodes ØThe tree is always oriented towards token holder • Uses a FIFO queue to prevent starvation • Good performance (number of messages per CS entry decreases as the load increases!) ØUses O(log n) messages only

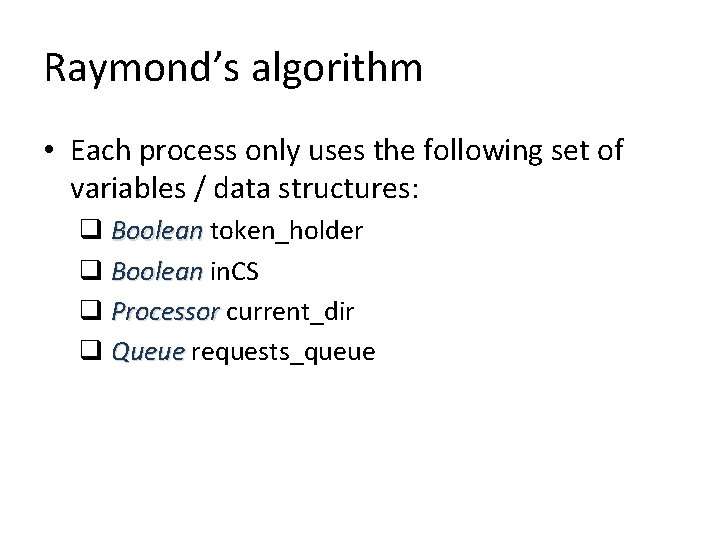

Raymond’s algorithm • Each process only uses the following set of variables / data structures: q Boolean token_holder q Boolean in. CS q Processor current_dir q Queue requests_queue

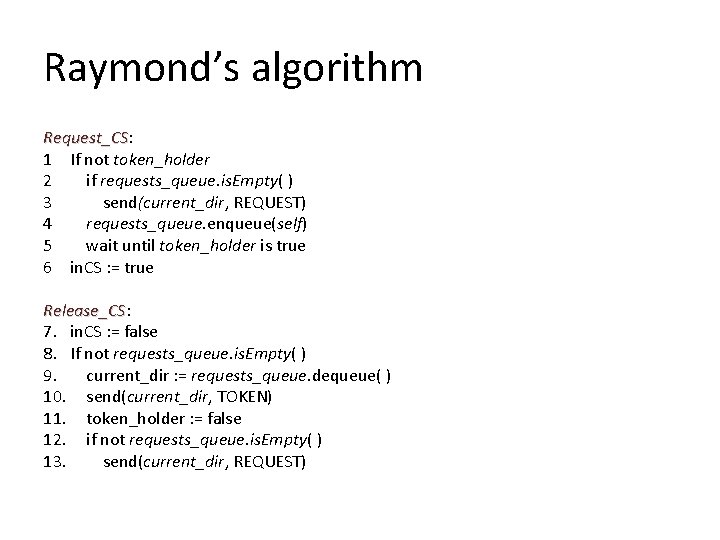

Raymond’s algorithm Request_CS: Request_CS 1 If not token_holder 2 if requests_queue. is. Empty( ) 3 send(current_dir, REQUEST) 4 requests_queue. enqueue(self) 5 wait until token_holder is true 6 in. CS : = true Release_CS: Release_CS 7. in. CS : = false 8. If not requests_queue. is. Empty( ) 9. current_dir : = requests_queue. dequeue( ) 10. send(current_dir, TOKEN) 11. token_holder : = false 12. if not requests_queue. is. Empty( ) 13. send(current_dir, REQUEST)

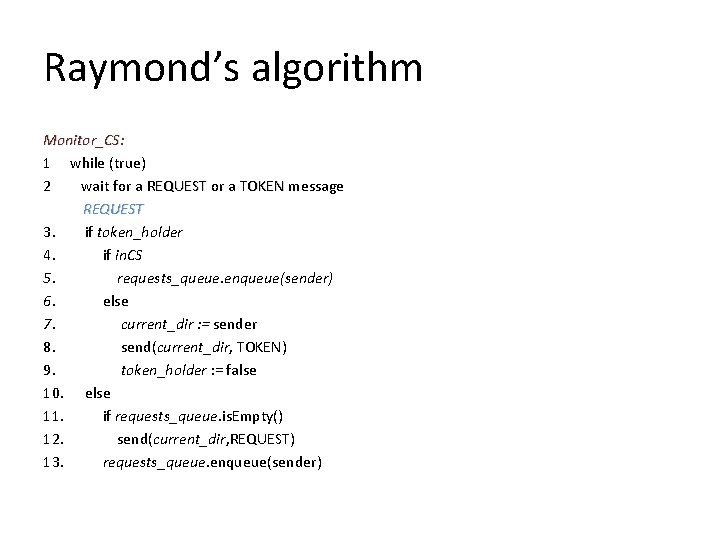

Raymond’s algorithm Monitor_CS: 1 while (true) 2 wait for a REQUEST or a TOKEN message REQUEST 3. if token_holder 4. if in. CS 5. requests_queue. enqueue(sender) 6. else 7. current_dir : = sender 8. send(current_dir, TOKEN) 9. token_holder : = false 10. else 11. if requests_queue. is. Empty() 12. send(current_dir, REQUEST) 13. requests_queue. enqueue(sender)

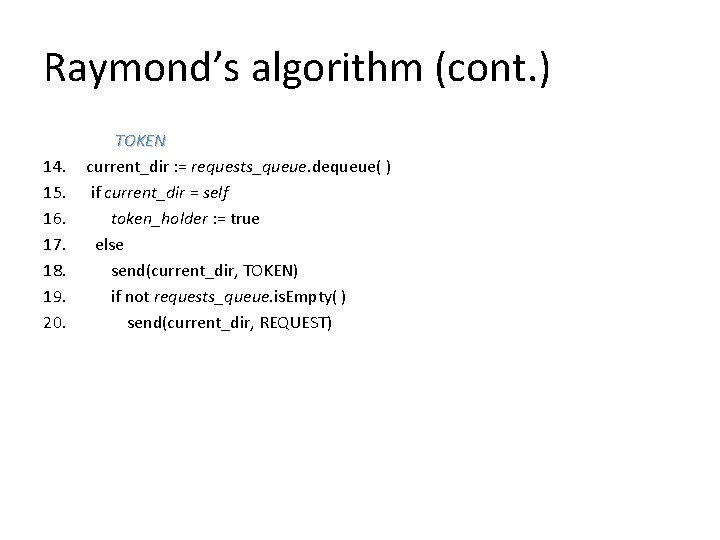

Raymond’s algorithm (cont. ) 14. 15. 16. 17. 18. 19. 20. TOKEN current_dir : = requests_queue. dequeue( ) if current_dir = self token_holder : = true else send(current_dir, TOKEN) if not requests_queue. is. Empty( ) send(current_dir, REQUEST)

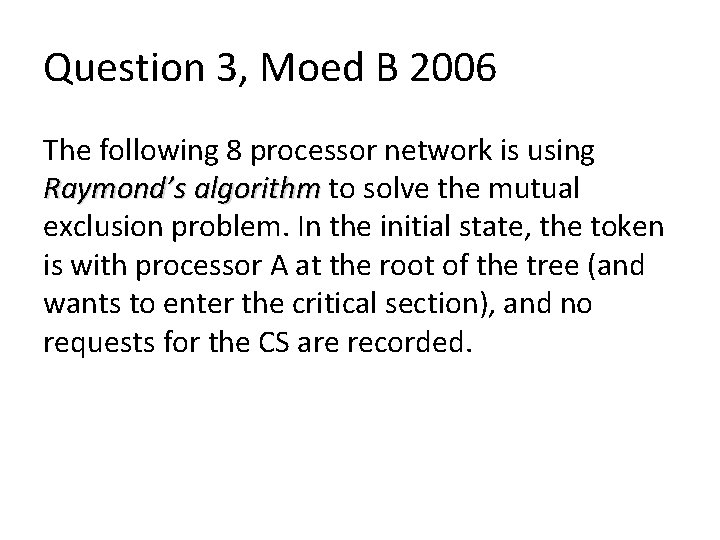

Question 3, Moed B 2006 The following 8 processor network is using Raymond’s algorithm to solve the mutual exclusion problem. In the initial state, the token is with processor A at the root of the tree (and wants to enter the critical section), and no requests for the CS are recorded.

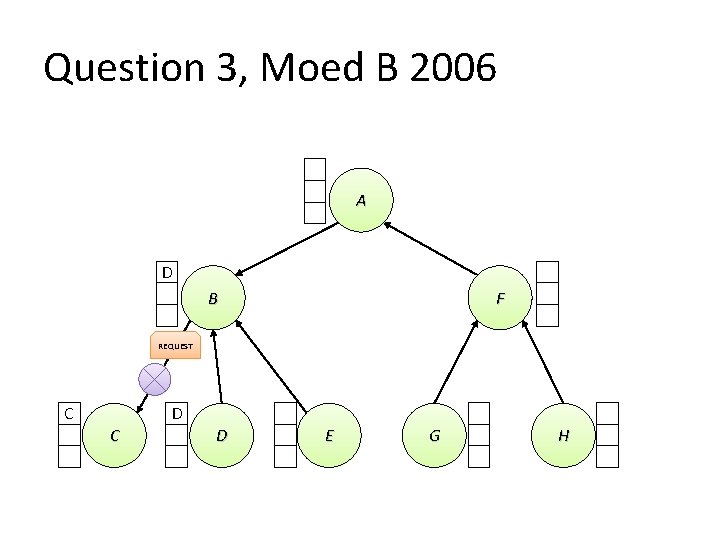

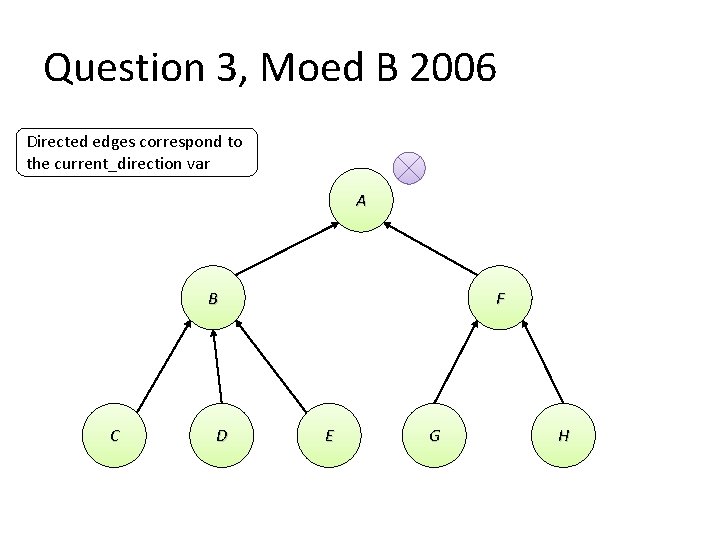

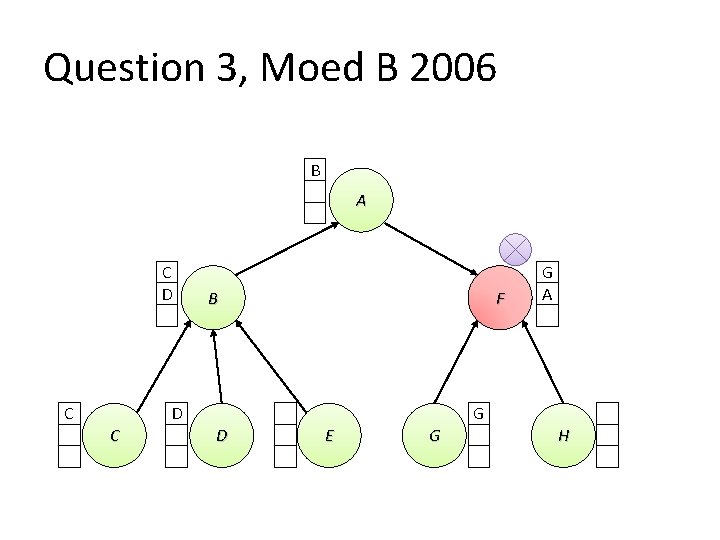

Question 3, Moed B 2006 Directed edges correspond to the current_direction var A B C D F E G H

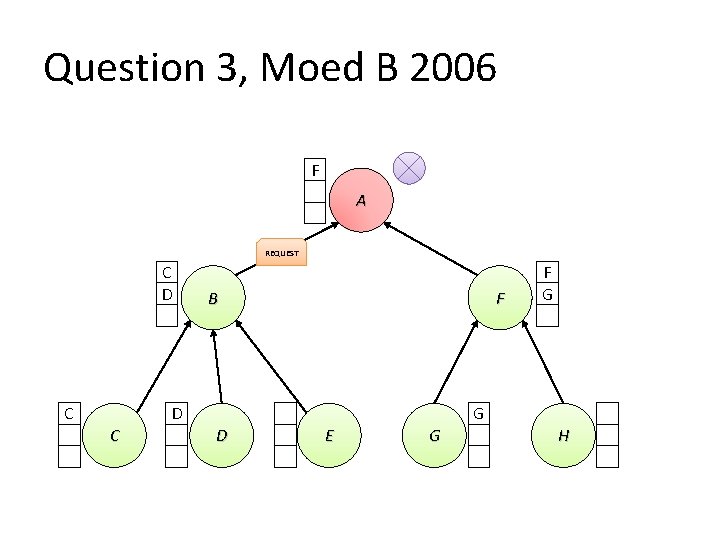

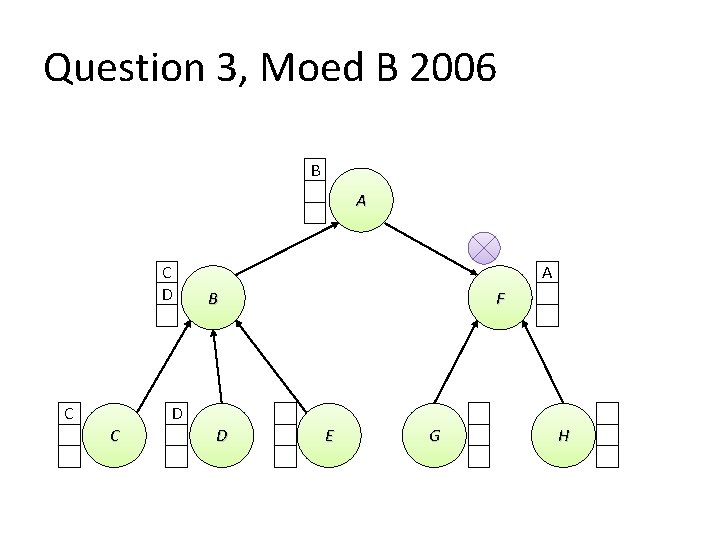

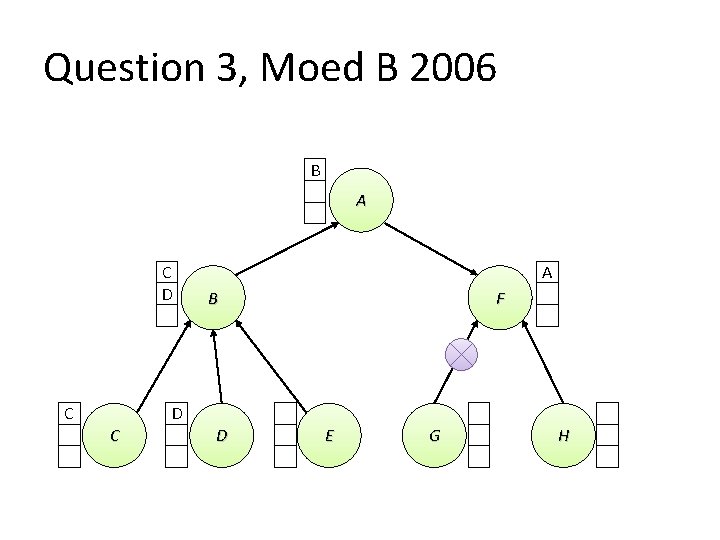

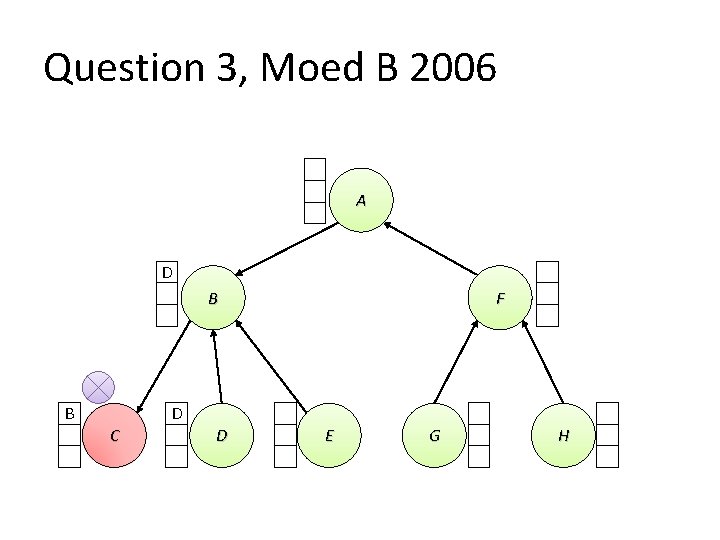

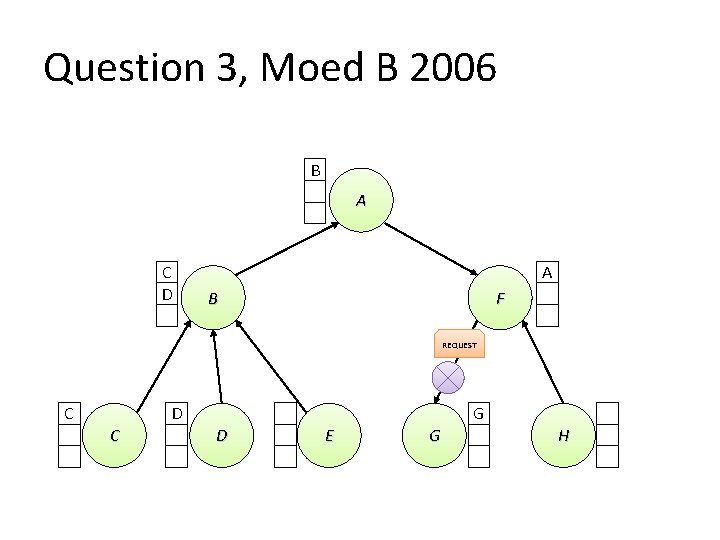

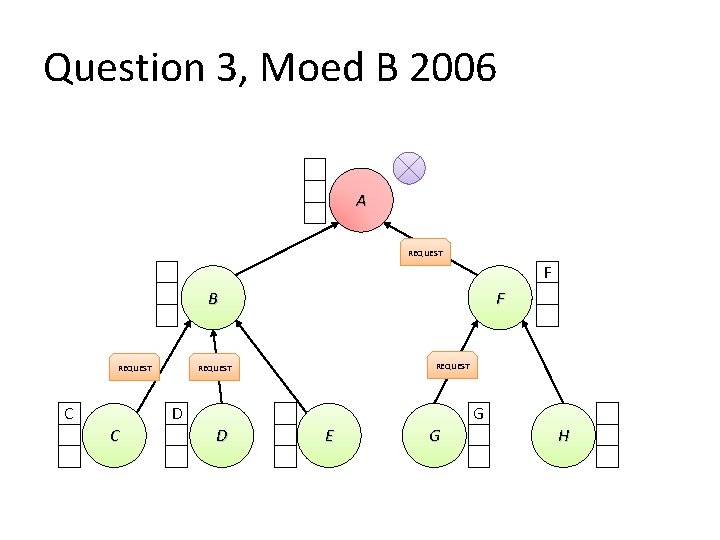

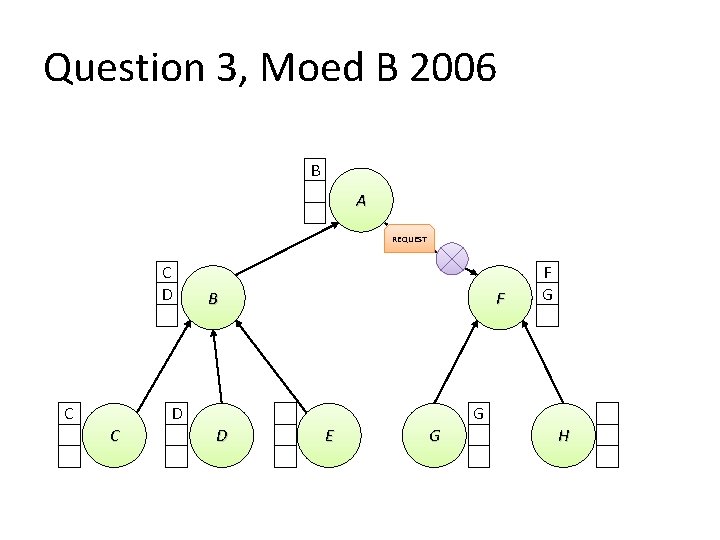

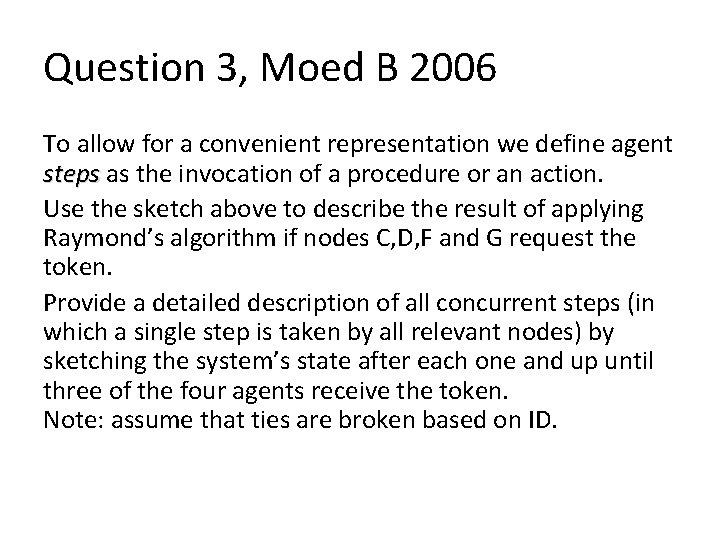

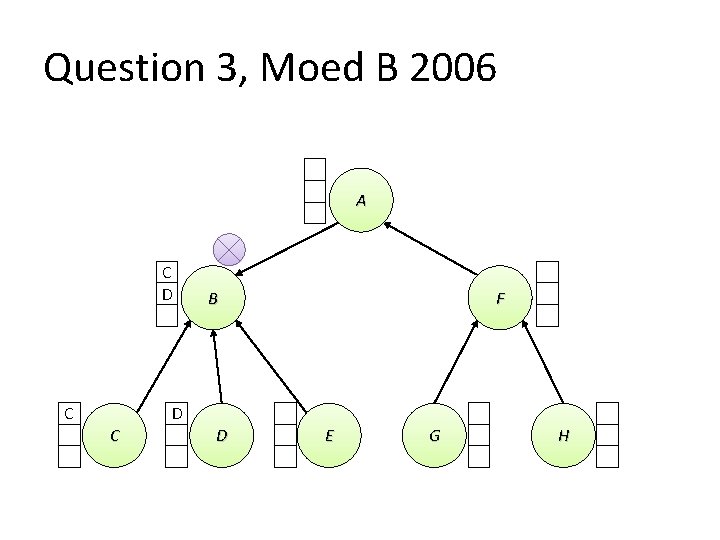

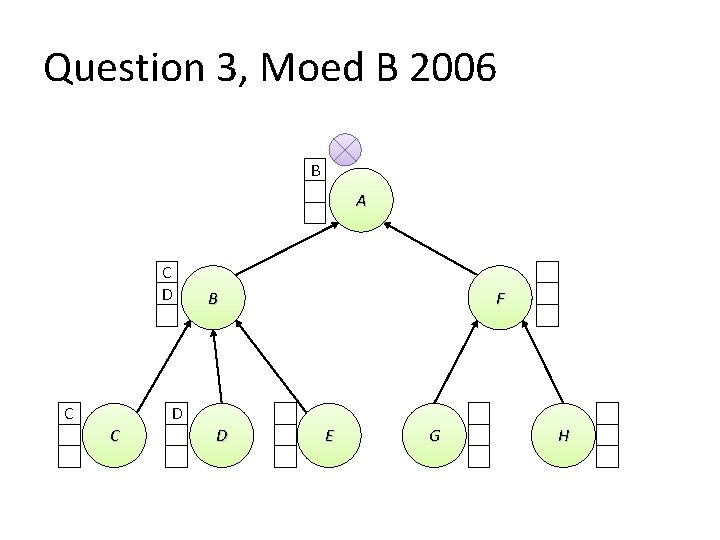

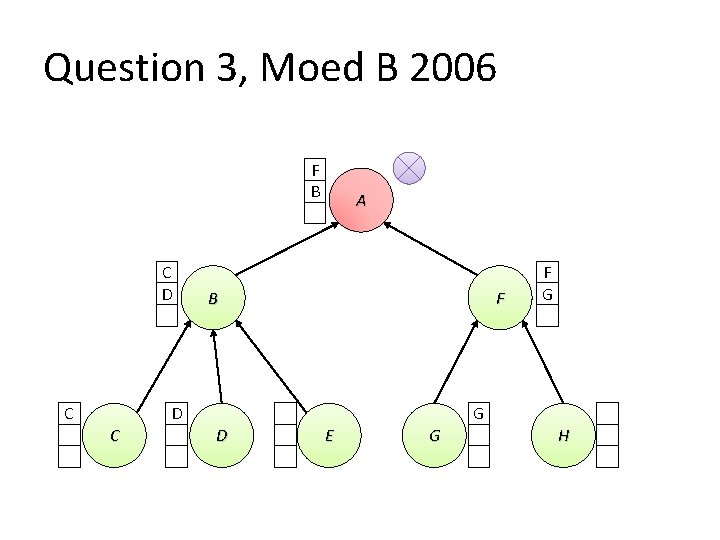

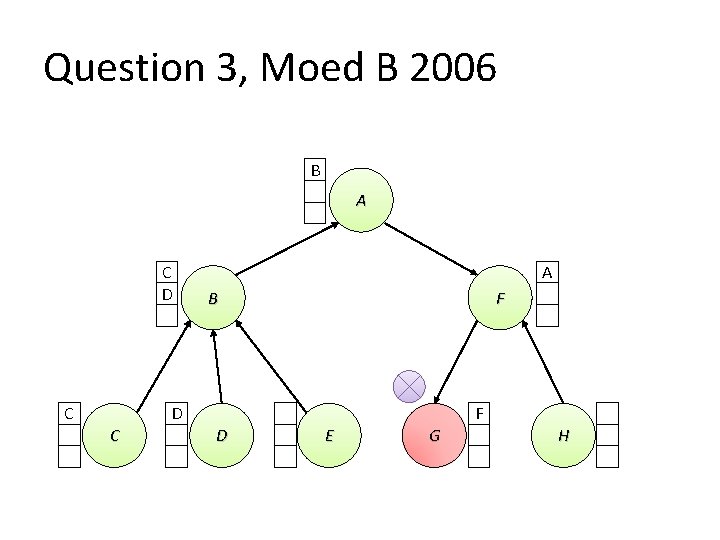

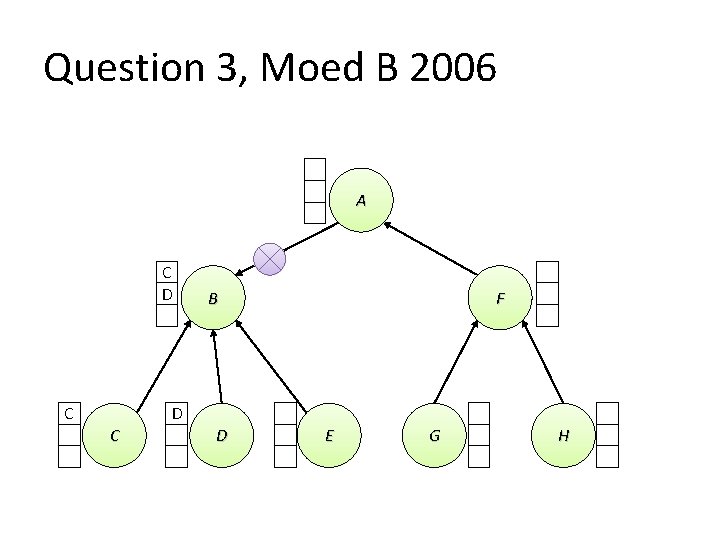

Question 3, Moed B 2006 To allow for a convenient representation we define agent steps as the invocation of a procedure or an action. Use the sketch above to describe the result of applying Raymond’s algorithm if nodes C, D, F and G request the token. Provide a detailed description of all concurrent steps (in which a single step is taken by all relevant nodes) by sketching the system’s state after each one and up until three of the four agents receive the token. Note: assume that ties are broken based on ID.
