Operate. IT SCADA Vantage © ABB - COE Oil & Gas Zhu River Pipeline Guandong, China

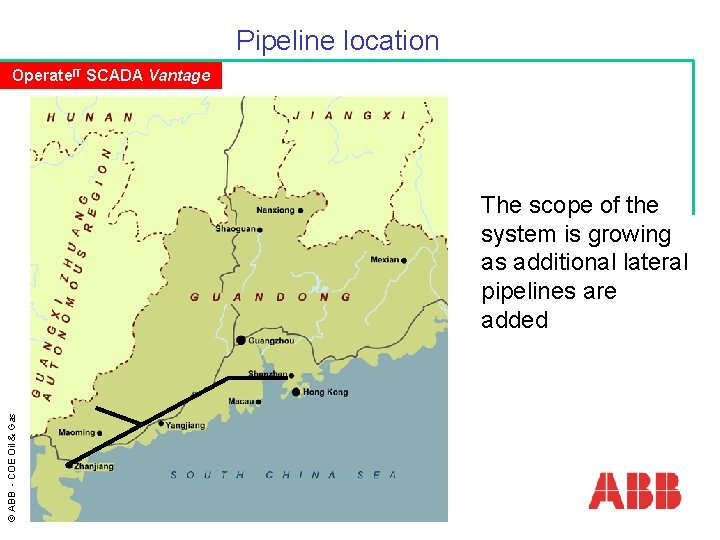

Pipeline location Operate. IT SCADA Vantage © ABB - COE Oil & Gas The scope of the system is growing as additional lateral pipelines are added

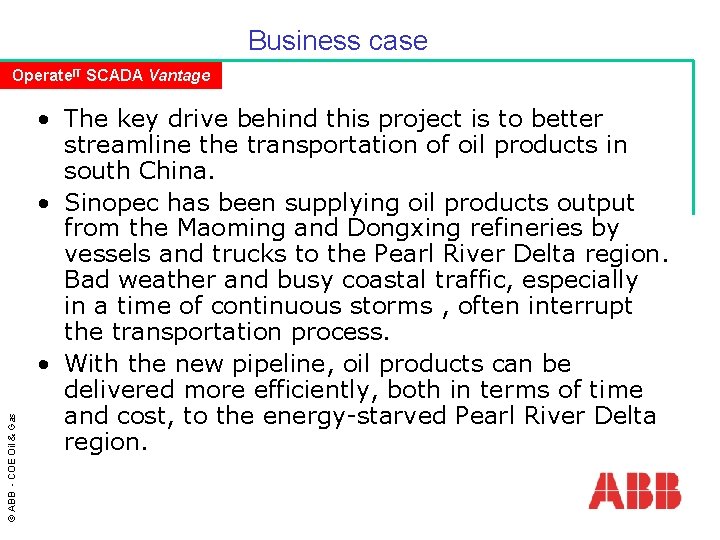

Business case © ABB - COE Oil & Gas Operate. IT SCADA Vantage • The key drive behind this project is to better streamline the transportation of oil products in south China. • Sinopec has been supplying oil products output from the Maoming and Dongxing refineries by vessels and trucks to the Pearl River Delta region. Bad weather and busy coastal traffic, especially in a time of continuous storms , often interrupt the transportation process. • With the new pipeline, oil products can be delivered more efficiently, both in terms of time and cost, to the energy-starved Pearl River Delta region.
Project scope © ABB - COE Oil & Gas Operate. IT SCADA Vantage • 1, 315 -kilometer (817 -mile) refined products pipeline • Starts from Sinopec's 100, 000 b/d Dongxing Refinery in Guangdong's western coastal Zhanjiang city, runs eastweard to Sinopec's Maoming Refinery in Maoming city • Moves diesel and high octane gasoline (96, 98) to Yangjiang, Jiangmen, Zhaoqing, Foshan, Zhongshan, Zhuhai, Guangzhou, Dongguan cities, and ends in Shenzhen city.
© ABB - COE Oil & Gas Operate. IT SCADA Vantage
System functionality Operate. IT SCADA Vantage © ABB - COE Oil & Gas • Alarms and events in Chinese • Text on database in Chinese • 22 servers • Replication from pumping station servers to main server • Control room and backup control room
System functionality Operate. IT SCADA Vantage © ABB - COE Oil & Gas • 20 pumping stations • Process plants • Interfacing Stoner leak detection

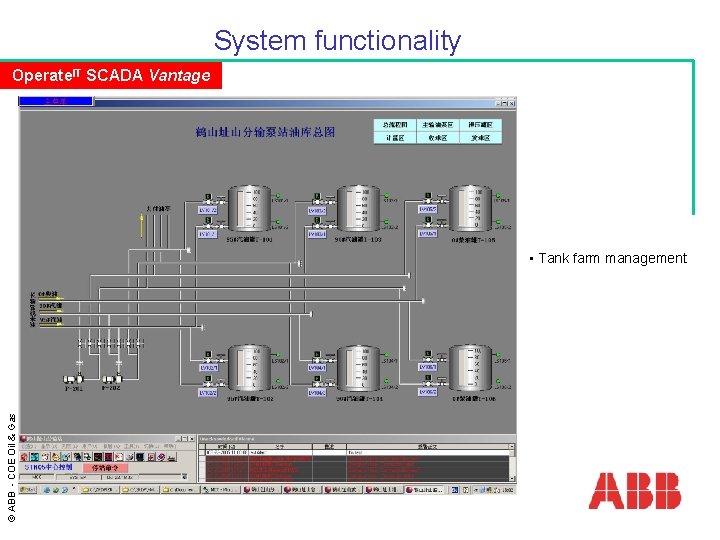

System functionality Operate. IT SCADA Vantage © ABB - COE Oil & Gas • Tank farm management
Scope Operate. IT SCADA Vantage • • • Leak detection by Stoner OPC connectivity AC 800 M controllers Safety systems SCADA Vantage replication © ABB - COE Oil & Gas – Peer-to-peer for backup centre – Hierarchical for remote stations
