OPENO for MODM Unified NFVSDN Open Source Orchestrator

OPEN-O for MODM Unified NFV/SDN Open Source Orchestrator Chris Donley, Huawei

Disclaimer • The following represents general proposals being worked on by a formation community. The following materials have not been approved or endorsed by the members, but represent current working drafts of discussions that we would like to invite a wider community to participate in.

Why OPEN-O? Vendor C

Is SDN only enough? E 2 E Unified SDN/NFV Service Orchestrator Virtualization v. CPE v. BRAS v. PE Router v. FW v. LB SDN Controller Vender specific ONOS ODL Open. Stack （DC controller） Domain. B p. CPE Access BRAS GW Legacy TOR Domain A MAN Network Data Center

Is Controller enough for SDN? APP/OSS/BSS • SDN Orchestrator • • EMS Legacy Domain Controller (ONOS) Controller (ODL) SDN Domain A SDN Domain B Most carriers’ network is hybrid network which includes legacy and SDN, and virtual network Controller focus on network resource abstraction and path calculation SDN orchestration focus on end to end service and resource orchestration and it is key to enable agile service across multidomain，multi-layer and multivendor

Commercialized NFV-O? OSS/BSS SDN-O NB Interface SDN-O interface Commercialized NFVOs Unified IM/ Canonical DM Option 1: VNFM Plugin Option 2: VNFM standard interface Huawei v. CMM Ericsson HP Director ADVA ESO VNFM ZTE Nokia Conductor Cloudband Cinena Gigaspaces Blue Planet VIM Cloudify SDN Controller SB Interface Multiple VIMs Option 1: SDN controller plugin Option 2: SDN standard interface

OPEN-O: From OSS to OSS— Operation Support System OSS— Open Source Software OSS EMS 3 OSS/BSS/APP Vendor S Unified Open Source Orchestrator EMS Device Vendor X Vendor Y Vendor Z Multi. Controller Multi. VNFM/VIM Multi-EMS Service Model definition & mapping & Orchestration 2 Network /Device Model definition & mapping 1 network resource discovery & abstraction • OPEN-O is working on the new Orchestrator OSS(Open Source Software) as the Next Generation OSS Foundation for ICT Service Agility

OPEN-O benefits for Industry Agility in services & operations Most viable to work across vendors Managed Open Source: PSI is baby sitter without lock-in Vendors like plug-in after preintegration. Operators can plug in/out easily. 5 1 4 2 3 Vendors can do OSS preintegration – reduce OSS integration time & cost. Operators can innovate services based on abstract service element

What is OPEN-O project?

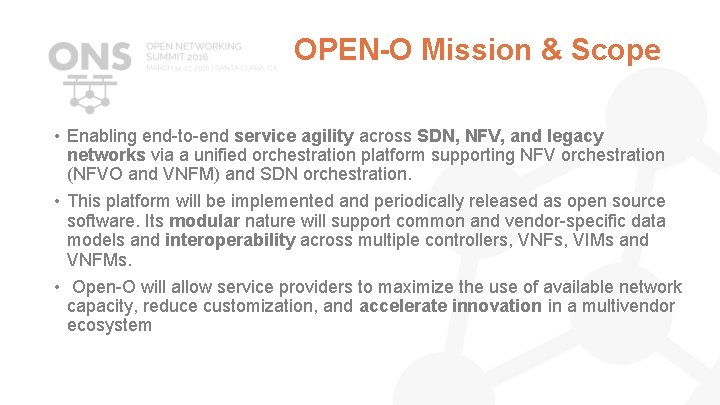

OPEN-O Mission & Scope • Enabling end-to-end service agility across SDN, NFV, and legacy networks via a unified orchestration platform supporting NFV orchestration (NFVO and VNFM) and SDN orchestration. • This platform will be implemented and periodically released as open source software. Its modular nature will support common and vendor-specific data models and interoperability across multiple controllers, VNFs, VIMs and VNFMs. • Open-O will allow service providers to maximize the use of available network capacity, reduce customization, and accelerate innovation in a multivendor ecosystem

OPEN-O SW Architecture • End-to-End SDN/NFV Orchestration • ETSI NFV MANO compliant • Modular and multiplatform • Service and Resource Orchestration • YANG and TOSCA support

Relationship with other standard bodies Customer Portal/BSS (E 2 E Service= VPN+ VAS + Cloud) • Open-O plays well with others • ETSI NFV ISG – architecture and data models • Open Source projects - OPNFV, Open Stack, Open Daylight, ONOS • As upstream open source project, open to work with other forums Restful API OPEN-O Cross domain orchestration SDNO WAN SBI VAS SBI OPEN Cord EMS Controller NFVO Tacker… G-VNFM EMS VNF S-VNFM v. FW, v. LB, v. C PE, v. BNG, v. EPC…) Legacy network SDN network NFVI Open. Stack Service provider Public cloud VIM

2016 OPEN-O Event Plan Speech & Demo on ONS OPEN-O 1 st Hackfests OPEN-O 1 st release 2016. 03. 16 2016. 05 2016. 09 Feb. March 2016. 02. 23 MWC Intent Announcement April May July Sep. 2016. 05 2016. 07 Official Founding OPEN-O 2 nd Hackfests Oct. - Dec. Time to declare on May OPEN-O Summit 1 st

Thank you!
