Open VPN KISEC 44 th One VPN Two

  • Slides: 15
Download presentation
Open. VPN KISEC 44 th

Open. VPN KISEC 44 th

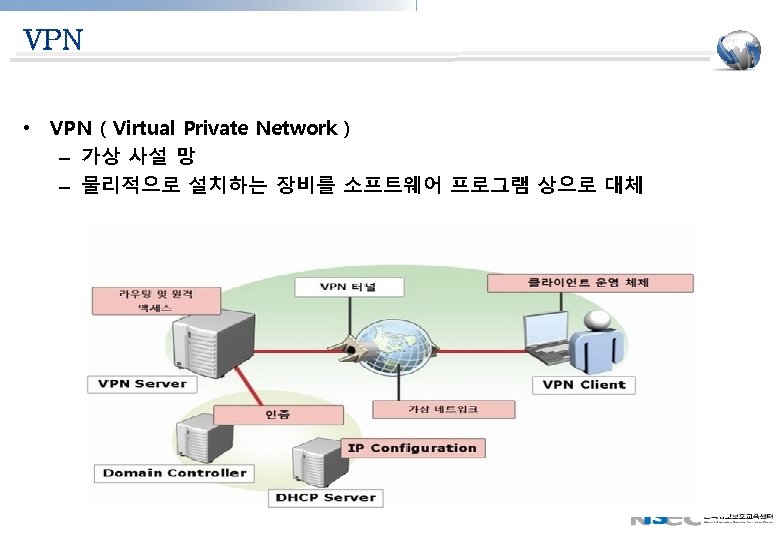

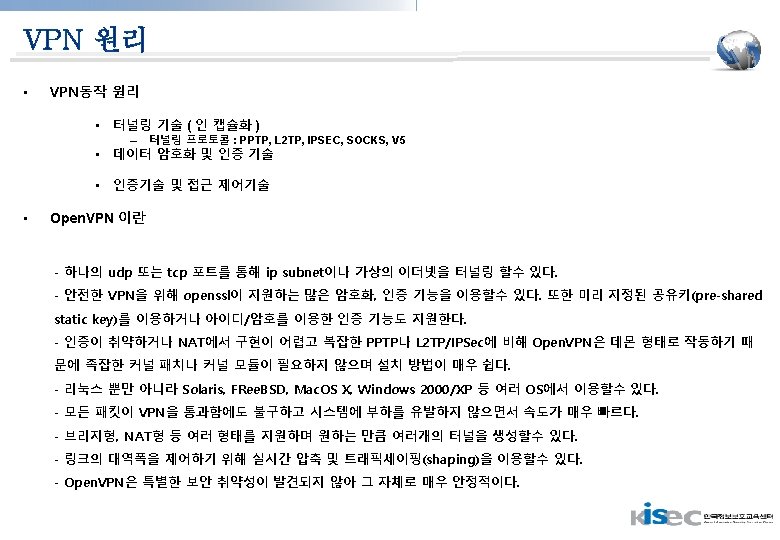

One VPN

One VPN

Two Open. VPN 구축 환경

Two Open. VPN 구축 환경

제목 • Open. VPN Server – Linux Cent. OS 6. 3 on the VMware

제목 • Open. VPN Server – Linux Cent. OS 6. 3 on the VMware – Using Open. VPN-2. 2. 2 • Open. VPN Client – Window 7 64 -bit – Using Open. VPN-2. 2. 2 – C: Program filesopen VPN

Three Open. VPN 구축

Three Open. VPN 구축

Open. VPN 설치 • 1. rpmforge 저장소 추가 : # wget http: //apt. sw.

Open. VPN 설치 • 1. rpmforge 저장소 추가 : # wget http: //apt. sw. be/redhat/el 5/en/i 386/rpmforge/RPMS/rpmforge-release -0. 3. 6 -1. el 5. rf. i 386. rpm # rpm -Uvh rpmforge-release-0. 3. 6 -1. el 5. rf. i 386. rpm # yum -y install openvpn • 2. www. openvpn. net 다운로드 : openvpn-2. 2. 2. tar. gz #Tar –xvfz openvpn-2. 2. 2. tar. gz #cd /root/다운로드/openvpn-2. 2. 2/ #. /configure #make install

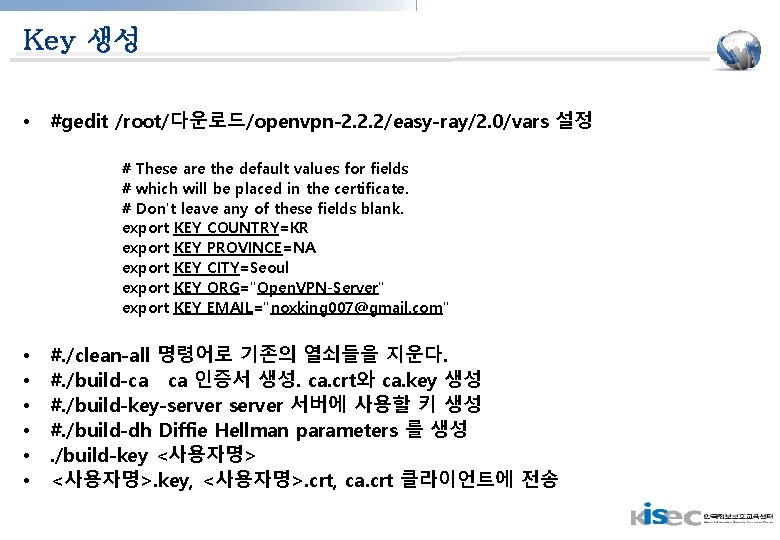

Key 생성 • #gedit /root/다운로드/openvpn-2. 2. 2/easy-ray/2. 0/vars 설정 # These are the default

Key 생성 • #gedit /root/다운로드/openvpn-2. 2. 2/easy-ray/2. 0/vars 설정 # These are the default values for fields # which will be placed in the certificate. # Don't leave any of these fields blank. export KEY_COUNTRY=KR export KEY_PROVINCE=NA export KEY_CITY=Seoul export KEY_ORG="Open. VPN-Server" export KEY_EMAIL="noxking [email protected] com" • • • #. /clean-all 명령어로 기존의 열쇠들을 지운다. #. /build-ca ca 인증서 생성. ca. crt와 ca. key 생성 #. /build-key-server 서버에 사용할 키 생성 #. /build-dh Diffie Hellman parameters 를 생성. /build-key <사용자명>. key, <사용자명>. crt, ca. crt 클라이언트에 전송

Four Open. VPN 활용

Four Open. VPN 활용

Q&A

Q&A

Thank you

Thank you
