Open. VMS Guests Under HPVM Barry Kierstein Availability Manager Project Leader Open. VMS System Management Group Content contributed by Lars Sundqvist Business Critical Systems Barry. Kierstein@HP. com © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice

Agenda • What is virtualization? • What is HPVM? • Configuring and starting an Open. VMS Guest 02 November 2020 2

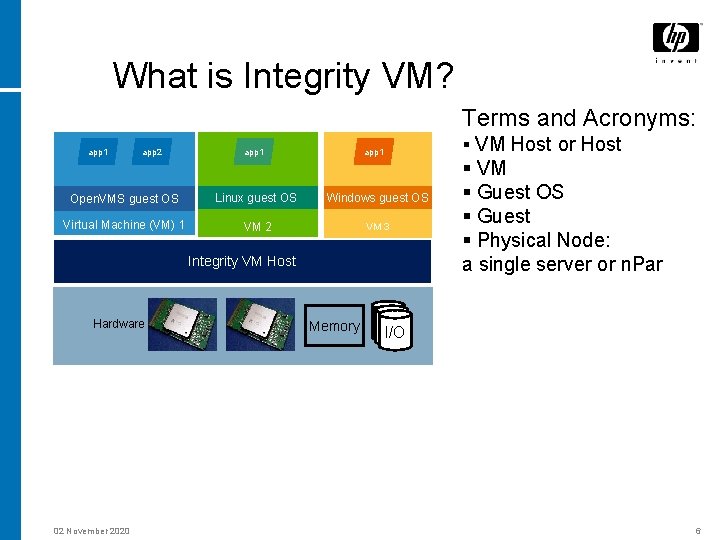

What is Integrity VM? Terms and Acronyms: app 1 app 2 app 1 Open. VMS guest OS Linux guest OS Windows guest OS Virtual Machine (VM) 1 VM 2 VM 3 Integrity VM Host Hardware 02 November 2020 Memory § VM Host or Host § VM § Guest OS § Guest § Physical Node: a single server or n. Par I/O I/O 6

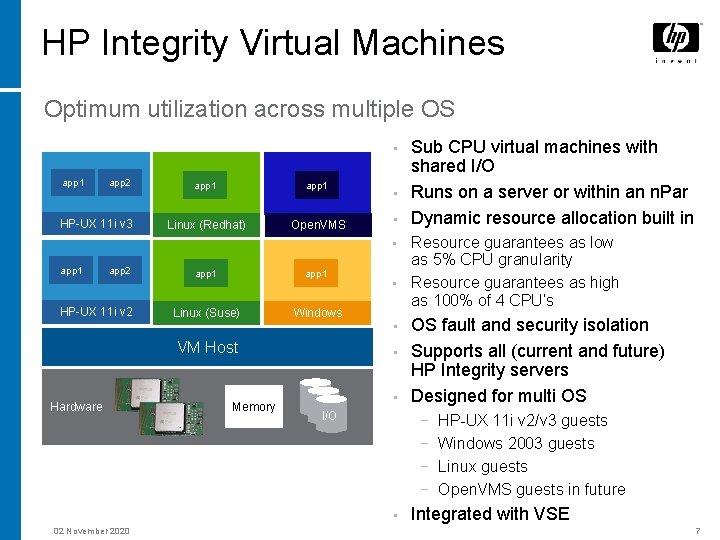

HP Integrity Virtual Machines Optimum utilization across multiple OS • app 1 app 2 HP-UX 11 i v 3 app 1 Linux (Redhat) Open. VMS • • • app 1 app 2 HP-UX 11 i v 2 app 1 Linux (Suse) Windows VM Host Hardware Memory • • I/O Resource guarantees as low as 5% CPU granularity Resource guarantees as high as 100% of 4 CPU’s OS fault and security isolation Supports all (current and future) HP Integrity servers Designed for multi OS − − • 02 November 2020 Sub CPU virtual machines with shared I/O Runs on a server or within an n. Par Dynamic resource allocation built in HP-UX 11 i v 2/v 3 guests Windows 2003 guests Linux guests Open. VMS guests in future Integrated with VSE 7

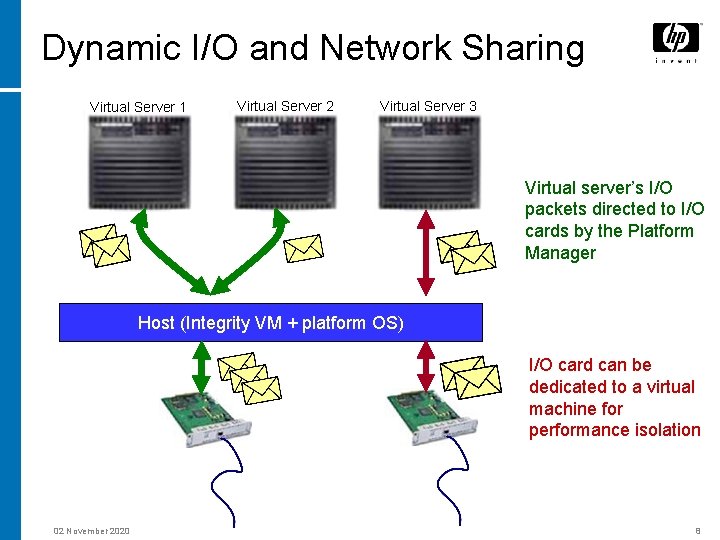

Dynamic I/O and Network Sharing Virtual Server 1 Virtual Server 2 Virtual Server 3 Virtual server’s I/O packets directed to I/O cards by the Platform Manager Host (Integrity VM + platform OS) I/O card can be dedicated to a virtual machine for performance isolation 02 November 2020 8

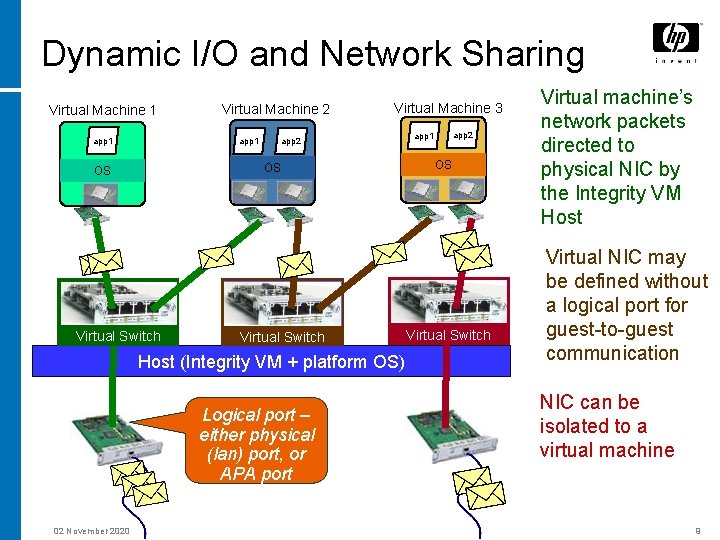

Dynamic I/O and Network Sharing Virtual Machine 1 app 1 Virtual Machine 2 app 1 Virtual Machine 3 app 2 OS OS Virtual Switch Host (Integrity VM + platform OS) Logical port – either physical (lan) port, or APA port 02 November 2020 app 2 app 1 OS Virtual Switch Virtual machine’s network packets directed to physical NIC by the Integrity VM Host Virtual NIC may be defined without a logical port for guest-to-guest communication NIC can be isolated to a virtual machine 9

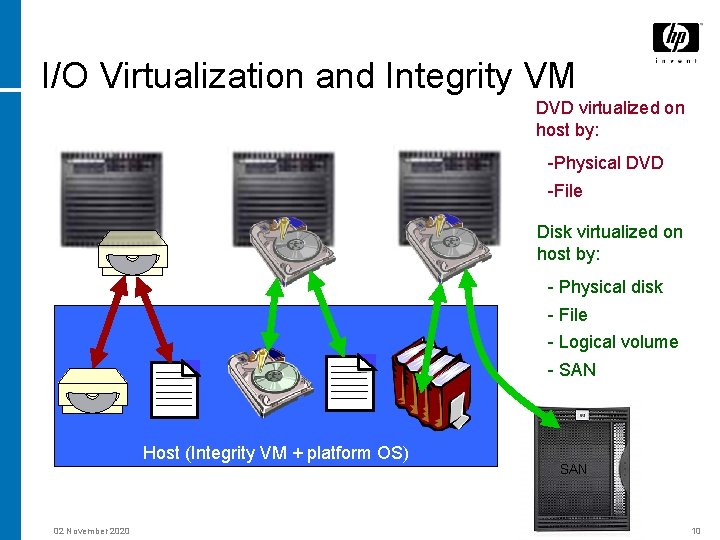

I/O Virtualization and Integrity VM DVD virtualized on host by: -Physical DVD -File Disk virtualized on host by: - Physical disk - File - Logical volume - SAN Host (Integrity VM + platform OS) 02 November 2020 SAN 10

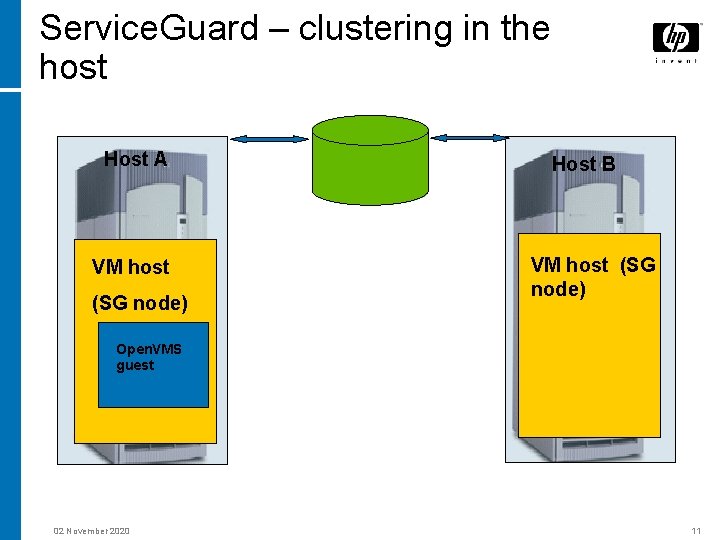

Service. Guard – clustering in the host Host A VM host (SG node) Host B VM host (SG node) Open. VMS guest 02 November 2020 11

Integrity VM futures, sooner or later • HP-UX 11 i v 3 host • AVIO for “other” guests • Open. VMS guest • On-Line guest migration • More and bigger Enhanced performance 02 November 2020 12

Configuring an Open. VMS Guest • Configuring by Virtual Machine Manager - an HP SIM plug-in • Configuring 02 November 2020 by HP-UX commands 13

02 November 2020 14

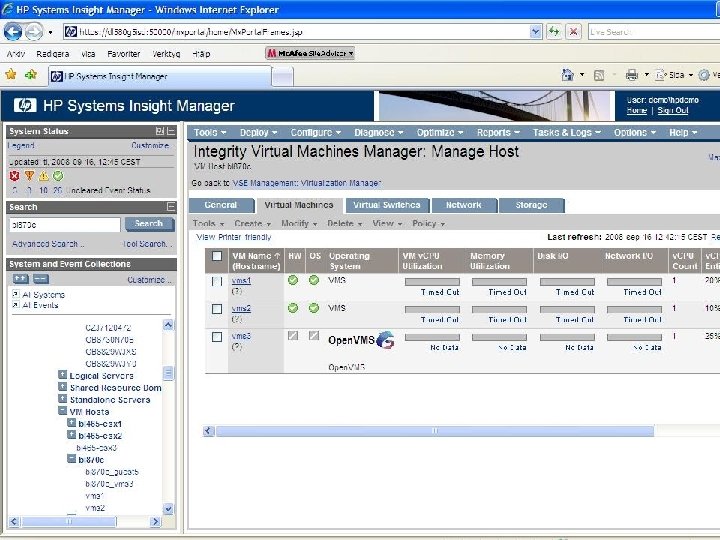

HPVM Open. VMS Guest Creation 02 November 2020 15

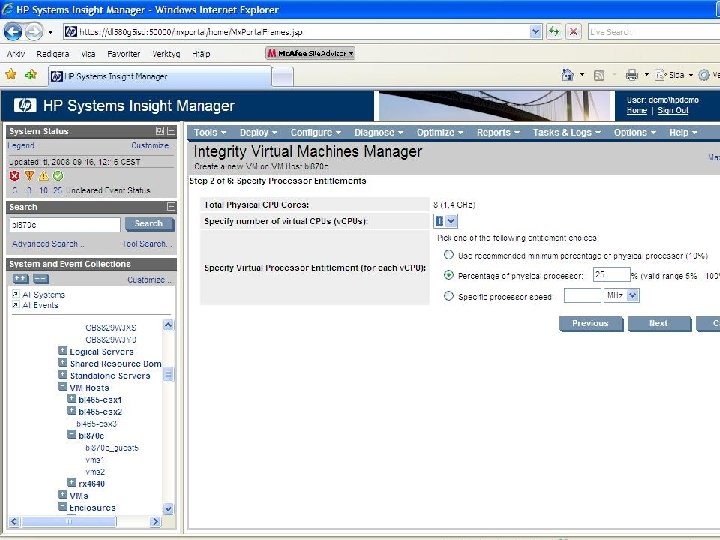

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 16

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 17

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 18

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 19

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 20

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 21

HPVM Hands-on - Overview • HP-UX system setup −HP-UX 11 i v 3 on BL 860 c Blade −HPVM V 4 BL 6 −Open. VMS V 8. 4 development 02 November 2020 22

Configuring an Open. VMS Guest by HP-UX commands • Log • onto root / alphabits Create directory /var/openvms_guests −mkdir /var/openvms_guests • Create a virtual disk (4 GB) −hpvmdevmgmt -S 4000 M /var/openvms_guests/disk 1 02 November 2020 23

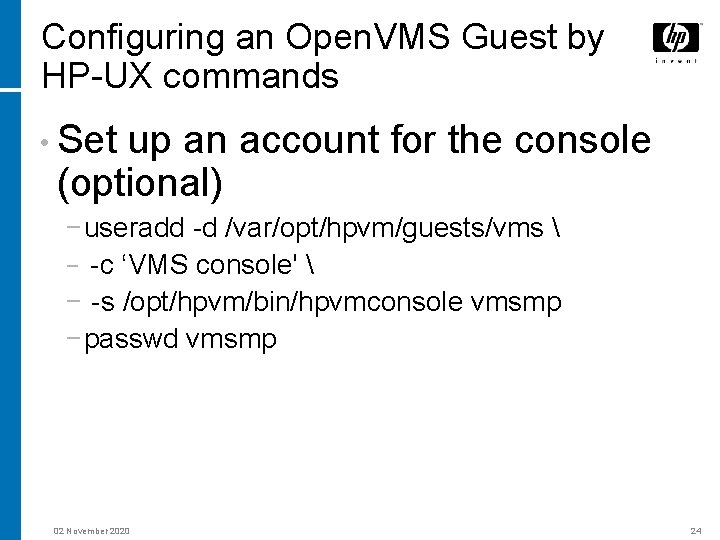

Configuring an Open. VMS Guest by HP-UX commands • Set up an account for the console (optional) − useradd -d /var/opt/hpvm/guests/vms − -c ‘VMS console' − -s /opt/hpvm/bin/hpvmconsole vmsmp − passwd vmsmp 02 November 2020 24

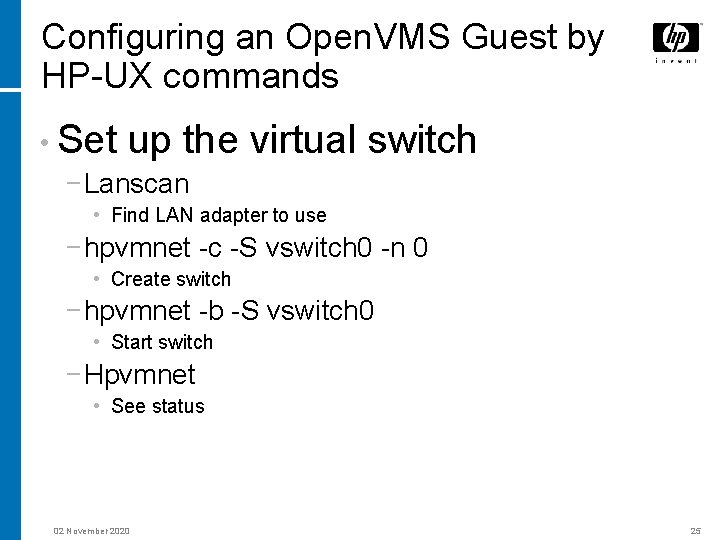

Configuring an Open. VMS Guest by HP-UX commands • Set up the virtual switch − Lanscan • Find LAN adapter to use − hpvmnet -c -S vswitch 0 -n 0 • Create switch − hpvmnet -b -S vswitch 0 • Start switch − Hpvmnet • See status 02 November 2020 25

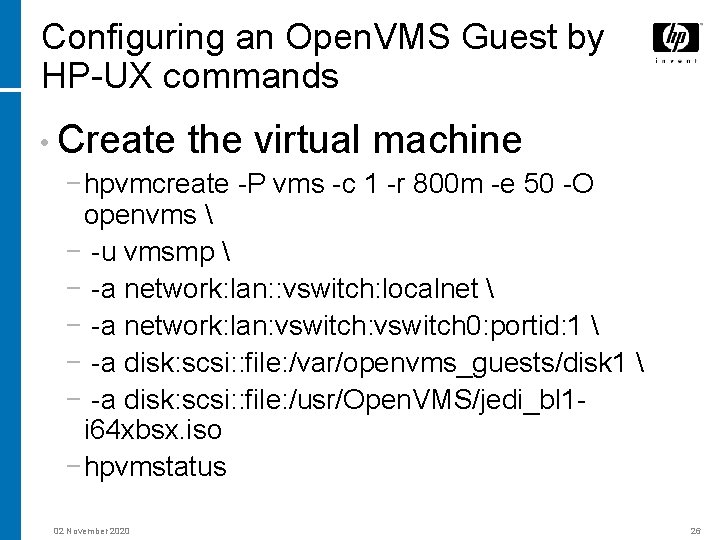

Configuring an Open. VMS Guest by HP-UX commands • Create the virtual machine − hpvmcreate -P vms -c 1 -r 800 m -e 50 -O openvms − -u vmsmp − -a network: lan: : vswitch: localnet − -a network: lan: vswitch 0: portid: 1 − -a disk: scsi: : file: /var/openvms_guests/disk 1 − -a disk: scsi: : file: /usr/Open. VMS/jedi_bl 1 i 64 xbsx. iso − hpvmstatus 02 November 2020 26

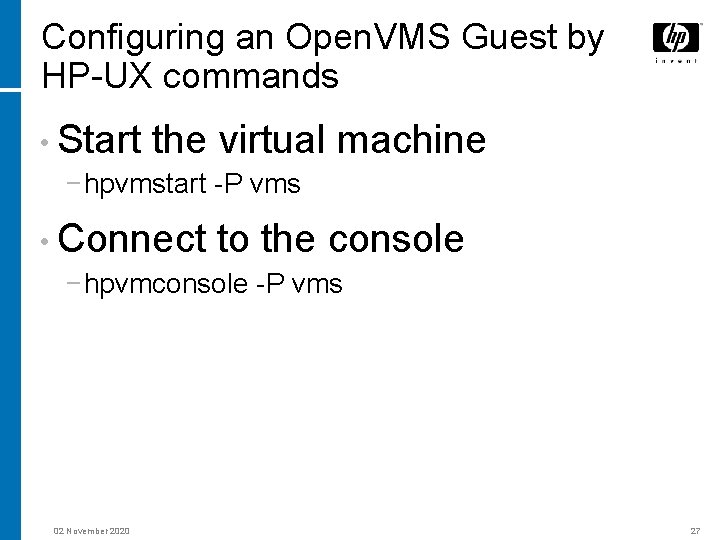

Configuring an Open. VMS Guest by HP-UX commands • Start the virtual machine − hpvmstart -P vms • Connect to the console − hpvmconsole -P vms 02 November 2020 27

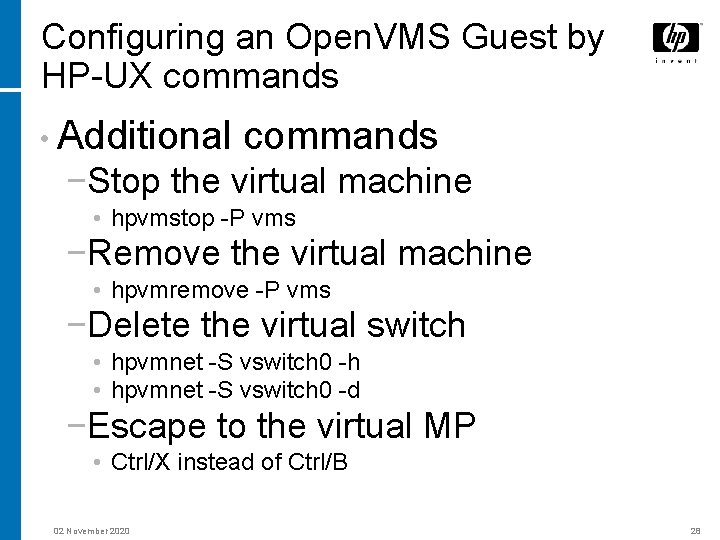

Configuring an Open. VMS Guest by HP-UX commands • Additional commands −Stop the virtual machine • hpvmstop -P vms −Remove the virtual machine • hpvmremove -P vms −Delete the virtual switch • hpvmnet -S vswitch 0 -d −Escape to the virtual MP • Ctrl/X instead of Ctrl/B 02 November 2020 28

Open. VMS Contacts • Curt. Spacht@hp. com • Barry. Kierstein@hp. com • John. King. Jr@hp. com (Our manager) • Lars. Sundqvist@hp. com +46 31 3491634 02 November 2020 29
