Open TS for Windows Compute Cluster Server Overview

Open. TS for Windows Compute Cluster Server

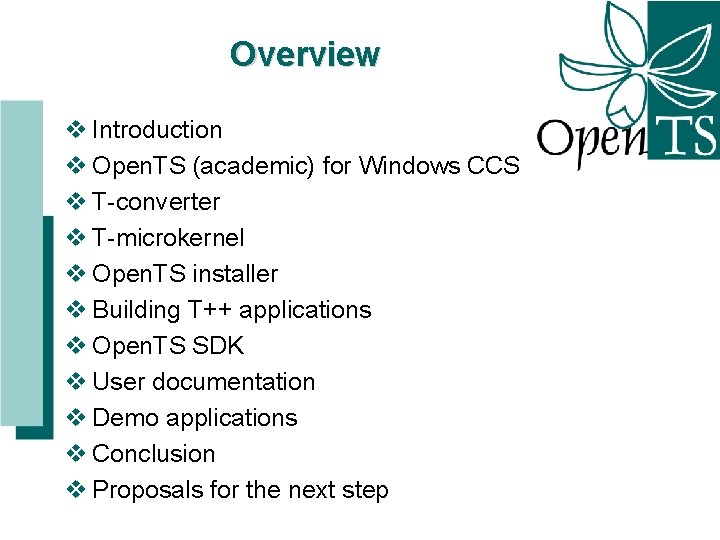

Overview v Introduction v Open. TS (academic) for Windows CCS v T-converter v T-microkernel v Open. TS installer v Building T++ applications v Open. TS SDK v User documentation v Demo applications v Conclusion v Proposals for the next step

Introduction

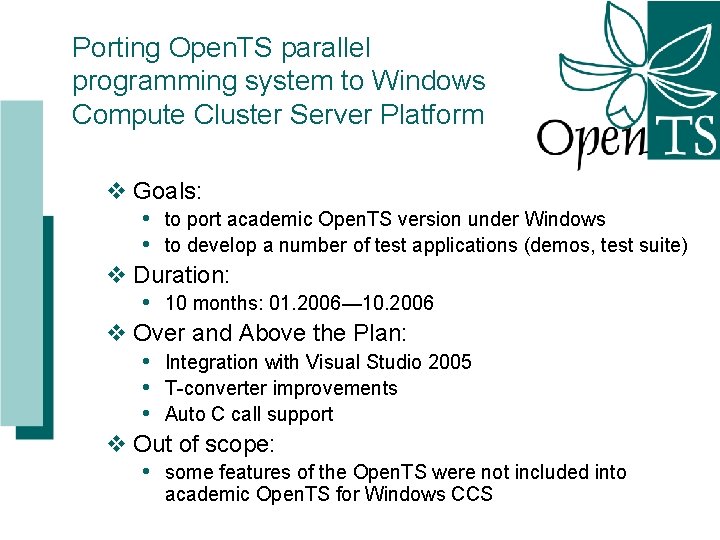

Porting Open. TS parallel programming system to Windows Compute Cluster Server Platform v Goals: • to port academic Open. TS version under Windows • to develop a number of test applications (demos, test suite) v Duration: • 10 months: 01. 2006— 10. 2006 v Over and Above the Plan: • Integration with Visual Studio 2005 • T-converter improvements • Auto C call support v Out of scope: • some features of the Open. TS were not included into academic Open. TS for Windows CCS

Open. TS (academic) for Windows CCS

Open. TS (academic) for Windows CCS v Open. TS for Windows includes: • T-converter • T-microkernel • Installer for Windows • Software development kit • Integration with Visual Studio 2005 • User documentation and T++ language reference • Demo applications

T-converter

T-converter v Ported on Windows v Based on Open. C++ v Updated for support of Visual C++ special language constructions v Updated for proper support of: • “new” declaration: o int tptr p = new tval int [n]; • template classes: o vector<tval int> fa;

T-microkernel

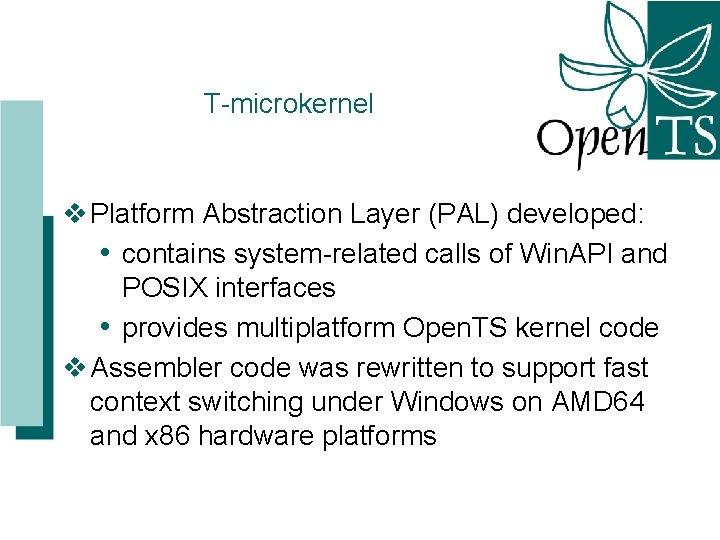

T-microkernel v Platform Abstraction Layer (PAL) developed: • contains system-related calls of Win. API and POSIX interfaces • provides multiplatform Open. TS kernel code v Assembler code was rewritten to support fast context switching under Windows on AMD 64 and x 86 hardware platforms

Open. TS installer

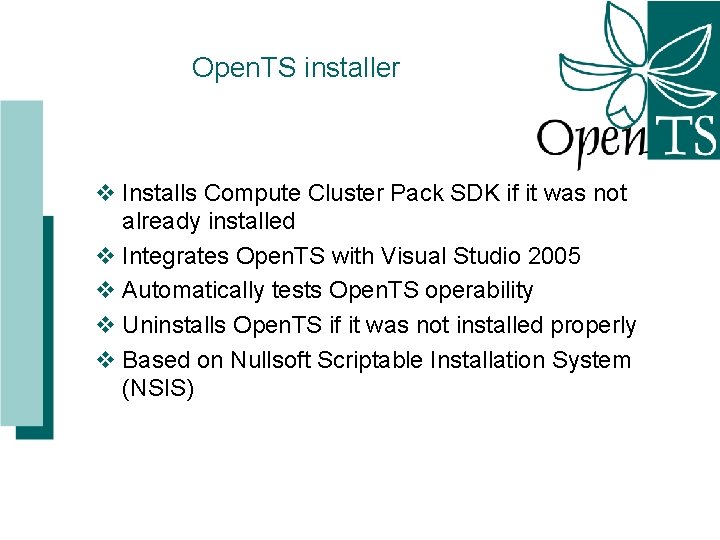

Open. TS installer v Installs Compute Cluster Pack SDK if it was not already installed v Integrates Open. TS with Visual Studio 2005 v Automatically tests Open. TS operability v Uninstalls Open. TS if it was not installed properly v Based on Nullsoft Scriptable Installation System (NSIS)

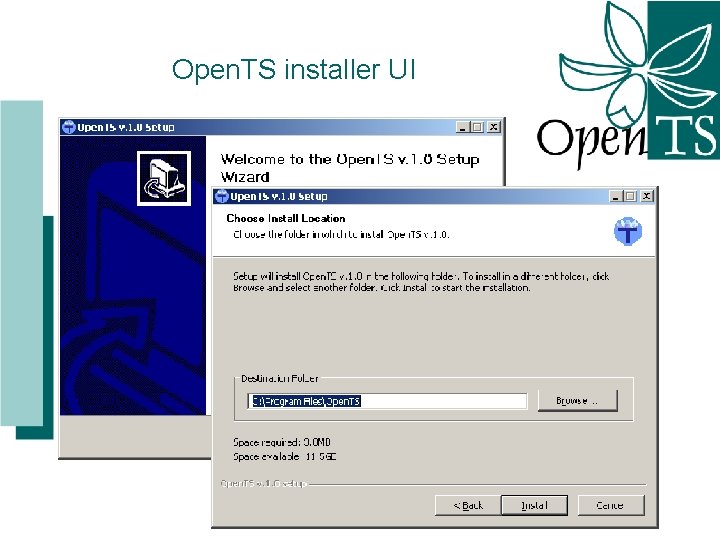

Open. TS installer UI

Building T++ applications

Building T++ applications from command line v Using command line: Ø t++ [options] [srcfile 1 … srcfile. N] v Options are: • /auto-c-call - allows T-application to call C-versions of T-functions. This may increase T-application productivity /c - only compilation of source files without linking • • /dbg - make debug build. It allows debugger to obtain information about • • • program symbols in the case of application crush /do - specify location for object files /not - build application in sequential mode, all T++ keywords are ignored /o - specify output executable /p - pass option to used C/C++ compiler /v - print commands before invocation

Building T++ applications in Visual Studio 2005 IDE A new item in “New Project” dialog: Open. TS Console Application A new item in “Add New Item” dialog: T++ File

Building T++ applications in Visual Studio 2005 IDE

Open. TS SDK

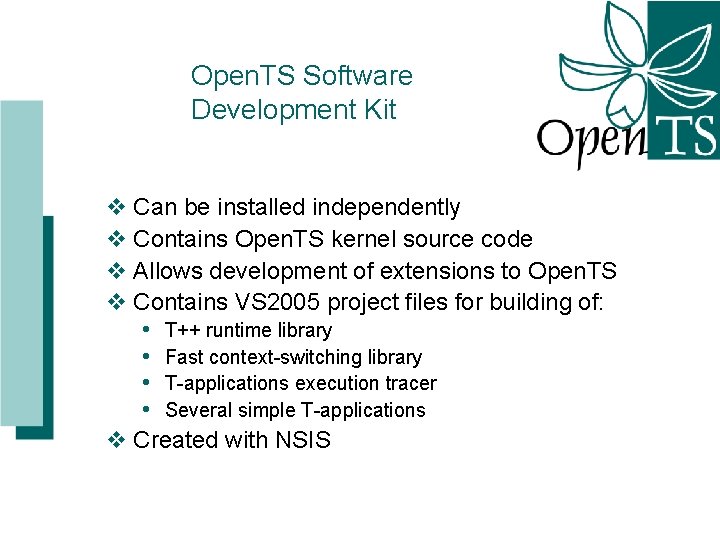

Open. TS Software Development Kit v Can be installed independently v Contains Open. TS kernel source code v Allows development of extensions to Open. TS v Contains VS 2005 project files for building of: • T++ runtime library • Fast context-switching library • T-applications execution tracer • Several simple T-applications v Created with NSIS

User documentation

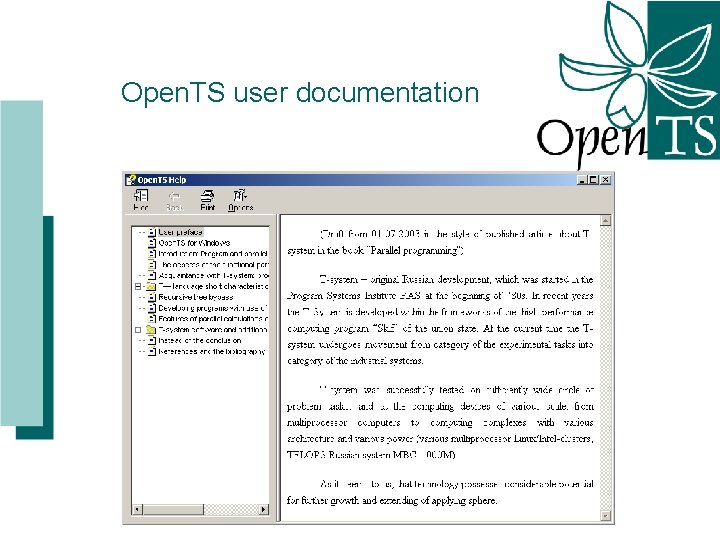

Open. TS user documentation

T++ language reference

Demo applications

Demo applications written in T++ v POVRay and ALCMD were ported to Windows v A benchmark testing was made to prove the correctness of Windows Open. TS port • Both Windows and Linux were used in testing • Same hardware platform used: AMD 64 • Same Open. TS kernel source code used (socalled cross-platform version of microkernel) • Same applications’ (POVRay and ALCMD) source code used for Windows and Linux

Benchmark notations v time(N) — execution time of T++ implementation that depends on a number N of processors used in test run (in seconds) v time_c — execution time of C implementation (in seconds, one processor used in test run) v time%(N) = time(N) / time_c v Co. E = 1 / (N * time%(N)) — coefficient of efficiency

POVRay time(%) chart

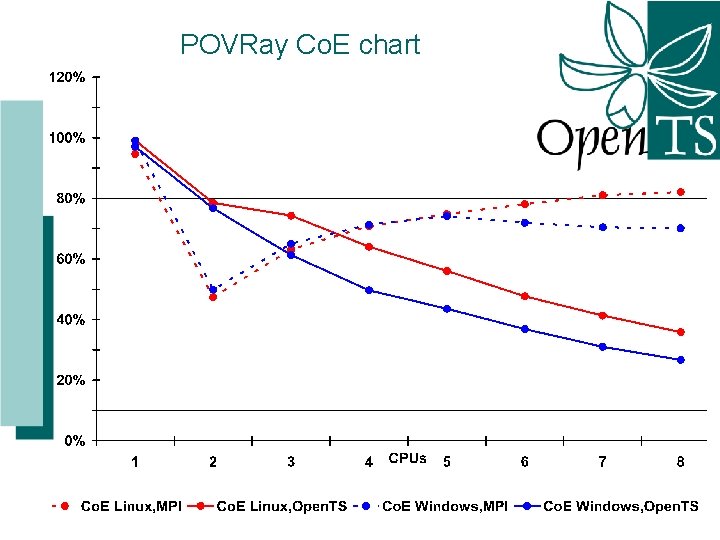

POVRay Co. E chart

ALCMD time(%) chart

ALCMD Co. E chart

Sync/Async problem v Problem: Co. E for POVRay is decreasing heavily under Windows v Reason: there is no support for asynchronous interaction between processes

POVRay time% Sync / time% Async chart

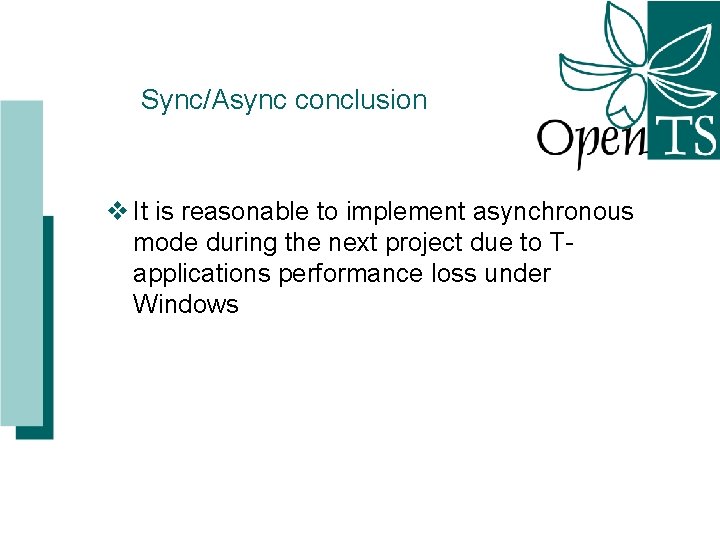

Sync/Async conclusion v It is reasonable to implement asynchronous mode during the next project due to Tapplications performance loss under Windows

Benchmark results v For POVRay: • its time is at the maximum only 12% greater than under Linux • its Co. E is at the maximum only 14% less than under Linux v For ALCMD: • its time (in %) is always roughly the same as time under Linux • its Co. E sometimes greater by 21% than under Linux

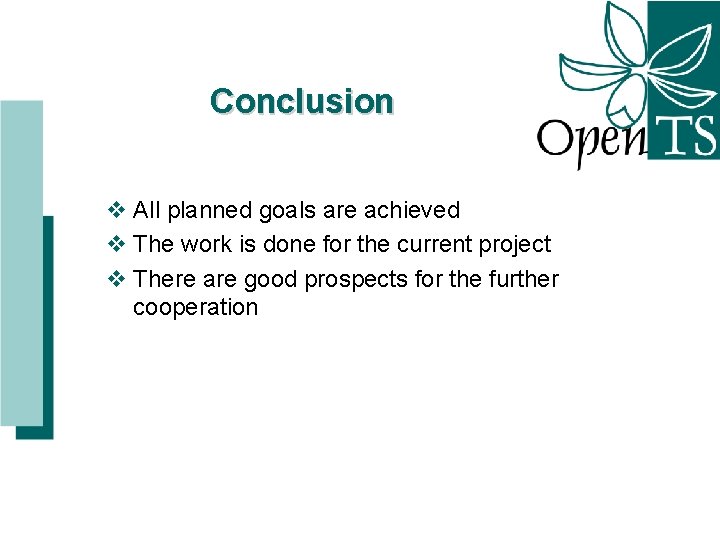

Conclusion v All planned goals are achieved v The work is done for the current project v There are good prospects for the further cooperation

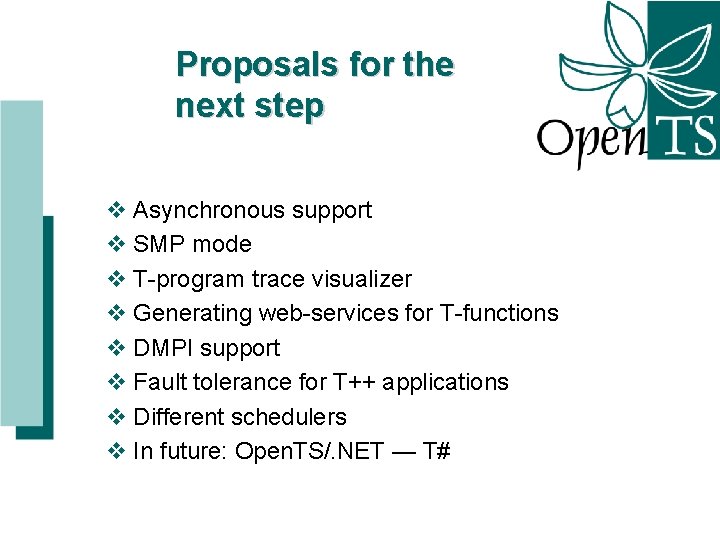

Proposals for the next step v Asynchronous support v SMP mode v T-program trace visualizer v Generating web-services for T-functions v DMPI support v Fault tolerance for T++ applications v Different schedulers v In future: Open. TS/. NET — T#

Thanks! … … Any questions? … …
