Open. Stack* & Open. Day. LIGHT* Close to PRODUCTION Dr. Malini Bhandaru – Architect, Principal Engineer, Intel Isaku Yamahata – Cloud Network Architect, Intel ODL Northbound PTL, Open. Stack-Neutron-ODL core May 2016

Agenda Introduction Open. Stack* + Open. Daylight* Six Months back Today Future GIVE IT A TRY!!! Stability, Scalability, Feature Parity, Security, Performance 2

Quick Introduction: Open. Stack, ODL Open. Stack (OS)*: Open source cloud operating system Iaa. S allocates shared resource pool (compute, storage and networking). Goals: Agile self service (end-user), reduced total cost of ownership (operator) http: //www. openstack. org/ Open. Daylight (ODL)*: A Software Defined Network (SDN) controller Goals: Agile tenant isolated network provisioning and control with SLAs support Virtual Network Functions https: //www. opendaylight. org

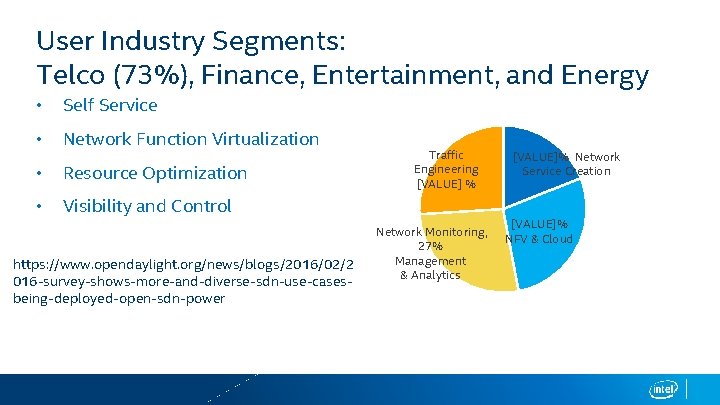

User Industry Segments: Telco (73%), Finance, Entertainment, and Energy • Self Service • Network Function Virtualization • Resource Optimization • Visibility and Control https: //www. opendaylight. org/news/blogs/2016/02/2 016 -survey-shows-more-and-diverse-sdn-use-casesbeing-deployed-open-sdn-power Traffic Engineering [VALUE] % Network Monitoring, 27% Management & Analytics [VALUE]% Network Service Creation [VALUE]% NFV & Cloud

Open. Stack* and Open. Daylight* Networking-odl ODL neutron northbound Management Network Data Network Control node Neutron Open. Daylight* Compute Node VM OVS Network Node dhcp agent OVS Internet Public Network Router

OS + ODL Six Months Back

Open. Stack* + ODL == Six Months Back • Brittle integration • Lacked Neutron High Availability (HA) support • Incomplete and unstable API – Limited test coverage • Develop/Test tedious Intel Open source Technology Center (OTC)

OS Mitaka + ODL Beryllium TODAY

What’s new with OS-Mitaka + ODL-Be? Open. Stack* (Mitaka release networking-odl) Open. Daylight* (Beryllium release) V 2 driver: neutron HA Stabilization/hardening OVS-DPDK* Lightweight test framework L 2 GW BGPVPN Testing 30 tempest API Test bug fixes Increased Neutron Northbound API coverage 47% 65% Data Plane Development Kit == DPDK*

Smoother Integration • Security Group Rules only accepted TCP, UDP, ICMP, and ICMP 6 Extended to other protocols - strings and short integers https: //git. opendaylight. org/gerrit/#/c/36010/ https: //git. opendaylight. org/gerrit/#/c/33932/ 10

Neutron HA WOES

Open. Stack* and Open. Daylight* Networking-odl ODL neutron northbound Control node Database Neutron Open. Daylight* MD-SAL Management Network Data Network Compute Node VM OVS Network Node dhcp agent OVS Internet Public Network Router

Neutron-ODL Interface Issues • Neutron-ODL ML 2 interface was single threaded and blocking • Performance issue • Inadequate DB synchronization with Multiple Neutron-Servers • Race conditions and inconsistencies • Lack of Switch independent mapping of physical interfaces and networks • Need for static configuration files 13

Lack of DB Synchronization Race Conditions and inconsistencies Courtesy: https: //wiki. opendaylight. org/images/8/8 d/Experiences_with_Neutron. pdf 14

Synch on next Neutron Event - Repeat Errors Courtesy: https: //wiki. opendaylight. org/images/8/8 d/Experiences_with_Neutron. pdf 15

Neutron HA DB Neutron Networking-ODL Syncer Operation Log Load. Balancer (HAProxy) Open. Daylight* MD-SAL Open. Daylight* Neutron Northbound Open. Stack* Service Provider Openflow* Enhanced component OVSDB New component Compute Node ODL-Boron – HA focus VM OVS Compute Node VM OVS

EASE DEV & TEST Both Open. Stack* and Open. Day. Light* Savvy? Have lots of Time on your hands? Have lots of Hardware resources?

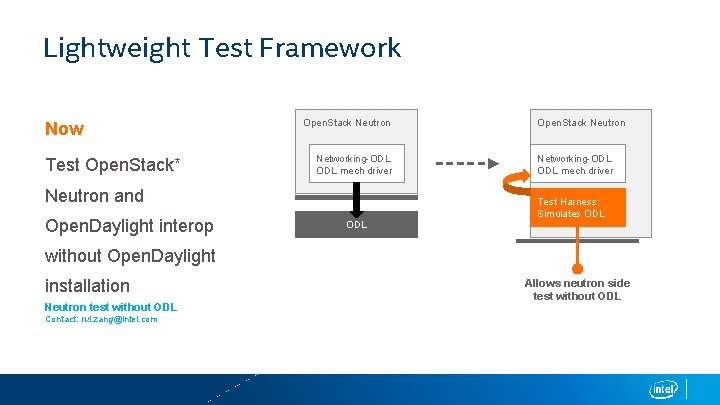

Lightweight Test Framework Now Test Open. Stack* Open. Stack Neutron Networking-ODL mech driver Neutron and Open. Daylight interop ODL Open. Stack Neutron Networking-ODL mech driver Test Harness: Simulates ODL without Open. Daylight installation Neutron test without ODL Contact: rui. zang@intel. com Allows neutron side test without ODL

Approach • Record live Open. Stack test calls and results • Modify send. Json method to replay calls • Simulate Network errors / timeout, connection failure etc • Replay all calls and compare responses to expectations • Periodically check for API drifts, major and minor versions 19

Configuring Lightweight Test http: //git. openstack. org/cgit/openstack/networking-odl/tree/devstack/settings#n 10 # Each service you enable has the following meaning: # odl-neutron - Add this config flag if Opendaylight controller and Open. Stack controller are on different nodes. # odl-server - Add this config flag if Opendaylight controller and Open. Stack Controller are on the same node. # odl-compute - Add this config flag for Open. Stack Compute. # odl-lightweight-testing - Add this config flag for testing neutron ODL ML 2 driver and networking-odl # without a real running Opendaylight instance

Lightweight Test Framework Future We will be able to test API test Test ODL side without Open. Stack! Tempest Neutron client mock Neutron ODL-Neutron interop ODL mech driver without Open. Stack Nova/Neutron VIF Driver ODL OVS Tempest runs only with ODL-Boron focus

Today Open. Stack* Mitaka Open. Daylight* Beryllium • Neutron-ODL driver overhaul • Northbound API improvements • Supports High Availability (HA) • Light weight test framework • Increased test coverage • Bug fixes galore • Networking L 2 Gateway • Networking BGP VPN 22

Test DASHBOARD

Open. Stack + ODL Tempest Tests Open. Stack code change velocity greater. Running tempest tests only when ODL patches are submitted catches conflicts late. Intel runs daily: § (OS-master x ODL-master) , (OS-liberty x ODL_master) § API, Basic Operations, Advanced Operations, IPV 6 § L 2 and L 3 tests http: //opendaylighttests. github. io/odltest/ 24

OS + ODL Tempest Tests 25

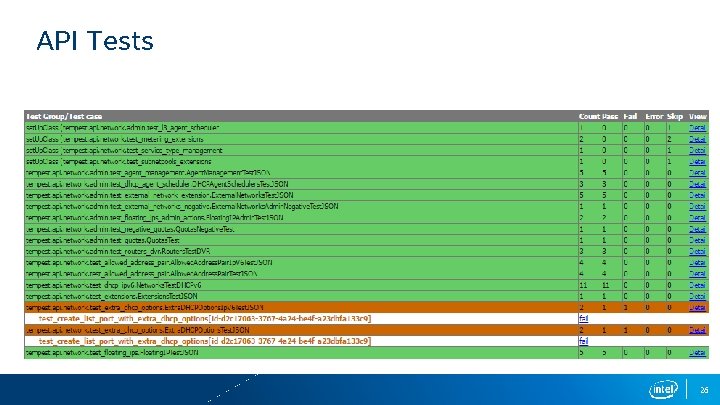

API Tests 26

Failed Test Details test_create_list_port_with_extra_dhcp_options[id-d 2 c 17063 -37674 a 24 -be 4 f-a 23 dbfa 133 c 9] 27

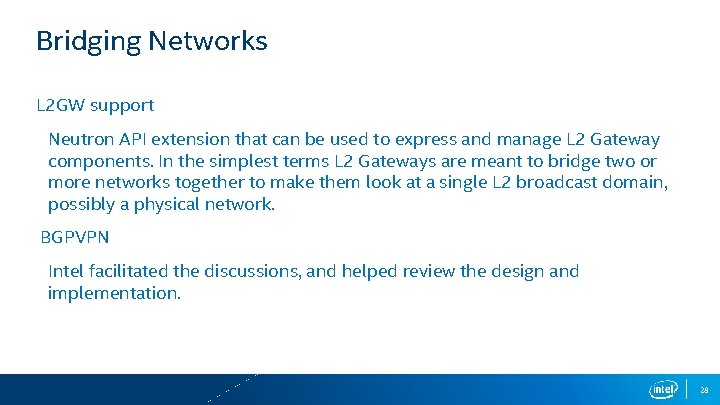

Bridging Networks L 2 GW support Neutron API extension that can be used to express and manage L 2 Gateway components. In the simplest terms L 2 Gateways are meant to bridge two or more networks together to make them look at a single L 2 broadcast domain, possibly a physical network. BGPVPN Intel facilitated the discussions, and helped review the design and implementation. 28

Future – In progress • ODL HA Control Plane • ODL Lightweight testing • Scale Testing – using docker containers Scale Data Plane • Reduce hardware needs, • Ease automation • Enhance coverage - HA/DVR/Rally/Tempest/OVS/Linux. Bridge • Generic Port Binding • Qo. S support in ODL 29

Summary OS Mitaka + ODL Be Neutron HA Increased testing Bug fixes galore External Network access GIVE IT A SPIN!!! Stability, Scalability, Feature Parity, Security, Performance 30

References https: //www. opendaylight. org/use-cases/ http: //git. openstack. org/openstack/neutron-lbaas https: //git. openstack. org/openstack/networking-odl light weight testing: https: //review. openstack. org/#/c/225037/24 https: //www. youtube. com/watch? v=l 7 QRO 2 GU 9 P 8 http: //docs. openstack. org/developer/ networking-l 2 gw/ http: //docs. openstack. org/developer/networking-bgpvpn/ https: //wiki. opendaylight. org/images/8/8 d/Experiences_with_Neutron. pdf http: //www. slideshare. net/mirantis/openstack-architecture-43160012
