Open Research and Future Standard Opportunities The First

Open Research and Future Standard Opportunities The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

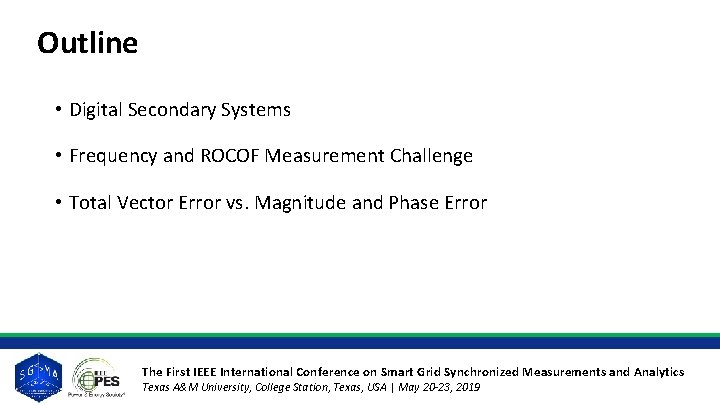

Outline • Digital Secondary Systems • Frequency and ROCOF Measurement Challenge • Total Vector Error vs. Magnitude and Phase Error The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Synchrophasor Considerations for Digital Secondary Systems Veselin Skendzic Schweitzer Engineering Laboratories The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Remember When… The World Used to be Analog? • People answered the phone • Vinyl records ruled the world • Tape recorders were cool • Amplifiers were linear • Movies were not compressed The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Digital Secondary Systems Promise to: • Consolidate large amounts of data over a few fibers • Reduce expensive copper connections • Improve substation EMC performance • Improve accuracy (reduced CT burden) • Improve safety (fiber based LPITs) • Reduce operating cost The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

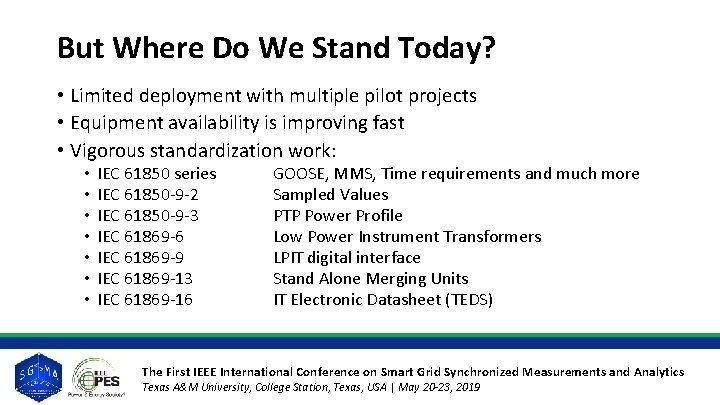

But Where Do We Stand Today? • Limited deployment with multiple pilot projects • Equipment availability is improving fast • Vigorous standardization work: • • IEC 61850 series IEC 61850 -9 -2 IEC 61850 -9 -3 IEC 61869 -6 IEC 61869 -9 IEC 61869 -13 IEC 61869 -16 GOOSE, MMS, Time requirements and much more Sampled Values PTP Power Profile Low Power Instrument Transformers LPIT digital interface Stand Alone Merging Units IT Electronic Datasheet (TEDS) The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

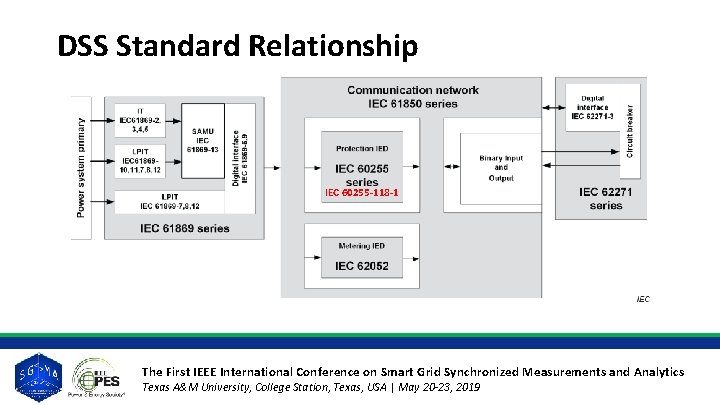

DSS Standard Relationship IEC 60255 -118 -1 The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Synchrophasors and Digital Secondary Systems • DSS system standards are built with Synchrophasors in mind • Synchrophasors inspired key DSS concepts (precise time synchronization, group delay compensation) • Network based (terrestrial) time distribution improves system reliability The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Key Mechanism Examples The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

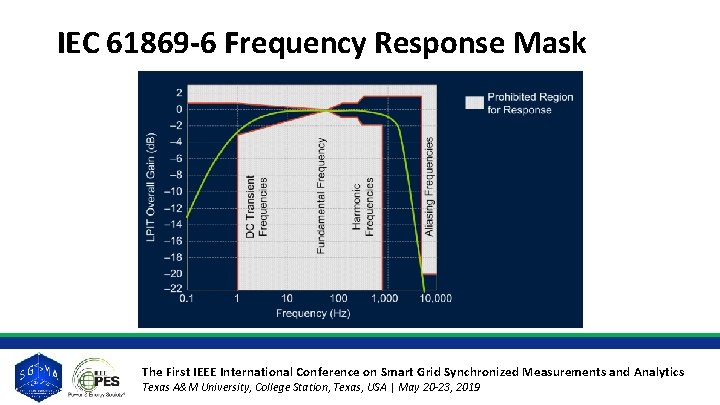

IEC 61869 -6 Frequency Response Mask The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

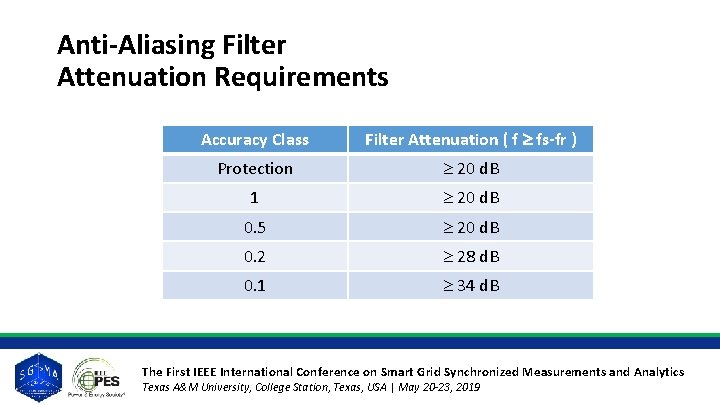

Anti-Aliasing Filter Attenuation Requirements Accuracy Class Filter Attenuation ( f fs-fr ) Protection 20 d. B 1 20 d. B 0. 5 20 d. B 0. 2 28 d. B 0. 1 34 d. B The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

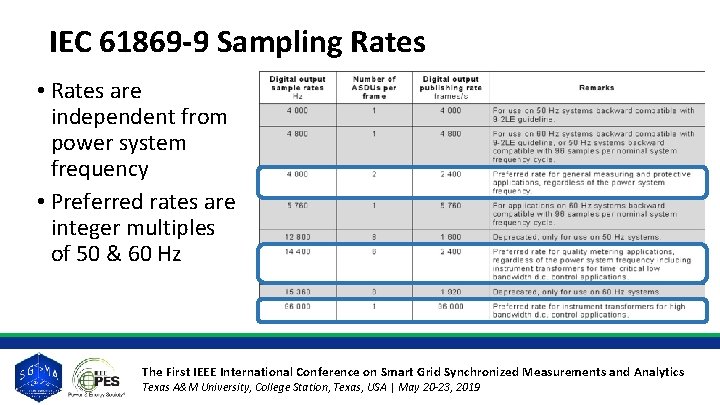

IEC 61869 -9 Sampling Rates • Rates are independent from power system frequency • Preferred rates are integer multiples of 50 & 60 Hz The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

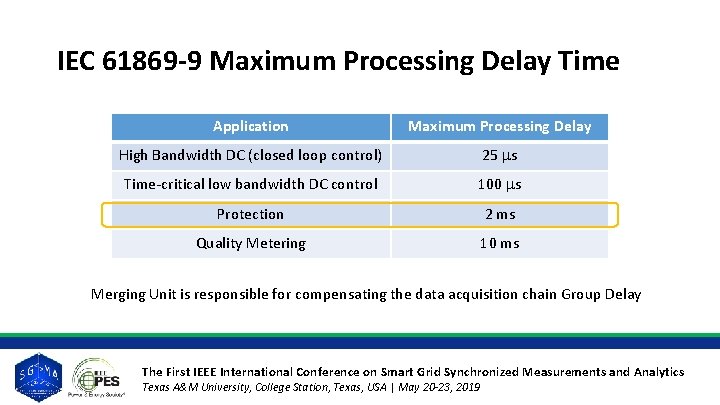

IEC 61869 -9 Maximum Processing Delay Time Application Maximum Processing Delay High Bandwidth DC (closed loop control) 25 s Time-critical low bandwidth DC control 100 s Protection 2 ms Quality Metering 10 ms Merging Unit is responsible for compensating the data acquisition chain Group Delay The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

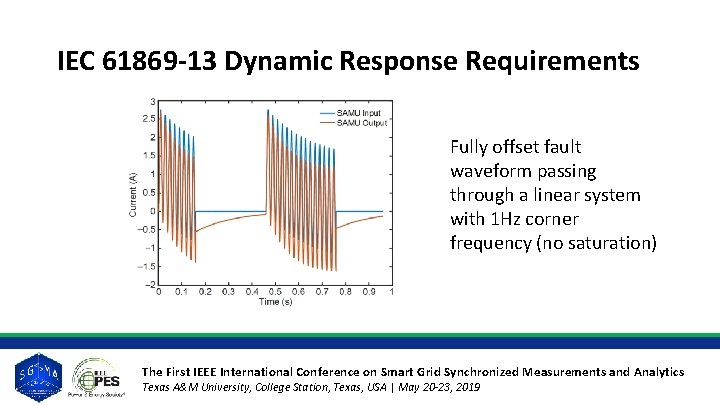

IEC 61869 -13 Dynamic Response Requirements Fully offset fault waveform passing through a linear system with 1 Hz corner frequency (no saturation) The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

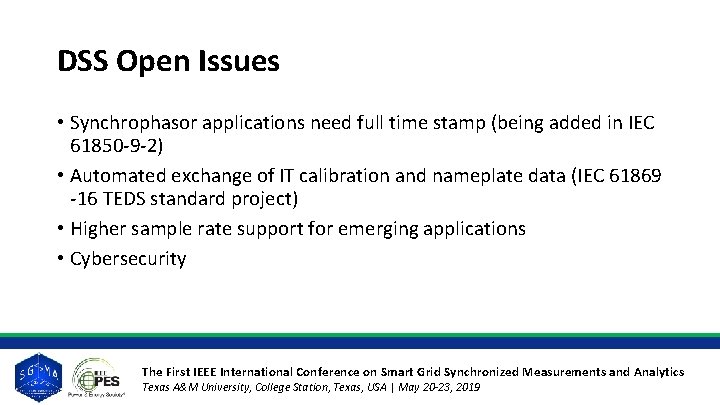

DSS Open Issues • Synchrophasor applications need full time stamp (being added in IEC 61850 -9 -2) • Automated exchange of IT calibration and nameplate data (IEC 61869 -16 TEDS standard project) • Higher sample rate support for emerging applications • Cybersecurity The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Difficulty with Frequency and ROCOF measurement Allen Goldstein NIST The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

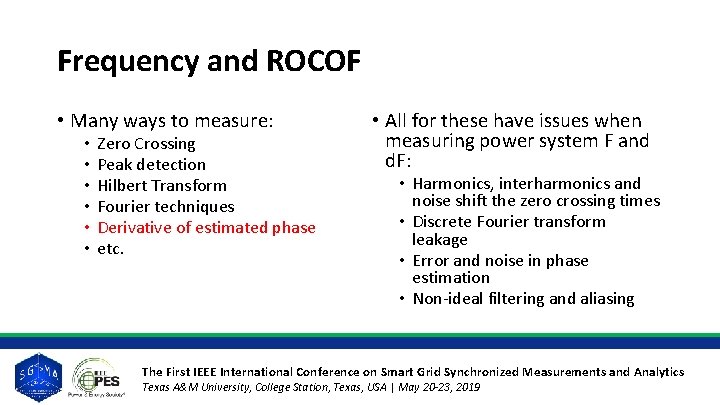

Frequency and ROCOF • Many ways to measure: • • • Zero Crossing Peak detection Hilbert Transform Fourier techniques Derivative of estimated phase etc. • All for these have issues when measuring power system F and d. F: • Harmonics, interharmonics and noise shift the zero crossing times • Discrete Fourier transform leakage • Error and noise in phase estimation • Non-ideal filtering and aliasing The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

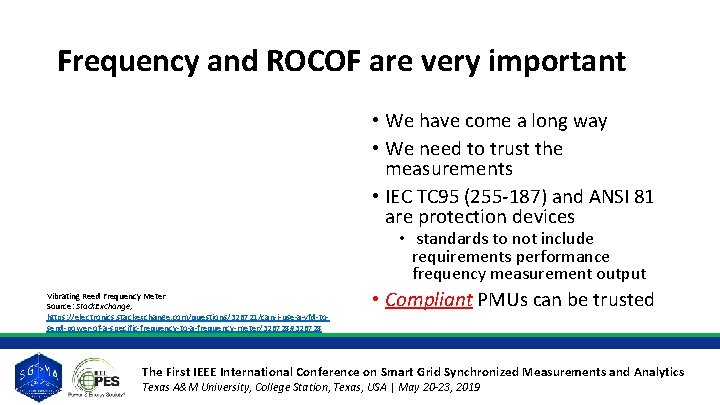

Frequency and ROCOF are very important • We have come a long way • We need to trust the measurements • IEC TC 95 (255 -187) and ANSI 81 are protection devices • standards to not include requirements performance frequency measurement output Vibrating Reed Frequency Meter Source: Stack. Exchange, https: //electronics. stackexchange. com/questions/326721/can-i-use-a-vfd-tosend-power-of-a-specific-frequency-to-a-frequency-meter/326728#326728 • Compliant PMUs can be trusted The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

Total Vector Error vs. Magnitude and Phase Error Allen Goldstein NIST The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

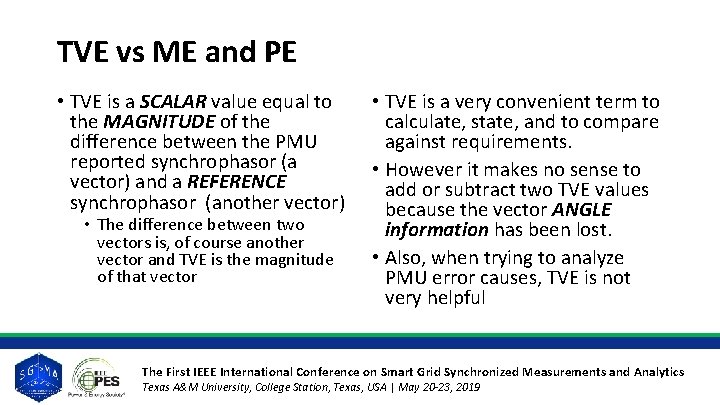

TVE vs ME and PE • TVE is a SCALAR value equal to the MAGNITUDE of the difference between the PMU reported synchrophasor (a vector) and a REFERENCE synchrophasor (another vector) • The difference between two vectors is, of course another vector and TVE is the magnitude of that vector • TVE is a very convenient term to calculate, state, and to compare against requirements. • However it makes no sense to add or subtract two TVE values because the vector ANGLE information has been lost. • Also, when trying to analyze PMU error causes, TVE is not very helpful The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

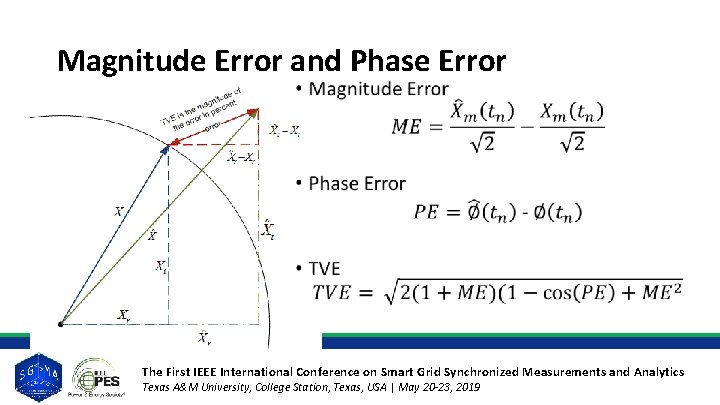

Magnitude Error and Phase Error • The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

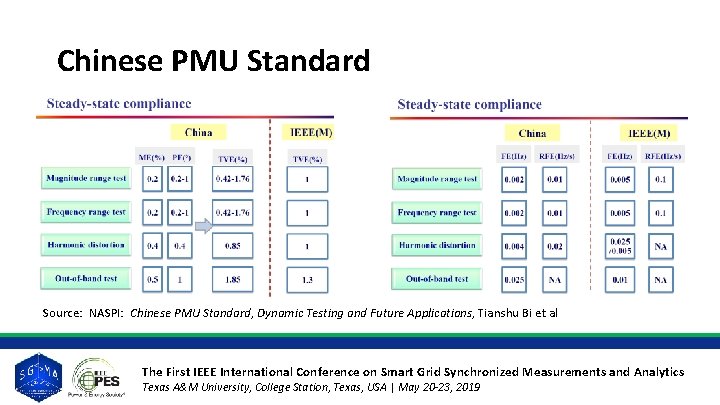

Chinese PMU Standard Source: NASPI: Chinese PMU Standard, Dynamic Testing and Future Applications, Tianshu Bi et al The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019

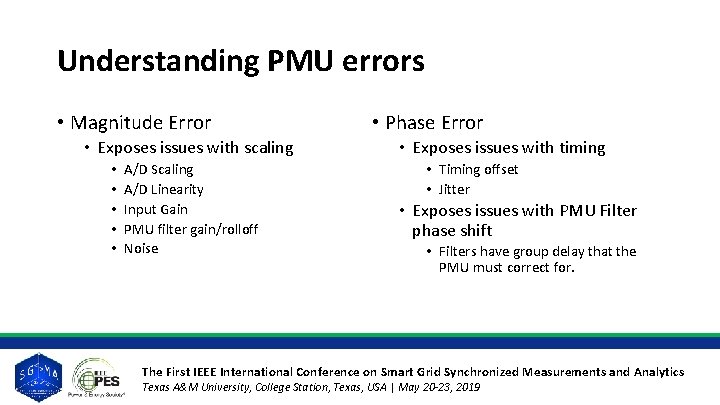

Understanding PMU errors • Magnitude Error • Exposes issues with scaling • • • A/D Scaling A/D Linearity Input Gain PMU filter gain/rolloff Noise • Phase Error • Exposes issues with timing • Timing offset • Jitter • Exposes issues with PMU Filter phase shift • Filters have group delay that the PMU must correct for. The First IEEE International Conference on Smart Grid Synchronized Measurements and Analytics Texas A&M University, College Station, Texas, USA | May 20 -23, 2019
