Open Network Automation Program(ONAP) Merging OPEN-O and ECOMP efforts (OPNFV MANO WG) Prakash Ramchandran 1

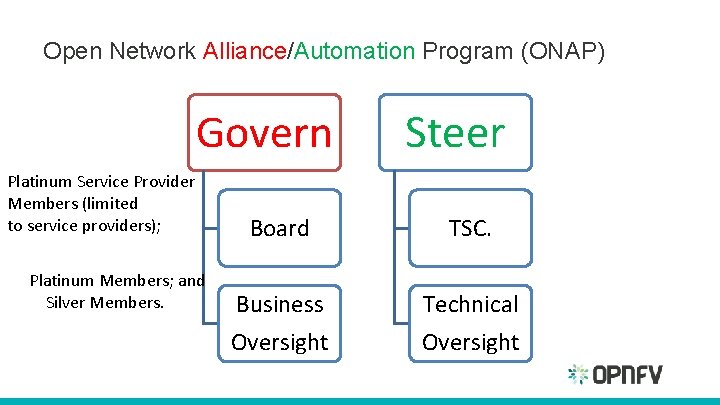

Open Network Alliance/Automation Program (ONAP) Govern Platinum Service Provider Members (limited to service providers); Platinum Members; and Silver Members. Steer Board TSC. Business Oversight Technical Oversight

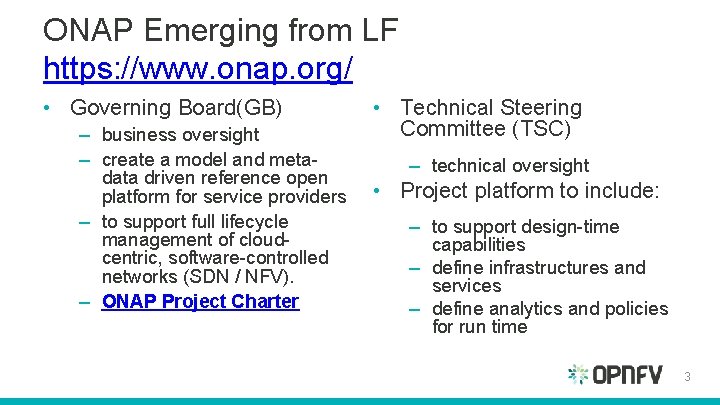

ONAP Emerging from LF https: //www. onap. org/ • Governing Board(GB) – business oversight – create a model and metadata driven reference open platform for service providers – to support full lifecycle management of cloudcentric, software-controlled networks (SDN / NFV). – ONAP Project Charter • Technical Steering Committee (TSC) – technical oversight • Project platform to include: – to support design-time capabilities – define infrastructures and services – define analytics and policies for run time 3

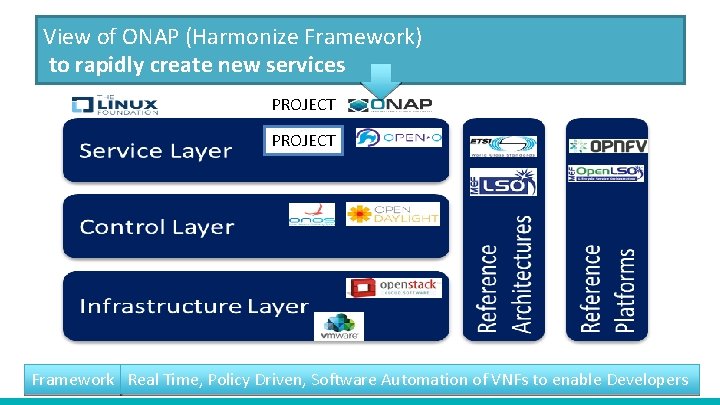

View of ONAP (Harmonize Framework) to rapidly create new services PROJECT Framework Real Time, Policy Driven, Software Automation of VNFs to enable Developers

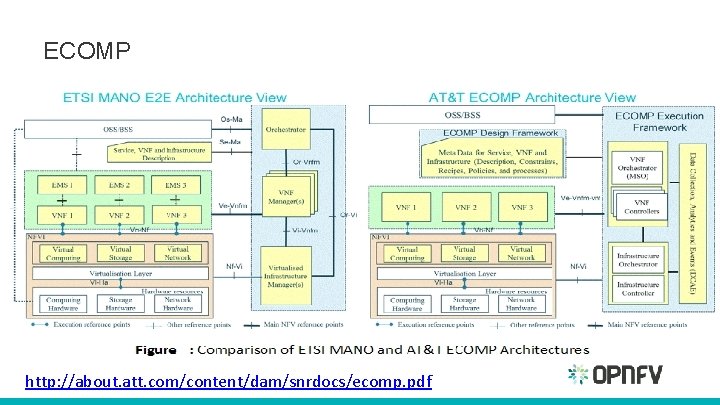

ECOMP http: //about. att. com/content/dam/snrdocs/ecomp. pdf

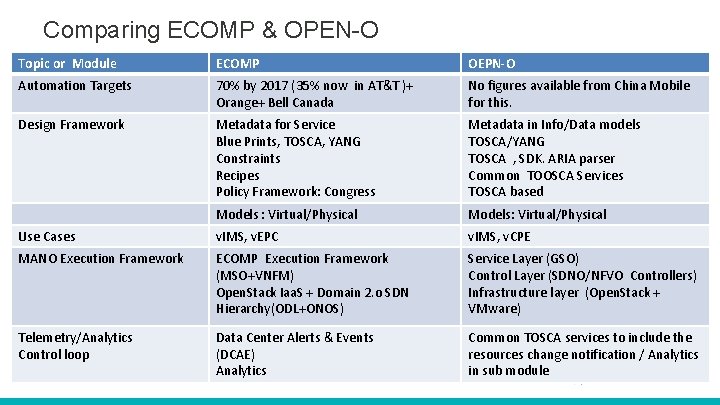

Comparing ECOMP & OPEN-O Topic or Module ECOMP OEPN-O Automation Targets 70% by 2017 (35% now in AT&T )+ Orange+ Bell Canada No figures available from China Mobile for this. Design Framework Metadata for Service Blue Prints, TOSCA, YANG Constraints Recipes Policy Framework: Congress Metadata in Info/Data models TOSCA/YANG TOSCA , SDK. ARIA parser Common TOOSCA Services TOSCA based Models : Virtual/Physical Models: Virtual/Physical Use Cases v. IMS, v. EPC v. IMS, v. CPE MANO Execution Framework ECOMP Execution Framework (MSO+VNFM) Open. Stack Iaa. S + Domain 2. o SDN Hierarchy(ODL+ONOS) Service Layer (GSO) Control Layer (SDNO/NFVO Controllers) Infrastructure layer (Open. Stack + VMware) Telemetry/Analytics Control loop Data Center Alerts & Events (DCAE) Analytics Common TOSCA services to include the resources change notification / Analytics in sub module

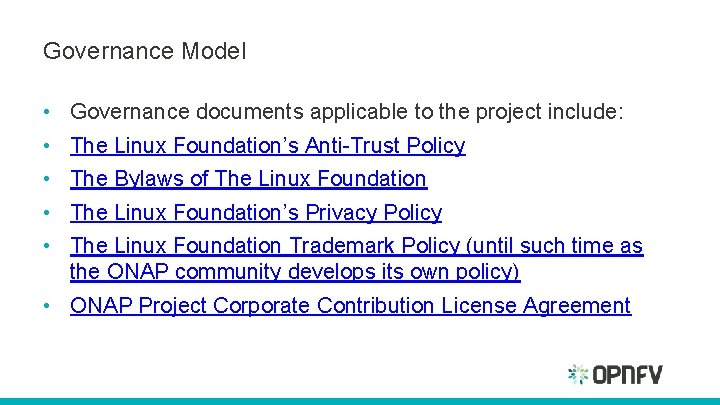

Governance Model • • • Governance documents applicable to the project include: The Linux Foundation’s Anti-Trust Policy The Bylaws of The Linux Foundation’s Privacy Policy The Linux Foundation Trademark Policy (until such time as the ONAP community develops its own policy) • ONAP Project Corporate Contribution License Agreement

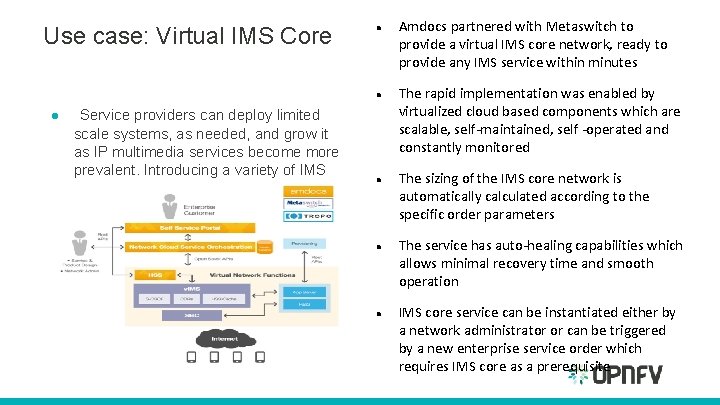

Use case: Virtual IMS Core Service providers can deploy limited scale systems, as needed, and grow it as IP multimedia services become more prevalent. Introducing a variety of IMS core services according to customers’ needs now is quicker and easier. Amdocs partnered with Metaswitch to provide a virtual IMS core network, ready to provide any IMS service within minutes The rapid implementation was enabled by virtualized cloud based components which are scalable, self-maintained, self -operated and constantly monitored The sizing of the IMS core network is automatically calculated according to the specific order parameters The service has auto-healing capabilities which allows minimal recovery time and smooth operation IMS core service can be instantiated either by a network administrator or can be triggered by a new enterprise service order which requires IMS core as a prerequisite

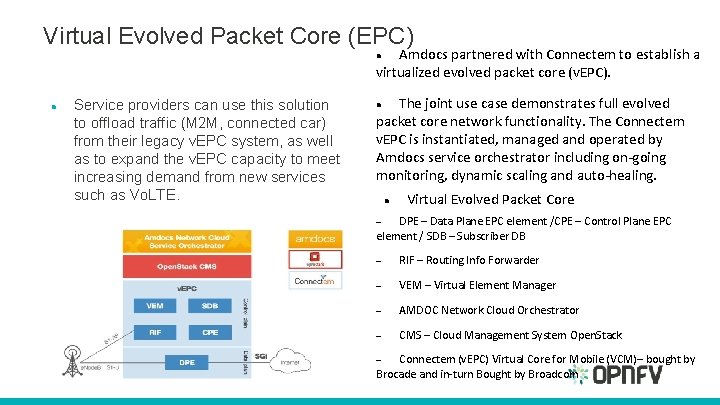

Virtual Evolved Packet Core (EPC) Amdocs partnered with Connectem to establish a virtualized evolved packet core (v. EPC). Service providers can use this solution to offload traffic (M 2 M, connected car) from their legacy v. EPC system, as well as to expand the v. EPC capacity to meet increasing demand from new services such as Vo. LTE. The joint use case demonstrates full evolved packet core network functionality. The Connectem v. EPC is instantiated, managed and operated by Amdocs service orchestrator including on-going monitoring, dynamic scaling and auto-healing. Virtual Evolved Packet Core DPE – Data Plane EPC element /CPE – Control Plane EPC element / SDB – Subscriber DB RIF – Routing Info Forwarder VEM – Virtual Element Manager AMDOC Network Cloud Orchestrator CMS – Cloud Management System Open. Stack Connectem (v. EPC) Virtual Core for Mobile (VCM)– bought by Brocade and in-turn Bought by Broadcom

OPEN-O • OPEN-O is an open source project backed by the Linux Foundation that enables telecommunications and cable operators to effectively deliver end-to- end services across Network Functions Virtualization (NFV) Infrastructure, as well as Software Defined Network (SDN) and legacy network services.

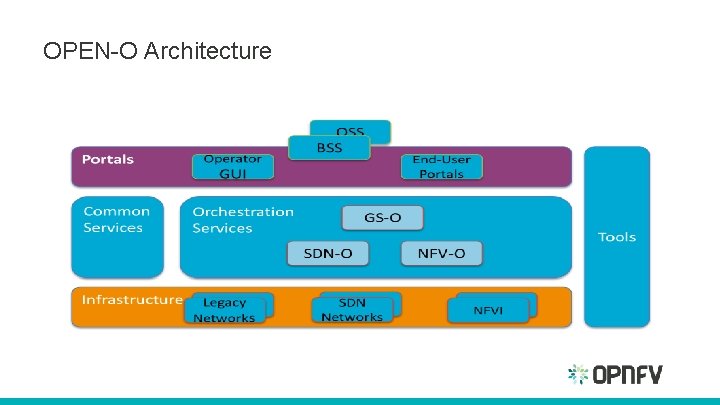

OPEN-O Architecture

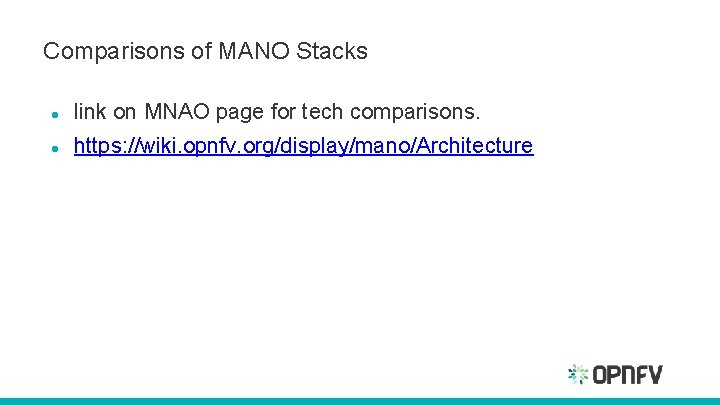

Comparisons of MANO Stacks link on MNAO page for tech comparisons. https: //wiki. opnfv. org/display/mano/Architecture

Questions & Answers? 9/9/2020 OPNFV Documentation 13

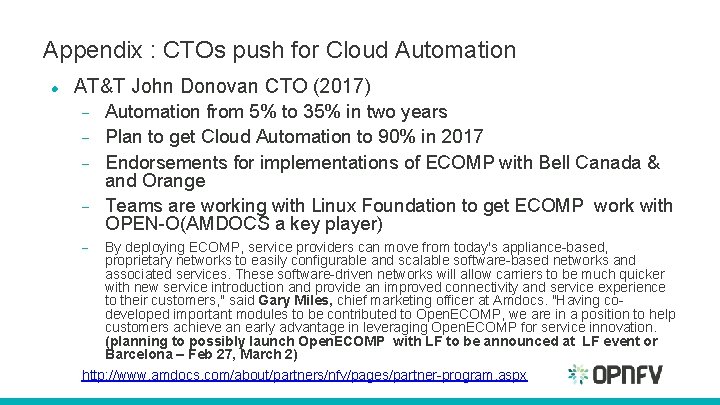

Appendix : CTOs push for Cloud Automation AT&T John Donovan CTO (2017) Automation from 5% to 35% in two years Plan to get Cloud Automation to 90% in 2017 Endorsements for implementations of ECOMP with Bell Canada & and Orange Teams are working with Linux Foundation to get ECOMP work with OPEN-O(AMDOCS a key player) By deploying ECOMP, service providers can move from today's appliance-based, proprietary networks to easily configurable and scalable software-based networks and associated services. These software-driven networks will allow carriers to be much quicker with new service introduction and provide an improved connectivity and service experience to their customers, " said Gary Miles, chief marketing officer at Amdocs. "Having codeveloped important modules to be contributed to Open. ECOMP, we are in a position to help customers achieve an early advantage in leveraging Open. ECOMP for service innovation. (planning to possibly launch Open. ECOMP with LF to be announced at LF event or Barcelona – Feb 27, March 2) http: //www. amdocs. com/about/partners/nfv/pages/partner-program. aspx
