Open Edge ABL Multitenancy Americas PUG Challenge Mary
Open. Edge ABL Multi-tenancy Americas PUG Challenge Mary Székely Open. Edge Fellow May 2012
Agenda § Introduction § Regular Tenant Programming Model § Super-tenant Programming Model § App. Server and Client-Principal § Questions 2 © 2012 Progress Software Corporation. All rights reserved.
Multi-Tenant Database § A tenant is a separate organizational entity within a multi-tenant database with • It’s own private data segment for each multi-tenant table – Except for groups and Super-tenants • One or more ABL security domains • Its own users § Each multi-tenant database user belongs to some domain and hence some type of tenant 3 © 2012 Progress Software Corporation. All rights reserved.
Multi-Tenant Users, Domains and Tenants § User logging in with no domain association • Belongs to the “blank” domain and normally has access as the “default” type of tenant § User logging in as a member of a domain that is not blank and not associated with a Super-tenant • Has access as a “regular” type of tenant § User logging in as a member of a domain that is associated with a “super” tenant • Is not a normal tenant user because he has no data segments of his own but can get temporary access to regular tenant data. 4 © 2012 Progress Software Corporation. All rights reserved.
Multi-Tenant Database Users Access to Tenants § All users can access non-Multi-tenant (shared ) data as usual. • Schema tables and temp-tables are always shared § Regular tenant users and Default tenant users • Can access the private data segments of multi-tenant tables owned by that tenant – Access is subject to the user’s normal access rights • Cannot access the private segments of any other tenants § Super-tenant users • Cannot access regular tenant data unless the Super-tenant user uses new ABL language elements – New SET-EFFECTIVE-TENANT and TENANT-WHERE constructs allow temporary access to regular tenant data – Access is still subject to the Super-tenant user’s normal access rights 5 © 2012 Progress Software Corporation. All rights reserved.

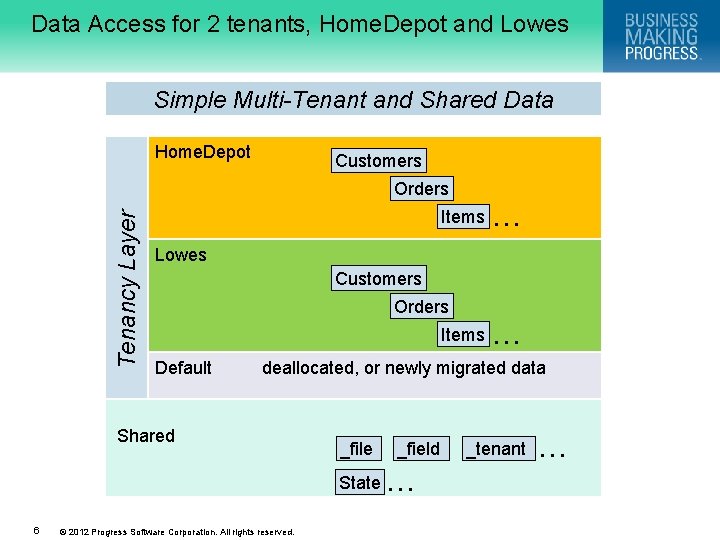

Data Access for 2 tenants, Home. Depot and Lowes Simple Multi-Tenant and Shared Data Home. Depot Customers Tenancy Layer Orders Items Lowes Customers Orders Items Default … deallocated, or newly migrated data Shared _file State 6 … © 2012 Progress Software Corporation. All rights reserved. _field … _tenant …
Meta Schema for Domains and Tenants in the database § An Open. Edge Tool creates a Tenant by providing: • A record in the _tenant schema table • A related record in the _sec-authentication-domain • New in 11. 1, the _sec_authentication-system table can have user ABL. p or. cls authentication plugins _sec-authentication-system _oeusertable (_user) appauth Applugin. p _sec-authentication-domain | “” “” |_oeusertable| Default Home. Depot | access-cd | appauth Lowes 7 | access-cd | appauth © 2012 Progress Software Corporation. All rights reserved. |Home. Depot | Lowes _tenant Default | 0 Home. Depot | 1 Lowes | 2
Users Are Granted Access to Tenants by Domains Suzi Home. Depot Allen Home. Depot Cat Home. Depot Rich Lowes John Lowes Claudio Lowes Louie Lowes Domains name Home. Depot tenant Customers Home. Depot name tenant Lowes name tenant blank Default edward james Data Orders Tenancy Layer Users © 2012 Progress Software Corporation. All rights reserved. … Lowes Customers Orders Items … Default deallocated or migrated data Shared _file state 8 Items _field … _tenant …
Using a CLIENT-PRINCIPAL to get to a Domain § The CLIENT-PRINCIPAL is an ABL built-in object with methods similar to SETUSERID § Getting a domain using SETUSERID (obsolete): IF NOT SETUSERID(“rich@homedepot”, encoded_password) THEN error… § Getting the same domain using CLIENT-PRINCIPAL: CREATE CLIENT-PRINCIPAL h. CP: INITIALIZE(“rich@homedepot”, ? , encoded_password). IF NOT SET-DB-CLIENT(h. CP, dbname) THEN error… § SEAL the CLIENT-PRINCIPAL or NOT? ? 9 © 2012 Progress Software Corporation. All rights reserved.
11. x uses CLIENT-PRINCIPALs to Manage Users and their access to Tenant data § BEST security • Use SET-DB-CLIENT() or SECURITY-POLICY: SET-CLIENT() • 11. 1+ : configurable server-side ABL plug-in which results in a sealed CLIENT-PRINCIPAL with no domain access code outside database • 11. 0+: configurable _USER and _OSlocal plug-in § BETTER security • Use SET-DB-CLIENT() or SECURITY-POLICY: SET-CLIENT() • Client ABL creates/seals CLIENT-PRINCIPAL and SSO to database • Requires secure r-code with domain access code outside database § OK security • • 10 Use SETUSERID() Not extensible – no more enhancements Continue to use in data servers (for now ) Do replace for Open. Edge 11. x RDBMS © 2012 Progress Software Corporation. All rights reserved.
Agenda § Introduction § Regular Tenant Programming Model § Super-Tenant Programming Model § App. Server and Client-Principal § Questions 11 © 2012 Progress Software Corporation. All rights reserved.
The same pcode and rcode can serve for all Regular tenants § No special ABL coding is required for a regular tenant user to access a multi-tenant table • Legacy code only needs recompile in version 11+ to be run as multi -tenant code by a regular tenant user § The ABL compiler does not need to know • What tenant will be executing the rcode it is compiling • Whether the rcode will be run on multi-tenant tables or not – or even on a multi-tenant enabled database or not § The ABL rcode that accesses a multi-tenant table • Is mapped at runtime to the appropriate tenant’s data segment § Each regular tenant’s ABL rcode is identical • But the data accessed is different 12 © 2012 Progress Software Corporation. All rights reserved.
Regular tenant ABL § For two tenants, Home. Depot and Lowes, you will get a different report from the same rcode FOR EACH Customer: DISPLAY Cust. Num Name. END. Customer Home Depot 13 1 Albert Hall 2 Candace Jones 3 Carrie Abrahm © 2012 Progress Software Corporation. All rights reserved. Customer Lowes 1 Fred Smith 2 Joan Adlon 3 George Holmes
Regular tenant ABL FIND FIRST Customer. /*automatically gets the right tenant*/ DISPLAY Cust. Num Name. Home 1 Albert Hall Depot Lowes 1 Fred Smith CREATE Customer. /*automatically goes to the right tenant*/ Name = “New Cust” DISPLAY Cust. Num Name. Home 4 New Cust Depot 14 © 2012 Progress Software Corporation. All rights reserved. Lowes 4 New Cust
Sequences - Multi-tenant § If the sequence is multi-tenant, it will increment independently in each tenant § For the two tenants in our hardware application, the cust. Nums from a MT sequence: • Start with 1 for each tenant • Are non-unique across tenants • Ideal for use where any join tables have the same tenancy type Customer Home Depot 1 Albert Hall 2 Candace Jones 3 Carrie Abrahm Lowes 1 Fred Smith 2 Joan Adlon 3 George Holmes 15 © 2012 Progress Software Corporation. All rights reserved.
Sequences – shared across tenants § For the same database, the cust. Num from a shared or non-multi-tenant sequence will number consecutively across tenants § The cust. Num therefore is unique across all tenants (only 1 Cust 4) § Why would you ever want this? FOR EACH Customer, EACH Order of Customer. • If the Order table is shared, then the Order. Cust. Num would be non-unique and useless (e. g. 2 Cust 4’s) unless the Cust. Num sequence is shared. 16 © 2012 Progress Software Corporation. All rights reserved. Customer Home Depot 2 Albert Hall 5 Candace Jones 6 Carrie Abrahm Lowes 1 Fred Smith 3 Joan Adlon 4 George Holmes
TENANT-ID() and TENANT-NAME() § These two functions: • Return the current session tenant Id and Name. • Take an optional Dbname parameter if there is more than one database in the session DISPLAY TENANT-NAME(). FOR EACH Customer: DISPLAY Cust. Num Name. END. Home Depot 17 Home. Depot Lowes Customer 1 Albert Hall 2 Candace Jones 3 Carrie Abrahm © 2012 Progress Software Corporation. All rights reserved. Lowes 1 Fred Smith 2 Joan Adlon 3 George Holmes
TENANT-ID() and TENANT-NAME() contd § Regular tenant code might use these two functions to: • Display the current session tenant information in a report • Populate a column in a temp-table • Populate a multi-tenant table column to make its foreign key unique § Regular tenant code may not use these two functions in a WHERE clause: /* NOT OKAY TO DO THIS!!! */ FOR EACH Customer WHERE TENANT-NAME() = “Lowes”: • The ABL already knows what tenant a regular tenant belongs to – And there is no “hidden” column in any table or index that can be used to select on in a regular tenant WHERE clause. • Because tenants are like mini-databases, it is equivalent to saying: /* NOT OKAY TO DO THIS!!! */ FOR EACH Customer WHERE DBNAME = “Sports”: 18 © 2012 Progress Software Corporation. All rights reserved.
Groups of tenants (only tables have groups) § A DB has 3 tenants, Home. Depot, Lowes. NY and Lowes. Bos § Lowes. NY and Lowes. Bos are in the same group for Items FOR EACH Item: DISPLAY Item. Num Item-Desc. END. Item Home Depot 19 2 Lawn Mower 5 Screw Driver 6 Table © 2012 Progress Software Corporation. All rights reserved. Lowes. BOS And Lowes. NY, as GROUP Lowes. Itm 1 Shovel bos 3 Extension cable bos 4 Hammer ny 7 Green Paint bos 8 Faucet ny 9 Lamp bos
Data Access for 3 tenants, Home. Depot and Lowes. Bos, Lowes. Ny and 1 Item table group Home. Depot Customers Orders Customers Tenancy Layer Lowes. Bos … Orders … … Lowes. Itm Group Items for both Lowes. Bos and Ny Default Shared 20 Orders Customers Lowes. Ny Items deallocated, or recently migrated data _file _field State © 2012 Progress Software Corporation. All rights reserved. … _tenant …
Within a Group, there is no individual tenancy inherent in each record § A user of any tenant in a group can create, read and update any row in the table that is grouped • Therefore there is no one tenant owner for a group record § BUFFER-GROUP-ID and BUFFER-GROUP-NAME functions and buffer methods provide group information for a buffer § You must use shared sequences for unique indexes with groups Item Lowes. BOS And Lowes. NY, as GROUP Lowes. Itm 21 © 2012 Progress Software Corporation. All rights reserved. 1 Shovel bos 3 Extension cable bos 4 Hammer ny 7 Green Paint bos 8 Faucet ny 9 Lamp bos
Agenda § Introduction § Regular Tenant Programming Model § Super-tenant Programming Model § App. Server and Client-Principal § Questions 22 © 2012 Progress Software Corporation. All rights reserved.
Why are Super-tenants needed? § Super-tenants exist to allow housekeeping cross-tenant tasks such as • Saas administration i. e. billing, moving tenants. . • Migration from previous database versions • Utilities where simultaneous access to multiple tenant’s data is required § Super-tenants have no data of their own § Super-tenants have special ABL to allow them to: • Get access to regular tenant data • Execute legacy code 23 © 2012 Progress Software Corporation. All rights reserved.

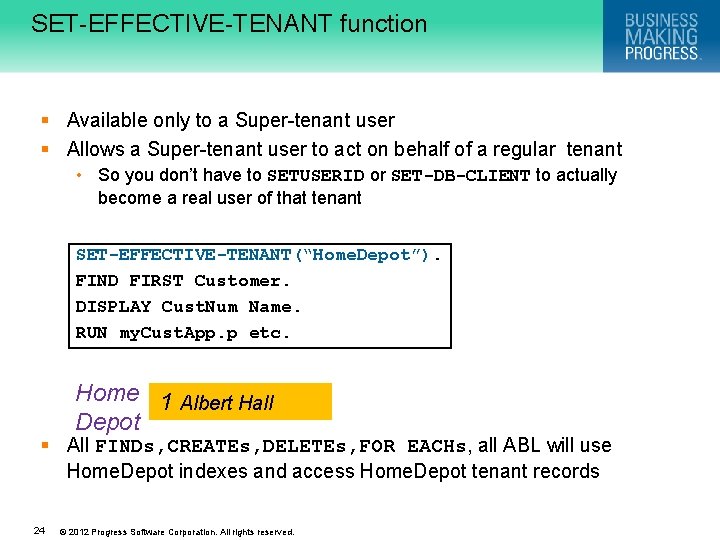

SET-EFFECTIVE-TENANT function § Available only to a Super-tenant user § Allows a Super-tenant user to act on behalf of a regular tenant • So you don’t have to SETUSERID or SET-DB-CLIENT to actually become a real user of that tenant SET-EFFECTIVE-TENANT(“Home. Depot”). FIND FIRST Customer. DISPLAY Cust. Num Name. RUN my. Cust. App. p etc. Home 1 Albert Hall Depot § All FINDs, CREATEs, DELETEs, FOR EACHs, all ABL will use Home. Depot indexes and access Home. Depot tenant records 24 © 2012 Progress Software Corporation. All rights reserved.

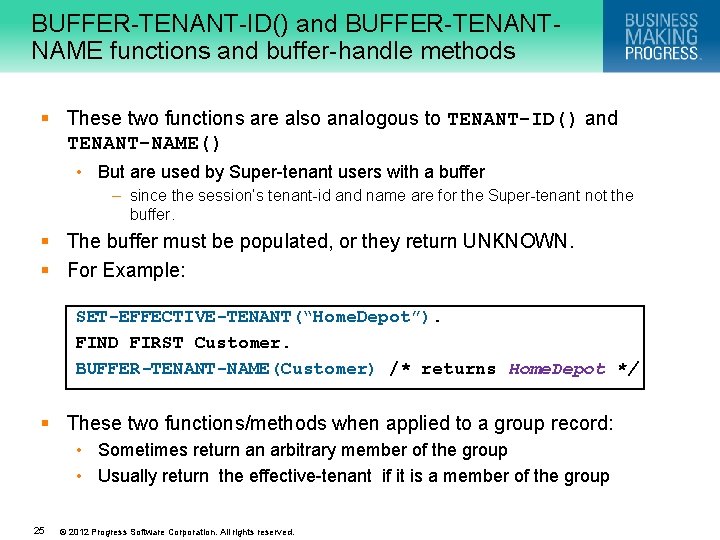

BUFFER-TENANT-ID() and BUFFER-TENANTNAME functions and buffer-handle methods § These two functions are also analogous to TENANT-ID() and TENANT-NAME() • But are used by Super-tenant users with a buffer – since the session’s tenant-id and name are for the Super-tenant not the buffer. § The buffer must be populated, or they return UNKNOWN. § For Example: SET-EFFECTIVE-TENANT(“Home. Depot”). FIND FIRST Customer. BUFFER-TENANT-NAME(Customer) /* returns Home. Depot */ § These two functions/methods when applied to a group record: • Sometimes return an arbitrary member of the group • Usually return the effective-tenant if it is a member of the group 25 © 2012 Progress Software Corporation. All rights reserved.
Using _tenant schema table to scan across tenants FOR EACH _Tenant WHERE _Tenant-Name < “M”: SET-EFFECTIVE-TENANT(_Tenant. Id). FOR EACH Customer: DISPLAY BUFFER-TENANT-ID(Cust) Cust. Num Name. RUN my. Cust. Application. p(Cust. Num). END. Home Depot Customer 1 1 Albert Hall 1 2 Candace 1 3 Carrie Lowes 2 1 Fred Smith 26 © 2012 Progress Software Corporation. All rights reserved. 2 2 Joan Adlon 2 3 George
Using TENANT-WHERE to scan across tenants FOR EACH Customer TENANT-WHERE TENANT-NAME() < “M”: SET-EFFECTIVE-TENANT(BUFFER-TENANT-ID(Cust)). DISPLAY BUFFER-TENANT-ID(Cust) Cust. Num Name. RUN my. Cust. Application. p(Cust. Num). END. Home Depot Customer 1 1 Albert Hall 1 2 Candace 1 3 Carrie Lowes 2 1 Fred Smith 27 © 2012 Progress Software Corporation. All rights reserved. 2 2 Joan Adlon 2 3 George
TENANT-WHERE with Sorting may be Slow § Default order is by _tenant, overrideable by using a BY phrase FOR EACH Customer TENANT-WHERE TENANT-ID() > 0 BY BUFFER-TENANT-NAME(Customer) BY Customer. Name: SET-EFFECTIVE-TENANT(BUFFER-TENANT-ID(Customer)). Etc. End. § Sorting will be slow, across all _tenants. It would be better to use the nested form which can take advantage of indexing. FOR EACH _tenant WHERE _tenant. Id > 0 BY _tenant-name: SET-EFFECTIVE-TENANT(_tenant. Id). FOR EACH Customer BY Customer. Name: Etc. END. 28 © 2012 Progress Software Corporation. All rights reserved.
TENANT-WHERE with Joins § Only 1 level of join can have the TENANT-WHERE phrase § The AVM automatically propagates the current tenancy to lower levels of join, where appropriate • So the join will contain records from the same tenant throughout the current tenant iteration FOR EACH Customer TENANT-WHERE TENANT-ID() > 0, EACH Order of Customer, EACH Order-line of Order. 29 © 2012 Progress Software Corporation. All rights reserved.
Super-tenants and Migration Multi-Tenant and Shared Data § Scenario: Home. Depot Customers • Log in as a Super-tenant user, with default effective-tenancy. Orders Items § To copy Customers from the default data segment into the correct tenant: DEFINE BUFFER b. Cust FOR Cust. FOR EACH Cust: SET-EFFECTIVE-TENANT(Cust. Ten-name). CREATE b. Cust. BUFFER-COPY Cust TO b. Cust. END. Tenancy Layer Lowes § Afterward, delete default data. Shared 30 … Customers Orders … Items Default Customers Orders Items _file _field … _tenant State © 2012 Progress Software Corporation. All rights reserved. …
Super-tenants and Migration - note: TRIGGERS DEFINE BUFFER b. Cust FOR Cust. FOR EACH Cust: CREATE b. Cust FOR TENANT(Cust. Ten-name). /*CREATE triggers? */ BUFFER-COPY Cust TO b. Cust. DELETE Cust. /*DELETE TRIGGERS may not work*/ END. BELOW IS BETTER AND SAFER IF THERE ARE TRIGGERS !! FOR EACH Cust: SET-EFFECTIVE-TENANT(Cust. Ten-name). CREATE b. Cust. /* CREATE triggers will work fine*/ BUFFER-COPY Cust TO b. Cust. SET-EFFECTIVE-TENANT(0). DELETE Cust. /* DELETE triggers will work fine*/ END. 31 © 2012 Progress Software Corporation. All rights reserved.
Super-tenant programming with groups and SKIP-GROUP-DUPLICATES FOR EACH Item TENANT-WHERE TENANT-ID() > 0: SET-EFFECTIVE-TENANT (BUFFER-TENANT-ID(Item)). DISPLAY Item. Num Item-Desc. END. § Lowes. Itm group appears twice – once for Lowes. Bos tenant and once for Lowes. NY § To skip the 2 nd Lowes. Itm group use SKIP-GROUPDUPLICATES FOR EACH Item TENANT-WHERE TENANT-ID() > 0 SKIP-GROUP-DUPLICATES: 32 © 2012 Progress Software Corporation. All rights reserved. Home. Depot 2 Lawn Mower 5 Screw Driver 6 Table Lowes. BOS And Lowes. NY, as GROUP Lowes. Itm 1 Shovel bos 3 Extension cable bos 4 Hammer ny 7 Green Paint bos 8 Faucet ny 9 Lamp bos
Agenda § Introduction § Regular Tenant Programming Model § Super-tenant Programming Model § App. Server and Client-Principal § Questions 33 © 2012 Progress Software Corporation. All rights reserved.
App. Server and Regular Multi-tenant Programming § All types of App. Servers will need to manage user logins with CLIENT-PRINCIPALS to get correct user auditing, permissions, and tenancy § Stateless, State-free and Web. Speed App. Servers in a Multitenant environment will need some form of context management of CLIENT-PRINCIPALS because • multiple appserver instances serve the same client “session” across multiple requests § State-reset, State-aware can optionally use context management to resume user logins that span connections § Everything else works normally for a regular tenant user 34 © 2012 Progress Software Corporation. All rights reserved.
Anatomy of a Context Manager § Has physical storage that • Spans OS processes • Spans multiple App. Servers • Spans App. Server starts & stops § Stores raw CLIENT-PRINCIPAL and login session id • Uses login session id as primary index § Has basic operations for • • • 35 start. User. Session (export CLIENT-PRINCIPAL under the session id) stop. User. Session (import CLIENT-PRINCIPAL using session id, delete it) restore. User. Session (import CLIENT-PRINCIPAL using session id) © 2012 Progress Software Corporation. All rights reserved.

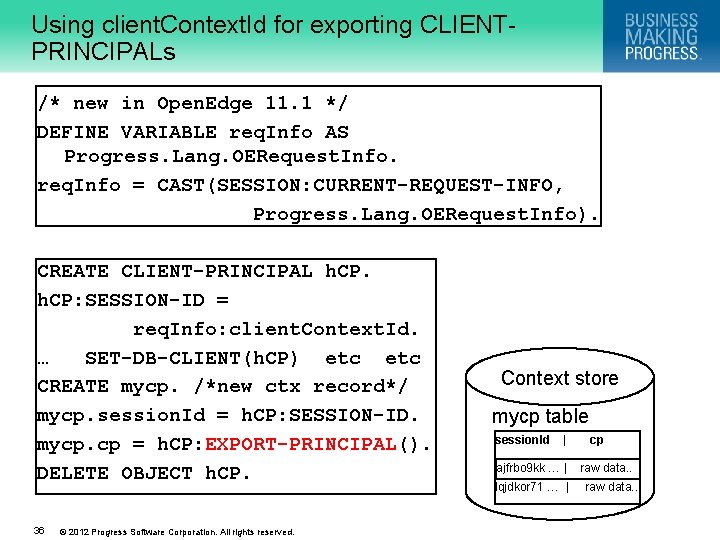

Using client. Context. Id for exporting CLIENTPRINCIPALs /* new in Open. Edge 11. 1 */ DEFINE VARIABLE req. Info AS Progress. Lang. OERequest. Info. req. Info = CAST(SESSION: CURRENT-REQUEST-INFO, Progress. Lang. OERequest. Info). CREATE CLIENT-PRINCIPAL h. CP: SESSION-ID = req. Info: client. Context. Id. … SET-DB-CLIENT(h. CP) etc CREATE mycp. /*new ctx record*/ mycp. session. Id = h. CP: SESSION-ID. mycp. cp = h. CP: EXPORT-PRINCIPAL(). DELETE OBJECT h. CP. 36 © 2012 Progress Software Corporation. All rights reserved. Context store mycp table session. Id | ajfrbo 9 kk … | lqjdkor 71 … | cp raw data. .
Using client. Context. Id for importing CLIENTPRINCIPALs /* new in Open. Edge 11. 1 */ DEFINE VARIABLE req. Info AS Progress. Lang. OERequest. Info. req. Info = CAST(SESSION: CURRENT-REQUEST-INFO, Progress. Lang. OERequest. Info). FIND mycp WHERE mycp. session. Id = req. Info: client. Context. Id NO-ERROR. IF NOT AVAILABLE mycp THEN error… CREATE CLIENT-PRINCIPAL h. CP: IMPORT-PRINCIPAL(mycp. cp). Context store Ok = SET-DB-CLIENT(h. CP). If NOT Ok THEN error… or DELETE mycp … 37 © 2012 Progress Software Corporation. All rights reserved. mycp table session. Id | ajfrbo 9 kk … | lqjdkor 71 … | cp raw data. .
App. Server context management of CLIENTPRINCIPALS and tenancy 1. App. Server startup. p procedure : – Capture/create initial database user (such as “blank”) into a CLIENTPRINCIPAL to be used later to explicitly reset tenancy to default 2. User login: connect. p or equivalent : – Create and save the CLIENT-PRINCIPAL identity context 3. User logout: disconnect. p or equivalent : – Find and delete the CLIENT-PRINCIPAL identity context 4. Start remote procedure: activate. p (no equivalent ): – Find/receive the CLIENT-PRINCIPAL identity context – Switch user identity contexts from previous to current one – May include saving the context from the previous user 5. End remote procedure: deactivate. p (no equivalent): – Do any optional context and identity cleanup such as resetting tenancy to the default one set up in startup. p NOTE: State-reset and state-aware servers do usually not need 4 and 5. Webspeed, /Web. Services/AIA do 2 and 3 without client. Context. Id 38 © 2012 Progress Software Corporation. All rights reserved.
Sample code snippet to create a CLIENTPRINCIPAL in an App. Server login. p/connect. p encrypted_pswd = “oech 1: : ” + audit-policy: encrypt-audit-mac-key(pswd). h. Serv: CONNECT(“-S nnnn –H hostname”, userid, encrypted_pswd). § The CONNECT method of the client’s SERVER object allows you to optionally pass the userid, password, and a character string to the App. Server. They become the 3 parameters to the connect. p on the App. Server. This is one of many ways to get your userid@domain and user password to the connect. p. DEFINE INPUT PARAMETER user_domain AS CHAR. DEFINE INPUT PARAMETER encryptd_pswd AS CHAR. DEFINE INPUT PARAMETER mychar AS CHAR. CREATE CLIENT-PRINCIPAL h. CP: INITIALIZE(user_domain, ? , encrypted_pswd). 39 © 2012 Progress Software Corporation. All rights reserved.
App. Server context switching automatically clears buffers and invalidates query index cursors § When App. Server (or any AVM) switches tenant context because its user is changed to be a user of a different tenant , the AVM • clears out all Multi-tenant buffers (temp-tables are not Multi-tenant) • marks all Multi-tenant index cursor scans as invalid § ABL Code to handle a db tenant context switch should proactively • clear buffers and temp-tables • close existing queries and index scans § State-aware and State-reset Appservers switch tenant context per connection • State-reset automatically clears out context § Stateless/State-free Appservers switch tenant context per request § Dangerous to use a Super-Tenant and SET-EFFECTIVETENANT on an App. Server since no automatic context clearing happens 40 © 2012 Progress Software Corporation. All rights reserved.
Questions 41 © 2012 Progress Software Corporation. All rights reserved. ?
42 © 2012 Progress Software Corporation. All rights reserved.
