Open AFS for Windows Stabilizing the Open AFS

Open. AFS for Windows Stabilizing the Open. AFS Windows client David Tanner Software Development and Integration dtanner@mit. edu

HISTORICAL NOTE • October 31, 2004 – Open. AFS 1. 2. 11 deployed to all AFS servers. • November 2, 2004 – Open. AFS servers rolled back to prior version. • January 28, 2005 – Open. AFS Windows client 1. 3. 74 deployed. • January 30, 2005 – Open. AFS 1. 2. 11 (without CBL) deployed to all Open. AFS servers. • February 1, 2005 – Open. AFS servers rolled back to prior version.

THE BIG QUESTION: WHAT DO WE DO NOW? ? !!!!! ANSWER: STABILIZE THE CLIENT!!!!!

MORE QUESTIONS What is a stable client? How do we stabilize it?

STABLE CLIENT and TESTING GOALS The client will be considered stable if it can: • Maintain continuous data streams into and out of specified AFS lockers for a specified period of time. multiple streams from a single client single locker multiple streams from a single client multiple lockers within a single volume multiple streams from a single client multiple lockers across multiple volumes. multiple streams from multiple clients single locker multiple streams from multiple clients multiple lockers within a single volume multiple streams from multiple clients multiple lockers across a multiple volumes • Maintain a continuous movement of data into and out of specified AFS lockers for a specified period of time. • Maintain a continuous movement of data between 2 different specified AFS lockers for a specified period of time.

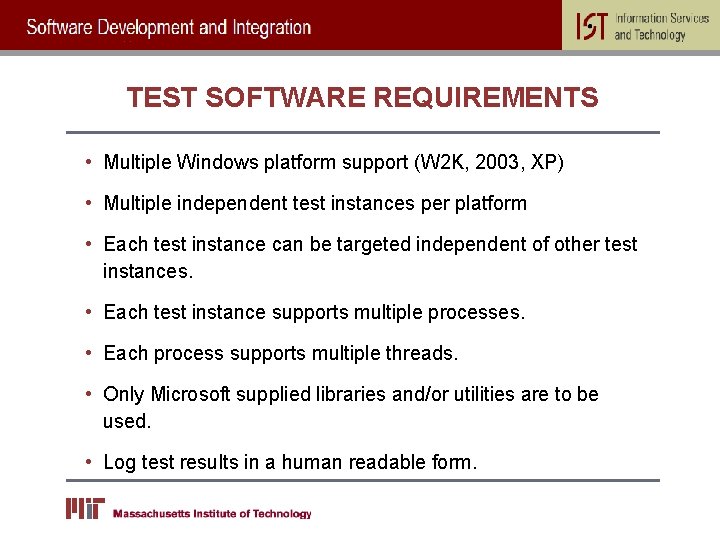

TEST SOFTWARE REQUIREMENTS • Multiple Windows platform support (W 2 K, 2003, XP) • Multiple independent test instances per platform • Each test instance can be targeted independent of other test instances. • Each test instance supports multiple processes. • Each process supports multiple threads. • Only Microsoft supplied libraries and/or utilities are to be used. • Log test results in a human readable form.

TEST SOFTWARE DEVELOPMENT • Started with a port from unix to windows of the Samba. org cifs-load-gen software. • After evaluation of the cifs-load-gen software, it was determined that software did not meet our software requirements. • cifs-load-gen was completely rewritten to meet our design needs. The logic for processing the Samba. org test scenarios (files) was retained. In particular, client_plain. txt (with some modifications) met our need for a continuous data stream.

TEST SOFTWARE DEVELOPMENT • 2 new test scenarios (files) were created. One test scenario (file) for moving data into and out of a specified AFS location. The second test scenario (file) for moving data between to different AFS locations.

TEST GOAL Maintain continuous data streams into and out of specified AFS lockers for a specified period of time.

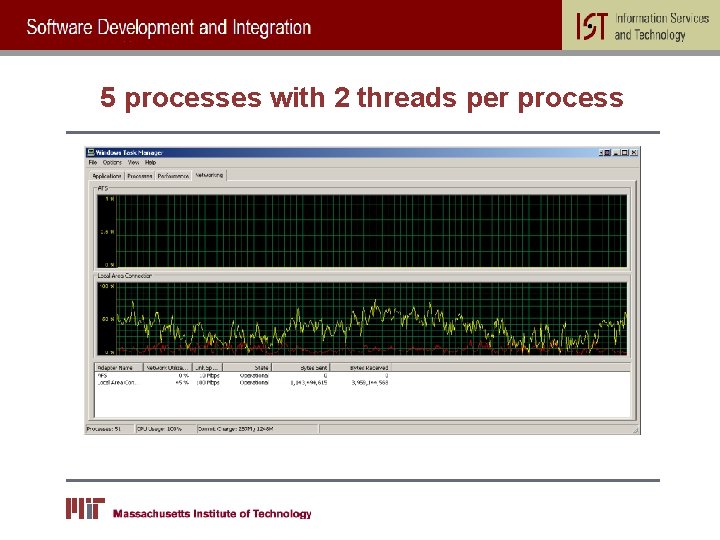

5 processes with 2 threads per process

5 processes with 2 threads per process with volume release

5 processes with 2 threads per process CPU usage

10 processes with 10 threads per process with a deadlock

Data streams into/out of an AFS location Summary

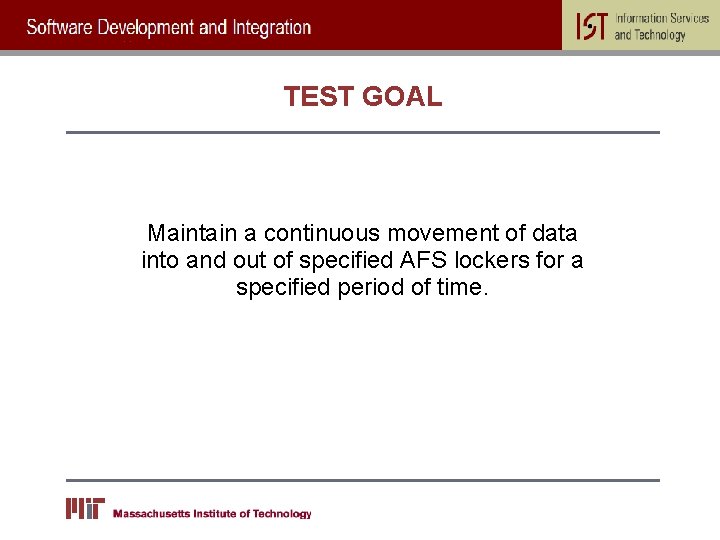

TEST GOAL Maintain a continuous movement of data into and out of specified AFS lockers for a specified period of time.

10 processes with 2 threads per process

10 processes with 2 threads per process with a volume release

10 processes with 2 threads per process CPU usage

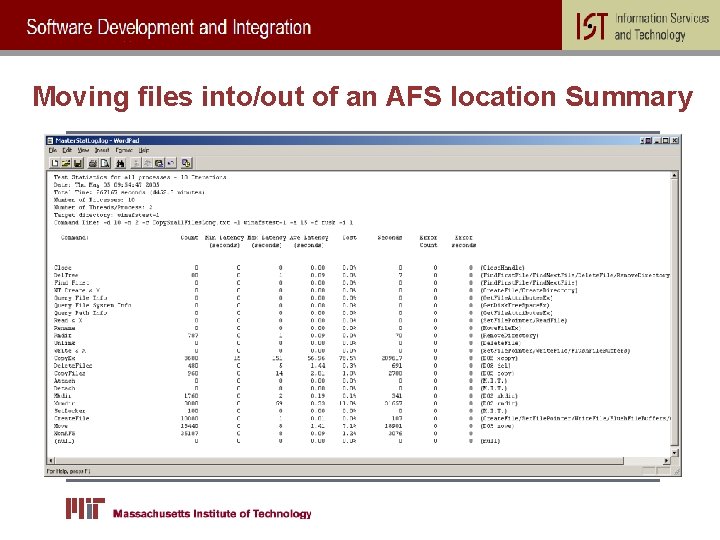

Moving files into/out of an AFS location Summary

TEST GOAL Maintain a continuous movement of data between 2 different specified AFS lockers for a specified period of time.

10 processes with 2 threads per process

10 processes with 2 threads per process with a volume release

10 processes with 2 threads per process

Moving files between AFS locations Summary

TESTING GOALS • Maintain continuous data streams into and out of specified AFS lockers for a specified period of time. • Maintain a continuous movement of data between 2 different specified AFS lockers for a specified period of time.

CURRENT STATUS OF THE WINDOWS CLIENT WORKSTATIONS: No known issues. MULTI-USER SYSTEMS: 1 known issue. Under certain conditions (yet to be identified) the client will report that a “volume is no longer available” or that a “path can no longer be found”.
