Opal Plant Overview Presented to the Wyoming Pipeline

  • Slides: 23
Download presentation
Opal Plant Overview Presented to the Wyoming Pipeline Authority March 23, 2004

Opal Plant Overview Presented to the Wyoming Pipeline Authority March 23, 2004

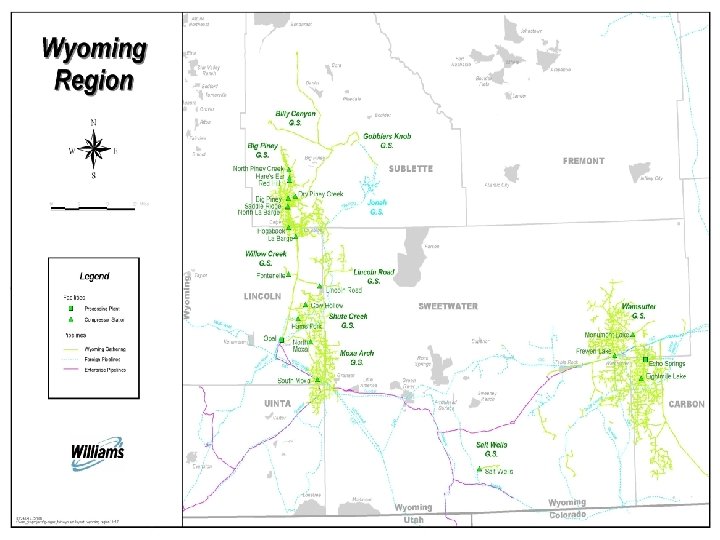

WHERE is Opal?

WHERE is Opal?

WHY is Opal Expanding? n n n Williams’ Continued Response to Market Demand Major

WHY is Opal Expanding? n n n Williams’ Continued Response to Market Demand Major Export Point for Wyoming Production Liquidity and Demand at the Opal Hub Development of the Pinedale Anticline Infill Drilling in the Jonah Field Future Development of the “Mesa” Renewed Activity in the Moxa Field Kern River 2003 Capacity Expansion Planned Expansion of Northwest P/L Availability of Take-away Capacity on MAPL Opportunity to Partner with Mt. West/Willbros

WHAT is Opal? Four Cryogenic Processing Plants: Plant Avg. capacity TXP-1 245 MMcf/d TXP-2

WHAT is Opal? Four Cryogenic Processing Plants: Plant Avg. capacity TXP-1 245 MMcf/d TXP-2 165 MMcf/d TXP-3 380 MMcf/d TXP-4 360 MMcf/d TOTAL 1, 150 MMcf/d

WHAT is Opal? The Opal Plant also Provides Blending and Dehydration Services: TXP-1, 2,

WHAT is Opal? The Opal Plant also Provides Blending and Dehydration Services: TXP-1, 2, 3 Processing (MMcf/d) 790 Blending (MMcf/d) 250 TOTAL (MMcf/d) 1, 040 New TXP-4 360 100 460 1, 150 350 1, 500 TOTAL …and 1. 0 Bcf of glycol dehydration for Jonah/Pinedale.

WHAT is Opal? Distribution of Throughput Capacity

WHAT is Opal? Distribution of Throughput Capacity

WHAT is Opal? NGL Production for Opal: Plant TXP-1 TXP-2 TXP-3 TXP-4 TOTAL Ave.

WHAT is Opal? NGL Production for Opal: Plant TXP-1 TXP-2 TXP-3 TXP-4 TOTAL Ave. Production 14, 000 bbl/d 7, 000 bbl/d 24, 000 bbl/d 11, 000 bbl/d 56, 000 bbl/d

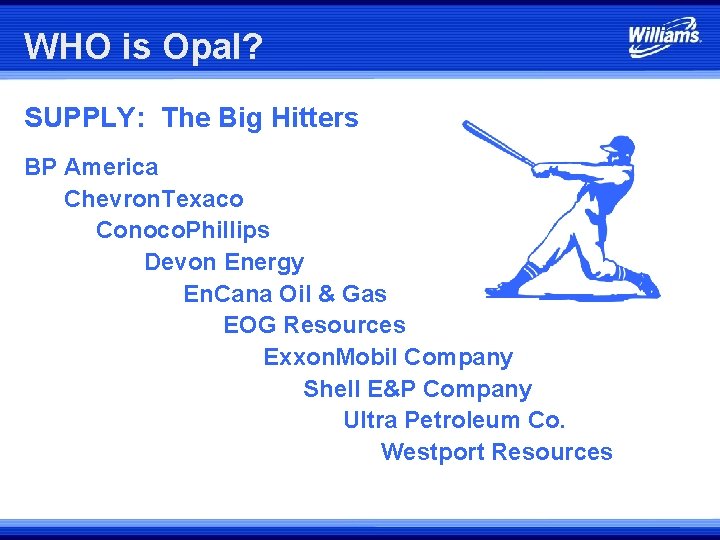

WHO is Opal? SUPPLY: The Big Hitters BP America Chevron. Texaco Conoco. Phillips Devon

WHO is Opal? SUPPLY: The Big Hitters BP America Chevron. Texaco Conoco. Phillips Devon Energy En. Cana Oil & Gas EOG Resources Exxon. Mobil Company Shell E&P Company Ultra Petroleum Co. Westport Resources

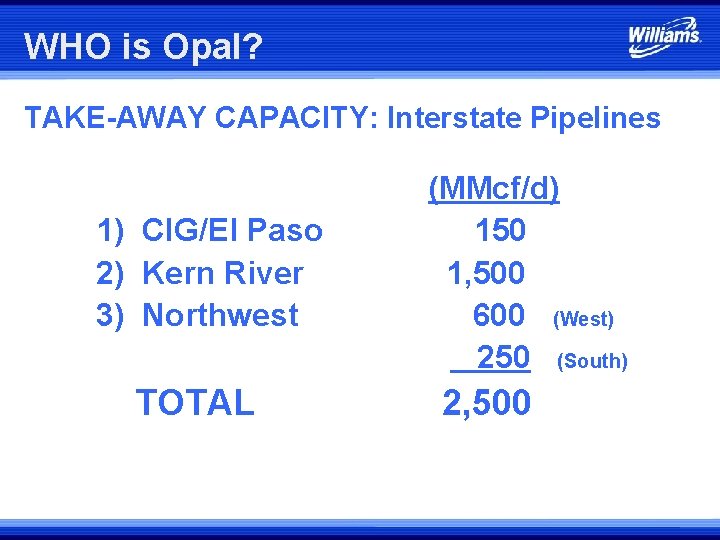

WHO is Opal? TAKE-AWAY CAPACITY: Interstate Pipelines 1) CIG/El Paso 2) Kern River 3)

WHO is Opal? TAKE-AWAY CAPACITY: Interstate Pipelines 1) CIG/El Paso 2) Kern River 3) Northwest TOTAL (MMcf/d) 150 1, 500 600 (West) 250 (South) 2, 500

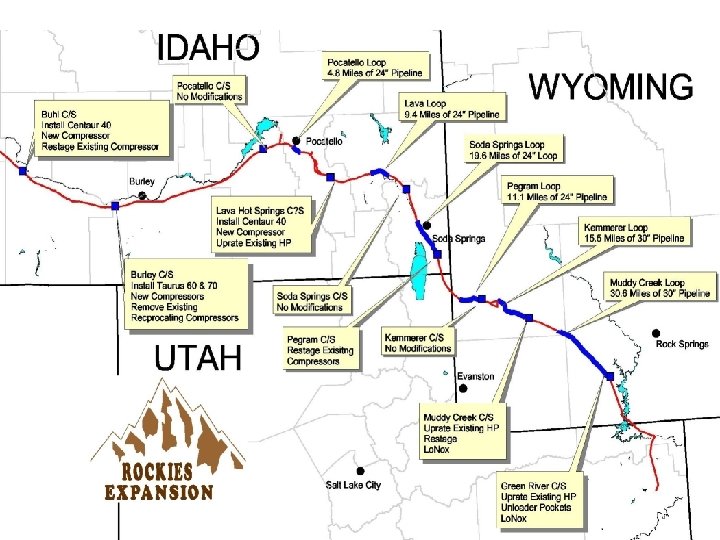

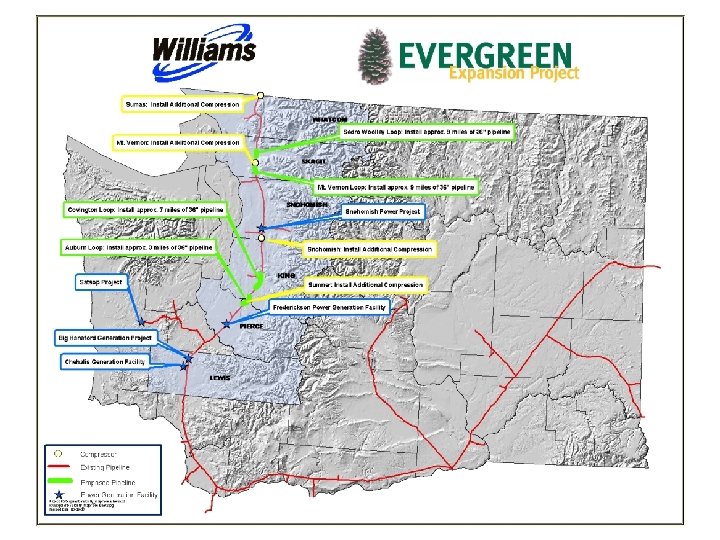

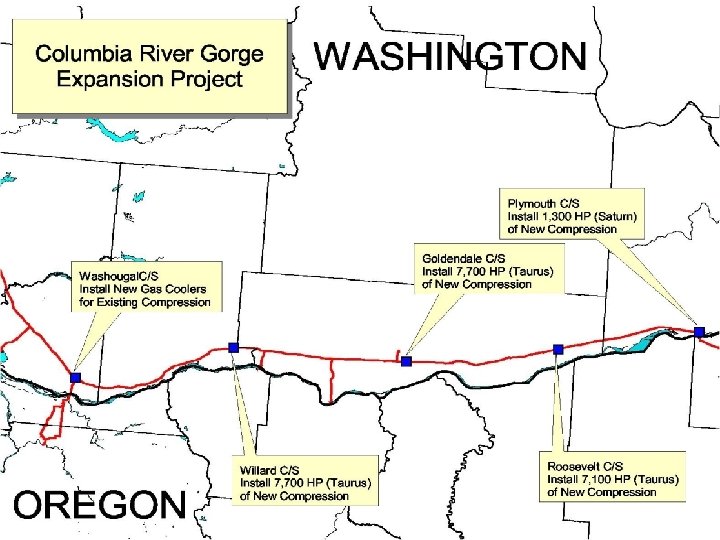

NWPL Supply Diversity

NWPL Supply Diversity

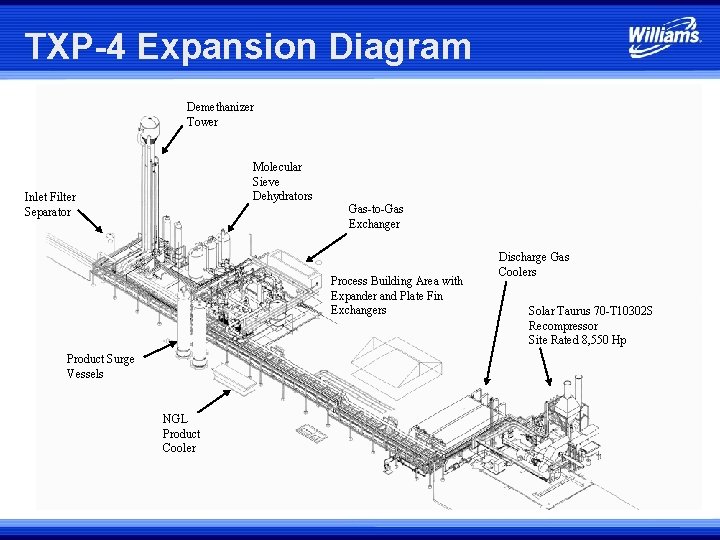

TXP-4 Expansion Diagram Demethanizer Tower Molecular Sieve Dehydrators Inlet Filter Separator Gas-to-Gas Exchanger Process

TXP-4 Expansion Diagram Demethanizer Tower Molecular Sieve Dehydrators Inlet Filter Separator Gas-to-Gas Exchanger Process Building Area with Expander and Plate Fin Exchangers Product Surge Vessels NGL Product Cooler Discharge Gas Coolers Solar Taurus 70 -T 10302 S Recompressor Site Rated 8, 550 Hp

TXP-4 Gas Processing Plant

TXP-4 Gas Processing Plant

TXP-4 Site Construction

TXP-4 Site Construction

TXP-4 Demethanizer Tower

TXP-4 Demethanizer Tower

Taurus 70 Recompressor

Taurus 70 Recompressor

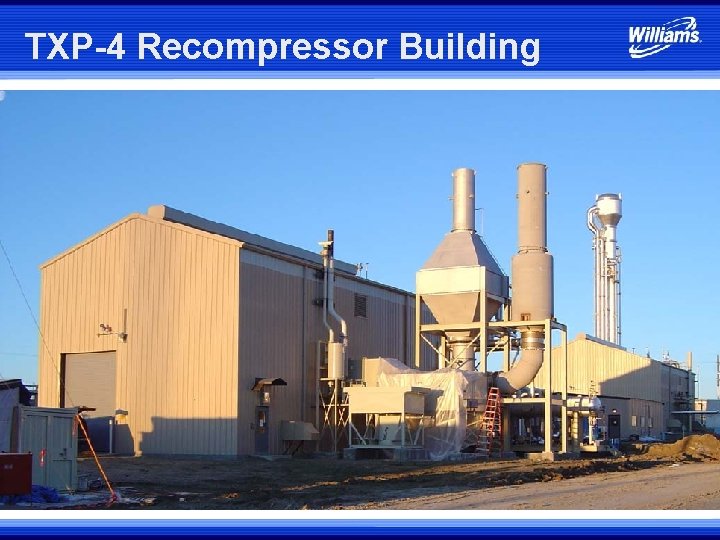

TXP-4 Recompressor Building

TXP-4 Recompressor Building

Opal Processing Plant Panorama

Opal Processing Plant Panorama

Warm Wyoming Welcome at Opal

Warm Wyoming Welcome at Opal
