OOCobol Moving between MVS and UNIX From MVS

OO-Cobol

Moving between MVS and UNIX • From MVS, use a TSO command to start a UNIX shell: TSO OMVS Or TSO ISHELL • From UNIX, use the exit command to return to MVS: exit

Logging Directly into z/OS UNIX • You can telnet directly to z/OS UNIX from a command prompt: c: > telnet 192. 86. 33. 118 • You cannot switch to TSO. You can use the TSO SHELL command to run a TSO command from your shell session • You can use the UNIX vi editor or UNIX-style commandline editing • You cannot use OEDIT to edit a file

Basic z/OS UNIX Commands • Use the change directory (cd) command to move to a specific directory: CSUP 004: /u: cd /u/csup 004 • Use the list command (ls) to list subdirectories and files in the current directory: CSUP 004: /u: ls

Basic z/OS UNIX Commands • Use the remove (rm) command to remove a file or subdirectory: CSUP 004: /u: rm myprog. java • Use a shell command (oedit) to edit or create a file: CSUP 004: /u: oedit myprog. java

Defining a Cobol Class IDENTIFICATION DIVISION. … ENVIRONMENT DIVISION. … FACTORY. (optional) … OBJECT. (optional) … END CLASS

IDENTIFICATION DIVISION Identification Division. Class-id. Account inherits Base. • Names the class you are defining • Names the immediate superclass (Java or Cobol) • Base is defined in the Repository • All classes must be derived directly or indirectly from java. lang. Object

Repository Environment Division. Configuration Section. Repository. Class Base is “java. lang. Object” Class Account is “Account”. • Connects the internal names to external class names • Base is required, Account is optional • Specify the external class name if the name contains non -Cobol characters, or any referenced class that is part of a Java package

Class Instance Data • • Define a Data Division and a Working-Storage section in the Object section to define instance data The Object section is immediately preceded by an Identification Division. Object. Data Division Working-Storage section. 01 Account. Number pic 9(6). 01 Account. Balance pic s 9(9) value zero. … End Object.

Initializing Instance Data • Initialize instance data by using value clauses • Complex instance data can be initialized by calling customized methods • Cobol instance data is equivalent to Java private nonstatic member data.

cbl dll, thread, pgmname(longmixed) Identification Division. Class-id. Account inherits Base. Environment Division. Configuration section. Repository. Class Base is "java. lang. Object" Class Account is "Account". * Identification division. Object. Data division. Working-storage section. 01 Account. Number pic 9(6). 01 Account. Balance pic S 9(9) value zero. * Procedure Division. ** (Instance method definitions here) * End Object. * End class Account.

Defining Instance Methods • Define instance methods in the Procedure Division of the Object paragraph • Each instance method has four divisions: 1) Identification – names the method 2) Environment – names the files the method uses 3) Data – defines files and creates local variables 4) Procedure – defines the executable statements that provide the service

Method – Identification Division. Method-id. “credit”.

Local Storage Section • A separate copy of Local-Storage is allocated for each invocation of the method, and is freed on return • If a value clause is coded, the item is initialized to that value on each invocation of the method

Working Storage Section • A single copy of Working-Storage is allocated. Data persists in its last-used state until the run unit ends • The same copy of data is used whenever the method is invoked, regardless of the invoking object or thread • A value clause is used to intialize a data item on the first invocation of the method

Linkage Section • This works like any linkage section to provide addressability to data outside the method

Procedure Division for Methods • Code the executable statements for a method in the Procedure Division • Compile with the THREAD option • You can code EXIT METHOD or GOBACK • If you specify RETURNING upon invocation of the method, the EXIT METHOD or GOBACK returns the value of the data item to the invoking client • There is an implicit EXIT METHOD at the end of each Procedure Division for each method • Coding STOP RUN kills the entire run unit • Code End Method for each Method body

Defining a Method Procedure Division. * Identification Division. Method-id. "get. Balance". Data division. Linkage section. 01 out. Balance pic S 9(9) binary. * Procedure Division returning out. Balance. Move Account. Balance to out. Balance. End method "get. Balance". ** (Other instance methods not shown) End Object. * End class Account.

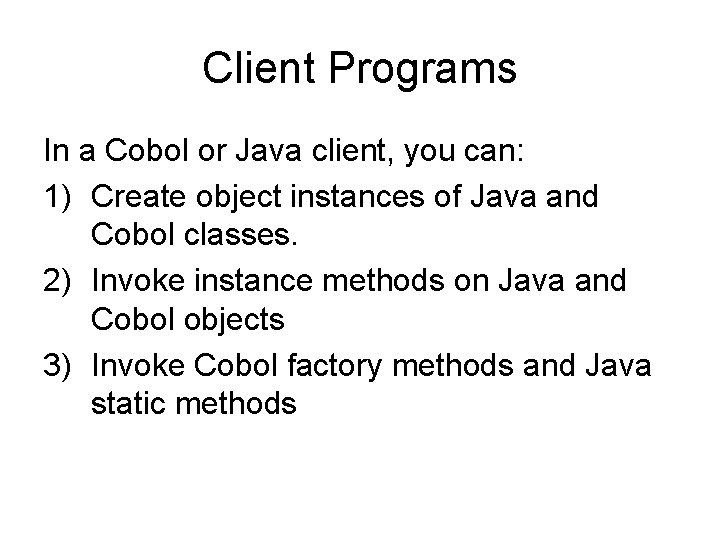

Client Programs In a Cobol or Java client, you can: 1) Create object instances of Java and Cobol classes. 2) Invoke instance methods on Java and Cobol objects 3) Invoke Cobol factory methods and Java static methods

Client Programs Each client has four divisions: 1) Identification a) Declare program RECURSIVE in the Program-Id paragraph. b) Compile with the THREAD option 2) Environment – define a repository 3) Data – define local client data 4) Procedure – create classes, manipulate objects

Client Data Division. Local-storage section. 01 an. Account usage object reference Account. 01 a. Checking. Account usage object reference. Checking. Account. 01 a. Check usage object reference Check. 01 payee usage object reference Account. • Object reference variables are like reference variables in Java • If the class name is omitted after “object reference”, the reference can point to any object and have limited interoperability with Java • You must define class-names that are used in the object reference phrase. The definitions belong in the Repository.

Comparing Object References • One way to compare object references is by coding conditional statements: If an. Account = Null … If an. Account = Nulls … • You can also invoke the JNI Is. Same. Object service: Set address of JNIEnv to JNIEnv. Ptr Set address of JNINative. Interface to JNIEnv Call Is. Same. Object Using by value JNIEnv. Ptr object 1 object 2 returning

Comparing Object References • You can also invoke the JNI Is. Same. Object service: 01 is-same Pic X. 88 is-same-false value x’ 00’. 88 is-same-true value x’ 01’ through x’FF’. Linkage Section. Copy JNI. Procedure Division. Set address of JNIEnv to JNIEnv. Ptr Set address of JNINative. Interface to JNIEnv Call Is. Same. Object Using by value JNIEnv. Ptr object 1 object 2 returning is-same If is-same-true …

Comparing Object References • Within a method, calling Is. Same. Object with SELF compares an object reference to see if it refers to the same object as the on which the method was invoked

Setting References • An object reference can be set to null: Set an. Account to Null. • An object reference can be set to another reference: Set an. Account to other. Account. • An object reference can point to the containing object: Set an. Account to SELF.

Invoking Methods • Use Invoke to execute a method: Invoke Account "create. Account" using by value 123456 returning an. Account Invoke an. Account "credit" using by value 500. • The create. Account method must be a Cobol factory method if Account is a Cobol program • Variable an. Account must be defined: 01 an. Account usage object Reference Account.

Defining a Factory • Factory methods and data are associated with the class (similar to Java static members) Identification Division. Factory. Data Division. Working-storage section. … Procedure Division. … End Factory

Compiling, Linking Cobol Classes • To compile a Cobol class: cob 2 -c -qdll, thread Accounta. cbl • To compile the Java version: javac Accounta. java • To link in the sidefiles and build a DLL: cob 2 -bdll -o lib. Accounta. so Accounta. o /u/Java 5_31/J 5. 0/bin/j 9 vm/libjvm. x /usr/lpp/cobol/lib/igzcjava. x

Java Client • To Compile: javac Actrunr. java • To execute: java Actrunr
