Online Displays for the World Publishing online status information to the web Functional requirements m. Implementation requirements m. Chosen technologies m. The publishing mechanism m. Gallery m. Problems m JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb

Functional Requirements m m Publish data from PVSS to web pages Allow users to peek on the experiment status from anywhere q Monitor subdetectors from home institutes without the need to login q Experiment status (DAQ) q Operations status q Subdetector status q … Applications are all “nice to have”, but not critical Necessary: Extract data from PVSS or any DIM service JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 2

Implementation Requirements m m Dynamic web pages Online updating displays q No full page reloads (ugly ) q Was something new (hype factor ) Architecture for the lazy developer q Minimize developments (minimize maintenance) Limit developments to q Data extractor from PVSS or other DIM services q Web pages Use comet (-like) technology q http: //cometdaily. com/maturity. html (a bit old: 2009) JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 3

Comet m m m Technology to feed data to dynamic web pages Data fan-out: one producer, many listeners q Message queuing technology q Topic oriented subscription mechanism q Publishing triggered by first subscription Data provided to web browsers by Javascript / HTML socket The technology selection is determined by the provided q Client APIs q Provided protocols Required API (main limits over technology choice) C/C++ API at the data producer side (DIM/PVSS) Xml. Http. Request objects at the client side (XHR/long poll) Web. Socket not (yet) supported on all browsers JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 4

Data Format m m m All data are strings STOMP or Openwire will internally encode the data q base 64 encoding: blobs etc. become strings Internal format (custom implementation) q timestamp # tag name # PVSS data-type id # value q timestamp currently unused q tag name used to dispatch at client side q PVSS data type used for display optimization (sprintf) q FSM special data type id q Float numbers limited to 4 significant digits Quickly changing numbers become more stable JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 5

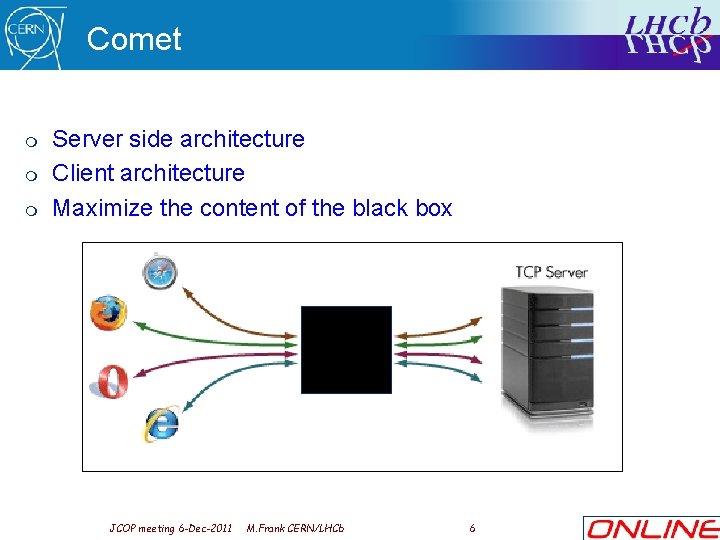

Comet m m m Server side architecture Client architecture Maximize the content of the black box JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 6

Server Architecture D I M Producer DIM server(s) Stomp JCOP meeting 6 -Dec-2011 S t o m p / M. Frank H CERN/LHCb Morbit. Q “Out of the box” 7

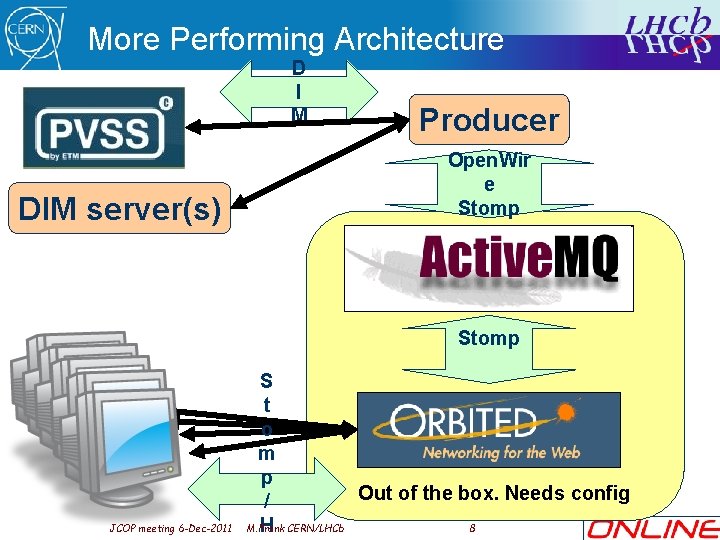

More Performing Architecture D I M DIM server(s) Producer Open. Wir e Stomp JCOP meeting 6 -Dec-2011 S t o m p Out of the box. Needs config / M. Frank 8 H CERN/LHCb

Web Publishing Mechanism m m Any PVSS Data can be published: PVSS 00 dim A small CTL scripts adds PVSS data type before publish FSM Nodes: q Special multiple item data type to support for more fancy rendering Datapoints: q All Run Control Data q LHC data, etc. Panel + Server: Clara JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 9

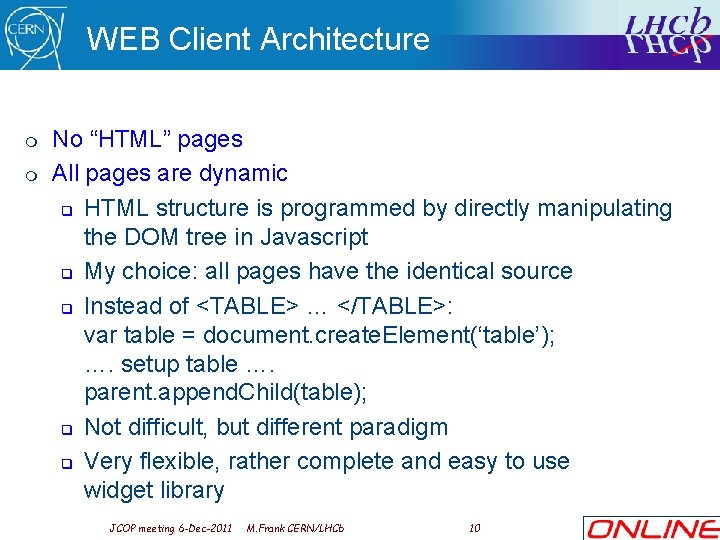

WEB Client Architecture m m No “HTML” pages All pages are dynamic q HTML structure is programmed by directly manipulating the DOM tree in Javascript q My choice: all pages have the identical source q Instead of <TABLE> … </TABLE>: var table = document. create. Element(‘table’); …. setup table …. parent. append. Child(table); q Not difficult, but different paradigm q Very flexible, rather complete and easy to use widget library JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 10

WEB Client: First Value Problem m Comet only sends updates No way to enforce sending first value at subscription time of a new client q Or me too stupid ? Chosen solution q Client sends to special topic subscription request q Producer forces update of the newly subscribed topic q Disadvantage: All clients see the update Unnecessary load JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 11

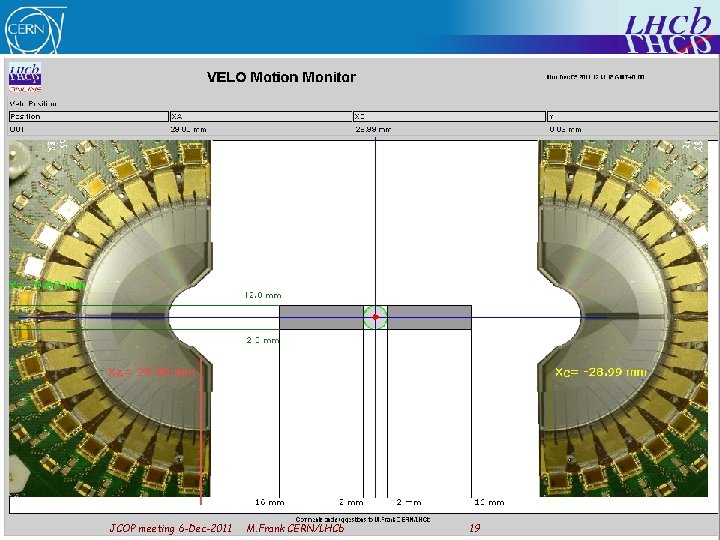

Published Pages m Web Pages Available q m http: //lbcomet. cern. ch/Online Let’s walk through the galery q Page 1 q Run Control q Experiment Control q LHC/LHCb status q Fill Status q L 0 Trigger status q Velo Motion display q Event Display q Browser based desktop JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 12

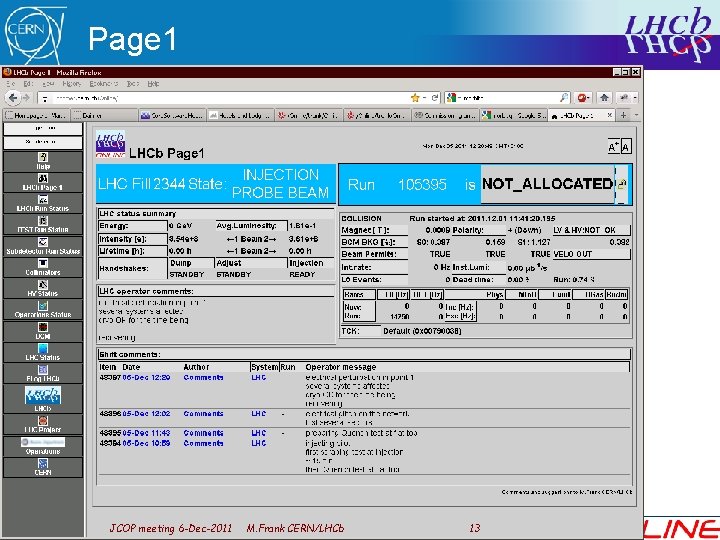

Page 1 JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 13

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 14

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 15

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 16

ORACLE PVSS WWW JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 17

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 18

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 19

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 20

Browser based desktop JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 21

Monitoring Issues m m Everything can fail Monitoring the main components helps to investigate problems AMQ q Comes with a rather comprehensive monitoring utility q Connection monitoring q Topic summary Orbited q Rather rudimentary JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 22

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 23

JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 24

Trouble and Problems m m Normally things work pretty reliable Limits seen with Orbited+Morbit. Q at LHC startup q Too many clients q Better performance after move to Active. MQ …but we have not seen these peaks anymore Low number of hundreds of clients q Typically ~50 clients q Now during shutdown ~10 No further optimization necessary so far JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 25

Trouble and Problems Web browsers going “ballistic” m About once/week during running q Less frequent during shutdown (request – related ? ) q Single browser sends connection requests with tens of Hz m AMQ closes unused file descriptors after some timeout m Number of open file descriptors explode (>1000) m We investigated a lot (connection limits/client node etc. ) but no real solution found Open FD monitored by watch dog Automated kill and restart if this happens m JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 26

Trouble and Problems m m m Never believe java/Java. Script has no memory leaks q This was a lie for Java and with web browsers and Java. Script it’s no better q References kept “somewhere” (i. e. DOM document) without remembered by user manifest the same way Firefox exploded after some time q But happens on all pages being reloaded Other browsers q IE: Leaks fixed with page reload every few hours q IE: No support for multiple connections from single through html iframes (dynamic popup windows) q Chrome: Very strict security model. But others catch up… JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 27

Summary m m m Overall experience very good Subdetector experts use the web pages quite a lot Software maintenance overhead manageable Binding to PVSS via DIM very simple Performance sufficient for 100 -200 clients Mad browsers are an annoyance JCOP meeting 6 -Dec-2011 M. Frank CERN/LHCb 28
