One step at a time: Laying the groundwork for Linked Data with URIs Sonoe Nakasone and Dawn Pearce North Carolina State University Libraries NCSU LIBRARIES
Shout outs NCSU LIBRARIES
Co-Presenter Dawn Pearce IT Support Specialist, Information Technology Department Project team member and sirsi technical lead pdpearce@ncsu. edu NCSU LIBRARIES
Teammates Lynn Whittenberger Member, monographs domain expert Lisa Madden Member, education lead NCSU LIBRARIES Jennifer Solomon Project manager Kristen Wilson Member, serials domain expert

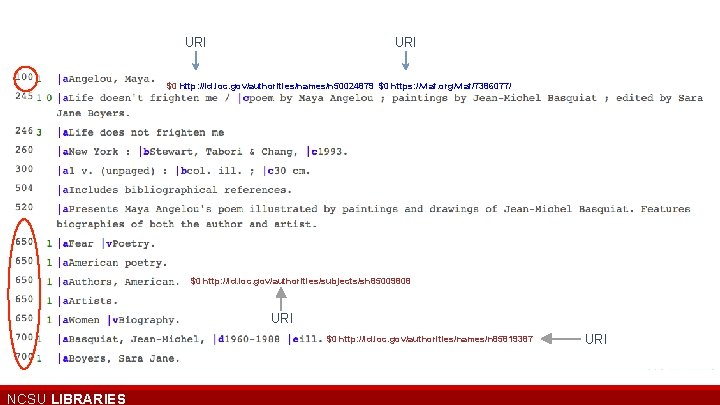

URI $0 http: //id. loc. gov/authorities/names/n 50024879 $0 https: //viaf. org/viaf/7386077/ $0 http: //id. loc. gov/authorities/subjects/sh 85009808 URI $0 http: //id. loc. gov/authorities/names/n 85819387 NCSU LIBRARIES URI
Linked Data Retrieved 1/2/2018: https: //www. w 3. org/Design. Issues/Linked. Data. html NCSU LIBRARIES
URI Uniform Resource Identifier Example of a URI: https: //www. wikidata. org/wiki/Q 270715 (Maya Angelou visits YCP! 2/4/13. [Image] York College ISLGP. Retrieved from Flickr, https: //www. flickr. com/photos/65767546@N 08/8449738207/ NCSU LIBRARIES
PCC URI Task Group Some examples. . . Columbia University: uris added to small set of records Harvard University: adding uris in small pilots Cornell University: uris added for FAST headings Stanford University: added uris for LC NAF, VIAF, and ISNI to authority records through BSLW. Plans to use BSLW’s service to add LC NAF URIs to $0 in bibliographic data as well. George Washington University: added over 4 M uris; addition of $0 and $4 integrated into daily cataloging routine PCC Task Group on URIs in MARC Year 2 report to Po. Co, October 2017: https: //www. loc. gov/aba/pcc/bibframe/Task. Groups/PCC_URI_TG_20170415_Report. pdf NCSU LIBRARIES

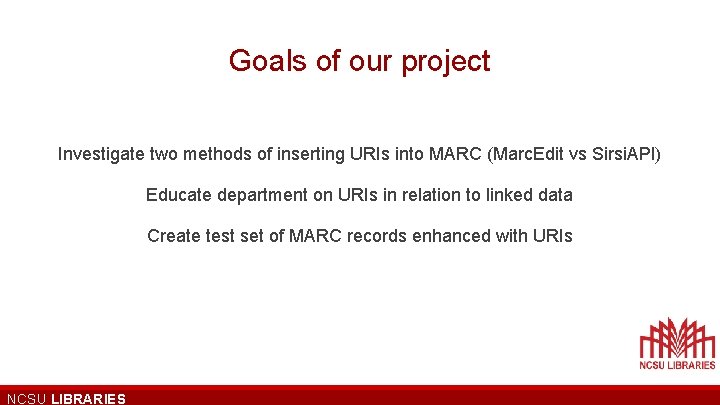

Goals of our project Investigate two methods of inserting URIs into MARC (Marc. Edit vs Sirsi. API) Educate department on URIs in relation to linked data Create test set of MARC records enhanced with URIs NCSU LIBRARIES
Goal 1: Investigation NCSU LIBRARIES
Method (Marc. Edit) The importance of identifiers in the new web environment and using the uniform resource identifier (URI) in subfield zero ($0): A small step that is actually a big step Shieh & Reese (2015) Marc. Edit MARCNext: Linked Records Tool Reese (2014) NCSU LIBRARIES
Method (SIRSI API) NCSU LIBRARIES
Personal name authority Main entry (100): Angelou, Maya uri: http: //id. loc. gov/authorities/names/n 50024879. html Added personal entry (700): Basquiat, Jean-Michel uri: http: //id. loc. gov/authorities/names/n 85819387. html Boyers, Sara Jane uri: http: //id. loc. gov/authorities/names/n 92117283. html NCSU LIBRARIES
MARC record NCSU LIBRARIES
Bibliographic requirements ❏ Authorized/validated bibliographic tag in the marc record (1 xx, 7 xx, etc) ❏ Library of Congress Control Number (LCCN) in the 010 of the authority record ❏ Marc policy setup for storing URI (usually in $0) NCSU LIBRARIES

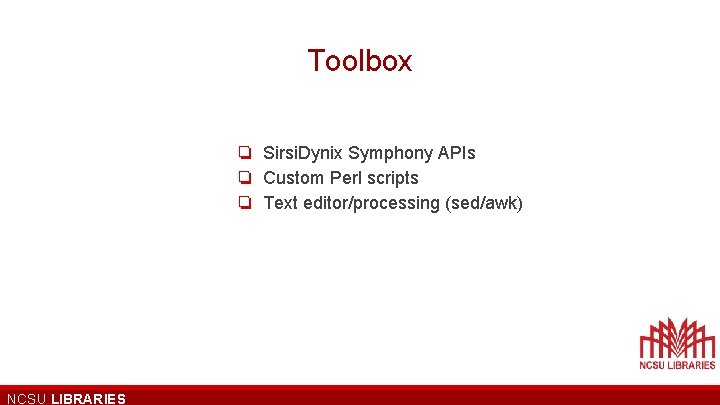

Toolbox ❏ Sirsi. Dynix Symphony APIs ❏ Custom Perl scripts ❏ Text editor/processing (sed/awk) NCSU LIBRARIES
Getting $ to make $ Perl script is used to dump authority controlled tags for processing, with authority key Bib key | Tag | Indicator | Subfields (separated by “”) Subfield “=” stores authority key (hidden link to authority record) Subfield “? ” indicates an unauthorized authority NCSU LIBRARIES
Getting $ to make $ Perl script is used to dump authority controlled tags for processing, with authority key Bib key | Tag | Indicator | Subfields (separated by “”) Subfield “=” stores authority key (hidden link to authority record) Subfield “? ” indicates an unauthorized authority NCSU LIBRARIES
Getting $ to make $ Perl script is used to dump authority controlled tags for processing, with authority key Bib key | Tag | Indicator | Subfields (separated by “”) Subfield “=” stores authority key (hidden link to authority record) Subfield “? ” indicates an unauthorized authority NCSU LIBRARIES
The authority on the matter Angelou, Maya (authkey: 49248) NCSU LIBRARIES
The authority on the matter (con’t) Basquiat, Jean-Michel (authkey: 356782) NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) Using perl, again, to get 010 from Symphony auth record, with a little extra thrown in to build the URI string. NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) Using perl, again, to get 010 from Symphony auth record, with a little extra thrown in to build the URI string. NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) Using perl, again, to get 010 from Symphony auth record, with a little extra thrown in to build the URI string. NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) Merged auth and bib files, formatted for load, including unauthorized tag. Merge file: NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) Merged auth and bib files, formatted for load, including unauthorized tag. Merge file: NCSU LIBRARIES
And. . . more $$ fields, y’all (con’t) The bibliographic record update: ● Match for update will be made with bib key (internal key in “. 1003. ”). ● Some matching for duplication does occur, but incoming must match existing tag in its entirety. ● Because no tags will match the existing tag (there’s new data!), ALL existing tags must be deleted and recreated from incoming source. ● This is why all unauthorized tags must be preserved and reloaded. NCSU LIBRARIES
Marc record: Result NCSU LIBRARIES
Findings Marc. Edit Sirsi api ● ● Tags need to be deleted then recreated Cannot process unauthorized headings Not all authority records have LCCN Only one vocabulary source for URIs NCSU LIBRARIES ● ● ● 12 hours to process ~24, 000 records Simultaneous processing possibly faster Would take 5. 5 months to process 2. 6 million records in catalog
Outcomes Goal 3: Create a set of MARC records with URIs Generated new questions Generated ideas for new projects NCSU LIBRARIES
Goal 2: Education NCSU LIBRARIES
Method NCSU LIBRARIES
Acquisitions & Discovery NCSU LIBRARIES
Outcomes Well received by our department staff Better understanding of uris and linked data Generated interest in learning more about Marc. Edit NCSU LIBRARIES
Regrets Photo by Teodor Bjerrang. https: //unsplash. com/photos/-o. GSMD 7 D NCSU LIBRARIES

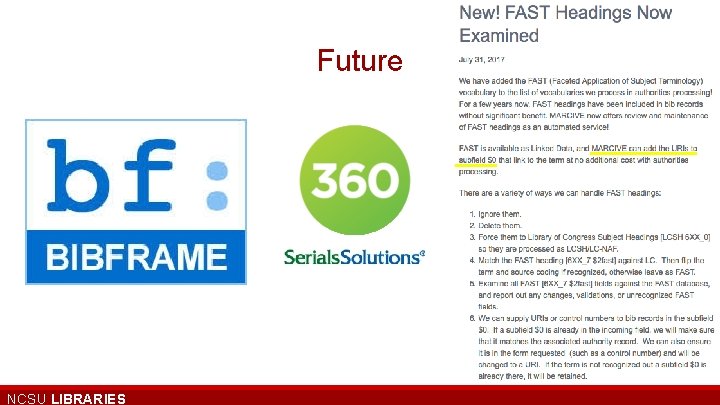

Future NCSU LIBRARIES
Thank you! Dawn Pearce pdpearce@ncsu. edu Sonoe Nakasone stnakaso@ncsu. edu NCSU LIBRARIES
